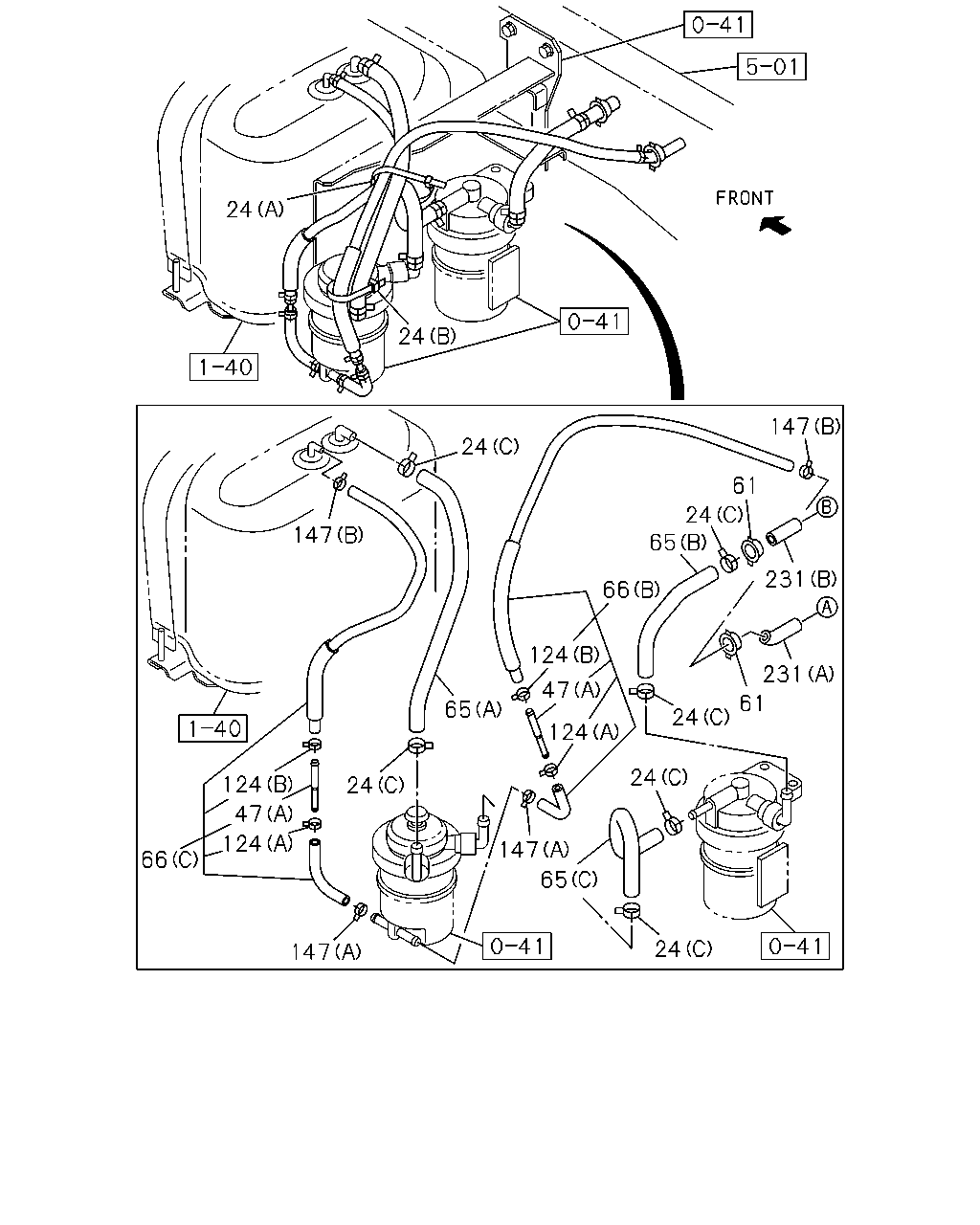

1-41 — FUEL PIPING; CHASSIS (#115362) — 111 parça

24 24 147 24 124 47 124 66 147 147 65 124 47 124 65 24 24 24 61 24 231 231 66 65 61 147 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	03.162 CLIP; FUEL HOSE 02.559 (A) L=250	5-09707-030-1	01	1	1302-
24	03.162 CLIP; FUEL HOSE (B) L=140	5-09707-031-1	01	1	1302-1308
24	03.162 CLIP; FUEL HOSE REAR WIDE TREAD(V4T) (B) L=140	5-09707-031-1	01	1	1309-1310
24	03.162 CLIP; FUEL HOSE (B) L=140	5-09707-031-1	01	1	1311-
24	03.162 CLIP; FUEL HOSE (C) ID=19	8-98150-356-0	04	1	1302-1308
24	03.162 CLIP; FUEL HOSE REAR WIDE TREAD(V4T) (C) ID=19	8-98150-356-0	04	1	1309-
24	03.162 CLIP; FUEL HOSE (C) ID=19	8-98150-356-0	06	1	1302-1308
24	03.162 CLIP; FUEL HOSE REAR WIDE TREAD(V4T) (C) ID=19	8-98150-356-0	06	1	1309-1310
24	03.162 CLIP; FUEL HOSE (C) ID=19	8-98150-356-0	06	1	1311-
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	02	1	1302-1310
47	03.163 PIPE; FUEL,RETURN (B)	8-98214-014-0	01	1	1311-
47	03.163 PIPE; FUEL,RETURN (B)	8-98214-014-0	01	1	1302-1308
47	03.163 PIPE; FUEL,RETURN REAR WIDE TREAD(V4T) (B)	8-98214-014-0	01	1	1309-1310
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	01	1	1311-1401
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	02	1	1402-
47	03.163 PIPE; FUEL,RETURN (C)	8-98214-016-1	01	1	1302-1308
47	03.163 PIPE; FUEL,RETURN REAR WIDE TREAD(V4T) (C)	8-98214-016-1	01	1	1309-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	1302-1308
61	03.162 GROMMET; PIPE TO FRAME REAR WIDE TREAD(V4T) 02.343 ID=17	8-94128-319-2	02	1	1309-1310
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	1311-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A) L=380 SERVICED BY L=3000	0-01262-300-0	01	1	1302-1308
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (A) L=380 SERVICED BY L=3000	0-01262-300-0	01	1	1309-1310
65	03.163 HOSE; FUEL,DELIVERY PIPE (A) L=380 SERVICED BY L=3000	0-01262-300-0	01	1	1311-1401
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98214-023-0	01	1	1402-
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98214-019-0	01	1	1302-1308
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (B)	8-98214-019-0	01	1	1309-1310
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98214-019-0	01	1	1311-1401
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (B)	8-98214-019-0	01	1	1402-
65	03.163 HOSE; FUEL,DELIVERY PIPE (C)	8-98214-020-0	01	1	1302-1308
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (C)	8-98214-020-0	01	1	1309-1310
65	03.163 HOSE; FUEL,DELIVERY PIPE (C)	8-98214-020-0	01	1	1311-1401
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (C)	8-98214-020-0	01	1	1402-
65	03.163 HOSE; FUEL,DELIVERY PIPE (D)	8-98214-023-0	01	1	1302-1308
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (D)	8-98214-023-0	01	1	1309-1401
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (D) L=380 SERVICED BY L=3000	0-01262-300-0	01	1	1402-
65	03.163 HOSE; FUEL,DELIVERY PIPE (E)	8-98214-024-0	01	1	1302-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1302-
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98214-021-0	01	1	1302-1308
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (B)	8-98214-021-0	01	1	1309-
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98214-022-1	01	1	1302-1308
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (C)	8-98214-022-1	01	1	1309-1310
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (C)	8-98214-022-1	01	1	1311-
124	03.162 CLIP; HOSE (A) ID=13	8-98150-357-0	02	1	1302-1310
124	03.162 CLIP; HOSE (A) ID=13	8-98150-357-0	02	1	1311-
124	03.162 CLIP; HOSE 01.240 (B) ID=12	8-98150-358-0	02	1	1302-1310
124	03.162 CLIP; HOSE 01.240 (B) ID=12	8-98150-358-0	02	1	1311-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=13	8-98150-357-0	02	1	1302-1308
147	03.162 CLIP; FUEL PIPE TO HOSE REAR WIDE TREAD(V4T) (A) ID=13	8-98150-357-0	02	1	1309-1310
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=13	8-98150-357-0	02	1	1311-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	02	1	1302-1308
147	03.162 CLIP; FUEL PIPE TO HOSE REAR WIDE TREAD(V4T) 01.240 (B) ID=12	8-98150-358-0	04	1	1309-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	04	1	1302-1308
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	1302-1308
231	03.162 RUBBER; SUPPORT,FUEL PIPE REAR WIDE TREAD(V4T) (A) OD=17 L=50	8-94157-054-1	01	1	1309-1310
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	1311-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=16.5 L=50	8-97214-235-0	01	1	1302-1308
231	03.162 RUBBER; SUPPORT,FUEL PIPE REAR WIDE TREAD(V4T) (B) OD=16.5 L=50	8-97214-235-0	01	1	1309-1310
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=16.5 L=50	8-97214-235-0	01	1	1311-

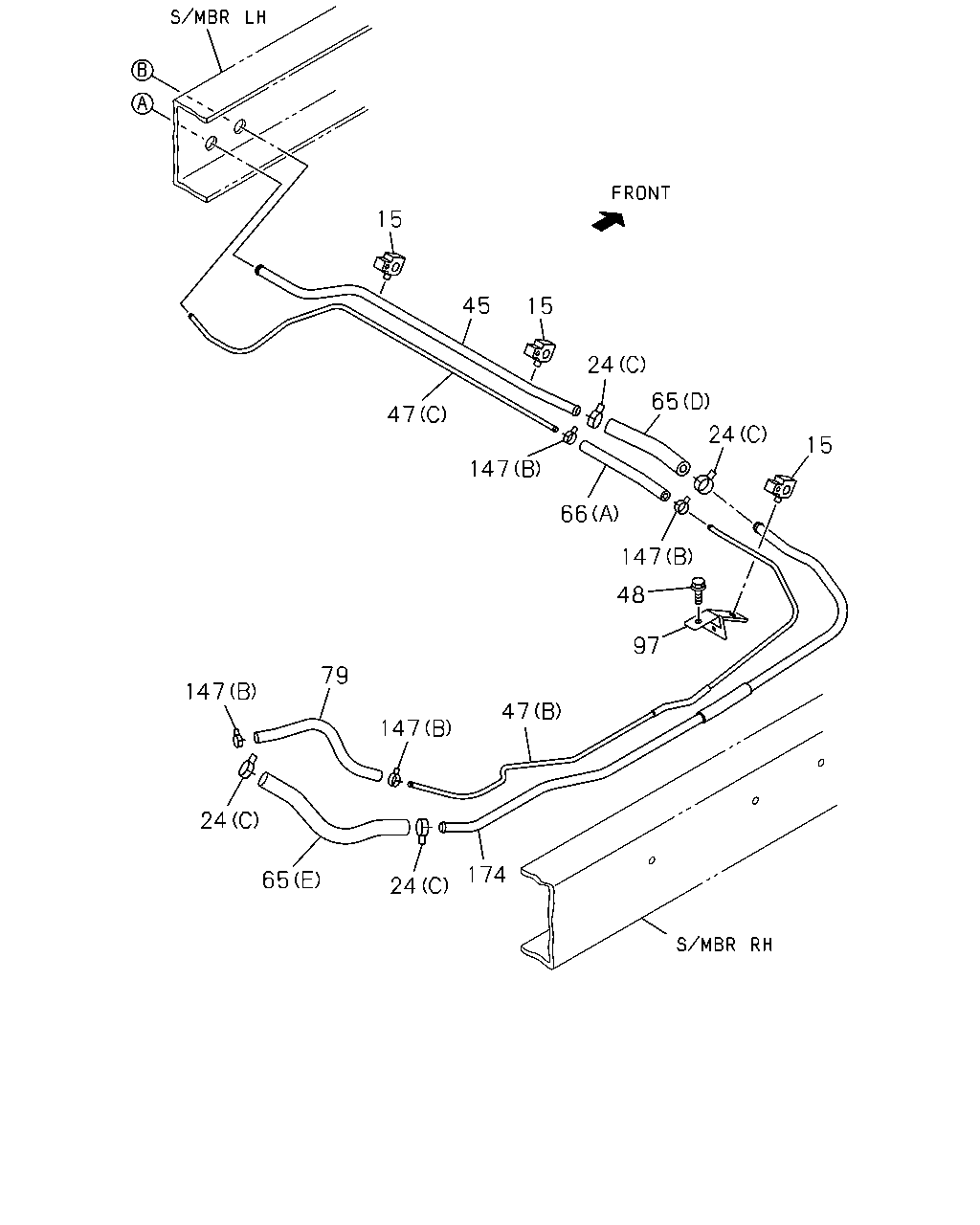

15 45 15 24 5 15 147 48 97 24 147 66 47 47 147 79 147 24 65 24 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	03	1	1302-
24	03.162 CLIP; FUEL HOSE 02.559 (A) L=250	5-09707-030-1	01	1	1302-
24	03.162 CLIP; FUEL HOSE (B) L=140	5-09707-031-1	01	1	1302-1308
24	03.162 CLIP; FUEL HOSE REAR WIDE TREAD(V4T) (B) L=140	5-09707-031-1	01	1	1309-1310
24	03.162 CLIP; FUEL HOSE (B) L=140	5-09707-031-1	01	1	1311-
24	03.162 CLIP; FUEL HOSE (C) ID=19	8-98150-356-0	04	1	1302-1308
24	03.162 CLIP; FUEL HOSE REAR WIDE TREAD(V4T) (C) ID=19	8-98150-356-0	04	1	1309-
24	03.162 CLIP; FUEL HOSE (C) ID=19	8-98150-356-0	06	1	1302-1308
24	03.162 CLIP; FUEL HOSE REAR WIDE TREAD(V4T) (C) ID=19	8-98150-356-0	06	1	1309-1310
24	03.162 CLIP; FUEL HOSE (C) ID=19	8-98150-356-0	06	1	1311-
45	03.163 PIPE; FUEL,DELIVERY	8-98214-015-0	01	1	1302-1308
45	03.163 PIPE; FUEL,DELIVERY REAR WIDE TREAD(V4T)	8-98214-015-0	01	1	1309-
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	02	1	1302-1310
47	03.163 PIPE; FUEL,RETURN (B)	8-98214-014-0	01	1	1311-
47	03.163 PIPE; FUEL,RETURN (B)	8-98214-014-0	01	1	1302-1308
47	03.163 PIPE; FUEL,RETURN REAR WIDE TREAD(V4T) (B)	8-98214-014-0	01	1	1309-1310
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	01	1	1311-1401
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	02	1	1402-
47	03.163 PIPE; FUEL,RETURN (C)	8-98214-016-1	01	1	1302-1308
47	03.163 PIPE; FUEL,RETURN REAR WIDE TREAD(V4T) (C)	8-98214-016-1	01	1	1309-
48	03.162 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1302-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A) L=380 SERVICED BY L=3000	0-01262-300-0	01	1	1302-1308
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (A) L=380 SERVICED BY L=3000	0-01262-300-0	01	1	1309-1310
65	03.163 HOSE; FUEL,DELIVERY PIPE (A) L=380 SERVICED BY L=3000	0-01262-300-0	01	1	1311-1401
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98214-023-0	01	1	1402-
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98214-019-0	01	1	1302-1308
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (B)	8-98214-019-0	01	1	1309-1310
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98214-019-0	01	1	1311-1401
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (B)	8-98214-019-0	01	1	1402-
65	03.163 HOSE; FUEL,DELIVERY PIPE (C)	8-98214-020-0	01	1	1302-1308
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (C)	8-98214-020-0	01	1	1309-1310
65	03.163 HOSE; FUEL,DELIVERY PIPE (C)	8-98214-020-0	01	1	1311-1401
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (C)	8-98214-020-0	01	1	1402-
65	03.163 HOSE; FUEL,DELIVERY PIPE (D)	8-98214-023-0	01	1	1302-1308
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (D)	8-98214-023-0	01	1	1309-1401
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (D) L=380 SERVICED BY L=3000	0-01262-300-0	01	1	1402-
65	03.163 HOSE; FUEL,DELIVERY PIPE (E)	8-98214-024-0	01	1	1302-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1302-
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98214-021-0	01	1	1302-1308
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (B)	8-98214-021-0	01	1	1309-
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98214-022-1	01	1	1302-1308
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (C)	8-98214-022-1	01	1	1309-1310
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (C)	8-98214-022-1	01	1	1311-
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=220	0-01855-300-0	01	1	1302-
97	03.162 BRACKET; CLIP 02.559	8-98019-633-0	01	1	1302-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=13	8-98150-357-0	02	1	1302-1308
147	03.162 CLIP; FUEL PIPE TO HOSE REAR WIDE TREAD(V4T) (A) ID=13	8-98150-357-0	02	1	1309-1310
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=13	8-98150-357-0	02	1	1311-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	02	1	1302-1308
147	03.162 CLIP; FUEL PIPE TO HOSE REAR WIDE TREAD(V4T) 01.240 (B) ID=12	8-98150-358-0	04	1	1309-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	04	1	1302-1308
174	03.163 PIPE; FUEL,FEED,FRT	8-98214-013-1	01	1	1302-1308
174	03.163 PIPE; FUEL,FEED,FRT REAR WIDE TREAD(V4T)	8-98214-013-1	01	1	1309-
