Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11534 - CYJ RHD EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#115361) — 21 parça
◀

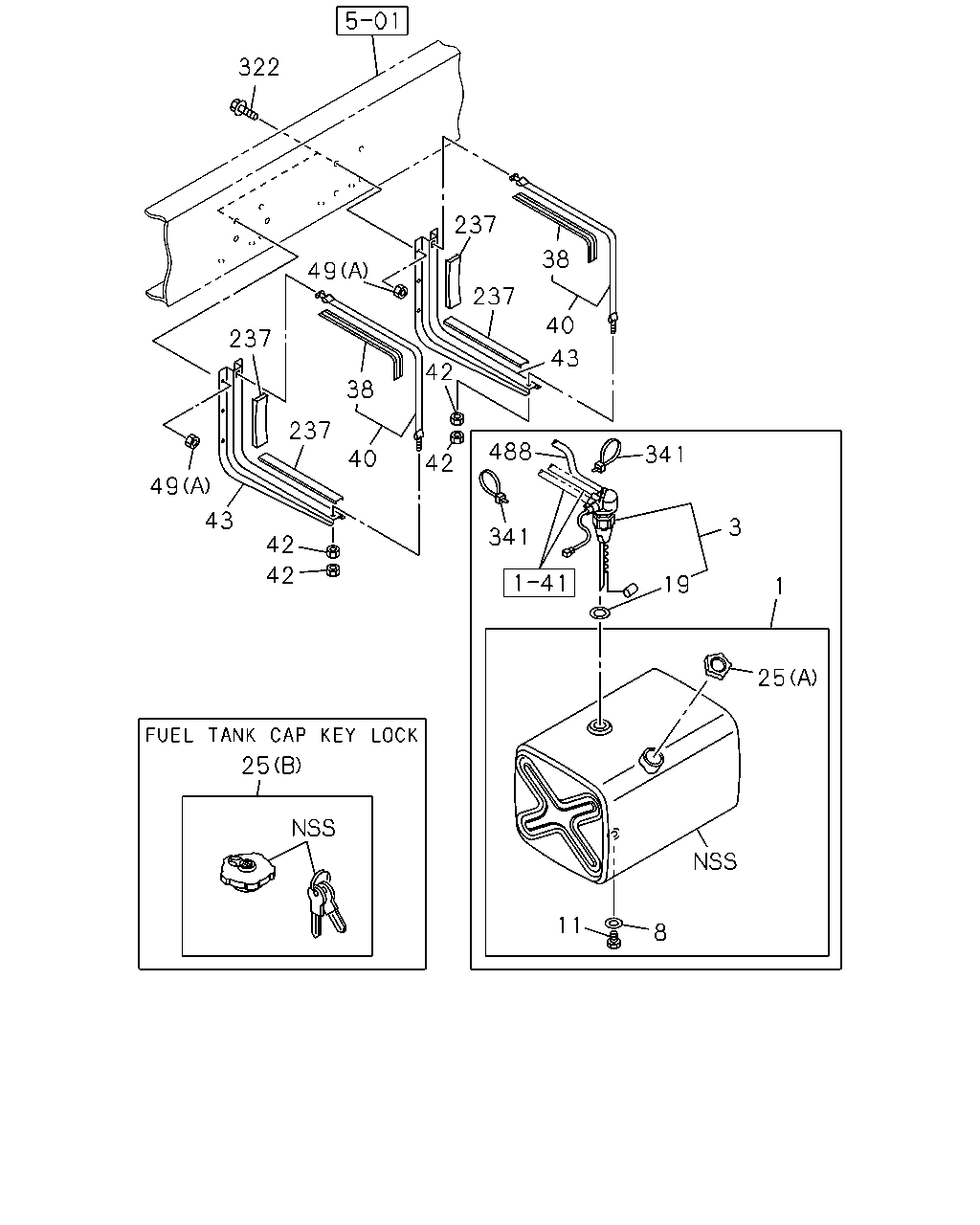

[140A] FIXING;FUEL TANK (17 parça)

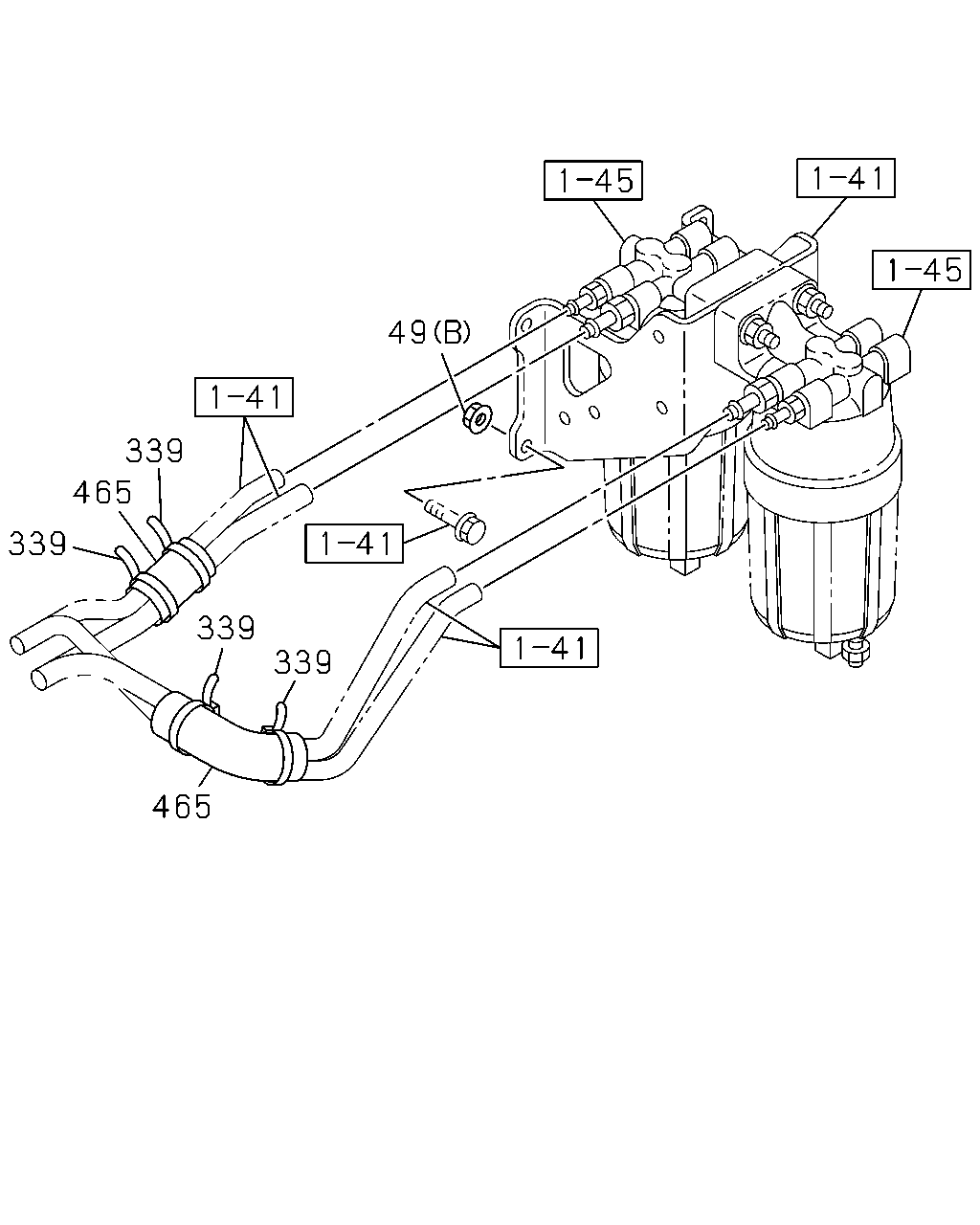

[140A] FUEL SEDIMENTER SIDE (4 parça)
▶
322
49
237
49
43
42
42
40
237
38
42
42
237
237
38
40
43
488
341
19
1
3
341
25
8
11
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1050X680X625 400L
1-87411-788-3
01
1
1303-
3
UNIT; FUEL TANK,SUB
8-98217-749-0
01
1
1303-
8
GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6
8-98030-453-0
01
1
1303-
11
PLUG; DRAIN,FUEL TANK
M18X12
0-92002-418-0
01
1
1303-
19
GASKET; FUEL TANK UNIT
ID=54.5
8-98299-580-0
01
1
1303-
25
CAP; FILLER,FUEL TANK
(B)
8-98108-595-0
01
1
1303-
25
CAP; FILLER,FUEL TANK
(A)
8-98182-306-0
01
1
1303-
38
INSULATION; SUPPORT BELT
L=1156
1-22553-039-1
02
1
1303-
40
BELT; SUPPORT,FUEL TANK
L=1210
8-98202-448-0
02
1
1303-
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
1303-
43
BRACKET; FUEL TANK
1-53461-525-1
02
1
1303-
49
NUT; BRKT
(A) M12
0-91110-512-0
12
1
1303-
49
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
04
1
1303-
237
GASKET; BRKT TO FUEL TANK
1-22553-037-1
04
1
1303-
322
BOLT; BRKT FIX
M12X40 FLANGE
0-28051-240-0
12
1
1303-
341
CLIP; BAND,RUBBER HOSE
L=350
1-09707-183-0
02
1
1303-
488
HOSE; RUBBER
8-98134-936-0
01
1
1303-
49
339
339
339
465
339
465
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
49
NUT; BRKT
(A) M12
0-91110-512-0
12
1
1303-
49
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
04
1
1303-
339
CLIP; BAND,FUEL HOSE
L=250
5-09707-030-1
04
1
1303-
465
SLEEVE; RUBBER
L=150 SERVICED BY L=1300
1-09360-677-1
02
1
1303-
