Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#115360) — 498 parça

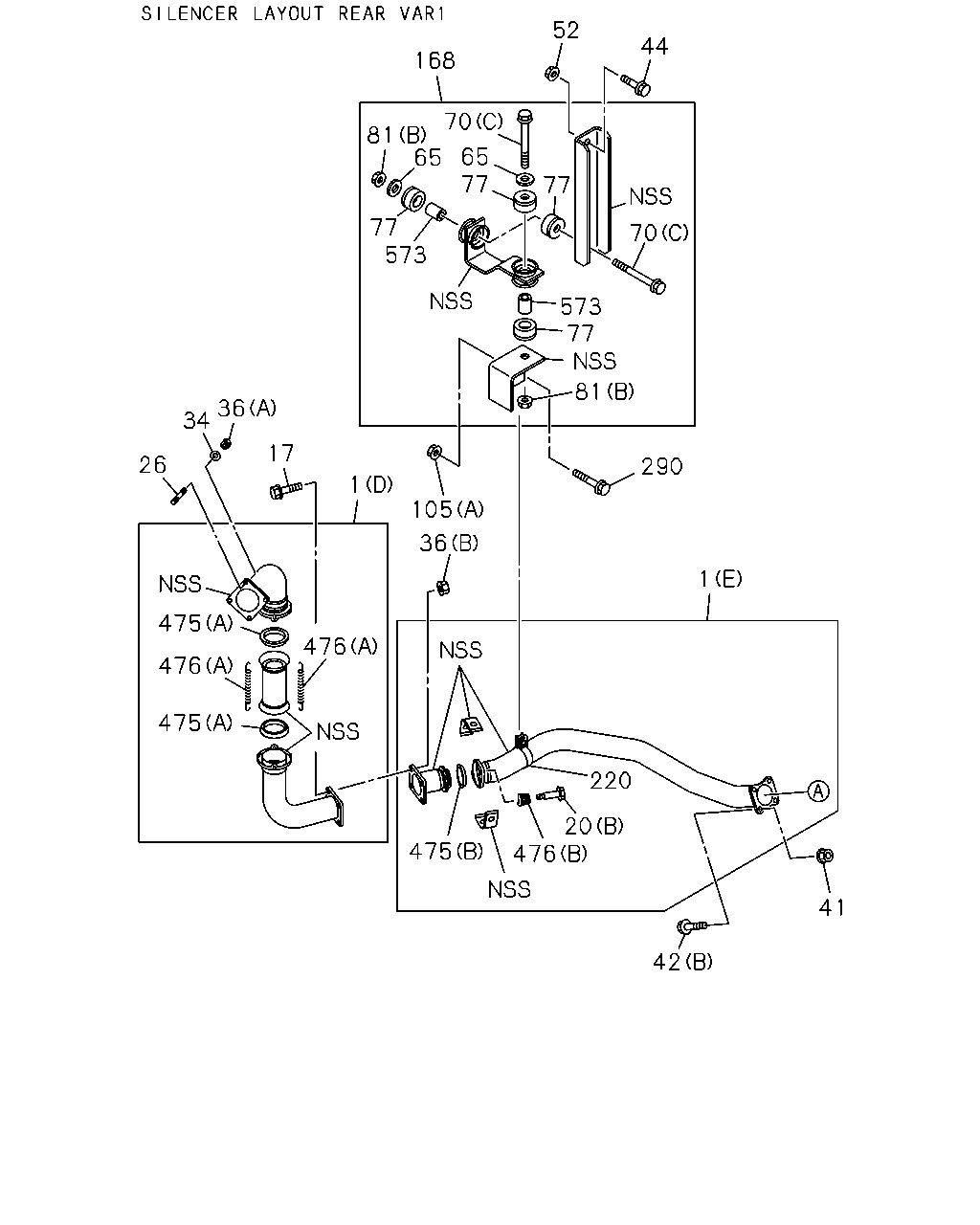

41 42 220 20 476 475 1 475 476 475 476 26 34 36 17 36 1 105 290 81 77 573 573 77 81 77 65 65 70 168 52 44 70 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	8-98334-206-0	01	1	1512-	●	●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (E)	8-97633-176-1	01	1	1512-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97634-535-0	01	1	1512-		●
1	PIPE; EXH (B)	1-22123-762-1	01	1	1303-1511		●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	1-22123-762-1	01	1	1512-		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22123-762-1	01	1	1512-	●
1	PIPE; EXH (A)	8-97634-533-0	01	1	1303-1511		●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	8-97634-533-0	01	1	1512-		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97634-533-0	01	1	1512-	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1303-1511		●
17	BOLT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1512-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X49.8	8-97039-586-0	02	1	1512-		●
20	BOLT; FLANGE,EXH PIPE TAIWAN EQUIPMENT(WW5) (A) M10X51.4	8-94436-943-0	03	1	1512-		●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1303-1511		●
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1512-	●	●
20	BOLT; FLANGE,EXH PIPE TAIWAN EQUIPMENT(WW5) (A) M10X51.4	8-94436-943-0	02	1	1512-		●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	03	1	1303-1511		●
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>,TAIWAN EQUIPMENT(WW5) (A) M10X51.4	8-94436-943-0	05	1	1512-		●
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	05	1	1512-	●
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1303-1402		●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-1511		●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1512-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1303-1511		●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1512-	●	●
36	NUT; EXH PIPE (B) M12	0-91110-512-0	04	1	1303-1511		●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1512-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1303-1511		●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1512-	●	●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28>,TAIWAN EQUIPMENT(WW5) M12	0-91110-512-0	08	1	1512-		●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	08	1	1512-	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1303-1511		●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1303-1511		●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> EXC. TAIWAN EQUIPMENT(WW5) M12	0-91110-512-0	04	1	1512-		●
41	NUT; EXH PIPE TO EXH SILENCER TAIWAN EQUIPMENT(WW5) M12	0-91110-512-0	04	1	1512-		●
41	NUT; EXH PIPE TO EXH SILENCER TAIWAN EQUIPMENT(WW5) M12	0-91110-512-0	04	1	1512-		●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	04	1	1512-	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (C) M12X35 FLANGE	1-09000-653-0	04	1	1512-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B) M12X25 FLANGE	1-09000-604-0	04	1	1512-		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (B) M12X25 FLANGE	1-09000-604-0	04	1	1512-	●
42	BOLT; EXH PIPE TO EXH SILENCER (A) M12X30 FLANGE	0-28051-230-0	04	1	1303-1511		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28051-230-0	04	1	1512-		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28051-230-0	04	1	1512-	●
42	BOLT; EXH PIPE TO EXH SILENCER (B) M12X25 FLANGE	1-09000-604-0	04	1	1303-1511		●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M12X25 FLANGE	1-09000-604-0	08	1	1512-		●
44	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M10X35 FLANGE	0-28051-035-0	02	1	1512-		●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1512-	●	●
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1512-		●
65	WASHER; PL SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> ID=10.5 OD=32	0-91614-810-0	02	1	1512-		●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X60 FLANGE	0-28051-060-0	04	1	1512-	●	●
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X60 FLANGE	0-28051-060-0	02	1	1512-		●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28051-035-0	02	1	1303-1511		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28051-035-0	02	1	1512-	●	●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28051-035-0	04	1	1303-1511		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28051-035-0	04	1	1512-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1303-1511		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28051-050-0	01	1	1512-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	04	1	1303-1511		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28051-050-0	04	1	1512-	●	●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1512-	●	●
77	RUBBER; CUSHION,BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1512-		●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	02	1	1512-		●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	03	1	1512-	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1512-	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	1303-1511		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1512-	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	12	1	1303-1511		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1512-	●	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	07	1	1512-	●	●
105	NUT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91180-108-0	02	1	1512-		●
168	BRACKET; EXH PIPE,FRT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28>	8-97633-177-1	01	1	1512-		●
220	CLAMP; EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> D=101.4	1-22133-170-1	01	1	1512-		●
290	BOLT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28650-840-0	02	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	02	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	01	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	01	1	1512-	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1303-1511		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1512-	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	01	1	1303-1511		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1512-	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1303-1511		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	03	1	1512-		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	1-09583-298-0	04	1	1512-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	04	1	1512-		●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	1303-1511		●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1512-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1303-1511		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1512-		●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1512-		●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1512-	●
573	TUBE; DIST SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	1512-		●

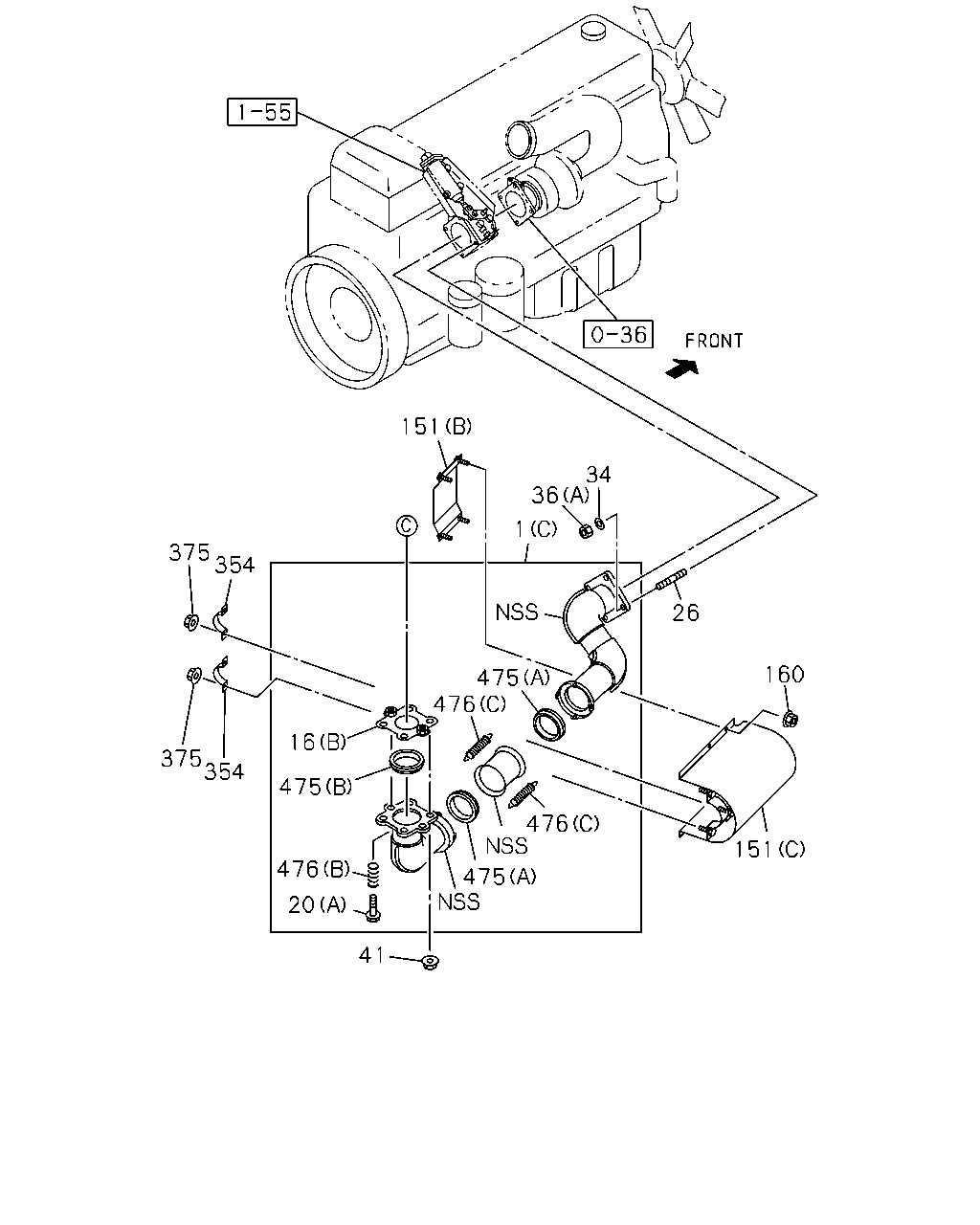

36 34 26 1 475 36 475 476 476 1 17 42 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	8-98334-206-0	01	1	1512-	●	●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (E)	8-97633-176-1	01	1	1512-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97634-535-0	01	1	1512-		●
1	PIPE; EXH (B)	1-22123-762-1	01	1	1303-1511		●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	1-22123-762-1	01	1	1512-		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22123-762-1	01	1	1512-	●
1	PIPE; EXH (A)	8-97634-533-0	01	1	1303-1511		●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	8-97634-533-0	01	1	1512-		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97634-533-0	01	1	1512-	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1303-1511		●
17	BOLT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1512-	●	●
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1303-1402		●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-1511		●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1512-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1303-1511		●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1512-	●	●
36	NUT; EXH PIPE (B) M12	0-91110-512-0	04	1	1303-1511		●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1512-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1303-1511		●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1512-	●	●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28>,TAIWAN EQUIPMENT(WW5) M12	0-91110-512-0	08	1	1512-		●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	08	1	1512-	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1303-1511		●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1303-1511		●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> EXC. TAIWAN EQUIPMENT(WW5) M12	0-91110-512-0	04	1	1512-		●
41	NUT; EXH PIPE TO EXH SILENCER TAIWAN EQUIPMENT(WW5) M12	0-91110-512-0	04	1	1512-		●
41	NUT; EXH PIPE TO EXH SILENCER TAIWAN EQUIPMENT(WW5) M12	0-91110-512-0	04	1	1512-		●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	04	1	1512-	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (C) M12X35 FLANGE	1-09000-653-0	04	1	1512-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B) M12X25 FLANGE	1-09000-604-0	04	1	1512-		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (B) M12X25 FLANGE	1-09000-604-0	04	1	1512-	●
42	BOLT; EXH PIPE TO EXH SILENCER (A) M12X30 FLANGE	0-28051-230-0	04	1	1303-1511		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28051-230-0	04	1	1512-		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28051-230-0	04	1	1512-	●
42	BOLT; EXH PIPE TO EXH SILENCER (B) M12X25 FLANGE	1-09000-604-0	04	1	1303-1511		●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M12X25 FLANGE	1-09000-604-0	08	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	02	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	01	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	01	1	1512-	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1303-1511		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1512-	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	01	1	1303-1511		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1512-	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1303-1511		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	03	1	1512-		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	1-09583-298-0	04	1	1512-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	04	1	1512-		●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	1303-1511		●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1512-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1303-1511		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1512-		●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1512-		●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1512-	●

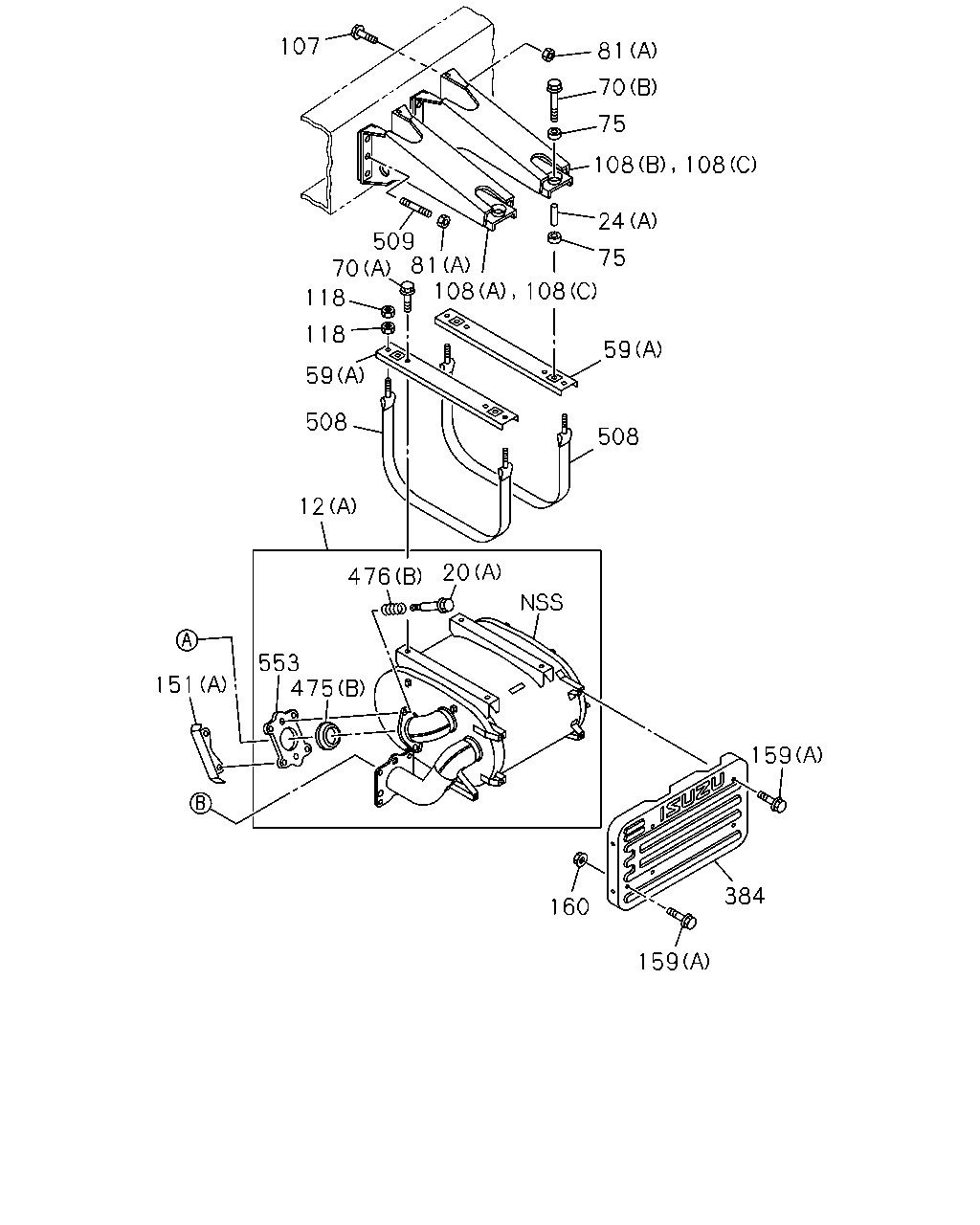

107 81 75 70 108 108 24 75 108 108 81 509 70 118 59 118 508 12 151 553 475 476 20 160 384 159 159 59 508

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	8-97632-337-2	01	1	1512-	●	●
12	SILENCER ASM; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97637-115-0	01	1	1512-		●
12	SILENCER ASM; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28>,TAIWAN EQUIPMENT(WW5) (A)	8-97637-116-0	01	1	1512-		●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97637-116-0	01	1	1512-	●
12	SILENCER ASM; EXH (A)	8-97611-398-0	01	1	1303-1511		●
12	SILENCER ASM; EXH TAIWAN EQUIPMENT(WW5) (A)	8-97611-398-0	01	1	1512-		●
20	BOLT; FLANGE,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X49.8	8-97039-586-0	02	1	1512-		●
20	BOLT; FLANGE,EXH PIPE TAIWAN EQUIPMENT(WW5) (A) M10X51.4	8-94436-943-0	03	1	1512-		●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1303-1511		●
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1512-	●	●
20	BOLT; FLANGE,EXH PIPE TAIWAN EQUIPMENT(WW5) (A) M10X51.4	8-94436-943-0	02	1	1512-		●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	03	1	1303-1511		●
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>,TAIWAN EQUIPMENT(WW5) (A) M10X51.4	8-94436-943-0	05	1	1512-		●
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	05	1	1512-	●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> (B) L=25	1-14234-083-0	10	1	1512-	●	●
24	COLLAR; DIST,CLAMP (A) L=22	9-22159-024-0	04	1	1303-1511		●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> (A) L=22	9-22159-024-0	04	1	1512-	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1512-	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-549-0	01	1	1512-	●	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22134-147-1	02	1	1303-1511		●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22134-147-1	02	1	1512-	●	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X60 FLANGE	0-28051-060-0	04	1	1512-	●	●
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X60 FLANGE	0-28051-060-0	02	1	1512-		●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28051-035-0	02	1	1303-1511		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28051-035-0	02	1	1512-	●	●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28051-035-0	04	1	1303-1511		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28051-035-0	04	1	1512-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1303-1511		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28051-050-0	01	1	1512-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	04	1	1303-1511		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28051-050-0	04	1	1512-	●	●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1512-	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1303-1511		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1512-	●	●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	02	1	1512-		●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	03	1	1512-	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1512-	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	1303-1511		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1512-	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	12	1	1303-1511		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1512-	●	●
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1512-	●	●
107	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1512-		●
107	BOLT; BRKT M12X40 FLANGE	0-28051-240-0	06	1	1303-1511		●
107	BOLT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1512-		●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1512-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-22134-148-3	02	1	1512-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22134-145-0	01	1	1303-1511		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	1-22134-145-0	01	1	1512-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22134-145-0	01	1	1512-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22134-146-0	01	1	1303-1511		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	1-22134-146-0	01	1	1512-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22134-146-0	01	1	1512-	●
118	NUT; SILENCER MTG BRKT M10	0-91110-510-0	08	1	1303-1511		●
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	0-91110-510-0	08	1	1512-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (D)	8-97632-340-1	01	1	1512-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97644-313-0	01	1	1512-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97644-314-0	01	1	1512-	●	●
151	PROTECTOR; HEAT,EXH PIPE (A)	8-97635-597-0	01	1	1303-1511		●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	8-97635-597-0	01	1	1512-		●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97635-597-0	01	1	1512-	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1512-	●	●
159	BOLT; HEAT PROTECTOR (A) M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1303-1511		●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1512-	●	●
160	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1512-	●	●
160	NUT; HEAT PROTECTOR SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1512-		●
384	PROTECTOR; HEAT SILENCER MTG	1-22119-556-0	01	1	1303-1511		●
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-556-0	01	1	1512-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	02	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	01	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	01	1	1512-	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1303-1511		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1512-	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	01	1	1303-1511		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1512-	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1303-1511		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	03	1	1512-		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	1-09583-298-0	04	1	1512-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	04	1	1512-		●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	1303-1511		●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1512-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1303-1511		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1512-		●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1512-		●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1512-	●
508	BAND; EXHAUST SILENCER	1-22159-384-0	02	1	1303-1511		●
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-384-0	02	1	1512-	●	●
509	STUD; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X40 L=56	1-09300-123-0	06	1	1512-		●
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 L=56	1-09300-123-0	06	1	1512-	●
509	STUD; BRKT M12X40 L=56	1-09300-123-0	06	1	1303-1511		●
509	STUD; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M12X40 L=56	1-09300-123-0	04	1	1512-		●
553	FLANGE; SILENCER	1-22115-148-1	01	1	1303-1511		●
553	FLANGE; SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	1512-	●	●

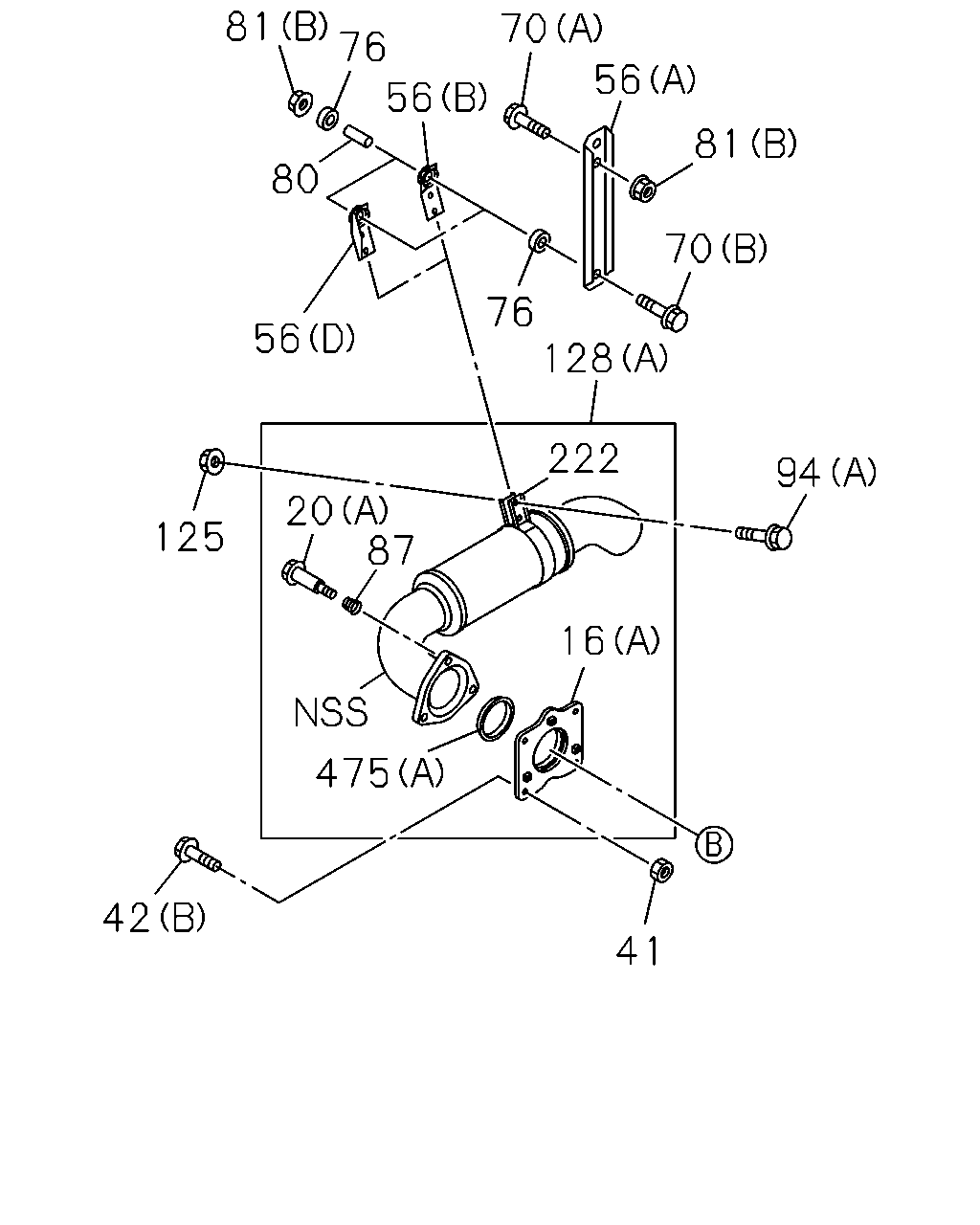

81 80 76 70 56 56 125 42 20 475 87 41 16 222 128 76 70 81 56 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	FLANGE; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22115-148-1	01	1	1512-	●	●
16	FLANGE; EXH PIPE (A)	1-22115-194-0	01	1	1303-1511		●
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22115-194-0	01	1	1512-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X49.8	8-97039-586-0	02	1	1512-		●
20	BOLT; FLANGE,EXH PIPE TAIWAN EQUIPMENT(WW5) (A) M10X51.4	8-94436-943-0	03	1	1512-		●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1303-1511		●
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1512-	●	●
20	BOLT; FLANGE,EXH PIPE TAIWAN EQUIPMENT(WW5) (A) M10X51.4	8-94436-943-0	02	1	1512-		●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	03	1	1303-1511		●
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>,TAIWAN EQUIPMENT(WW5) (A) M10X51.4	8-94436-943-0	05	1	1512-		●
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	05	1	1512-	●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28>,TAIWAN EQUIPMENT(WW5) M12	0-91110-512-0	08	1	1512-		●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	08	1	1512-	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1303-1511		●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1303-1511		●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> EXC. TAIWAN EQUIPMENT(WW5) M12	0-91110-512-0	04	1	1512-		●
41	NUT; EXH PIPE TO EXH SILENCER TAIWAN EQUIPMENT(WW5) M12	0-91110-512-0	04	1	1512-		●
41	NUT; EXH PIPE TO EXH SILENCER TAIWAN EQUIPMENT(WW5) M12	0-91110-512-0	04	1	1512-		●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	04	1	1512-	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (C) M12X35 FLANGE	1-09000-653-0	04	1	1512-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B) M12X25 FLANGE	1-09000-604-0	04	1	1512-		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (B) M12X25 FLANGE	1-09000-604-0	04	1	1512-	●
42	BOLT; EXH PIPE TO EXH SILENCER (A) M12X30 FLANGE	0-28051-230-0	04	1	1303-1511		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28051-230-0	04	1	1512-		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28051-230-0	04	1	1512-	●
42	BOLT; EXH PIPE TO EXH SILENCER (B) M12X25 FLANGE	1-09000-604-0	04	1	1303-1511		●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M12X25 FLANGE	1-09000-604-0	08	1	1512-		●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97635-142-0	01	1	1512-	●	●
56	BRACKET; CLAMP,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97632-346-0	01	1	1512-		●
56	BRACKET; CLAMP,EXH PIPE (A)	8-97615-956-0	01	1	1303-1511		●
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97615-956-0	01	1	1512-	●	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-97615-957-0	01	1	1303-1511		●
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	8-97615-957-0	01	1	1512-		●
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97615-957-0	01	1	1512-	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X60 FLANGE	0-28051-060-0	04	1	1512-	●	●
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X60 FLANGE	0-28051-060-0	02	1	1512-		●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28051-035-0	02	1	1303-1511		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28051-035-0	02	1	1512-	●	●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28051-035-0	04	1	1303-1511		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28051-035-0	04	1	1512-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1303-1511		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28051-050-0	01	1	1512-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	04	1	1303-1511		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28051-050-0	04	1	1512-	●	●
76	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	1303-1511		●
76	SUPPORT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	1512-	●	●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	1303-1511		●
80	COLLAR; DIST,SUPPORT RUBBER EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	1512-	●	●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	02	1	1512-		●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	03	1	1512-	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1512-	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	1303-1511		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1512-	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	12	1	1303-1511		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1512-	●	●
87	SPRING; PRE SILENCER	8-94141-851-0	03	1	1303-1511		●
87	SPRING; PRE SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	8-94141-851-0	03	1	1512-	●	●
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> (B) M10X40 FLANGE	0-28051-040-0	02	1	1512-	●	●
94	BOLT; CLAMP (A) M8X40 FLANGE	0-28650-840-0	02	1	1303-1511		●
94	BOLT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X40 FLANGE	0-28650-840-0	02	1	1512-	●	●
125	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	1303-1511		●
125	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> (B)	8-97635-143-0	01	1	1512-	●	●
128	PIPE; EXH,RR SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97632-392-1	01	1	1512-		●
128	PIPE; EXH,RR EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28>,TAIWAN EQUIPMENT(WW5) (A)	8-97634-152-0	01	1	1512-		●
128	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97634-152-0	01	1	1512-	●
128	PIPE; EXH,RR (A)	8-97644-455-0	01	1	1303-1511		●
128	PIPE; EXH,RR TAIWAN EQUIPMENT(WW5) (A)	8-97644-455-0	01	1	1512-		●
222	CLAMP; EXH PIPE	1-22133-293-0	01	1	1303-1511		●
222	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22133-293-0	01	1	1512-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	02	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	01	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	01	1	1512-	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1303-1511		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1512-	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	01	1	1303-1511		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1512-	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1303-1511		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	03	1	1512-		●

151 160 476 475 20 41 476 475 16 354 375 354 375 151 1 476 36 34 26 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	8-98334-206-0	01	1	1512-	●	●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (E)	8-97633-176-1	01	1	1512-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97634-535-0	01	1	1512-		●
1	PIPE; EXH (B)	1-22123-762-1	01	1	1303-1511		●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	1-22123-762-1	01	1	1512-		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22123-762-1	01	1	1512-	●
1	PIPE; EXH (A)	8-97634-533-0	01	1	1303-1511		●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	8-97634-533-0	01	1	1512-		●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97634-533-0	01	1	1512-	●
16	FLANGE; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22115-148-1	01	1	1512-	●	●
16	FLANGE; EXH PIPE (A)	1-22115-194-0	01	1	1303-1511		●
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22115-194-0	01	1	1512-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X49.8	8-97039-586-0	02	1	1512-		●
20	BOLT; FLANGE,EXH PIPE TAIWAN EQUIPMENT(WW5) (A) M10X51.4	8-94436-943-0	03	1	1512-		●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1303-1511		●
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1512-	●	●
20	BOLT; FLANGE,EXH PIPE TAIWAN EQUIPMENT(WW5) (A) M10X51.4	8-94436-943-0	02	1	1512-		●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	03	1	1303-1511		●
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>,TAIWAN EQUIPMENT(WW5) (A) M10X51.4	8-94436-943-0	05	1	1512-		●
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	05	1	1512-	●
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1303-1402		●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-1511		●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1512-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1303-1511		●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1512-	●	●
36	NUT; EXH PIPE (B) M12	0-91110-512-0	04	1	1303-1511		●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1512-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1303-1511		●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1512-	●	●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28>,TAIWAN EQUIPMENT(WW5) M12	0-91110-512-0	08	1	1512-		●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	08	1	1512-	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1303-1511		●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1303-1511		●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> EXC. TAIWAN EQUIPMENT(WW5) M12	0-91110-512-0	04	1	1512-		●
41	NUT; EXH PIPE TO EXH SILENCER TAIWAN EQUIPMENT(WW5) M12	0-91110-512-0	04	1	1512-		●
41	NUT; EXH PIPE TO EXH SILENCER TAIWAN EQUIPMENT(WW5) M12	0-91110-512-0	04	1	1512-		●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	04	1	1512-	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (D)	8-97632-340-1	01	1	1512-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97644-313-0	01	1	1512-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97644-314-0	01	1	1512-	●	●
151	PROTECTOR; HEAT,EXH PIPE (A)	8-97635-597-0	01	1	1303-1511		●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	8-97635-597-0	01	1	1512-		●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97635-597-0	01	1	1512-	●
160	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1512-	●	●
160	NUT; HEAT PROTECTOR SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1512-		●
354	CLAMP; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28>	8-97632-333-0	02	1	1512-	●	●
375	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1512-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	02	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	01	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	01	1	1512-	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1303-1511		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1512-	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	01	1	1303-1511		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1512-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1512-	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1303-1511		●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	03	1	1512-		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	1-09583-298-0	04	1	1512-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	04	1	1512-		●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	1303-1511		●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1512-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1303-1511		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1512-		●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1512-		●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1512-	●

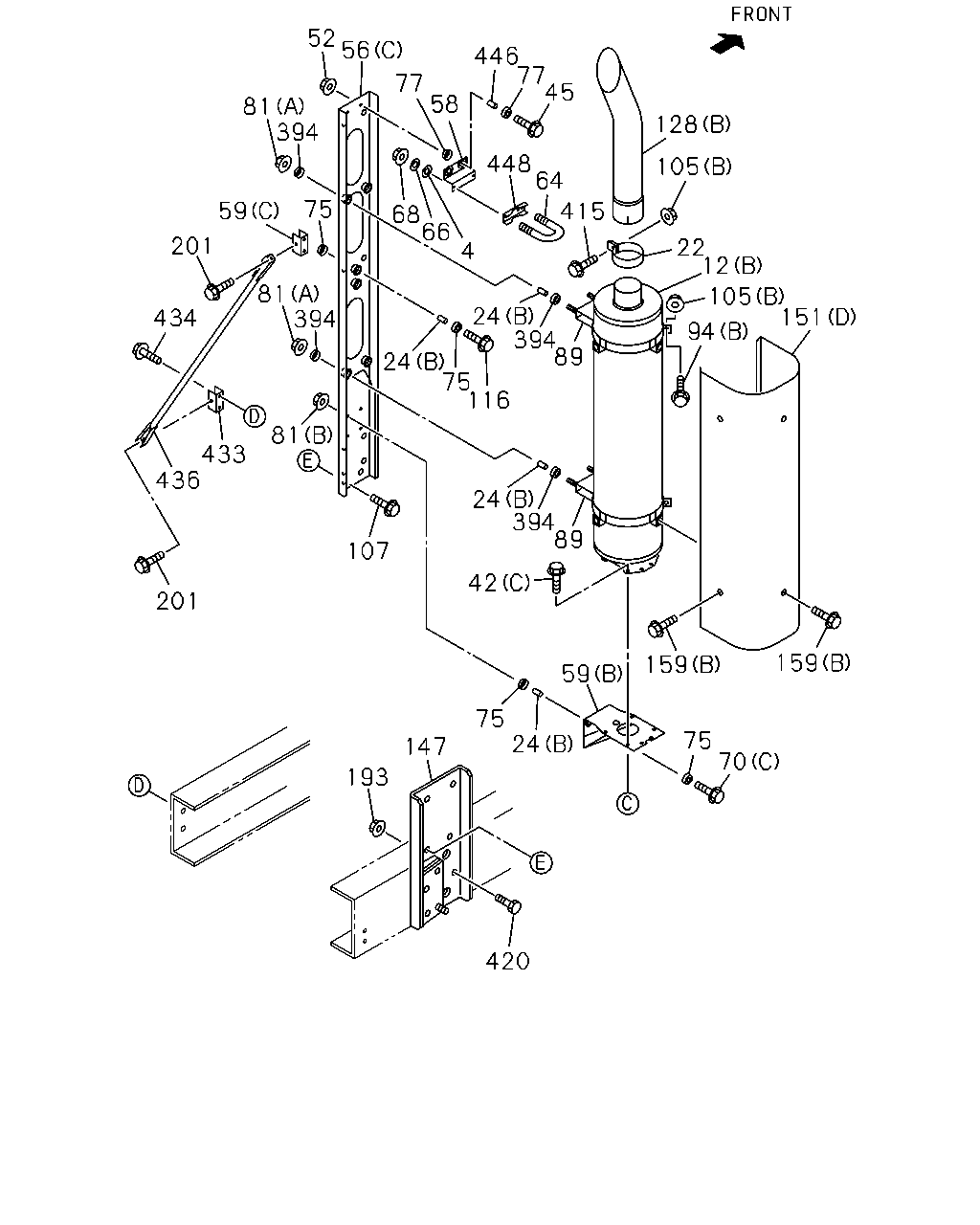

159 159 75 70 59 75 24 147 193 420 24 394 81 81 433 436 201 107 24 42 394 89 116 75 24 4 66 68 75 59 201 434 394 81 52 56 77 58 446 448 77 64 45 415 394 89 94 105 12 22 105 128 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	0-91610-708-0	02	1	1512-	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	8-97632-337-2	01	1	1512-	●	●
12	SILENCER ASM; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97637-115-0	01	1	1512-		●
12	SILENCER ASM; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28>,TAIWAN EQUIPMENT(WW5) (A)	8-97637-116-0	01	1	1512-		●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97637-116-0	01	1	1512-	●
12	SILENCER ASM; EXH (A)	8-97611-398-0	01	1	1303-1511		●
12	SILENCER ASM; EXH TAIWAN EQUIPMENT(WW5) (A)	8-97611-398-0	01	1	1512-		●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	1512-	●	●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> (B) L=25	1-14234-083-0	10	1	1512-	●	●
24	COLLAR; DIST,CLAMP (A) L=22	9-22159-024-0	04	1	1303-1511		●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> (A) L=22	9-22159-024-0	04	1	1512-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (C) M12X35 FLANGE	1-09000-653-0	04	1	1512-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B) M12X25 FLANGE	1-09000-604-0	04	1	1512-		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (B) M12X25 FLANGE	1-09000-604-0	04	1	1512-	●
42	BOLT; EXH PIPE TO EXH SILENCER (A) M12X30 FLANGE	0-28051-230-0	04	1	1303-1511		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28051-230-0	04	1	1512-		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28051-230-0	04	1	1512-	●
42	BOLT; EXH PIPE TO EXH SILENCER (B) M12X25 FLANGE	1-09000-604-0	04	1	1303-1511		●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M12X25 FLANGE	1-09000-604-0	08	1	1512-		●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1512-	●	●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1512-	●	●
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1512-		●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97635-142-0	01	1	1512-	●	●
56	BRACKET; CLAMP,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97632-346-0	01	1	1512-		●
56	BRACKET; CLAMP,EXH PIPE (A)	8-97615-956-0	01	1	1303-1511		●
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97615-956-0	01	1	1512-	●	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-97615-957-0	01	1	1303-1511		●
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	8-97615-957-0	01	1	1512-		●
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97615-957-0	01	1	1512-	●
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-799-0	01	1	1512-	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1512-	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-549-0	01	1	1512-	●	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22134-147-1	02	1	1303-1511		●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22134-147-1	02	1	1512-	●	●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-097-0	01	1	1512-	●	●
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	0-91510-508-0	02	1	1512-	●	●
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8	0-91110-508-0	02	1	1512-	●	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X60 FLANGE	0-28051-060-0	04	1	1512-	●	●
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X60 FLANGE	0-28051-060-0	02	1	1512-		●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28051-035-0	02	1	1303-1511		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28051-035-0	02	1	1512-	●	●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28051-035-0	04	1	1303-1511		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28051-035-0	04	1	1512-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1303-1511		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28051-050-0	01	1	1512-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	04	1	1303-1511		●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28051-050-0	04	1	1512-	●	●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1512-	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1303-1511		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1512-	●	●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1512-	●	●
77	RUBBER; CUSHION,BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1512-		●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	02	1	1512-		●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	03	1	1512-	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1512-	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	1303-1511		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1512-	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	12	1	1303-1511		●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1512-	●	●
89	CLAMP; EXH SILENCER,RR SILENCER SINGLE VERTICAL<N28>	8-97632-339-0	02	1	1512-	●	●
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> (B) M10X40 FLANGE	0-28051-040-0	02	1	1512-	●	●
94	BOLT; CLAMP (A) M8X40 FLANGE	0-28650-840-0	02	1	1303-1511		●
94	BOLT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X40 FLANGE	0-28650-840-0	02	1	1512-	●	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	07	1	1512-	●	●
105	NUT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91180-108-0	02	1	1512-		●
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1512-	●	●
107	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1512-		●
107	BOLT; BRKT M12X40 FLANGE	0-28051-240-0	06	1	1303-1511		●
107	BOLT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1512-		●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1512-	●
116	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1512-	●	●
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> (B)	8-97635-143-0	01	1	1512-	●	●
128	PIPE; EXH,RR SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97632-392-1	01	1	1512-		●
128	PIPE; EXH,RR EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28>,TAIWAN EQUIPMENT(WW5) (A)	8-97634-152-0	01	1	1512-		●
128	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97634-152-0	01	1	1512-	●
128	PIPE; EXH,RR (A)	8-97644-455-0	01	1	1303-1511		●
128	PIPE; EXH,RR TAIWAN EQUIPMENT(WW5) (A)	8-97644-455-0	01	1	1512-		●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28>	8-97632-342-1	01	1	1512-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (D)	8-97632-340-1	01	1	1512-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97644-313-0	01	1	1512-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97644-314-0	01	1	1512-	●	●
151	PROTECTOR; HEAT,EXH PIPE (A)	8-97635-597-0	01	1	1303-1511		●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	8-97635-597-0	01	1	1512-		●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97635-597-0	01	1	1512-	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1512-	●	●
159	BOLT; HEAT PROTECTOR (A) M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1303-1511		●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1512-	●	●
193	NUT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91180-212-0	04	1	1512-		●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28051-025-0	04	1	1512-	●	●
394	RUBBER; SUPPORT,CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	1512-	●	●
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	01	1	1512-	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28061-235-0	02	1	1512-	●	●
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	8-97634-890-0	01	1	1512-	●	●
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	02	1	1512-	●	●
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	8-97616-276-0	02	1	1512-	●	●
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	1512-	●	●
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-095-0	01	1	1512-	●	●

570

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	570	ADAPTER; EXH PIPE M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1303-1511		●
	570	ADAPTER; EXH PIPE M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
