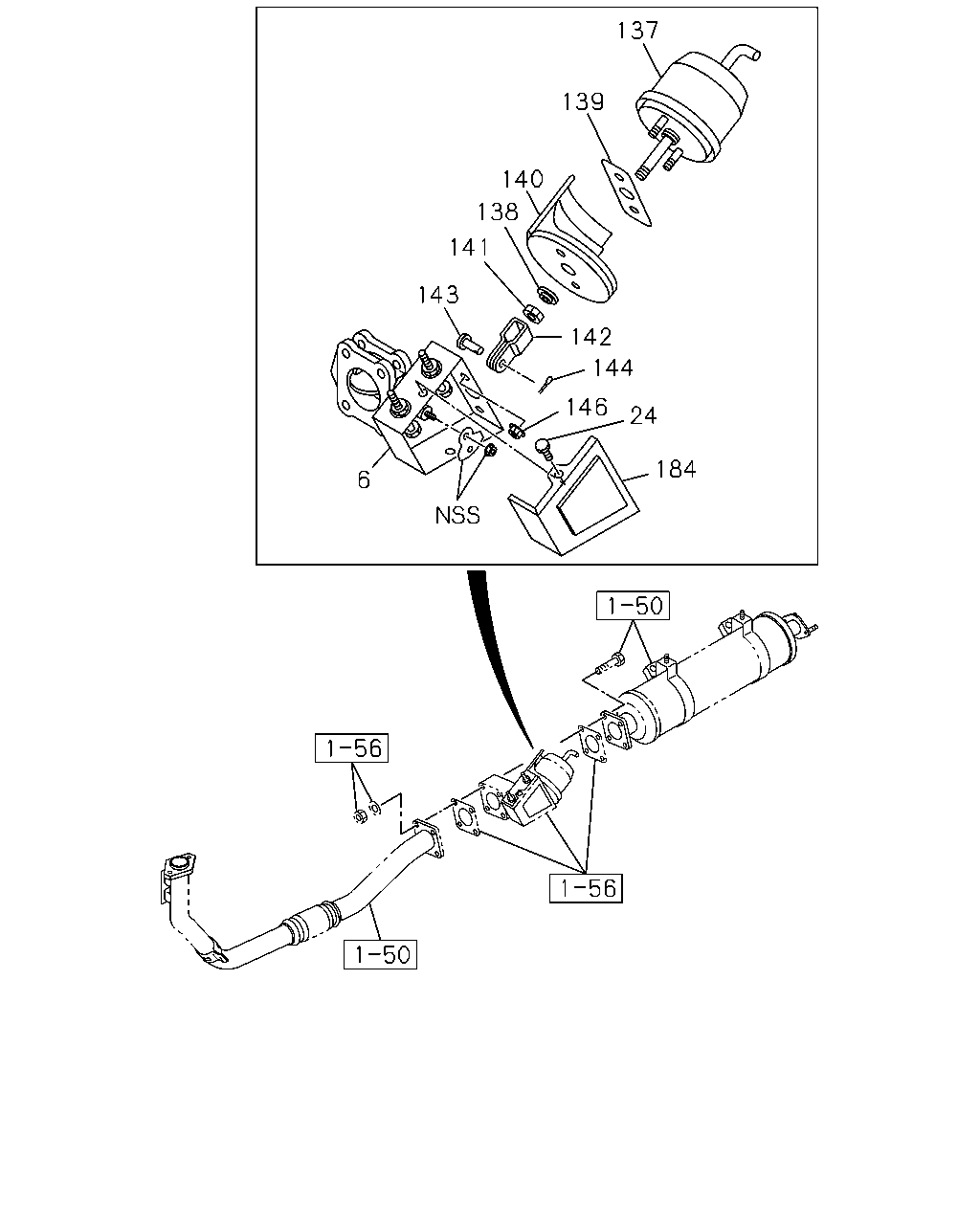

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#115359) — 60 parça

184 24 146 144 142 6 143 141 138 140 139 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	03.632 VALVE; EXH BRAKE	8-97369-945-1	01	1	1302-1308
6	03.632 VALVE; EXH BRAKE REAR WIDE TREAD(V4T)	8-97369-945-1	01	1	1309-1309
6	03.632 VALVE; EXH BRAKE REAR WIDE TREAD(V4T)	8-97369-945-1	01	1	1310-1403
6	03.632 VALVE; EXH BRAKE	8-97369-945-1	01	1	1310-1403
6	03.632 VALVE; EXH BRAKE	8-97369-945-1	01	1	1404-
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1302-1308
24	03.634 BOLT; COVER REAR WIDE TREAD(V4T) 03.444	8-97065-029-0	02	1	1309-1309
24	03.634 BOLT; COVER REAR WIDE TREAD(V4T) 03.444	8-97065-029-0	02	1	1310-1403
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1310-1403
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1404-
137	03.634 CHAMBER; POWER	8-97173-327-0	01	1	1302-1308
137	03.634 CHAMBER; POWER REAR WIDE TREAD(V4T)	8-97173-327-0	01	1	1309-1309
137	03.634 CHAMBER; POWER REAR WIDE TREAD(V4T)	8-97173-327-0	01	1	1310-1403
137	03.634 CHAMBER; POWER	8-97173-327-0	01	1	1310-1403
137	03.634 CHAMBER; POWER	8-97173-327-0	01	1	1404-
138	03.634 BEARING; EXH BRK VLV 03.440	8-94311-446-0	01	1	1302-1308
138	03.634 BEARING; EXH BRK VLV REAR WIDE TREAD(V4T) 03.440	8-94311-446-0	01	1	1309-1309
138	03.634 BEARING; EXH BRK VLV REAR WIDE TREAD(V4T) 03.440	8-94311-446-0	01	1	1310-1403
138	03.634 BEARING; EXH BRK VLV 03.440	8-94311-446-0	01	1	1310-1403
138	03.634 BEARING; EXH BRK VLV 03.440	8-94311-446-0	01	1	1404-
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1302-1308
139	03.634 GASKET; EXH BRK VLV REAR WIDE TREAD(V4T)	8-94328-234-0	01	1	1309-1309
139	03.634 GASKET; EXH BRK VLV REAR WIDE TREAD(V4T)	8-94328-234-0	01	1	1310-1403
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1310-1403
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1404-
140	03.634 INSULATOR; EXH BRK VLV	8-97093-854-0	01	1	1302-1308
140	03.634 INSULATOR; EXH BRK VLV REAR WIDE TREAD(V4T)	8-97093-854-0	01	1	1309-1309
140	03.634 INSULATOR; EXH BRK VLV REAR WIDE TREAD(V4T)	8-97093-854-0	01	1	1310-1403
140	03.634 INSULATOR; EXH BRK VLV	8-97093-854-0	01	1	1310-1403
140	03.634 INSULATOR; EXH BRK VLV	8-97093-854-0	01	1	1404-
141	03.636 NUT; CLEVIS,EXH BRK VLV	9-88510-009-0	01	1	1302-1308
141	03.636 NUT; CLEVIS,EXH BRK VLV REAR WIDE TREAD(V4T)	9-88510-009-0	01	1	1309-1309
141	03.636 NUT; CLEVIS,EXH BRK VLV REAR WIDE TREAD(V4T)	9-88510-009-0	01	1	1310-1403
141	03.636 NUT; CLEVIS,EXH BRK VLV	9-88510-009-0	01	1	1310-1403
141	03.636 NUT; CLEVIS,EXH BRK VLV	9-88510-009-0	01	1	1404-
142	03.636 CLEVIS; EXH BRK VLV	8-97177-311-0	01	1	1302-1308
142	03.636 CLEVIS; EXH BRK VLV REAR WIDE TREAD(V4T)	8-97177-311-0	01	1	1309-1309
142	03.636 CLEVIS; EXH BRK VLV REAR WIDE TREAD(V4T)	8-97177-311-0	01	1	1310-1403
142	03.636 CLEVIS; EXH BRK VLV	8-97177-311-0	01	1	1310-1403
142	03.636 CLEVIS; EXH BRK VLV	8-97177-311-0	01	1	1404-
143	03.636 PIN; EXH BRK VLV	8-94311-452-0	01	1	1302-1308
143	03.636 PIN; EXH BRK VLV REAR WIDE TREAD(V4T)	8-94311-452-0	01	1	1309-1309
143	03.636 PIN; EXH BRK VLV REAR WIDE TREAD(V4T)	8-94311-452-0	01	1	1310-1403
143	03.636 PIN; EXH BRK VLV	8-94311-452-0	01	1	1310-1403
143	03.636 PIN; EXH BRK VLV	8-94311-452-0	01	1	1404-
144	03.636 PIN; SPLIT,EXH BRK VLV	8-97029-428-0	01	1	1302-1308
144	03.636 PIN; SPLIT,EXH BRK VLV REAR WIDE TREAD(V4T)	8-97029-428-0	01	1	1309-1309
144	03.636 PIN; SPLIT,EXH BRK VLV REAR WIDE TREAD(V4T)	8-97029-428-0	01	1	1310-1403
144	03.636 PIN; SPLIT,EXH BRK VLV	8-97029-428-0	01	1	1310-1403
144	03.636 PIN; SPLIT,EXH BRK VLV	8-97029-428-0	01	1	1404-
146	03.634 NUT; EXH BRK VLV 07.633 M8 FLANGE	0-91150-108-0	02	1	1302-1308
146	03.634 NUT; EXH BRK VLV REAR WIDE TREAD(V4T) 07.633 M8 FLANGE	0-91150-108-0	02	1	1309-1309
146	03.634 NUT; EXH BRK VLV REAR WIDE TREAD(V4T) 07.633 M8 FLANGE	0-91150-108-0	02	1	1310-1403
146	03.634 NUT; EXH BRK VLV 07.633 M8 FLANGE	0-91150-108-0	02	1	1310-1403
146	03.634 NUT; EXH BRK VLV 07.633 M8 FLANGE	0-91150-108-0	02	1	1404-
184	03.634 COVER; BRKT	8-97311-447-1	01	1	1302-1308
184	03.634 COVER; BRKT REAR WIDE TREAD(V4T)	8-97311-447-1	01	1	1309-1309
184	03.634 COVER; BRKT REAR WIDE TREAD(V4T)	8-97311-447-1	01	1	1310-1403
184	03.634 COVER; BRKT	8-97311-447-1	01	1	1310-1403
184	03.634 COVER; BRKT	8-97311-447-1	01	1	1404-
