◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11534 - CYJ RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#115358) — 33 parça

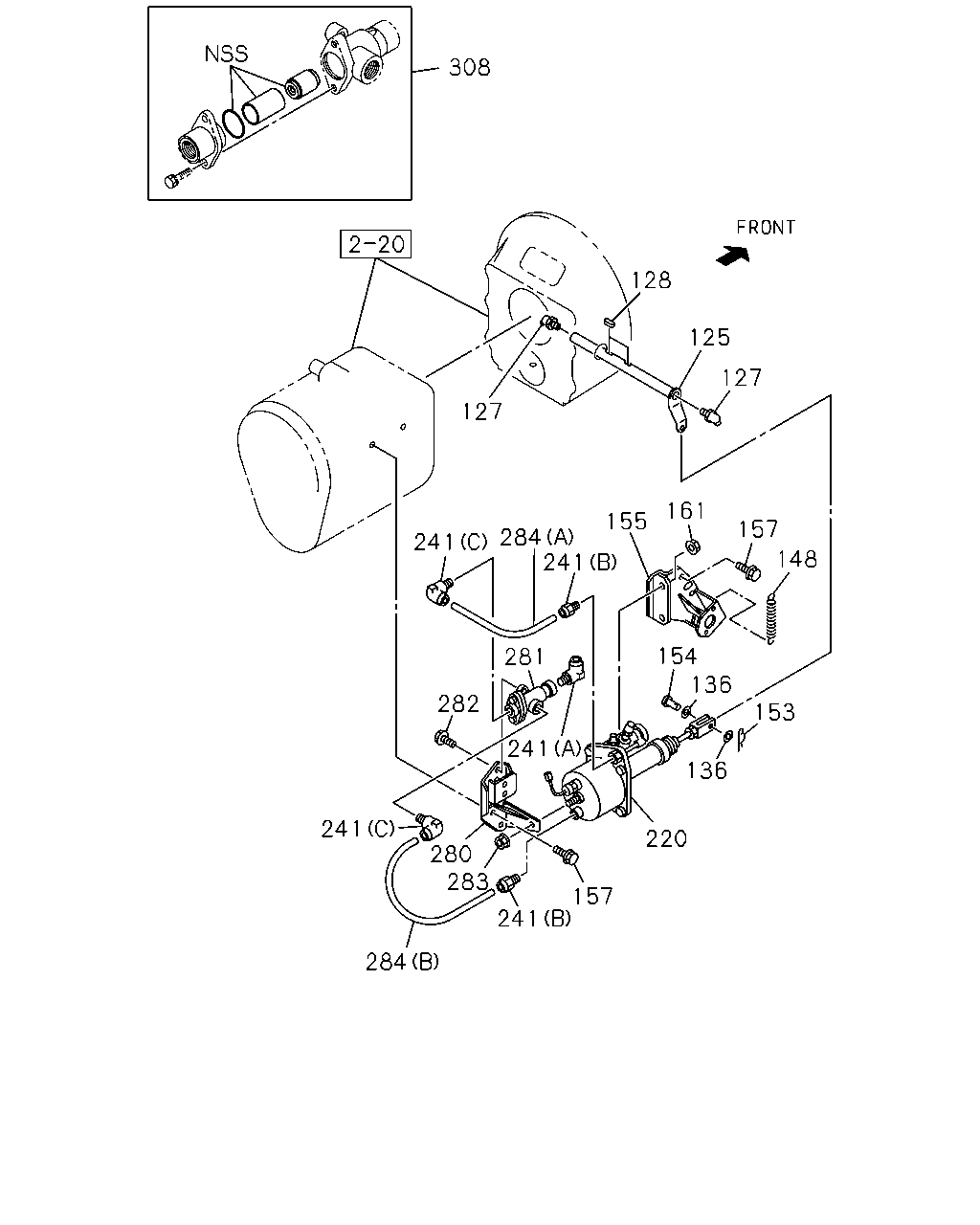

çizim 336178
308 127 127 125 128 148 161 284 241 154 136 220 157 153 157 241 284 241 280 283 241 281 282 136 241 155
BalonParca AdiParca NoAdetTipApplied Date
125 SHAFT; CLU 1-31342-312-0 01 1 1303-
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1303-
128 KEY; FEATHER,CLU SHAFT 1-09735-045-0 02 1 1303-
136 WASHER; PL
ID=15 		0-91610-514-0 02 1 1303-
148 SPRING; CLU RETURN
L=43 		1-31349-024-0 01 1 1303-
153 PIN; SPLIT,CLU SHAFT 1-09747-009-0 01 1 1303-
154 PIN; JAW JOINT
L=35 		1-31424-003-0 01 1 1303-
155 BRACKET; MINIPACK 1-31429-470-1 01 1 1303-
157 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1303-
157 BOLT; BRKT
M10X25 FLANGE 		0-28751-025-0 02 1 1303-
157 BOLT; BRKT
M10X30 FLANGE 		0-28751-030-0 02 1 1303-
161 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1303-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-564-0 01 1 1303-
241 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 1303-
241 CONNECTOR
(B) 		1-31829-590-0 02 1 1303-
241 CONNECTOR
(C) ELBOW 		1-31829-591-0 02 1 1303-
280 BRACKET; VLV,CHK 1-31429-422-1 01 1 1303-
281 VALVE; CHK 1-48410-594-0 01 1 1303-
282 BOLT; VLV
M8X12 FLANGE 		0-28050-812-0 02 1 1303-
283 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1303-
284 TUBE; NYLON
(A) 		1-09376-833-1 01 1 1303-
284 TUBE; NYLON
(B) 		1-09376-834-1 01 1 1303-
308 REPAIR KIT; CHECK VALVE 1-31829-514-0 01 1 1303-

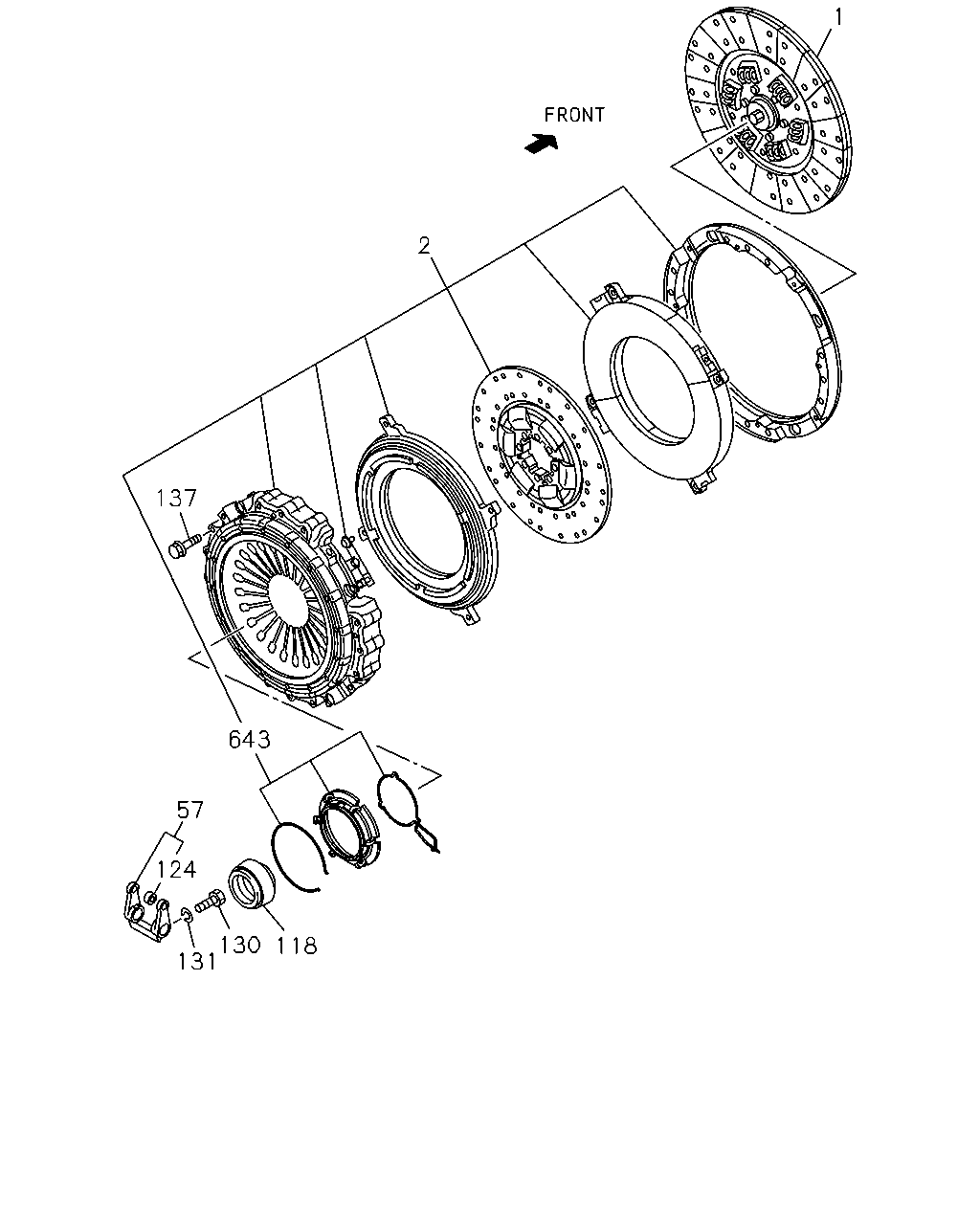

çizim 336179
1 2 137 643 57 124 118 130 131
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
15.5" 		1-31240-975-0 01 1 1303-
2 PLATE ASM; PRESSURE,CLU 1-31220-414-0 01 1 1303-
57 FORK; SHIFT,CLU 1-31340-066-1 01 1 1303-
118 BEARING; CLU RELEASE 1-31310-021-0 01 1 1303-1306
118 BEARING; CLU RELEASE 1-31310-028-0 01 1 1307-
124 BEARING; CAM,SHIFT FORK 1-31349-060-1 02 1 1303-
130 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 1303-
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 1303-
137 BOLT; CLU COVER
M10X110 FLANGE 		0-28156-011-0 12 1 1303-
643 REPAIR KIT; CLUTCH 8-98207-785-0 01 1 1303-
