◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07B - CLUTCH BOOSTER; MINIPACK ▶
2-07B — CLUTCH BOOSTER; MINIPACK (#115354) — 52 parça

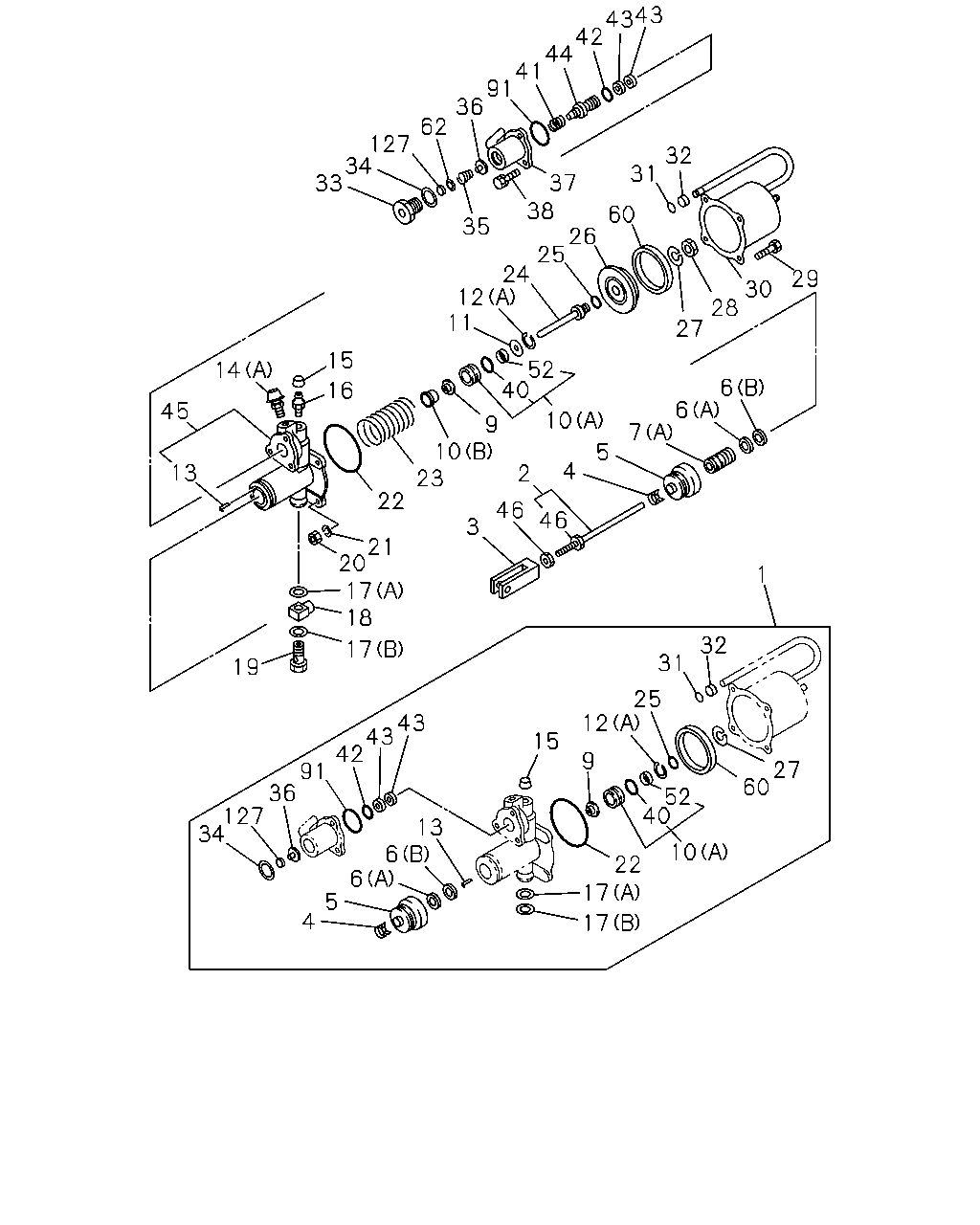

çizim 337185
33 34 127 62 36 91 41 44 42 43 43 35 38 37 11 12 24 25 26 60 31 32 16 15 14 45 13 19 34 127 36 91 42 43 43 4 5 6 6 13 17 18 17 20 21 22 23 10 9 40 52 10 3 46 2 46 4 5 7 6 6 27 28 30 29 17 17 22 40 10 52 60 27 15 9 12 25 31 32 1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-551-0 01 1 1303-
2 ROD; PUSH,CLU BOOSTER 1-31824-172-0 01 1 1303-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-187-0 01 1 1303-
4 CLAMP; BOOSTER 1-31829-168-0 01 1 1303-
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 1303-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1303-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1303-
7 PISTON; CLU BOOSTER
(A) 		1-31821-048-0 01 1 1303-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1303-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1303-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1303-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1303-
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1303-
13 PIN; SPR 1-31829-109-0 01 1 1303-
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-365-0 01 1 1303-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1303-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1303-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1303-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1303-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1303-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1303-
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 1303-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 1303-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 1303-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1303-
24 ROD; PUSH,CLU BOOSTER 1-31829-334-0 01 1 1303-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1303-
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 1303-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1303-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1303-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 1303-
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 1303-
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 1303-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 1303-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1303-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1303-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1303-
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1303-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-092-0 01 1 1303-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1303-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1303-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 1303-
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 1303-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-083-0 02 1 1303-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-030-0 01 1 1303-
45 PLATE; END,CLU BOOSTER 1-31811-064-0 01 1 1303-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1303-
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 1303-
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 1303-
62 RETAINER; POPPET 1-31829-489-0 01 1 1303-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1303-
127 FILTER; POPPET 1-31829-495-0 01 1 1303-
