Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#115350) — 392 parça

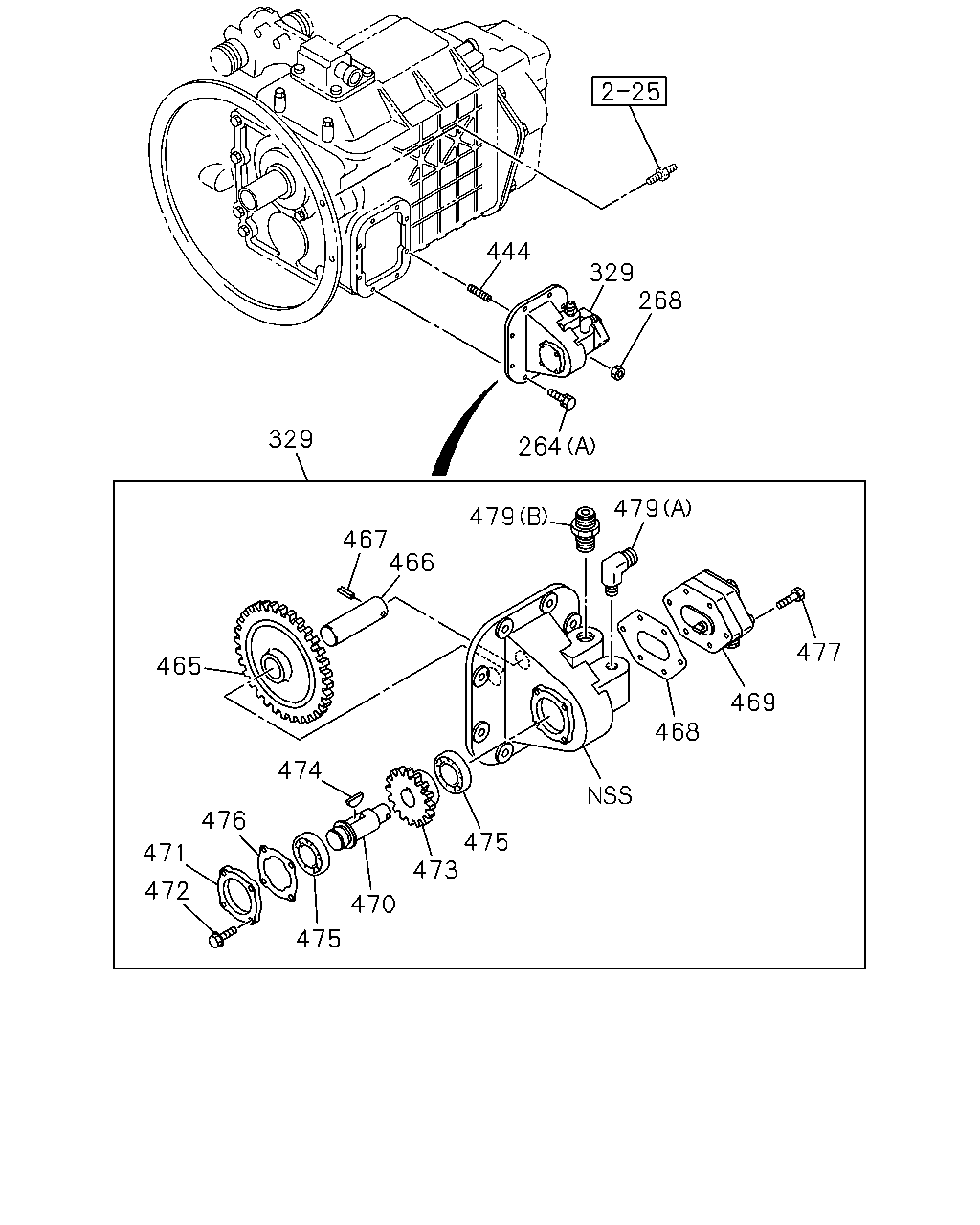

444 329 268 264 329 479 467 466 479 477 469 468 475 473 470 475 472 471 476 474 465

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28151-070-0	01	1	1512-	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	8-98230-249-0	09	1	1512-	●
264	BOLT; OIL PUMP (C) M8X65	0-10805-865-0	02	1	1512-		●
264	BOLT; OIL PUMP (C) M8X50	0-10855-850-0	02	1	1512-		●
264	BOLT; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M10X22 FLANGE	0-28181-022-0	06	1	1303-			●
268	NUT EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	1303-			●
329	PUMP ASM; OIL	1-34150-112-0	01	1	1512-	●
329	PUMP ASM; OIL	8-98283-996-0	01	1	1512-		●
329	PUMP ASM; OIL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34150-090-5	01	1	1303-			●
444	STUD; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	1303-			●
465	GEAR; IDLE,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=34	1-34159-073-1	01	1	1303-			●
466	SHAFT; IDLE GEAR,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34159-072-0	01	1	1303-			●
467	PIN; SPRING,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	1303-			●
468	GASKET; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34142-027-0	01	1	1303-			●
469	PUMP; OIL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34150-049-0	01	1	1303-			●
470	SHAFT; OUTPUT,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34159-043-0	01	1	1303-			●
471	COVER; FRT,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34159-042-0	01	1	1303-			●
472	BOLT; COVER,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 FLANGE	0-28050-816-0	04	1	1303-			●
473	GEAR; OUTPUT,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=15	1-34152-011-0	01	1	1303-			●
474	KEY; OUTPUT SHAFT,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-08055-628-0	01	1	1303-			●
475	BEARING; OUTPUT SHAFT,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34159-044-0	02	1	1303-			●
476	GASKET; COVER,OIL PUMP	1-34159-099-0	01	1	1512-		●
476	GASKET; COVER,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34159-045-0	01	1	1303-			●
477	BOLT; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X50 FLANGE	0-28050-850-0	02	1	1303-			●
477	BOLT; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X70 FLANGE	0-28050-870-0	02	1	1303-			●
479	CONNECTOR; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-09650-518-0	01	1	1303-1310			●
479	CONNECTOR; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-09650-538-0	01	1	1311-			●
479	CONNECTOR; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M22 & PT1/2 FLARE	9-09231-815-1	01	1	1303-			●

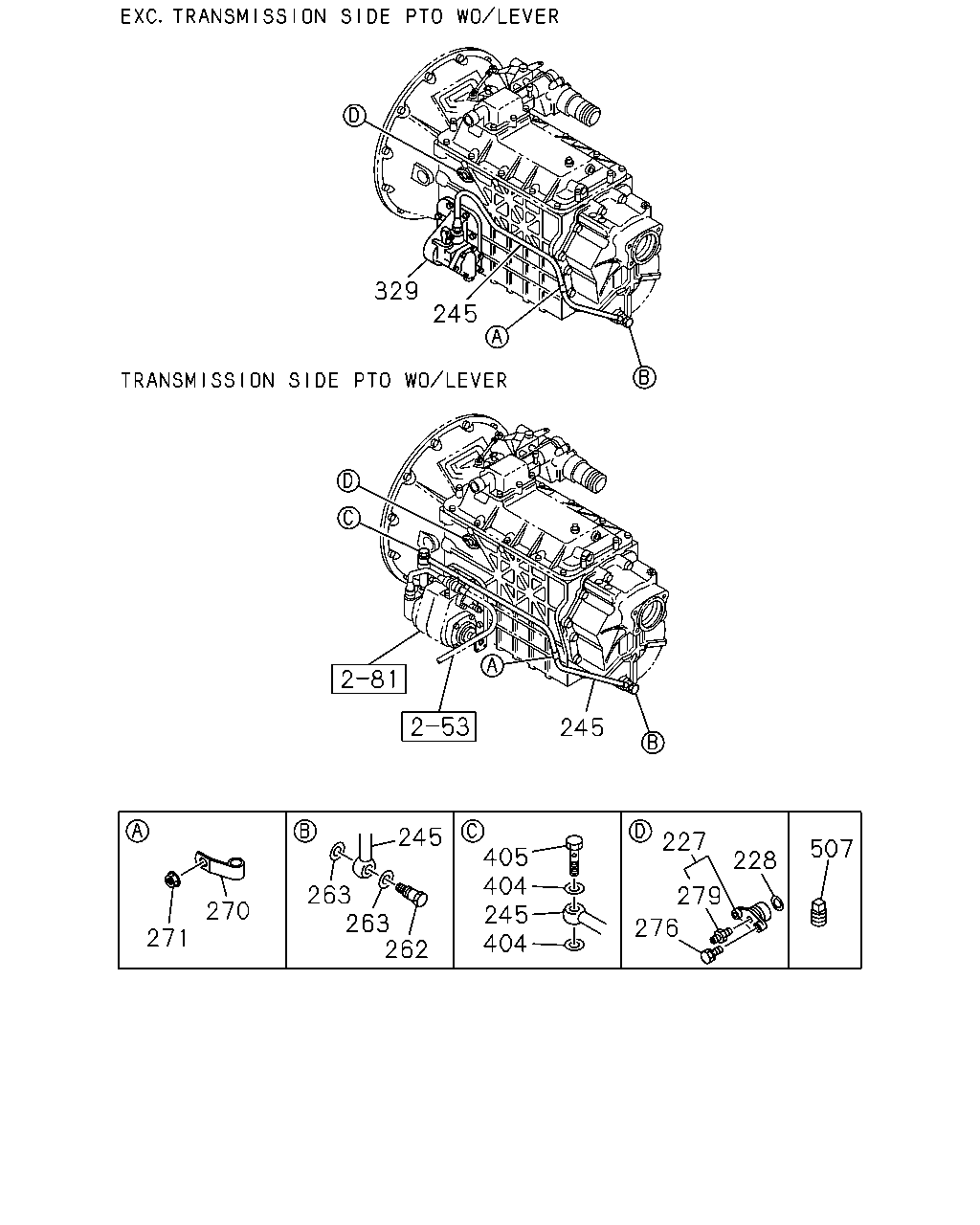

329 245 245 270 271 263 263 262 245 405 404 245 404 227 279 276 228 507

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
227	ADAPTER; NOZZLE	1-33119-185-0	01	1	1303-			●
228	GASKET; NOZZLE ID=24.4	1-09623-057-0	01	1	1303-			●
245	PIPE; OIL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-32571-151-0	01	1	1303-			●
245	PIPE; OIL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-49161-052-0	01	1	1303-			●
262	STRAINER; OIL PUMP	1-41383-003-0	01	1	1512-		●
262	STRAINER; OIL PUMP	1-34159-039-1	01	1	1303-			●
263	GASKET; STRAINER ALSO INCLUDED IN GASKET SET(M/T). ID=24.2	1-09630-090-0	02	1	1303-			●
270	CLIP; OIL PIPE	1-09701-117-0	01	1	1303-			●
271	NUT; CLIP M10 FLANGE	0-91180-210-0	01	1	1303-			●
276	BOLT; ADAPTER M14X20	1-09044-078-0	02	1	1303-			●
279	CONNECTOR; INL PIPE R1/4 & M16	0-92306-008-0	01	1	1303-			●
329	PUMP ASM; OIL	1-34150-112-0	01	1	1512-	●
329	PUMP ASM; OIL	8-98283-996-0	01	1	1512-		●
329	PUMP ASM; OIL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34150-090-5	01	1	1303-			●
404	GASKET; OIL PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=24.2	1-09630-090-0	02	1	1303-			●
405	BOLT; EYE,OIL PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) M24X39	1-09675-132-1	01	1	1303-1404			●
405	BOLT; EYE,OIL PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) M24X39	1-09675-175-2	01	1	1405-			●
507	PLUG; UNION PT1/4	9-99204-513-0	01	1	1303-			●

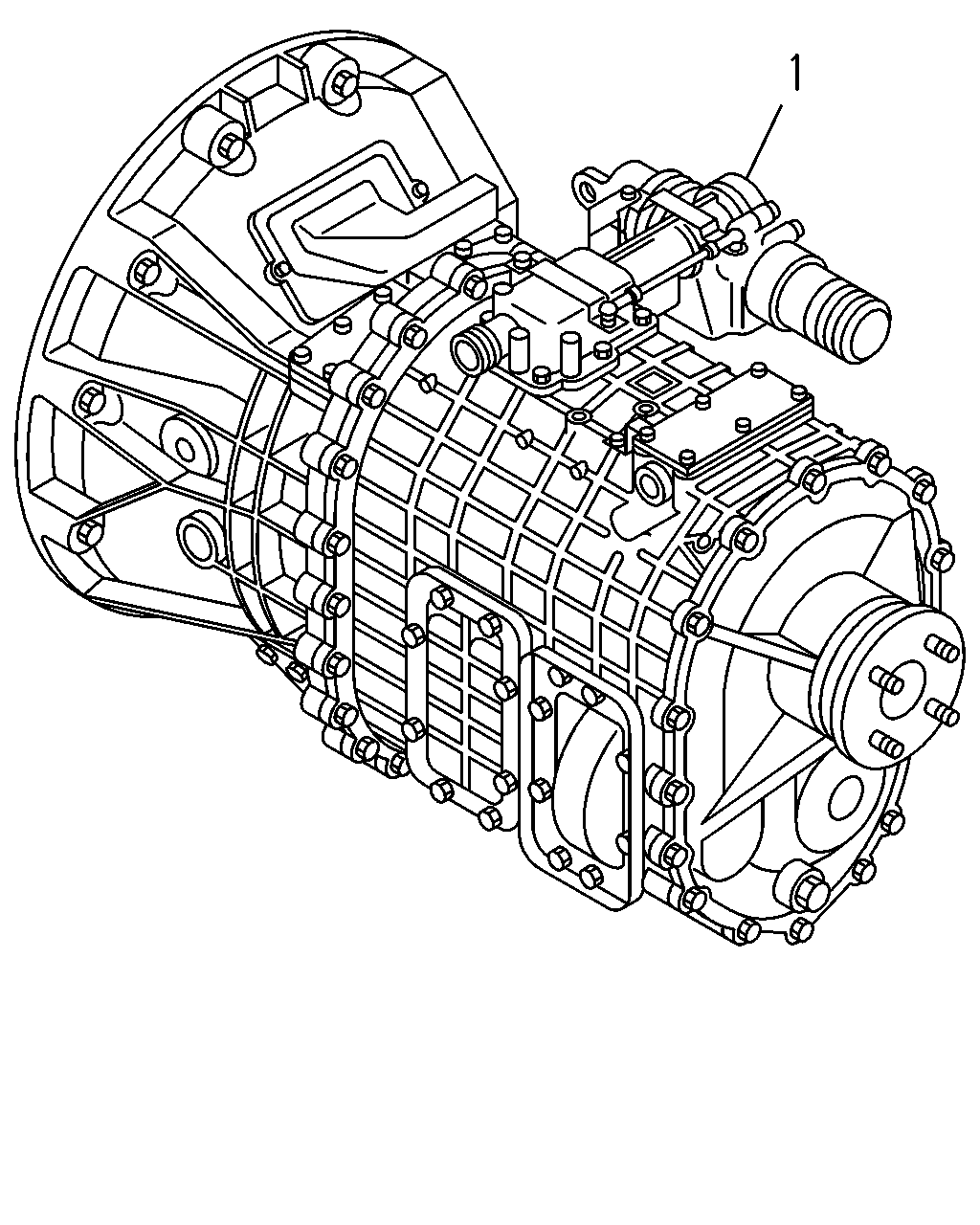

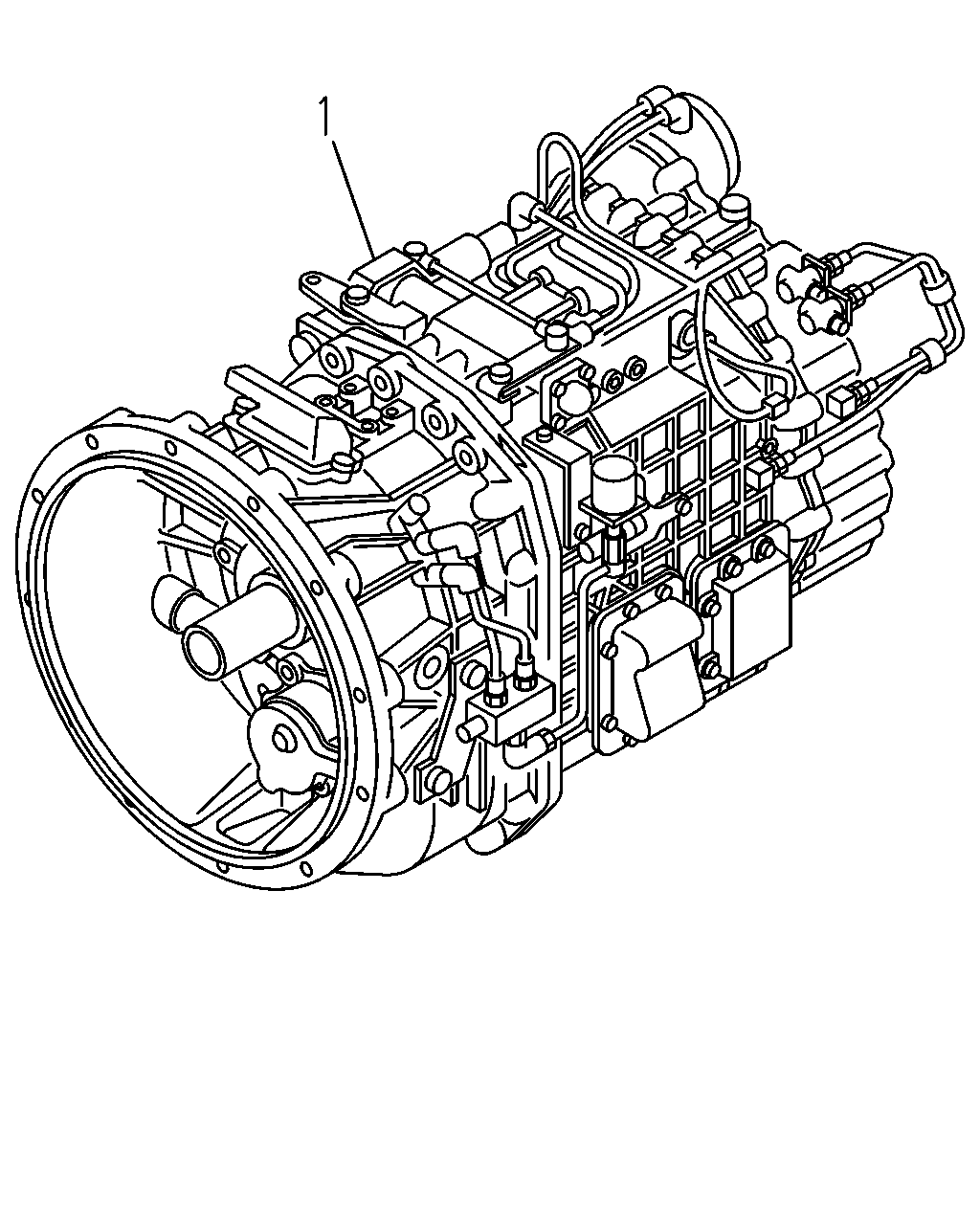

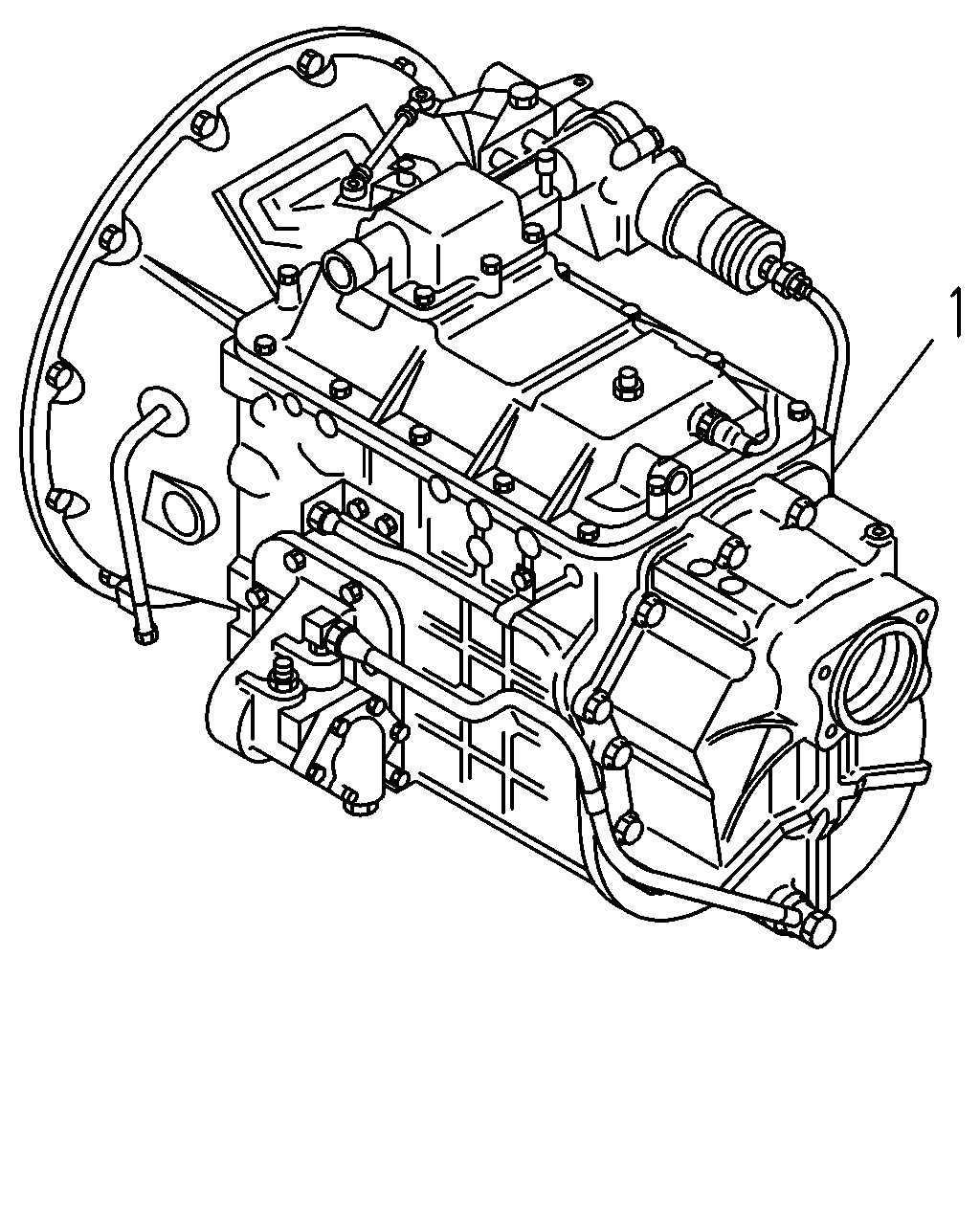

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-615-0	01	1	1512-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-653-0	01	1	1512-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-653-0	01	1	1512-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-653-0	01	1	1512-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-615-0	01	1	1512-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-615-0	01	1	1512-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-469-0	01	1	1303-			●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-469-0	01	1	1303-			●

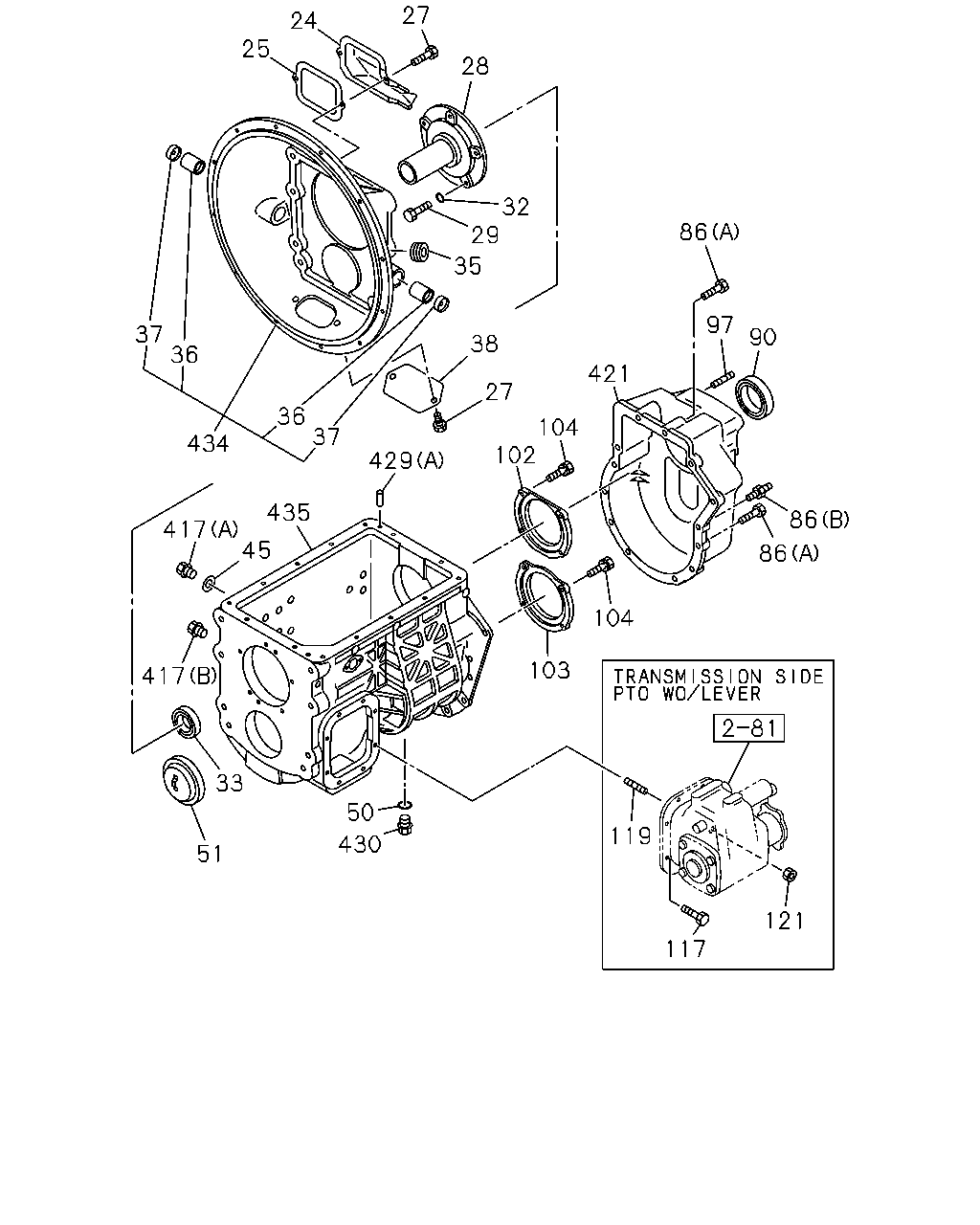

25 24 27 8 37 36 434 417 45 435 429 27 38 29 32 35 421 86 97 90 86 86 104 119 117 121 103 50 430 33 51 417 36 37 102 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1303-1511			●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1512-	●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1303-1406			●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-1511			●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1512-	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1512-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	1303-			●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1512-	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	06	1	1303-			●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	1303-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	1512-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	1303-1511			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	1512-	●		●
35	GROMMET; CLU HSG OD=31	9-09575-796-0	01	1	1512-		●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	1303-1511			●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	1512-	●		●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1303-1511			●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1512-	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1303-1511			●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1512-	●	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1303-1511			●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1512-	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1303-1511			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1512-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1303-1511			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1512-	●		●
51	COVER; SEAL,COUNTER,FRT	1-33319-200-1	01	1	1512-		●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	1303-			●
86	BOLT; RR COVER (A) M12X40 FLANGE	0-28151-240-0	14	1	1512-	●
86	BOLT; RR COVER (B) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	1512-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	06	1	1512-		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	08	1	1303-			●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	1303-			●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	1303-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	1512-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	1512-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	1303-			●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	1303-1511			●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	1512-	●		●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-020-1	01	1	1303-			●
103	RETAINER; BRG	1-33151-059-0	01	1	1512-	●
103	RETAINER; BRG	1-33151-061-0	01	1	1512-		●
103	RETAINER; BRG	9-33151-014-0	01	1	1303-			●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1512-	●	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	1303-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X28 FLANGE	8-98044-944-0	02	1	1512-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X45 FLANGE	0-28151-245-0	04	1	1512-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X35 FLANGE	0-28151-235-0	02	1	1512-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X130 FLANGE	0-28166-213-0	02	1	1512-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE	0-28751-235-0	04	1	1512-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	02	1	1303-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 L=63	1-09302-178-0	04	1	1512-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	1512-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	8-98059-951-0	04	1	1512-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	06	1	1303-1511			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	06	1	1512-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X25 L=40	0-44011-025-0	06	1	1512-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	1512-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91180-212-0	04	1	1512-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1303-1511			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1512-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10 FLANGE	0-91180-210-0	06	1	1512-		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1303-1511			●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1512-	●	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1303-1511			●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1512-	●	●	●
421	COVER; RR,TRANS	8-98304-558-0	01	1	1512-	●
421	COVER; RR,TRANS	1-33131-238-0	01	1	1512-		●
421	COVER; RR,TRANS	1-33131-192-2	01	1	1303-			●
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	06	1	1512-	●	●
429	PIN; STRAIGHT (A) OD=12 L=32	9-08161-232-0	01	1	1512-		●
429	PIN; STRAIGHT (A) OD=8 L=16	9-08150-816-0	02	1	1303-			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1303-1511			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1512-	●		●
434	HOUSING; CLU	1-31110-198-1	01	1	1303-			●
435	CASE; TRANS	8-98132-970-0	01	1	1512-	●
435	CASE; TRANS	1-33111-361-1	01	1	1512-		●
435	CASE; TRANS	1-33111-334-0	01	1	1303-			●

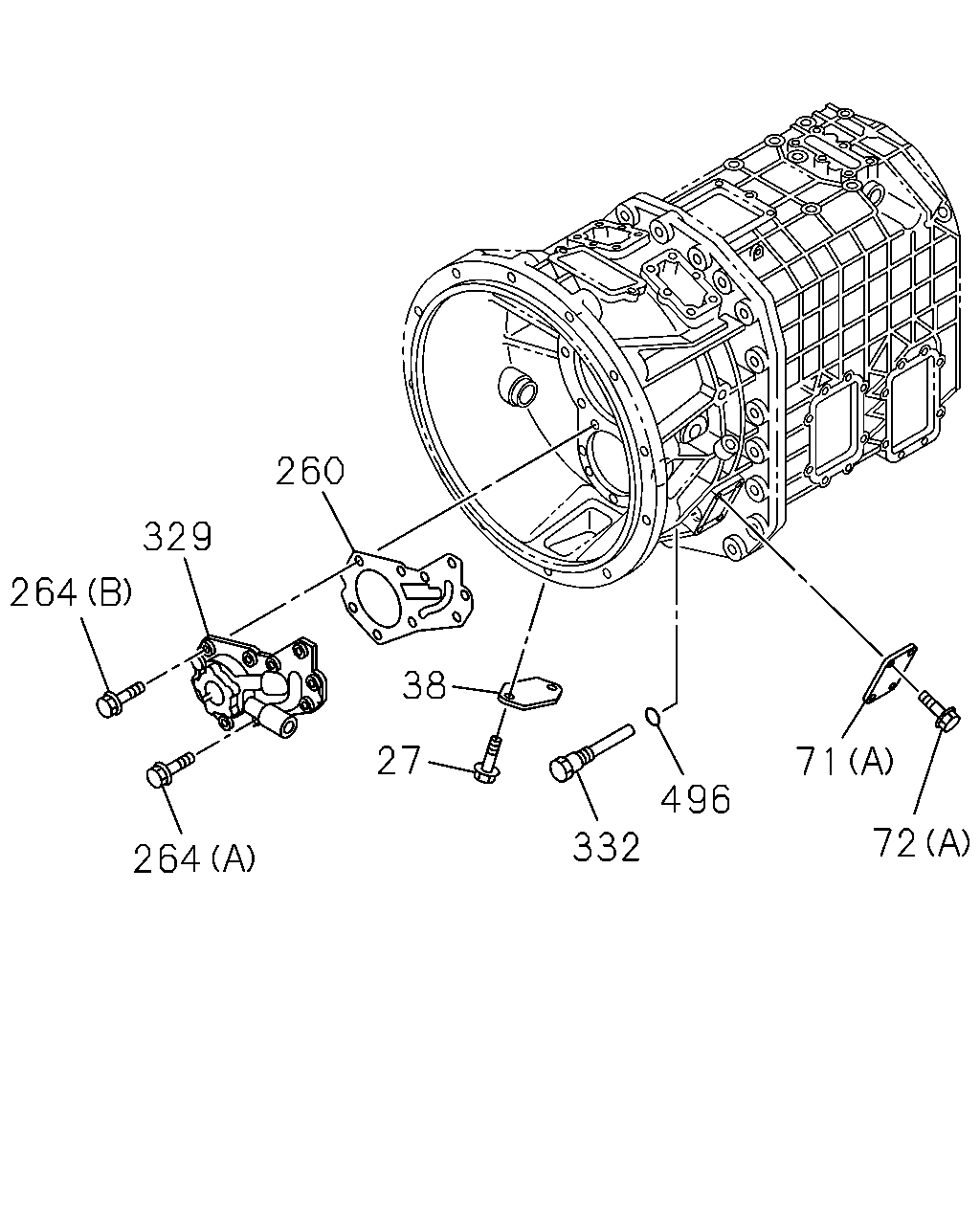

260 329 264 264 38 27 332 496 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1512-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	1303-			●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1303-1511			●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1512-	●	●	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	1512-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-33141-057-1	01	1	1512-	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	1512-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D)	1-33141-066-0	01	1	1512-		●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	1512-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M12X40 FLANGE	0-28151-240-0	07	1	1512-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1512-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	1512-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (F) M12X30 FLANGE	1-09044-086-0	08	1	1512-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (E) M10X35 FLANGE	0-28751-035-0	08	1	1512-		●
260	GASKET; OIL PUMP	1-34142-031-0	01	1	1512-	●
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28151-070-0	01	1	1512-	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	8-98230-249-0	09	1	1512-	●
264	BOLT; OIL PUMP (C) M8X65	0-10805-865-0	02	1	1512-		●
264	BOLT; OIL PUMP (C) M8X50	0-10855-850-0	02	1	1512-		●
264	BOLT; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M10X22 FLANGE	0-28181-022-0	06	1	1303-			●
329	PUMP ASM; OIL	1-34150-112-0	01	1	1512-	●
329	PUMP ASM; OIL	8-98283-996-0	01	1	1512-		●
329	PUMP ASM; OIL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34150-090-5	01	1	1303-			●
332	FILTER; OIL	1-34159-050-1	01	1	1512-	●
496	GASKET; OIL FILTER ID=24.2	1-09630-090-0	01	1	1512-	●

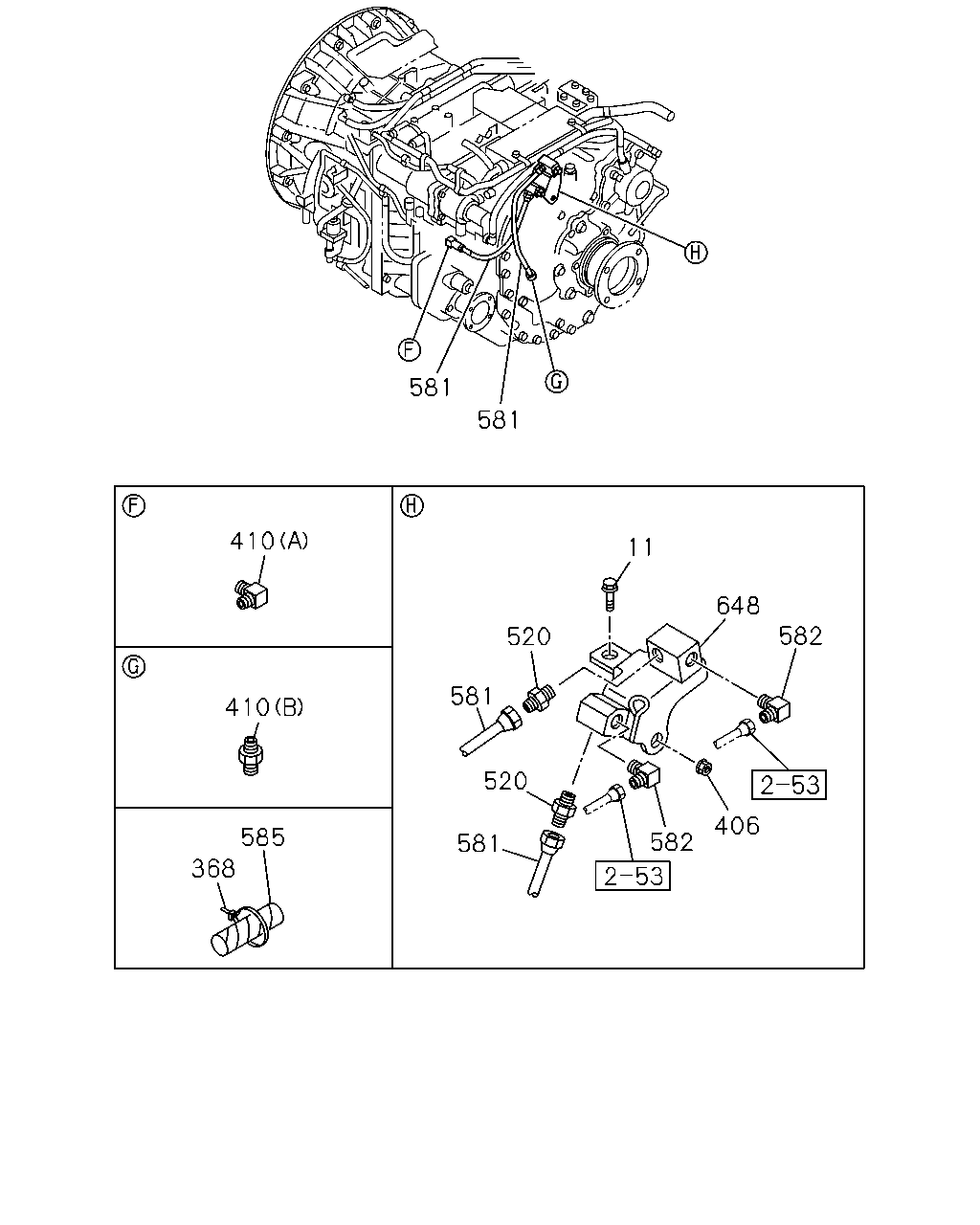

581 581 410 410 585 368 11 520 581 520 581 582 582 648 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	01	1	1512-		●
368	CLIP; BAND,CABLE L=250	1-09707-126-0	01	1	1512-		●
406	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1512-		●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	02	1	1512-	●
410	UNION; OIL PIPE (B) R1/4 & M16	0-92306-008-0	01	1	1512-		●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	01	1	1512-		●
520	CONNECTOR R1/4 & M16	0-92306-008-0	02	1	1512-		●
581	HOSE; OIL COOLER L=360	1-09365-234-0	02	1	1512-		●
582	NIPPLE; ELBOW R3/8 & M22 ELBOW	1-09660-612-1	02	1	1512-		●
585	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1512-		●
648	UNION ASM	8-98131-605-2	01	1	1512-		●

27 24 25 37 36 232 28 29 417 45 417 33 435 429 117 121 72 71 119 72 71 429 503 266 255 264 254 202 254 255 262 324 546 429 429 326 103 104 429 580 37 36 318 51 261 112 111 421 86 90 315 35 429 476 527 503 328 502 329 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; CLU	8-98200-947-0	01	1	1512-	●
2	HOUSING; CLU	8-98168-737-0	01	1	1512-		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1303-1511			●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1512-	●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1303-1406			●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-1511			●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1512-	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1512-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	1303-			●
28	COVER; FRT,TRANS CASE	1-33121-158-3	01	1	1512-	●
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	1512-		●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	1303-			●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1512-	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	06	1	1303-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	1512-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	1303-1511			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	1512-	●		●
35	GROMMET; CLU HSG OD=31	9-09575-796-0	01	1	1512-		●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	1303-1511			●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	1512-	●		●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1303-1511			●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1512-	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1303-1511			●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1512-	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1303-1511			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1512-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-200-1	01	1	1512-		●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	1303-			●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	1512-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-33141-057-1	01	1	1512-	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	1512-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D)	1-33141-066-0	01	1	1512-		●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	1512-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M12X40 FLANGE	0-28151-240-0	07	1	1512-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1512-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	1512-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (F) M12X30 FLANGE	1-09044-086-0	08	1	1512-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (E) M10X35 FLANGE	0-28751-035-0	08	1	1512-		●
86	BOLT; RR COVER (A) M12X40 FLANGE	0-28151-240-0	14	1	1512-	●
86	BOLT; RR COVER (B) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	1512-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	06	1	1512-		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	08	1	1303-			●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	1303-			●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	1303-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	1512-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	1512-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	1303-			●
103	RETAINER; BRG	1-33151-059-0	01	1	1512-	●
103	RETAINER; BRG	1-33151-061-0	01	1	1512-		●
103	RETAINER; BRG	9-33151-014-0	01	1	1303-			●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1512-	●	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	1303-			●
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-022-0	01	1	1512-		●
112	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1512-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X28 FLANGE	8-98044-944-0	02	1	1512-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X45 FLANGE	0-28151-245-0	04	1	1512-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X35 FLANGE	0-28151-235-0	02	1	1512-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X130 FLANGE	0-28166-213-0	02	1	1512-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE	0-28751-235-0	04	1	1512-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	02	1	1303-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 L=63	1-09302-178-0	04	1	1512-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	1512-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	8-98059-951-0	04	1	1512-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	06	1	1303-1511			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	06	1	1512-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X25 L=40	0-44011-025-0	06	1	1512-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	1512-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91180-212-0	04	1	1512-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1303-1511			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1512-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10 FLANGE	0-91180-210-0	06	1	1512-		●
202	BOLT; PLATE M12X35 FLANGE	0-28751-235-0	09	1	1512-		●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	1512-	●	●
254	PLUG; DRAIN,OIL M24X17 FLANGE	1-09604-023-0	02	1	1512-		●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	1512-		●
261	BOLT; COVER M10X30 FLANGE	0-28151-030-0	07	1	1512-		●
262	STRAINER; OIL PUMP	1-41383-003-0	01	1	1512-		●
262	STRAINER; OIL PUMP	1-34159-039-1	01	1	1303-			●
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28151-070-0	01	1	1512-	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	8-98230-249-0	09	1	1512-	●
264	BOLT; OIL PUMP (C) M8X65	0-10805-865-0	02	1	1512-		●
264	BOLT; OIL PUMP (C) M8X50	0-10855-850-0	02	1	1512-		●
264	BOLT; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M10X22 FLANGE	0-28181-022-0	06	1	1303-			●
266	WASHER; LK ID=8.2	0-91510-508-0	04	1	1512-		●
315	BOLT; CASE M12X50 FLANGE	0-28151-250-0	11	1	1512-		●
315	BOLT; CASE M12X110 FLANGE	0-28156-211-0	05	1	1512-		●
315	BOLT; CASE M12X35 FLANGE	0-28751-235-0	02	1	1512-		●
318	GASKET; COVER	1-34142-034-0	01	1	1512-		●
324	STUD; RR COVER M10X18,M12X110 L=139.5	1-09049-033-1	02	1	1512-		●
326	NOZZLE; OIL,OUTLET	1-33219-272-0	01	1	1512-		●
328	GASKET; PLUG	1-34159-100-0	01	1	1512-		●
329	PUMP ASM; OIL	1-34150-112-0	01	1	1512-	●
329	PUMP ASM; OIL	8-98283-996-0	01	1	1512-		●
329	PUMP ASM; OIL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34150-090-5	01	1	1303-			●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1303-1511			●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1512-	●	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1303-1511			●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1512-	●	●	●
421	COVER; RR,TRANS	8-98304-558-0	01	1	1512-	●
421	COVER; RR,TRANS	1-33131-238-0	01	1	1512-		●
421	COVER; RR,TRANS	1-33131-192-2	01	1	1303-			●
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	06	1	1512-	●	●
429	PIN; STRAIGHT (A) OD=12 L=32	9-08161-232-0	01	1	1512-		●
429	PIN; STRAIGHT (A) OD=8 L=16	9-08150-816-0	02	1	1303-			●
435	CASE; TRANS	8-98132-970-0	01	1	1512-	●
435	CASE; TRANS	1-33111-361-1	01	1	1512-		●
435	CASE; TRANS	1-33111-334-0	01	1	1303-			●
476	GASKET; COVER,OIL PUMP	1-34159-099-0	01	1	1512-		●
476	GASKET; COVER,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34159-045-0	01	1	1303-			●
502	PLUG; OIL PUMP	1-34159-101-0	01	1	1512-		●
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	1512-		●
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	1512-		●
527	BALL; OIL PUMP	9-00097-531-0	01	1	1512-		●
546	RING; SNAP,BRG T=2.00	1-09588-150-1	01	1	1512-		●
580	CASE; RANGE	1-33115-051-2	01	1	1512-		●

27 24 25 417 37 232 28 29 2 36 36 35 37 421 90 97 86 86 430 50 119 121 117 117 72 71 73 72 72 71 119 121 117 429 33 45 417 435 103 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; CLU	8-98200-947-0	01	1	1512-	●
2	HOUSING; CLU	8-98168-737-0	01	1	1512-		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1303-1511			●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1512-	●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1303-1406			●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-1511			●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1512-	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1512-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	1303-			●
28	COVER; FRT,TRANS CASE	1-33121-158-3	01	1	1512-	●
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	1512-		●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	1303-			●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1512-	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	06	1	1303-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	1512-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	1303-1511			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	1512-	●		●
35	GROMMET; CLU HSG OD=31	9-09575-796-0	01	1	1512-		●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	1303-1511			●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	1512-	●		●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1303-1511			●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1512-	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1303-1511			●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1512-	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1303-1511			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1512-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1303-1511			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1512-	●		●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	1512-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-33141-057-1	01	1	1512-	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	1512-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D)	1-33141-066-0	01	1	1512-		●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	1512-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M12X40 FLANGE	0-28151-240-0	07	1	1512-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1512-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	1512-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (F) M12X30 FLANGE	1-09044-086-0	08	1	1512-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (E) M10X35 FLANGE	0-28751-035-0	08	1	1512-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	1512-	●
86	BOLT; RR COVER (A) M12X40 FLANGE	0-28151-240-0	14	1	1512-	●
86	BOLT; RR COVER (B) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	1512-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	06	1	1512-		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	08	1	1303-			●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	1303-			●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	1303-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	1512-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	1512-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	1303-			●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	1303-1511			●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	1512-	●		●
103	RETAINER; BRG	1-33151-059-0	01	1	1512-	●
103	RETAINER; BRG	1-33151-061-0	01	1	1512-		●
103	RETAINER; BRG	9-33151-014-0	01	1	1303-			●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1512-	●	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	1303-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X28 FLANGE	8-98044-944-0	02	1	1512-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X45 FLANGE	0-28151-245-0	04	1	1512-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X35 FLANGE	0-28151-235-0	02	1	1512-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X130 FLANGE	0-28166-213-0	02	1	1512-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE	0-28751-235-0	04	1	1512-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	02	1	1303-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 L=63	1-09302-178-0	04	1	1512-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	1512-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	8-98059-951-0	04	1	1512-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	06	1	1303-1511			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	06	1	1512-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X25 L=40	0-44011-025-0	06	1	1512-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	1512-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91180-212-0	04	1	1512-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1303-1511			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1512-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10 FLANGE	0-91180-210-0	06	1	1512-		●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	1512-	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1303-1511			●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1512-	●	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1303-1511			●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1512-	●	●	●
421	COVER; RR,TRANS	8-98304-558-0	01	1	1512-	●
421	COVER; RR,TRANS	1-33131-238-0	01	1	1512-		●
421	COVER; RR,TRANS	1-33131-192-2	01	1	1303-			●
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	06	1	1512-	●	●
429	PIN; STRAIGHT (A) OD=12 L=32	9-08161-232-0	01	1	1512-		●
429	PIN; STRAIGHT (A) OD=8 L=16	9-08150-816-0	02	1	1303-			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1303-1511			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1512-	●		●
435	CASE; TRANS	8-98132-970-0	01	1	1512-	●
435	CASE; TRANS	1-33111-361-1	01	1	1512-		●
435	CASE; TRANS	1-33111-334-0	01	1	1303-			●

150 265 353 303 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
150	NUT M8 FLANGE	0-91180-108-0	01	1	1512-	●
265	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1512-	●
303	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	1512-	●
353	CLIP; NYLON TUBE ID=18 H=23 L=28	1-09701-070-0	01	1	1512-	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1512-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-615-0	01	1	1512-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-653-0	01	1	1512-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-653-0	01	1	1512-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-653-0	01	1	1512-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-615-0	01	1	1512-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-615-0	01	1	1512-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-469-0	01	1	1303-			●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-469-0	01	1	1303-			●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-615-0	01	1	1512-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-653-0	01	1	1512-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-653-0	01	1	1512-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-653-0	01	1	1512-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-615-0	01	1	1512-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-615-0	01	1	1512-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-469-0	01	1	1303-			●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-469-0	01	1	1303-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
