Sayfa 2-26A - Isuzu EPC

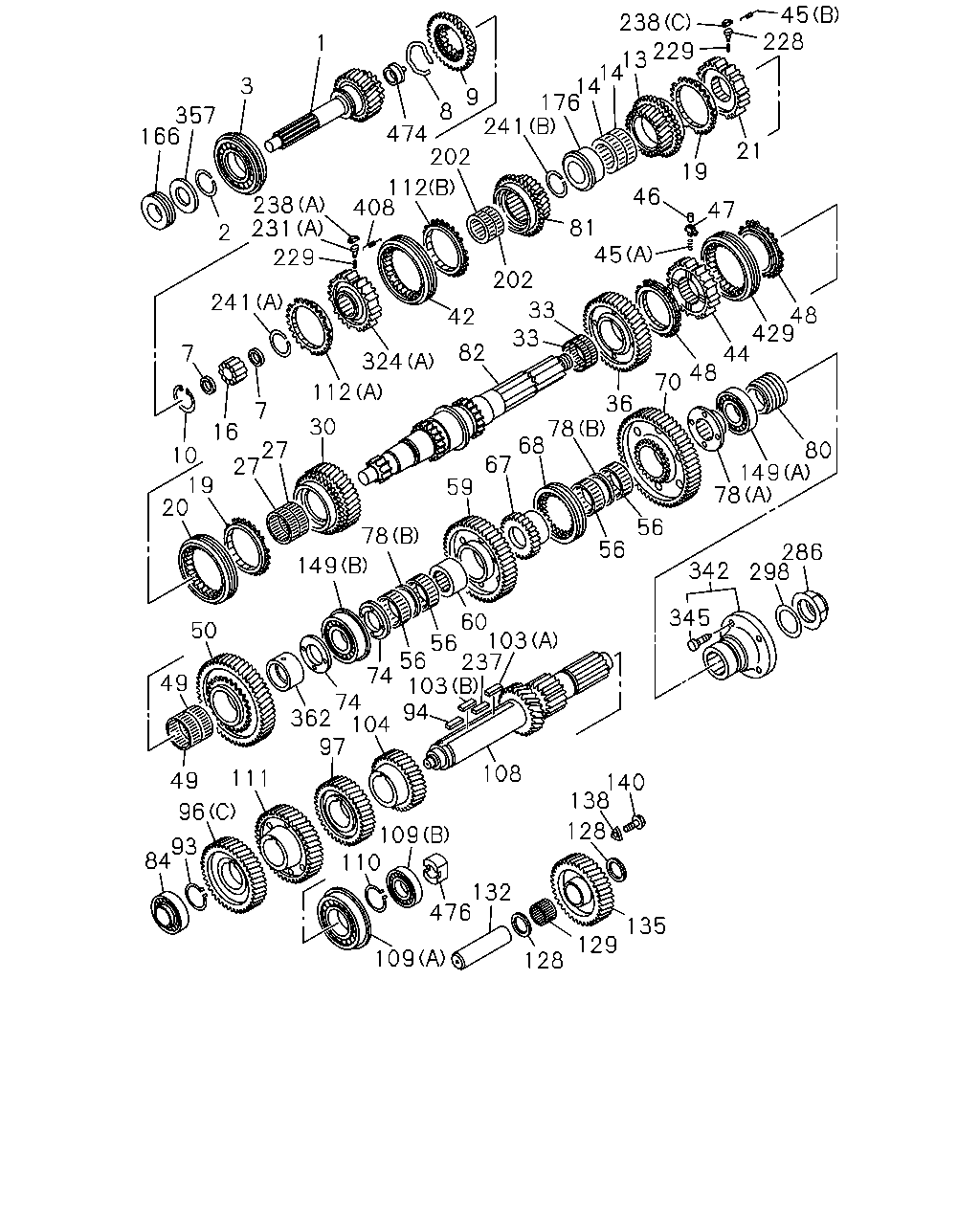

2-26A — MANUAL TRANSMISSION GEAR (#115347) — 315 parça

45 238 228 21 229 13 14 14 176 241 9 8 474 202 19 46 81 202 112 408 1 3 357 166 238 2 231 241 7 47 45 42 324 112 7 16 10 30 27 27 19 20 33 33 82 50 49 149 59 67 68 78 36 70 48 44 429 48 80 149 78 56 56 78 74 362 74 49 96 93 84 111 56 60 56 103 94 97 109 110 109 132 108 103 237 104 476 286 298 342 345 140 138 128 135 129 128 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=27	1-33211-992-0	01	1	1009-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1009-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1009-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1009-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1009-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	1009-	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	1009-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	1009-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	1009-	●	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	1009-	●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	1009-	●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	1009-	●	●
13	GEAR; 5TH,MAINSHAFT Z=31	1-33253-673-0	01	1	1009-	●
14	BEARING; NEEDLE,5TH NSK	1-09811-376-0	02	1	1009-1311	●
14	BEARING; NEEDLE,5TH NTN	1-09811-401-0	02	1	1009-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	1009-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	1009-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	1009-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	1009-		●
19	RING; BLOCK,4TH & 5TH Z=66	1-33265-545-1	02	1	1009-	●
20	SLEEVE	1-33262-222-0	01	1	1009-	●
20	SLEEVE	1-33262-216-1	01	1	1009-		●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	1009-	●
27	BEARING; 4TH GEAR NSK	1-09811-376-0	02	1	1009-1311	●
27	BEARING; 4TH GEAR NTN	1-09811-401-0	02	1	1009-	●
30	GEAR; 4TH,MAINSHAFT Z=42	1-33253-691-0	01	1	1009-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	1009-1311	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	1009-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-378-0	02	1	1009-1308		●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-379-0	02	1	1009-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	1009-	●
42	SLEEVE	1-33262-222-0	01	1	1009-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	1009-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-278-1	01	1	1009-		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	1009-	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	1009-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	1009-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	1009-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	1009-	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	1009-1308	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	1009-	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	1009-	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-423-0	01	1	1009-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	1009-1311	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	1009-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-436-0	04	1	1009-		●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	1009-	●
59	GEAR; REV MAINSHAFT Z=42	1-33257-090-0	01	1	1009-		●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	1009-	●
60	COLLAR; REV MAIN	1-33234-098-1	01	1	1009-		●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	1009-	●
67	HUB; CLU,1ST TO REV	1-33261-285-0	01	1	1009-		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	1009-	●
68	SLEEVE; 1ST TO REV	1-33262-232-0	01	1	1009-		●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	1009-	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-079-0	01	1	1009-		●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	1009-1506	●
74	WASHER; THRUST,REV GEAR	8-98304-662-0	02	1	1507-	●
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	1009-		●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	1009-	●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	1009-	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	1009-	●
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	1009-		●
81	GEAR; 7TH,MAIN Z=24	1-33253-654-0	01	1	1009-	●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	1009-1506	●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	8-98304-660-0	01	1	1507-	●
82	SHAFT; MAIN,TRANS Z=37-40-19	1-33231-331-1	01	1	1009-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	1009-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	1009-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	1009-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	1009-		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	1009-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	1009-	●
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	1009-		●
96	GEAR; COUNTER DRIVE (C) Z=41	1-33331-272-0	01	1	1009-	●
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	1009-		●
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	1009-		●
97	GEAR; 5TH,COUNTER Z=36	1-33338-386-0	01	1	1009-	●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	1009-	●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	1009-	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-380-0	01	1	1009-	●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	1009-	●
108	SHAFT; COUNTER Z=23-23	1-33311-329-0	01	1	1009-		●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	1009-	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	1009-	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	1009-	●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	1009-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	1009-	●	●
111	GEAR; 7TH COUNTER SHAFT Z=50	1-33338-388-0	01	1	1009-	●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-7	01	1	1009-	●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-1	01	1	1009-	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	1009-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	1009-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	1009-	●	●
132	SHAFT; REV	1-33351-025-4	01	1	1009-	●
132	SHAFT; REV	1-33351-035-1	01	1	1009-		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	1009-	●
135	GEAR; REV IDLER Z=30	1-33361-089-0	01	1	1009-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	1009-	●	●
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	1009-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-172-0	01	1	1009-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-173-0	01	1	1009-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-203-0	01	1	1009-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-204-0	01	1	1009-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NSK	1-09810-256-0	01	1	1009-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NTN	1-09810-257-0	01	1	1009-		●
166	PIECE; DIST	1-33363-032-1	01	1	1009-	●
176	COLLAR; 5TH GEAR	1-33234-069-1	01	1	1009-	●
202	BEARING; COUNTER GEAR NSK	1-09811-382-0	02	1	1009-1311	●
202	BEARING; COUNTER GEAR NTN	1-09811-383-0	02	1	1009-	●
228	PLUNGER; SYN	1-33263-020-0	03	1	1009-	●
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1404-		●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	1009-	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	1009-1403		●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1404-		●
231	PLUNGER (A)	1-33263-020-0	03	1	1009-	●
231	PLUNGER (B)	1-33263-033-0	06	1	1009-1403		●
231	PLUNGER (B)	8-98273-831-0	06	1	1404-		●
231	PLUNGER (C)	1-33263-038-1	09	1	1009-		●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	1009-	●
238	INSERT (A)	1-33263-025-2	06	1	1009-	●
238	INSERT (B)	1-33263-036-0	06	1	1009-		●
238	INSERT (C)	1-33263-039-0	09	1	1009-		●
241	RING; SNAP (A)	1-09588-185-0	01	1	1009-	●
241	RING; SNAP (B)	1-09588-189-0	01	1	1009-	●
241	RING; SNAP (C)	1-09587-023-0	02	1	1009-		●
241	RING; SNAP (D)	1-09587-104-0	01	1	1009-		●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	1009-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	1009-	●
324	HUB; CLU (A)	1-33261-238-0	01	1	1009-	●
324	HUB; CLU (B)	1-34231-015-0	01	1	1009-		●
324	HUB; CLU (C)	1-34371-017-0	01	1	1009-1307		●
324	HUB; CLU (C)	8-98239-089-0	01	1	1308-		●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	1009-1211	●
342	FLANGE; OUTPUT	8-98210-980-0	01	1	1212-	●
342	FLANGE; OUTPUT	1-37243-400-2	01	1	1009-		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1009-1302	●	●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1303-	●	●
357	RING	1-31349-015-0	01	1	1009-	●
357	RING	1-31349-044-0	04	1	1009-		●
362	COLLAR; 2ND GEAR	1-33234-072-0	01	1	1009-	●
408	SPRING	1-09583-171-0	03	1	1009-	●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	1009-	●
429	SLEEVE; 2ND & 3RD	1-33262-222-0	01	1	1009-		●
474	NOZZLE; OIL	1-33219-257-1	01	1	1009-	●
476	ADAPTER; PUMP DRIVE	1-33339-066-0	01	1	1009-	●
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	1009-		●

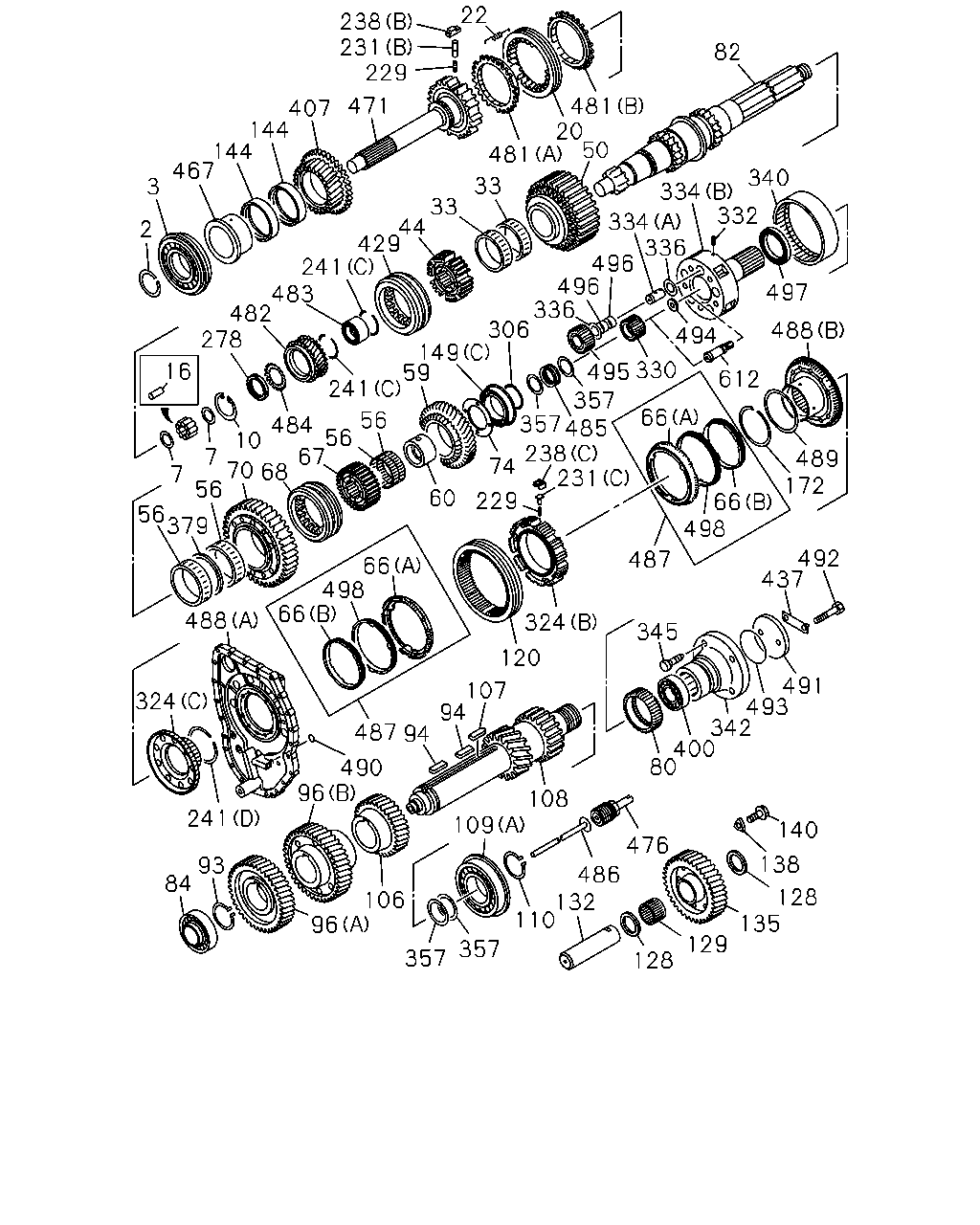

2 3 467 144 144 407 471 229 231 238 22 82 481 20 50 481 33 33 44 429 241 483 482 278 16 56 7 7 10 484 241 59 149 306 336 496 496 334 334 340 332 497 488 612 489 172 492 437 66 498 487 345 491 493 342 400 80 140 138 128 135 129 128 476 486 132 110 357 357 96 106 109 108 107 94 120 324 94 487 490 96 241 84 93 324 488 66 498 66 60 229 74 238 231 357 485 357 495 330 494 66 379 56 70 68 67 56 56 336

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1009-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1009-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1009-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1009-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	1009-	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	1009-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	1009-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	1009-	●	●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	1009-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	1009-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	1009-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	1009-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	1009-		●
20	SLEEVE	1-33262-222-0	01	1	1009-	●
20	SLEEVE	1-33262-216-1	01	1	1009-		●
22	SPRING; BLOCK,INSERT	1-09583-363-0	03	1	1009-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	1009-1311	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	1009-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-378-0	02	1	1009-1308		●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-379-0	02	1	1009-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	1009-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-278-1	01	1	1009-		●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	1009-	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-423-0	01	1	1009-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	1009-1311	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	1009-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-436-0	04	1	1009-		●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	1009-	●
59	GEAR; REV MAINSHAFT Z=42	1-33257-090-0	01	1	1009-		●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	1009-	●
60	COLLAR; REV MAIN	1-33234-098-1	01	1	1009-		●
66	RING; BLOCK,SYN (A)	1-33265-588-0	02	1	1009-1312		●
66	RING; BLOCK,SYN (A)	8-98239-909-1	02	1	1401-		●
66	RING; BLOCK,SYN (B)	1-33265-590-0	02	1	1009-1307		●
66	RING; BLOCK,SYN (B)	8-98239-294-0	02	1	1308-1312		●
66	RING; BLOCK,SYN (B)	8-98239-911-1	02	1	1401-		●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	1009-	●
67	HUB; CLU,1ST TO REV	1-33261-285-0	01	1	1009-		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	1009-	●
68	SLEEVE; 1ST TO REV	1-33262-232-0	01	1	1009-		●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	1009-	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-079-0	01	1	1009-		●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	1009-1506	●
74	WASHER; THRUST,REV GEAR	8-98304-662-0	02	1	1507-	●
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	1009-		●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	1009-	●
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	1009-		●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	1009-1506	●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	8-98304-660-0	01	1	1507-	●
82	SHAFT; MAIN,TRANS Z=37-40-19	1-33231-331-1	01	1	1009-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	1009-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	1009-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	1009-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	1009-		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	1009-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	1009-	●
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	1009-		●
96	GEAR; COUNTER DRIVE (C) Z=41	1-33331-272-0	01	1	1009-	●
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	1009-		●
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	1009-		●
106	GEAR; 2ND,COUNTER Z=35	1-33338-391-1	01	1	1009-		●
107	KEY; FEATHER,2ND COUNTER L=75.3	1-09735-042-0	01	1	1009-		●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	1009-	●
108	SHAFT; COUNTER Z=23-23	1-33311-329-0	01	1	1009-		●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	1009-	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	1009-	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	1009-	●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	1009-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	1009-	●	●
120	SLEEVE	1-33262-229-0	01	1	1009-		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	1009-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	1009-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	1009-	●	●
132	SHAFT; REV	1-33351-025-4	01	1	1009-	●
132	SHAFT; REV	1-33351-035-1	01	1	1009-		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	1009-	●
135	GEAR; REV IDLER Z=30	1-33361-089-0	01	1	1009-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	1009-	●	●
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	1009-	●	●
144	BEARING; NEEDLE,INPUT GEAR NTN	1-09811-436-0	02	1	1009-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-172-0	01	1	1009-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-173-0	01	1	1009-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-203-0	01	1	1009-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-204-0	01	1	1009-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NSK	1-09810-256-0	01	1	1009-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NTN	1-09810-257-0	01	1	1009-		●
172	RING; SNAP,CLU HUB OD=121.2	1-09587-031-0	01	1	1009-		●
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1404-		●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	1009-	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	1009-1403		●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1404-		●
231	PLUNGER (A)	1-33263-020-0	03	1	1009-	●
231	PLUNGER (B)	1-33263-033-0	06	1	1009-1403		●
231	PLUNGER (B)	8-98273-831-0	06	1	1404-		●
231	PLUNGER (C)	1-33263-038-1	09	1	1009-		●
238	INSERT (A)	1-33263-025-2	06	1	1009-	●
238	INSERT (B)	1-33263-036-0	06	1	1009-		●
238	INSERT (C)	1-33263-039-0	09	1	1009-		●
241	RING; SNAP (A)	1-09588-185-0	01	1	1009-	●
241	RING; SNAP (B)	1-09588-189-0	01	1	1009-	●
241	RING; SNAP (C)	1-09587-023-0	02	1	1009-		●
241	RING; SNAP (D)	1-09587-104-0	01	1	1009-		●
278	NUT; BRG	1-09449-080-0	01	1	1009-		●
306	RING; SNAP,MAINSHAFT	1-09588-149-0	01	1	1009-		●
324	HUB; CLU (A)	1-33261-238-0	01	1	1009-	●
324	HUB; CLU (B)	1-34231-015-0	01	1	1009-		●
324	HUB; CLU (C)	1-34371-017-0	01	1	1009-1307		●
324	HUB; CLU (C)	8-98239-089-0	01	1	1308-		●
330	GEAR; SUN Z=24	1-34311-010-0	01	1	1009-		●
332	PIN; LOCK,SHAFT	1-09748-025-0	05	1	1009-		●
334	SHAFT; PLANETARY GEAR (A)	1-34353-010-1	05	1	1009-		●
334	SHAFT; PLANETARY GEAR (B)	1-34372-034-0	01	1	1009-1307		●
334	SHAFT; PLANETARY GEAR (B)	8-98238-294-0	01	1	1308-		●
336	WASHER; THRUST,PLANETARY GEAR	1-09503-230-0	10	1	1009-		●
340	GEAR; RING Z=86 OKUBO GEAR	1-34371-014-0	01	1	1009-		●
340	GEAR; RING Z=86 NIPPON GEAR	1-34371-018-0	01	1	1009-		●
340	GEAR; RING Z=86 ISUZU	1-34371-019-0	01	1	1009-		●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	1009-1211	●
342	FLANGE; OUTPUT	8-98210-980-0	01	1	1212-	●
342	FLANGE; OUTPUT	1-37243-400-2	01	1	1009-		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1009-1302	●	●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1303-	●	●
357	RING	1-31349-015-0	01	1	1009-	●
357	RING	1-31349-044-0	04	1	1009-		●
379	PIECE; DIST,MAINSHAFT	1-33363-034-0	01	1	1009-		●
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	8-98153-252-0	01	1	1009-		●
407	GEAR; PRIMARY MAIN Z=33	1-33253-717-0	01	1	1009-		●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	1009-	●
429	SLEEVE; 2ND & 3RD	1-33262-222-0	01	1	1009-		●
437	PLATE; LOCK	1-34252-032-0	01	1	1009-		●
467	COLLAR; SHAFT	1-33234-091-1	01	1	1009-		●
471	SHAFT; INPUT	1-33215-019-0	01	1	1009-		●
476	ADAPTER; PUMP DRIVE	1-33339-066-0	01	1	1009-	●
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	1009-		●
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1009-1407		●
481	RING; BLOCK (A) HIGH	8-98239-518-1	01	1	1408-1410		●
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1411-		●
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1009-1407		●
481	RING; BLOCK (B) LOW	8-98239-519-1	01	1	1408-1410		●
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1411-		●
482	GEAR; PRIMARY Z=29	1-33253-720-0	01	1	1009-		●
483	BEARING; TAPER NTN	8-98174-410-0	01	1	1009-1504		●
483	BEARING; TAPER NTN	8-98316-126-0	01	1	1505-		●
484	PLATE; SETTING	1-33313-023-0	01	1	1009-		●
485	PIECE; GUIDE	1-33363-040-1	01	1	1009-		●
486	NOZZLE; CONT SHAFT	1-33219-254-1	01	1	1009-		●
487	SYNCHRONIZER; RANGE CHANGE	1-33265-616-0	02	1	1009-1307		●
487	SYNCHRONIZER; RANGE CHANGE	8-98239-293-0	02	1	1308-1312		●
487	SYNCHRONIZER; RANGE CHANGE	8-98239-908-1	02	1	1401-		●
488	CLUTCH; DOG,RANGE (B)	1-34254-006-1	01	1	1009-1211		●
488	CLUTCH; DOG,RANGE (B)	8-98218-291-0	01	1	1212-1307		●
488	CLUTCH; DOG,RANGE (B)	8-98238-509-0	01	1	1308-		●
488	CLUTCH; DOG,RANGE (A)	8-98060-771-1	01	1	1009-1307		●
488	CLUTCH; DOG,RANGE (A)	8-98239-163-0	01	1	1308-		●
489	WASHER; THRUST	1-09503-308-0	01	1	1009-		●
490	GASKET; SEAL,CASE ID=10	1-09623-369-0	01	1	1009-		●
491	PLATE; OUTPUT SHAFT	1-34252-035-1	01	1	1009-		●
492	BOLT; PLATE	1-09000-750-0	02	1	1009-		●
493	GASKET; OUTPUT SHAFT	9-09561-385-0	01	1	1009-		●
494	PLATE; OUTPUT SHAFT	1-34379-020-0	01	1	1009-1307		●
495	PINION; PLANETARY Z=30	1-34361-023-0	05	1	1009-		●
496	BEARING; PLANETARY	1-09811-437-0	10	1	1009-		●
497	BEARING; RING GEAR NSK	1-09810-276-0	01	1	1009-1307		●
497	BEARING; RING GEAR NTN	1-09810-277-0	01	1	1009-1307		●
497	BEARING; RING GEAR NTN	8-98239-433-0	01	1	1308-		●
498	CONE; SYN	1-33265-617-0	02	1	1009-1312		●
498	CONE; SYN	8-98239-910-0	02	1	1401-		●
612	GALLERY; OIL	8-98239-463-0	01	1	1308-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
