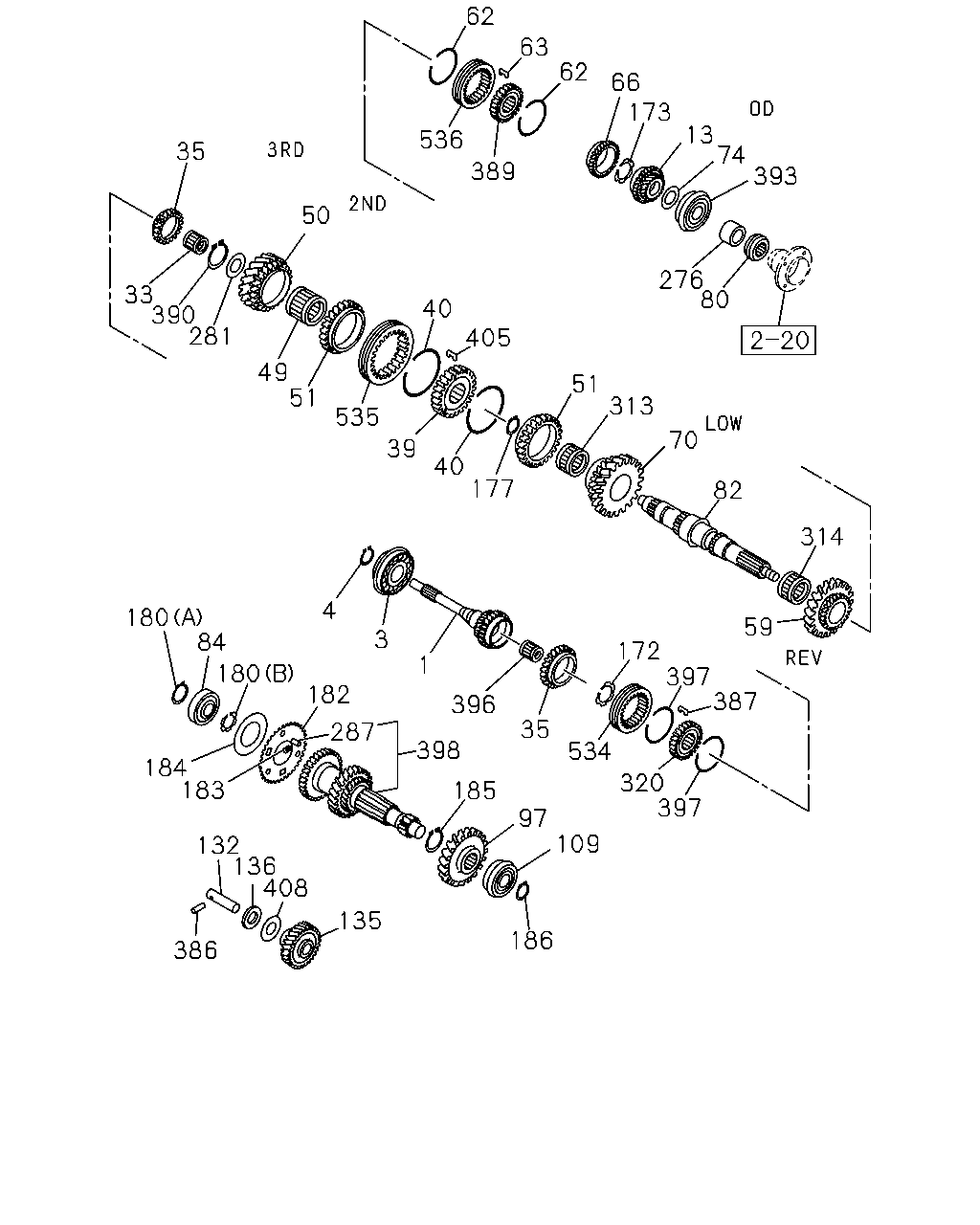

1 |
04.351 SHAFT; TOP GEAR,TRANS
Z=30
|
8-98179-969-1 |
01 |
1 |
1302- |
| |
3 |
04.403 BEARING; TOP GEAR SHAFT
NSK
|
8-98189-742-0 |
01 |
1 |
1302- |
| |
4 |
04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
08.934
ID=37.0
|
9-09180-040-0 |
01 |
1 |
1302- |
| |
13 |
04.415 GEAR; 5TH,MAINSHAFT
Z=25
|
8-97373-011-0 |
01 |
1 |
1302- |
| |
33 |
04.352 BEARING; NEEDLE,3RD GEAR
|
8-98189-746-0 |
01 |
1 |
1302- |
| |
35 |
04.383 RING; BLOCK,4TH & 3RD
Z=36
|
8-98190-426-0 |
02 |
1 |
1302- |
| |
39 |
04.384 HUB; CLU,LOW & 2ND
Z=42
|
8-97177-689-0 |
01 |
1 |
1302- |
| |
40 |
04.384 SPRING; INSERT,LOW & 2ND
|
8-98189-960-0 |
02 |
1 |
1302- |
| |
49 |
04.352 BEARING; NEEDLE,2ND GEAR
NSK
|
8-98189-747-0 |
01 |
1 |
1302- |
| |
50 |
04.395 GEAR; 2ND,MAINSHAFT
Z=36
|
8-97373-143-1 |
01 |
1 |
1302- |
| |
51 |
04.383 RING; BLOCK,LOW & 2ND
Z=42
|
8-98190-428-0 |
02 |
1 |
1302- |
| |
59 |
04.417 GEAR; REV MAINSHAFT
Z=41
|
8-98190-291-1 |
01 |
1 |
1302- |
| |
62 |
04.384 SPRING; INSERT,REV & 5TH
|
8-98189-962-0 |
02 |
1 |
1302- |
| |
63 |
04.384 INSERT; SYN,REV & 5TH
|
8-98190-418-0 |
03 |
1 |
1302- |
| |
66 |
04.383 RING; BLOCK,SYN
Z=36
|
8-98190-426-0 |
01 |
1 |
1302- |
| |
70 |
04.417 GEAR; 1ST,MAINSHAFT
Z=43
|
8-98180-095-1 |
01 |
1 |
1302- |
| |
74 |
04.419 WASHER; THRUST,REV GEAR
|
8-98188-569-0 |
01 |
1 |
1302- |
| |
80 |
04.343 GEAR; SPD DRIVE
Z=4
|
8-98190-429-0 |
01 |
1 |
1302- |
| |
82 |
04.403 SHAFT; MAIN,TRANS
Z=27-40-37-27
|
8-97368-837-0 |
01 |
1 |
1302- |
| |
84 |
04.422 BEARING; COUNTER SHAFT,FRT
NSK
|
8-98189-745-0 |
01 |
1 |
1302- |
| |
97 |
04.415 GEAR; 5TH,COUNTER
Z=53
|
8-97169-511-0 |
01 |
1 |
1302- |
| |
109 |
04.422 BEARING; COUNTER SHAFT,RR
|
8-98189-744-0 |
01 |
1 |
1302- |
| |
132 |
04.433 SHAFT; REV
|
8-98189-378-0 |
01 |
1 |
1302- |
| |
135 |
04.430 GEAR; REV IDLER
Z=29
|
8-97169-508-0 |
01 |
1 |
1302- |
| |
136 |
04.437 WASHER; THRUST,REV IDLE,RR
|
8-98188-533-0 |
01 |
1 |
1302- |
| |
172 |
04.412 RING; SNAP,CLU HUB
04.384
T=1.75
|
8-94402-405-0 |
01 |
1 |
1302- |
| |
172 |
04.412 RING; SNAP,CLU HUB
04.384
T=1.80
|
8-94402-406-0 |
01 |
1 |
1302- |
| |
172 |
04.412 RING; SNAP,CLU HUB
04.384
T=1.85
|
8-94402-407-0 |
01 |
1 |
1302- |
| |
173 |
04.416 RING; SNAP,OVERDRIVE GEAR
T=1.85
|
8-94151-522-0 |
01 |
1 |
1302- |
| |
173 |
04.416 RING; SNAP,OVERDRIVE GEAR
T=1.90
|
8-94151-523-0 |
01 |
1 |
1302- |
| |
173 |
04.416 RING; SNAP,OVERDRIVE GEAR
T=1.95
|
8-94151-524-0 |
01 |
1 |
1302- |
| |
173 |
04.416 RING; SNAP,OVERDRIVE GEAR
T=2.00
|
8-94157-747-0 |
01 |
1 |
1302- |
| |
177 |
04.384 RING; SNAP,CLU HUB
ID=44.5
|
8-98189-990-0 |
01 |
1 |
1302- |
| |
180 |
04.422 RING; SNAP,CLUSTER GEAR
(B)
ID=38.5
|
8-98189-991-0 |
01 |
1 |
1302- |
| |
180 |
04.422 RING; SNAP,CLUSTER GEAR
08.934
(A)
ID=32.2
|
9-09180-035-0 |
01 |
1 |
1302- |
| |
182 |
04.422 PLATE; CLUSTER GEAR
|
8-98188-585-0 |
01 |
1 |
1302- |
| |
183 |
04.422 SPRING; PLATE,CLUSTER GEAR
|
8-98189-380-0 |
03 |
1 |
1302- |
| |
184 |
04.422 SPRING; CLUSTER GEAR
|
8-98189-350-0 |
01 |
1 |
1302- |
| |
185 |
04.422 RING; SNAP,CLUSTER GEAR
ID=41.5
|
9-09180-045-0 |
01 |
1 |
1302- |
| |
186 |
04.422 RING; SNAP,CLUSTER GEAR
ID=29.6
|
9-09180-032-0 |
01 |
1 |
1302- |
| |
276 |
04.419 SPACER; BRG TO DRIVE GEAR
|
8-98188-906-0 |
01 |
1 |
1302- |
| |
281 |
04.419 WASHER; THRUST,MAINSHAFT
|
8-98188-466-0 |
01 |
1 |
1302- |
| |
287 |
04.422 PIN; COUNTER GEAR
|
8-94402-462-0 |
01 |
1 |
1302-1405 |
| |
287 |
04.422 PIN; COUNTER GEAR
|
8-98190-445-0 |
01 |
1 |
1406- |
| |
313 |
04.419 BEARING; NEEDLE,LOW GEAR
|
8-98189-748-0 |
01 |
1 |
1302- |
| |
314 |
04.419 BEARING; NEEDLE,REV GEAR
NSK
|
8-98189-749-0 |
01 |
1 |
1302- |
| |
320 |
04.384 HUB; CLU,4TH & 3RD
Z=36
|
8-97177-690-0 |
01 |
1 |
1302- |
| |
386 |
04.435 PIN; REV SHAFT
|
8-98190-093-0 |
01 |
1 |
1302- |
| |
387 |
04.384 INSERT; SYN,4TH & 3RD
|
8-98189-965-0 |
03 |
1 |
1302- |
| |
389 |
04.384 HUB; CLU,REV & 5TH
Z=36
|
8-97373-144-0 |
01 |
1 |
1302- |
| |
390 |
04.383 RING; SNAP,CLU HUB
04.384
T=1.75
|
8-94151-520-0 |
01 |
1 |
1302- |
| |
390 |
04.383 RING; SNAP,CLU HUB
04.384
T=1.80
|
8-94151-521-0 |
01 |
1 |
1302- |
| |
390 |
04.383 RING; SNAP,CLU HUB
04.416
T=1.85
|
8-94151-522-0 |
01 |
1 |
1302- |
| |
390 |
04.383 RING; SNAP,CLU HUB
04.416
T=1.90
|
8-94151-523-0 |
01 |
1 |
1302- |
| |
393 |
04.352 BEARING; MAINSHAFT END
|
8-98189-743-0 |
01 |
1 |
1302- |
| |
396 |
04.352 BEARING; NEEDLE,MAINSHAFT
|
8-98189-970-0 |
01 |
1 |
1302- |
| |
397 |
04.384 SPRING; INSERT,4TH & 3RD
|
8-98189-962-0 |
02 |
1 |
1302- |
| |
398 |
04.421 GEAR; COUNTER
Z=49-34-22-14
|
8-97381-658-0 |
01 |
1 |
1302- |
| |
405 |
04.384 INSERT; SYN,LOW & 2ND
|
8-98189-965-0 |
03 |
1 |
1302- |
| |
408 |
04.384 SPRING
|
8-98189-347-0 |
01 |
1 |
1302- |
| |
534 |
04.395 SLEEVE; HUB,4TH-3RD
Z=36
|
8-97177-134-0 |
01 |
1 |
1302- |
| |
535 |
04.395 SLEEVE; HUB,LOW-2ND
Z=42
|
8-97177-133-0 |
01 |
1 |
1302- |
| |
536 |
04.395 SLEEVE; HUB,REV-5TH
Z=36
|
8-97177-135-0 |
01 |
1 |
1302- |
