2-30 — GEAR SHIFTER AND QUADRANT BOX (#115339) — 611 parça

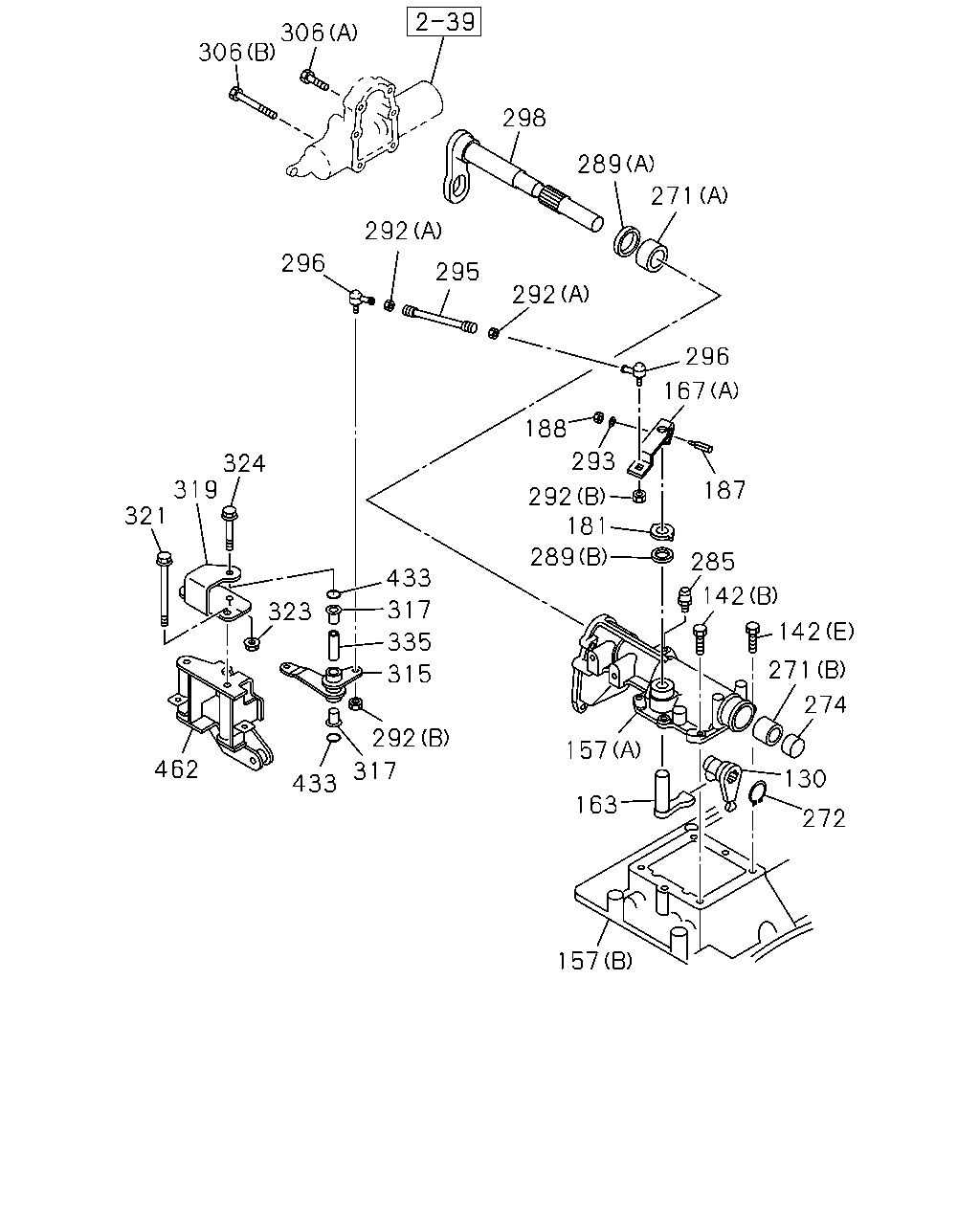

çizim 337184
157 272 130 163 157 274 271 142 142 285 187 167 296 271 289 298 306 306 296 292 295 292 188 292 293 181 289 433 317 353 315 292 317 433 462 321 319 324 323
BalonParca AdiParca NoAdetTipApplied Date A B C
130 LEVER; SHIFT,INTERNAL 1-33521-189-0 01 1 1512- ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1303-1511 ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1512- ● ●
142 BOLT; QUAD BOX
(G) M10X30 FLANGE 		0-28751-030-0 01 1 1512- ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1303- ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 1303- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 03 1 1303- ●
142 BOLT; QUAD BOX
(D) M10X20,M10X45 L=75 		8-98010-335-0 01 1 1303- ●
142 BOLT; QUAD BOX
(F) M10X20,M10X55 L=85 		8-98032-017-0 01 1 1303- ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE 		8-98044-944-0 09 1 1303- ●
157 BOX; QUAD,TRANS
(C) 		8-98220-885-0 01 1 1512- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-345-2 01 1 1303- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-507-3 01 1 1303-1311 ●
157 BOX; QUAD,TRANS
(A) 		8-98231-390-0 01 1 1312-1511 ●
157 BOX; QUAD,TRANS
(A) 		8-98231-390-0 01 1 1512- ● ●
163 LEVER; SELECT,INTERNAL 1-33522-201-0 01 1 1512- ●
163 LEVER; SELECT,INTERNAL 1-33522-202-0 01 1 1512- ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 1303- ●
167 LEVER; SELECT,EXTERNAL
(B) 		1-33521-192-1 01 1 1512- ●
167 LEVER; SELECT,EXTERNAL
(A) 		1-33521-193-1 01 1 1512- ●
167 LEVER; SELECT,EXTERNAL
(B) 		1-33521-194-0 01 1 1512- ●
167 LEVER; SELECT,EXTERNAL
(A) 		8-98052-192-0 01 1 1512- ●
167 LEVER; SELECT,EXTERNAL
(A) 		1-33521-163-0 01 1 1303- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1303-1511 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1512- ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1303-1511 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1512- ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1303-1511 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1512- ● ● ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1303-1511 ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1512- ● ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1303-1511 ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1512- ● ● ●
272 RING; SNAP,QUAD BOX 1-09588-213-0 01 1 1512- ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1303-1511 ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1512- ● ●
274 COVER; SHAFT,QUAD BOX 8-98220-886-0 01 1 1512- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1303-1511 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1512- ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1512- ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1303-1511 ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1512- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1303-1511 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1512- ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1303-1511 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1512- ● ● ●
292 NUT; LINK ROD
(C) M8 FLANGE 		0-91180-108-0 02 1 1512- ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1303- ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1302- ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1303-1511 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1512- ● ● ●
295 ROD; LINK,RELAY LEVER
L=110 		1-09765-263-0 01 1 1302- ●
296 ROD END 1-09760-108-0 02 1 1302- ●
298 SHAFT; SHIFT LEVER 8-98222-566-0 01 1 1512- ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1303-1511 ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1512- ● ●
306 BOLT; SHIFT ASSISTOR
(A) M10X45 FLANGE 		0-28151-045-0 02 1 1303-1511 ●
306 BOLT; SHIFT ASSISTOR
(A) M10X45 FLANGE 		0-28151-045-0 02 1 1512- ● ● ●
306 BOLT; SHIFT ASSISTOR
(B) M10X80 FLANGE 		0-28151-080-0 04 1 1303-1511 ●
306 BOLT; SHIFT ASSISTOR
(B) M10X80 FLANGE 		0-28151-080-0 04 1 1512- ● ● ●
315 LEVER; SELECT 8-98147-251-0 01 1 1303- ●
317 BUSHING; LEVER 1-09330-119-0 02 1 1303- ●
319 BRACKET; SELECT LEVER 8-98154-724-0 01 1 1303- ●
321 BOLT; BRKT,RELAY LEVER
M10X40 FLANGE 		0-28151-040-0 02 1 1303- ●
321 BOLT; BRKT,RELAY LEVER
M10X140 FLANGE 		0-28156-014-0 02 1 1303- ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 1303- ●
324 BOLT; SHAFT
M10X80 FLANGE 		0-28051-080-0 01 1 1303- ●
335 COLLAR; DIST,RELAY LEVER ASM 8-98049-180-0 01 1 1303- ●
353 CLIP; AIR HOSE
(D) ID=12 H=24 L=20 		1-09700-605-0 01 1 1512- ●
353 CLIP; AIR HOSE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1512- ●
353 CLIP; AIR HOSE
(C) ID=33X16.5 L=50 		5-09700-341-0 01 1 1512- ●
353 CLIP; AIR HOSE
(B) ID=16X2 L=40 		9-09535-576-0 01 1 1512- ●
433 GASKET; BUSHING 1-09623-636-0 02 1 1303- ●
462 BRACKET; RELAY LEVER 8-98155-035-0 01 1 1303- ●

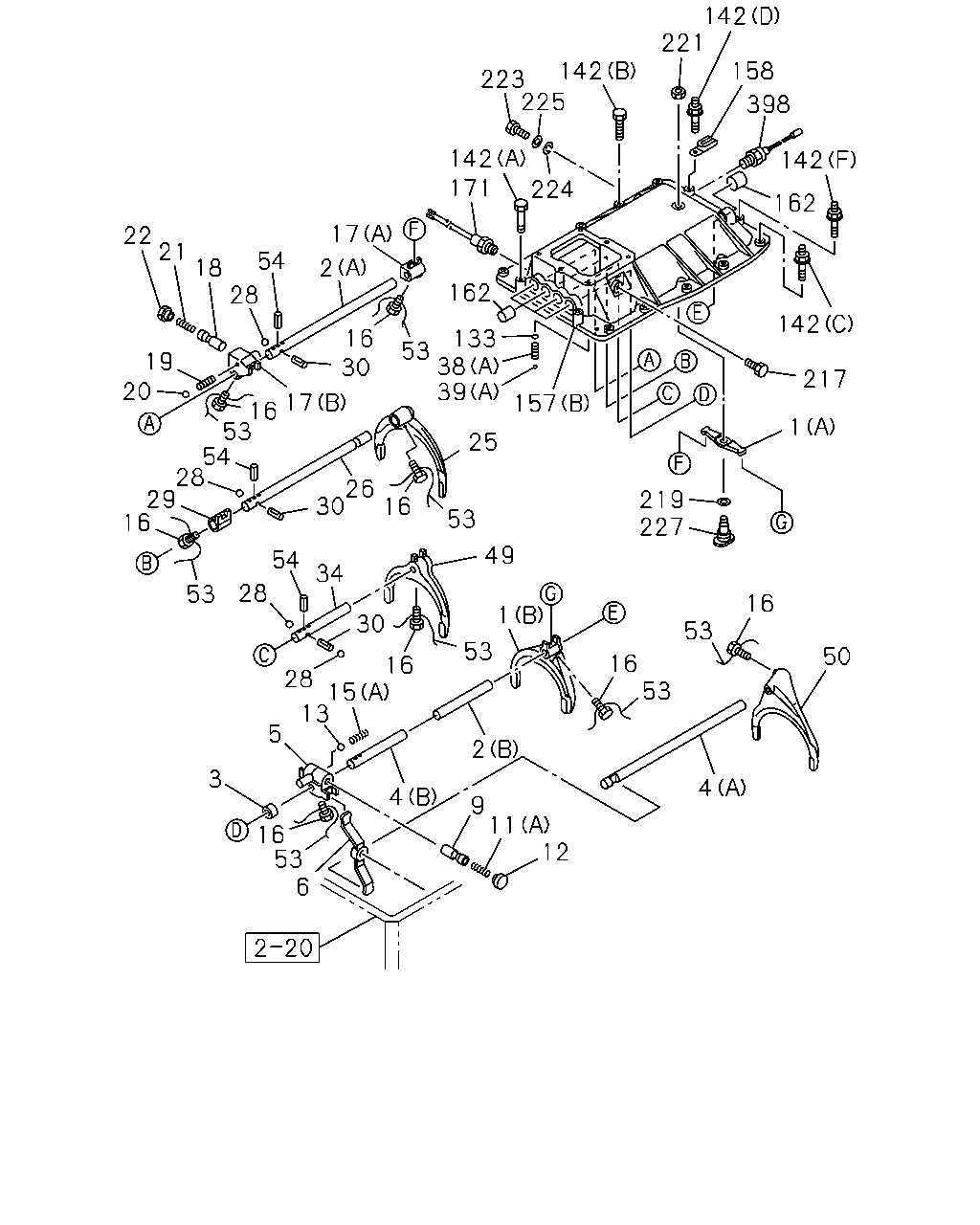

çizim 337234
142 221 142 223 225 142 171 17 2 54 18 21 22 28 19 20 29 16 28 54 53 16 17 30 16 162 53 133 38 39 25 157 53 16 26 30 54 28 53 34 30 28 15 13 5 3 16 53 6 11 12 9 4 2 53 16 49 1 16 53 53 50 16 4 227 219 1 217 142 162 142 398 158 224
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ARM; SHIFT,1ST & REV
(C) 		1-33511-579-0 01 1 1512- ●
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-458-0 01 1 1303- ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-541-0 01 1 1303- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-438-0 01 1 1512- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-456-0 01 1 1512- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-400-1 01 1 1303- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-415-1 01 1 1303- ●
3 STOPPER; 6TH SHIFT ROD 9-33537-018-0 01 1 1303- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-443-1 01 1 1512- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-445-0 01 1 1512- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-405-1 01 1 1303- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-407-1 01 1 1303- ●
5 BLOCK; SHIFT,6TH 1-33511-372-2 01 1 1303- ●
6 LEVER; RELAY 9-33511-402-1 01 1 1303- ●
9 SLEEVE; 6TH,SHIFT BLOCK 1-33516-022-1 01 1 1303- ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 1512- ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 1303-1510 ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		8-98294-206-0 01 1 1511-1511 ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		8-98294-206-0 01 1 1512- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1512- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 1303- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 1303-1511 ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 1512- ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-439-0 01 1 1512- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 1303-1511 ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 1512- ● ●
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 W/HOLE 		1-09052-038-0 08 1 1303- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-202-3 01 1 1512- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-552-1 01 1 1512- ●
17 BLOCK; SHIFT,1ST & REV
(C) 		1-33511-557-0 02 1 1512- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-298-4 01 1 1303- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-540-0 01 1 1303- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 1303-1511 ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 1512- ● ●
19 SPRING; COIL COMP 1-09580-439-0 01 1 1303- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 1303-1511 ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 1512- ● ●
21 SPRING; COIL COMP SLEEVE 1-09580-444-0 01 1 1303- ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1512- ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 1303- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 1512- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-440-0 01 1 1303- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-440-1 01 1 1512- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-401-1 01 1 1303- ●
28 BALL; INTER LK 9-00097-501-0 02 1 1512- ●
28 BALL; INTER LK 9-00097-501-0 04 1 1303-1511 ●
28 BALL; INTER LK 9-00097-501-0 04 1 1512- ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 1303-1511 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 1512- ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 1303-1511 ●
30 PIN; INTER LK 9-33534-003-0 03 1 1512- ● ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-402-1 01 1 1303- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 1512- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 1512- ●
38 SPRING; DETENT
(C) 		1-09580-580-0 02 1 1512- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 1303-1511 ●
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 1512- ● ●
39 BALL; DETENT
(B) 		9-00097-013-0 01 1 1512- ●
39 BALL; DETENT
(A) 		1-09843-012-0 04 1 1303-1511 ●
39 BALL; DETENT
(A) 		1-09843-012-0 04 1 1512- ● ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 1512- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-461-0 01 1 1303- ●
50 ARM; SHIFT,6TH 1-33511-550-0 01 1 1512- ●
50 ARM; SHIFT,6TH 1-33511-185-3 01 1 1303- ●
53 WIRE; BOLT
L=180 		1-09780-024-0 06 1 1303- ●
53 WIRE; BOLT
L=200 		9-08351-020-0 02 1 1303- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1303-1511 ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1512- ● ● ●
133 SEAT; SPR 1-33549-072-0 04 1 1303- ●
142 BOLT; QUAD BOX
(G) M10X30 FLANGE 		0-28751-030-0 01 1 1512- ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1303- ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 1303- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 03 1 1303- ●
142 BOLT; QUAD BOX
(D) M10X20,M10X45 L=75 		8-98010-335-0 01 1 1303- ●
142 BOLT; QUAD BOX
(F) M10X20,M10X55 L=85 		8-98032-017-0 01 1 1303- ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE 		8-98044-944-0 09 1 1303- ●
157 BOX; QUAD,TRANS
(C) 		8-98220-885-0 01 1 1512- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-345-2 01 1 1303- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-507-3 01 1 1303-1311 ●
157 BOX; QUAD,TRANS
(A) 		8-98231-390-0 01 1 1312-1511 ●
157 BOX; QUAD,TRANS
(A) 		8-98231-390-0 01 1 1512- ● ●
158 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1512- ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 1303- ●
162 COVER; SHIFT ROD,QUAD BOX
OD=24 L=31 		9-33545-011-1 05 1 1303- ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1303-1511 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1512- ● ● ●
217 SCREW; SET,6TH SHIFT BLOCK
M8X12.5 		9-09814-533-0 01 1 1303- ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 1303- ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 1303- ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 1303- ●
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 1303- ●
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 1303- ●
227 SPINDLE; 1ST & REV 1-33519-104-0 01 1 1512- ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 1303- ●
335 COLLAR; DIST,RELAY LEVER ASM 8-98049-180-0 01 1 1303- ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1512- ● ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 1303- ●

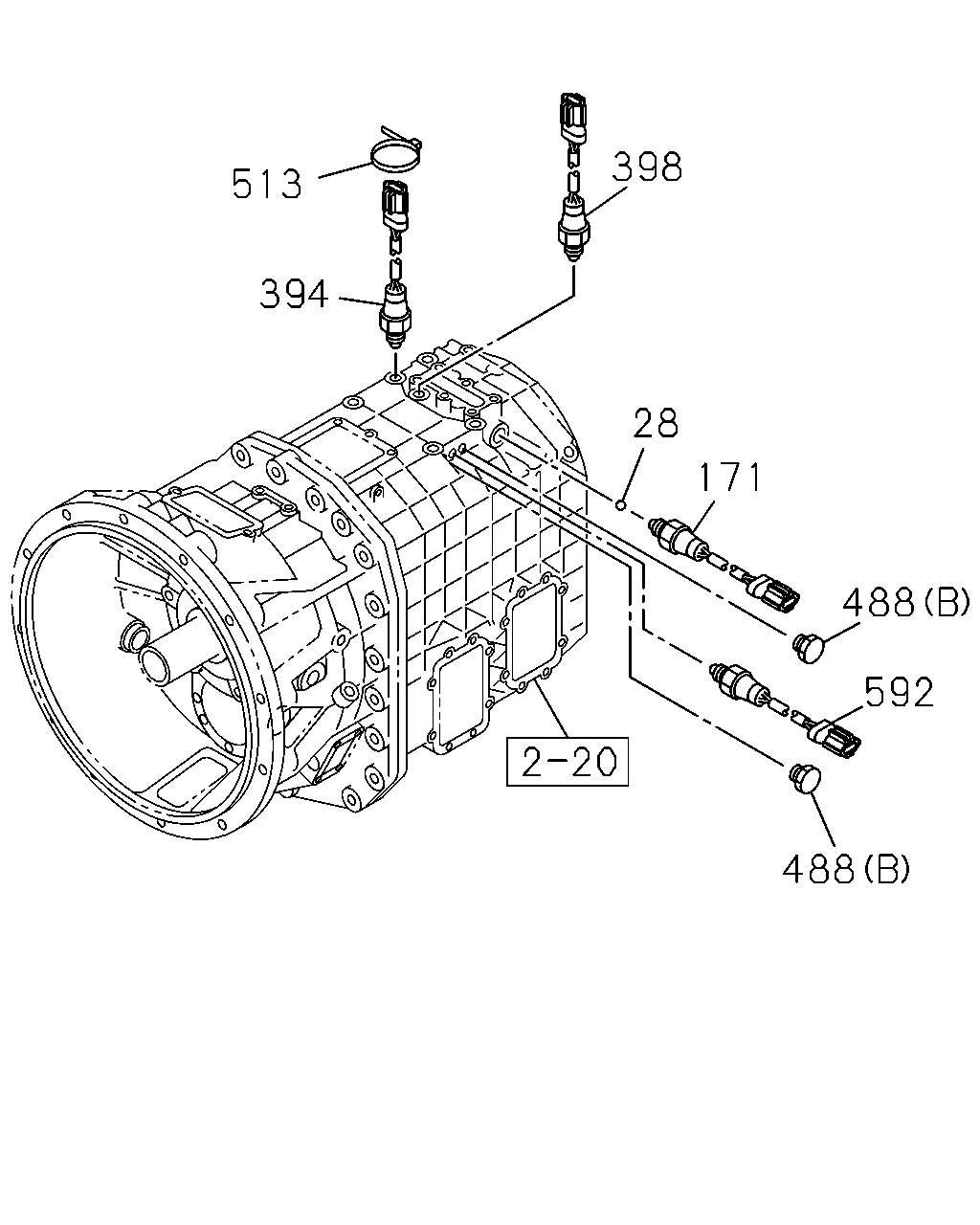

çizim 512564
513 394 398 28 171 488 592 488
BalonParca AdiParca NoAdetTipApplied Date A B C
28 BALL; INTER LK 9-00097-501-0 02 1 1512- ●
28 BALL; INTER LK 9-00097-501-0 04 1 1303-1511 ●
28 BALL; INTER LK 9-00097-501-0 04 1 1512- ● ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1303-1511 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1512- ● ● ●
335 COLLAR; DIST,RELAY LEVER ASM 8-98049-180-0 01 1 1303- ●
394 SWITCH; RANGE CHANGE 8-98228-482-0 02 1 1512- ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1512- ● ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 1303- ●
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 1512- ●
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 1512- ●
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 1512- ●
513 CLIP; BAND
L=140 		5-09707-031-1 02 1 1512- ● ●
592 SWITCH; POSITION 8-98228-482-0 01 1 1512- ●

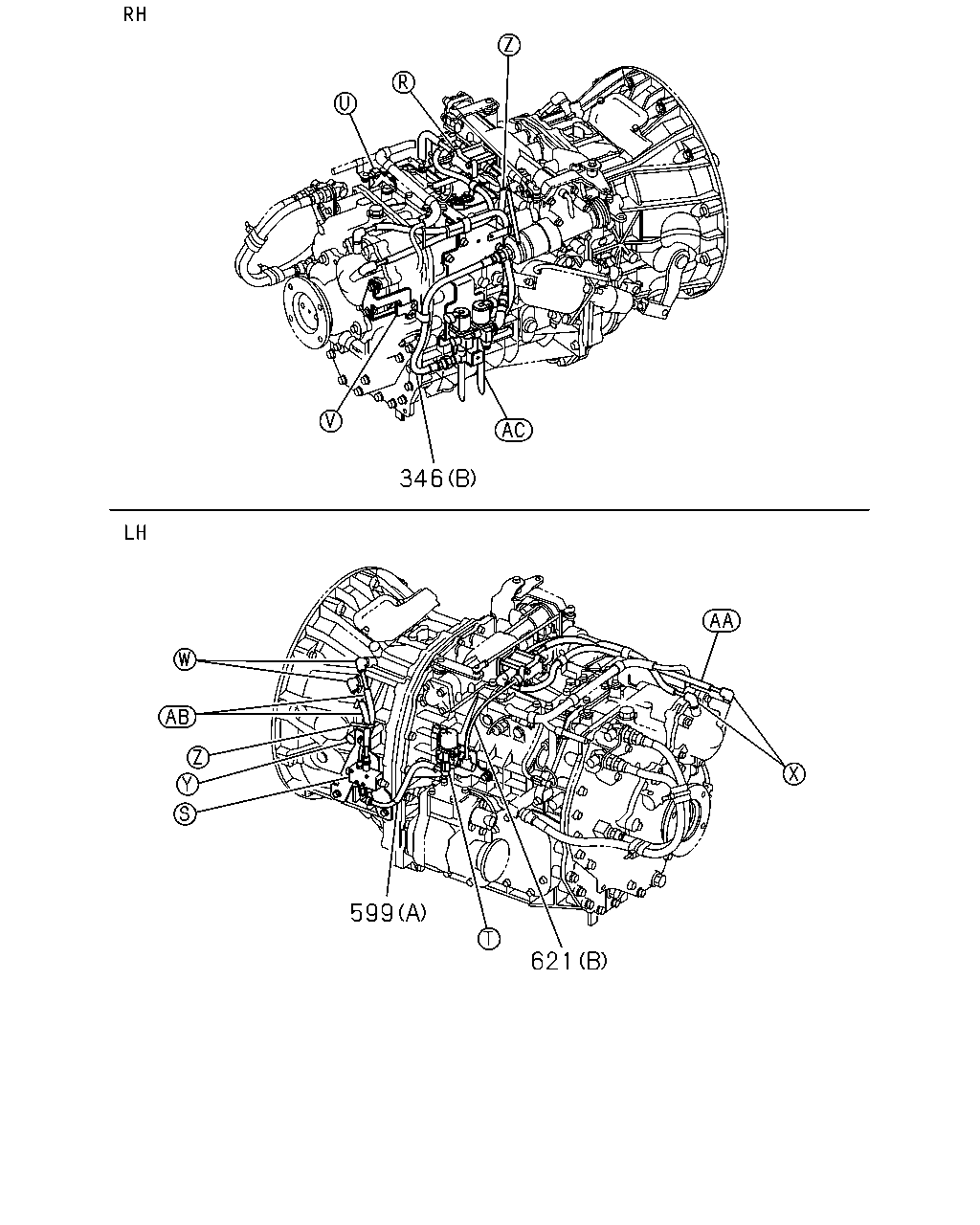

çizim 512569
346 599 621
BalonParca AdiParca NoAdetTipApplied Date A B C
335 COLLAR; DIST,RELAY LEVER ASM 8-98049-180-0 01 1 1303- ●
346 HOSE; AIR
(B) L=450 		1-09363-965-0 01 1 1512- ●
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 03 1 1512- ●
599 TUBE; NYLON
(A) 		1-09377-036-1 01 1 1512- ●
599 TUBE; NYLON
(B) 		1-33712-027-0 01 1 1512- ●
621 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 1512- ●
621 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 1512- ●

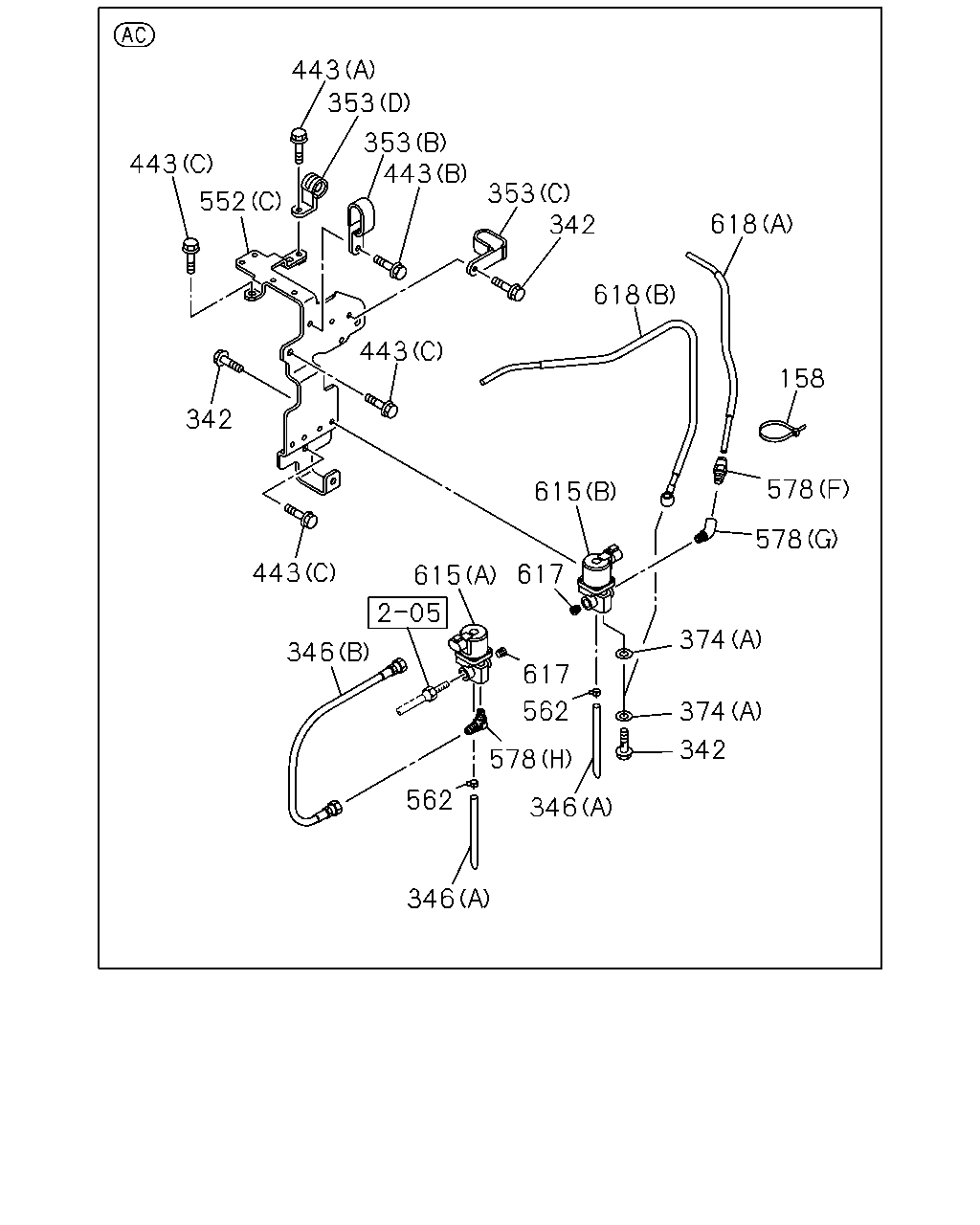

çizim 512783
443 443 552 353 353 443 342 443 353 342 618 618 443 615 615 578 158 578 374 374 342 346 578 346 562 562 617 617 346
BalonParca AdiParca NoAdetTipApplied Date A B C
158 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1512- ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 1303- ●
335 COLLAR; DIST,RELAY LEVER ASM 8-98049-180-0 01 1 1303- ●
342 BOLT
M8X16 FLANGE 		0-28050-816-0 05 1 1512- ●
342 BOLT
M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 1512- ●
346 HOSE; AIR
(B) L=450 		1-09363-965-0 01 1 1512- ●
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 03 1 1512- ●
353 CLIP; AIR HOSE
(D) ID=12 H=24 L=20 		1-09700-605-0 01 1 1512- ●
353 CLIP; AIR HOSE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1512- ●
353 CLIP; AIR HOSE
(C) ID=33X16.5 L=50 		5-09700-341-0 01 1 1512- ●
353 CLIP; AIR HOSE
(B) ID=16X2 L=40 		9-09535-576-0 01 1 1512- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09661-390-0 01 1 1512- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		8-98251-344-0 02 1 1512- ●
443 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1512- ●
443 BOLT; CLIP
(B) M8X90 FLANGE 		0-28050-890-0 04 1 1512- ●
443 BOLT; CLIP
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1512- ●
443 BOLT; CLIP
(C) M10X25 FLANGE 		0-28751-025-0 05 1 1512- ●
552 BRACKET
(A) 		1-33719-082-0 01 1 1512- ●
552 BRACKET
(B) 		1-33719-083-0 01 1 1512- ●
552 BRACKET
(C) 		8-98222-117-0 01 1 1512- ●
562 CLAMP; LOCKING
ID=7.8 		8-94246-958-0 02 1 1512- ●
578 CONNECTOR
(I) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1512- ●
578 CONNECTOR
(H) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1512- ●
578 CONNECTOR
(D) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 1512- ●
578 CONNECTOR
(F) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1512- ●
578 CONNECTOR
(E) 		1-09661-292-0 02 1 1512- ●
578 CONNECTOR
(G) R1/4 & RC1/4 		1-09664-211-0 02 1 1512- ●
578 CONNECTOR
(C) 		1-33712-023-0 02 1 1512- ●
578 CONNECTOR
(A) 		1-33712-024-0 01 1 1512- ●
578 CONNECTOR
(B) 		1-33712-026-0 01 1 1512- ●
615 VALVE; MAGNETIC
(A) 		8-98222-558-0 01 1 1512- ●
615 VALVE; MAGNETIC
(B) 		8-98222-559-0 01 1 1512- ●
617 PLUG 8-97320-204-0 02 1 1512- ●
618 TUBE; NYLON
(B) L=730 		8-98222-118-0 01 1 1512- ●
618 TUBE; NYLON
(A) L=400 		8-98222-734-0 01 1 1512- ●

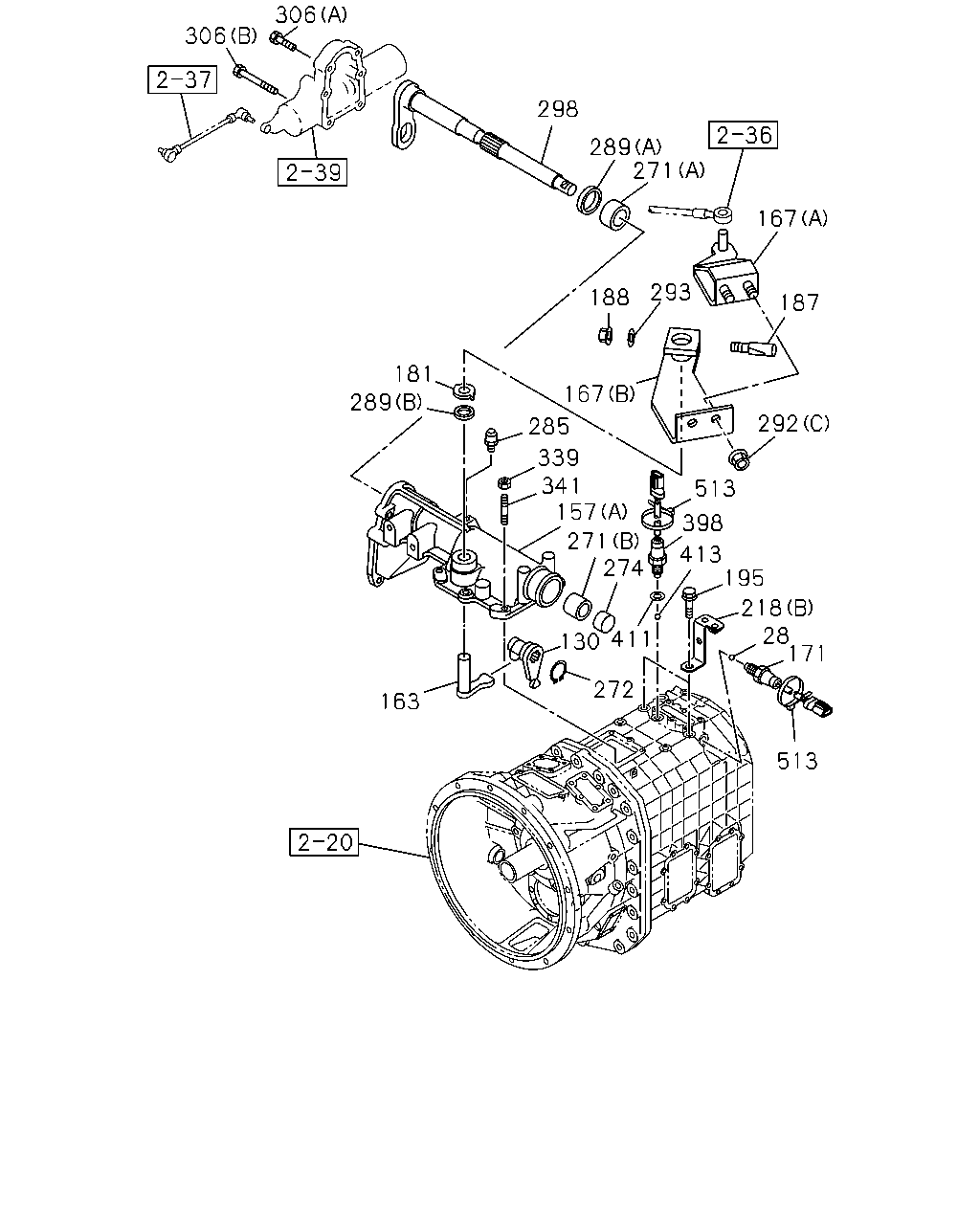

çizim 512813
306 306 181 289 163 298 289 271 188 293 167 167 187 292 285 339 341 157 513 413 398 195 271 274 411 130 218 28 171 513 272
BalonParca AdiParca NoAdetTipApplied Date A B C
28 BALL; INTER LK 9-00097-501-0 02 1 1512- ●
28 BALL; INTER LK 9-00097-501-0 04 1 1303-1511 ●
28 BALL; INTER LK 9-00097-501-0 04 1 1512- ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-189-0 01 1 1512- ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1303-1511 ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1512- ● ●
157 BOX; QUAD,TRANS
(C) 		8-98220-885-0 01 1 1512- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-345-2 01 1 1303- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-507-3 01 1 1303-1311 ●
157 BOX; QUAD,TRANS
(A) 		8-98231-390-0 01 1 1312-1511 ●
157 BOX; QUAD,TRANS
(A) 		8-98231-390-0 01 1 1512- ● ●
163 LEVER; SELECT,INTERNAL 1-33522-201-0 01 1 1512- ●
163 LEVER; SELECT,INTERNAL 1-33522-202-0 01 1 1512- ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 1303- ●
167 LEVER; SELECT,EXTERNAL
(B) 		1-33521-192-1 01 1 1512- ●
167 LEVER; SELECT,EXTERNAL
(A) 		1-33521-193-1 01 1 1512- ●
167 LEVER; SELECT,EXTERNAL
(B) 		1-33521-194-0 01 1 1512- ●
167 LEVER; SELECT,EXTERNAL
(A) 		8-98052-192-0 01 1 1512- ●
167 LEVER; SELECT,EXTERNAL
(A) 		1-33521-163-0 01 1 1303- ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1303-1511 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1512- ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1303-1511 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1512- ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1303-1511 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1512- ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1303-1511 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1512- ● ● ●
195 BOLT
M10X25 FLANGE 		0-28751-025-0 02 1 1512- ●
195 BOLT
M8X16 FLANGE 		0-28050-816-0 02 1 1512- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		8-98133-847-0 02 1 1512- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82698-350-0 01 1 1512- ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1303-1511 ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1512- ● ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1303-1511 ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1512- ● ● ●
272 RING; SNAP,QUAD BOX 1-09588-213-0 01 1 1512- ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1303-1511 ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1512- ● ●
274 COVER; SHAFT,QUAD BOX 8-98220-886-0 01 1 1512- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1303-1511 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1512- ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1512- ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1303-1511 ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1512- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1303-1511 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1512- ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1303-1511 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1512- ● ● ●
292 NUT; LINK ROD
(C) M8 FLANGE 		0-91180-108-0 02 1 1512- ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1303- ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1302- ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1303-1511 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1512- ● ● ●
298 SHAFT; SHIFT LEVER 8-98222-566-0 01 1 1512- ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1303-1511 ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1512- ● ●
306 BOLT; SHIFT ASSISTOR
(A) M10X45 FLANGE 		0-28151-045-0 02 1 1303-1511 ●
306 BOLT; SHIFT ASSISTOR
(A) M10X45 FLANGE 		0-28151-045-0 02 1 1512- ● ● ●
306 BOLT; SHIFT ASSISTOR
(B) M10X80 FLANGE 		0-28151-080-0 04 1 1303-1511 ●
306 BOLT; SHIFT ASSISTOR
(B) M10X80 FLANGE 		0-28151-080-0 04 1 1512- ● ● ●
335 COLLAR; DIST,RELAY LEVER ASM 8-98049-180-0 01 1 1303- ●
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 06 1 1512- ●
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 05 1 1512- ●
341 STUD; QUAD BOX
M10X25 L=40 		0-44011-025-0 06 1 1512- ●
341 STUD; QUAD BOX
M10X35 L=50 		0-44011-035-0 05 1 1512- ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1512- ● ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 1303- ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 1512- ●
413 BALL; BACK SW 9-00097-013-0 01 1 1512- ●
513 CLIP; BAND
L=140 		5-09707-031-1 02 1 1512- ● ●

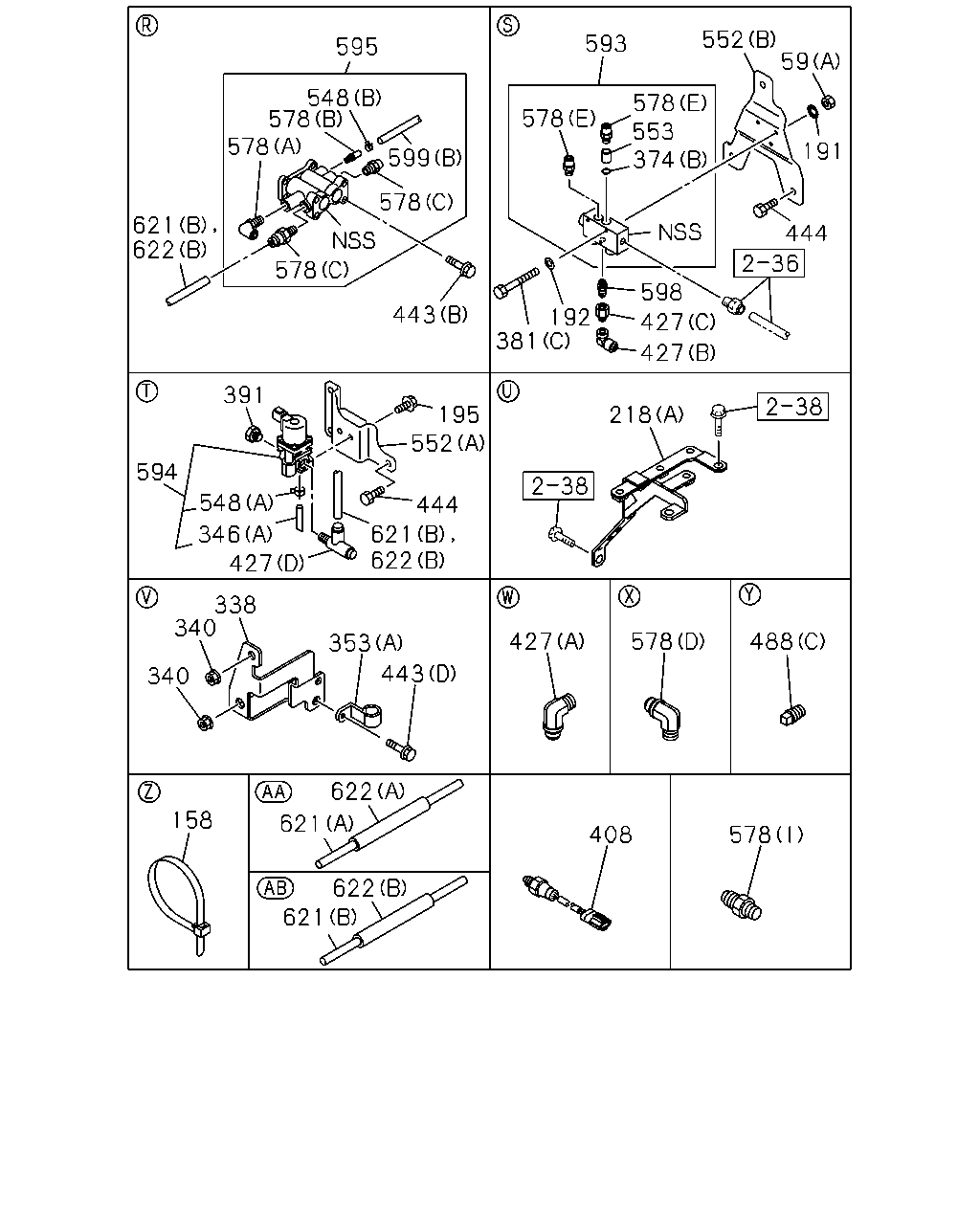

çizim 513407
595 548 578 578 599 578 578 621 622 443 391 594 548 346 427 195 552 444 621 622 338 340 340 353 443 622 621 622 621 158 593 552 578 578 553 374 59 191 444 598 427 427 192 381 218 427 578 488 578 408
BalonParca AdiParca NoAdetTipApplied Date A B C
59 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 1512- ●
59 NUT
(A) 		1-09440-068-0 04 1 1512- ●
158 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1512- ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 1303- ●
191 WASHER; LK 1-09503-311-0 04 1 1512- ●
192 WASHER; PL
ID=16.5 		9-09857-042-0 01 1 1512- ●
192 WASHER; PL 1-09503-310-0 04 1 1512- ●
195 BOLT
M10X25 FLANGE 		0-28751-025-0 02 1 1512- ●
195 BOLT
M8X16 FLANGE 		0-28050-816-0 02 1 1512- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		8-98133-847-0 02 1 1512- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82698-350-0 01 1 1512- ●
335 COLLAR; DIST,RELAY LEVER ASM 8-98049-180-0 01 1 1303- ●
338 BRACKET; FLEX TUBE 8-98222-750-1 01 1 1512- ●
340 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1512- ●
346 HOSE; AIR
(B) L=450 		1-09363-965-0 01 1 1512- ●
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 03 1 1512- ●
353 CLIP; AIR HOSE
(D) ID=12 H=24 L=20 		1-09700-605-0 01 1 1512- ●
353 CLIP; AIR HOSE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1512- ●
353 CLIP; AIR HOSE
(C) ID=33X16.5 L=50 		5-09700-341-0 01 1 1512- ●
353 CLIP; AIR HOSE
(B) ID=16X2 L=40 		9-09535-576-0 01 1 1512- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09661-390-0 01 1 1512- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		8-98251-344-0 02 1 1512- ●
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 1512- ● ●
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 1512- ● ●
381 BOLT
(C) 		1-09044-111-0 04 1 1512- ●
391 PLUG; SW HOLE
M12X9 		0-92002-412-0 01 1 1512- ●
408 SWITCH; SELECT,4TH 5TH 8-98228-507-0 01 1 1512- ●
427 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 1512- ●
427 CONNECTOR; NYLON TUBE
(C) DIN8 ELBOW 		1-09660-924-1 01 1 1512- ●
427 CONNECTOR; NYLON TUBE
(D) M12 		1-09660-931-1 01 1 1512- ●
427 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 1512- ●
443 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1512- ●
443 BOLT; CLIP
(B) M8X90 FLANGE 		0-28050-890-0 04 1 1512- ●
443 BOLT; CLIP
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1512- ●
443 BOLT; CLIP
(C) M10X25 FLANGE 		0-28751-025-0 05 1 1512- ●
444 BOLT; CLIP
M10X25 FLANGE 		0-28751-025-0 06 1 1512- ●
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 1512- ●
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 1512- ●
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 1512- ●
548 CLIP; HOSE
(B) 		1-33712-028-0 01 1 1512- ●
548 CLIP; HOSE
(A) ID=7.8 		8-94246-958-0 01 1 1512- ●
552 BRACKET
(A) 		1-33719-082-0 01 1 1512- ●
552 BRACKET
(B) 		1-33719-083-0 01 1 1512- ●
552 BRACKET
(C) 		8-98222-117-0 01 1 1512- ●
553 ADAPTER; AIR 1-09661-389-0 01 1 1512- ●
578 CONNECTOR
(I) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1512- ●
578 CONNECTOR
(H) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1512- ●
578 CONNECTOR
(D) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 1512- ●
578 CONNECTOR
(F) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1512- ●
578 CONNECTOR
(E) 		1-09661-292-0 02 1 1512- ●
578 CONNECTOR
(G) R1/4 & RC1/4 		1-09664-211-0 02 1 1512- ●
578 CONNECTOR
(C) 		1-33712-023-0 02 1 1512- ●
578 CONNECTOR
(A) 		1-33712-024-0 01 1 1512- ●
578 CONNECTOR
(B) 		1-33712-026-0 01 1 1512- ●
593 VALVE; SPLITTER 1-33712-009-0 01 1 1512- ●
594 VALVE; MAGNETIC,AIR 1-82564-069-0 01 1 1512- ●
595 VALVE; RANGE 1-33712-029-1 01 1 1512- ●
598 UNION
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 1512- ●
599 TUBE; NYLON
(A) 		1-09377-036-1 01 1 1512- ●
599 TUBE; NYLON
(B) 		1-33712-027-0 01 1 1512- ●
621 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 1512- ●
621 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 1512- ●
622 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 1512- ●
622 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1512- ●

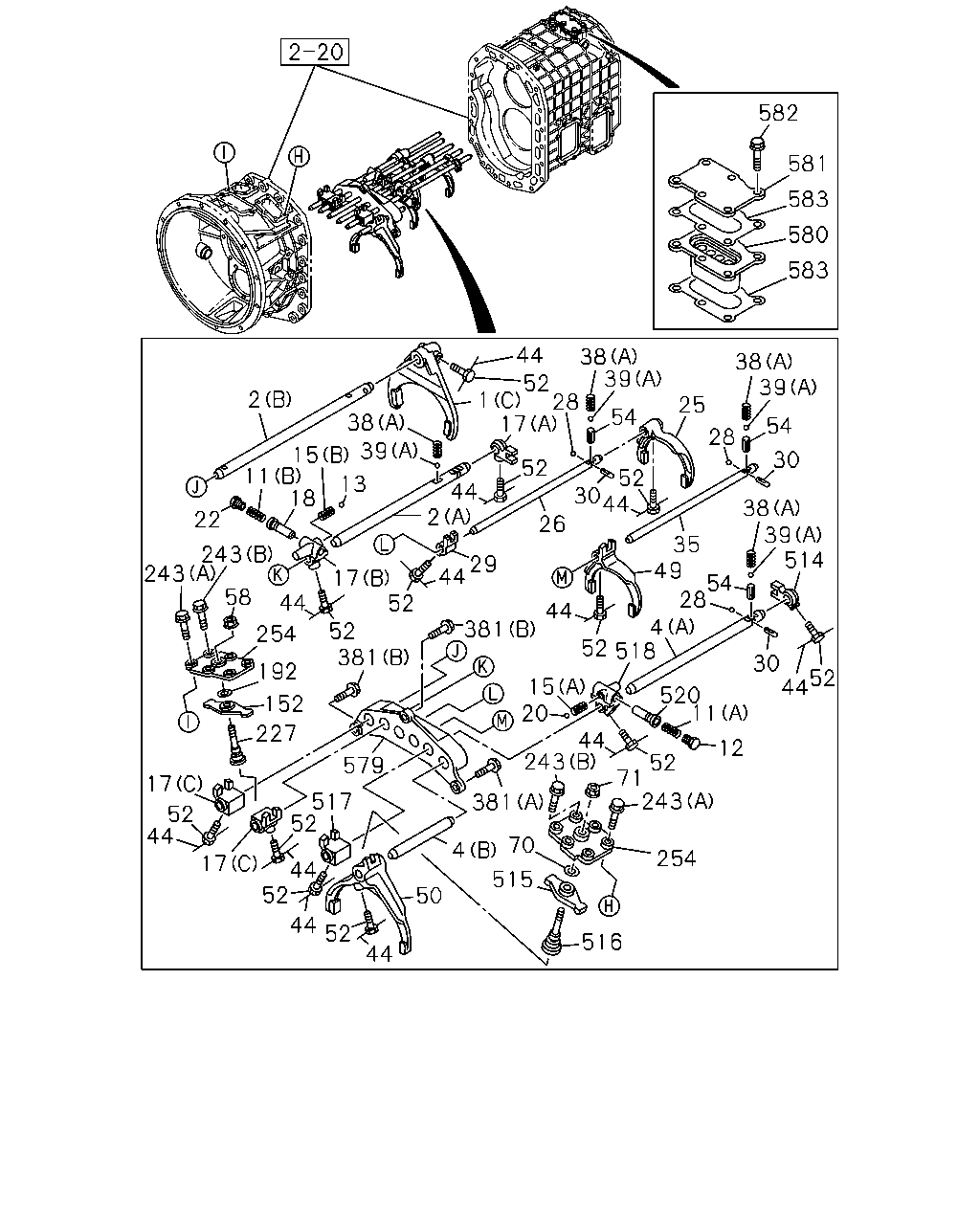

çizim 513705
2 22 243 243 58 254 192 152 227 17 52 44 517 52 44 52 44 52 579 50 4 515 516 254 243 243 20 52 71 44 12 520 11 30 44 52 514 39 38 30 54 39 38 25 28 39 38 54 52 30 26 52 28 44 1 52 17 44 35 49 28 54 518 52 44 381 29 44 44 2 17 44 18 15 38 13 39 52 52 381 17 381 70 44 582 581 583 583 580 11 4 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ARM; SHIFT,1ST & REV
(C) 		1-33511-579-0 01 1 1512- ●
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-458-0 01 1 1303- ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-541-0 01 1 1303- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-438-0 01 1 1512- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-456-0 01 1 1512- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-400-1 01 1 1303- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-415-1 01 1 1303- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-443-1 01 1 1512- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-445-0 01 1 1512- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-405-1 01 1 1303- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-407-1 01 1 1303- ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 1512- ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 1303-1510 ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		8-98294-206-0 01 1 1511-1511 ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		8-98294-206-0 01 1 1512- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1512- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 1303- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 1303-1511 ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 1512- ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-439-0 01 1 1512- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 1303-1511 ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 1512- ● ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-202-3 01 1 1512- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-552-1 01 1 1512- ●
17 BLOCK; SHIFT,1ST & REV
(C) 		1-33511-557-0 02 1 1512- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-298-4 01 1 1303- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-540-0 01 1 1303- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 1303-1511 ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 1512- ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 1303-1511 ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 1512- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1512- ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 1303- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 1512- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-440-0 01 1 1303- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-440-1 01 1 1512- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-401-1 01 1 1303- ●
28 BALL; INTER LK 9-00097-501-0 02 1 1512- ●
28 BALL; INTER LK 9-00097-501-0 04 1 1303-1511 ●
28 BALL; INTER LK 9-00097-501-0 04 1 1512- ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 1303-1511 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 1512- ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 1303-1511 ●
30 PIN; INTER LK 9-33534-003-0 03 1 1512- ● ● ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-442-1 01 1 1512- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 1512- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 1512- ●
38 SPRING; DETENT
(C) 		1-09580-580-0 02 1 1512- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 1303-1511 ●
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 1512- ● ●
39 BALL; DETENT
(B) 		9-00097-013-0 01 1 1512- ●
39 BALL; DETENT
(A) 		1-09843-012-0 04 1 1303-1511 ●
39 BALL; DETENT
(A) 		1-09843-012-0 04 1 1512- ● ● ●
44 WIRE; LK
L=180 		1-09780-024-0 10 1 1512- ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 1512- ●
44 WIRE; LK
L=200 		9-08351-020-0 07 1 1512- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 1512- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-461-0 01 1 1303- ●
50 ARM; SHIFT,6TH 1-33511-550-0 01 1 1512- ●
50 ARM; SHIFT,6TH 1-33511-185-3 01 1 1303- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 12 1 1512- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 07 1 1512- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1303-1511 ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1512- ● ● ●
58 NUT
M12 FLANGE 		0-91180-212-0 01 1 1512- ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 1512- ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 1512- ●
152 LEVER; RELAY,SELECT 1-33511-560-1 01 1 1512- ●
192 WASHER; PL
ID=16.5 		9-09857-042-0 01 1 1512- ●
192 WASHER; PL 1-09503-310-0 04 1 1512- ●
227 SPINDLE; 1ST & REV 1-33519-104-0 01 1 1512- ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 1303- ●
243 BOLT; COVER
(A) M10X30 FLANGE 		0-28151-030-0 08 1 1512- ●
243 BOLT; COVER
(B) M10X28 FLANGE REAMER 		8-97365-375-0 04 1 1512- ●
243 BOLT; COVER
(C) M8X20 FLANGE 		0-28050-820-0 06 1 1512- ●
243 BOLT; COVER
(C) M8X35 FLANGE 		0-28650-835-0 04 1 1512- ●
254 COVER; LEVER 1-33141-054-0 02 1 1512- ●
335 COLLAR; DIST,RELAY LEVER ASM 8-98049-180-0 01 1 1303- ●
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 1512- ● ●
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 1512- ● ●
381 BOLT
(C) 		1-09044-111-0 04 1 1512- ●
514 BLOCK; 6-7 SETTING 1-33511-605-0 01 1 1512- ●
515 LEVER; SHIFT,6TH & 7TH 1-33511-560-1 01 1 1512- ●
516 SPINDLE; 6TH & 7TH 1-33519-104-0 01 1 1512- ●
517 BLOCK; SHIFT,6TH & 7TH 1-33511-557-0 01 1 1512- ●
518 BLOCK ASM; SHIFT,6TH & 7TH 1-33511-558-1 01 1 1512- ●
520 SLEEVE; 6TH & 7TH 1-33516-022-1 01 1 1512- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-065-1 01 1 1512- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-066-2 01 1 1512- ●
580 BLOCK; INTERLOCK 1-33539-064-1 01 1 1512- ● ●
581 COVER; BLOCK 1-33141-056-0 01 1 1512- ● ●
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28151-035-0 06 1 1512- ● ●
583 GASKET; SPRING GUIDE 1-33142-047-0 02 1 1512- ● ●

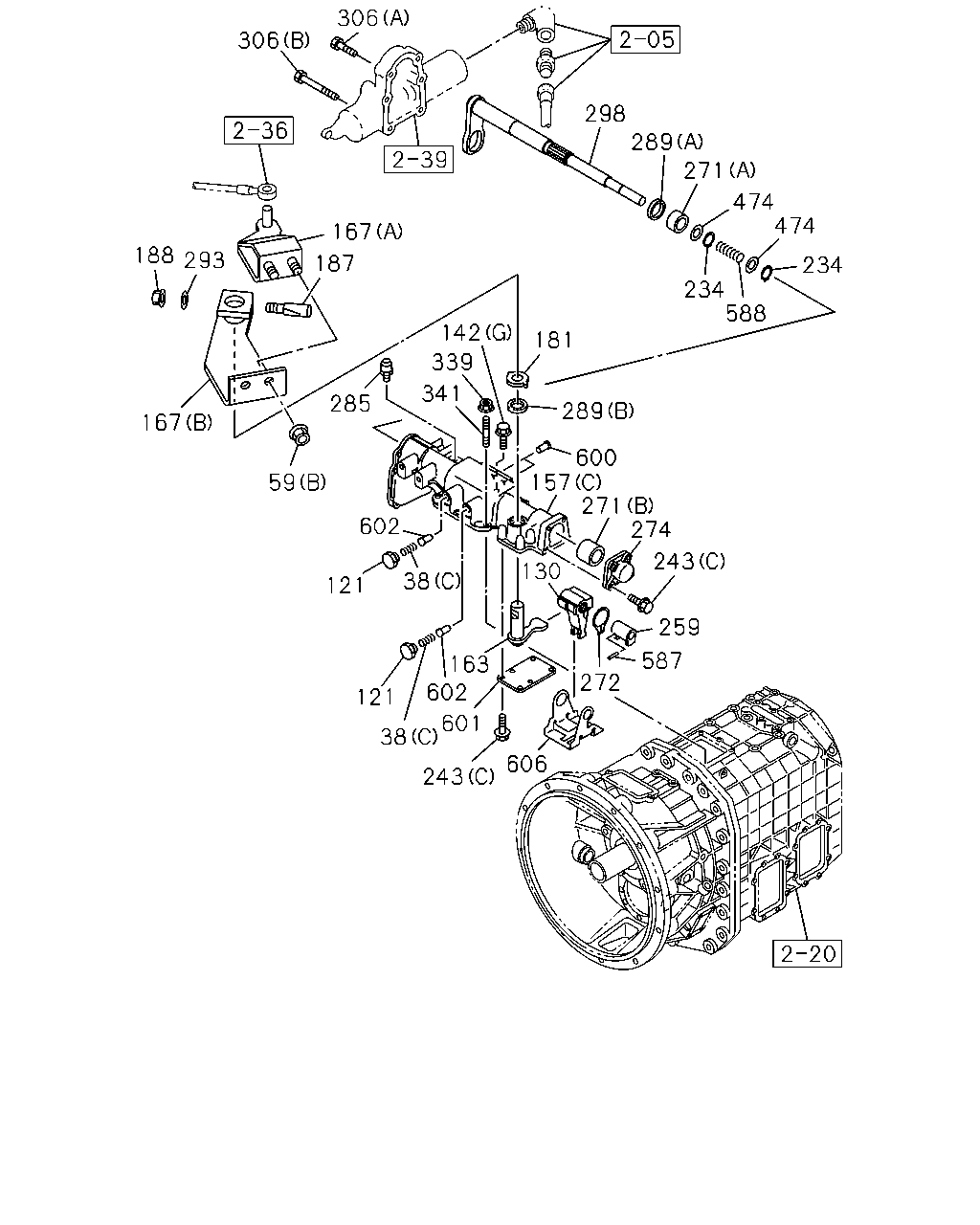

çizim 513821
306 306 298 271 474 474 234 588 234 181 142 289 600 157 274 271 243 259 587 272 606 243 38 602 601 121 163 38 121 602 341 339 285 59 167 188 293 187 167 289 130
BalonParca AdiParca NoAdetTipApplied Date A B C
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 1512- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 1512- ●
38 SPRING; DETENT
(C) 		1-09580-580-0 02 1 1512- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 1303-1511 ●
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 1512- ● ●
59 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 1512- ●
59 NUT
(A) 		1-09440-068-0 04 1 1512- ●
121 PLUG; DETENT SPR
M16X12 		0-92002-416-0 01 1 1512- ●
121 PLUG; DETENT SPR
M14X9 		8-98042-944-0 02 1 1512- ●
130 LEVER; SHIFT,INTERNAL 1-33521-189-0 01 1 1512- ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1303-1511 ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1512- ● ●
142 BOLT; QUAD BOX
(G) M10X30 FLANGE 		0-28751-030-0 01 1 1512- ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1303- ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 1303- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 03 1 1303- ●
142 BOLT; QUAD BOX
(D) M10X20,M10X45 L=75 		8-98010-335-0 01 1 1303- ●
142 BOLT; QUAD BOX
(F) M10X20,M10X55 L=85 		8-98032-017-0 01 1 1303- ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE 		8-98044-944-0 09 1 1303- ●
157 BOX; QUAD,TRANS
(C) 		8-98220-885-0 01 1 1512- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-345-2 01 1 1303- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-507-3 01 1 1303-1311 ●
157 BOX; QUAD,TRANS
(A) 		8-98231-390-0 01 1 1312-1511 ●
157 BOX; QUAD,TRANS
(A) 		8-98231-390-0 01 1 1512- ● ●
163 LEVER; SELECT,INTERNAL 1-33522-201-0 01 1 1512- ●
163 LEVER; SELECT,INTERNAL 1-33522-202-0 01 1 1512- ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 1303- ●
167 LEVER; SELECT,EXTERNAL
(B) 		1-33521-192-1 01 1 1512- ●
167 LEVER; SELECT,EXTERNAL
(A) 		1-33521-193-1 01 1 1512- ●
167 LEVER; SELECT,EXTERNAL
(B) 		1-33521-194-0 01 1 1512- ●
167 LEVER; SELECT,EXTERNAL
(A) 		8-98052-192-0 01 1 1512- ●
167 LEVER; SELECT,EXTERNAL
(A) 		1-33521-163-0 01 1 1303- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1303-1511 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1512- ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1303-1511 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1512- ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1303-1511 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1512- ● ● ●
234 RING; SNAP
ID=14.7 		0-91800-616-0 02 1 1512- ●
243 BOLT; COVER
(A) M10X30 FLANGE 		0-28151-030-0 08 1 1512- ●
243 BOLT; COVER
(B) M10X28 FLANGE REAMER 		8-97365-375-0 04 1 1512- ●
243 BOLT; COVER
(C) M8X20 FLANGE 		0-28050-820-0 06 1 1512- ●
243 BOLT; COVER
(C) M8X35 FLANGE 		0-28650-835-0 04 1 1512- ●
259 GUIDE; SELECT,CONT BOX 8-98222-568-0 01 1 1512- ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1303-1511 ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1512- ● ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1303-1511 ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1512- ● ● ●
272 RING; SNAP,QUAD BOX 1-09588-213-0 01 1 1512- ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1303-1511 ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1512- ● ●
274 COVER; SHAFT,QUAD BOX 8-98220-886-0 01 1 1512- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1303-1511 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1512- ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1512- ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1303-1511 ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1512- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1303-1511 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1512- ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1303-1511 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1512- ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1303-1511 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1512- ● ● ●
298 SHAFT; SHIFT LEVER 8-98222-566-0 01 1 1512- ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1303-1511 ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1512- ● ●
306 BOLT; SHIFT ASSISTOR
(A) M10X45 FLANGE 		0-28151-045-0 02 1 1303-1511 ●
306 BOLT; SHIFT ASSISTOR
(A) M10X45 FLANGE 		0-28151-045-0 02 1 1512- ● ● ●
306 BOLT; SHIFT ASSISTOR
(B) M10X80 FLANGE 		0-28151-080-0 04 1 1303-1511 ●
306 BOLT; SHIFT ASSISTOR
(B) M10X80 FLANGE 		0-28151-080-0 04 1 1512- ● ● ●
335 COLLAR; DIST,RELAY LEVER ASM 8-98049-180-0 01 1 1303- ●
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 06 1 1512- ●
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 05 1 1512- ●
341 STUD; QUAD BOX
M10X25 L=40 		0-44011-025-0 06 1 1512- ●
341 STUD; QUAD BOX
M10X35 L=50 		0-44011-035-0 05 1 1512- ●
474 WASHER; SPRING STOPPER 8-98222-569-0 02 1 1512- ●
587 PIN; SHIFT GUIDE 9-08160-420-0 01 1 1512- ●
588 SPRING; RETURN,QUADRANT BOX 1-09580-576-0 01 1 1512- ●
600 PLUNGER; VLV 1-33263-037-0 02 1 1512- ●
601 COVER; SHAFT,SELECT 1-33545-011-0 01 1 1512- ●
602 PLUNGER; DETENT 1-33263-037-0 02 1 1512- ●
606 INHIBITOR 1-33529-116-0 01 1 1512- ●

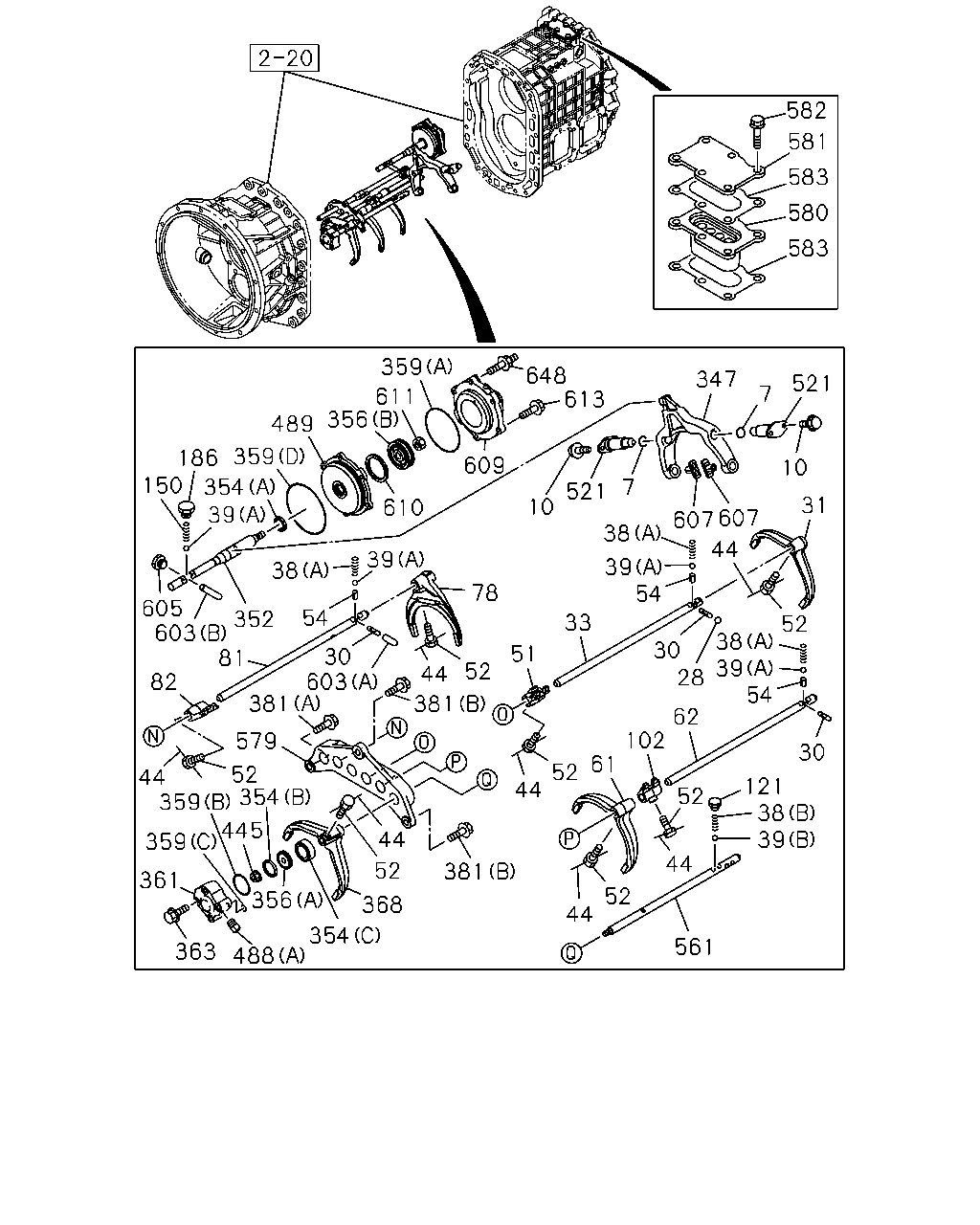

çizim 513899
582 581 583 580 583 186 150 359 489 356 359 648 609 613 610 611 354 39 605 603 352 38 81 82 44 359 359 579 52 381 30 603 54 354 445 361 356 354 52 44 381 44 381 78 33 51 52 44 10 52 61 62 102 30 28 121 52 44 52 44 39 38 30 54 38 39 52 44 607 347 521 7 10 607 31 54 38 521 7 39 39 561 488 363 368
BalonParca AdiParca NoAdetTipApplied Date A B C
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 02 1 1512- ●
10 BOLT; SPINDLE
M10X30 FLANGE 		0-28751-030-0 04 1 1512- ●
28 BALL; INTER LK 9-00097-501-0 02 1 1512- ●
28 BALL; INTER LK 9-00097-501-0 04 1 1303-1511 ●
28 BALL; INTER LK 9-00097-501-0 04 1 1512- ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 1303-1511 ●
30 PIN; INTER LK 9-33534-003-0 03 1 1512- ● ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-587-0 01 1 1512- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-458-0 01 1 1512- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 1512- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 1512- ●
38 SPRING; DETENT
(C) 		1-09580-580-0 02 1 1512- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 1303-1511 ●
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 1512- ● ●
39 BALL; DETENT
(B) 		9-00097-013-0 01 1 1512- ●
39 BALL; DETENT
(A) 		1-09843-012-0 04 1 1303-1511 ●
39 BALL; DETENT
(A) 		1-09843-012-0 04 1 1512- ● ● ●
44 WIRE; LK
L=180 		1-09780-024-0 10 1 1512- ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 1512- ●
44 WIRE; LK
L=200 		9-08351-020-0 07 1 1512- ●
51 BLOCK; SHIFT,1ST & 2ND 1-33511-617-0 01 1 1512- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 12 1 1512- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 07 1 1512- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1303-1511 ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1512- ● ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-586-0 01 1 1512- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-459-0 01 1 1512- ●
78 ARM; SHIFT,REV 1-33511-589-0 01 1 1512- ●
81 ROD; SHIFT,REV BLOCK 1-33531-457-0 01 1 1512- ●
82 BLOCK; SHIFT,REV 1-33511-600-0 01 1 1512- ●
102 BLOCK; SHIFT,3RD & 4TH 1-33511-615-0 01 1 1512- ●
121 PLUG; DETENT SPR
M16X12 		0-92002-416-0 01 1 1512- ●
121 PLUG; DETENT SPR
M14X9 		8-98042-944-0 02 1 1512- ●
150 SPRING; DETENT BALL 1-09580-379-0 01 1 1512- ●
186 PLUG; SHIFTER ROD
M16X12 		0-92002-416-0 01 1 1512- ●
335 COLLAR; DIST,RELAY LEVER ASM 8-98049-180-0 01 1 1303- ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-585-0 01 1 1512- ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-482-0 01 1 1512- ●
354 SEAL; AIR CYL
(A) 		1-19387-056-0 01 1 1512- ●
354 SEAL; AIR CYL
(B) 		1-33739-978-0 01 1 1512- ●
354 SEAL; AIR CYL
(C) 		1-33739-981-0 01 1 1512- ●
356 PISTON; AIR CYL
(A) 		1-33551-017-0 01 1 1512- ●
356 PISTON; AIR CYL
(B) 		1-33551-025-0 01 1 1512- ●
359 GASKET; AIR CYL
(A) ID=124.6 		1-09623-468-0 01 1 1512- ●
359 GASKET; AIR CYL
(B) ID=55.6 		8-98075-598-0 01 1 1512- ●
359 GASKET; AIR CYL
(C) ID=6.8 		9-09565-107-0 01 1 1512- ●
359 GASKET; AIR CYL
(D) ID=144.4 		9-09920-735-0 01 1 1512- ●
361 CYLINDER; AIR,SHIFT 1-33561-019-0 01 1 1512- ●
363 BOLT; AIR CYL
M10X60 FLANGE 		8-98169-763-0 04 1 1512- ●
368 ARM; SHIFT,SPLITTER GEAR 8-98318-482-0 01 1 1512- ●
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 1512- ● ●
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 1512- ● ●
381 BOLT
(C) 		1-09044-111-0 04 1 1512- ●
445 NUT; SHIFT CYL
M12 LOCK NUT FLANGE 		0-91380-012-0 01 1 1512- ●
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 1512- ●
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 1512- ●
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 1512- ●
489 COVER; AIR CYL 1-33569-052-0 01 1 1512- ●
521 SPINDLE; 6TH 1-33519-131-0 02 1 1512- ●
561 ROD; SHIFT 1-33531-466-0 01 1 1512- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-065-1 01 1 1512- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-066-2 01 1 1512- ●
580 BLOCK; INTERLOCK 1-33539-064-1 01 1 1512- ● ●
581 COVER; BLOCK 1-33141-056-0 01 1 1512- ● ●
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28151-035-0 06 1 1512- ● ●
583 GASKET; SPRING GUIDE 1-33142-047-0 02 1 1512- ● ●
603 ROD; INTER LK
(A) L=49 		1-33534-005-0 01 1 1512- ●
603 ROD; INTER LK
(B) L=77 		1-33534-010-0 01 1 1512- ●
605 PLUG; INTER LK
M18X12 		0-92002-418-0 01 1 1512- ●
607 PIECE; SHIFT 1-33518-010-0 02 1 1512- ●
609 BODY; AIR,CYL 1-33561-018-0 01 1 1512- ●
610 SEAL; PISTON 1-33738-054-0 01 1 1512- ●
611 NUT; SHAFT 8-97324-304-0 01 1 1512- ●
613 BOLT; AIR CYL
M10X45 FLANGE 		0-28151-045-0 03 1 1512- ●
648 STUD; AIR CYL
M10X20,M10X45 L=75 		8-98010-335-0 03 1 1512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
