0-28 — VENTILATION SYSTEM (#115316) — 127 parça

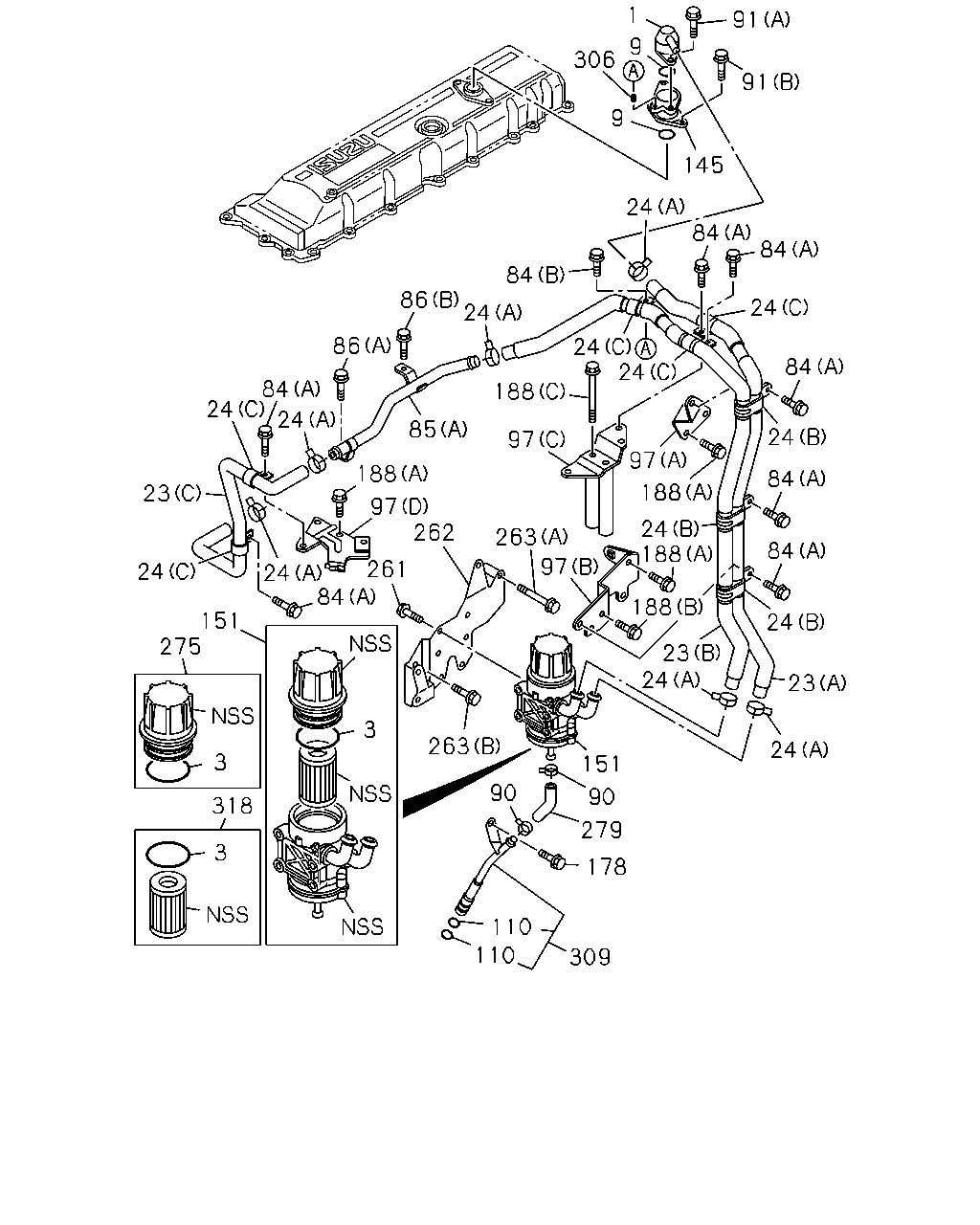

1 306 9 91 91 145 24 84 86 86 84 24 23 24 275 3 318 3 24 24 84 3 261 97 85 24 188 97 262 263 97 263 90 151 90 279 178 110 110 309 24 23 24 84 84 24 24 188 188 24 188 97 24 24 84 24 84 84 23 188 151 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BREATHER; AIR	1-11740-181-1	01	1	1303-
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	1303-
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	02	1	1303-
23	HOSE; RUBBER,VENTILATOR PIPE RUSSIA EQUIPMENT(B12) (D)	8-98327-593-0	01	1	1512-
23	HOSE; RUBBER,VENTILATOR PIPE RUSSIA EQUIPMENT(B12) (E)	8-98327-631-0	01	1	1512-
23	HOSE; RUBBER,VENTILATOR PIPE (A)	8-98122-987-1	01	1	1303-
23	HOSE; RUBBER,VENTILATOR PIPE (B)	8-98122-988-0	01	1	1303-1511
23	HOSE; RUBBER,VENTILATOR PIPE EXC. RUSSIA EQUIPMENT(B12) (B)	8-98122-988-0	01	1	1512-
23	HOSE; RUBBER,VENTILATOR PIPE (C)	8-98122-989-0	01	1	1303-1309
23	HOSE; RUBBER,VENTILATOR PIPE (C)	8-98254-532-0	01	1	1310-1511
23	HOSE; RUBBER,VENTILATOR PIPE EXC. RUSSIA EQUIPMENT(B12) (C)	8-98254-532-0	01	1	1512-
24	CLIP; RUBBER HOSE,VENTILATOR RUSSIA EQUIPMENT(B12) (D) ID=24.5 L=22	8-97603-362-1	04	1	1512-
24	CLIP; RUBBER HOSE,VENTILATOR RUSSIA EQUIPMENT(B12) (C) ID=33 L=30	8-97619-250-0	04	1	1512-
24	CLIP; RUBBER HOSE,VENTILATOR (B) ID=30X2 L=28	1-09701-266-0	03	1	1303-
24	CLIP; RUBBER HOSE,VENTILATOR (A) ID=28.5	1-09707-150-0	06	1	1303-
24	CLIP; RUBBER HOSE,VENTILATOR (C) ID=33 L=30	8-97619-250-0	05	1	1303-1511
24	CLIP; RUBBER HOSE,VENTILATOR EXC. RUSSIA EQUIPMENT(B12) (C) ID=33 L=30	8-97619-250-0	05	1	1512-
84	BOLT; PIPE CLIP,VENTILATOR RUSSIA EQUIPMENT(B12) (C) M8X60 FLANGE	0-28050-860-0	02	1	1512-
84	BOLT; PIPE CLIP,VENTILATOR (A) M8X16 FLANGE	0-28050-816-0	07	1	1303-
84	BOLT; PIPE CLIP,VENTILATOR (B) M8X50 FLANGE	0-28050-850-0	01	1	1303-1511
84	BOLT; PIPE CLIP,VENTILATOR EXC. RUSSIA EQUIPMENT(B12) (B) M8X50 FLANGE	0-28050-850-0	01	1	1512-
85	PIPE; BREATHER RUSSIA EQUIPMENT(B12) (B)	8-98327-612-0	01	1	1512-
85	PIPE; BREATHER (A)	8-97611-021-1	01	1	1303-1511
85	PIPE; BREATHER EXC. RUSSIA EQUIPMENT(B12) (A)	8-97611-021-1	01	1	1512-
86	BOLT; BREATHER PIPE RUSSIA EQUIPMENT(B12) (C)	8-98277-232-0	01	1	1512-
86	BOLT; BREATHER PIPE (A) M8X20 FLANGE	0-28050-820-0	01	1	1303-1511
86	BOLT; BREATHER PIPE EXC. RUSSIA EQUIPMENT(B12) (A) M8X20 FLANGE	0-28050-820-0	01	1	1512-
86	BOLT; BREATHER PIPE (B)	8-97377-804-0	01	1	1303-1511
86	BOLT; BREATHER PIPE EXC. RUSSIA EQUIPMENT(B12) (B)	8-97377-804-0	01	1	1512-
90	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	1303-
91	BOLT; AIR BREATHER (A) M10X20 FLANGE	0-28151-020-0	02	1	1303-
91	BOLT; AIR BREATHER (B) M10X25 FLANGE	0-28151-025-0	02	1	1303-
97	BRACKET; HOSE RUSSIA EQUIPMENT(B12) (F)	8-98327-608-0	01	1	1512-
97	BRACKET; HOSE RUSSIA EQUIPMENT(B12) (G)	8-98327-609-0	01	1	1512-
97	BRACKET; HOSE RUSSIA EQUIPMENT(B12) (E)	8-98328-539-0	01	1	1512-
97	BRACKET; HOSE (A)	8-97628-209-0	01	1	1303-
97	BRACKET; HOSE (B)	8-98122-983-0	01	1	1303-
97	BRACKET; HOSE (C)	8-98122-984-0	01	1	1303-
97	BRACKET; HOSE (D)	8-98122-985-1	01	1	1303-1511
97	BRACKET; HOSE EXC. RUSSIA EQUIPMENT(B12) (D)	8-98122-985-1	01	1	1512-
110	GASKET; PIPE ID=11	1-09623-469-0	02	1	1303-
145	ADAPTER; AIR BREATHER	8-98073-548-0	01	1	1303-
151	SEPARATOR; OIL,PCV	8-98126-690-0	01	1	1303-
178	BOLT; PIPE M8X16 FLANGE	0-28050-816-0	01	1	1303-
188	BOLT; BRKT RUSSIA EQUIPMENT(B12) (D) M8X16 FLANGE	0-28050-816-0	02	1	1512-
188	BOLT; BRKT RUSSIA EQUIPMENT(B12) (A) M8X20 FLANGE	0-28050-820-0	04	1	1512-
188	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	05	1	1303-1511
188	BOLT; BRKT EXC. RUSSIA EQUIPMENT(B12) (A) M8X20 FLANGE	0-28050-820-0	05	1	1512-
188	BOLT; BRKT (B) M8X45 FLANGE	0-28050-845-0	01	1	1303-
188	BOLT; BRKT (C) M10X130 FLANGE	0-28156-013-0	02	1	1303-
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	1303-
262	BRACKET; OIL SEPARETOR	8-98122-426-0	01	1	1303-
263	BOLT; BRKT,OIL SEPARETOR (A) M10X90 FLANGE	0-28151-090-0	01	1	1303-
263	BOLT; BRKT,OIL SEPARETOR (B) M14X25 FLANGE	0-28951-425-0	02	1	1303-
275	CAP; PCV	8-97625-726-0	01	1	1303-
279	HOSE; RUBBER,OIL DRAIN L=90 SERVICED BY L=1000	0-02759-100-0	01	1	1303-
306	SPACER; CLIP L=33	8-97329-615-0	01	1	1303-1511
306	SPACER; CLIP EXC. RUSSIA EQUIPMENT(B12) L=33	8-97329-615-0	01	1	1512-
309	PIPE ASM; OIL SEPARATOR	8-98122-427-0	01	1	1303-
318	ELEMENT KIT; PCV	8-97625-725-0	01	1	1303-

270 151 270 270 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
151	SEPARATOR; OIL,PCV	8-98126-690-0	01	1	1303-
192	CLIP; BAND RUSSIA EQUIPMENT(B12) (A) L=500	8-98216-422-0	01	1	1512-
192	CLIP; BAND RUSSIA EQUIPMENT(B12) (B)	8-98216-429-0	03	1	1512-
270	COVER; VENTILATOR RUSSIA EQUIPMENT(B12) (A)	8-97646-828-2	01	1	1512-
270	COVER; VENTILATOR RUSSIA EQUIPMENT(B12) (B)	8-98247-767-0	01	1	1512-
270	COVER; VENTILATOR RUSSIA EQUIPMENT(B12) (C)	8-98247-768-1	01	1	1512-

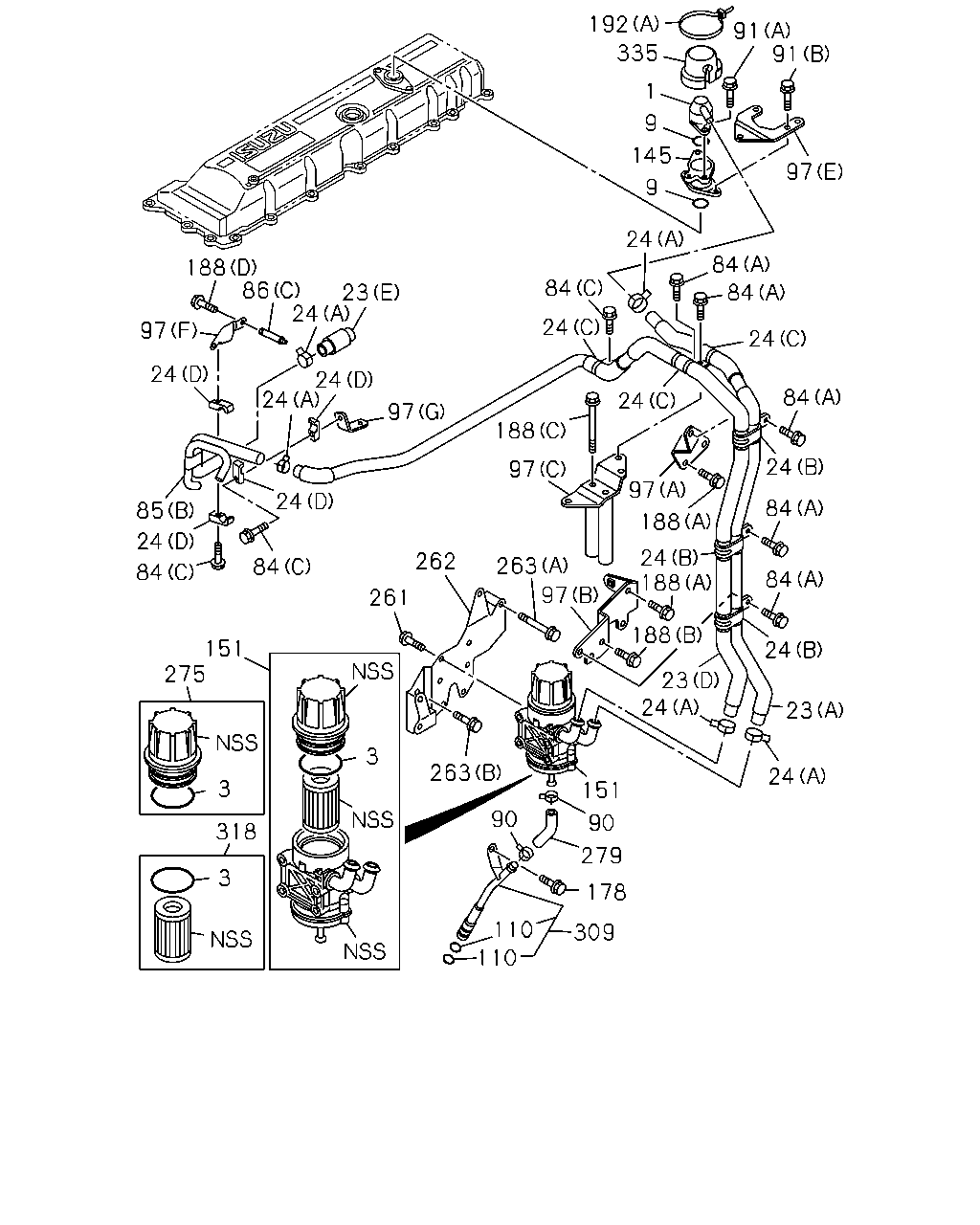

192 335 91 91 1 9 145 97 9 24 84 84 84 24 24 24 84 24 97 188 97 188 86 23 24 24 97 24 97 24 85 24 84 24 84 262 261 263 97 188 84 84 24 188 188 24 23 23 24 24 151 263 90 90 279 178 309 110 110 151 275 3 3 318 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BREATHER; AIR	1-11740-181-1	01	1	1303-
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	1303-
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	02	1	1303-
23	HOSE; RUBBER,VENTILATOR PIPE RUSSIA EQUIPMENT(B12) (D)	8-98327-593-0	01	1	1512-
23	HOSE; RUBBER,VENTILATOR PIPE RUSSIA EQUIPMENT(B12) (E)	8-98327-631-0	01	1	1512-
23	HOSE; RUBBER,VENTILATOR PIPE (A)	8-98122-987-1	01	1	1303-
23	HOSE; RUBBER,VENTILATOR PIPE (B)	8-98122-988-0	01	1	1303-1511
23	HOSE; RUBBER,VENTILATOR PIPE EXC. RUSSIA EQUIPMENT(B12) (B)	8-98122-988-0	01	1	1512-
23	HOSE; RUBBER,VENTILATOR PIPE (C)	8-98122-989-0	01	1	1303-1309
23	HOSE; RUBBER,VENTILATOR PIPE (C)	8-98254-532-0	01	1	1310-1511
23	HOSE; RUBBER,VENTILATOR PIPE EXC. RUSSIA EQUIPMENT(B12) (C)	8-98254-532-0	01	1	1512-
24	CLIP; RUBBER HOSE,VENTILATOR RUSSIA EQUIPMENT(B12) (D) ID=24.5 L=22	8-97603-362-1	04	1	1512-
24	CLIP; RUBBER HOSE,VENTILATOR RUSSIA EQUIPMENT(B12) (C) ID=33 L=30	8-97619-250-0	04	1	1512-
24	CLIP; RUBBER HOSE,VENTILATOR (B) ID=30X2 L=28	1-09701-266-0	03	1	1303-
24	CLIP; RUBBER HOSE,VENTILATOR (A) ID=28.5	1-09707-150-0	06	1	1303-
24	CLIP; RUBBER HOSE,VENTILATOR (C) ID=33 L=30	8-97619-250-0	05	1	1303-1511
24	CLIP; RUBBER HOSE,VENTILATOR EXC. RUSSIA EQUIPMENT(B12) (C) ID=33 L=30	8-97619-250-0	05	1	1512-
84	BOLT; PIPE CLIP,VENTILATOR RUSSIA EQUIPMENT(B12) (C) M8X60 FLANGE	0-28050-860-0	02	1	1512-
84	BOLT; PIPE CLIP,VENTILATOR (A) M8X16 FLANGE	0-28050-816-0	07	1	1303-
84	BOLT; PIPE CLIP,VENTILATOR (B) M8X50 FLANGE	0-28050-850-0	01	1	1303-1511
84	BOLT; PIPE CLIP,VENTILATOR EXC. RUSSIA EQUIPMENT(B12) (B) M8X50 FLANGE	0-28050-850-0	01	1	1512-
85	PIPE; BREATHER RUSSIA EQUIPMENT(B12) (B)	8-98327-612-0	01	1	1512-
85	PIPE; BREATHER (A)	8-97611-021-1	01	1	1303-1511
85	PIPE; BREATHER EXC. RUSSIA EQUIPMENT(B12) (A)	8-97611-021-1	01	1	1512-
86	BOLT; BREATHER PIPE RUSSIA EQUIPMENT(B12) (C)	8-98277-232-0	01	1	1512-
86	BOLT; BREATHER PIPE (A) M8X20 FLANGE	0-28050-820-0	01	1	1303-1511
86	BOLT; BREATHER PIPE EXC. RUSSIA EQUIPMENT(B12) (A) M8X20 FLANGE	0-28050-820-0	01	1	1512-
86	BOLT; BREATHER PIPE (B)	8-97377-804-0	01	1	1303-1511
86	BOLT; BREATHER PIPE EXC. RUSSIA EQUIPMENT(B12) (B)	8-97377-804-0	01	1	1512-
90	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	1303-
91	BOLT; AIR BREATHER (A) M10X20 FLANGE	0-28151-020-0	02	1	1303-
91	BOLT; AIR BREATHER (B) M10X25 FLANGE	0-28151-025-0	02	1	1303-
97	BRACKET; HOSE RUSSIA EQUIPMENT(B12) (F)	8-98327-608-0	01	1	1512-
97	BRACKET; HOSE RUSSIA EQUIPMENT(B12) (G)	8-98327-609-0	01	1	1512-
97	BRACKET; HOSE RUSSIA EQUIPMENT(B12) (E)	8-98328-539-0	01	1	1512-
97	BRACKET; HOSE (A)	8-97628-209-0	01	1	1303-
97	BRACKET; HOSE (B)	8-98122-983-0	01	1	1303-
97	BRACKET; HOSE (C)	8-98122-984-0	01	1	1303-
97	BRACKET; HOSE (D)	8-98122-985-1	01	1	1303-1511
97	BRACKET; HOSE EXC. RUSSIA EQUIPMENT(B12) (D)	8-98122-985-1	01	1	1512-
110	GASKET; PIPE ID=11	1-09623-469-0	02	1	1303-
145	ADAPTER; AIR BREATHER	8-98073-548-0	01	1	1303-
151	SEPARATOR; OIL,PCV	8-98126-690-0	01	1	1303-
178	BOLT; PIPE M8X16 FLANGE	0-28050-816-0	01	1	1303-
188	BOLT; BRKT RUSSIA EQUIPMENT(B12) (D) M8X16 FLANGE	0-28050-816-0	02	1	1512-
188	BOLT; BRKT RUSSIA EQUIPMENT(B12) (A) M8X20 FLANGE	0-28050-820-0	04	1	1512-
188	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	05	1	1303-1511
188	BOLT; BRKT EXC. RUSSIA EQUIPMENT(B12) (A) M8X20 FLANGE	0-28050-820-0	05	1	1512-
188	BOLT; BRKT (B) M8X45 FLANGE	0-28050-845-0	01	1	1303-
188	BOLT; BRKT (C) M10X130 FLANGE	0-28156-013-0	02	1	1303-
192	CLIP; BAND RUSSIA EQUIPMENT(B12) (A) L=500	8-98216-422-0	01	1	1512-
192	CLIP; BAND RUSSIA EQUIPMENT(B12) (B)	8-98216-429-0	03	1	1512-
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	1303-
262	BRACKET; OIL SEPARETOR	8-98122-426-0	01	1	1303-
263	BOLT; BRKT,OIL SEPARETOR (A) M10X90 FLANGE	0-28151-090-0	01	1	1303-
263	BOLT; BRKT,OIL SEPARETOR (B) M14X25 FLANGE	0-28951-425-0	02	1	1303-
275	CAP; PCV	8-97625-726-0	01	1	1303-
279	HOSE; RUBBER,OIL DRAIN L=90 SERVICED BY L=1000	0-02759-100-0	01	1	1303-
309	PIPE ASM; OIL SEPARATOR	8-98122-427-0	01	1	1303-
318	ELEMENT KIT; PCV	8-97625-725-0	01	1	1303-
335	COVER; AIR BREATHER RUSSIA EQUIPMENT(B12)	8-98074-852-0	01	1	1512-
