0-12 — CYLINDER BLOCK (#115313) — 40 parça

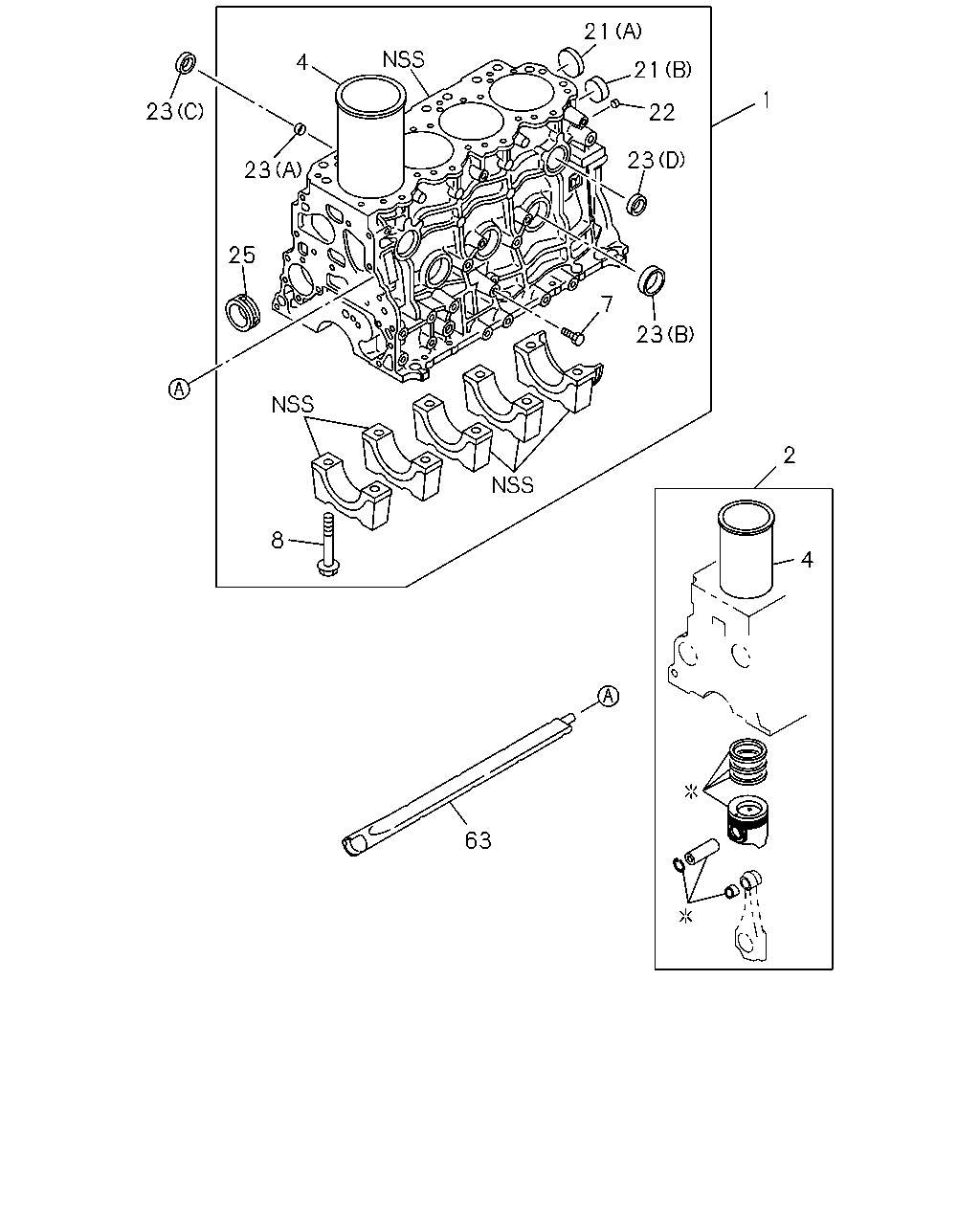

çizim 336010
23 4 21 22 21 23 23 7 8 25 23 63 2 4 1
BalonParca AdiParca NoAdetTipApplied Date
1 00.033 BLOCK ASM; CYL 8-97257-264-3 01 1 1302-
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87816-272-1 04 1 1302-
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87816-273-1 04 1 1302-
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87816-274-1 04 1 1302-
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87816-275-1 04 1 1302-
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 1302-
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 1302-
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 1302-
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 1302-
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 1302-
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 1302-
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 1302-
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 1302-
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 1302-
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 1302-
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 1302-
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 1302-
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 1302-
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 1302-
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 1302-
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 02 1 1302-
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 1302-
25 00.539 METAL; CM/SHF
CENTER & REAR 		8-97378-147-0 02 1 1302-
25 00.539 METAL; CM/SHF
FRONT 		8-97378-148-0 01 1 1302-
63 01.153 DUCT; WATER,C/BL 8-94456-794-3 01 1 1302-

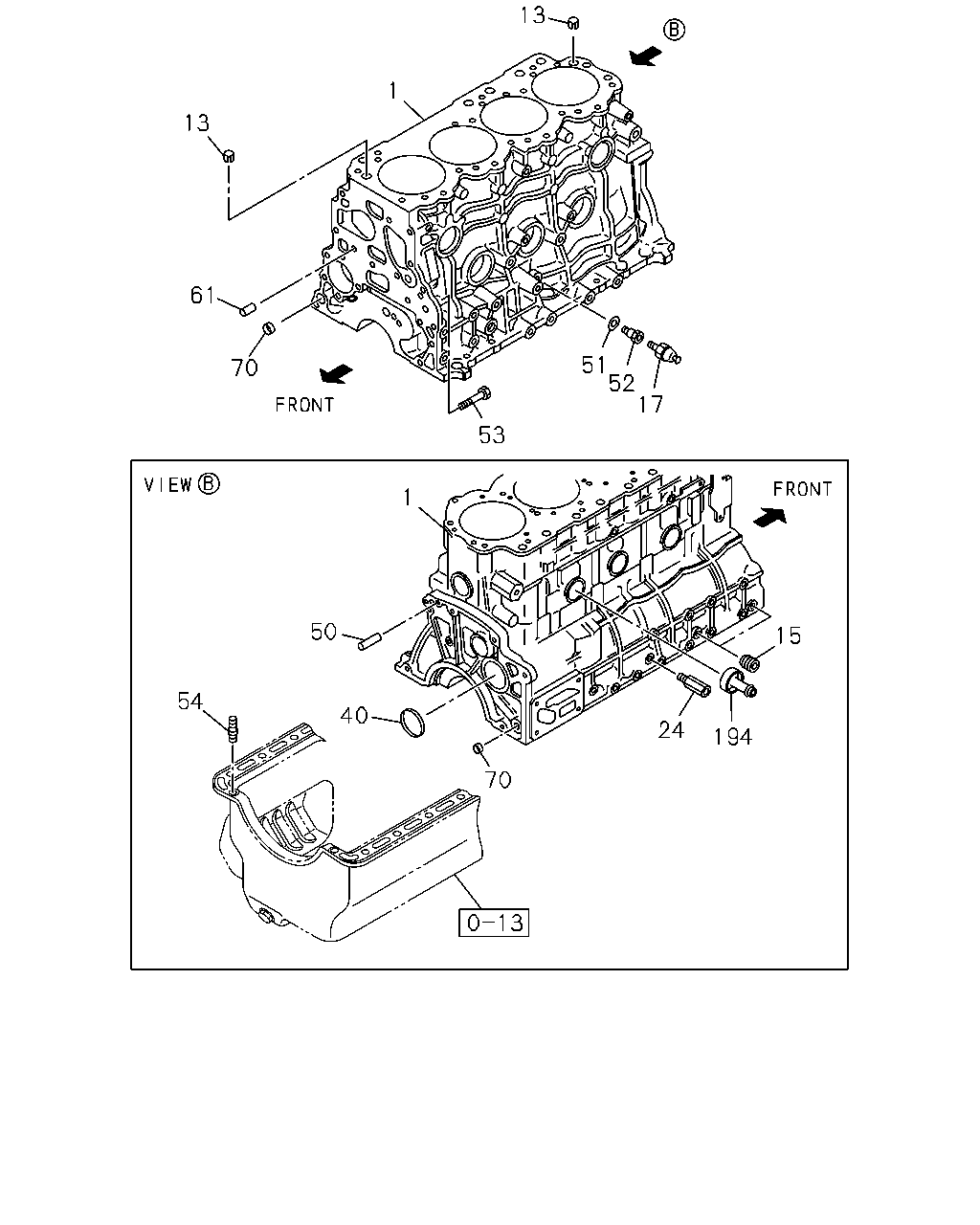

çizim 336013
70 61 13 1 13 51 52 17 53 15 194 24 70 40 50 54 1
BalonParca AdiParca NoAdetTipApplied Date
1 00.033 BLOCK ASM; CYL 8-97257-264-3 01 1 1302-
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 1302-
15 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 02 1 1302-
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 1302-
24 01.531 NIPPLE; OIL FEED,VAC PUMP 8-94443-670-1 01 1 1302-
40 00.034 CUP; SEALING,C/BL RR
00.253 OD=56 		8-94250-514-1 01 1 1302-
50 00.685 PIN; STRAIGHT,RR PLATE
08.939 OD=10 L=32 		9-08161-032-0 01 1 1302-
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94336-292-0 01 1 1302-
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-98089-872-0 01 1 1302-1501
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 1502-
53 00.862 BOLT; REAMER
00.683 M10X52 		9-09806-020-0 01 1 1302-
54 01.428 STUD; OIL PAN TO BLOCK 8-94133-974-2 10 1 1302-
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 01 1 1302-
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 1302-
194 00.439 PIPE; OIL DRAIN,C/BL 8-97137-781-0 01 1 1302-
