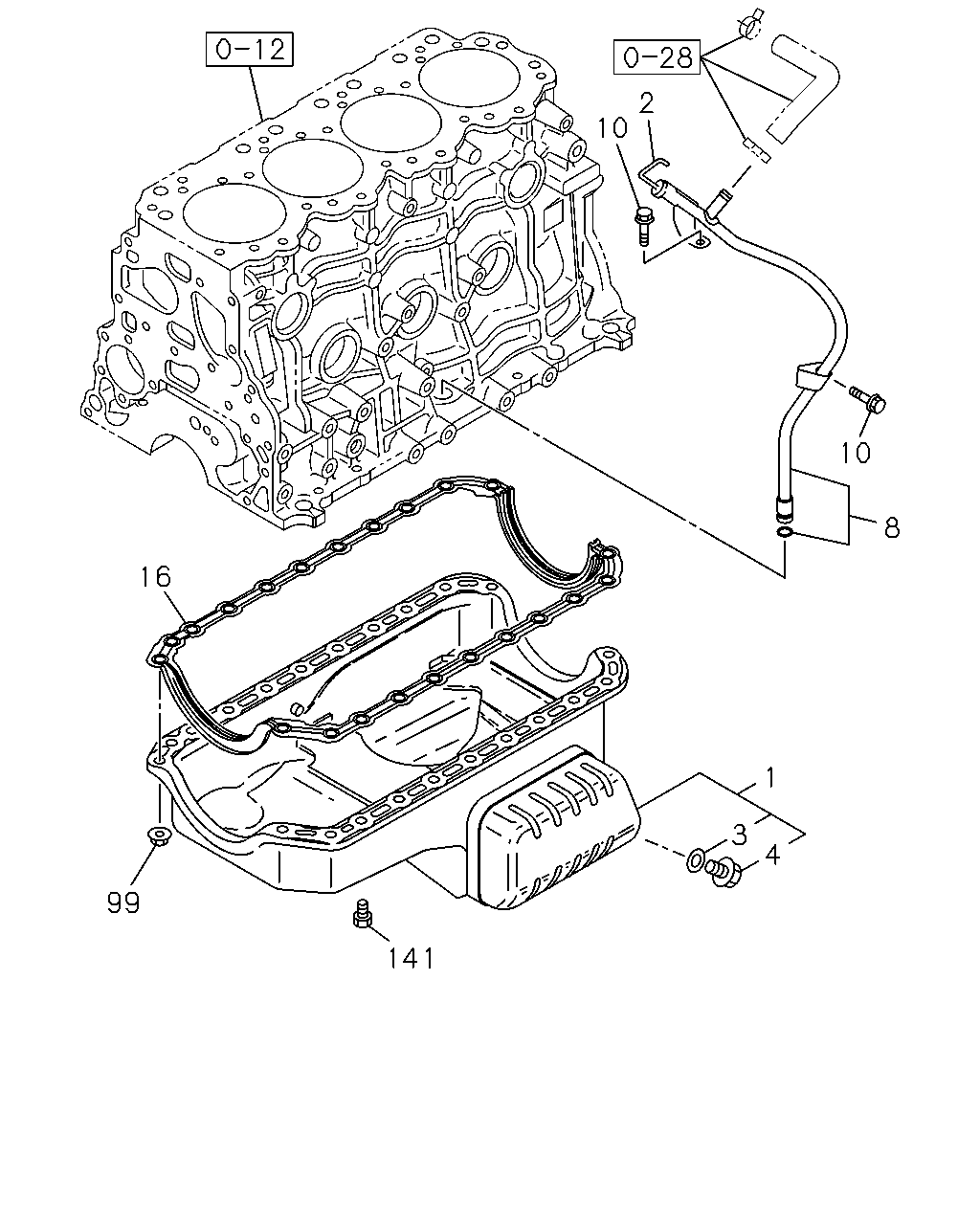

0-13 — OIL PAN AND LEVEL GAUGE (#115311) — 9 parça

141 4 3 1 99 16 8 10 10 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	1302-
2	01.516 GAUGE; OIL LEVEL	8-98188-697-1	01	1	1302-
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1302-
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1302-
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98214-056-0	01	1	1302-
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1302-
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	1302-
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	1302-
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	1302-
