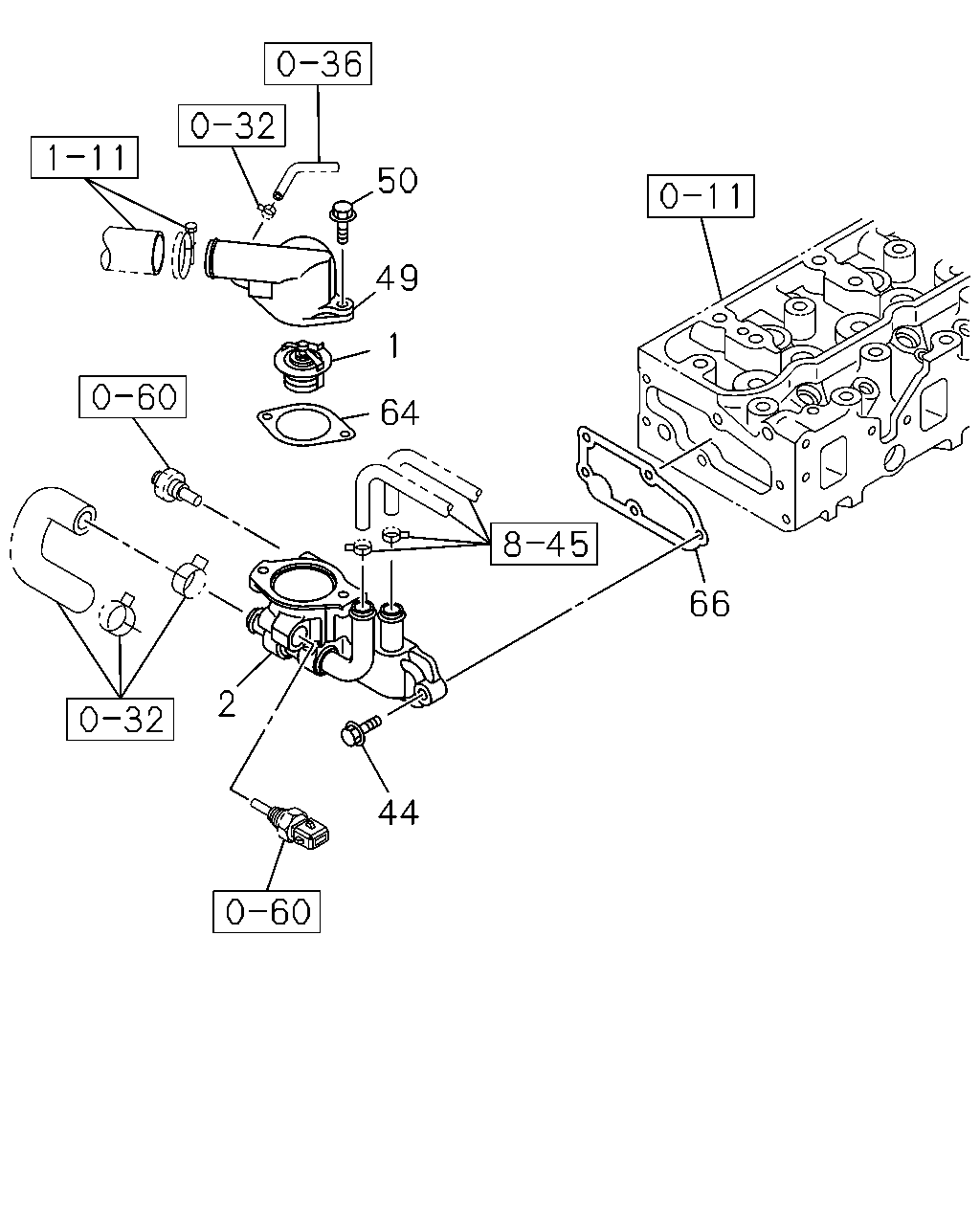

0-31 — THERMOSTAT AND HOUSING (#115309) — 7 parça

66 64 1 49 50 2 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	1302-
2	01.251 HOUSING; THERMOSTAT	8-97372-989-1	01	1	1302-
44	01.252 BOLT; HSG TO HD 09.171 M8X30 W/LK WASHER	0-50540-830-0	05	1	1302-
49	01.153 PIPE; WATER OUTLET	8-97289-011-0	01	1	1302-
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1302-
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252	8-94365-674-2	01	1	1302-
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97212-537-1	01	1	1302-
