◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#115302) — 115 parça

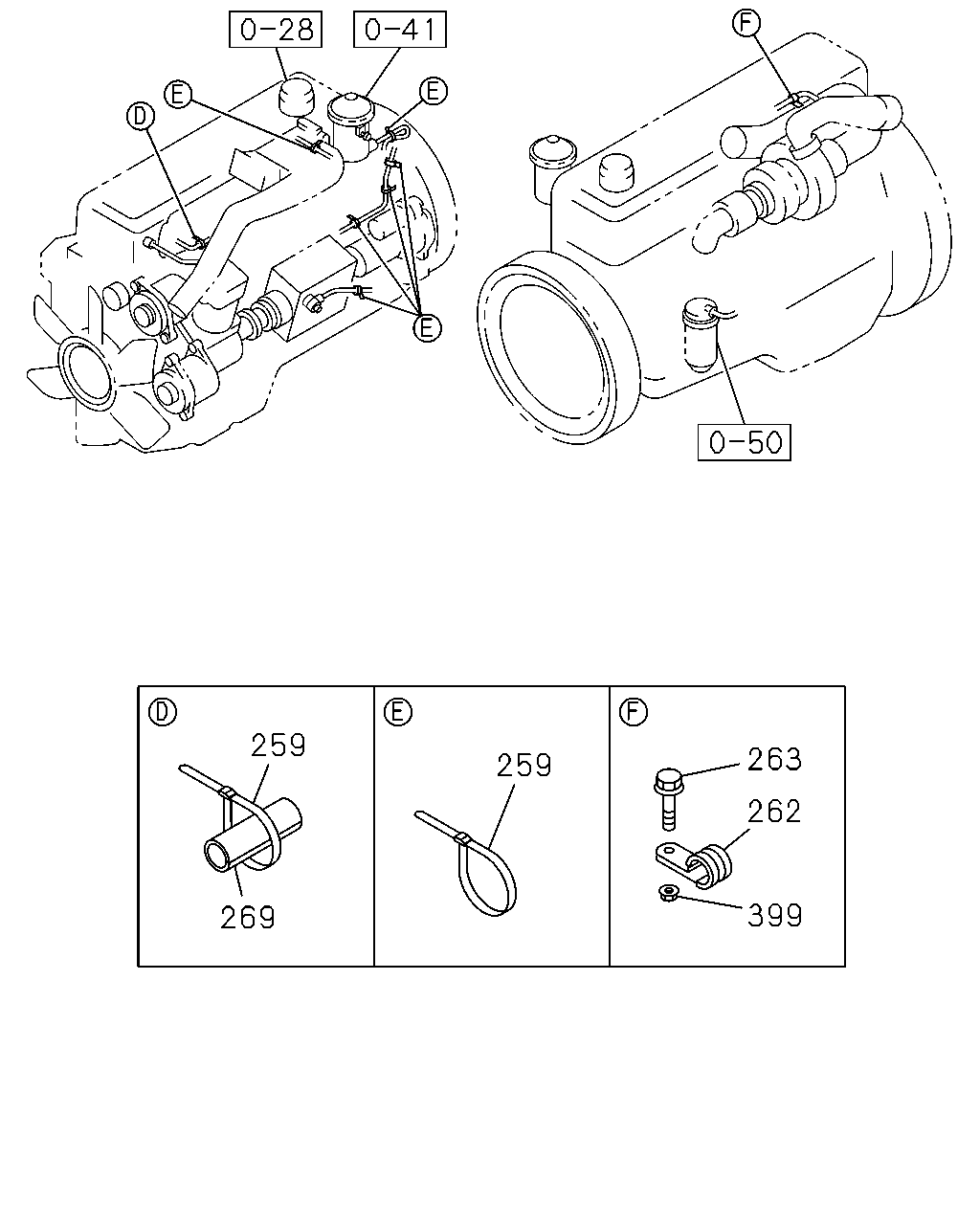

çizim 336086
259 269 259 263 262 399
BalonParca AdiParca NoAdetTipApplied Date A B
259 CLIP; BAND,HARNESS TO OIL PIPE
L=251 		8-97619-917-0 03 1 1303-1511 ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=251 		8-97619-917-0 03 1 1512- ● ●
262 CLIP; HARNESS
ID=17 L=20 		8-97619-251-0 02 1 1303-1511 ●
262 CLIP; HARNESS
ID=17 L=20 		8-97619-251-0 02 1 1512- ● ●
263 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 02 1 1303-1511 ●
263 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 02 1 1512- ● ●
269 SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30 		9-09956-682-0 03 1 1303-1511 ●
269 SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30 		9-09956-682-0 03 1 1512- ● ●
399 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1303-1511 ●
399 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●

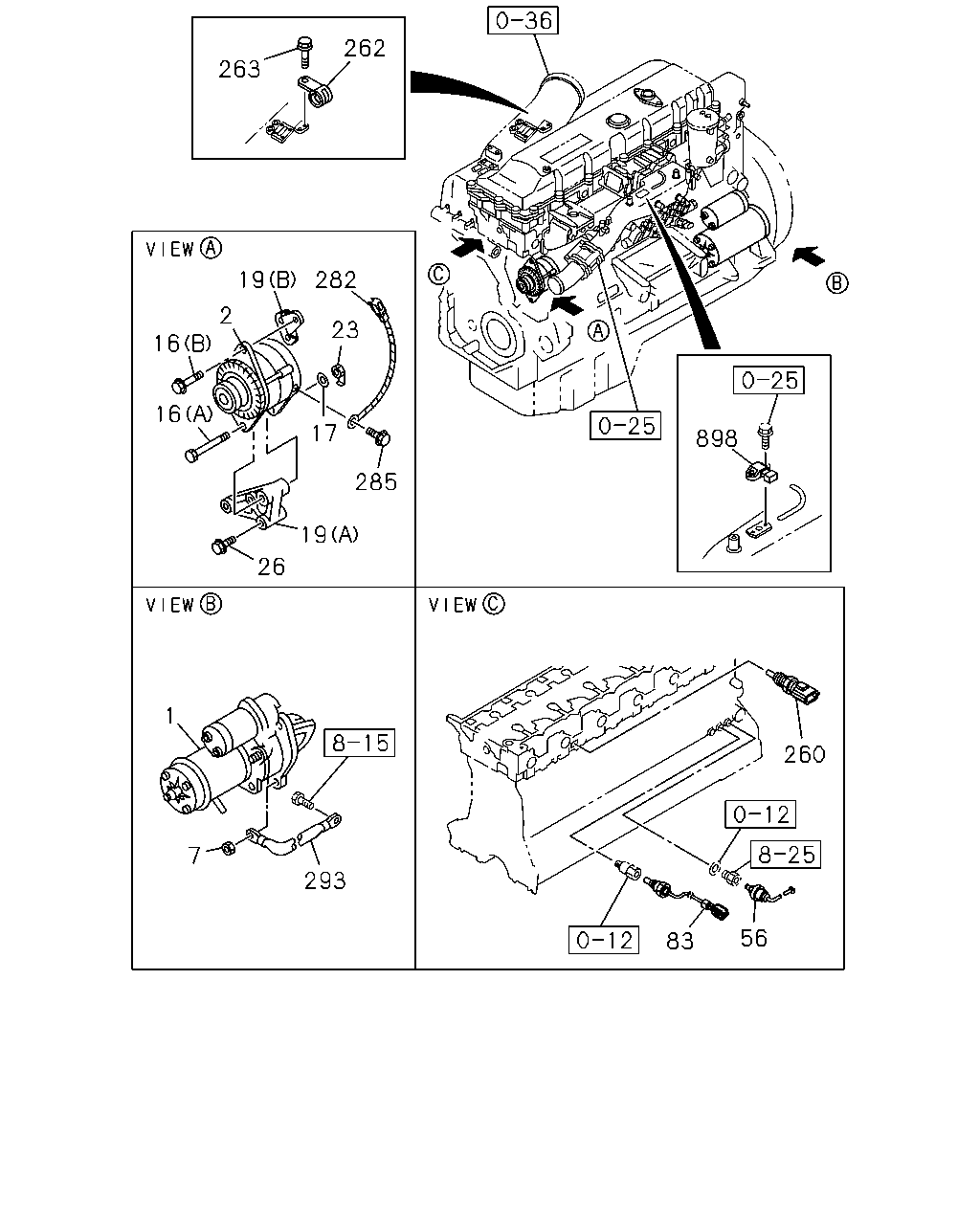

çizim 336090
263 262 16 19 2 282 16 17 19 285 26 1 7 293 260 83 56 898 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI 		8-97380-509-4 01 1 1512- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		8-97380-508-4 01 1 1303-1511 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97380-508-4 01 1 1512- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI 		8-97380-508-4 01 1 1512- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) 		8-98127-495-0 01 1 1512- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 		8-98127-496-0 01 1 1512- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO 		8-98201-083-2 01 1 1303-1511 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 		8-98201-083-3 01 1 1512- ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 1303-1511 ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 1512- ● ●
16 BOLT; GEN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) M14X157 		1-09040-106-0 01 1 1512- ●
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28051-240-0 01 1 1512- ● ●
16 BOLT; GEN
(A) M14X123 		1-09040-105-0 01 1 1303-1511 ●
16 BOLT; GEN
GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-60A 1.5KW(SC8) (A) M14X123 		1-09040-105-0 01 1 1512- ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 1303-1511 ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 1512- ● ●
19 BRACKET; GEN
EXC. TAIWAN EQUIPMENT(WW5) (B) 		8-97606-317-0 01 1 1512- ●
19 BRACKET; GEN
(B) 		8-97606-317-0 01 1 1512- ●
19 BRACKET; GEN
(A) 		8-97607-133-0 01 1 1303-1511 ●
19 BRACKET; GEN
(A) 		8-97607-133-0 01 1 1512- ● ●
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 1303-1511 ●
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 1512- ● ●
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 1303-1511 ●
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 1512- ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-163-1 01 1 1303-1511 ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-163-1 01 1 1512- ● ●
83 THERMOMETER UNIT 1-83161-032-0 01 1 1303-1511 ●
83 THERMOMETER UNIT
TAIWAN EQUIPMENT(WW5) 		1-83161-032-0 01 1 1512- ●
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 1303-1406 ●
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1407-1511 ●
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1512- ● ●
262 CLIP; HARNESS
ID=17 L=20 		8-97619-251-0 02 1 1303-1511 ●
262 CLIP; HARNESS
ID=17 L=20 		8-97619-251-0 02 1 1512- ● ●
263 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 02 1 1303-1511 ●
263 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 02 1 1512- ● ●
282 HARNESS; EXT,GEN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 		1-82640-682-2 01 1 1512- ●
285 BOLT; GEN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) M8X12 FLANGE 		0-28050-812-0 01 1 1512- ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 1303-1511 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 1512- ● ●
898 SENSOR; BOOST 8-98009-418-0 01 1 1303-1511 ●
898 SENSOR; BOOST 8-98009-418-0 01 1 1512- ● ●

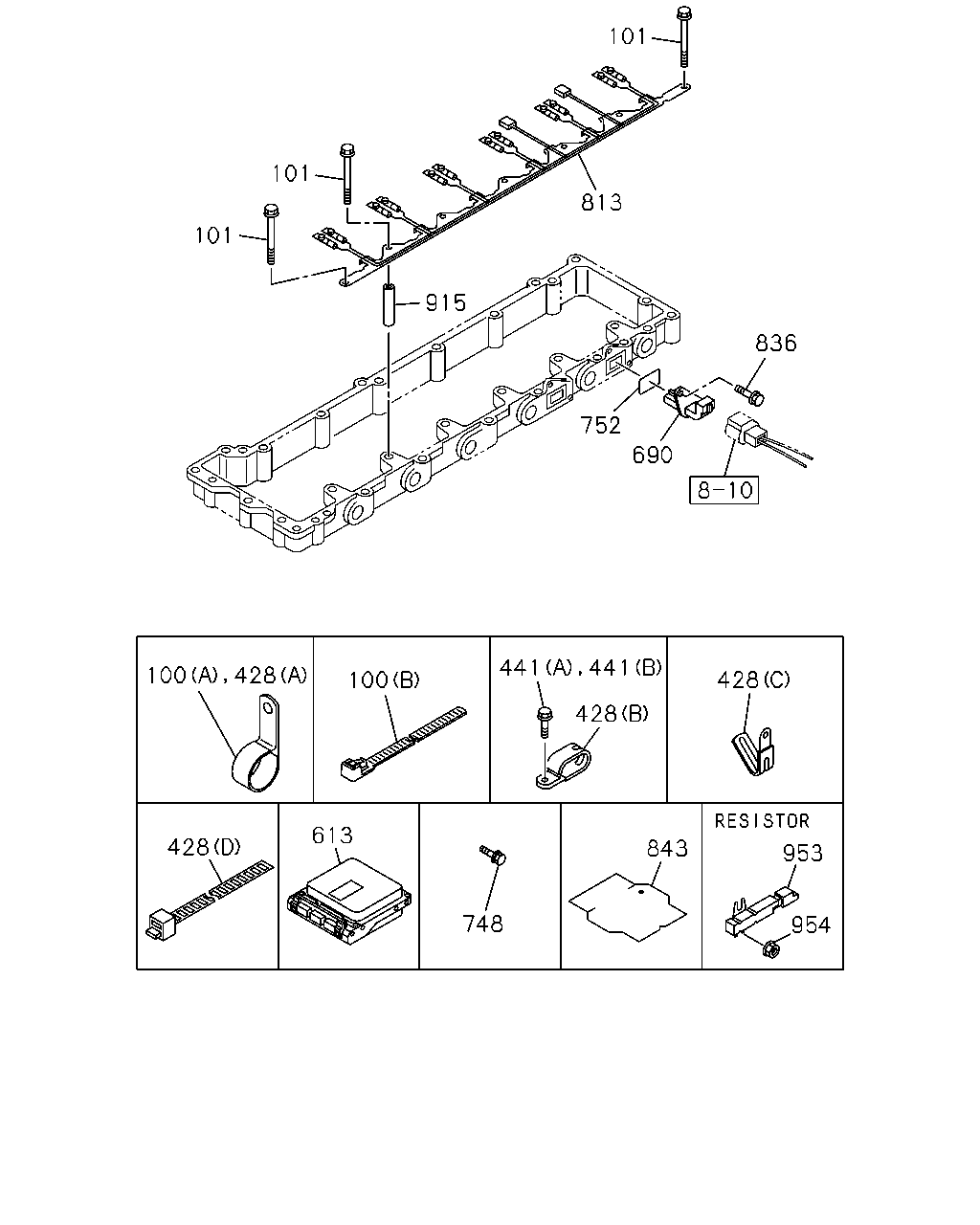

çizim 336094
101 101 101 915 813 836 752 690 100 428 100 441 441 428 428 953 954 843 748 613 428
BalonParca AdiParca NoAdetTipApplied Date A B
100 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1303-1511 ●
100 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1512- ● ●
100 CLIP; HARNESS
(B) L=140 		8-98216-431-0 02 1 1303-1511 ●
100 CLIP; HARNESS
(B) L=140 		8-98216-431-0 02 1 1512- ● ●
101 BOLT; HARNESS
M8X70 FLANGE 		0-28050-870-0 07 1 1303-1511 ●
101 BOLT; HARNESS
M8X70 FLANGE 		0-28050-870-0 07 1 1512- ● ●
428 CLIP; HARNESS
(D) L=350 		1-09707-183-0 02 1 1304-1511 ●
428 CLIP; HARNESS
(D) L=350 		1-09707-183-0 02 1 1512- ● ●
428 CLIP; HARNESS
(A) ID=31 L=35 		1-09700-329-1 01 1 1303-1511 ●
428 CLIP; HARNESS
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1512- ● ●
428 CLIP; HARNESS
(A) ID=35 L=35 		1-09700-684-0 02 1 1303-1511 ●
428 CLIP; HARNESS
(A) ID=35 L=35 		1-09700-684-0 02 1 1512- ● ●
428 CLIP; HARNESS
(B) ID=24X2 L=25 		1-09700-710-0 04 1 1303-1511 ●
428 CLIP; HARNESS
(B) ID=24X2 L=25 		1-09700-710-0 04 1 1512- ● ●
428 CLIP; HARNESS
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1303-1511 ●
428 CLIP; HARNESS
(A) ID=31 L=35 		1-09700-329-1 01 1 1512- ● ●
428 CLIP; HARNESS
(C) L=36 		8-94224-891-1 01 1 1303-1306 ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28650-820-0 05 1 1303-1511 ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28650-820-0 05 1 1512- ● ●
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1303-1511 ●
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1512- ● ●
613 CONTROL UNIT; ENG
RUSSIA EQUIPMENT(B12) EXC. CONCRETE PUMP<RA5> 		8-98328-009-0 01 1 1512- ●
613 CONTROL UNIT; ENG
RUSSIA EQUIPMENT(B12) 		8-98328-009-0 01 1 1512- ●
613 CONTROL UNIT; ENG
RUSSIA EQUIPMENT(B12) CONCRETE PUMP<RA5> 		8-98330-512-0 01 1 1512- ●
613 CONTROL UNIT; ENG
EXC. RUSSIA EQUIPMENT(B12),FIRE TRUCK<RA9> 		8-98231-188-0 01 1 1512- ●
613 CONTROL UNIT; ENG
EXC. RUSSIA EQUIPMENT(B12) 		8-98231-188-0 01 1 1512- ●
613 CONTROL UNIT; ENG 8-98231-187-0 01 1 1303-1511 ●
613 CONTROL UNIT; ENG
FIRE TRUCK<RA9> 		8-98231-187-0 01 1 1512- ●
690 CONNECTOR 8-94390-858-1 02 1 1303-1511 ●
690 CONNECTOR 8-94390-858-1 02 1 1512- ● ●
748 BOLT; CONT UNIT
M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 1303-1511 ●
748 BOLT; CONT UNIT
M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 1512- ● ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1303-1511 ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1512- ● ●
813 HARNESS; INJECTOR 1-82641-338-1 01 1 1303-1511 ●
813 HARNESS; INJECTOR 1-82641-338-1 01 1 1512- ● ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 1303-1511 ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 1512- ● ●
843 SEAL; BRKT 8-98119-974-0 01 1 1303-1511 ●
843 SEAL; BRKT 8-98119-974-0 01 1 1512- ● ●
915 SPACER; HARNESS
L=51 		1-11369-157-0 05 1 1303-1511 ●
915 SPACER; HARNESS
L=51 		1-11369-157-0 05 1 1512- ● ●
953 RESISTOR; CONT UNIT 8-97357-613-0 01 1 1303-1511 ●
953 RESISTOR; CONT UNIT 8-97357-613-0 01 1 1512- ● ●
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 1303-1511 ●
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 1512- ● ●
çizim 337008
10 296 296
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER 1-81171-100-1 01 1 1303-1511 ●
10 RELAY; STARTER 1-81171-100-1 01 1 1512- ● ●
296 NUT; RELAY,STARTER
(A) M8 FLANGE 		0-91180-108-0 02 1 1303-1511 ●
296 NUT; RELAY,STARTER
(A) M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
296 NUT; RELAY,STARTER
(B) M6 FLANGE 		0-91180-206-0 02 1 1303-1511 ●
296 NUT; RELAY,STARTER
(B) M6 FLANGE 		0-91180-206-0 02 1 1512- ● ●

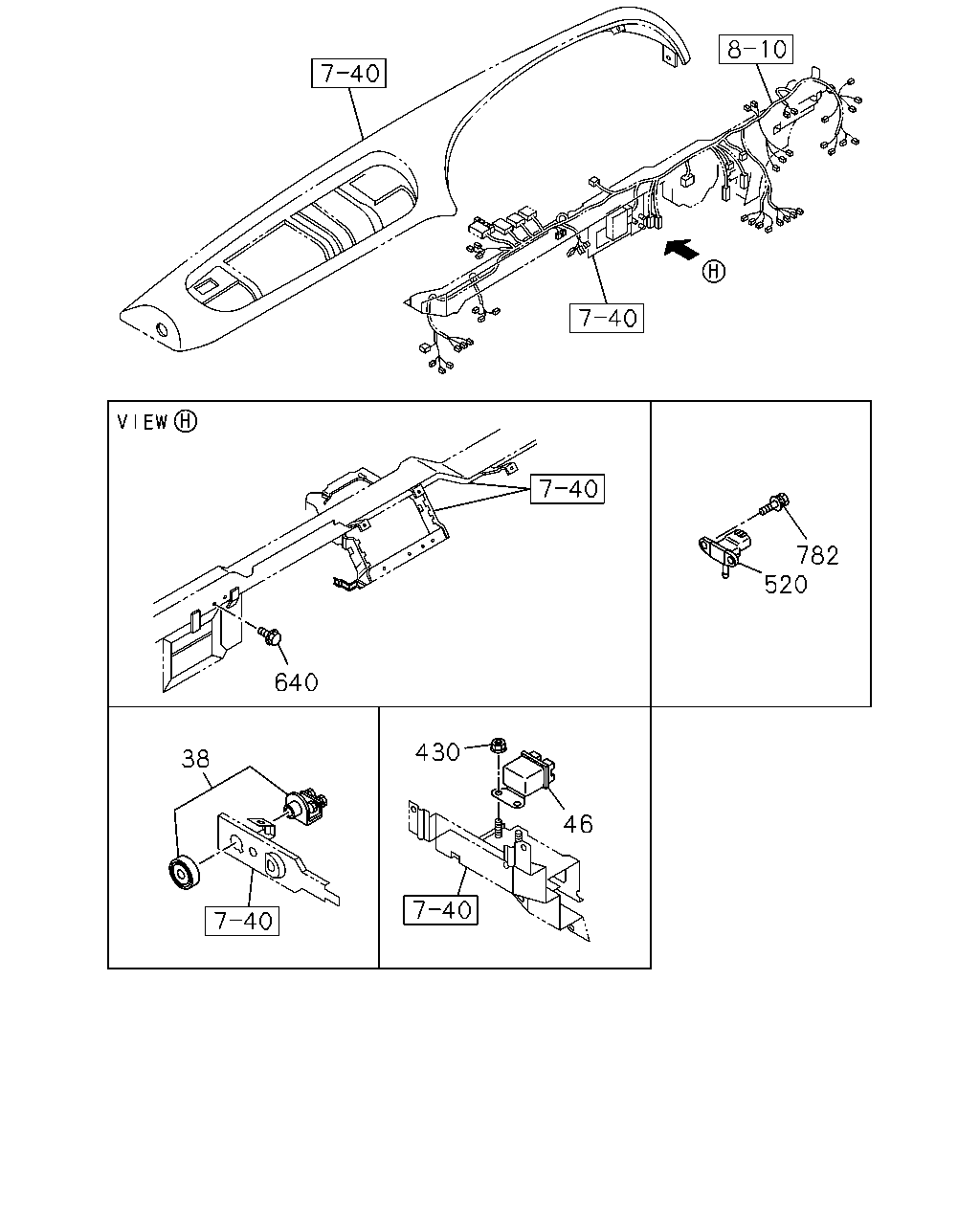

çizim 337201
640 520 782 430 46 38
BalonParca AdiParca NoAdetTipApplied Date A B
38 RESISTOR; CONT,GLOW PLUG
EXC. TAIWAN EQUIPMENT(WW5) 		1-81402-008-0 01 1 1512- ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 1512- ●
46 RELAY; GLOW PLUG
EXC. TAIWAN EQUIPMENT(WW5) 		8-94258-014-0 01 1 1512- ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 1512- ●
430 NUT; RELAY FIX
EXC. TAIWAN EQUIPMENT(WW5) M6 FLANGE 		0-91180-106-0 01 1 1512- ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91180-106-0 01 1 1512- ●
520 SENSOR; PRESSURE 8-98020-514-0 01 1 1303-1511 ●
520 SENSOR; PRESSURE 8-98020-514-0 01 1 1512- ● ●
640 BOLT; BRKT,QOS GLOW TIMER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-1511 ●
640 BOLT; BRKT,QOS GLOW TIMER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512- ● ●
782 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1303-1511 ●
782 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1512- ● ●
