8-73 — BLOWER UNIT (#115299) — 183 parça

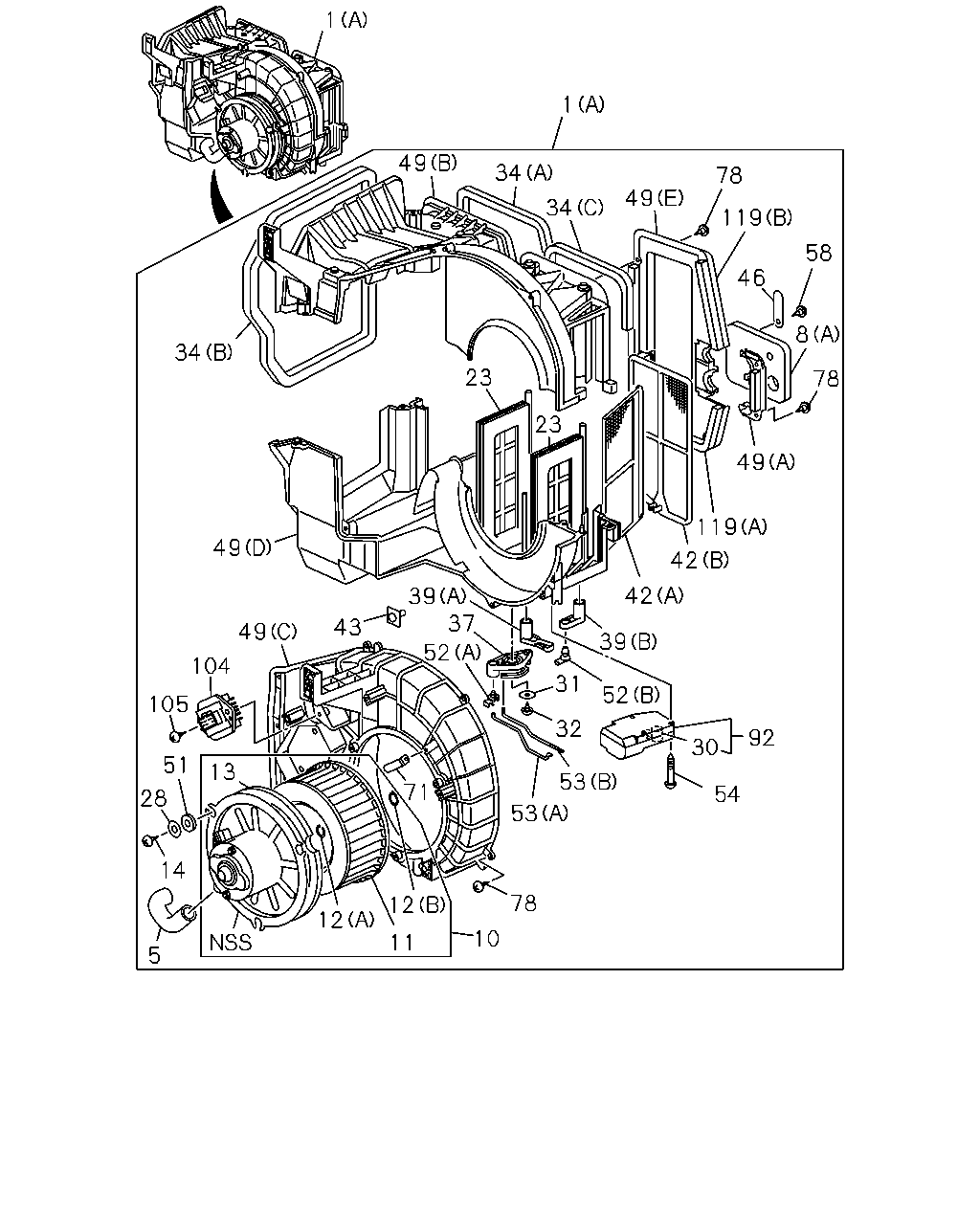

çizim 336986
34 49 34 1 34 49 78 119 58 46 8 78 49 119 42 42 39 49 49 104 105 51 28 14 5 13 43 39 37 52 31 32 53 53 52 92 30 54 78 10 11 12 120 1 23 23 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
(A) 		1-83561-181-2 01 1 1303-1511 ●
1 BLOWER ASM
HEATER & DEFROSTER(C41) (A) 		1-83561-181-2 01 1 1512- ● ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83561-183-2 01 1 1512- ● ●
5 HOSE; AIR 1-83563-147-0 01 1 1303-1511 ●
5 HOSE; AIR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-147-0 01 1 1512- ● ●
8 SEAL; BLOWER UNIT
(A) 		1-83579-801-1 01 1 1303-1511 ●
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) (A) 		1-83579-801-1 01 1 1512- ● ●
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-261-1 01 1 1512- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-164-0 01 1 1303-1511 ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-164-0 01 1 1512- ● ●
11 IMPELLER; FAN MOTOR 1-83579-796-0 01 1 1303-1511 ●
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-796-0 01 1 1512- ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1303-1511 ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		5-83569-088-0 01 1 1512- ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1303-1511 ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94243-962-0 01 1 1512- ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1303-1511 ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-636-0 01 1 1512- ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1303-1511 ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 03 1 1512- ● ●
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 1303-1511 ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-797-0 02 1 1512- ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1303-1511 ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-170-0 03 1 1512- ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1303-1511 ●
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-345-1 01 1 1512- ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 1303-1511 ●
31 WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-095-0 01 1 1512- ● ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1303-1511 ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 1512- ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1303-1511 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-633-2 01 1 1512- ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-634-2 01 1 1303-1511 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-634-2 01 1 1512- ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-644-0 01 1 1303-1511 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-644-0 01 1 1512- ● ●
37 LEVER; MODE LEVER 1-83564-375-0 01 1 1303-1511 ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-375-0 01 1 1512- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-373-0 01 1 1303-1511 ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-373-0 01 1 1512- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-374-0 01 1 1303-1511 ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-374-0 01 1 1512- ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-800-1 01 1 1303-1511 ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-800-1 01 1 1512- ● ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 1303-1511 ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 1512- ● ●
43 BOLT; CASE 1-83579-657-2 04 1 1303-1511 ●
43 BOLT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 04 1 1512- ● ●
46 PLATE; BLOWER UNIT 1-83571-870-1 01 1 1303-1511 ●
46 PLATE; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83571-870-1 01 1 1512- ● ●
49 CASE; BLOWER UNIT
(B) 		1-83564-368-0 01 1 1303-1511 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-368-0 01 1 1512- ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-369-0 01 1 1303-1511 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (D) 		1-83564-369-0 01 1 1512- ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-370-0 01 1 1303-1511 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-370-0 01 1 1512- ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-371-0 01 1 1303-1511 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83564-371-0 01 1 1512- ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-372-0 01 1 1303-1511 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-372-0 01 1 1512- ● ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83564-378-0 01 1 1512- ● ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		8-97500-034-0 01 1 1512- ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1303-1511 ●
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-496-0 03 1 1512- ● ●
52 CLIP; LEVER TO CASE
(A) 		1-83574-136-0 01 1 1303-1511 ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-136-0 01 1 1512- ● ●
52 CLIP; LEVER TO CASE
(B) 		8-94248-794-0 01 1 1303-1511 ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94248-794-0 01 1 1512- ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1303-1511 ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-639-0 01 1 1512- ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-799-0 01 1 1303-1511 ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-799-0 01 1 1512- ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1303-1511 ●
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 02 1 1512- ● ●
58 SCREW; PLATE TO CASE
M4X16 		8-94324-850-0 01 1 1303-1511 ●
58 SCREW; PLATE TO CASE
HEATER & DEFROSTER(C41) M4X16 		8-94324-850-0 01 1 1512- ● ●
71 CLIP; HARNESS 8-97096-145-0 01 1 1303-1511 ●
71 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97096-145-0 01 1 1512- ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 18 1 1303-1511 ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 18 1 1512- ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-798-1 01 1 1303-1511 ●
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-798-1 01 1 1512- ● ●
104 RESISTOR; BLOWER UNIT 1-83519-093-0 01 1 1303-1511 ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-093-0 01 1 1512- ● ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 1303-1511 ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 02 1 1512- ● ●
119 LINING; CASE
(B) 		1-83579-670-1 01 1 1303-1511 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-670-1 01 1 1512- ● ●
119 LINING; CASE
(A) 		1-83579-671-1 01 1 1303-1511 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-671-1 01 1 1512- ● ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-672-0 01 1 1512- ● ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-795-0 01 1 1512- ● ●

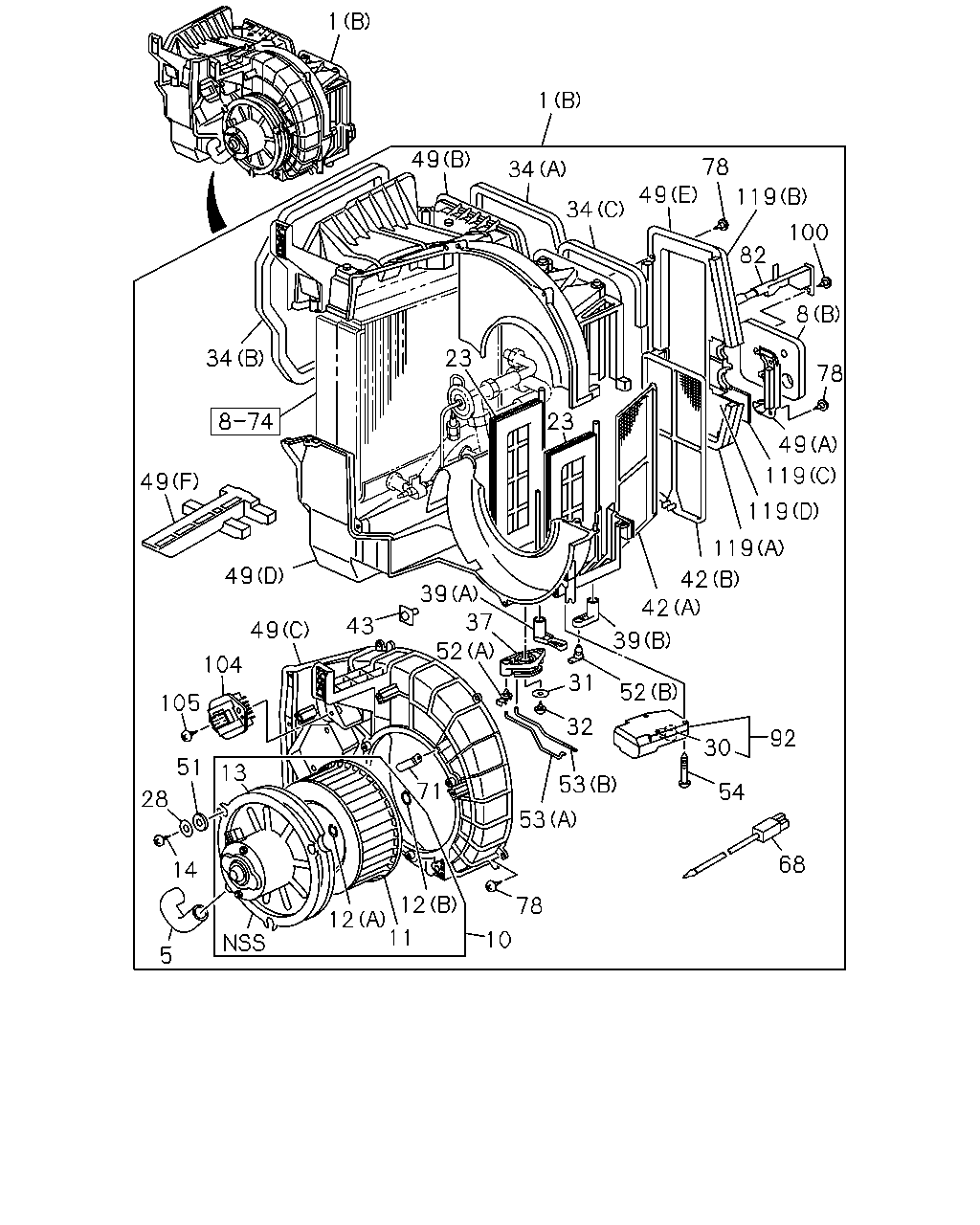

çizim 514166
1 1 49 34 34 49 78 82 119 100 8 78 49 119 119 119 42 42 39 23 23 34 49 49 49 43 39 37 52 31 32 53 53 78 10 12 11 12 5 14 28 105 104 71 52 30 54 68 92 51 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
(A) 		1-83561-181-2 01 1 1303-1511 ●
1 BLOWER ASM
HEATER & DEFROSTER(C41) (A) 		1-83561-181-2 01 1 1512- ● ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83561-183-2 01 1 1512- ● ●
5 HOSE; AIR 1-83563-147-0 01 1 1303-1511 ●
5 HOSE; AIR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-147-0 01 1 1512- ● ●
8 SEAL; BLOWER UNIT
(A) 		1-83579-801-1 01 1 1303-1511 ●
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) (A) 		1-83579-801-1 01 1 1512- ● ●
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-261-1 01 1 1512- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-164-0 01 1 1303-1511 ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-164-0 01 1 1512- ● ●
11 IMPELLER; FAN MOTOR 1-83579-796-0 01 1 1303-1511 ●
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-796-0 01 1 1512- ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1303-1511 ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		5-83569-088-0 01 1 1512- ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1303-1511 ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94243-962-0 01 1 1512- ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1303-1511 ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-636-0 01 1 1512- ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1303-1511 ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 03 1 1512- ● ●
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 1303-1511 ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-797-0 02 1 1512- ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1303-1511 ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-170-0 03 1 1512- ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1303-1511 ●
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-345-1 01 1 1512- ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 1303-1511 ●
31 WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-095-0 01 1 1512- ● ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1303-1511 ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 1512- ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1303-1511 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-633-2 01 1 1512- ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-634-2 01 1 1303-1511 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-634-2 01 1 1512- ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-644-0 01 1 1303-1511 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-644-0 01 1 1512- ● ●
37 LEVER; MODE LEVER 1-83564-375-0 01 1 1303-1511 ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-375-0 01 1 1512- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-373-0 01 1 1303-1511 ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-373-0 01 1 1512- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-374-0 01 1 1303-1511 ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-374-0 01 1 1512- ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-800-1 01 1 1303-1511 ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-800-1 01 1 1512- ● ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 1303-1511 ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 1512- ● ●
43 BOLT; CASE 1-83579-657-2 04 1 1303-1511 ●
43 BOLT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 04 1 1512- ● ●
49 CASE; BLOWER UNIT
(B) 		1-83564-368-0 01 1 1303-1511 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-368-0 01 1 1512- ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-369-0 01 1 1303-1511 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (D) 		1-83564-369-0 01 1 1512- ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-370-0 01 1 1303-1511 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-370-0 01 1 1512- ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-371-0 01 1 1303-1511 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83564-371-0 01 1 1512- ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-372-0 01 1 1303-1511 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-372-0 01 1 1512- ● ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83564-378-0 01 1 1512- ● ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		8-97500-034-0 01 1 1512- ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1303-1511 ●
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-496-0 03 1 1512- ● ●
52 CLIP; LEVER TO CASE
(A) 		1-83574-136-0 01 1 1303-1511 ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-136-0 01 1 1512- ● ●
52 CLIP; LEVER TO CASE
(B) 		8-94248-794-0 01 1 1303-1511 ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94248-794-0 01 1 1512- ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1303-1511 ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-639-0 01 1 1512- ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-799-0 01 1 1303-1511 ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-799-0 01 1 1512- ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1303-1511 ●
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 02 1 1512- ● ●
68 THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-026-1 01 1 1512- ● ●
71 CLIP; HARNESS 8-97096-145-0 01 1 1303-1511 ●
71 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97096-145-0 01 1 1512- ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 18 1 1303-1511 ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 18 1 1512- ● ●
82 BRACKET; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-932-0 01 1 1512- ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-798-1 01 1 1303-1511 ●
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-798-1 01 1 1512- ● ●
100 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 01 1 1512- ● ●
104 RESISTOR; BLOWER UNIT 1-83519-093-0 01 1 1303-1511 ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-093-0 01 1 1512- ● ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 1303-1511 ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 02 1 1512- ● ●
119 LINING; CASE
(B) 		1-83579-670-1 01 1 1303-1511 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-670-1 01 1 1512- ● ●
119 LINING; CASE
(A) 		1-83579-671-1 01 1 1303-1511 ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-671-1 01 1 1512- ● ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-672-0 01 1 1512- ● ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-795-0 01 1 1512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
