Isuzu WW
▶
TRUCKS
▶
NKR
▶
51429 - NKR-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶
8-45 — HEATER PIPING
(#115298) — 24 parça
◀

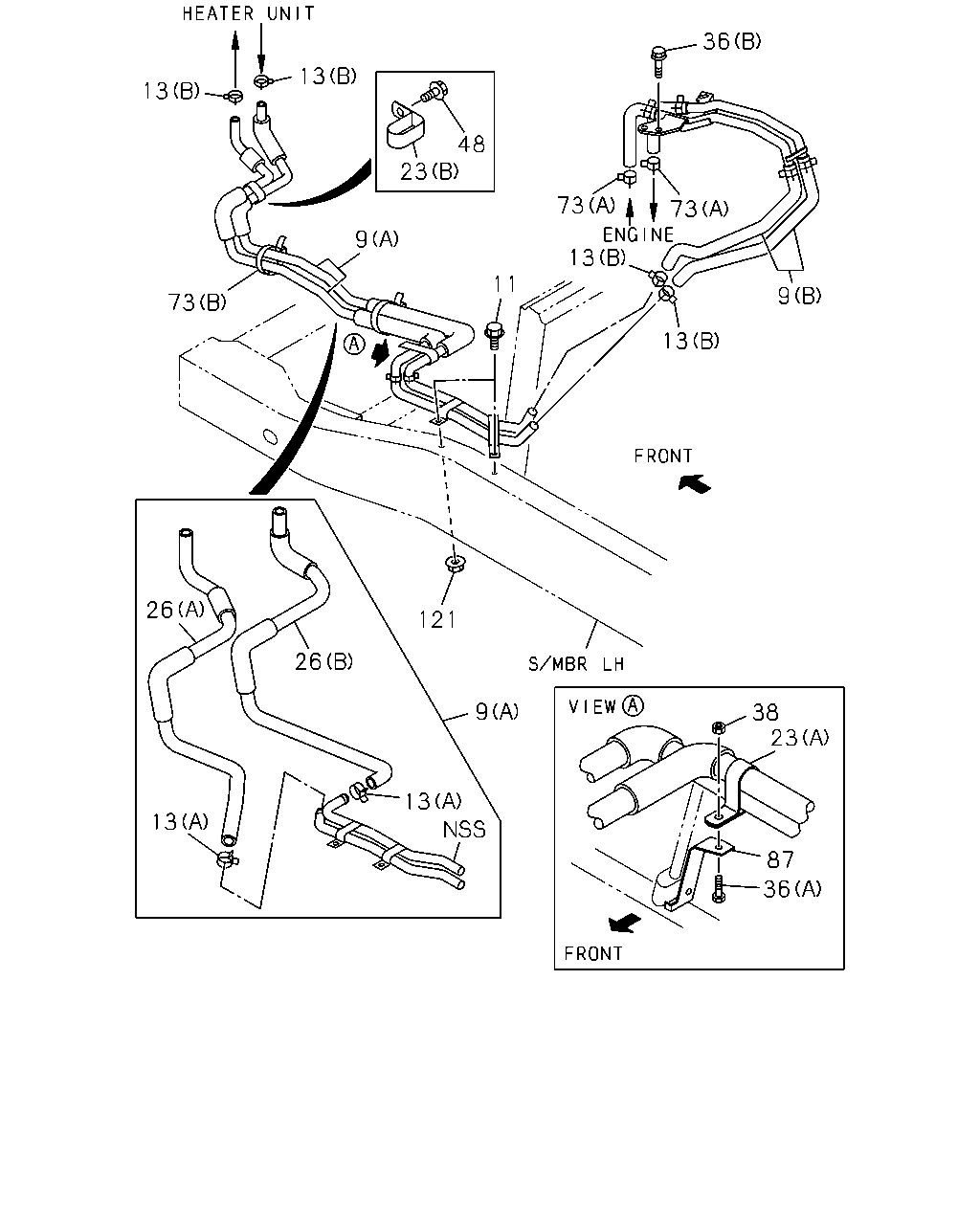

[845A] NO.1 (20 parça)

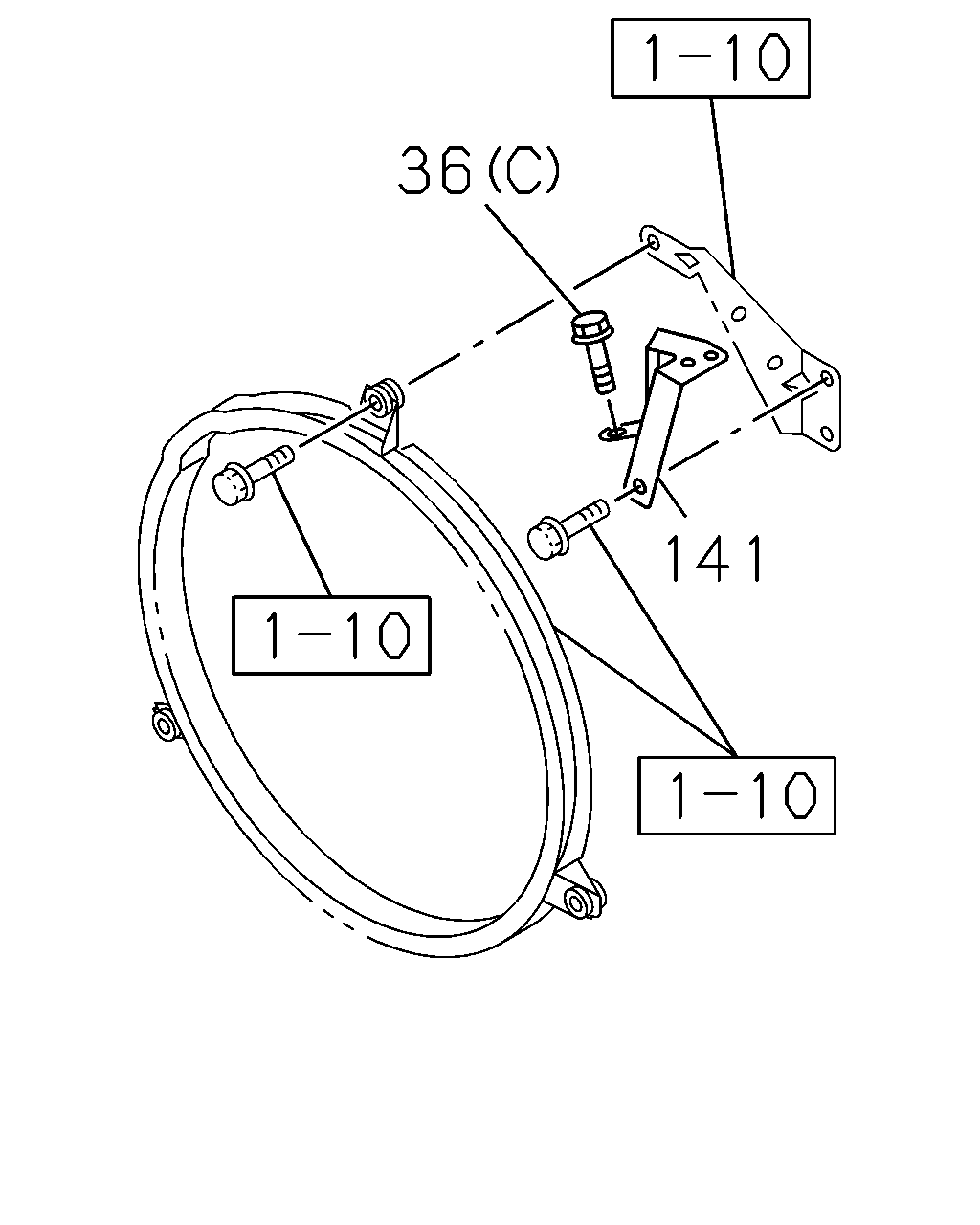

[845A] NO.2 (4 parça)
▶
36
87
23
38
9
13
121
26
13
26
73
13
13
9
48
23
11
13
73
73
36
9
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
08.846 PIPE; HTR
KD PREPARATORY PACK<6HF> (B)
8-98217-348-0
01
1
1302-
9
08.846 PIPE; HTR
(A)
8-97260-268-4
01
1
1302-
11
08.845 BOLT; HTR PIPE
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1302-
13
08.846 CLIP; HTR HOSE
(A) ID=22
8-94382-401-0
02
1
1302-
13
08.846 CLIP; HTR HOSE
03.278 (B) ID=22
8-97359-141-0
04
1
1302-
23
08.846 CLIP; WATER HOSE,DASH LWR
(A)
8-98029-677-0
01
1
1302-
23
08.846 CLIP; WATER HOSE,DASH LWR
08.852 (B)
8-98032-129-0
01
1
1302-
26
08.846 HOSE; HTR
(A)
8-97239-084-0
01
1
1302-
26
08.846 HOSE; HTR
(B)
8-97239-085-0
01
1
1302-
36
08.846 BOLT; BRKT
02.343 (C) M8X16 FLANGE
0-28050-816-0
01
1
1302-
36
08.846 BOLT; BRKT
03.162 (B) M8X40 FLANGE
0-28060-840-0
02
1
1302-
36
08.846 BOLT; BRKT
06.216 (A) M8X25 FLANGE
0-28650-825-0
01
1
1302-
38
08.846 NUT; BRKT
01.540 M8 FLANGE
0-91180-208-0
01
1
1302-1401
38
08.846 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
1402-
48
09.262 BOLT; CLIP FIX
03.162 M6X12 FLANGE
0-28050-612-0
01
1
1302-
73
08.846 CLIP; HTR HOSE
KD PREPARATORY PACK<6HF> 03.278 (A) ID=22
8-97359-141-0
02
1
1302-
73
08.846 CLIP; HTR HOSE
02.559 (B) L=250
5-09707-030-1
01
1
1302-
87
08.846 BRACKET; HTR HOSE CLIP
03.417
8-97072-530-0
01
1
1302-
121
08.845 NUT; PIPE
01.540 M8 FLANGE
0-91180-208-0
01
1
1302-1401
121
08.845 NUT; PIPE
01.062 M8 FLANGE
0-91180-108-0
01
1
1402-
141
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
36
08.846 BOLT; BRKT
02.343 (C) M8X16 FLANGE
0-28050-816-0
01
1
1302-
36
08.846 BOLT; BRKT
03.162 (B) M8X40 FLANGE
0-28060-840-0
02
1
1302-
36
08.846 BOLT; BRKT
06.216 (A) M8X25 FLANGE
0-28650-825-0
01
1
1302-
141
02.483 BRACKET; HTR PIPE
01.219
8-97302-265-1
01
1
1302-
