Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#115296) — 387 parça

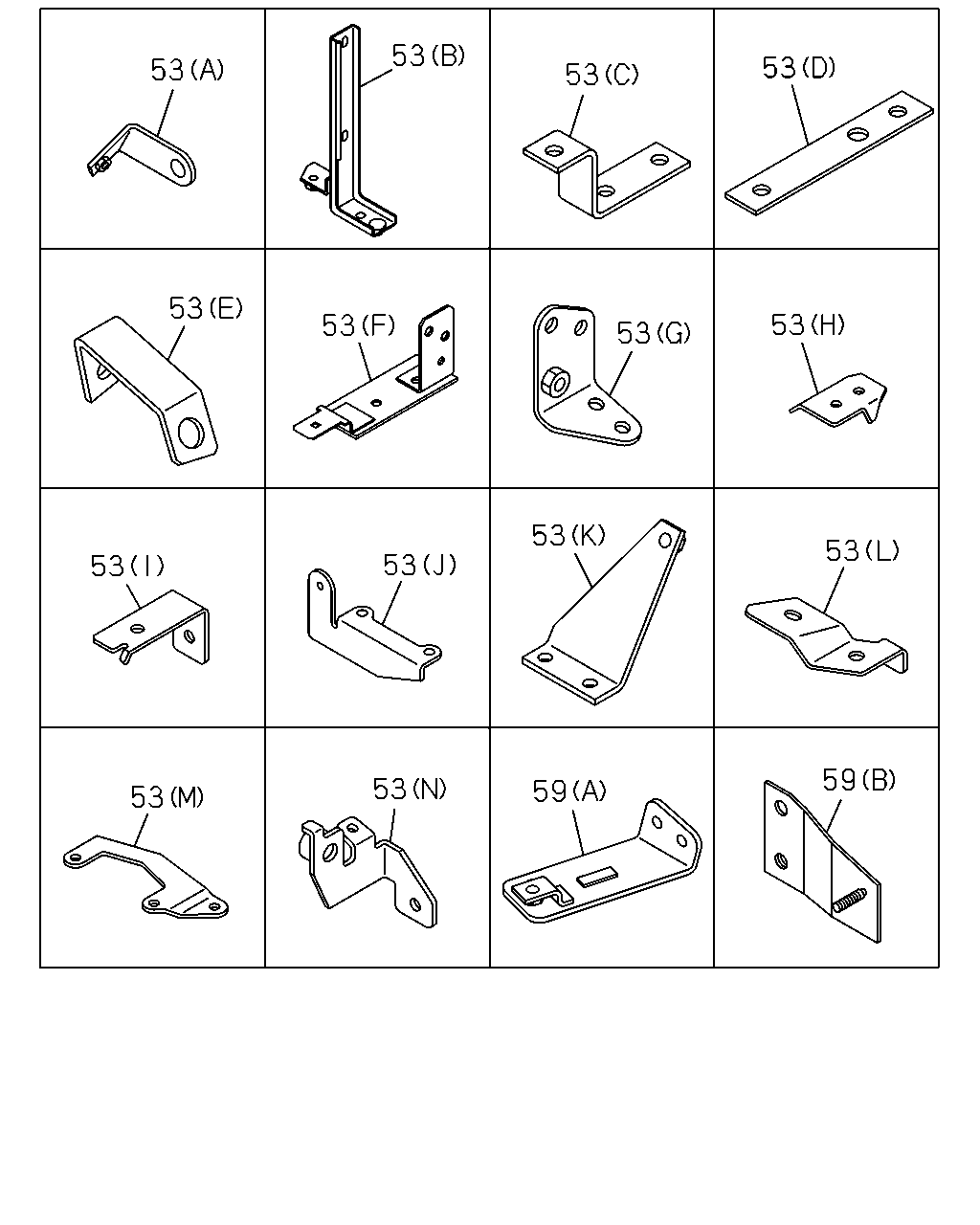

53 53 53 53 53 53 53 53 53 53 53 53 59 59 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (E)	1-47479-537-0	03	1	1305-
53	BRACKET; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42129-495-0	01	1	1303-
53	BRACKET; HARNESS (D) L=130	1-47478-959-0	02	1	1303-
53	BRACKET; HARNESS (E)	1-47479-537-0	05	1	1303-1304
53	BRACKET; HARNESS (E)	1-47479-537-0	02	1	1305-
53	BRACKET; HARNESS (G)	8-97610-339-1	01	1	1303-
53	BRACKET; HARNESS (H)	8-97625-412-0	02	1	1303-
53	BRACKET; HARNESS (I)	8-97625-794-0	01	1	1303-
53	BRACKET; HARNESS (L)	8-97630-437-0	01	1	1303-
53	BRACKET; HARNESS (F)	8-97638-190-0	01	1	1303-
53	BRACKET; HARNESS (M)	8-98123-474-0	01	1	1303-
53	BRACKET; HARNESS (J)	8-98123-475-0	01	1	1303-
53	BRACKET; HARNESS (C)	8-98124-778-0	01	1	1303-
53	BRACKET; HARNESS (N)	8-98194-068-0	01	1	1303-
53	BRACKET; HARNESS (B)	8-98227-138-0	01	1	1303-
53	BRACKET; HARNESS (K)	8-98227-141-0	01	1	1303-
59	BRACKET; FRAME HARNESS (A)	8-97639-069-0	01	1	1303-
59	BRACKET; FRAME HARNESS (B)	8-98061-135-1	01	1	1303-

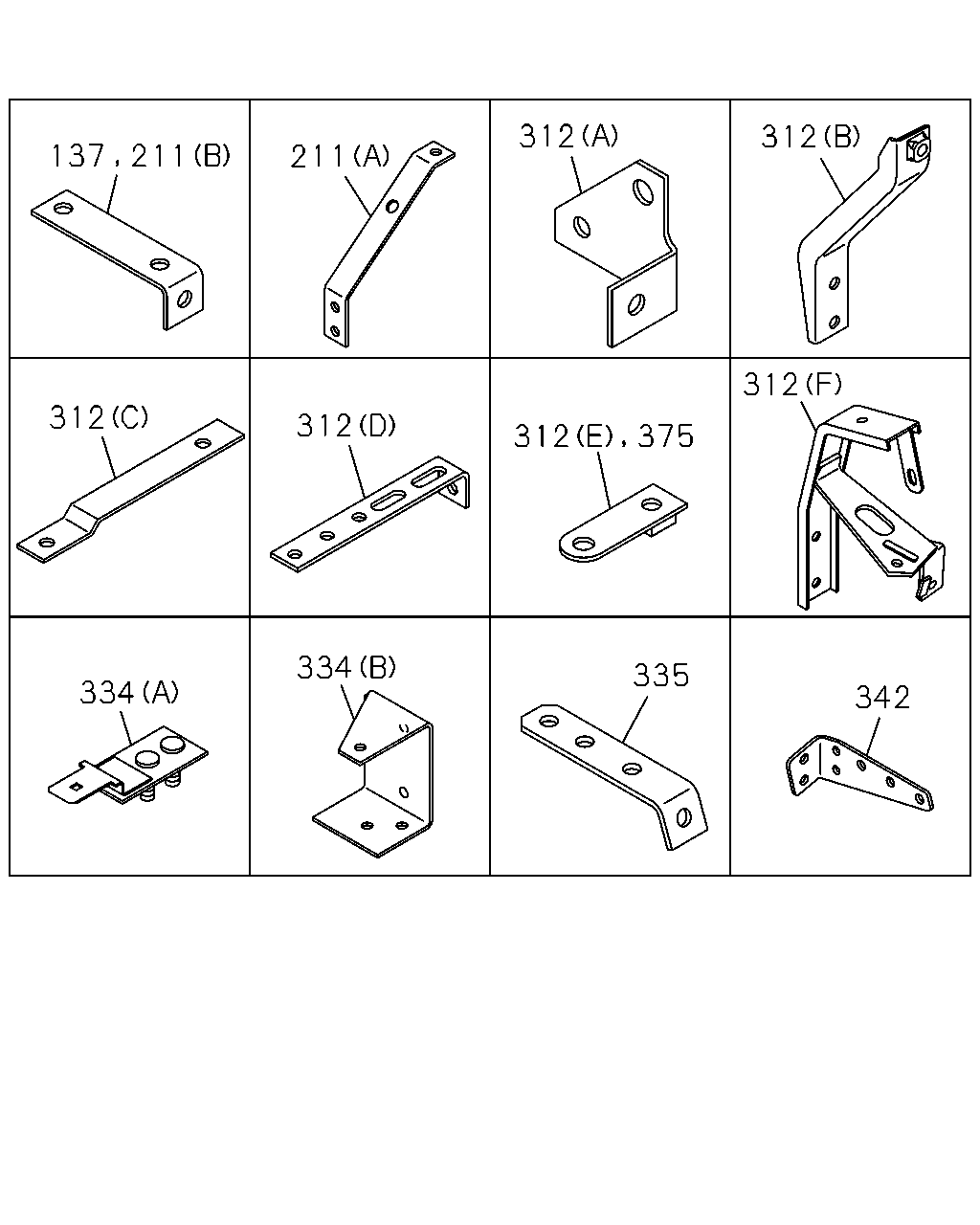

137 211 211 312 312 312 312 375 312 312 334 334 335 342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP L=175 H=30	1-47479-386-1	01	1	1303-
211	BRACKET; AXLE HARNESS (A)	1-47479-430-0	02	1	1303-
211	BRACKET; AXLE HARNESS (B)	1-82698-588-0	01	1	1303-
312	BRACKET; CLIP HARNESS (D) L=160 H=30	1-47479-759-0	01	1	1303-
312	BRACKET; CLIP HARNESS (A)	1-82698-570-0	01	1	1303-
312	BRACKET; CLIP HARNESS (E)	1-82699-182-0	01	1	1303-
312	BRACKET; CLIP HARNESS (B)	8-97636-868-1	01	1	1303-
312	BRACKET; CLIP HARNESS (F)	8-97638-177-0	01	1	1303-
312	BRACKET; CLIP HARNESS (C)	8-98035-927-1	01	1	1303-
334	BRACKET (B)	1-53457-153-2	01	1	1303-
334	BRACKET (A)	8-98157-823-0	01	1	1303-
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	1303-
342	BRACKET; HARNESS CAB MTG	1-82699-625-0	01	1	1303-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	1303-

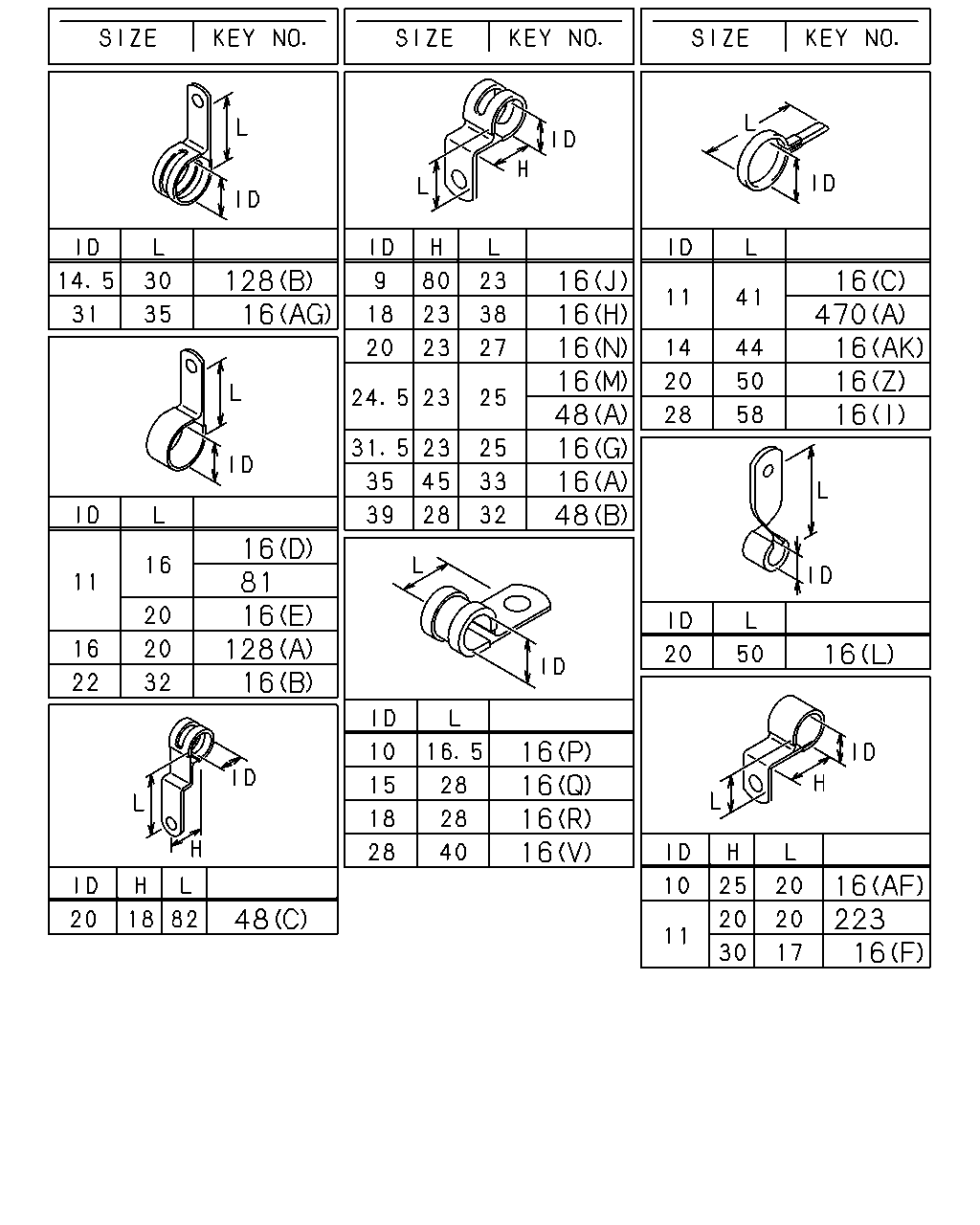

128 16 16 81 128 16 48 16 16 223 16 16 16 16 470 16 16 16 16 16 16 48 16 48 16 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	1305-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	07	1	1305-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) ID=11 H=30 L=17	1-09700-113-0	01	1	1303-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	02	1	1303-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) ID=11 L=20	0-95235-035-0	02	1	1303-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1303-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1303-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	03	1	1303-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	12	1	1303-1304
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	02	1	1305-
16	CLIP; HARNESS (AF) ID=10 H=25 L=20	1-09700-519-0	01	1	1303-
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	1303-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	02	1	1303-1303
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-1304
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-1304
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	02	1	1305-
16	CLIP; HARNESS (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1303-
16	CLIP; HARNESS (M) ID=24.5 H=23 L=25	1-09700-862-0	02	1	1303-
16	CLIP; HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	01	1	1303-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	02	1	1303-
16	CLIP; HARNESS (J) ID=9 H=80 L=23	1-09701-061-0	02	1	1303-
16	CLIP; HARNESS (R) ID=18 L=28	1-09701-067-0	03	1	1303-
16	CLIP; HARNESS (H) ID=18 L=38 H=23	1-09701-147-0	01	1	1303-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1303-
16	CLIP; HARNESS (V) ID=28 L=40	1-09701-261-0	01	1	1303-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1303-
16	CLIP; HARNESS (O) L=350	1-09707-183-0	02	1	1303-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1303-
16	CLIP; HARNESS (AA) W/SPONGE RUBBER	1-09709-150-0	01	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	07	1	1303-
16	CLIP; HARNESS (AD) ID=5-12 L=18	1-09709-287-0	01	1	1303-
16	CLIP; HARNESS (AD) ID=5-12 L=18	1-09709-287-0	10	1	1303-
16	CLIP; HARNESS (AJ) ID=5-12 L=22	1-09709-288-0	02	1	1303-
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	01	1	1303-
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	03	1	1303-
16	CLIP; HARNESS (AH) ID=18-24 L=18	1-09709-294-0	01	1	1303-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1303-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	1303-
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	1303-
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	02	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	8-97368-793-0	02	1	1303-
16	CLIP; HARNESS (AC) L=251	8-97619-917-0	01	1	1303-
16	CLIP; HARNESS (P) ID=10 L=16.5	8-98082-034-0	02	1	1303-
16	CLIP; HARNESS (AI) L=250	8-98216-430-0	10	1	1303-
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	06	1	1303-
16	CLIP; HARNESS (Z) ID=20 L=50	9-09917-430-0	03	1	1303-
16	CLIP; HARNESS (Z) ID=20 L=50	9-09917-430-0	07	1	1303-
16	CLIP; HARNESS (AG) ID=31 L=35	1-09700-329-1	01	1	1303-
16	CLIP; HARNESS (AG) ID=31 L=35	1-09700-329-1	01	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1303-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1303-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1303-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1303-
48	CLIP; FRAME HARNESS (B) ID=39 H=28 L=32	1-09701-263-0	04	1	1303-
48	CLIP; FRAME HARNESS (C) ID=20 H=18 L=82	1-09701-288-0	01	1	1303-
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	03	1	1303-
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	04	1	1303-
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=11 L=16	0-95235-025-0	02	1	1303-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	1303-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	1303-
223	CLIP; AIR TANK HARNESS ID=11 H=20 L=20	8-98033-780-0	03	1	1303-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	1303-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	1303-
470	CLIP; HARNESS,LICENSE LAMP (C) L=250	5-09707-030-1	01	1	1303-

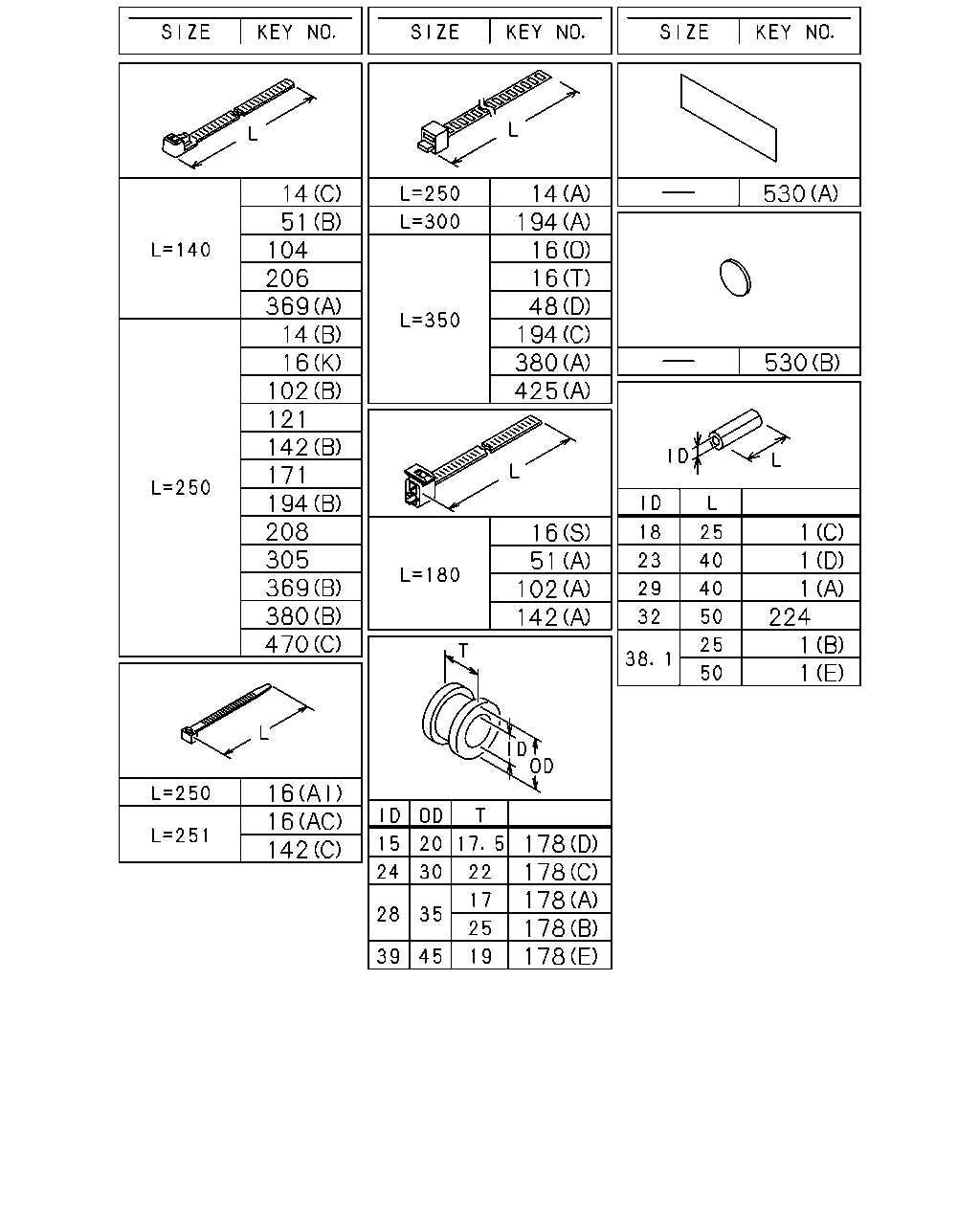

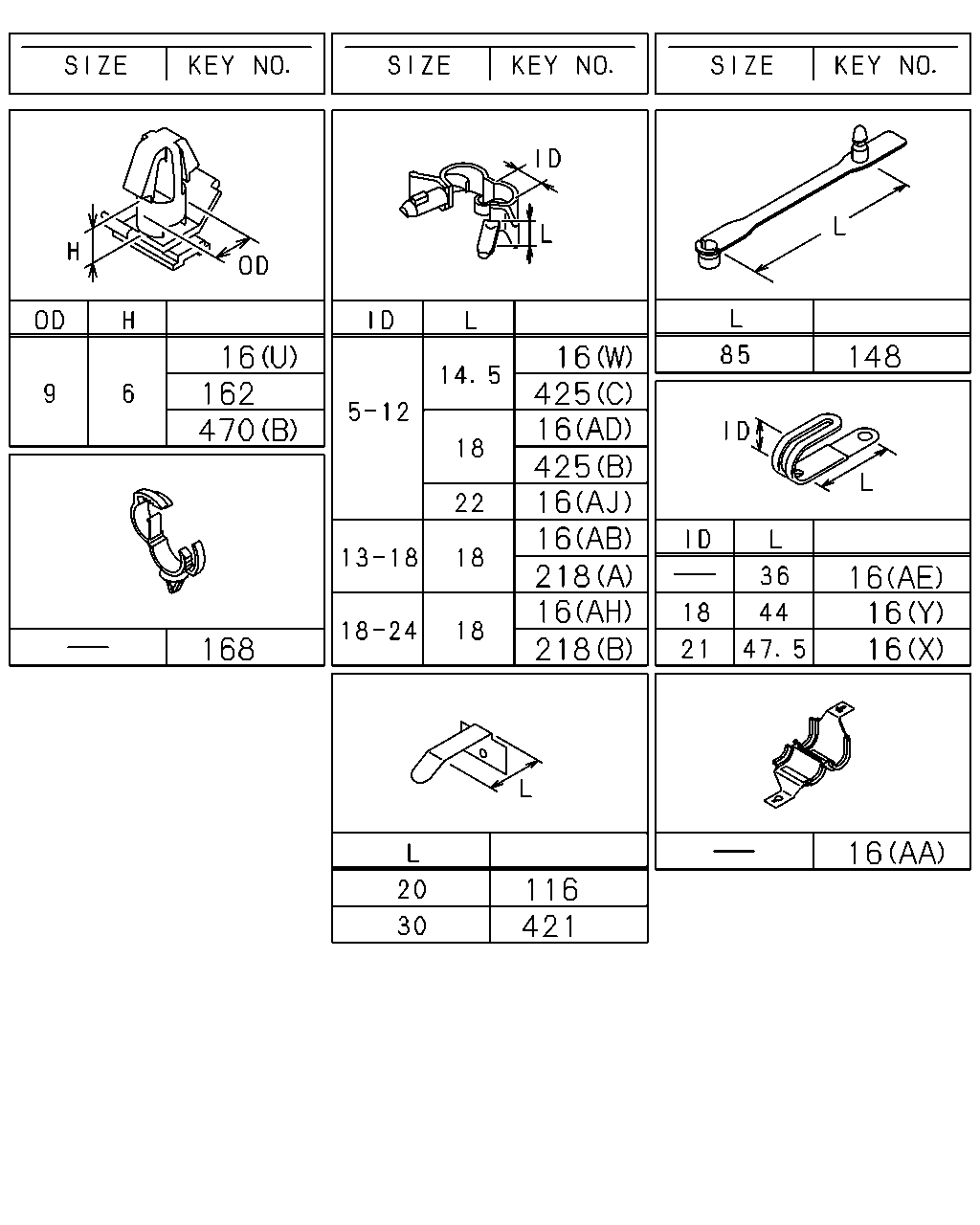

16 470 168 16 425 16 425 16 16 218 16 218 148 16 16 16 116 421 16 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	1305-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	07	1	1305-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) ID=11 H=30 L=17	1-09700-113-0	01	1	1303-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	02	1	1303-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) ID=11 L=20	0-95235-035-0	02	1	1303-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1303-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1303-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	03	1	1303-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	12	1	1303-1304
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	02	1	1305-
16	CLIP; HARNESS (AF) ID=10 H=25 L=20	1-09700-519-0	01	1	1303-
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	1303-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	02	1	1303-1303
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-1304
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-1304
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	02	1	1305-
16	CLIP; HARNESS (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1303-
16	CLIP; HARNESS (M) ID=24.5 H=23 L=25	1-09700-862-0	02	1	1303-
16	CLIP; HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	01	1	1303-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	02	1	1303-
16	CLIP; HARNESS (J) ID=9 H=80 L=23	1-09701-061-0	02	1	1303-
16	CLIP; HARNESS (R) ID=18 L=28	1-09701-067-0	03	1	1303-
16	CLIP; HARNESS (H) ID=18 L=38 H=23	1-09701-147-0	01	1	1303-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1303-
16	CLIP; HARNESS (V) ID=28 L=40	1-09701-261-0	01	1	1303-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1303-
16	CLIP; HARNESS (O) L=350	1-09707-183-0	02	1	1303-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1303-
16	CLIP; HARNESS (AA) W/SPONGE RUBBER	1-09709-150-0	01	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	07	1	1303-
16	CLIP; HARNESS (AD) ID=5-12 L=18	1-09709-287-0	01	1	1303-
16	CLIP; HARNESS (AD) ID=5-12 L=18	1-09709-287-0	10	1	1303-
16	CLIP; HARNESS (AJ) ID=5-12 L=22	1-09709-288-0	02	1	1303-
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	01	1	1303-
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	03	1	1303-
16	CLIP; HARNESS (AH) ID=18-24 L=18	1-09709-294-0	01	1	1303-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1303-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	1303-
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	1303-
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	02	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	8-97368-793-0	02	1	1303-
16	CLIP; HARNESS (AC) L=251	8-97619-917-0	01	1	1303-
16	CLIP; HARNESS (P) ID=10 L=16.5	8-98082-034-0	02	1	1303-
16	CLIP; HARNESS (AI) L=250	8-98216-430-0	10	1	1303-
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	06	1	1303-
16	CLIP; HARNESS (Z) ID=20 L=50	9-09917-430-0	03	1	1303-
16	CLIP; HARNESS (Z) ID=20 L=50	9-09917-430-0	07	1	1303-
16	CLIP; HARNESS (AG) ID=31 L=35	1-09700-329-1	01	1	1303-
16	CLIP; HARNESS (AG) ID=31 L=35	1-09700-329-1	01	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1303-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1303-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1303-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	1303-1409
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	07	1	1410-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	03	1	1303-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1303-
168	CLIP; DASH HARNESS ID=6 & 10-13	8-97069-515-0	05	1	1303-
218	CLIP; BAND,RR COMB (A) ID=13-18 L=18	1-09709-291-0	01	1	1303-1303
218	CLIP; BAND,RR COMB (A) ID=13-18 L=18	1-09709-291-0	02	1	1303-
218	CLIP; BAND,RR COMB (B) ID=18-24 L=18	1-09709-294-0	02	1	1303-
421	CLIP; FLOOR HARNESS L=30 SET=10 PIECE	1-09987-265-0	05	1	1303-
425	CLIP; MODULATOR (A) L=350	1-09707-183-0	02	1	1303-
425	CLIP; MODULATOR (B) ID=5-12 L=18	1-09709-287-0	01	1	1303-
425	CLIP; MODULATOR (C) ID=5-12 L=14.5	1-09987-221-0	03	1	1303-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	1303-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	1303-
470	CLIP; HARNESS,LICENSE LAMP (C) L=250	5-09707-030-1	01	1	1303-

133 38 38 150 139 38 528 242 150 150 38 242 358 86 139 64 313 242 139 86 38 38 313 242 38 516 139 239 358 88 386 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

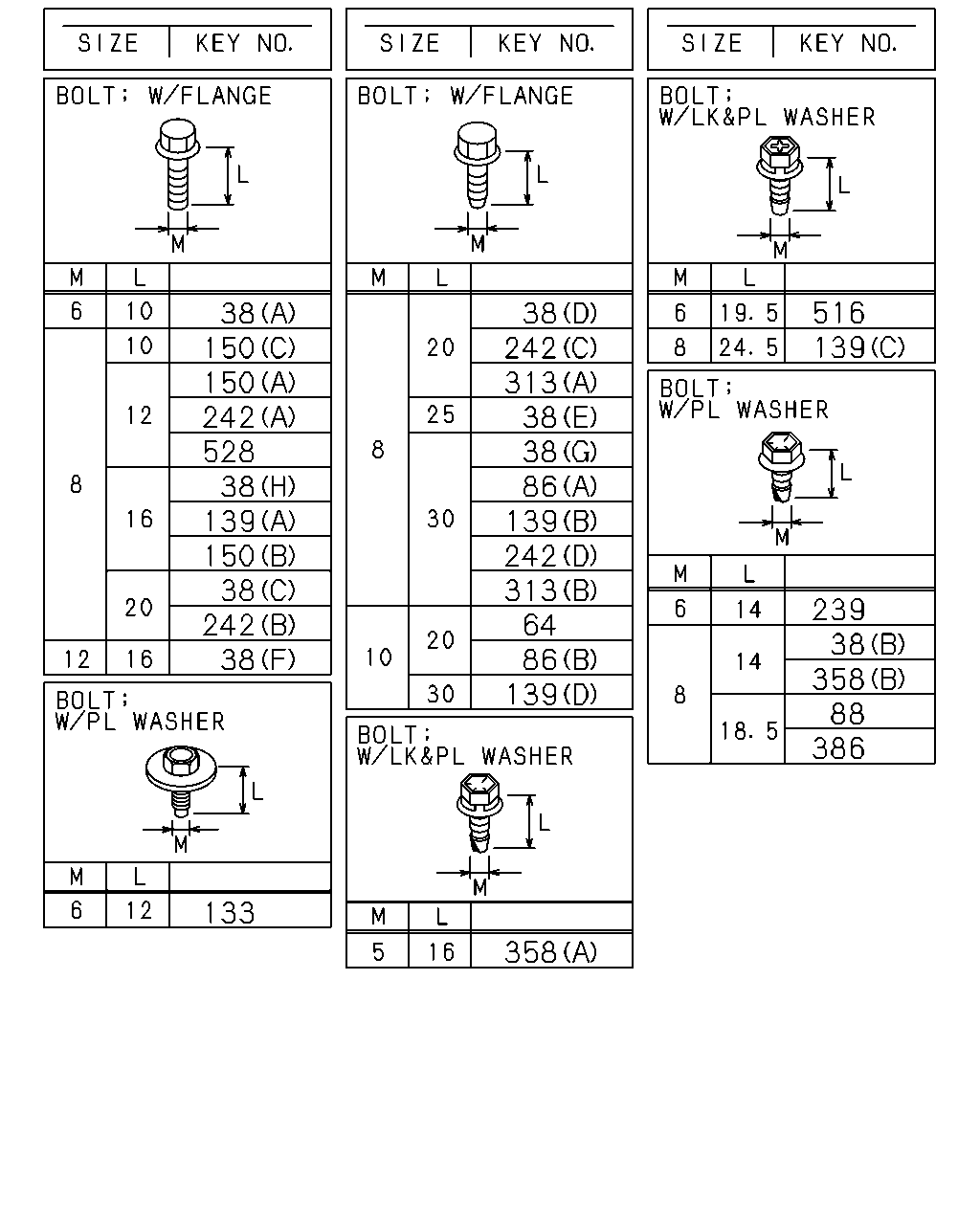

38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	04	1	1305-
38	BOLT; CLIP,HARNESS (G) M8X30 FLANGE	0-28650-830-0	03	1	1305-
38	BOLT; CLIP,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M8X16 FLANGE	0-28050-816-0	02	1	1303-
38	BOLT; CLIP,HARNESS (A) M6X10 FLANGE	0-28050-610-0	01	1	1303-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	01	1	1303-
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	0-28051-216-0	01	1	1303-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	04	1	1303-1303
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	03	1	1304-
38	BOLT; CLIP,HARNESS (G) M8X30 FLANGE	0-28650-830-0	04	1	1303-1304
38	BOLT; CLIP,HARNESS (G) M8X30 FLANGE	0-28650-830-0	01	1	1305-
38	BOLT; CLIP,HARNESS (B) M8X14 W/PL WASHER	8-98164-837-0	04	1	1303-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	1303-1303
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	1303-1303
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	1304-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1303-1303
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1303-1303
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1304-1304
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1304-1304
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1304-1304
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1305-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	1303-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	1303-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	1303-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	1303-
64	SCREW; CLIP M10X20 FLANGE	0-28751-020-0	01	1	1303-
86	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1303-
86	BOLT; CLIP BRKT (B) M10X20 FLANGE	0-28751-020-0	01	1	1303-
88	BOLT; DOOR HARNESS EARTH M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1303-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	1303-
139	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-
139	BOLT; BRKT (D) M10X30 FLANGE	0-28151-030-0	01	1	1303-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1303-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	1303-
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1303-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1303-
150	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X10 FLANGE	0-28050-810-0	02	1	1303-
150	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X16 FLANGE	0-28050-816-0	01	1	1303-
150	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	05	1	1303-
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	07	1	1303-
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1303-
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	1303-
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28050-820-0	01	1	1303-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	02	1	1303-
242	BOLT; BRKT,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1303-
313	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1303-
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1303-
358	BOLT; EARTH (A) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1303-
358	BOLT; EARTH (B) M8X14 W/PL WASHER	8-98164-837-0	01	1	1303-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1303-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1303-
528	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	01	1	1303-

142 16 16 470 14 380 208 171 305 369 194 142 121 102 16 14 369 206 104 51 14 425 380 194 48 16 16 194 530 530 1 1 1 1 224 142 16 51 102 178 178 178 178 178 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (A) ID=29 OD=39 L=40	1-09337-013-0	02	1	1303-
1	SLEEVE; RUBBER (D) ID=23 OD=27 L=40	1-09337-015-0	02	1	1303-
1	SLEEVE; RUBBER (B) ID=38.1 L=25	1-09337-052-0	01	1	1303-
1	SLEEVE; RUBBER (E) ID=38.1 L=50	5-09360-835-0	01	1	1303-
1	SLEEVE; RUBBER (C) ID=18 OD=22 L=25	8-94412-773-0	01	1	1303-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1303-
14	CLIP; BAND,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250	5-09707-030-1	01	1	1303-
14	CLIP; BAND,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) L=140	5-09707-031-1	01	1	1303-
14	CLIP; BAND,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=250	1-09707-126-0	01	1	1303-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	1305-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	07	1	1305-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) ID=11 H=30 L=17	1-09700-113-0	01	1	1303-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	02	1	1303-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) ID=11 L=20	0-95235-035-0	02	1	1303-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1303-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1303-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	03	1	1303-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	12	1	1303-1304
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	02	1	1305-
16	CLIP; HARNESS (AF) ID=10 H=25 L=20	1-09700-519-0	01	1	1303-
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	1303-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	02	1	1303-1303
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-1304
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-1304
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	02	1	1305-
16	CLIP; HARNESS (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1303-
16	CLIP; HARNESS (M) ID=24.5 H=23 L=25	1-09700-862-0	02	1	1303-
16	CLIP; HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	01	1	1303-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	02	1	1303-
16	CLIP; HARNESS (J) ID=9 H=80 L=23	1-09701-061-0	02	1	1303-
16	CLIP; HARNESS (R) ID=18 L=28	1-09701-067-0	03	1	1303-
16	CLIP; HARNESS (H) ID=18 L=38 H=23	1-09701-147-0	01	1	1303-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1303-
16	CLIP; HARNESS (V) ID=28 L=40	1-09701-261-0	01	1	1303-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1303-
16	CLIP; HARNESS (O) L=350	1-09707-183-0	02	1	1303-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1303-
16	CLIP; HARNESS (AA) W/SPONGE RUBBER	1-09709-150-0	01	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	07	1	1303-
16	CLIP; HARNESS (AD) ID=5-12 L=18	1-09709-287-0	01	1	1303-
16	CLIP; HARNESS (AD) ID=5-12 L=18	1-09709-287-0	10	1	1303-
16	CLIP; HARNESS (AJ) ID=5-12 L=22	1-09709-288-0	02	1	1303-
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	01	1	1303-
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	03	1	1303-
16	CLIP; HARNESS (AH) ID=18-24 L=18	1-09709-294-0	01	1	1303-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1303-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	1303-
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	1303-
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	02	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	8-97368-793-0	02	1	1303-
16	CLIP; HARNESS (AC) L=251	8-97619-917-0	01	1	1303-
16	CLIP; HARNESS (P) ID=10 L=16.5	8-98082-034-0	02	1	1303-
16	CLIP; HARNESS (AI) L=250	8-98216-430-0	10	1	1303-
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	06	1	1303-
16	CLIP; HARNESS (Z) ID=20 L=50	9-09917-430-0	03	1	1303-
16	CLIP; HARNESS (Z) ID=20 L=50	9-09917-430-0	07	1	1303-
16	CLIP; HARNESS (AG) ID=31 L=35	1-09700-329-1	01	1	1303-
16	CLIP; HARNESS (AG) ID=31 L=35	1-09700-329-1	01	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1303-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1303-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1303-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1303-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1303-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1303-
48	CLIP; FRAME HARNESS (B) ID=39 H=28 L=32	1-09701-263-0	04	1	1303-
48	CLIP; FRAME HARNESS (C) ID=20 H=18 L=82	1-09701-288-0	01	1	1303-
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	03	1	1303-
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	04	1	1303-
51	CLIP; COOLER CMPR (A) L=180	1-09707-162-1	01	1	1303-
51	CLIP; COOLER CMPR (B) L=140	5-09707-031-1	01	1	1303-
102	CLIP; BAND (A) L=180	1-09707-162-1	01	1	1303-
102	CLIP; BAND (B) L=250	5-09707-030-1	01	1	1303-
102	CLIP; BAND (B) L=250	5-09707-030-1	01	1	1303-
104	CLIP; HEADLAMP HARNESS L=140	5-09707-031-1	02	1	1303-
121	CLIP; FACIA HARNESS L=250	5-09707-030-1	02	1	1303-
142	CLIP; HARNESS,ENG (C) L=251	8-97619-917-0	01	1	1303-
142	CLIP; HARNESS,ENG (A) L=180	8-98216-427-0	01	1	1303-
142	CLIP; HARNESS,ENG (B) L=250	8-98216-430-0	02	1	1303-
171	CLIP; STARTER HARNESS L=250	5-09707-030-1	02	1	1303-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	1303-
178	GROMMET; HARNESS (C) WO/SLIT ID=24 OD=30 T=22	1-09332-126-0	02	1	1303-
178	GROMMET; HARNESS (D) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1303-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1303-
178	GROMMET; HARNESS (E) ID=39 OD=45 T=19	1-09332-077-0	01	1	1303-
178	GROMMET; HARNESS (E) ID=39 OD=45 T=19	1-09332-077-0	01	1	1303-
178	GROMMET; HARNESS (C) W/SLIT ID=24 OD=30 T=22	1-09332-104-0	01	1	1303-
178	GROMMET; HARNESS (C) W/SLIT ID=24 OD=30 T=22	1-09332-104-0	01	1	1303-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1303-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1303-
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	1303-
194	CLIP; BAND (C) L=350	1-09707-183-0	03	1	1303-
194	CLIP; BAND (B) L=250	5-09707-030-1	07	1	1303-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	1303-
208	CLIP; HARNESS,MAG VLV L=250	5-09707-030-1	01	1	1303-
224	SLEEVE; RUBBER,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50	1-09337-023-0	01	1	1303-
305	CLIP; ENG HARNESS L=250	5-09707-030-1	04	1	1303-
369	CLIP; BAND EDS HARNESS (B) L=250	5-09707-030-1	02	1	1303-
369	CLIP; BAND EDS HARNESS (A) L=140	5-09707-031-1	01	1	1303-
380	CLIP; EARTH HARNESS (A) L=350	1-09707-183-0	01	1	1303-
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	02	1	1303-
425	CLIP; MODULATOR (A) L=350	1-09707-183-0	02	1	1303-
425	CLIP; MODULATOR (B) ID=5-12 L=18	1-09709-287-0	01	1	1303-
425	CLIP; MODULATOR (C) ID=5-12 L=14.5	1-09987-221-0	03	1	1303-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	1303-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	1303-
470	CLIP; HARNESS,LICENSE LAMP (C) L=250	5-09707-030-1	01	1	1303-
530	SEAL; HARNESS (A) 180X40	1-72498-019-1	03	1	1303-
530	SEAL; HARNESS (A) 180X40	1-72498-019-1	13	1	1303-
530	SEAL; HARNESS (A) 100X40	1-72498-022-1	01	1	1303-
530	SEAL; HARNESS (A) 100X40	1-72498-022-1	02	1	1303-
530	SEAL; HARNESS (B) OD=25 BLACK	1-76798-019-0	01	1	1303-

119 127 524 515 515 294 219 82 423 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	WASHER; PL BRKT,HARNESS ID=10.5 OD=22	0-91614-610-0	02	1	1303-
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	1303-
127	SCREW; FACIA HARNESS CLIP M3X10	9-93490-310-0	04	1	1303-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1303-
219	NUT M8 FLANGE	0-91180-108-0	03	1	1303-1304
219	NUT M8 FLANGE	0-91180-108-0	06	1	1305-
219	NUT M8 FLANGE	0-91180-108-0	08	1	1303-1304
219	NUT M8 FLANGE	0-91180-108-0	03	1	1305-
219	NUT M8 FLANGE	0-91180-108-0	03	1	1305-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1303-1304
219	NUT M8 FLANGE	0-91180-108-0	01	1	1303-1304
219	NUT M8 FLANGE	0-91180-108-0	01	1	1303-1304
219	NUT M8 FLANGE	0-91180-108-0	01	1	1303-1304
219	NUT M8 FLANGE	0-91180-108-0	01	1	1303-1304
219	NUT M8 FLANGE	0-91180-108-0	01	1	1305-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1305-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1305-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1305-
294	NUT M8 FLANGE	0-91180-108-0	03	1	1303-
294	NUT M8 FLANGE	0-91180-108-0	04	1	1303-
294	NUT M8 FLANGE	0-91180-108-0	05	1	1303-1303
294	NUT M8 FLANGE	0-91180-108-0	06	1	1304-
294	NUT M8 FLANGE	0-91180-108-0	01	1	1303-1303
294	NUT M8 FLANGE	0-91180-108-0	01	1	1303-1303
294	NUT M8 FLANGE	0-91180-108-0	01	1	1303-1303
294	NUT M8 FLANGE	0-91180-108-0	01	1	1304-
294	NUT M8 FLANGE	0-91180-108-0	01	1	1304-
340	NUT; HARNESS CAB TO FRAME M8 CUTTING NUT W/FLANGE	1-09985-340-0	05	1	1303-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	01	1	1303-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	04	1	1303-
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1303-1304
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1305-
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1305-
515	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1303-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	1303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
