◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#115295) — 223 parça

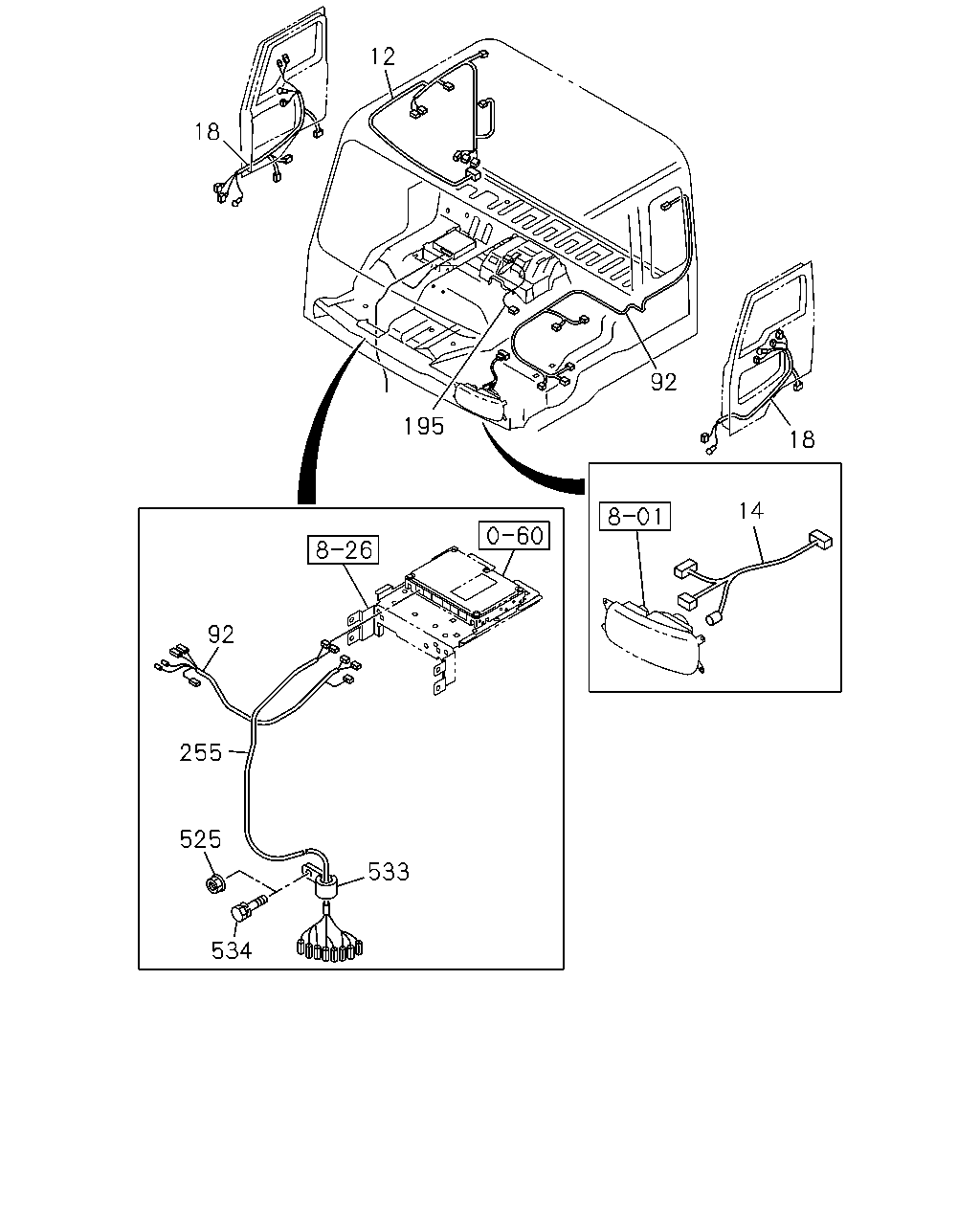

çizim 336767
12 18 195 92 18 14 92 255 525 534 533
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> EXC. TAIWAN EQUIPMENT(WW5) 		8-97646-390-0 01 1 1512- ●
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> 		8-97646-390-0 01 1 1512- ●
12 HARNESS; ROOF
ROOF MARKER LAMP<U01> EXC. TAIWAN EQUIPMENT(WW5) 		8-98333-741-0 01 1 1512- ●
12 HARNESS; ROOF 1-82629-921-2 01 1 1303-1511 ●
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> TAIWAN EQUIPMENT(WW5) 		1-82629-921-2 01 1 1512- ●
14 HARNESS; HEADLAMP 8-98156-953-2 02 1 1303-1511 ●
14 HARNESS; HEADLAMP 8-98156-953-2 02 1 1512- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> PASSENGER SIDE 		8-97644-083-0 01 1 1512- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> DRIVER SIDE 		8-97644-084-0 01 1 1512- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> MIRROR - O/SIDE RR VIEW,HEATED<7SV> PASSENGER SIDE 		8-98144-699-2 01 1 1512- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> MIRROR - O/SIDE RR VIEW,HEATED<7SV> DRIVER SIDE 		8-98144-701-2 01 1 1512- ● ●
18 HARNESS; DOOR
PASSENGER SIDE 		8-97644-086-0 01 1 1303-1511 ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> PASSENGER SIDE 		8-97644-086-0 01 1 1512- ● ●
18 HARNESS; DOOR
DRIVER SIDE 		8-97644-087-0 01 1 1303-1511 ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> DRIVER SIDE 		8-97644-087-0 01 1 1512- ● ●
92 HARNESS; FLOOR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> EXC. TAIWAN EQUIPMENT(WW5) 		8-97646-393-0 01 1 1512- ●
92 HARNESS; FLOOR
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-97646-393-0 01 1 1512- ●
92 HARNESS; FLOOR
MJX16P M/T(Y3Z) 		8-97643-966-0 01 1 1512- ● ●
92 HARNESS; FLOOR
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,TAIWAN EQUIPMENT(WW5) 		8-97646-495-0 01 1 1512- ●
92 HARNESS; FLOOR
EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-97646-495-0 01 1 1512- ●
92 HARNESS; FLOOR 1-82662-036-2 01 1 1303-1511 ●
92 HARNESS; FLOOR
TAIWAN EQUIPMENT(WW5) 		1-82662-036-2 01 1 1512- ●
92 HARNESS; FLOOR 8-97640-880-0 01 1 1303-1510 ●
92 HARNESS; FLOOR
MAP6U M/T(Y4B) 		8-97640-880-0 01 1 1511-1511 ●
92 HARNESS; FLOOR
MJT7S M/T(Y3E),MAP6U M/T(Y4B) 		8-97640-880-0 01 1 1512- ●
92 HARNESS; FLOOR
MJT7S M/T(Y3E) 		8-97640-880-0 01 1 1512- ●
195 HARNESS; EXT
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 		8-97646-493-0 01 1 1512- ● ●
255 HARNESS; ELEC GOV
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) 		8-98333-740-0 01 1 1512- ●
255 HARNESS; ELEC GOV
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) 		8-98333-740-0 01 1 1512- ●
255 HARNESS; ELEC GOV 8-97643-551-1 01 1 1303-1511 ●
255 HARNESS; ELEC GOV
TAIWAN EQUIPMENT(WW5) 		8-97643-551-1 01 1 1512- ●
525 NUT; CLIP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 1303-1511 ●
525 NUT; CLIP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 1512- ● ●
533 CLIP
ID=32 L=50 		1-09701-055-1 02 1 1305-1511 ●
533 CLIP
ID=32 L=50 		1-09701-055-1 02 1 1512- ● ●
533 CLIP
ID=25 L=40 		1-09700-215-1 02 1 1303-1511 ●
533 CLIP
ID=25 L=40 		1-09700-215-1 02 1 1512- ● ●
533 CLIP
ID=32 L=50 		1-09701-055-1 02 1 1303-1303 ●
534 BOLT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1303-1511 ●
534 BOLT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1512- ● ●

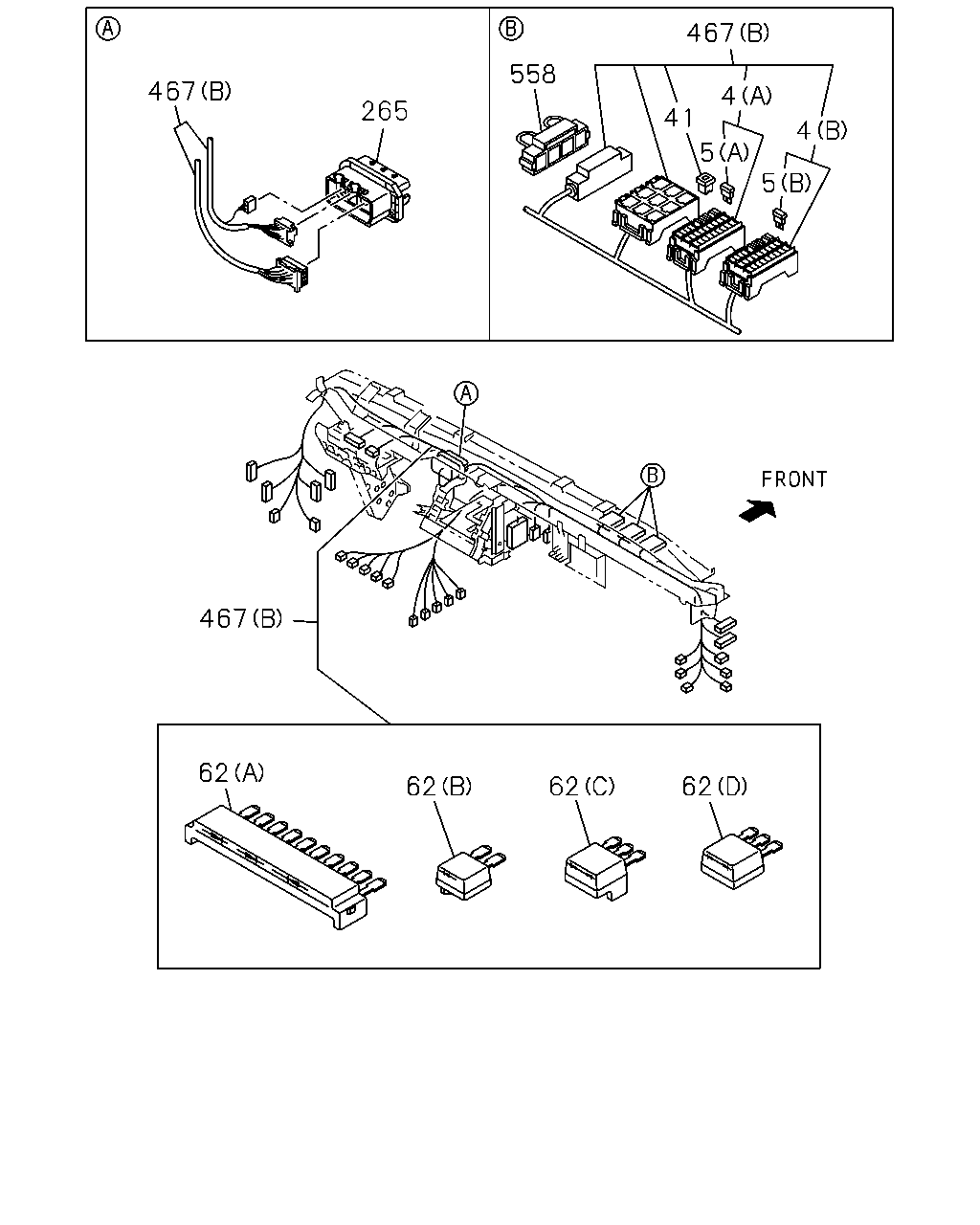

çizim 336795
467 62 62 62 62 265 467 558 41 4 467 4 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3),PHILIPPI NE EQUIPMENT(WE3) (B) 15AX21 25AX2 		1-82510-513-0 01 1 1512- ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX21 25AX2 		1-82510-513-0 01 1 1512- ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX20 25AX2 		1-82510-520-0 01 1 1303-1511 ●
4 BOX ASM; FUSE,HARNESS
FIRE TRUCK<RA9> (B) 15AX20 25AX2 		1-82510-520-0 01 1 1512- ●
4 BOX ASM; FUSE,HARNESS
(A) 		1-82510-668-0 01 1 1303-1511 ●
4 BOX ASM; FUSE,HARNESS
(A) 		1-82510-668-0 01 1 1512- ● ●
5 FUSE; FACIA HARNESS
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3),PHILIPPI NE EQUIPMENT(WE3) (B) 15A BLUE 		5-82516-003-0 22 1 1512- ●
5 FUSE; FACIA HARNESS
(B) 15A BLUE 		5-82516-003-0 22 1 1512- ●
5 FUSE; FACIA HARNESS
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3),PHILIPPI NE EQUIPMENT(WE3) (A) 7.5A BROWN 		8-94159-007-0 20 1 1512- ●
5 FUSE; FACIA HARNESS
(A) 7.5A BROWN 		8-94159-007-0 20 1 1512- ●
5 FUSE; FACIA HARNESS
(B) 15A BLUE 		5-82516-003-0 21 1 1303-1511 ●
5 FUSE; FACIA HARNESS
FIRE TRUCK<RA9> (B) 15A BLUE 		5-82516-003-0 21 1 1512- ●
5 FUSE; FACIA HARNESS
(B) 25A CLEAR 		5-82516-005-0 02 1 1303-1511 ●
5 FUSE; FACIA HARNESS
(B) 25A CLEAR 		5-82516-005-0 02 1 1512- ● ●
5 FUSE; FACIA HARNESS
(A) 7.5A BROWN 		8-94159-007-0 19 1 1303-1511 ●
5 FUSE; FACIA HARNESS
FIRE TRUCK<RA9> (A) 7.5A BROWN 		8-94159-007-0 19 1 1512- ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 1303-1511 ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 1512- ● ●
62 DIODE; HARNESS
FIRE TRUCK<RA9> (D) BLACK 3P-1.5A 		8-94422-640-1 02 1 1601- ●
62 DIODE; HARNESS
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3),PHILIPPI NE EQUIPMENT(WE3) (C) BLACK 3P-1.5A 		8-94416-438-1 03 1 1512- ●
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 03 1 1512- ●
62 DIODE; HARNESS
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3),PHILIPPI NE EQUIPMENT(WE3) (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 1512- ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 07 1 1512- ●
62 DIODE; HARNESS
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3),PHILIPPI NE EQUIPMENT(WE3) (D) BLACK 3P-1.5A 		8-94422-640-1 01 1 1512- ●
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 01 1 1512- ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 1303-1511 ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 1512- ● ●
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 02 1 1303-1511 ●
62 DIODE; HARNESS
FIRE TRUCK<RA9> (C) BLACK 3P-1.5A 		8-94416-438-1 02 1 1512- ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 10 1 1303-1511 ●
62 DIODE; HARNESS
FIRE TRUCK<RA9> (B) BLACK 2P-1.5A 		8-94422-639-1 10 1 1512- ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 1303-1511 ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 1512- ● ●
467 HARNESS; FACIA
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) FUEL TANK TRUCK<RD5> EXC. MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) LOWER 		8-98333-738-0 01 1 1512- ●
467 HARNESS; FACIA
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) RUSSIA EQUIPMENT(B12) MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. FULL TRACTOR TRUCK<RD6> (B) LOWER 		8-98333-737-0 01 1 1512- ●
467 HARNESS; FACIA
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) RUSSIA EQUIPMENT(B12) FULL TRACTOR TRUCK<RD6> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) LOWER 		8-98333-737-0 01 1 1512- ●
467 HARNESS; FACIA
WHEEL BASE 5200MM(52W) RUSSIA EQUIPMENT(B12) MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) LOWER 		8-98333-737-0 01 1 1512- ●
467 HARNESS; FACIA
RUSSIA EQUIPMENT(B12) (A) UPPER 		8-98333-743-0 01 1 1512- ● ●
467 HARNESS; FACIA
VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3) (A) UPPER 		8-98333-744-0 01 1 1512- ●
467 HARNESS; FACIA
VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (A) UPPER 		8-98333-744-0 01 1 1512- ●
467 HARNESS; FACIA
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3) EXC. FUEL TANK TRUCK<RD5>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) LOWER 		8-98333-739-0 01 1 1512- ●
467 HARNESS; FACIA
WHEEL BASE 5200MM(52W) VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) LOWER 		8-98333-739-0 01 1 1512- ●
467 HARNESS; FACIA
WHEEL BASE 5900MM(59W) RUSSIA EQUIPMENT(B12) FULL TRACTOR TRUCK<RD6> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) LOWER 		8-98333-736-0 01 1 1512- ●
467 HARNESS; FACIA
(B) LOWER 		8-97643-545-2 01 1 1303-1511 ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> (B) LOWER 		8-97643-545-2 01 1 1512- ●
467 HARNESS; FACIA
(A) UPPER 		8-97643-546-0 01 1 1303-1511 ●
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) (A) UPPER 		8-97643-546-0 01 1 1512- ●
558 CONNECTOR; HARNESS
FOOT BRAKE W/EXHAUST BRAKE<SJB> 4P 		1-82629-690-0 01 1 1512- ● ●

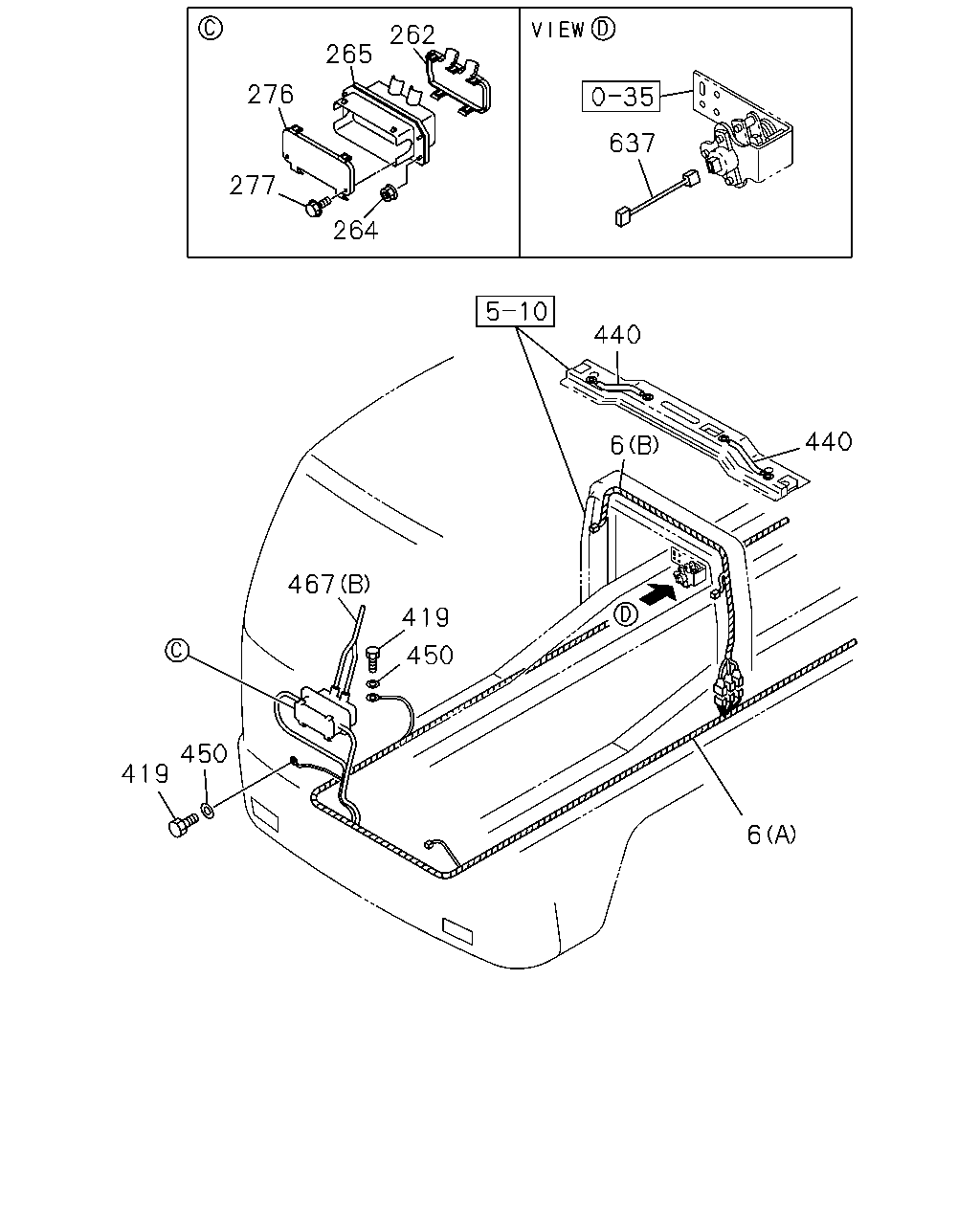

çizim 336823
262 265 276 277 264 637 440 6 440 467 419 450 450 419 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
RUSSIA EQUIPMENT(B12) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) FULL TRAILER PIPING<Z25> (A) 		8-98335-990-0 01 1 1512- ●
6 HARNESS; FRAME
RUSSIA EQUIPMENT(B12) GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) EXC. BATTERY LAYOUT REAR VAR1<NCT>,FULL TRAILER PIPING<Z25> (A) 		8-98333-224-0 01 1 1512- ●
6 HARNESS; FRAME
RUSSIA EQUIPMENT(B12) GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) (A) 		8-98333-224-0 01 1 1512- ●
6 HARNESS; FRAME
EXC. TAIWAN EQUIPMENT(WW5) (B) 		8-98333-240-0 01 1 1512- ●
6 HARNESS; FRAME
(B) 		8-98333-240-0 01 1 1512- ●
6 HARNESS; FRAME
RUSSIA EQUIPMENT(B12) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98333-226-0 01 1 1512- ●
6 HARNESS; FRAME
RUSSIA EQUIPMENT(B12) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98333-227-0 01 1 1512- ●
6 HARNESS; FRAME
RUSSIA EQUIPMENT(B12) GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		8-98333-225-0 01 1 1512- ●
6 HARNESS; FRAME
GENERATOR NIKKO 24V-60A 1.5KW(SC8) FULL TRAILER PIPING<Z25> EXC. RUSSIA EQUIPMENT(B12),BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) (A) 		8-98333-229-0 01 1 1512- ●
6 HARNESS; FRAME
BATTERY LAYOUT REAR VAR1<NCT> GENERATOR NIKKO 24V-60A 1.5KW(SC8) EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5), FULL TRAILER PIPING<Z25> (A) 		8-98333-230-0 01 1 1512- ●
6 HARNESS; FRAME
GENERATOR NIKKO 24V-60A 1.5KW(SC8) EXC. RUSSIA EQUIPMENT(B12),BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5),FULL TRAILER PIPING<Z25> (A) 		8-98333-228-0 01 1 1512- ●
6 HARNESS; FRAME
GENERATOR NIKKO 24V-60A 1.5KW(SC8) EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98333-228-0 01 1 1512- ●
6 HARNESS; FRAME
(A) 		8-98223-218-3 01 1 1303-1511 ●
6 HARNESS; FRAME
TAIWAN EQUIPMENT(WW5) (A) 		8-98223-218-3 01 1 1512- ●
6 HARNESS; FRAME
(B) 		8-98223-222-2 01 1 1303-1511 ●
6 HARNESS; FRAME
TAIWAN EQUIPMENT(WW5) (B) 		8-98223-222-2 01 1 1512- ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 1303-1511 ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 1512- ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1303-1511 ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1512- ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 1303-1511 ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 1512- ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-892-1 01 1 1303-1511 ●
276 COVER; BOX,FRAME HARNESS 1-82699-892-1 01 1 1512- ● ●
277 BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 1303-1511 ●
277 BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 1512- ● ●
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1304-1511 ●
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1512- ● ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 05 1 1303-1511 ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 05 1 1512- ● ●
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 03 1 1303-1511 ●
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 03 1 1512- ● ●
440 CABLE; EARTH 1-82678-273-0 02 1 1303-1511 ●
440 CABLE; EARTH 1-82678-273-0 02 1 1512- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 1303-1511 ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 1512- ● ●
467 HARNESS; FACIA
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) FUEL TANK TRUCK<RD5> EXC. MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) LOWER 		8-98333-738-0 01 1 1512- ●
467 HARNESS; FACIA
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) RUSSIA EQUIPMENT(B12) MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. FULL TRACTOR TRUCK<RD6> (B) LOWER 		8-98333-737-0 01 1 1512- ●
467 HARNESS; FACIA
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) RUSSIA EQUIPMENT(B12) FULL TRACTOR TRUCK<RD6> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) LOWER 		8-98333-737-0 01 1 1512- ●
467 HARNESS; FACIA
WHEEL BASE 5200MM(52W) RUSSIA EQUIPMENT(B12) MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) LOWER 		8-98333-737-0 01 1 1512- ●
467 HARNESS; FACIA
RUSSIA EQUIPMENT(B12) (A) UPPER 		8-98333-743-0 01 1 1512- ● ●
467 HARNESS; FACIA
VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3) (A) UPPER 		8-98333-744-0 01 1 1512- ●
467 HARNESS; FACIA
VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (A) UPPER 		8-98333-744-0 01 1 1512- ●
467 HARNESS; FACIA
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3) EXC. FUEL TANK TRUCK<RD5>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) LOWER 		8-98333-739-0 01 1 1512- ●
467 HARNESS; FACIA
WHEEL BASE 5200MM(52W) VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) LOWER 		8-98333-739-0 01 1 1512- ●
467 HARNESS; FACIA
WHEEL BASE 5900MM(59W) RUSSIA EQUIPMENT(B12) FULL TRACTOR TRUCK<RD6> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) LOWER 		8-98333-736-0 01 1 1512- ●
467 HARNESS; FACIA
(B) LOWER 		8-97643-545-2 01 1 1303-1511 ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> (B) LOWER 		8-97643-545-2 01 1 1512- ●
467 HARNESS; FACIA
(A) UPPER 		8-97643-546-0 01 1 1303-1511 ●
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) (A) UPPER 		8-97643-546-0 01 1 1512- ●
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 1303-1511 ●
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 1512- ● ●

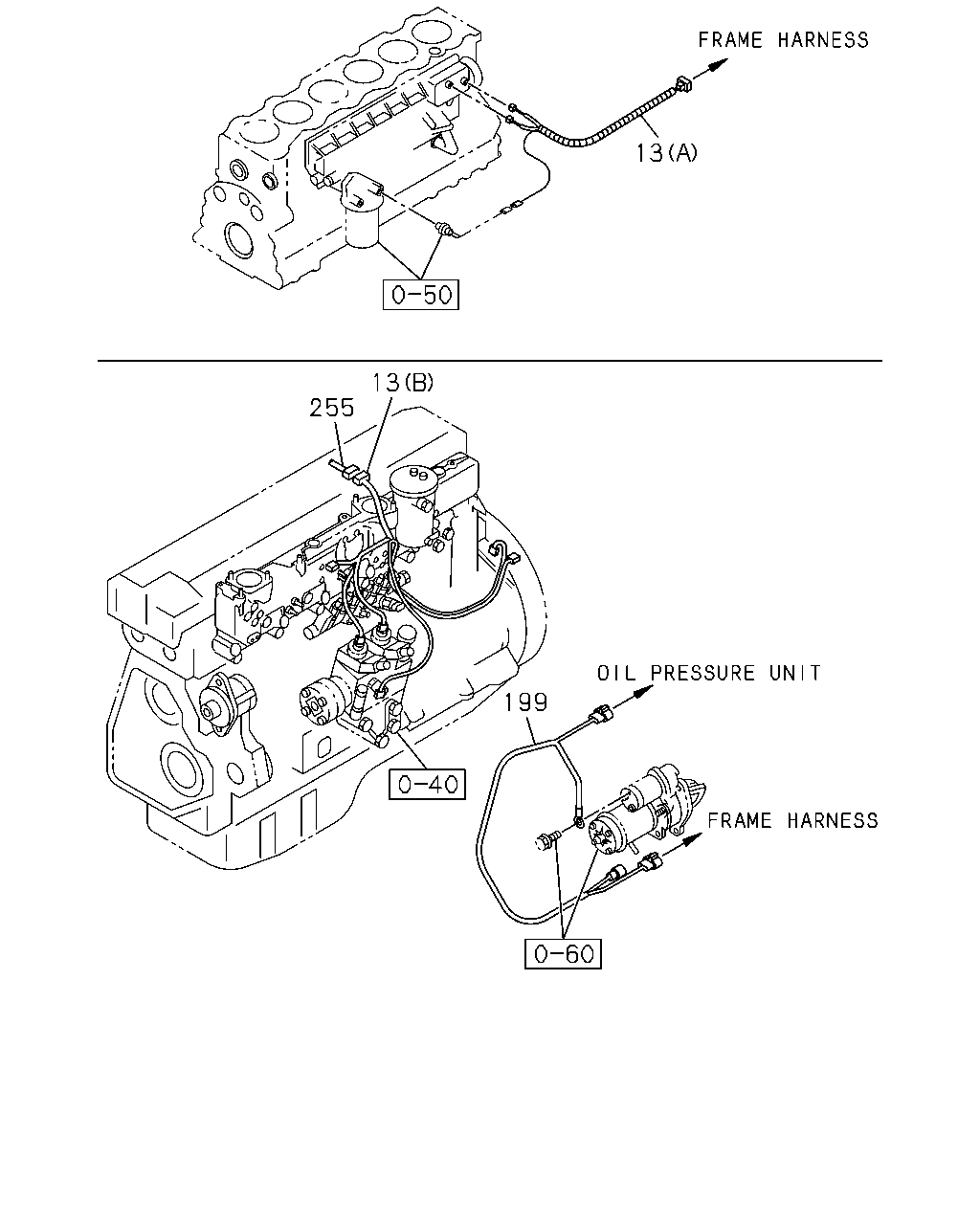

çizim 336905
13 13 255 199
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) 		8-98327-607-0 01 1 1512- ● ●
13 HARNESS; ENG
(A) 		8-98126-840-2 01 1 1303-1511 ●
13 HARNESS; ENG
(A) 		8-98126-840-2 01 1 1512- ● ●
13 HARNESS; ENG
(B) 		8-98210-224-0 01 1 1303-1511 ●
13 HARNESS; ENG
GENERATOR NIKKO 24V-60A 1.5KW(SC8) (B) 		8-98210-224-0 01 1 1512- ● ●
199 HARNESS; STARTER
ENGINE REAR PTO(SV1) 		8-97612-155-0 01 1 1512- ●
199 HARNESS; STARTER
EXC. FIRE TRUCK<RA9> 		8-97607-313-0 01 1 1512- ●
199 HARNESS; STARTER
EXC. ENGINE REAR PTO(SV1) 		8-97607-313-0 01 1 1512- ●
199 HARNESS; STARTER 8-97616-095-0 01 1 1303-1511 ●
199 HARNESS; STARTER
FIRE TRUCK<RA9> 		8-97616-095-0 01 1 1512- ●
255 HARNESS; ELEC GOV
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) 		8-98333-740-0 01 1 1512- ●
255 HARNESS; ELEC GOV
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) 		8-98333-740-0 01 1 1512- ●
255 HARNESS; ELEC GOV 8-97643-551-1 01 1 1303-1511 ●
255 HARNESS; ELEC GOV
TAIWAN EQUIPMENT(WW5) 		8-97643-551-1 01 1 1512- ●

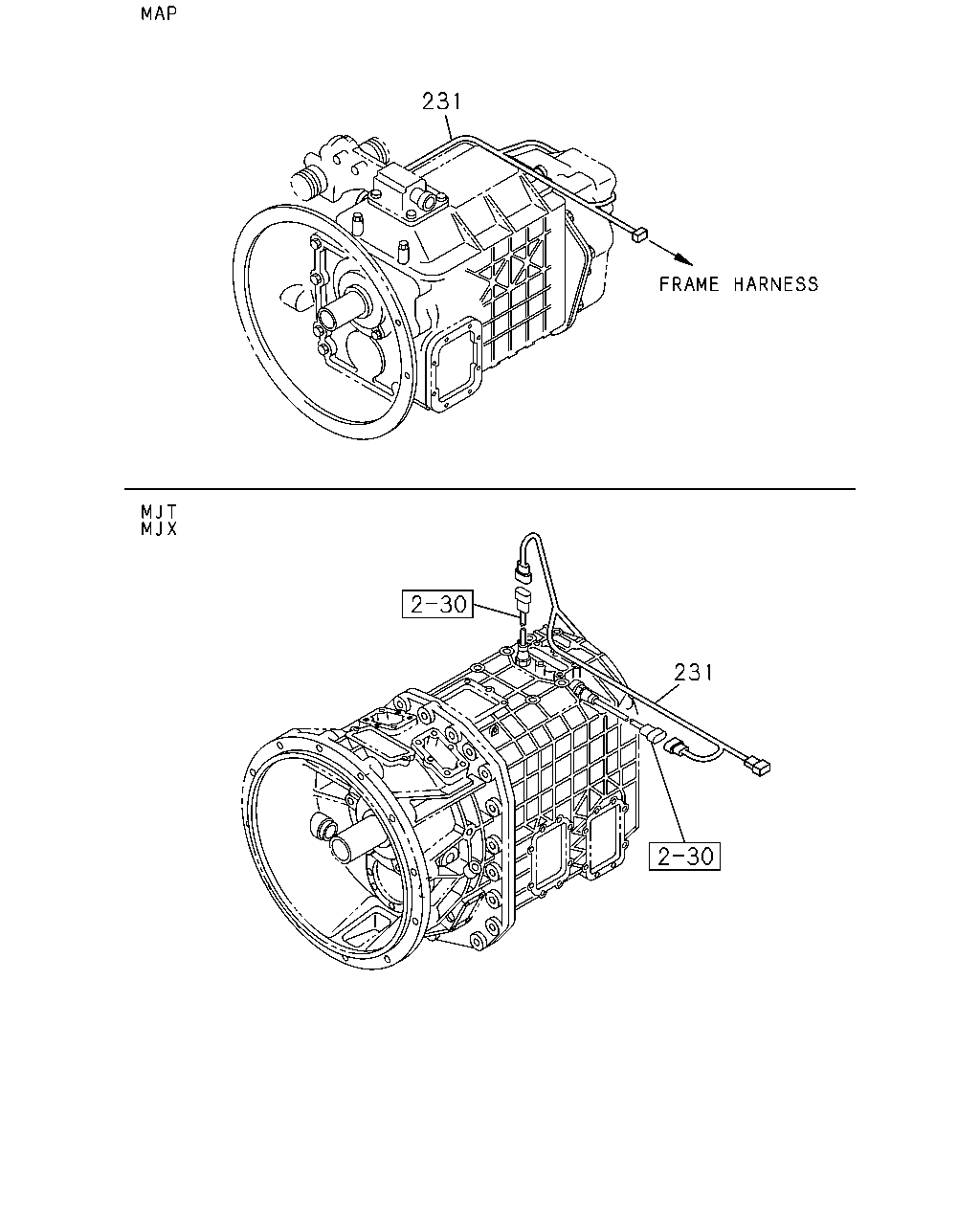

çizim 336969
231 231
BalonParca AdiParca NoAdetTipApplied Date A B
231 HARNESS; TRANS
MJT7S M/T(Y3E) 		8-97615-725-1 01 1 1512- ● ●
231 HARNESS; TRANS
MJX16P M/T(Y3Z) 		8-98221-994-2 01 1 1512- ● ●
231 HARNESS; TRANS
MAP6U M/T(Y4B) 		8-97639-125-0 01 1 1303- ●

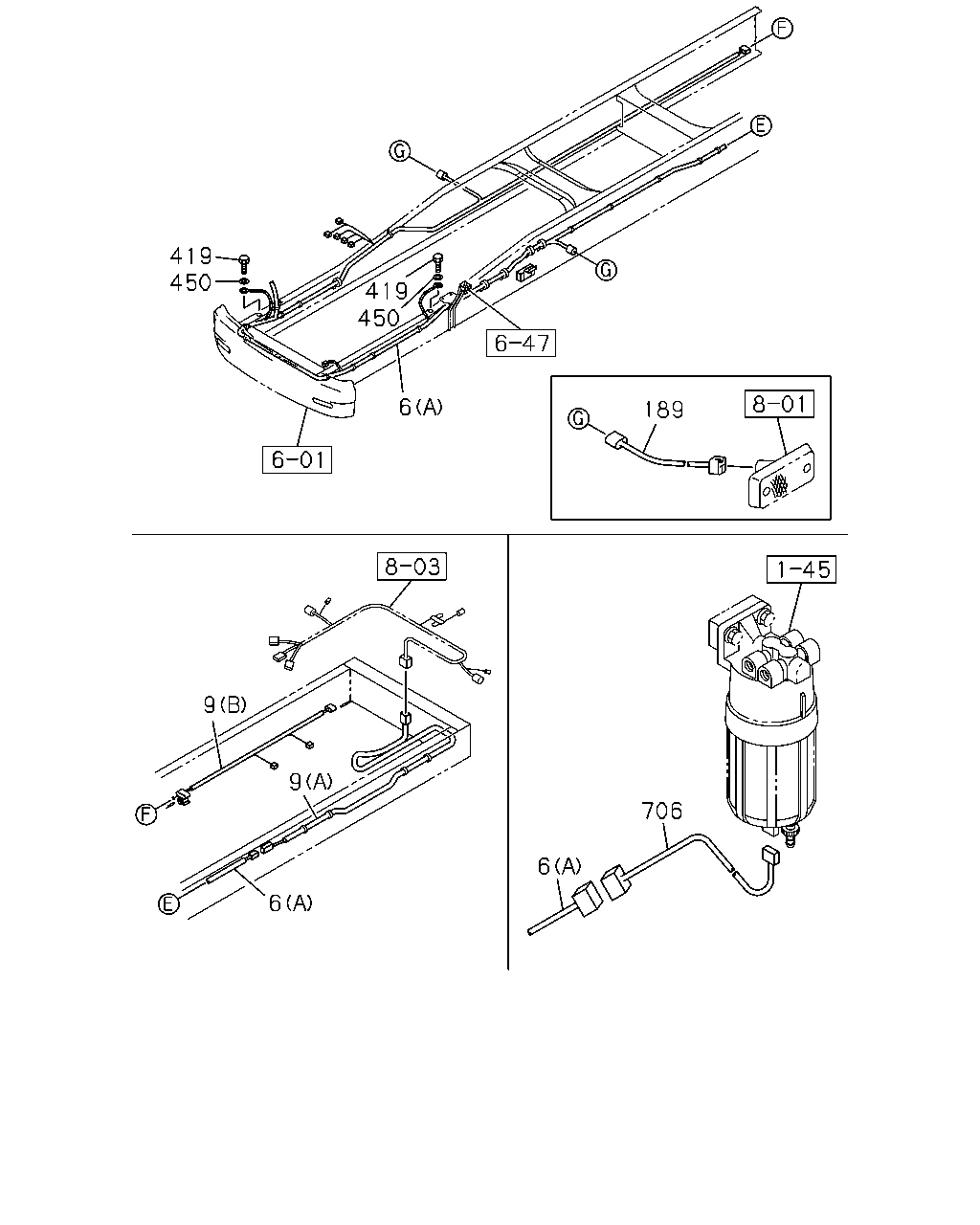

çizim 336987
419 450 419 450 6 189 706 6 6 9 9
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
RUSSIA EQUIPMENT(B12) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) FULL TRAILER PIPING<Z25> (A) 		8-98335-990-0 01 1 1512- ●
6 HARNESS; FRAME
RUSSIA EQUIPMENT(B12) GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) EXC. BATTERY LAYOUT REAR VAR1<NCT>,FULL TRAILER PIPING<Z25> (A) 		8-98333-224-0 01 1 1512- ●
6 HARNESS; FRAME
RUSSIA EQUIPMENT(B12) GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) (A) 		8-98333-224-0 01 1 1512- ●
6 HARNESS; FRAME
EXC. TAIWAN EQUIPMENT(WW5) (B) 		8-98333-240-0 01 1 1512- ●
6 HARNESS; FRAME
(B) 		8-98333-240-0 01 1 1512- ●
6 HARNESS; FRAME
RUSSIA EQUIPMENT(B12) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98333-226-0 01 1 1512- ●
6 HARNESS; FRAME
RUSSIA EQUIPMENT(B12) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98333-227-0 01 1 1512- ●
6 HARNESS; FRAME
RUSSIA EQUIPMENT(B12) GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		8-98333-225-0 01 1 1512- ●
6 HARNESS; FRAME
GENERATOR NIKKO 24V-60A 1.5KW(SC8) FULL TRAILER PIPING<Z25> EXC. RUSSIA EQUIPMENT(B12),BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) (A) 		8-98333-229-0 01 1 1512- ●
6 HARNESS; FRAME
BATTERY LAYOUT REAR VAR1<NCT> GENERATOR NIKKO 24V-60A 1.5KW(SC8) EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5), FULL TRAILER PIPING<Z25> (A) 		8-98333-230-0 01 1 1512- ●
6 HARNESS; FRAME
GENERATOR NIKKO 24V-60A 1.5KW(SC8) EXC. RUSSIA EQUIPMENT(B12),BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5),FULL TRAILER PIPING<Z25> (A) 		8-98333-228-0 01 1 1512- ●
6 HARNESS; FRAME
GENERATOR NIKKO 24V-60A 1.5KW(SC8) EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98333-228-0 01 1 1512- ●
6 HARNESS; FRAME
(A) 		8-98223-218-3 01 1 1303-1511 ●
6 HARNESS; FRAME
TAIWAN EQUIPMENT(WW5) (A) 		8-98223-218-3 01 1 1512- ●
6 HARNESS; FRAME
(B) 		8-98223-222-2 01 1 1303-1511 ●
6 HARNESS; FRAME
TAIWAN EQUIPMENT(WW5) (B) 		8-98223-222-2 01 1 1512- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5200MM(52W) (A) 		8-98144-772-1 01 1 1512- ●
9 HARNESS; FRAME,RR
(B) 		8-98240-418-0 01 1 1512- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) (B) 		8-98240-927-0 01 1 1512- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) FULL TRAILER PIPING<Z25> (A) 		8-98139-412-1 01 1 1512- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98139-414-1 01 1 1512- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> (A) 		8-98139-418-1 01 1 1512- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) EXC. TAIWAN EQUIPMENT(WW5) (B) 		8-98240-928-0 01 1 1512- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) (A) 		8-98139-443-1 01 1 1512- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) (A) 		8-98242-639-0 01 1 1512- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) (A) 		8-98139-425-1 01 1 1303-1511 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98139-425-1 01 1 1512- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) (B) 		8-98223-219-1 01 1 1303-1511 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) TAIWAN EQUIPMENT(WW5) (B) 		8-98223-219-1 01 1 1512- ●
189 HARNESS; EXT
LIGHTING SYSTEM ECE<SLC> 		1-82673-735-0 06 1 1512- ●
189 HARNESS; EXT
LIGHTING SYSTEM ECE<SLC> 		1-82673-735-0 08 1 1512- ●
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1304-1511 ●
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1512- ● ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 05 1 1303-1511 ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 05 1 1512- ● ●
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 03 1 1303-1511 ●
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 03 1 1512- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 1303-1511 ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 1512- ● ●
706 HARNESS; EXT,SEDIMENTER 8-98188-639-1 01 1 1303-1511 ●
706 HARNESS; EXT,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> TAIWAN EQUIPMENT(WW5) 		8-98188-639-1 01 1 1512- ●

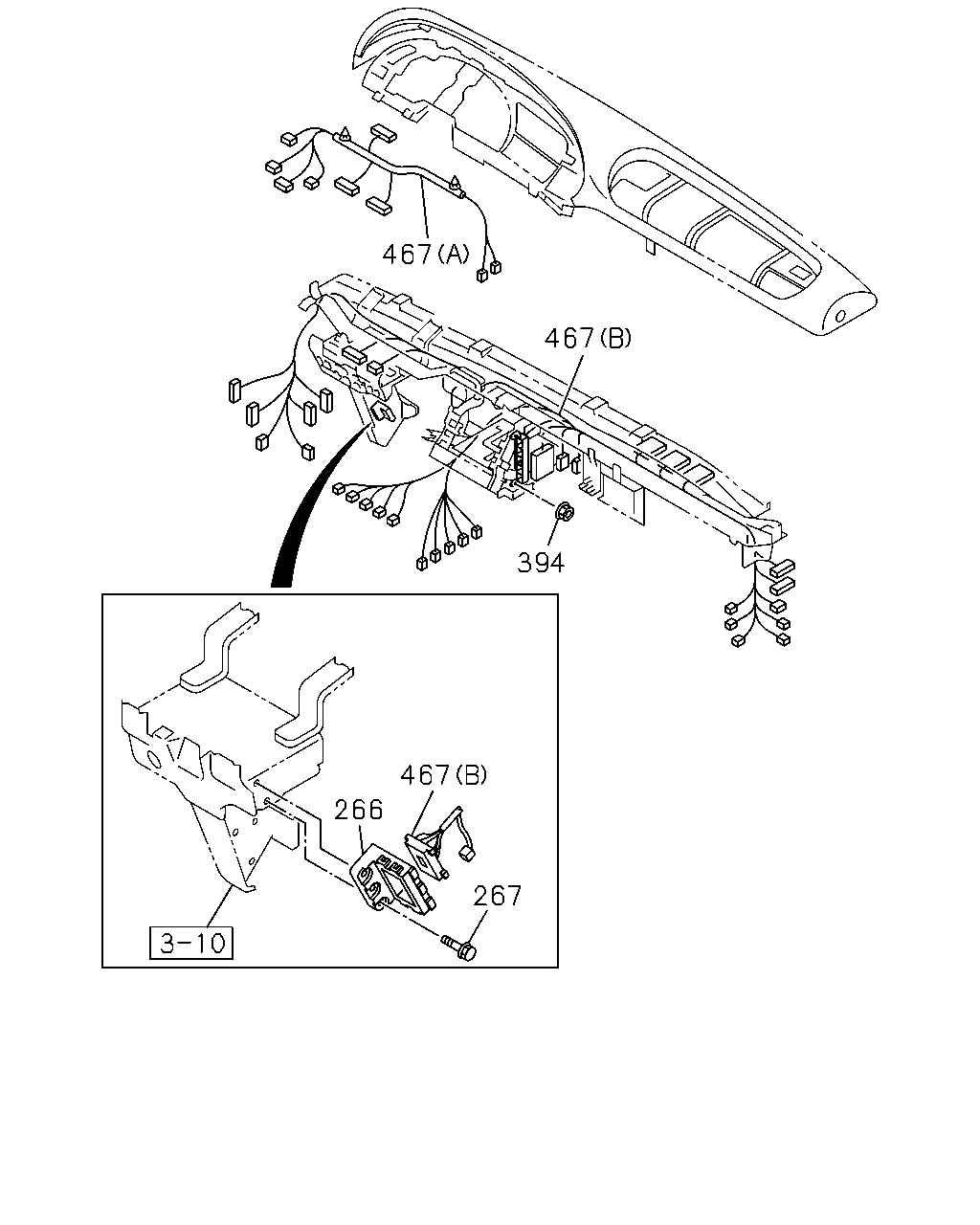

çizim 336996
394 467 267 266 467 467
BalonParca AdiParca NoAdetTipApplied Date A B
266 BRACKET; CONN BOX 1-82699-580-0 01 1 1303-1511 ●
266 BRACKET; CONN BOX 1-82699-580-0 01 1 1512- ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 1303-1511 ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 1512- ● ●
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 1303-1511 ●
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 1512- ● ●
467 HARNESS; FACIA
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) FUEL TANK TRUCK<RD5> EXC. MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) LOWER 		8-98333-738-0 01 1 1512- ●
467 HARNESS; FACIA
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) RUSSIA EQUIPMENT(B12) MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. FULL TRACTOR TRUCK<RD6> (B) LOWER 		8-98333-737-0 01 1 1512- ●
467 HARNESS; FACIA
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) RUSSIA EQUIPMENT(B12) FULL TRACTOR TRUCK<RD6> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) LOWER 		8-98333-737-0 01 1 1512- ●
467 HARNESS; FACIA
WHEEL BASE 5200MM(52W) RUSSIA EQUIPMENT(B12) MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) LOWER 		8-98333-737-0 01 1 1512- ●
467 HARNESS; FACIA
RUSSIA EQUIPMENT(B12) (A) UPPER 		8-98333-743-0 01 1 1512- ● ●
467 HARNESS; FACIA
VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3) (A) UPPER 		8-98333-744-0 01 1 1512- ●
467 HARNESS; FACIA
VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (A) UPPER 		8-98333-744-0 01 1 1512- ●
467 HARNESS; FACIA
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3) EXC. FUEL TANK TRUCK<RD5>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) LOWER 		8-98333-739-0 01 1 1512- ●
467 HARNESS; FACIA
WHEEL BASE 5200MM(52W) VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) LOWER 		8-98333-739-0 01 1 1512- ●
467 HARNESS; FACIA
WHEEL BASE 5900MM(59W) RUSSIA EQUIPMENT(B12) FULL TRACTOR TRUCK<RD6> MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) LOWER 		8-98333-736-0 01 1 1512- ●
467 HARNESS; FACIA
(B) LOWER 		8-97643-545-2 01 1 1303-1511 ●
467 HARNESS; FACIA
FIRE TRUCK<RA9> (B) LOWER 		8-97643-545-2 01 1 1512- ●
467 HARNESS; FACIA
(A) UPPER 		8-97643-546-0 01 1 1303-1511 ●
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) (A) UPPER 		8-97643-546-0 01 1 1512- ●
çizim 513875
201
BalonParca AdiParca NoAdetTipApplied Date A B
201 HARNESS; AIR TANK
RUSSIA EQUIPMENT(B12) 		8-98333-234-0 01 1 1512- ● ●
201 HARNESS; AIR TANK
EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) 		8-98333-235-0 01 1 1512- ●
201 HARNESS; AIR TANK
EXC. RUSSIA EQUIPMENT(B12) 		8-98333-235-0 01 1 1512- ●
201 HARNESS; AIR TANK 8-98223-220-2 01 1 1303-1511 ●
201 HARNESS; AIR TANK
TAIWAN EQUIPMENT(WW5) 		8-98223-220-2 01 1 1512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
