1-50 — EXHAUST PIPE AND SILENCER (#115294) — 109 parça

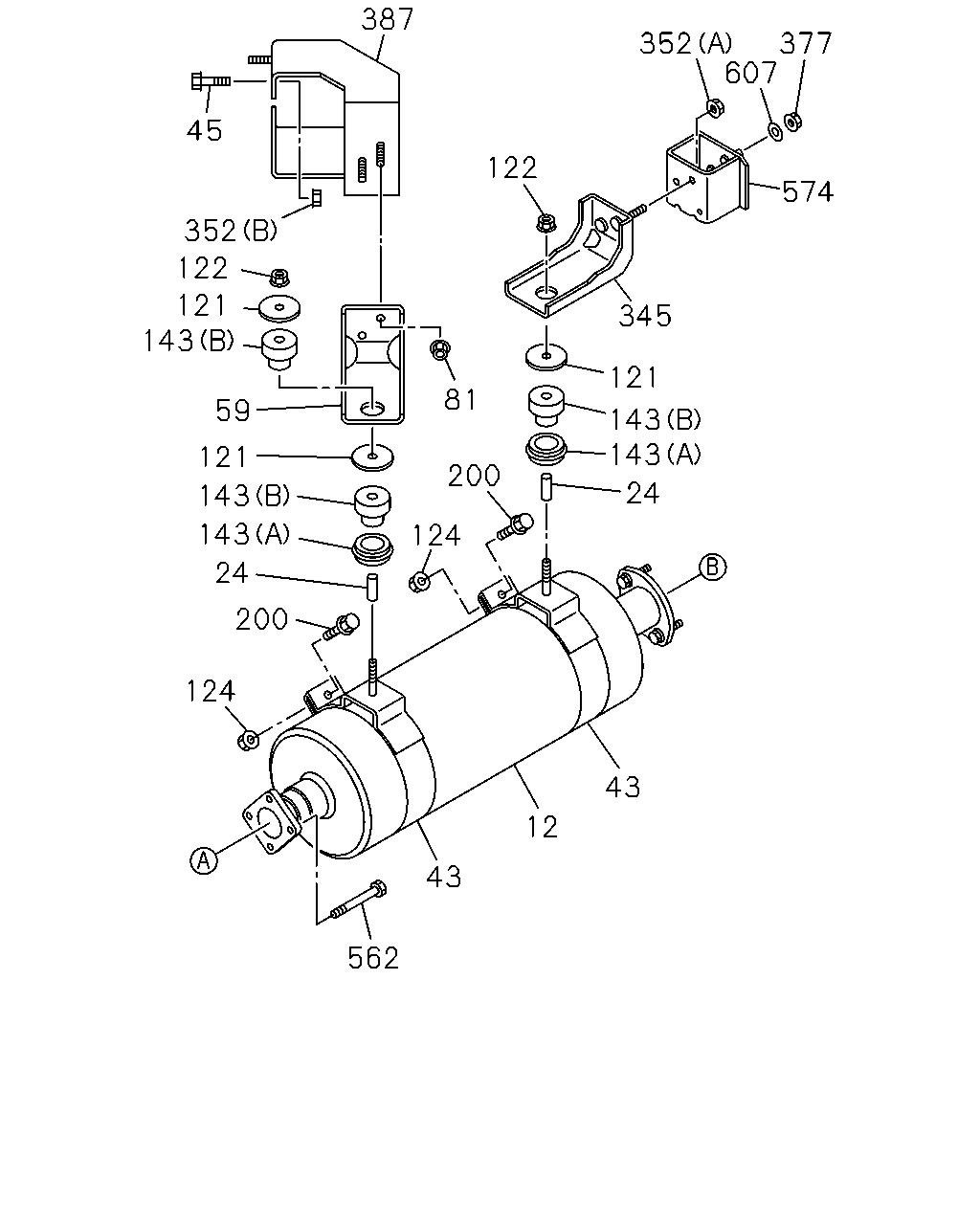

387 45 352 122 121 143 59 121 143 143 24 200 124 562 43 12 43 24 143 143 121 345 574 607 377 352 122 81 200 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH	8-98214-455-0	01	1	1302-1308
12	03.701 SILENCER ASM; EXH REAR WIDE TREAD(V4T)	8-98214-455-0	01	1	1309-
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	02	1	1302-1308
24	03.613 COLLAR; DIST,CLAMP REAR WIDE TREAD(V4T) 03.706 L=37.5	9-22151-217-0	02	1	1309-1309
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	02	1	1310-
43	03.611 CLAMP; EXH PIPE	8-98214-459-0	02	1	1302-1308
43	03.611 CLAMP; EXH PIPE REAR WIDE TREAD(V4T)	8-98214-459-0	02	1	1309-1309
43	03.611 CLAMP; EXH PIPE	8-98214-459-0	02	1	1310-
45	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1302-1308
45	03.613 BOLT; BRKT REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1309-
59	03.704 BRACKET; EXH SILENCER,FRT	8-97172-313-0	01	1	1302-1308
59	03.704 BRACKET; EXH SILENCER,FRT REAR WIDE TREAD(V4T)	8-97172-313-0	01	1	1309-
81	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1302-1308
81	03.704 NUT; BRKT REAR WIDE TREAD(V4T) 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1403
81	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1404-
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	02	1	1302-1308
121	03.704 WASHER; PL,BRKT REAR WIDE TREAD(V4T) OD=55	9-09852-169-0	02	1	1309-1309
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	02	1	1310-
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1302-1308
122	03.275 NUT; HANGER BRKT REAR WIDE TREAD(V4T) 07.874 M10 FLANGE	5-09440-006-0	02	1	1309-1309
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1310-
124	03.704 NUT; SUPPORT RUBBER 02.334 M8	0-91110-508-0	02	1	1302-1308
124	03.704 NUT; SUPPORT RUBBER REAR WIDE TREAD(V4T) 02.334 M8	0-91110-508-0	02	1	1309-1309
124	03.704 NUT; SUPPORT RUBBER 02.334 M8	0-91110-508-0	02	1	1310-
143	03.704 RUBBER; SUPPORT (A)	8-97379-882-0	02	1	1302-1308
143	03.704 RUBBER; SUPPORT REAR WIDE TREAD(V4T) (A)	8-97379-882-0	02	1	1309-1309
143	03.704 RUBBER; SUPPORT (A)	8-97379-882-0	02	1	1310-
143	03.704 RUBBER; SUPPORT (B)	8-97379-927-0	02	1	1302-1308
143	03.704 RUBBER; SUPPORT REAR WIDE TREAD(V4T) (B)	8-97379-927-0	02	1	1309-1309
143	03.704 RUBBER; SUPPORT (B)	8-97379-927-0	02	1	1310-
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	1302-1308
200	03.704 BOLT; SUPPORT RUBBER REAR WIDE TREAD(V4T) M8X45 W/LK WASHER	0-50540-845-0	02	1	1309-1309
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	1310-
345	03.704 BRACKET; EXH SILENCER,RR	8-94329-857-0	01	1	1302-1308
345	03.704 BRACKET; EXH SILENCER,RR REAR WIDE TREAD(V4T)	8-94329-857-0	01	1	1309-
352	03.613 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1302-1308
352	03.613 NUT; BRKT REAR WIDE TREAD(V4T) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1309-1403
352	03.613 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1404-
352	03.613 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	03	1	1302-1308
352	03.613 NUT; BRKT REAR WIDE TREAD(V4T) 03.162 (B) M10 FLANGE	0-91180-110-0	03	1	1309-
377	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1302-1308
377	03.704 NUT; BRKT REAR WIDE TREAD(V4T) 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1403
377	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1404-
387	03.704 SPACER; BRKT	8-98214-457-0	01	1	1302-1308
387	03.704 SPACER; BRKT REAR WIDE TREAD(V4T)	8-98214-457-0	01	1	1309-
562	03.690 PLATE; STUD,BOLT 03.632 M8X70	0-10855-870-0	04	1	1302-1308
562	03.690 PLATE; STUD,BOLT REAR WIDE TREAD(V4T) 03.632 M8X70	0-10855-870-0	04	1	1309-1309
562	03.690 PLATE; STUD,BOLT 03.632 M8X70	0-10855-870-0	04	1	1310-
574	03.706 SPACER; DPD 03.704	8-97179-737-0	01	1	1302-1308
574	03.706 SPACER; DPD REAR WIDE TREAD(V4T) 03.704	8-97179-737-0	01	1	1309-1403
574	03.706 SPACER; DPD 03.704	8-97179-737-0	01	1	1404-
607	03.704 WASHER; BRKT 03.706 ID=8.4 OD=26	0-91614-808-0	02	1	1302-1308
607	03.704 WASHER; BRKT REAR WIDE TREAD(V4T) 03.706 ID=8.4 OD=26	0-91614-808-0	02	1	1309-1403
607	03.704 WASHER; BRKT 03.706 ID=8.4 OD=26	0-91614-808-0	02	1	1404-

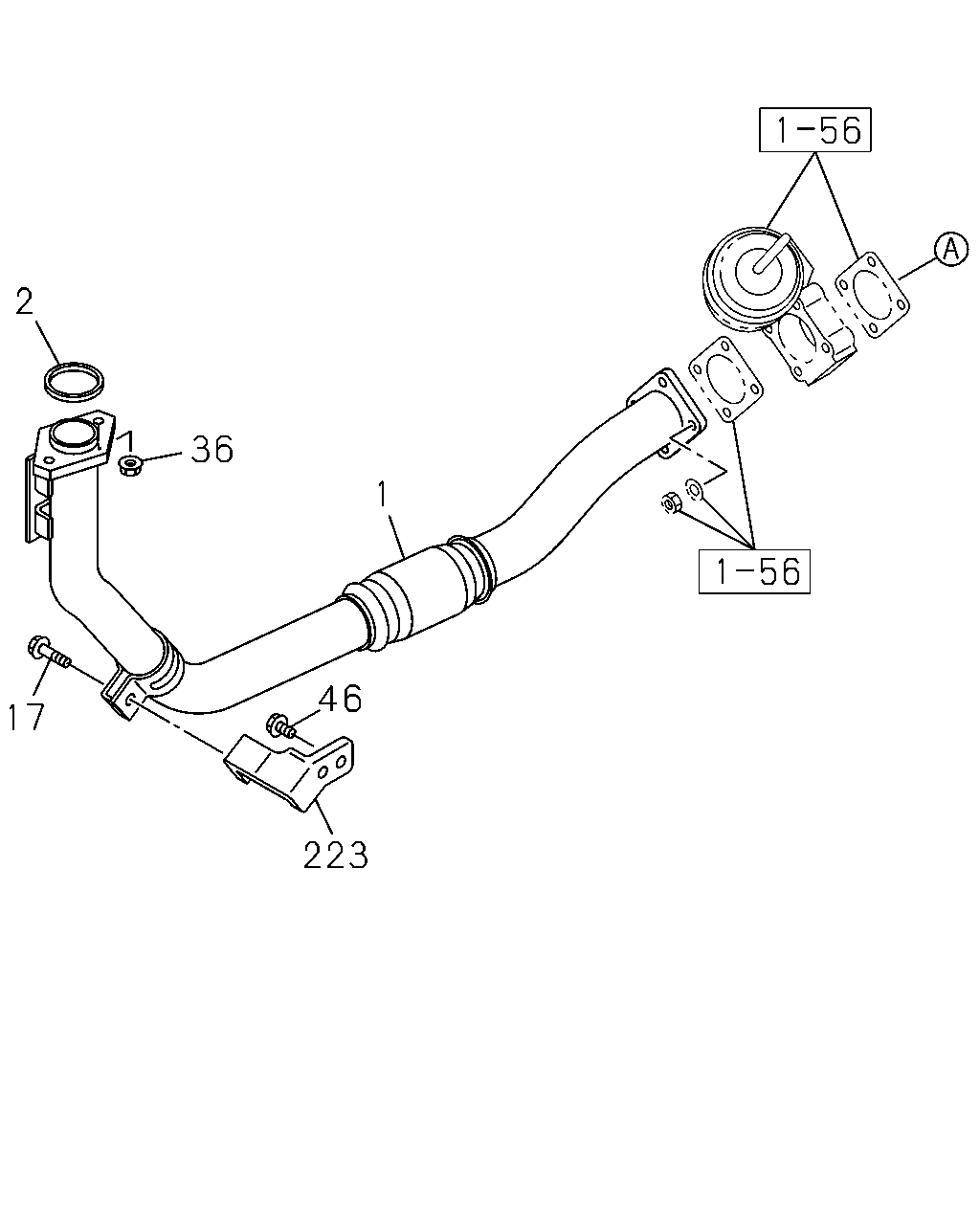

1 46 17 36 2 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH	8-98214-451-0	01	1	1302-1308
1	03.609 PIPE; EXH REAR WIDE TREAD(V4T)	8-98214-451-0	01	1	1309-
2	03.611 GASKET; PIPE TO MANIF	8-97381-456-0	01	1	1302-1308
2	03.611 GASKET; PIPE TO MANIF REAR WIDE TREAD(V4T)	8-97381-456-0	01	1	1309-1309
2	03.611 GASKET; PIPE TO MANIF	8-97381-456-0	01	1	1310-
17	03.613 BOLT; EXH PIPE 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	1302-1308
17	03.613 BOLT; EXH PIPE REAR WIDE TREAD(V4T) 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	1309-1309
17	03.613 BOLT; EXH PIPE 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	1310-
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1302-1308
36	03.613 NUT; EXH PIPE REAR WIDE TREAD(V4T) M10 FLANGE	8-97096-192-1	02	1	1309-1309
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	02	1	1310-
46	03.704 BOLT; BRKT,EXH PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1302-1308
46	03.704 BOLT; BRKT,EXH PIPE REAR WIDE TREAD(V4T) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1309-1309
46	03.704 BOLT; BRKT,EXH PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1310-
223	03.706 BRACKET; EXH PIPE 03.613	8-97084-346-2	01	1	1302-1308
223	03.706 BRACKET; EXH PIPE REAR WIDE TREAD(V4T) 03.613	8-97084-346-2	01	1	1309-1309
223	03.706 BRACKET; EXH PIPE 03.613	8-97084-346-2	01	1	1310-

105 357 88 628 627 629 167 137 104 95 610 94 126 38 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	1302-1308
14	03.704 GASKET; SILENCER TO EXH PIPE REAR WIDE TREAD(V4T) ID=64.7	8-94328-352-0	01	1	1309-1403
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	1404-
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1302-1308
38	00.002 NUT; SILENCER REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-1403
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1404-
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	1302-1308
88	03.708 CLAMP; EXH PIPE REAR WIDE TREAD(V4T) ID=61.6	8-97010-307-0	01	1	1309-1403
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	1404-
94	03.704 BOLT; CLAMP 09.173 M8X45 FLANGE	0-28050-845-0	01	1	1302-1308
94	03.704 BOLT; CLAMP REAR WIDE TREAD(V4T) 09.173 M8X45 FLANGE	0-28050-845-0	01	1	1309-1403
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1404-
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1302-1308
95	03.708 BOLT; BRKT REAR WIDE TREAD(V4T) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1309-1403
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1404-
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1302-1308
104	03.704 NUT; BRKT REAR WIDE TREAD(V4T) 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-1403
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1404-
105	03.704 NUT; CLAMP 02.334 M8	0-91110-508-0	01	1	1302-1308
105	03.704 NUT; CLAMP REAR WIDE TREAD(V4T) 02.334 M8	0-91110-508-0	01	1	1309-1403
105	03.704 NUT; CLAMP 02.334 M8	0-91110-508-0	01	1	1404-
126	03.705 PIPE; EXH,RR	8-98214-452-0	01	1	1302-1308
126	03.705 PIPE; EXH,RR REAR WIDE TREAD(V4T)	8-98214-452-0	01	1	1309-
137	03.706 BRACKET; TAIL PIPE	8-98096-331-0	01	1	1302-1308
137	03.706 BRACKET; TAIL PIPE REAR WIDE TREAD(V4T)	8-98096-331-0	01	1	1309-
167	03.706 HANGER; EXH PIPE L=148	8-97145-971-0	01	1	1302-1308
167	03.706 HANGER; EXH PIPE REAR WIDE TREAD(V4T) L=148	8-97145-971-0	01	1	1309-
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1302-1308
357	03.708 WASHER; PL,CLAMP REAR WIDE TREAD(V4T) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1309-1403
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1404-
610	03.704 BOLT; HANGER 03.706 M10X70 FLANGE	0-28051-070-0	01	1	1302-1308
610	03.704 BOLT; HANGER REAR WIDE TREAD(V4T) 03.706 M10X70 FLANGE	0-28051-070-0	01	1	1309-
627	03.706 WASHER; HANGER 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1302-1308
627	03.706 WASHER; HANGER REAR WIDE TREAD(V4T) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1309-
628	03.275 NUT; HANGER 00.833 M10	0-91110-510-0	01	1	1302-1308
628	03.275 NUT; HANGER REAR WIDE TREAD(V4T) 00.833 M10	0-91110-510-0	01	1	1309-
629	03.706 SPACER; HANGER L=37.5	9-22151-217-0	01	1	1302-1308
629	03.706 SPACER; HANGER REAR WIDE TREAD(V4T) L=37.5	9-22151-217-0	01	1	1309-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
