7-40 — INSTRUMENT PANEL AND BOX (#115293) — 114 parça

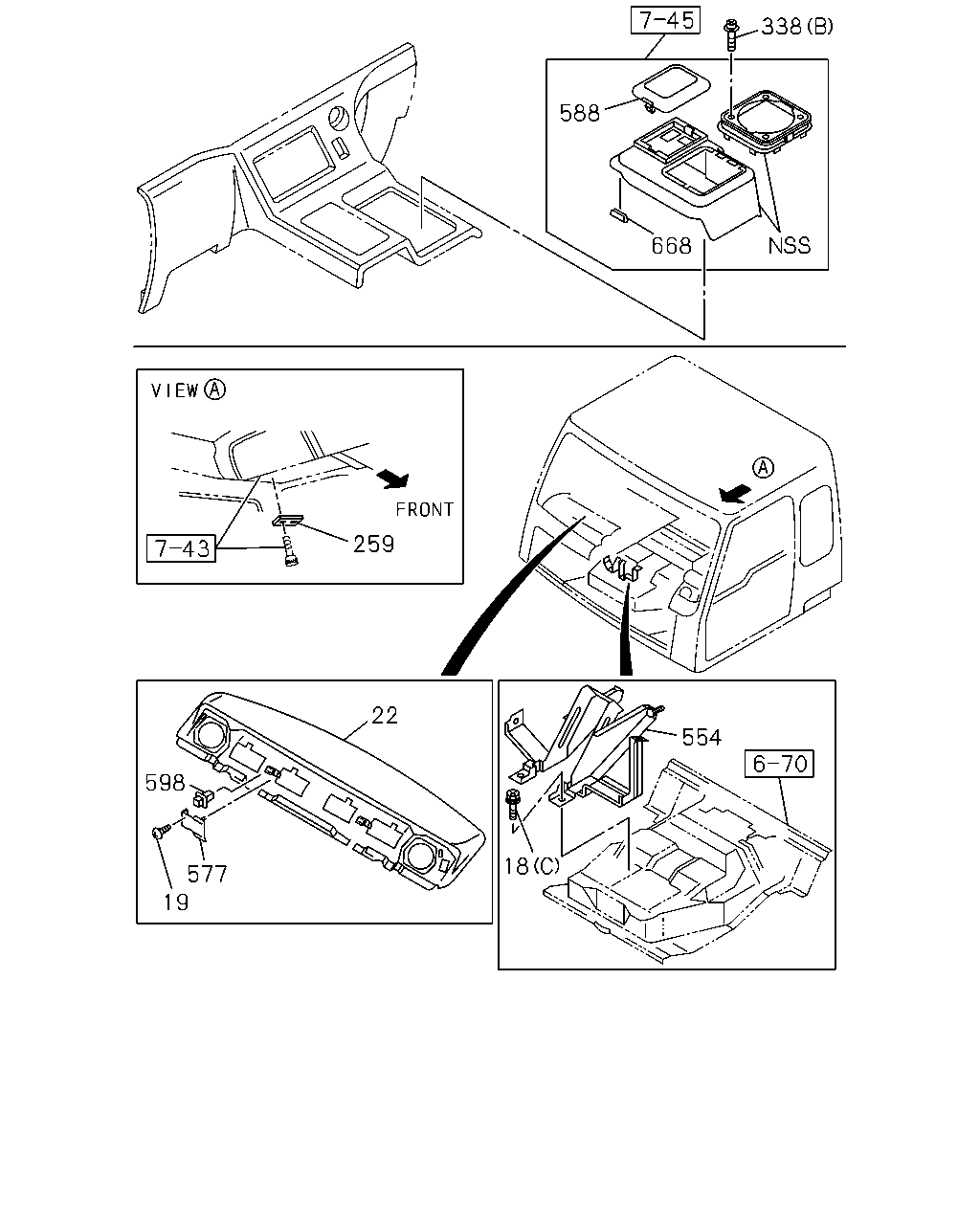

çizim 336930
19 18 577 598 22 554 259 668 588 338
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 1303-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1303-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1303-
19 SCREW; BRKT
M5X14 		8-94279-325-0 01 1 1303-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 1303-
22 PAD; INST 1-72317-372-1 01 1 1303-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 1303-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 05 1 1303-
338 SCREW; COVER
(B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 1303-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1303-
554 BRACKET; CENTER BEZEL 1-65671-826-0 01 1 1303-
577 BRACKET; SENSOR 1-72318-413-0 01 1 1303-
588 LID; BOX 1-72447-974-1 01 1 1303-
598 GROMMET; SCREW
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 1303-
668 FINISHER; COVER
L=167 		1-71996-271-0 01 1 1303-

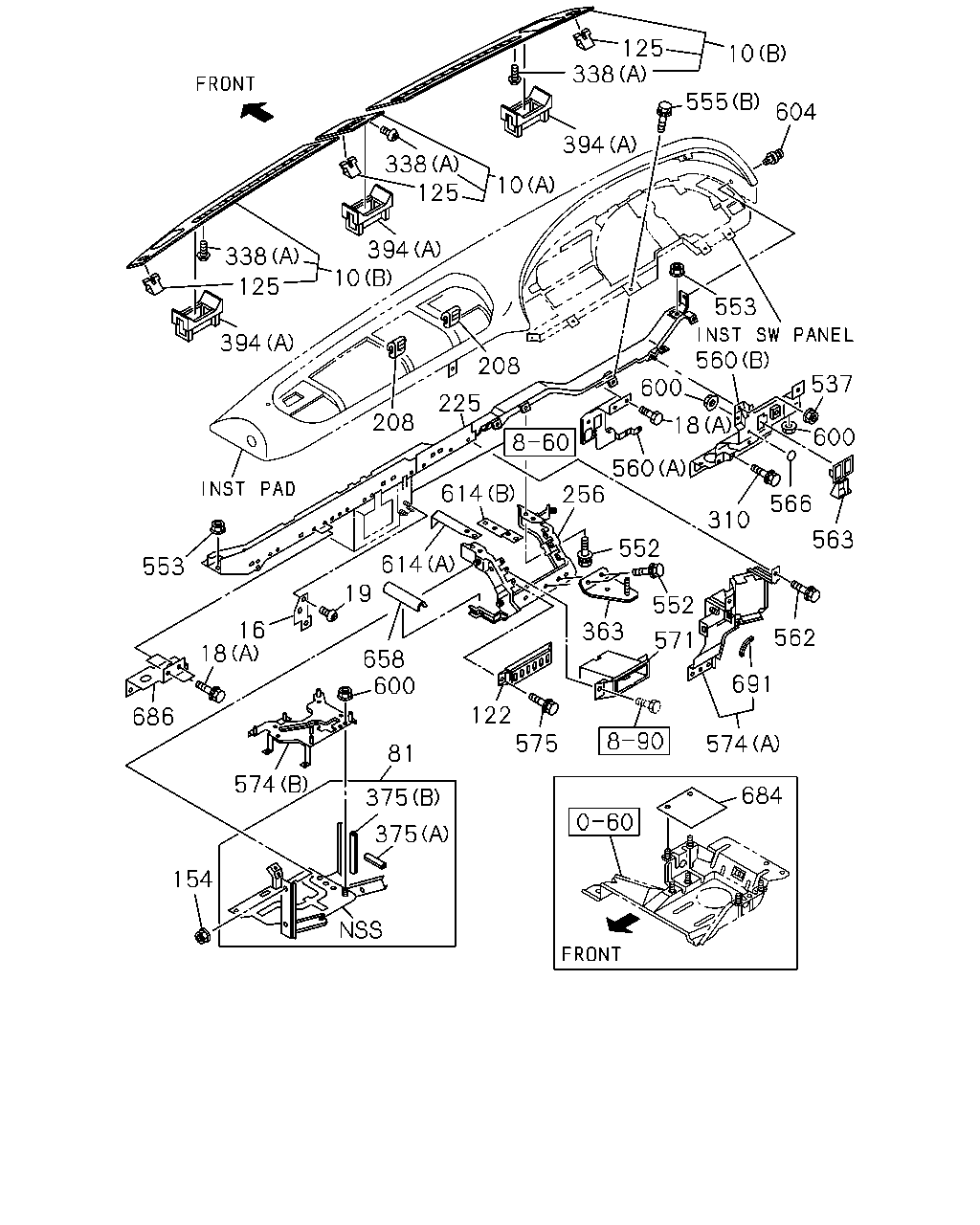

çizim 336974
600 563 566 310 560 18 600 560 553 537 562 691 574 684 571 552 552 363 575 122 81 375 375 154 574 600 658 19 18 686 16 553 208 614 614 256 225 208 394 10 125 338 394 10 338 394 125 555 10 604 338 125
BalonParca AdiParca NoAdetTipApplied Date
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 1303-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-602-7 01 1 1303-
10 PANEL ASM; GARNISH
(A) 		1-72437-540-6 01 1 1303-
16 BRACKET; INST PNL 1-73908-023-2 01 1 1303-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 1303-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1303-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1303-
19 SCREW; BRKT
M5X14 		8-94279-325-0 01 1 1303-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 1303-
81 BRACKET; ELEC CONT UNIT 8-98160-932-0 01 1 1303-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 1303-
125 CLIP; INST PANEL 8-97217-066-0 04 1 1303-
125 CLIP; INST PANEL 8-97217-066-0 07 1 1303-
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 1303-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 1303-
225 FRAME; FACIA 1-65671-725-8 01 1 1303-
256 BEZEL ASM; CENTER 1-65671-828-2 01 1 1303-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1303-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 05 1 1303-
338 SCREW; COVER
(B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 1303-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 07 1 1303-
363 SUPPORT ASM; COMPT PANEL CTR 1-73907-776-0 01 1 1303-
375 FINISHER; BRKT,CONT UNIT
(A) L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1303-
375 FINISHER; BRKT,CONT UNIT
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1303-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1303-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1303-
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1303-
537 NUT; BRKT
M8 W/DISHED WASHER 		8-97329-625-0 01 1 1303-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1303-
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 1303-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1303-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1303-
560 BRACKET
(B) 		1-65671-760-4 01 1 1303-
560 BRACKET
(A) 		1-65681-197-2 01 1 1303-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1303-
563 BEZEL; BRKT 1-72448-410-3 01 1 1303-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1303-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1303-
571 BEZEL; POCKET 1-72438-151-3 01 1 1303-
571 BEZEL; POCKET 1-72438-151-3 01 1 1303-
574 PANEL; RELAY BOX
(B) 		1-73907-690-2 01 1 1303-
574 PANEL; RELAY BOX
(A) 		1-73907-761-2 01 1 1303-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 1303-
604 CLIP; INST PAD 1-09983-123-0 01 1 1303-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 1303-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 1303-
658 FINISHER; BEZEL
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1303-
684 RUBBER; HARNESS 1-82698-417-1 01 1 1303-
686 BRACKET; SENSOR & RELAY 1-65681-226-1 01 1 1303-
691 FINISHER; HARNESS PROTECTOR
L=50 		8-94270-377-1 01 1 1303-

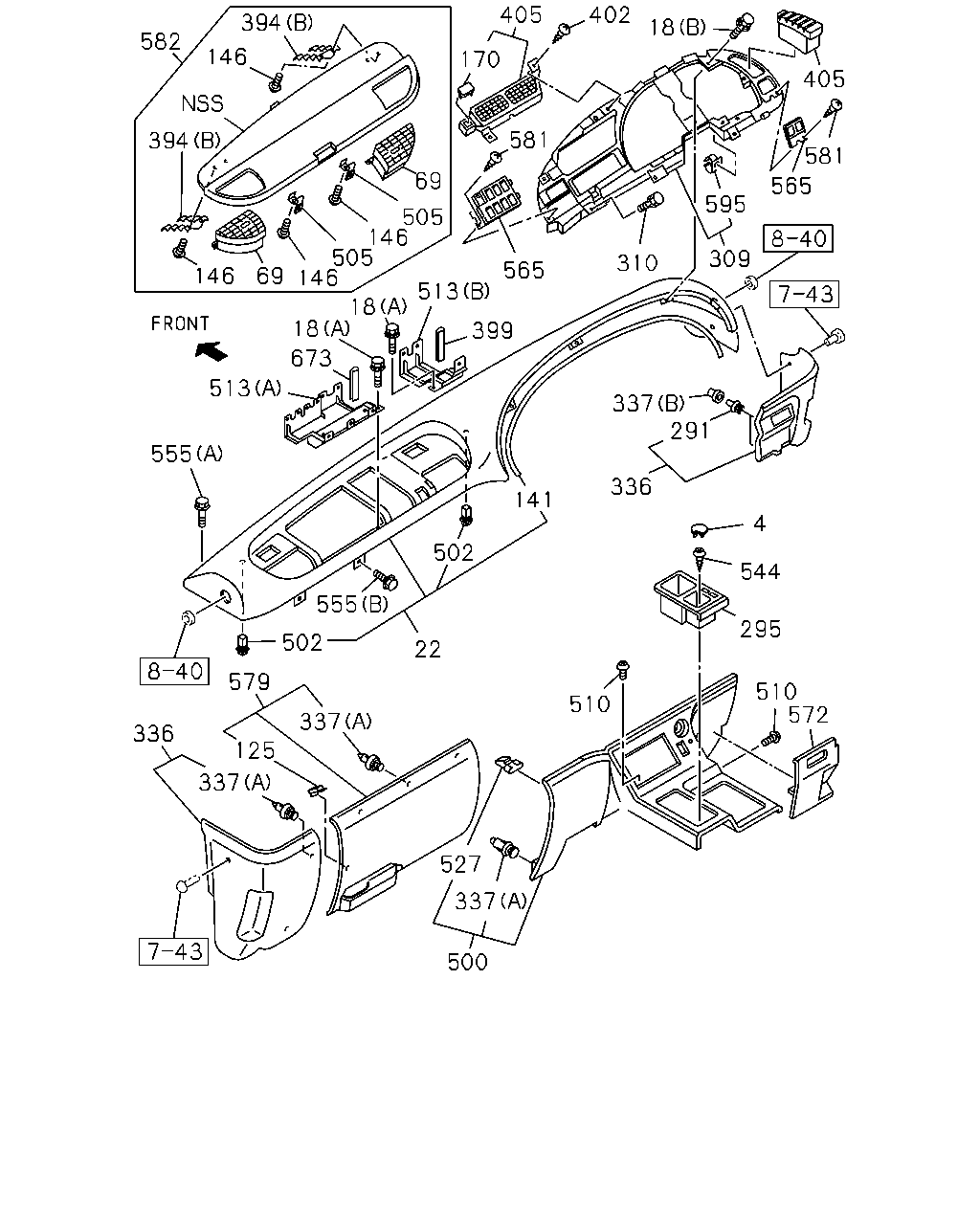

çizim 336985
500 337 527 510 572 510 295 544 4 336 337 291 22 337 125 337 336 579 502 555 502 141 555 513 673 18 18 513 399 565 581 310 309 595 565 581 405 18 402 405 170 582 394 146 394 146 69 146 505 146 505 69
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 1303-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 1303-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1303-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1303-
22 PAD; INST 1-72317-372-1 01 1 1303-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 1303-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 1303-
125 CLIP; INST PANEL 8-97217-066-0 04 1 1303-
125 CLIP; INST PANEL 8-97217-066-0 07 1 1303-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 1303-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 1303-
170 COVER; HOLE 1-76367-068-0 01 1 1303-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 1303-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 1303-
309 PANEL; SW,INST 1-72418-009-6 01 1 1303-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1303-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 1303-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 1303-
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 1303-
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 1303-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1303-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1303-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1303-
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 1303-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1303-
405 GRILLE ASM; METER VENT 1-76367-059-3 01 1 1303-
405 GRILLE ASM; METER VENT 1-76367-062-2 01 1 1303-
500 CLUSTER; INST CENTER 8-98217-877-0 01 1 1303-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 1303-
505 LOCK; LID 1-72558-024-2 02 1 1303-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 1303-
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 1303-
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 1303-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 1303-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 1303-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1303-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1303-
565 BEZEL; SW PANEL 1-72418-010-2 01 1 1303-
565 BEZEL; SW PANEL 1-72418-011-3 01 1 1303-
572 COVER; INSPECTION 1-72437-634-0 01 1 1303-
579 COVER; INST PNL 1-72437-626-0 01 1 1303-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1303-
582 LID; FUSE & RELAY 1-72547-124-0 01 1 1303-
595 NUT; HOOK 1-72418-013-0 11 1 1303-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 1303-
