8-40 — HEATER SYSTEM (#115292) — 57 parça

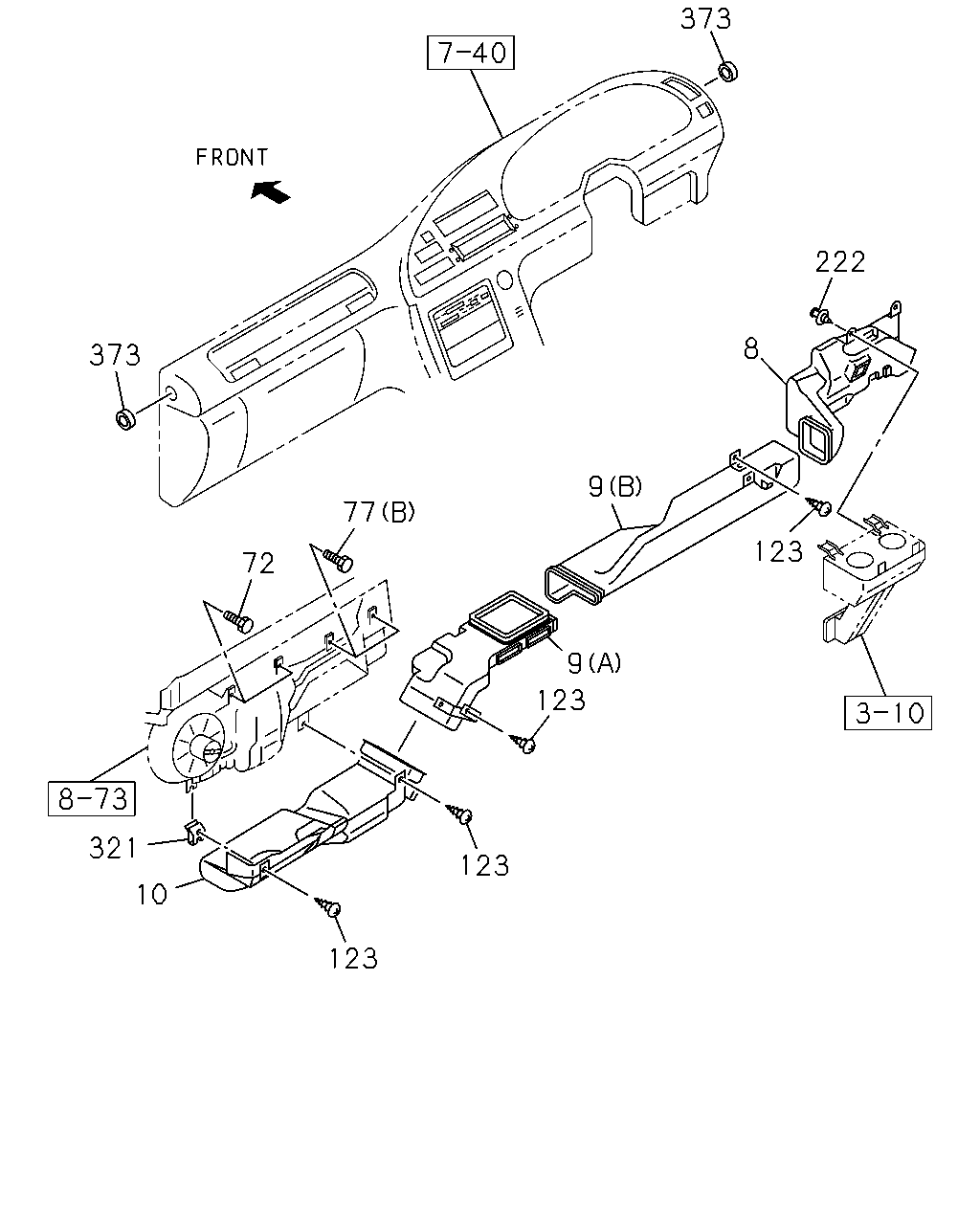

çizim 336782
123 123 123 9 123 9 8 222 10 321 72 77 373 373
BalonParca AdiParca NoAdetTipApplied Date
8 DUCT; HTR AIR,DRIVER FOOT 1-76377-208-0 01 1 1303-
9 DUCT; HTR AIR,FOOT CENTER
(B) 		1-76377-210-1 01 1 1303-
9 DUCT; HTR AIR,FOOT CENTER
(A) 		1-76377-226-2 01 1 1303-
10 DUCT; HTR AIR,ASSIST FOOT 1-76377-204-2 01 1 1303-
72 BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 1303-
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-
123 SCREW; DUCT
M5X14 		8-94279-325-0 04 1 1303-
123 SCREW; DUCT
M5X14 		8-94279-325-0 08 1 1303-
222 FASTENER; DUCT
D6X12.5 		8-94146-425-0 02 1 1303-
321 NUT; DUCT FIX
M5 		1-09984-196-0 01 1 1306-
373 RUBBER; JOINT 1-76378-291-0 02 1 1303-

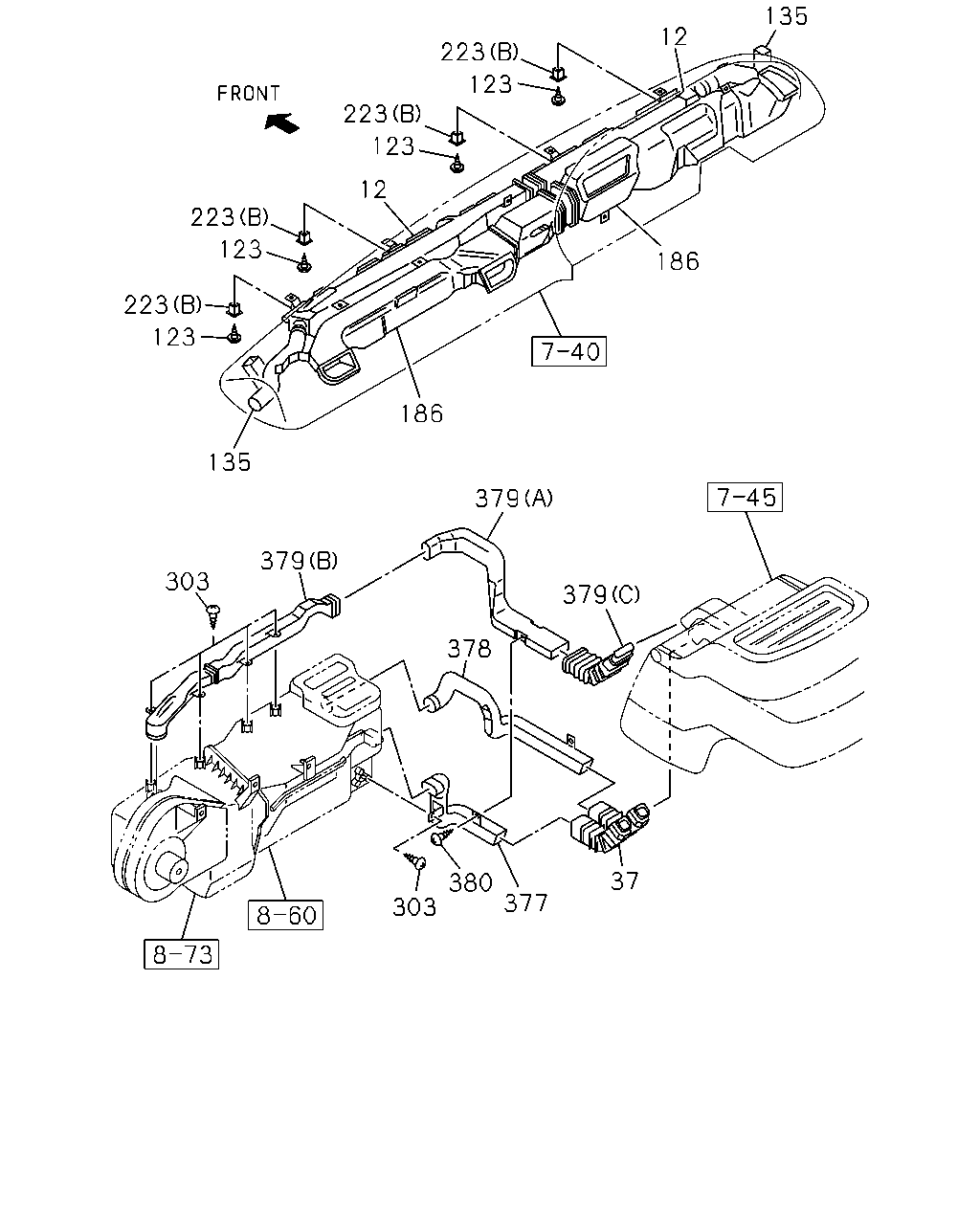

çizim 336817
379 378 380 303 37 377 303 379 135 223 223 223 223 123 12 186 186 135 12 123 379 123 123
BalonParca AdiParca NoAdetTipApplied Date
12 NOZZLE; DEFROSTER 1-76377-153-5 01 1 1303-
12 NOZZLE; DEFROSTER 1-76377-172-7 01 1 1303-
37 HOSE; AIR,HTR 1-76377-193-3 01 1 1303-
123 SCREW; DUCT
M5X14 		8-94279-325-0 04 1 1303-
123 SCREW; DUCT
M5X14 		8-94279-325-0 08 1 1303-
135 HOSE; DEFROSTER 1-76378-252-7 01 1 1303-
135 HOSE; DEFROSTER 1-76378-253-4 01 1 1303-
186 DUCT; VENTILATOR 1-76377-243-1 01 1 1303-
186 DUCT; VENTILATOR 1-76377-246-0 01 1 1303-
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 1303-
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 1303-
303 SCREW; HOSE
M5X14 		8-94279-325-0 05 1 1303-
377 HOSE; BOX,INLET,COOL 1-76377-159-5 01 1 1303-
378 HOSE; BOX,INLET,HOT 1-76377-161-6 01 1 1303-
379 HOSE; BOX,OUTLET
(A) 		1-76377-163-5 01 1 1303-
379 HOSE; BOX,OUTLET
(B) 		1-76377-164-3 01 1 1303-
379 HOSE; BOX,OUTLET
(C) 		1-76377-192-4 01 1 1303-
380 FASTENER; HOSE
D4.6X14.7 BLACK 		1-09983-104-0 03 1 1303-

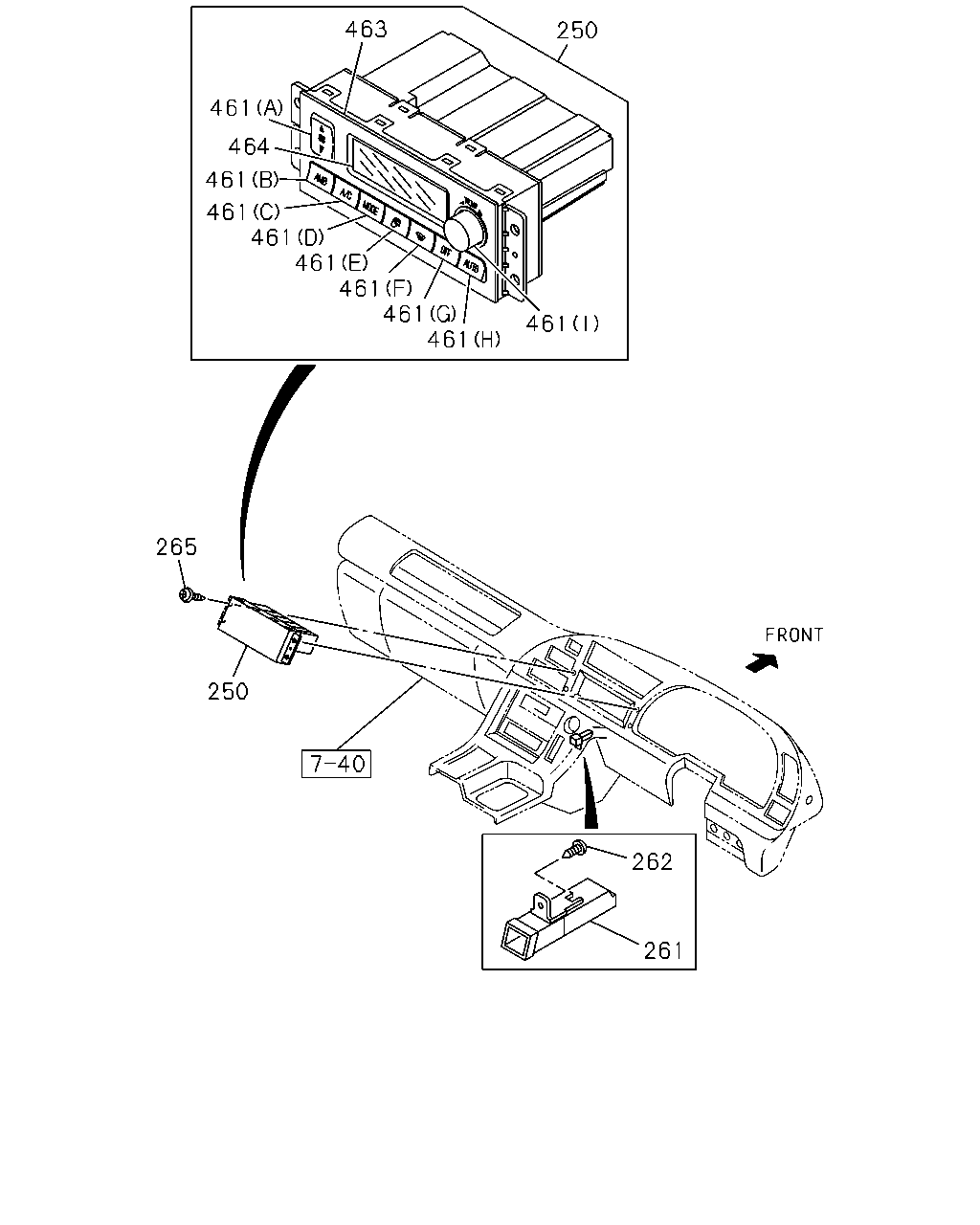

çizim 336835
463 250 461 461 464 461 461 461 461 461 461 461 250 265 262 261
BalonParca AdiParca NoAdetTipApplied Date
250 CONTROL ASM; A/C 1-83543-038-1 01 1 1303-
261 SENSOR; IN CAR 1-83544-023-1 01 1 1303-
262 SCREW; IN CAR SENSOR
M5X14 		8-94279-325-0 01 1 1303-
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 01 1 1303-
461 KNOB; CONTROL ASM,A/C
(A) FAN 		1-83549-018-0 01 1 1303-
461 KNOB; CONTROL ASM,A/C
(B) AMB 		1-83549-019-0 01 1 1303-
461 KNOB; CONTROL ASM,A/C
(C) A/C 		1-83549-020-0 01 1 1303-
461 KNOB; CONTROL ASM,A/C
(D) MODE 		1-83549-021-0 01 1 1303-
461 KNOB; CONTROL ASM,A/C
(E) REC 		1-83549-022-0 01 1 1303-
461 KNOB; CONTROL ASM,A/C
(F) DEF 		1-83549-023-0 01 1 1303-
461 KNOB; CONTROL ASM,A/C
(G) OFF 		1-83549-024-0 01 1 1303-
461 KNOB; CONTROL ASM,A/C
(H) AUTO 		1-83549-025-0 01 1 1303-
461 KNOB; CONTROL ASM,A/C
(I) TEMP 		1-83549-026-0 01 1 1303-
463 BEZEL; CONTROL PANEL 1-83549-027-0 01 1 1303-
464 PLATE; CONTROL PANEL 1-83549-028-0 01 1 1303-

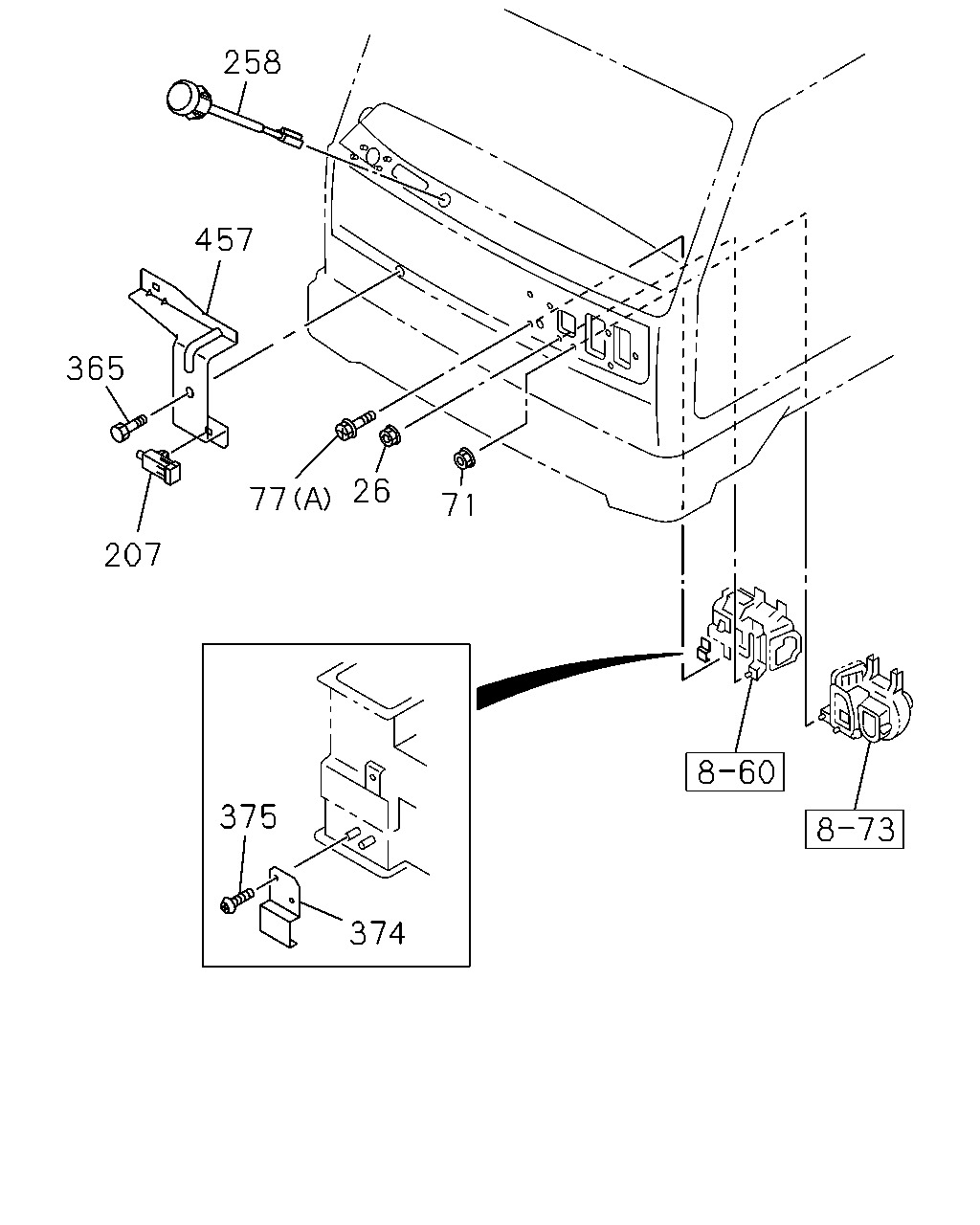

çizim 336844
258 457 365 77 26 71 207 375 374
BalonParca AdiParca NoAdetTipApplied Date
26 NUT; HTR
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1303-
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1303-
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 1303-
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-
207 SENSOR; AMBIENT 8-98214-375-0 01 1 1303-
258 SENSOR; SUN 8-94472-043-2 01 1 1303-
365 BOLT; SENSOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 1303-
374 HOLDER; DUCT 1-76398-012-1 01 1 1303-
375 SCREW; HOLDER
M5X14 		8-94279-325-0 02 1 1303-
457 BRACKET; SENSOR 1-71907-603-1 01 1 1303-

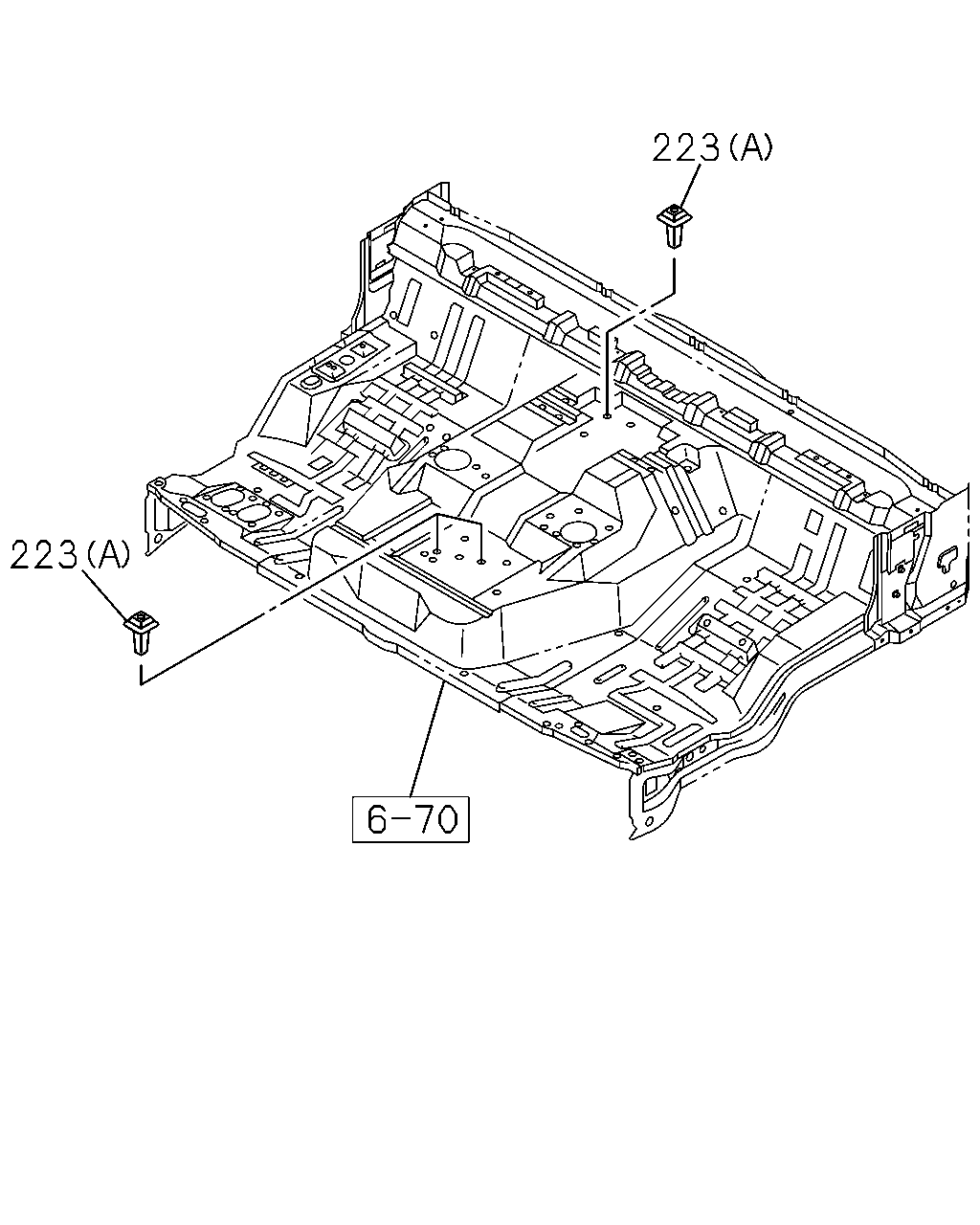

çizim 337000
223 223
BalonParca AdiParca NoAdetTipApplied Date
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 1303-
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 1303-
