◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶
1-45 — WATER SEDIMENTER; FUEL (#115291) — 20 parça

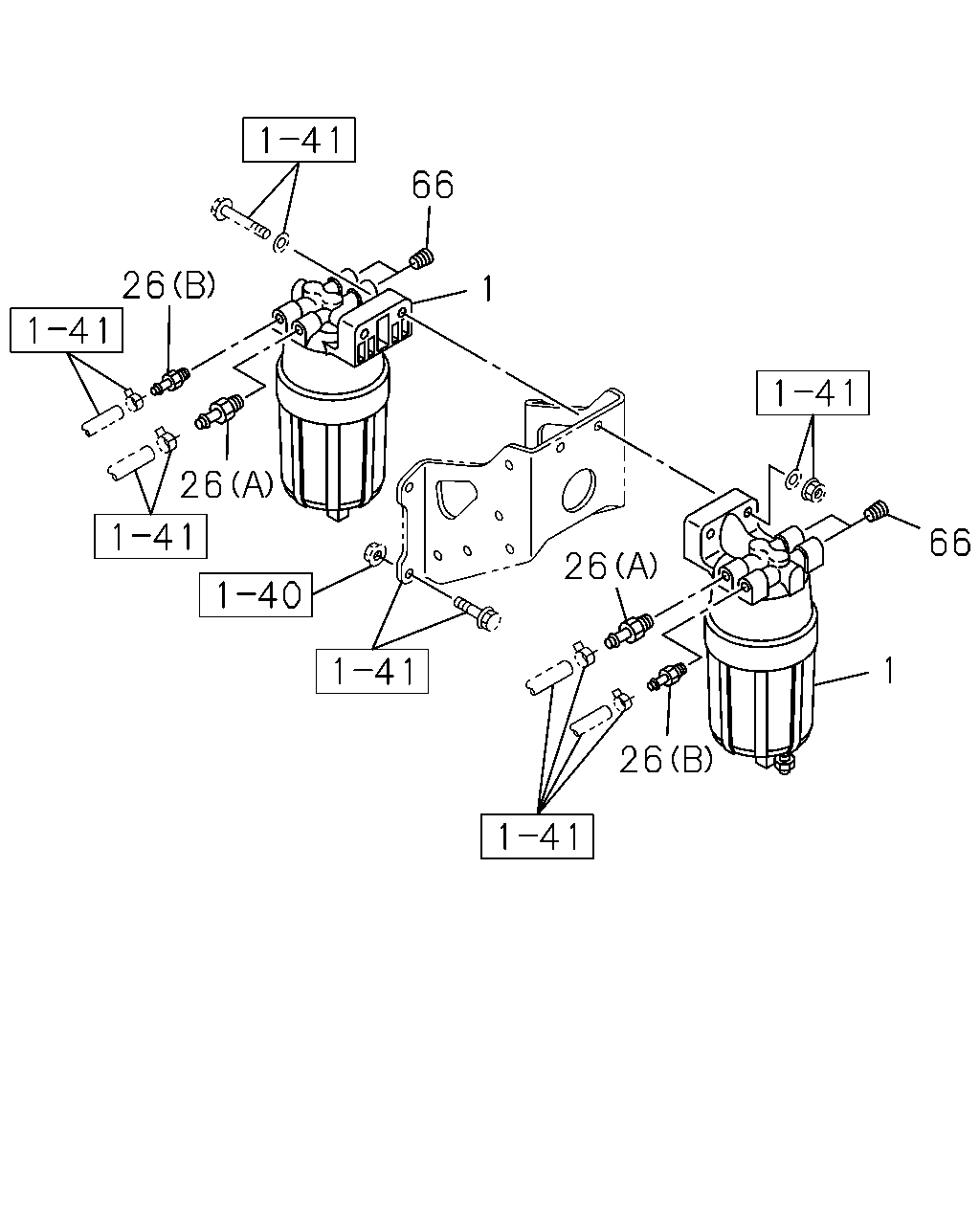

çizim 336160
1 66 26 26 26 26 1 66
BalonParca AdiParca NoAdetTipApplied Date A B
1 SEDIMENTER; FUEL
RUSSIA EQUIPMENT(B12) POOR QUALITY DIESEL FUEL<KF0> INSIDE 		8-98136-428-0 01 1 1512- ● ●
1 SEDIMENTER; FUEL
POOR QUALITY DIESEL FUEL<KF0> EXC. RUSSIA EQUIPMENT(B12) 		8-98086-193-1 02 1 1512- ● ●
1 SEDIMENTER; FUEL 8-98086-193-1 02 1 1303-1511 ●
1 SEDIMENTER; FUEL
RUSSIA EQUIPMENT(B12) POOR QUALITY DIESEL FUEL<KF0> OUTSIDE 		8-98086-193-1 01 1 1512- ● ●
26 PIPE; FUEL,IN & OUT
(A) NPTF3/8-18 OD=12 		8-98122-952-0 02 1 1303-1511 ●
26 PIPE; FUEL,IN & OUT
POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=12 		8-98122-952-0 02 1 1512- ● ●
26 PIPE; FUEL,IN & OUT
(B) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1303-1511 ●
26 PIPE; FUEL,IN & OUT
POOR QUALITY DIESEL FUEL<KF0> (B) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1512- ● ●
66 PLUG; FUEL FILTER
NPTF3/8-18 		8-97329-623-0 04 1 1303-1511 ●
66 PLUG; FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18 		8-97329-623-0 04 1 1512- ● ●
çizim 337083
1 87 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 SEDIMENTER; FUEL
RUSSIA EQUIPMENT(B12) POOR QUALITY DIESEL FUEL<KF0> INSIDE 		8-98136-428-0 01 1 1512- ● ●
1 SEDIMENTER; FUEL
POOR QUALITY DIESEL FUEL<KF0> EXC. RUSSIA EQUIPMENT(B12) 		8-98086-193-1 02 1 1512- ● ●
1 SEDIMENTER; FUEL 8-98086-193-1 02 1 1303-1511 ●
1 SEDIMENTER; FUEL
RUSSIA EQUIPMENT(B12) POOR QUALITY DIESEL FUEL<KF0> OUTSIDE 		8-98086-193-1 01 1 1512- ● ●
2 ELEMENT; FUEL FILTER 8-98092-481-1 02 1 1303-1511 ●
2 ELEMENT; FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> 		8-98092-481-1 02 1 1512- ● ●
2 ELEMENT; FUEL FILTER
BEST VALUE PARTS 		1-87610-094-1 02 1 1303-1511 ●
2 ELEMENT; FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> BEST VALUE PARTS 		1-87610-094-1 02 1 1512- ● ●
87 CASE ASM; SEDIMENTER 8-98092-482-1 02 1 1303-1511 ●
87 CASE ASM; SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> 		8-98092-482-1 02 1 1512- ● ●
