5-15 — CAB MOUNTING; CAB SIDE (#115290) — 130 parça

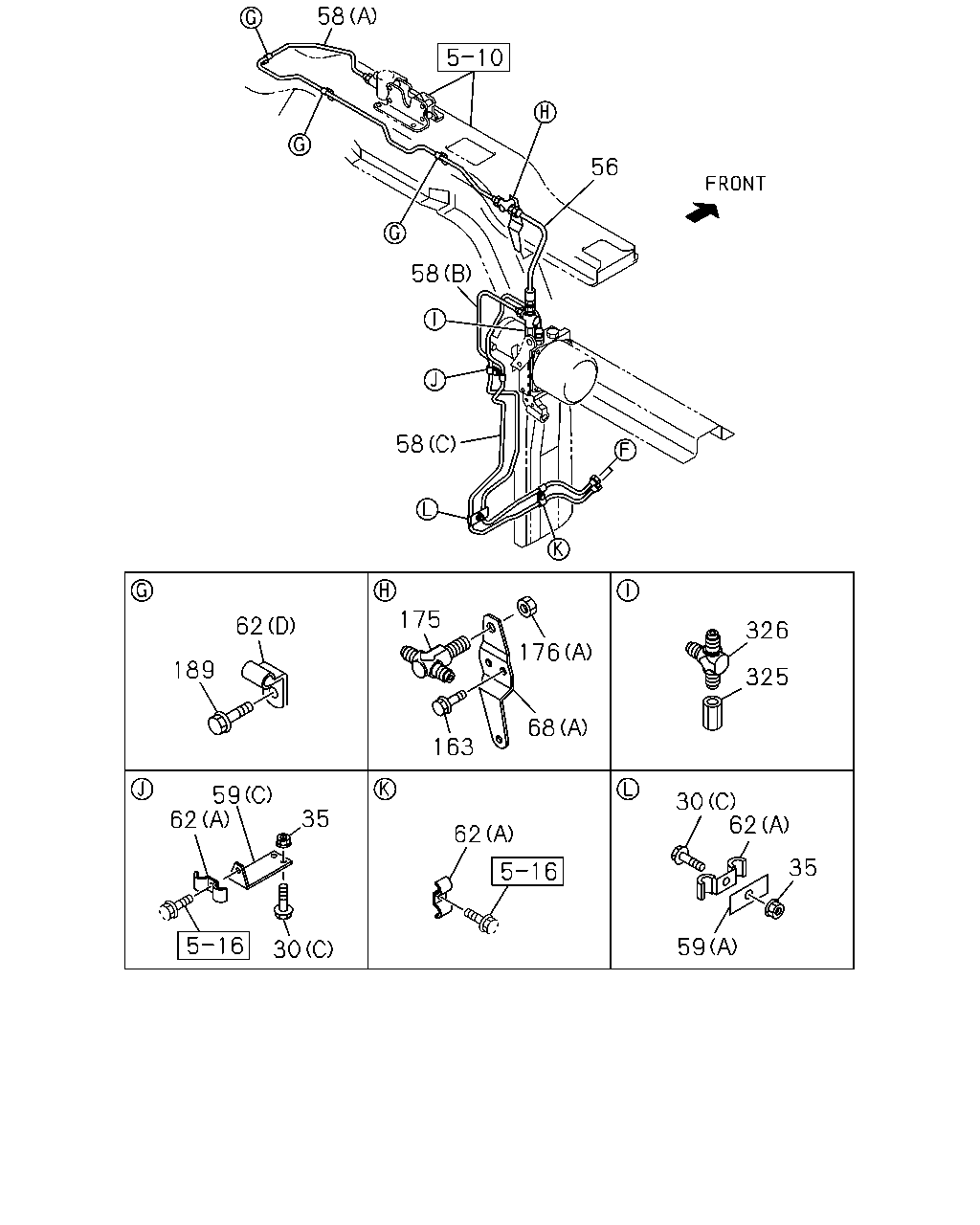

58 58 56 175 58 326 325 30 62 35 59 62 59 30 62 189 62 163 35 176 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; BRKT FIX TAIWAN EQUIPMENT(WW5) (B) M8X30 FLANGE	0-28650-830-0	02	1	1512-	●
30	BOLT; BRKT FIX (C) M8X20 FLANGE	0-28650-820-0	03	1	1303-1511	●
30	BOLT; BRKT FIX (C) M8X20 FLANGE	0-28650-820-0	03	1	1512-	●	●
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	02	1	1303-1511	●
30	BOLT; BRKT FIX EXC. TAIWAN EQUIPMENT(WW5) (B) M8X30 FLANGE	0-28650-830-0	01	1	1512-	●
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	01	1	1512-		●
30	BOLT; BRKT FIX (A) M12X25 FLANGE	0-28651-225-0	01	1	1303-1511	●
30	BOLT; BRKT FIX (A) M12X25 FLANGE	0-28651-225-0	01	1	1512-	●	●
35	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1303-1511	●
35	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1512-	●	●
56	HOSE; FLEX,OIL PIPE L=400	1-09365-060-0	01	1	1303-1511	●
56	HOSE; FLEX,OIL PIPE L=400	1-09365-060-0	01	1	1512-	●	●
58	PIPE; OIL,POWER UNIT (A) L=1401 SERVICED BY L=1500	1-47428-735-0	01	1	1303-1511	●
58	PIPE; OIL,POWER UNIT (A) L=1401 SERVICED BY L=1500	1-47428-735-0	01	1	1512-	●	●
58	PIPE; OIL,POWER UNIT (B) L=1162 SERVICED BY L=1200	1-47428-732-0	01	1	1303-1511	●
58	PIPE; OIL,POWER UNIT (B) L=1162 SERVICED BY L=1200	1-47428-732-0	01	1	1512-	●	●
58	PIPE; OIL,POWER UNIT (C) L=1219 SERVICED BY L=1250	1-47428-733-0	01	1	1303-1511	●
58	PIPE; OIL,POWER UNIT (C) L=1219 SERVICED BY L=1250	1-47428-733-0	01	1	1512-	●	●
59	BRACKET; CLIP EXC. TAIWAN EQUIPMENT(WW5) (E)	1-47479-248-0	01	1	1512-	●
59	BRACKET; CLIP (E)	1-47479-248-0	01	1	1512-		●
59	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1303-1511	●
59	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1512-	●	●
59	BRACKET; CLIP (B) L=115 B=25	1-47476-758-0	02	1	1303-1511	●
59	BRACKET; CLIP TAIWAN EQUIPMENT(WW5) (B) L=115 B=25	1-47476-758-0	02	1	1512-	●
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	1303-1511	●
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	1512-	●	●
59	BRACKET; CLIP (D)	1-47477-631-1	01	1	1303-1511	●
59	BRACKET; CLIP (D)	1-47477-631-1	01	1	1512-	●	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	0-95324-825-0	01	1	1303-1511	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	0-95324-825-0	01	1	1512-	●	●
62	CLIP; OIL PIPE (D) ID=6 H=20 L=20	1-09700-603-0	03	1	1303-1511	●
62	CLIP; OIL PIPE (D) ID=6 H=20 L=20	1-09700-603-0	03	1	1512-	●	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	1303-1511	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	1512-	●	●
62	CLIP; OIL PIPE (E) ID=24 L=27	1-09700-809-0	01	1	1303-1511	●
62	CLIP; OIL PIPE (E) ID=24 L=27	1-09700-809-0	01	1	1512-	●	●
62	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	03	1	1303-1511	●
62	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	03	1	1512-	●	●
68	BRACKET; UNION (A)	1-53458-374-1	01	1	1303-1511	●
68	BRACKET; UNION (A)	1-53458-374-1	01	1	1512-	●	●
68	BRACKET; UNION (B)	8-98147-166-0	01	1	1303-1511	●
68	BRACKET; UNION (B)	8-98147-166-0	01	1	1512-	●	●
163	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	02	1	1303-1511	●
163	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	02	1	1512-	●	●
175	UNION; FLEX HOSE M12 2WAY	1-09654-234-2	01	1	1303-1511	●
175	UNION; FLEX HOSE M12 2WAY	1-09654-234-2	01	1	1512-	●	●
176	NUT; UNION (A) M12 FLANGE	0-91180-212-0	01	1	1303-1511	●
176	NUT; UNION (A) M12 FLANGE	0-91180-212-0	01	1	1512-	●	●
176	NUT; UNION (B) M12	9-09840-280-0	02	1	1303-1511	●
176	NUT; UNION (B) M12	9-09840-280-0	02	1	1512-	●	●
189	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1303-1511	●
189	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1512-	●	●
325	ADAPTER; PUMP M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	1303-1511	●
325	ADAPTER; PUMP M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	1512-	●	●
326	UNION; PUMP M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1303-1511	●
326	UNION; PUMP M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1512-	●	●

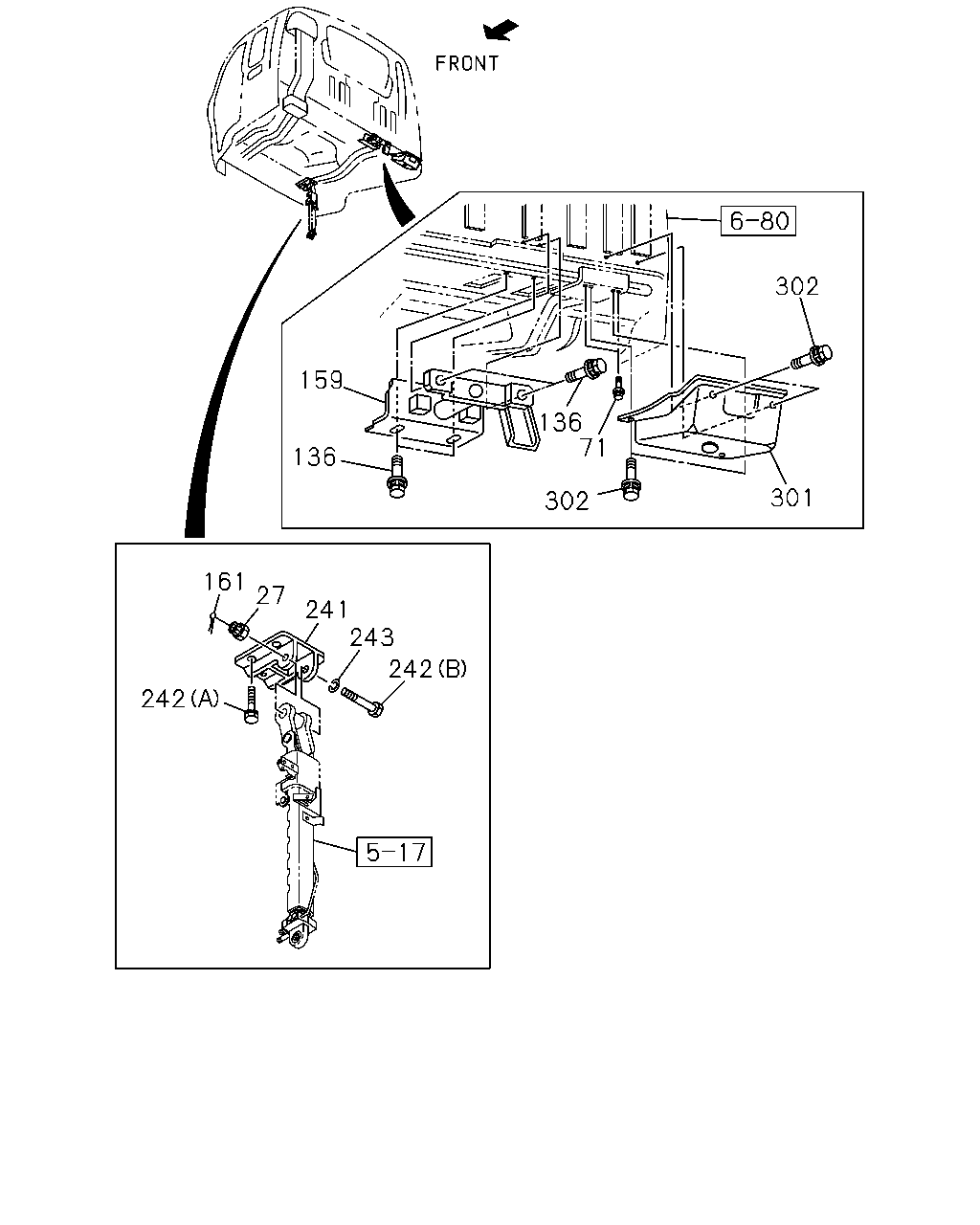

159 136 161 27 241 243 242 242 302 136 71 301 302

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	NUT; OIL CYL M14 SLOTTED	0-91116-514-0	01	1	1303-1511	●
27	NUT; OIL CYL M14 SLOTTED	0-91116-514-0	01	1	1512-	●	●
71	BOLT M10X25 W/LK&PL WASHER	1-09980-488-0	02	1	1303-1511	●
71	BOLT M10X25 W/LK&PL WASHER	1-09980-488-0	02	1	1512-	●	●
136	BOLT; CAB LK M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	1303-1511	●
136	BOLT; CAB LK M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	1512-	●	●
159	PIN	1-79717-627-1	01	1	1303-1511	●
159	PIN	1-79717-627-1	01	1	1512-	●	●
161	PIN; SPLIT OD=2.8 L=25	0-81123-025-0	01	1	1303-1511	●
161	PIN; SPLIT OD=2.8 L=25	0-81123-025-0	01	1	1512-	●	●
241	BRACKET; POWER CYL UPR,CAB TILT	1-53458-660-1	01	1	1303-1511	●
241	BRACKET; POWER CYL UPR,CAB TILT	1-53458-660-1	01	1	1512-	●	●
242	BOLT; POWER CYL BRKT,CAB TILT (A) M10X30 W/SP WASHER	1-09980-546-0	05	1	1303-1511	●
242	BOLT; POWER CYL BRKT,CAB TILT (A) M10X30 W/SP WASHER	1-09980-546-0	05	1	1512-	●	●
242	BOLT; POWER CYL BRKT,CAB TILT (B) M14X70	1-53458-633-0	01	1	1303-1511	●
242	BOLT; POWER CYL BRKT,CAB TILT (B) M14X70	1-53458-633-0	01	1	1512-	●	●
243	WASHER; LK,POWER CYL BRKT ID=14.2	0-91510-814-0	01	1	1303-1511	●
243	WASHER; LK,POWER CYL BRKT ID=14.2	0-91510-814-0	01	1	1512-	●	●
301	BRACKET; RR MTG,CAB	1-62570-866-1	02	1	1303-1511	●
301	BRACKET; RR MTG,CAB	1-62570-866-1	02	1	1512-	●	●
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	1-09980-488-0	08	1	1303-1511	●
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	1-09980-488-0	08	1	1512-	●	●

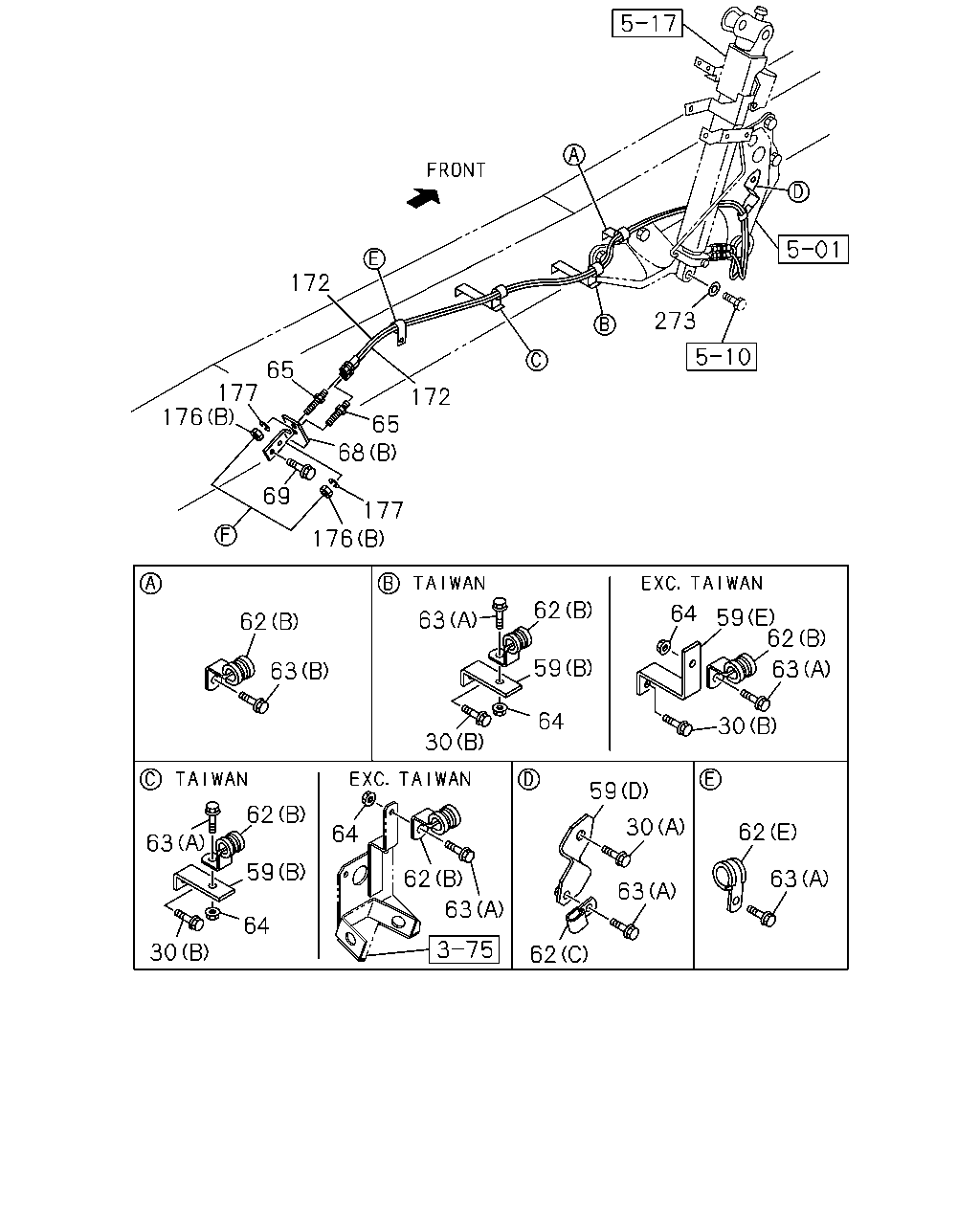

273 172 172 65 68 177 176 69 176 177 65 62 63 63 62 59 64 30 64 59 62 63 30 62 63 63 30 59 62 63 62 64 62 59 64 30 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; BRKT FIX TAIWAN EQUIPMENT(WW5) (B) M8X30 FLANGE	0-28650-830-0	02	1	1512-	●
30	BOLT; BRKT FIX (C) M8X20 FLANGE	0-28650-820-0	03	1	1303-1511	●
30	BOLT; BRKT FIX (C) M8X20 FLANGE	0-28650-820-0	03	1	1512-	●	●
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	02	1	1303-1511	●
30	BOLT; BRKT FIX EXC. TAIWAN EQUIPMENT(WW5) (B) M8X30 FLANGE	0-28650-830-0	01	1	1512-	●
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	01	1	1512-		●
30	BOLT; BRKT FIX (A) M12X25 FLANGE	0-28651-225-0	01	1	1303-1511	●
30	BOLT; BRKT FIX (A) M12X25 FLANGE	0-28651-225-0	01	1	1512-	●	●
59	BRACKET; CLIP EXC. TAIWAN EQUIPMENT(WW5) (E)	1-47479-248-0	01	1	1512-	●
59	BRACKET; CLIP (E)	1-47479-248-0	01	1	1512-		●
59	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1303-1511	●
59	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1512-	●	●
59	BRACKET; CLIP (B) L=115 B=25	1-47476-758-0	02	1	1303-1511	●
59	BRACKET; CLIP TAIWAN EQUIPMENT(WW5) (B) L=115 B=25	1-47476-758-0	02	1	1512-	●
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	1303-1511	●
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	1512-	●	●
59	BRACKET; CLIP (D)	1-47477-631-1	01	1	1303-1511	●
59	BRACKET; CLIP (D)	1-47477-631-1	01	1	1512-	●	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	0-95324-825-0	01	1	1303-1511	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	0-95324-825-0	01	1	1512-	●	●
62	CLIP; OIL PIPE (D) ID=6 H=20 L=20	1-09700-603-0	03	1	1303-1511	●
62	CLIP; OIL PIPE (D) ID=6 H=20 L=20	1-09700-603-0	03	1	1512-	●	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	1303-1511	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	1512-	●	●
62	CLIP; OIL PIPE (E) ID=24 L=27	1-09700-809-0	01	1	1303-1511	●
62	CLIP; OIL PIPE (E) ID=24 L=27	1-09700-809-0	01	1	1512-	●	●
62	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	03	1	1303-1511	●
62	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	03	1	1512-	●	●
63	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1303-1511	●
63	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1512-	●	●
63	BOLT; CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	1303-1511	●
63	BOLT; CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	1512-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
65	UNION; OIL PIPE M12 L=66.5	0-92113-306-0	02	1	1303-1511	●
65	UNION; OIL PIPE M12 L=66.5	0-92113-306-0	02	1	1512-	●	●
68	BRACKET; UNION (A)	1-53458-374-1	01	1	1303-1511	●
68	BRACKET; UNION (A)	1-53458-374-1	01	1	1512-	●	●
68	BRACKET; UNION (B)	8-98147-166-0	01	1	1303-1511	●
68	BRACKET; UNION (B)	8-98147-166-0	01	1	1512-	●	●
69	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-1511	●
69	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
172	HOSE; FLEX,OIL TILT L=1600	8-97634-002-0	02	1	1303-1511	●
172	HOSE; FLEX,OIL TILT L=1600	8-97634-002-0	02	1	1512-	●	●
176	NUT; UNION (A) M12 FLANGE	0-91180-212-0	01	1	1303-1511	●
176	NUT; UNION (A) M12 FLANGE	0-91180-212-0	01	1	1512-	●	●
176	NUT; UNION (B) M12	9-09840-280-0	02	1	1303-1511	●
176	NUT; UNION (B) M12	9-09840-280-0	02	1	1512-	●	●
177	WASHER; LK,UNION ID=12.2	0-91510-512-0	02	1	1303-1511	●
177	WASHER; LK,UNION ID=12.2	0-91510-512-0	02	1	1512-	●	●
273	WASHER; PL,OIL CYL ID=10.5 OD=32	0-91614-810-0	01	1	1303-1511	●
273	WASHER; PL,OIL CYL ID=10.5 OD=32	0-91614-810-0	01	1	1512-	●	●
