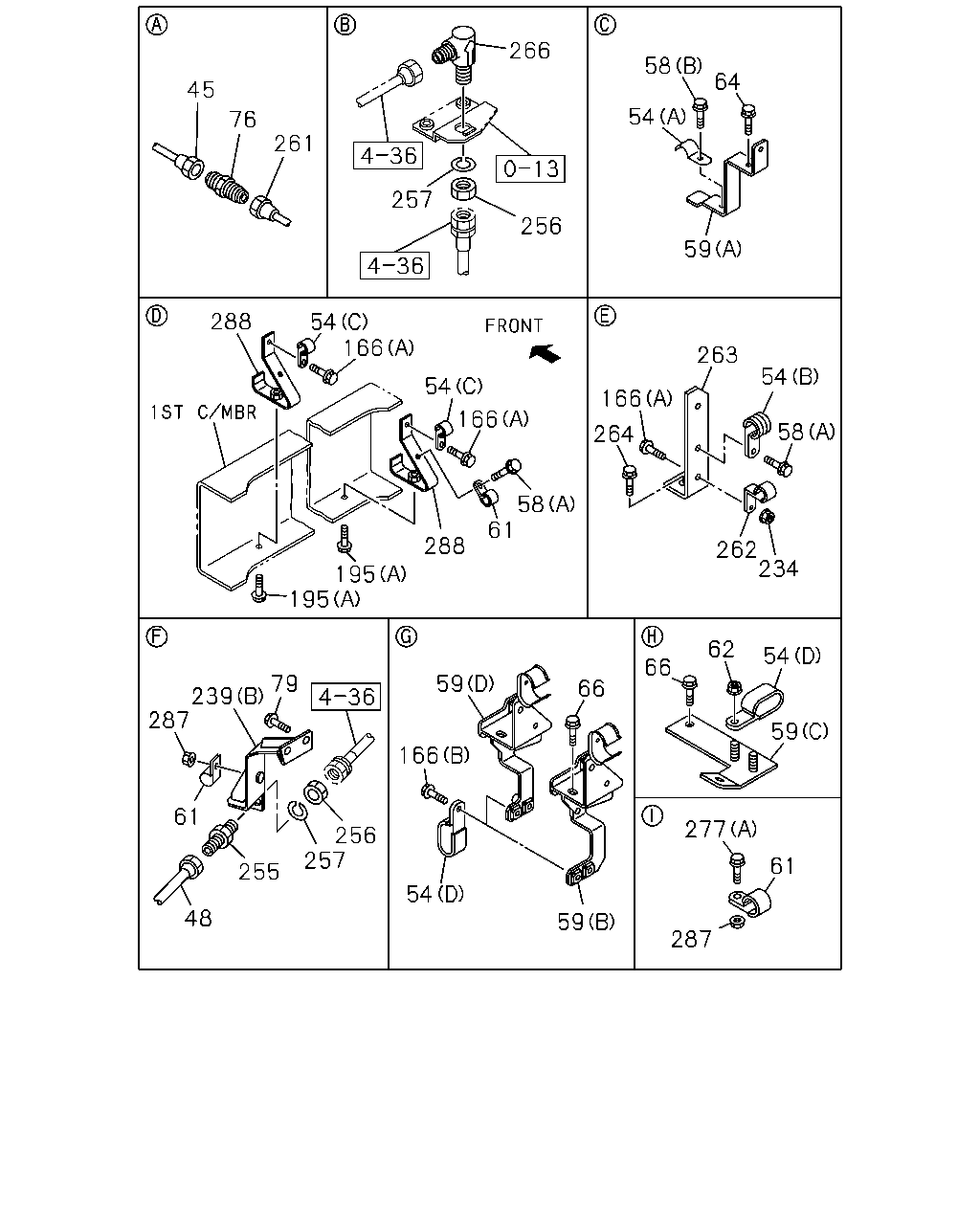

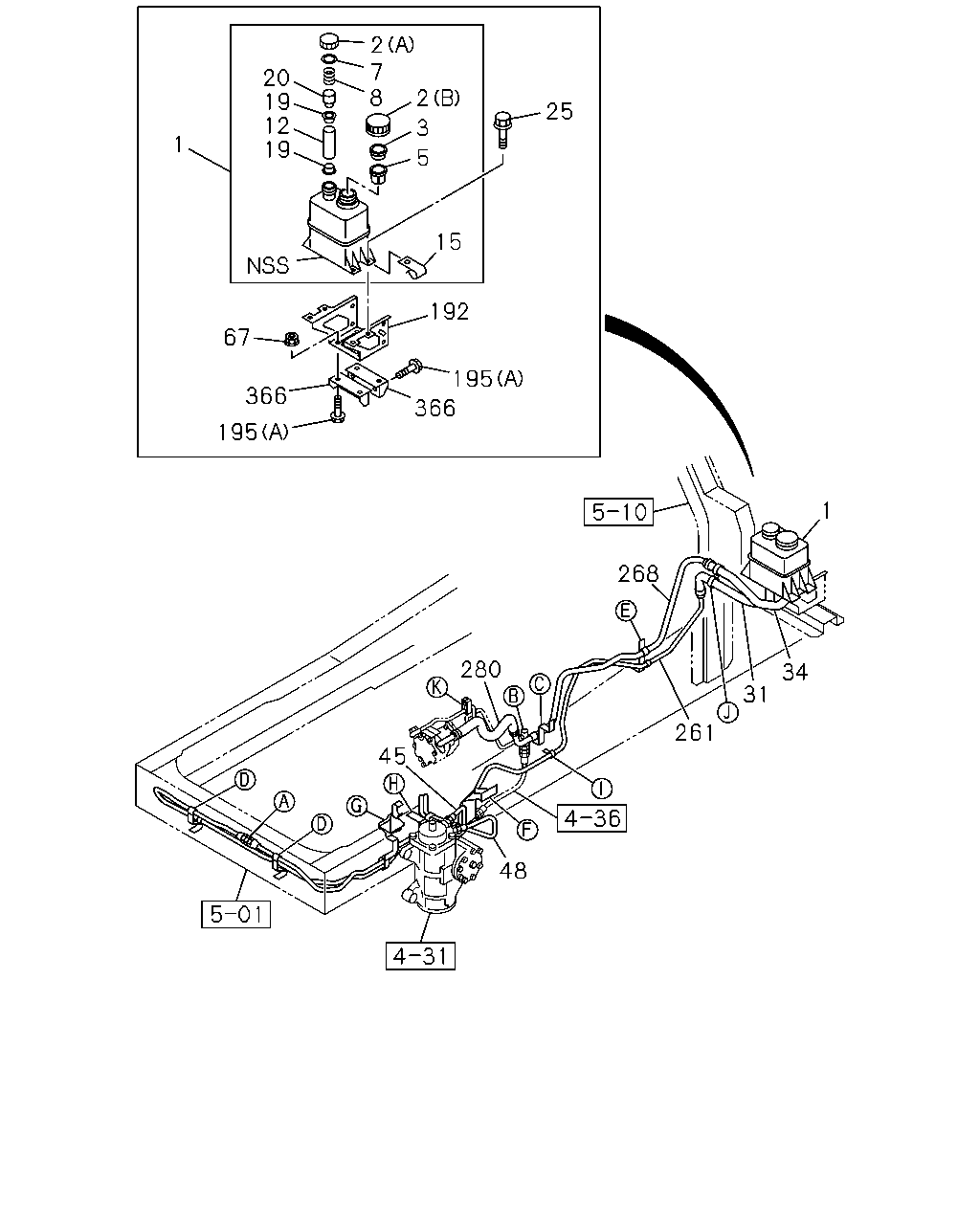

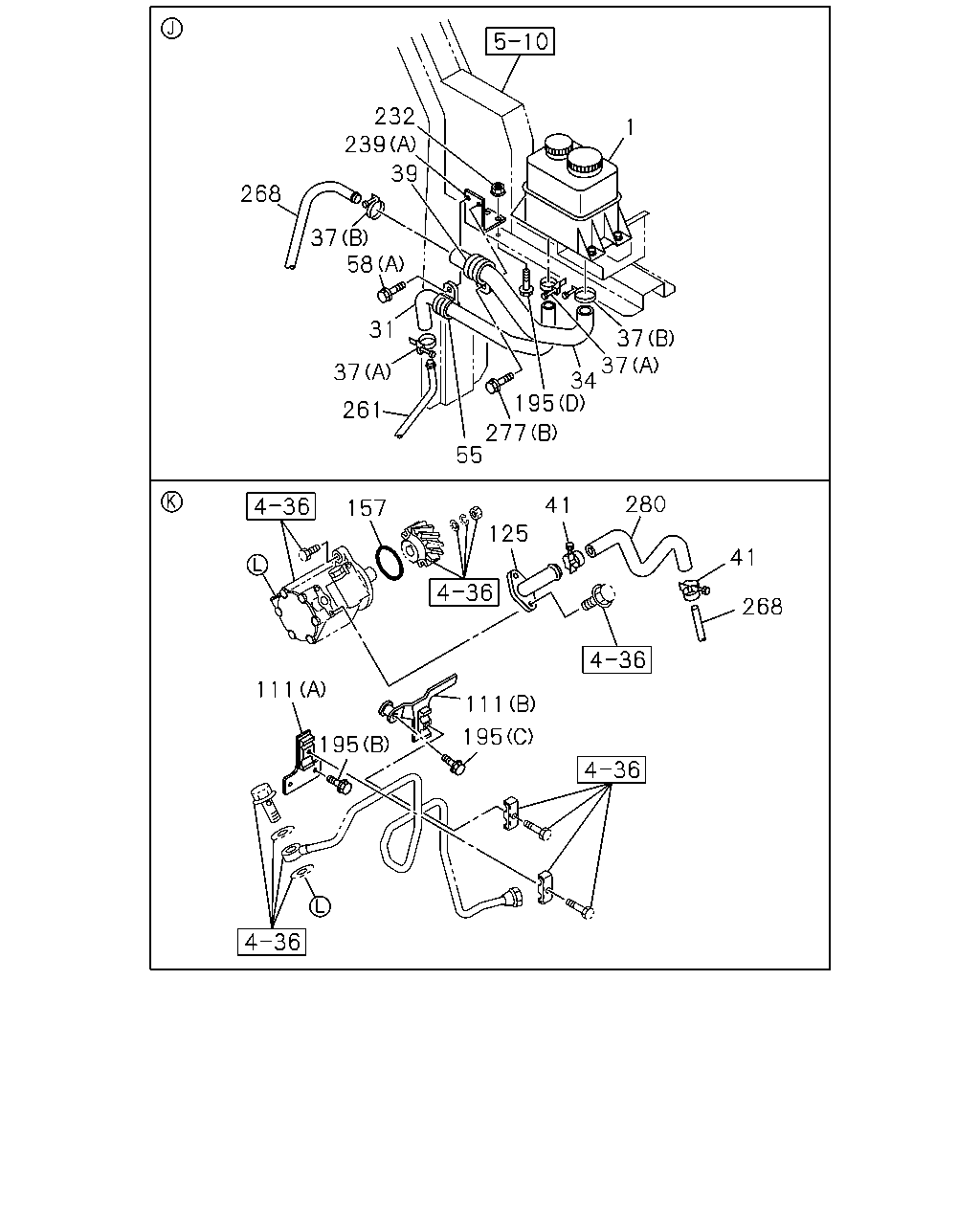

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#115287) — 209 parça

232 239 268 39 37 58 31 37 261 1 37 37 34 195 277 55 157 41 280 41 268 125 111 195 195 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1303-1511	●
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1512-	●	●
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1303-1511	●
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1512-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1303-1511	●
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1512-	●	●
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	1303-1511	●
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	1512-	●	●
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	1303-1511	●
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	1512-	●	●
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	1303-1511	●
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	1512-	●	●
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1303-1511	●
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1512-	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1303-1511	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1512-	●	●
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	01	1	1303-1511	●
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	01	1	1512-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1303-1511	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1303-1511	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1303-1511	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1303-1511	●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1512-	●	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1303-1511	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1512-	●	●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1303-1511	●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1512-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1303-1511	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1512-	●	●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1303-1511	●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1512-	●	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1303-1511	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1512-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-1511	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1512-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1303-1511	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1512-	●	●
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1303-1511	●
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1512-	●	●
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1303-1511	●
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-	●	●
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1303-1511	●
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1512-	●	●
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1303-1511	●
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1512-	●	●
261	PIPE; OIL,UNION TO HOSE FRONT UNDER RUN PROTECTOR<EBE>	8-98329-114-0	01	1	1512-	●	●
261	PIPE; OIL,UNION TO HOSE	8-98239-529-0	01	1	1303-1511	●
261	PIPE; OIL,UNION TO HOSE EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98239-529-0	01	1	1512-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98229-070-0	01	1	1303-1511	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98229-070-0	01	1	1512-	●	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-1511	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	1303-1511	●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	1512-	●	●
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1303-1511	●
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1512-	●	●

1 20 19 12 19 2 7 8 2 3 5 25 15 67 366 195 366 192 195 45 280 268 48 261 31 34 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1303-1511	●
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1512-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1303-1511	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1512-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1303-1511	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1512-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1303-1511	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1512-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1303-1511	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1512-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1303-1511	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1512-	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1303-1511	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1512-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1303-1511	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1512-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1303-1511	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1512-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	1303-1511	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	1512-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1303-1511	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1512-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1303-1511	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1512-	●	●
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1303-1511	●
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1512-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1303-1511	●
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1512-	●	●
45	PIPE; OIL,P/S UNIT TO UNION FRONT UNDER RUN PROTECTOR<EBE>	8-98287-561-0	01	1	1512-	●	●
45	PIPE; OIL,P/S UNIT TO UNION	8-98224-869-0	01	1	1303-1511	●
45	PIPE; OIL,P/S UNIT TO UNION EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98224-869-0	01	1	1512-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98224-868-0	01	1	1303-1511	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98224-868-0	01	1	1512-	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1303-1511	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1512-	●	●
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	1303-1511	●
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	1512-	●	●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1303-1511	●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1512-	●	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1303-1511	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1512-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-1511	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1512-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1303-1511	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1512-	●	●
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1303-1511	●
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1512-	●	●
261	PIPE; OIL,UNION TO HOSE FRONT UNDER RUN PROTECTOR<EBE>	8-98329-114-0	01	1	1512-	●	●
261	PIPE; OIL,UNION TO HOSE	8-98239-529-0	01	1	1303-1511	●
261	PIPE; OIL,UNION TO HOSE EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98239-529-0	01	1	1512-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98229-070-0	01	1	1303-1511	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98229-070-0	01	1	1512-	●	●
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1303-1511	●
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1512-	●	●
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	1303-1511	●
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	1512-	●	●

45 261 76 266 257 256 58 54 59 64 288 54 54 166 166 58 61 288 195 195 287 61 239 256 79 255 48 257 54 166 59 59 66 287 61 277 66 54 62 59 262 234 264 166 263 58 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	PIPE; OIL,P/S UNIT TO UNION FRONT UNDER RUN PROTECTOR<EBE>	8-98287-561-0	01	1	1512-	●	●
45	PIPE; OIL,P/S UNIT TO UNION	8-98224-869-0	01	1	1303-1511	●
45	PIPE; OIL,P/S UNIT TO UNION EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98224-869-0	01	1	1512-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98224-868-0	01	1	1303-1511	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98224-868-0	01	1	1512-	●	●
54	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	02	1	1303-1511	●
54	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	02	1	1512-	●	●
54	CLIP; OIL PIPE (D) ID=16X2 L=20	0-95325-535-0	02	1	1303-1511	●
54	CLIP; OIL PIPE (D) ID=16X2 L=20	0-95325-535-0	02	1	1512-	●	●
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	1303-1511	●
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	1512-	●	●
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	1303-1511	●
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	1512-	●	●
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	01	1	1303-1511	●
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	01	1	1512-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1303-1511	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1303-1511	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1303-1511	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
59	BRACKET; CLIP,OIL PIPE FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98287-558-0	01	1	1512-	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47471-183-0	01	1	1303-1511	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47471-183-0	01	1	1512-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98224-867-0	01	1	1303-1511	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98224-867-0	01	1	1512-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	8-98239-922-0	01	1	1303-1511	●
59	BRACKET; CLIP,OIL PIPE EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98239-922-0	01	1	1512-	●	●
61	CLIP; OIL PIPE ID=16 L=20	0-95235-535-0	01	1	1303-1511	●
61	CLIP; OIL PIPE ID=16 L=20	0-95235-535-0	01	1	1512-	●	●
61	CLIP; OIL PIPE ID=16 L=20	0-95235-535-0	02	1	1303-1511	●
61	CLIP; OIL PIPE ID=16 L=20	0-95235-535-0	02	1	1512-	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1303-1511	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28050-830-0	01	1	1303-1511	●
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28050-830-0	01	1	1512-	●	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	1303-1511	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	1512-	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1303-1511	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1512-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1303-1511	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1512-	●	●
166	BOLT; CLIP FRONT UNDER RUN PROTECTOR<EBE> (B) M8X45 FLANGE	0-28050-845-0	01	1	1512-	●	●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1303-1511	●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-1511	●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1512-	●	●
166	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1303-1511	●
166	BOLT; CLIP EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M8X25 FLANGE	0-28650-825-0	01	1	1512-	●	●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1303-1511	●
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1512-	●	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1303-1511	●
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1512-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-1511	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1512-	●	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1303-1511	●
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1512-	●	●
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1303-1511	●
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1512-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1303-1511	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1303-1511	●
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1512-	●	●
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1303-1511	●
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1512-	●	●
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1303-1511	●
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1512-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1303-1511	●
256	NUT; UNION M22	0-91111-522-0	01	1	1303-1511	●
256	NUT; UNION M22	0-91111-522-0	01	1	1512-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1512-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1303-1511	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1303-1511	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1512-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1512-	●	●
261	PIPE; OIL,UNION TO HOSE FRONT UNDER RUN PROTECTOR<EBE>	8-98329-114-0	01	1	1512-	●	●
261	PIPE; OIL,UNION TO HOSE	8-98239-529-0	01	1	1303-1511	●
261	PIPE; OIL,UNION TO HOSE EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98239-529-0	01	1	1512-	●	●
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1303-1511	●
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1512-	●	●
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	1303-1511	●
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	1512-	●	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1303-1511	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1512-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 ELBOW	1-09654-154-1	01	1	1303-1511	●
266	UNION; OIL PIPE,P/S M20 & M22 ELBOW	1-09654-154-1	01	1	1512-	●	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-1511	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	1303-1511	●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	1512-	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
288	BRACKET; CLIP,P/S	1-47479-521-0	02	1	1303-1511	●
288	BRACKET; CLIP,P/S	1-47479-521-0	02	1	1512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
