Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#115286) — 207 parça

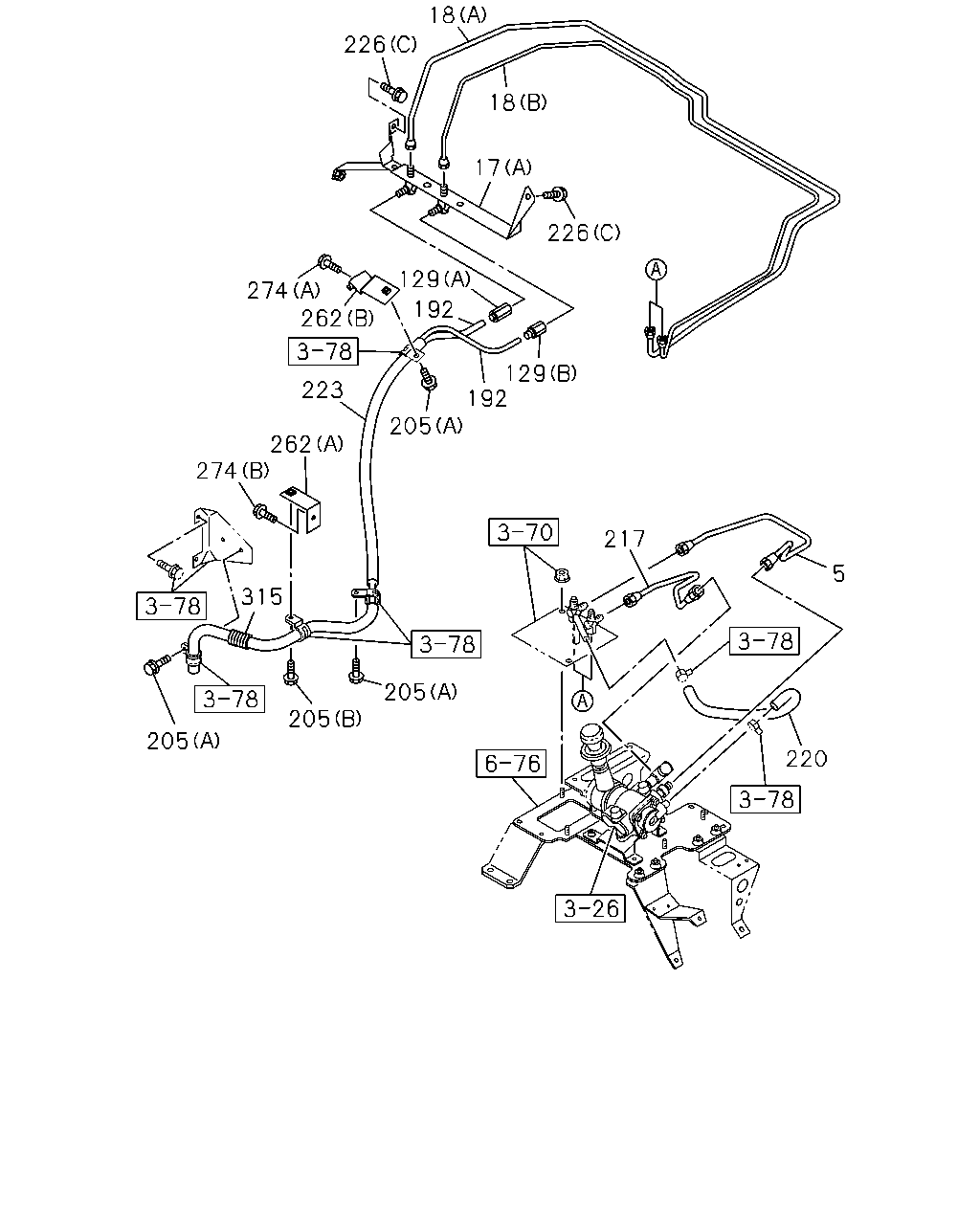

18 226 18 17 226 129 192 129 262 274 223 205 262 274 315 205 205 205 220 192 217 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PIPE; AIR,UNION TO PARKING VLV	1-49118-158-0	01	1	1303-1511	●
5	PIPE; AIR,UNION TO PARKING VLV EXC. FULL TRAILER PIPING<Z25>	1-49118-158-0	01	1	1512-	●
5	PIPE; AIR,UNION TO PARKING VLV	1-49118-158-0	01	1	1512-		●
17	UNION; AIR PIPE FULL TRAILER PIPING<Z25> (B) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	1512-	●
17	UNION; AIR PIPE FULL TRAILER PIPING<Z25> (A)	1-47470-656-0	01	1	1512-	●
17	UNION; AIR PIPE (A)	1-47470-464-3	01	1	1303-1511	●
17	UNION; AIR PIPE EXC. FULL TRAILER PIPING<Z25> (A)	1-47470-464-3	01	1	1512-	●
17	UNION; AIR PIPE (A)	1-47470-464-3	01	1	1512-		●
18	PIPE; AIR,UNION TO UNION FULL TRAILER PIPING<Z25> (C) L=2316 SERVICED BY L=2400	1-47428-856-0	01	1	1512-	●
18	PIPE; AIR,UNION TO UNION (A) L=2098 SERVICED BY L=2100	1-47428-882-0	01	1	1303-1511	●
18	PIPE; AIR,UNION TO UNION (A) L=2098 SERVICED BY L=2100	1-47428-882-0	01	1	1512-	●	●
18	PIPE; AIR,UNION TO UNION (B) L=1931 SERVICED BY L=1950	1-47428-854-0	01	1	1303-1511	●
18	PIPE; AIR,UNION TO UNION (B) L=1931 SERVICED BY L=1950	1-47428-854-0	01	1	1512-	●	●
129	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (B) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1512-	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1303-1511	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1512-	●	●
129	CONNECTOR; NYLON TUBE MAP6U M/T(Y4B) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1303-1511	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1512-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1303-	●	●
205	BOLT; TUBE CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	1303-1511	●
205	BOLT; TUBE CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	1512-	●	●
205	BOLT; TUBE CLIP (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1303-1511	●
205	BOLT; TUBE CLIP (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1512-	●	●
217	PIPE; AIR,PARKING BRK VLV TO UNION FULL TRAILER PIPING<Z25>	1-49123-172-0	01	1	1512-	●
217	PIPE; AIR,PARKING BRK VLV TO UNION	1-49118-159-0	01	1	1303-1511	●
217	PIPE; AIR,PARKING BRK VLV TO UNION EXC. FULL TRAILER PIPING<Z25>	1-49118-159-0	01	1	1512-	●
217	PIPE; AIR,PARKING BRK VLV TO UNION	1-49118-159-0	01	1	1512-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=350 SERVICED BY L=10000	9-09914-701-0	01	1	1303-1511	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=350 SERVICED BY L=10000	9-09914-701-0	01	1	1512-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1303-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1303-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1303-	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=13	1-87411-023-0	AR	1	1303-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1303-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1303-	●	●
226	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	01	1	1303-1511	●
226	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	01	1	1512-	●	●
226	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	04	1	1303-1511	●
226	BOLT; UNION TAIWAN EQUIPMENT(WW5) (A) M8X16 FLANGE	0-28050-816-0	04	1	1512-	●
226	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	1303-1511	●
226	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	1512-	●	●
226	BOLT; UNION MAP6U M/T(Y4B) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-1511	●
226	BOLT; UNION (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1512-	●	●
262	BRACKET MAP6U M/T(Y4B) (A)	1-79996-143-0	01	1	1303-1511	●
262	BRACKET (A)	1-79996-143-0	01	1	1512-	●	●
262	BRACKET (B)	1-79996-258-1	01	1	1303-1511	●
262	BRACKET (B)	1-79996-258-1	01	1	1512-	●	●
274	BOLT; BRKT MAP6U M/T(Y4B) (A) M8X16 FLANGE	0-28050-816-0	01	1	1303-1511	●
274	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1512-	●	●
274	BOLT; BRKT MAP6U M/T(Y4B) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1303-1511	●
274	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1512-	●	●
315	CLIP	8-97332-148-0	01	1	1303-1511	●
315	CLIP	8-97332-148-0	01	1	1512-	●	●

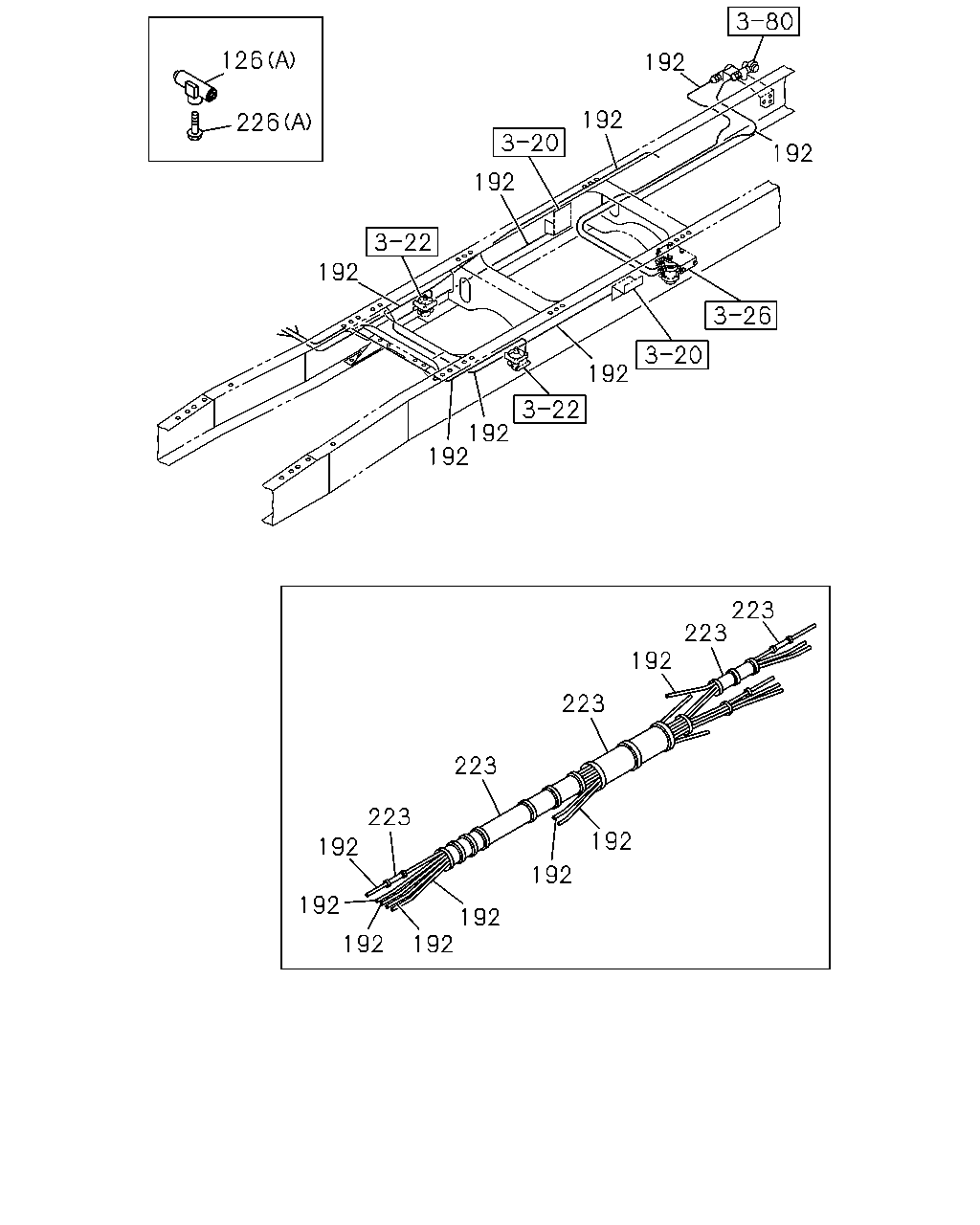

126 226 192 192 192 192 192 192 192 192 192 192 192 192 223 223 223 192 192 192 192 223 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
126	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1303-1511	●
126	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1512-	●	●
126	UNION; NYLON TUBE (B)	1-09661-612-1	01	1	1303-1511	●
126	UNION; NYLON TUBE (B)	1-09661-612-1	01	1	1512-	●	●
126	UNION; NYLON TUBE (C) M22X2 STRAIGHT	8-98107-103-0	02	1	1303-1511	●
126	UNION; NYLON TUBE (C) M22X2 STRAIGHT	8-98107-103-0	02	1	1512-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1303-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1303-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1303-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1303-	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=13	1-87411-023-0	AR	1	1303-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1303-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1303-	●	●
226	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	01	1	1303-1511	●
226	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	01	1	1512-	●	●
226	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	04	1	1303-1511	●
226	BOLT; UNION TAIWAN EQUIPMENT(WW5) (A) M8X16 FLANGE	0-28050-816-0	04	1	1512-	●
226	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	1303-1511	●
226	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	1512-	●	●
226	BOLT; UNION MAP6U M/T(Y4B) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-1511	●
226	BOLT; UNION (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1512-	●	●

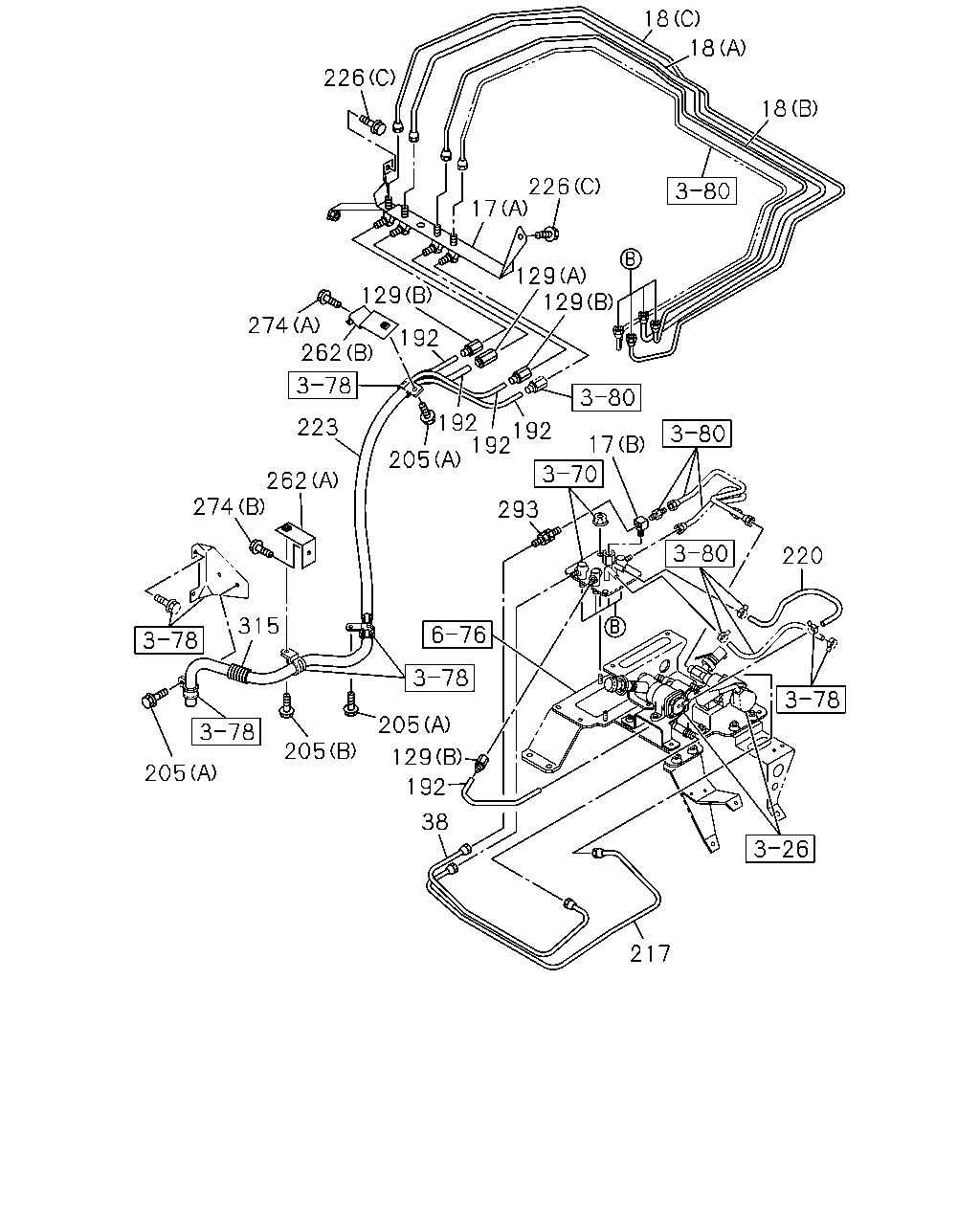

205 205 315 274 223 262 262 274 129 226 174 129 129 226 18 18 18 220 17 192 192 192 205 205 129 192 38 217 293 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	UNION; AIR PIPE FULL TRAILER PIPING<Z25> (B) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	1512-	●
17	UNION; AIR PIPE FULL TRAILER PIPING<Z25> (A)	1-47470-656-0	01	1	1512-	●
17	UNION; AIR PIPE (A)	1-47470-464-3	01	1	1303-1511	●
17	UNION; AIR PIPE EXC. FULL TRAILER PIPING<Z25> (A)	1-47470-464-3	01	1	1512-	●
17	UNION; AIR PIPE (A)	1-47470-464-3	01	1	1512-		●
18	PIPE; AIR,UNION TO UNION FULL TRAILER PIPING<Z25> (C) L=2316 SERVICED BY L=2400	1-47428-856-0	01	1	1512-	●
18	PIPE; AIR,UNION TO UNION (A) L=2098 SERVICED BY L=2100	1-47428-882-0	01	1	1303-1511	●
18	PIPE; AIR,UNION TO UNION (A) L=2098 SERVICED BY L=2100	1-47428-882-0	01	1	1512-	●	●
18	PIPE; AIR,UNION TO UNION (B) L=1931 SERVICED BY L=1950	1-47428-854-0	01	1	1303-1511	●
18	PIPE; AIR,UNION TO UNION (B) L=1931 SERVICED BY L=1950	1-47428-854-0	01	1	1512-	●	●
38	PIPE; AIR,UNION TO MAG VLV FULL TRAILER PIPING<Z25>	1-49122-879-0	01	1	1512-	●
129	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (B) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	1512-	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1303-1511	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1512-	●	●
129	CONNECTOR; NYLON TUBE MAP6U M/T(Y4B) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1303-1511	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1512-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1303-	●	●
205	BOLT; TUBE CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	1303-1511	●
205	BOLT; TUBE CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	1512-	●	●
205	BOLT; TUBE CLIP (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1303-1511	●
205	BOLT; TUBE CLIP (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1512-	●	●
217	PIPE; AIR,PARKING BRK VLV TO UNION FULL TRAILER PIPING<Z25>	1-49123-172-0	01	1	1512-	●
217	PIPE; AIR,PARKING BRK VLV TO UNION	1-49118-159-0	01	1	1303-1511	●
217	PIPE; AIR,PARKING BRK VLV TO UNION EXC. FULL TRAILER PIPING<Z25>	1-49118-159-0	01	1	1512-	●
217	PIPE; AIR,PARKING BRK VLV TO UNION	1-49118-159-0	01	1	1512-		●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=350 SERVICED BY L=10000	9-09914-701-0	01	1	1303-1511	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=350 SERVICED BY L=10000	9-09914-701-0	01	1	1512-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1303-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1303-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1303-	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=13	1-87411-023-0	AR	1	1303-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1303-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1303-	●	●
226	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	01	1	1303-1511	●
226	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	01	1	1512-	●	●
226	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	04	1	1303-1511	●
226	BOLT; UNION TAIWAN EQUIPMENT(WW5) (A) M8X16 FLANGE	0-28050-816-0	04	1	1512-	●
226	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	1303-1511	●
226	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	1512-	●	●
226	BOLT; UNION MAP6U M/T(Y4B) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-1511	●
226	BOLT; UNION (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1512-	●	●
262	BRACKET MAP6U M/T(Y4B) (A)	1-79996-143-0	01	1	1303-1511	●
262	BRACKET (A)	1-79996-143-0	01	1	1512-	●	●
262	BRACKET (B)	1-79996-258-1	01	1	1303-1511	●
262	BRACKET (B)	1-79996-258-1	01	1	1512-	●	●
274	BOLT; BRKT MAP6U M/T(Y4B) (A) M8X16 FLANGE	0-28050-816-0	01	1	1303-1511	●
274	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1512-	●	●
274	BOLT; BRKT MAP6U M/T(Y4B) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1303-1511	●
274	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1512-	●	●
293	VALVE; CHECK FULL TRAILER PIPING<Z25>	1-48410-479-1	01	1	1512-	●
315	CLIP	8-97332-148-0	01	1	1303-1511	●
315	CLIP	8-97332-148-0	01	1	1512-	●	●

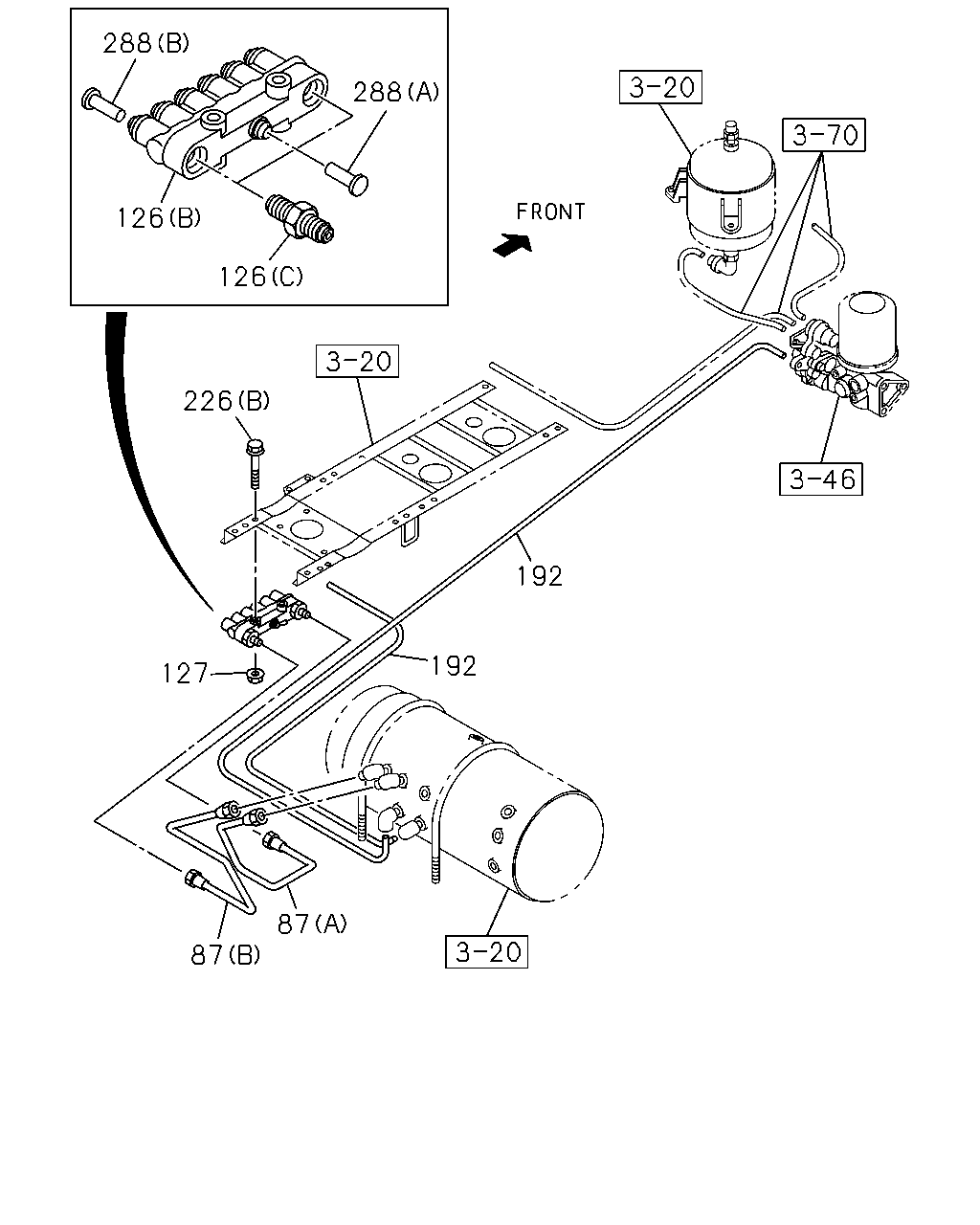

288 126 226 126 288 127 192 192 87 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
87	PIPE; AIR,AIR TANK TO UNION EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=429	8-98239-053-0	01	1	1512-	●
87	PIPE; AIR,AIR TANK TO UNION (B) L=429	8-98239-053-0	01	1	1512-		●
87	PIPE; AIR,AIR TANK TO UNION EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=543	8-98239-054-0	01	1	1512-	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=543	8-98239-054-0	01	1	1512-		●
87	PIPE; AIR,AIR TANK TO UNION (A) L=559	8-98239-051-0	01	1	1303-1511	●
87	PIPE; AIR,AIR TANK TO UNION BATTERY LAYOUT REAR VAR1<NCT> (A) L=559	8-98239-051-0	01	1	1512-	●
87	PIPE; AIR,AIR TANK TO UNION (B) L=424	8-98239-052-0	01	1	1303-1511	●
87	PIPE; AIR,AIR TANK TO UNION BATTERY LAYOUT REAR VAR1<NCT> (B) L=424	8-98239-052-0	01	1	1512-	●
126	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1303-1511	●
126	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1512-	●	●
126	UNION; NYLON TUBE (B)	1-09661-612-1	01	1	1303-1511	●
126	UNION; NYLON TUBE (B)	1-09661-612-1	01	1	1512-	●	●
126	UNION; NYLON TUBE (C) M22X2 STRAIGHT	8-98107-103-0	02	1	1303-1511	●
126	UNION; NYLON TUBE (C) M22X2 STRAIGHT	8-98107-103-0	02	1	1512-	●	●
127	NUT; UNION M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
127	NUT; UNION M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1303-	●	●
226	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	01	1	1303-1511	●
226	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	01	1	1512-	●	●
226	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	04	1	1303-1511	●
226	BOLT; UNION TAIWAN EQUIPMENT(WW5) (A) M8X16 FLANGE	0-28050-816-0	04	1	1512-	●
226	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	1303-1511	●
226	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	1512-	●	●
226	BOLT; UNION MAP6U M/T(Y4B) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-1511	●
226	BOLT; UNION (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1512-	●	●
288	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	1303-1511	●
288	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	1512-	●	●
288	PLUG (B) OD=8 PLASTIC	1-09661-616-0	01	1	1303-1511	●
288	PLUG (B) OD=8 PLASTIC	1-09661-616-0	01	1	1512-	●	●

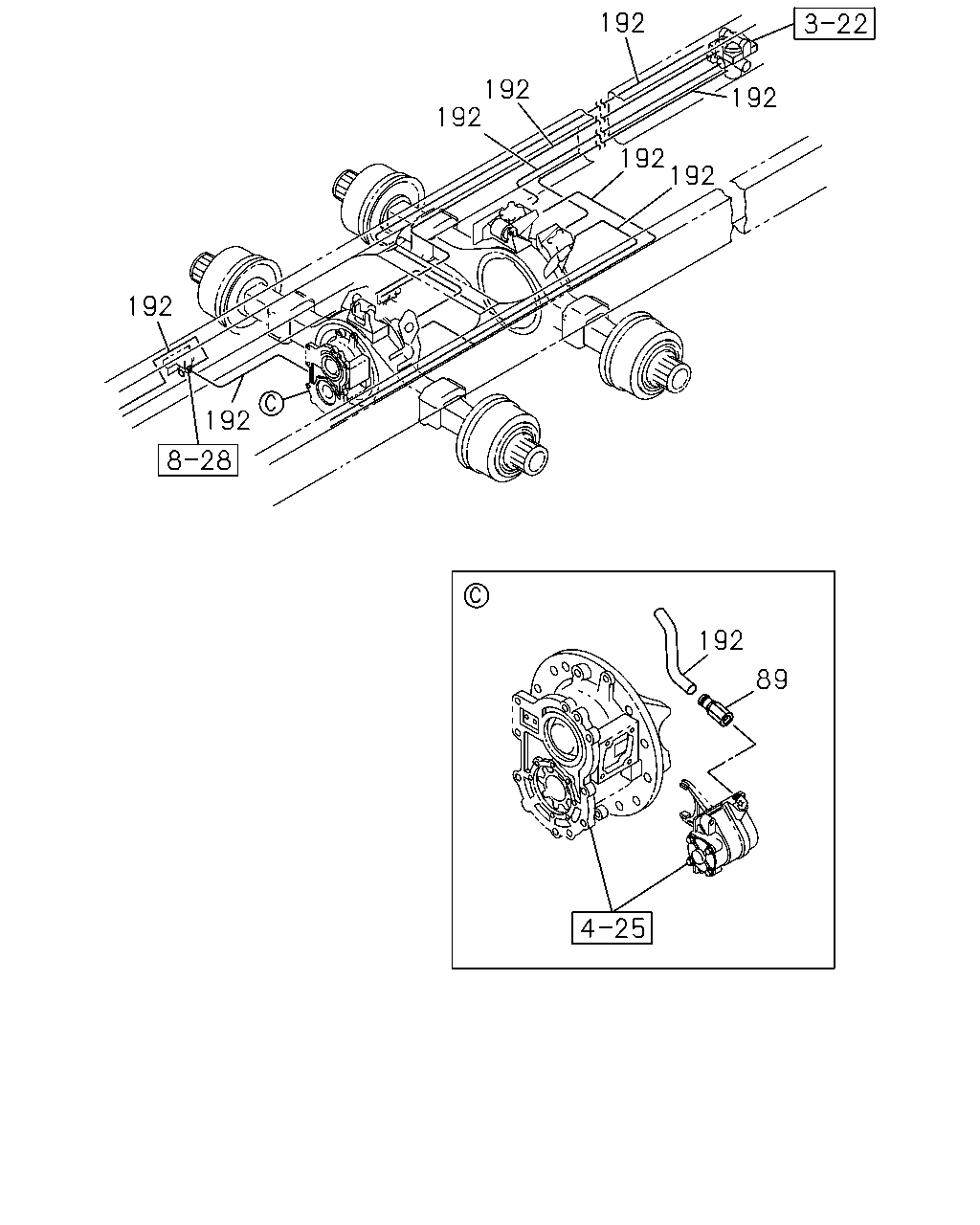

192 192 192 192 192 192 192 192 192 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	CONNECTOR; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1303-1511	●
89	CONNECTOR; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1512-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1303-	●	●

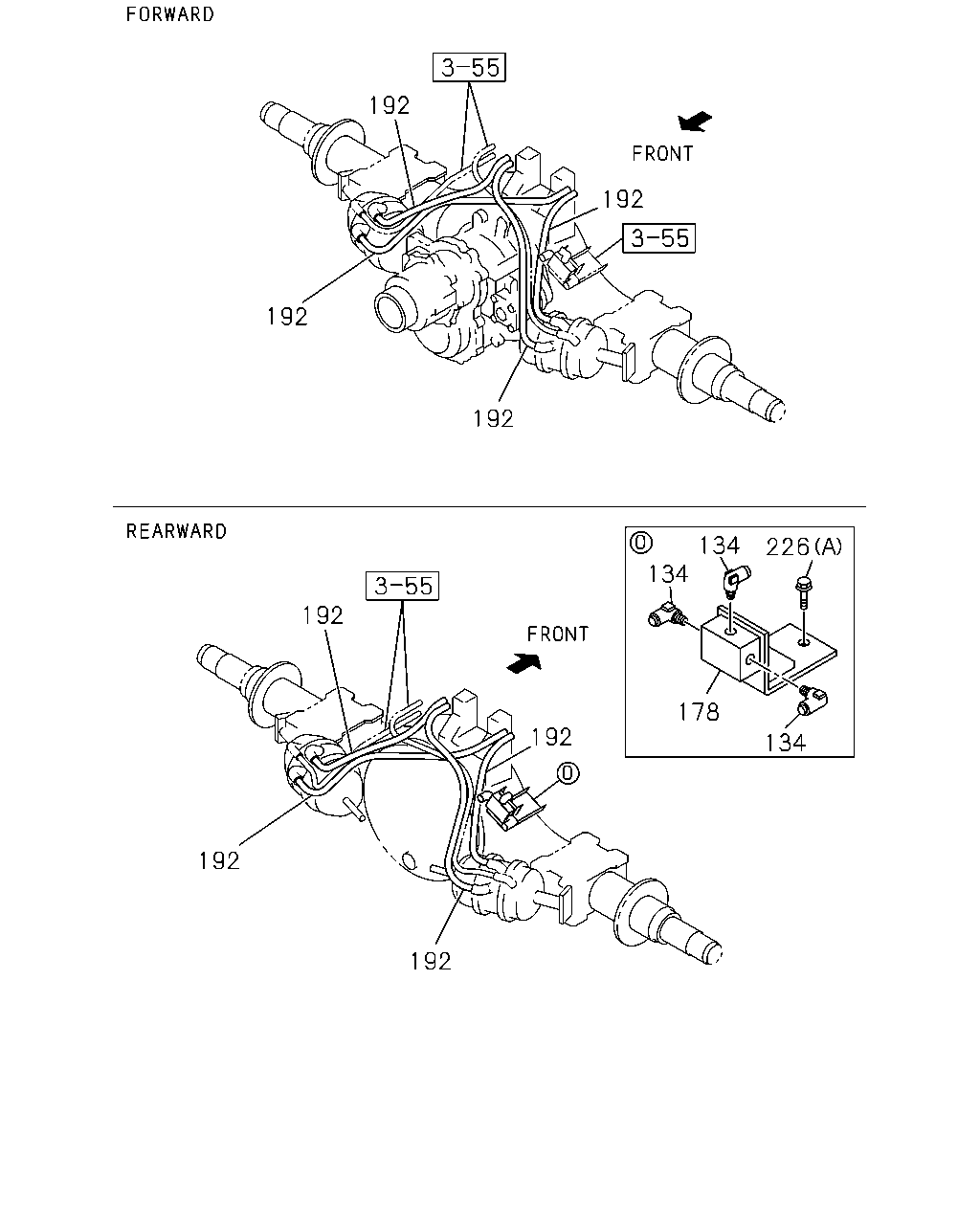

192 192 192 192 178 134 134 134 226 192 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
134	CONNECTOR DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1303-1511	●
134	CONNECTOR TAIWAN EQUIPMENT(WW5) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1512-	●
178	BRACKET; UNION	8-98153-830-0	01	1	1303-1511	●
178	BRACKET; UNION TAIWAN EQUIPMENT(WW5)	8-98153-830-0	01	1	1512-	●
192	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1303-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1303-	●	●
226	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	01	1	1303-1511	●
226	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	01	1	1512-	●	●
226	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	04	1	1303-1511	●
226	BOLT; UNION TAIWAN EQUIPMENT(WW5) (A) M8X16 FLANGE	0-28050-816-0	04	1	1512-	●
226	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	1303-1511	●
226	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	1512-	●	●
226	BOLT; UNION MAP6U M/T(Y4B) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-1511	●
226	BOLT; UNION (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
