◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#115285) — 369 parça

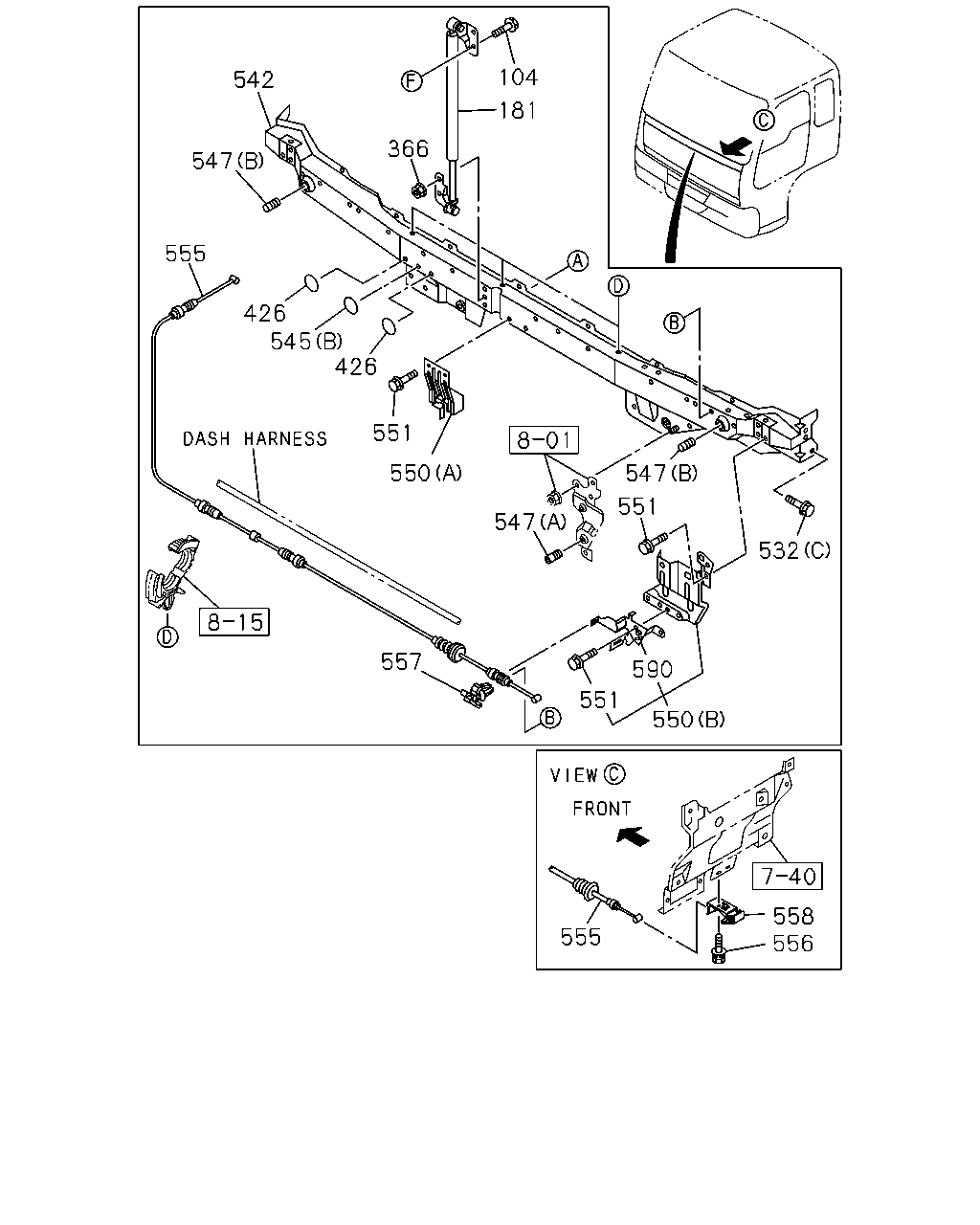

çizim 336537
104 366 542 547 555 426 426 551 547 551 532 590 550 551 557 550 545 181 547 555 558 556
BalonParca AdiParca NoAdetTipApplied Date A B
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 1303-1511 ●
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 1512- ● ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-864-0 01 1 1303-1511 ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-864-0 01 1 1512- ● ●
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 1303-1511 ●
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 1512- ● ●
426 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 1512- ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 02 1 1303-1511 ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 1512- ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 11 1 1303-1511 ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 11 1 1512- ● ●
426 GASKET
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1303-1511 ●
426 GASKET
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1512- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 1303-1511 ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 1512- ● ●
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 1303-1511 ●
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 1512-1512 ● ●
532 BOLT; FRT PANEL
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512- ● ●
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 1303-1511 ●
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 1512- ● ●
542 RAIL; FRT MOUNTING 1-61470-722-1 01 1 1303-1511 ●
542 RAIL; FRT MOUNTING 1-61470-722-1 01 1 1512- ● ●
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 1303-1511 ●
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 1512- ● ●
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 1303-1511 ●
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 1512- ● ●
545 SEAL; FRT LID
(C) 		8-98133-467-0 01 1 1303-1511 ●
545 SEAL; FRT LID
(C) 		8-98133-467-0 01 1 1512- ● ●
545 SEAL; FRT LID
(D) 		8-98133-468-0 01 1 1303-1511 ●
545 SEAL; FRT LID
(D) 		8-98133-468-0 01 1 1512- ● ●
545 SEAL; FRT LID
(E) 		8-98133-469-0 01 1 1303-1511 ●
545 SEAL; FRT LID
(E) 		8-98133-469-0 01 1 1512- ● ●
545 SEAL; FRT LID
(F) 		8-98133-470-0 01 1 1303-1511 ●
545 SEAL; FRT LID
(F) 		8-98133-470-0 01 1 1512- ● ●
545 SEAL; FRT LID
(G) 		8-98136-568-0 01 1 1303-1511 ●
545 SEAL; FRT LID
(G) 		8-98136-568-0 01 1 1512- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 1303-1511 ●
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 1512- ● ●
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 1303-1511 ●
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 1512- ● ●
550 LOCK ASM; FRT LID
(A) 		8-98174-767-0 01 1 1303-1511 ●
550 LOCK ASM; FRT LID
(A) 		8-98174-767-0 01 1 1512- ● ●
550 LOCK ASM; FRT LID
(B) 		8-98199-537-0 01 1 1303-1511 ●
550 LOCK ASM; FRT LID
(B) 		8-98199-537-0 01 1 1512- ● ●
550 LOCK ASM; FRT LID
(B) 		8-98199-538-0 01 1 1303-1511 ●
550 LOCK ASM; FRT LID
(B) 		8-98199-538-0 01 1 1512- ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 1303-1511 ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 1512- ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 1303-1511 ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 1512- ● ●
555 CABLE; FRT LID
L=2612 		1-79347-008-1 01 1 1303-1511 ●
555 CABLE; FRT LID
L=2612 		1-79347-008-1 01 1 1512- ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 1303-1511 ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 1512- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 05 1 1303-1511 ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 05 1 1512- ● ●
558 LEVER; FRT LID 8-97865-110-0 01 1 1303-1511 ●
558 LEVER; FRT LID 8-97865-110-0 01 1 1512- ● ●
590 LOCK; FRT LID 1-79318-006-3 01 1 1303-1511 ●
590 LOCK; FRT LID 1-79318-006-3 01 1 1512- ● ●
590 LOCK; FRT LID 1-79318-007-5 01 1 1303-1511 ●
590 LOCK; FRT LID 1-79318-007-5 01 1 1512- ● ●

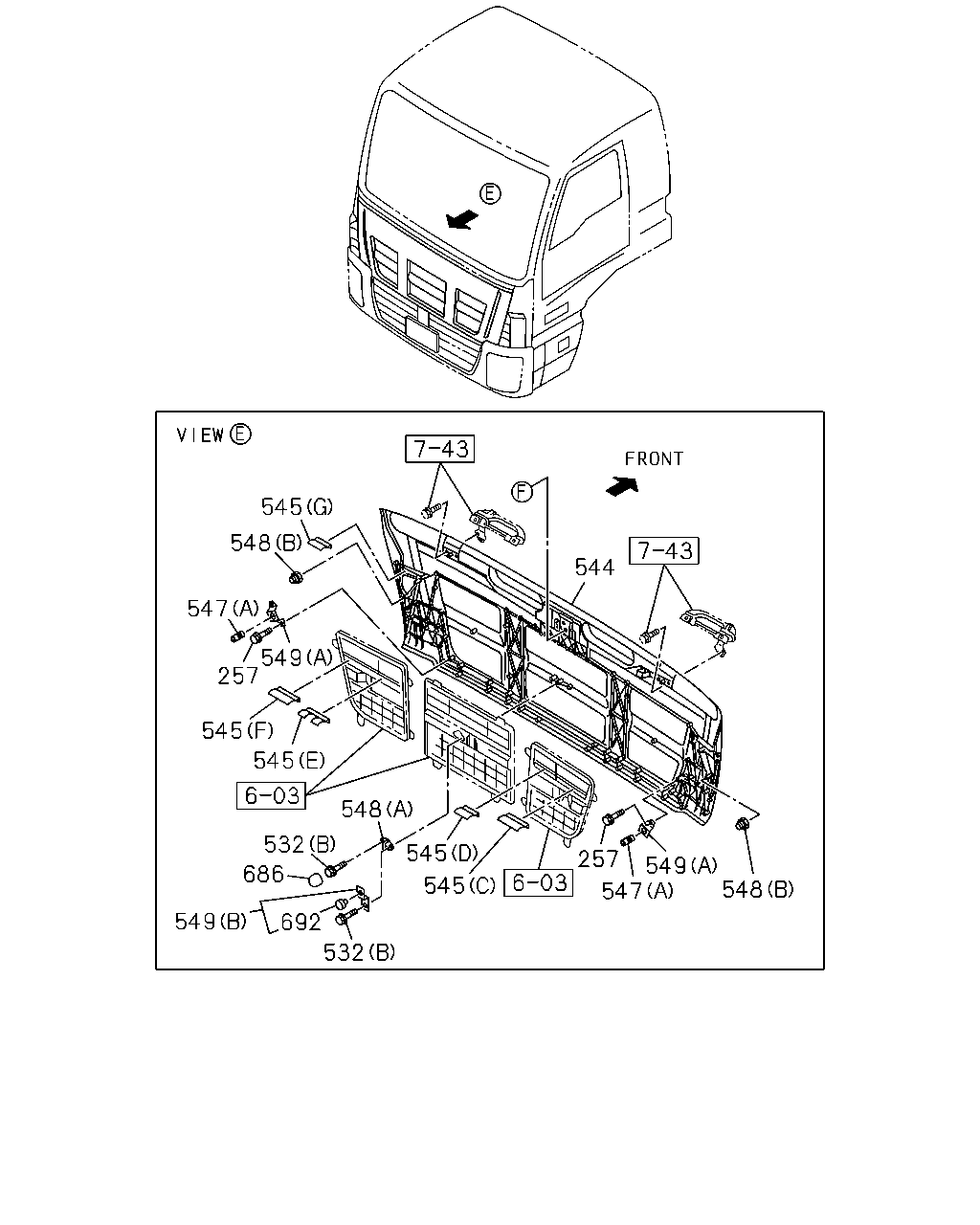

çizim 336541
545 548 547 549 257 545 545 548 532 686 549 692 532 545 545 544 257 549 547 548
BalonParca AdiParca NoAdetTipApplied Date A B
257 BOLT; BRKT
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 1303-1511 ●
257 BOLT; BRKT
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 1512- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 1303-1511 ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 1512- ● ●
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 1303-1511 ●
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 1512-1512 ● ●
532 BOLT; FRT PANEL
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512- ● ●
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 1303-1511 ●
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 1512- ● ●
544 LID; FRT
BODY COLOR MARINE BLUE(890) EXC. CHEV BRAND PACKAGE<PS2> WHITE 		8-97423-354-1 01 1 1512- ● ●
544 LID; FRT
BODY COLOR GOLDEN YELLOW(904) EXC. CHEV BRAND PACKAGE<PS2> WHITE 		8-97423-354-1 01 1 1512- ● ●
544 LID; FRT
BODY COLOR ARC WHITE(729) EXC. CHEV BRAND PACKAGE<PS2> WHITE 		8-97423-354-1 01 1 1512- ● ●
544 LID; FRT
BODY COLOR ARC WHITE(729) CHEV BRAND PACKAGE<PS2> WHITE 		8-97425-692-0 01 1 1512- ● ●
544 LID; FRT
WHITE 		8-97423-354-1 01 1 1303-1511 ●
544 LID; FRT
BODY COLOR FIRE RED(915) EXC. CHEV BRAND PACKAGE<PS2> WHITE 		8-97423-354-1 01 1 1512- ●
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 1303-1511 ●
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 1512- ● ●
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 1303-1511 ●
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 1512- ● ●
545 SEAL; FRT LID
(C) 		8-98133-467-0 01 1 1303-1511 ●
545 SEAL; FRT LID
(C) 		8-98133-467-0 01 1 1512- ● ●
545 SEAL; FRT LID
(D) 		8-98133-468-0 01 1 1303-1511 ●
545 SEAL; FRT LID
(D) 		8-98133-468-0 01 1 1512- ● ●
545 SEAL; FRT LID
(E) 		8-98133-469-0 01 1 1303-1511 ●
545 SEAL; FRT LID
(E) 		8-98133-469-0 01 1 1512- ● ●
545 SEAL; FRT LID
(F) 		8-98133-470-0 01 1 1303-1511 ●
545 SEAL; FRT LID
(F) 		8-98133-470-0 01 1 1512- ● ●
545 SEAL; FRT LID
(G) 		8-98136-568-0 01 1 1303-1511 ●
545 SEAL; FRT LID
(G) 		8-98136-568-0 01 1 1512- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 1303-1511 ●
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 1512- ● ●
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 1303-1511 ●
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 1512- ● ●
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-1 01 1 1303-1511 ●
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-1 01 1 1512- ● ●
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-1 02 1 1303-1511 ●
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-1 02 1 1512- ● ●
549 BRACKET; STOPPER,FRT LID
(B) 		8-98274-092-0 01 1 1411-1511 ●
549 BRACKET; STOPPER,FRT LID
(B) 		8-98274-092-0 01 1 1512- ● ●
549 BRACKET; STOPPER,FRT LID
(A) 		8-98135-101-0 02 1 1303-1511 ●
549 BRACKET; STOPPER,FRT LID
(A) 		8-98135-101-0 02 1 1512- ● ●
686 CAP; BOLT 8-98217-298-0 01 1 1303-1410 ●
692 BUFFER 8-98251-459-0 01 1 1411-1511 ●
692 BUFFER 8-98251-459-0 01 1 1512- ● ●

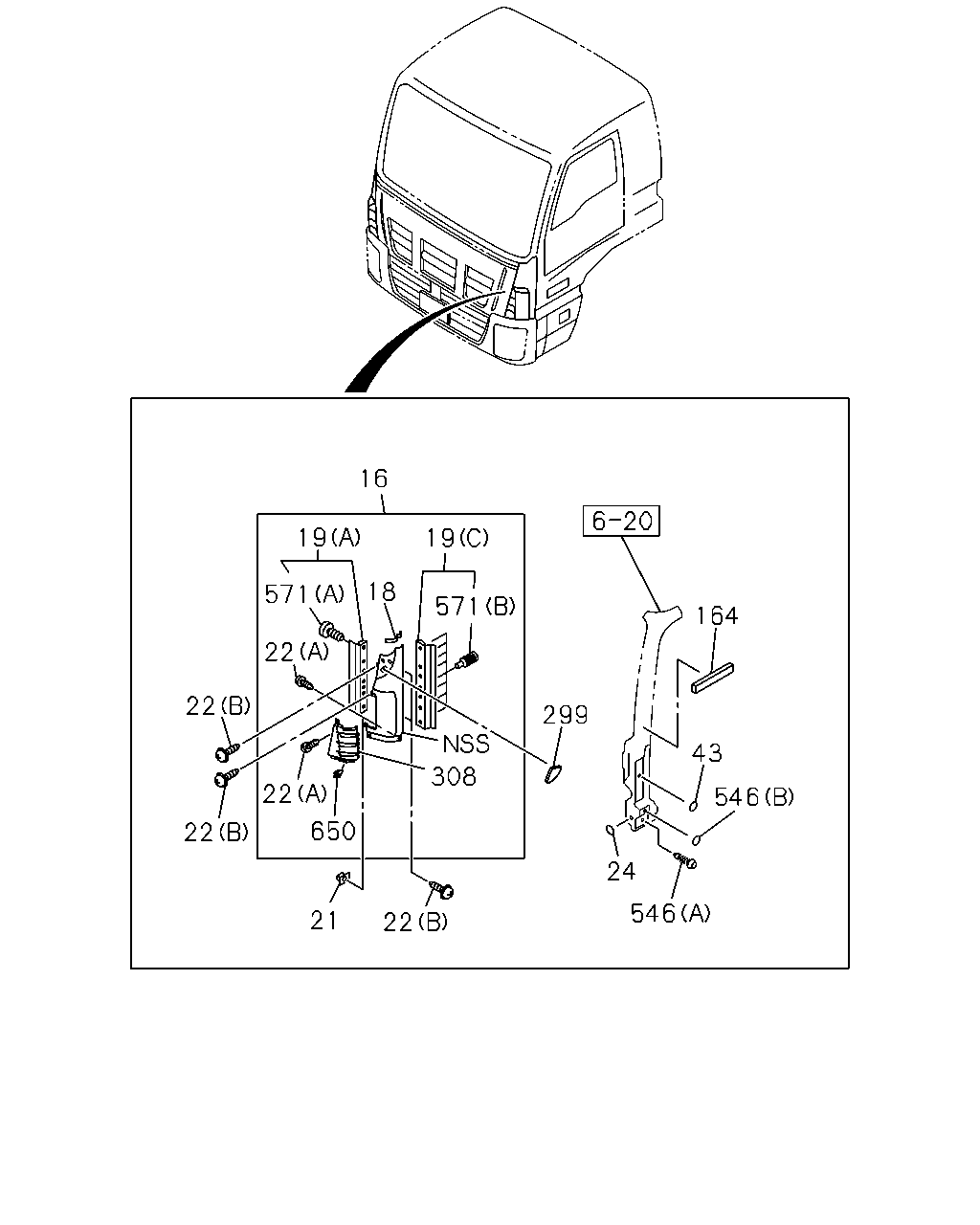

çizim 336542
16 19 19 571 571 18 22 22 22 22 650 21 22 308 299 164 43 546 24 546
BalonParca AdiParca NoAdetTipApplied Date A B
16 PANEL; FRONT,SIDE
WHITE 		8-97417-867-2 01 1 1303-1511 ●
16 PANEL; FRONT,SIDE
WHITE 		8-97417-867-2 01 1 1512- ● ●
16 PANEL; FRONT,SIDE
WHITE 		8-97417-875-2 01 1 1303-1511 ●
16 PANEL; FRONT,SIDE
WHITE 		8-97417-875-2 01 1 1512- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 1303-1511 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 1512- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 1303-1511 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 1512- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 1303-1511 ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 1512- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 1303-1511 ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 1512- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 1303-1511 ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 1512- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-433-0 01 1 1303-1511 ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-433-0 01 1 1512- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-434-0 01 1 1303-1511 ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-434-0 01 1 1512- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 1303-1511 ●
21 GROMMET; SCREW,FRT SIDE PANEL
D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 1512- ● ●
22 SCREW; FRT PANEL SIDE
(A) M5X16 W/PL WASHER 		1-09981-532-0 04 1 1303-1511 ●
22 SCREW; FRT PANEL SIDE
(A) M5X16 W/PL WASHER 		1-09981-532-0 04 1 1512- ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 1303-1511 ●
22 SCREW; FRT PANEL SIDE
(B) M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 1512- ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 05 1 1303-1511 ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 05 1 1512- ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 1303-1511 ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 1512- ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 1303-1511 ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 1512- ● ●
299 COVER; FRT PANEL SIDE
BODY COLOR MARINE BLUE(890) VIETNAM EQUIPMENT(JCD),TAIWAN EQUIPMENT(WW5) BLUE 		8-97424-987-1 01 1 1512- ●
299 COVER; FRT PANEL SIDE
BODY COLOR MARINE BLUE(890) VIETNAM EQUIPMENT(JCD) BLUE 		8-97424-987-1 01 1 1512- ●
299 COVER; FRT PANEL SIDE
BODY COLOR MARINE BLUE(890) VIETNAM EQUIPMENT(JCD),TAIWAN EQUIPMENT(WW5) BLUE 		8-97424-990-1 01 1 1512- ●
299 COVER; FRT PANEL SIDE
BODY COLOR MARINE BLUE(890) VIETNAM EQUIPMENT(JCD) BLUE 		8-97424-990-1 01 1 1512- ●
299 COVER; FRT PANEL SIDE
BODY COLOR GOLDEN YELLOW(904) VIETNAM EQUIPMENT(JCD),TAIWAN EQUIPMENT(WW5) YELLOW 		8-97424-988-1 01 1 1512- ●
299 COVER; FRT PANEL SIDE
BODY COLOR GOLDEN YELLOW(904) VIETNAM EQUIPMENT(JCD) YELLOW 		8-97424-988-1 01 1 1512- ●
299 COVER; FRT PANEL SIDE
BODY COLOR GOLDEN YELLOW(904) VIETNAM EQUIPMENT(JCD),TAIWAN EQUIPMENT(WW5) YELLOW 		8-97424-991-1 01 1 1512- ●
299 COVER; FRT PANEL SIDE
BODY COLOR GOLDEN YELLOW(904) VIETNAM EQUIPMENT(JCD) YELLOW 		8-97424-991-1 01 1 1512- ●
299 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729) VIETNAM EQUIPMENT(JCD),TAIWAN EQUIPMENT(WW5) WHITE 		8-97423-348-1 01 1 1512- ●
299 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729) VIETNAM EQUIPMENT(JCD) WHITE 		8-97423-348-1 01 1 1512- ●
299 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729) VIETNAM EQUIPMENT(JCD),TAIWAN EQUIPMENT(WW5) WHITE 		8-97423-349-1 01 1 1512- ●
299 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729) VIETNAM EQUIPMENT(JCD) WHITE 		8-97423-349-1 01 1 1512- ●
299 COVER; FRT PANEL SIDE
RED 		8-97424-797-1 01 1 1303-1511 ●
299 COVER; FRT PANEL SIDE
BODY COLOR FIRE RED(915) VIETNAM EQUIPMENT(JCD),TAIWAN EQUIPMENT(WW5) RED 		8-97424-797-1 01 1 1512- ●
299 COVER; FRT PANEL SIDE
RED 		8-97424-798-1 01 1 1303-1511 ●
299 COVER; FRT PANEL SIDE
BODY COLOR FIRE RED(915) VIETNAM EQUIPMENT(JCD),TAIWAN EQUIPMENT(WW5) RED 		8-97424-798-1 01 1 1512- ●
308 PLATE; FRT PANEL
BODY COLOR MARINE BLUE(890) BLUE 		8-97425-007-1 01 1 1512- ● ●
308 PLATE; FRT PANEL
BODY COLOR MARINE BLUE(890) BLUE 		8-97425-013-1 01 1 1512- ● ●
308 PLATE; FRT PANEL
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97425-009-1 01 1 1512- ● ●
308 PLATE; FRT PANEL
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97425-015-1 01 1 1512- ● ●
308 PLATE; FRT PANEL
BODY COLOR ARC WHITE(729) WHITE 		8-97417-899-1 01 1 1512- ● ●
308 PLATE; FRT PANEL
BODY COLOR ARC WHITE(729) WHITE 		8-97417-907-1 01 1 1512- ● ●
308 PLATE; FRT PANEL
RED 		8-97424-803-1 01 1 1303-1511 ●
308 PLATE; FRT PANEL
BODY COLOR FIRE RED(915) RED 		8-97424-803-1 01 1 1512- ●
308 PLATE; FRT PANEL
RED 		8-97424-804-1 01 1 1303-1511 ●
308 PLATE; FRT PANEL
BODY COLOR FIRE RED(915) RED 		8-97424-804-1 01 1 1512- ●
546 PLUG; DUMMY HOLE
(A) OD=16 L=11 		1-76378-155-0 02 1 1303-1511 ●
546 PLUG; DUMMY HOLE
(A) OD=16 L=11 		1-76378-155-0 02 1 1512- ● ●
546 PLUG; DUMMY HOLE
(B) OD=25 BLACK 		1-76798-019-0 04 1 1303-1511 ●
546 PLUG; DUMMY HOLE
(B) OD=25 BLACK 		1-76798-019-0 04 1 1512- ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 20 1 1303-1511 ●
571 CLIP; SEAL
(A) 		1-09987-228-0 20 1 1512- ● ●
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 1303-1511 ●
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 1512- ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 1303-1511 ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 1512- ● ●
650 NUT; SPIRE
M5 		1-09984-162-0 04 1 1303-1511 ●
650 NUT; SPIRE
M5 		1-09984-162-0 04 1 1512- ● ●

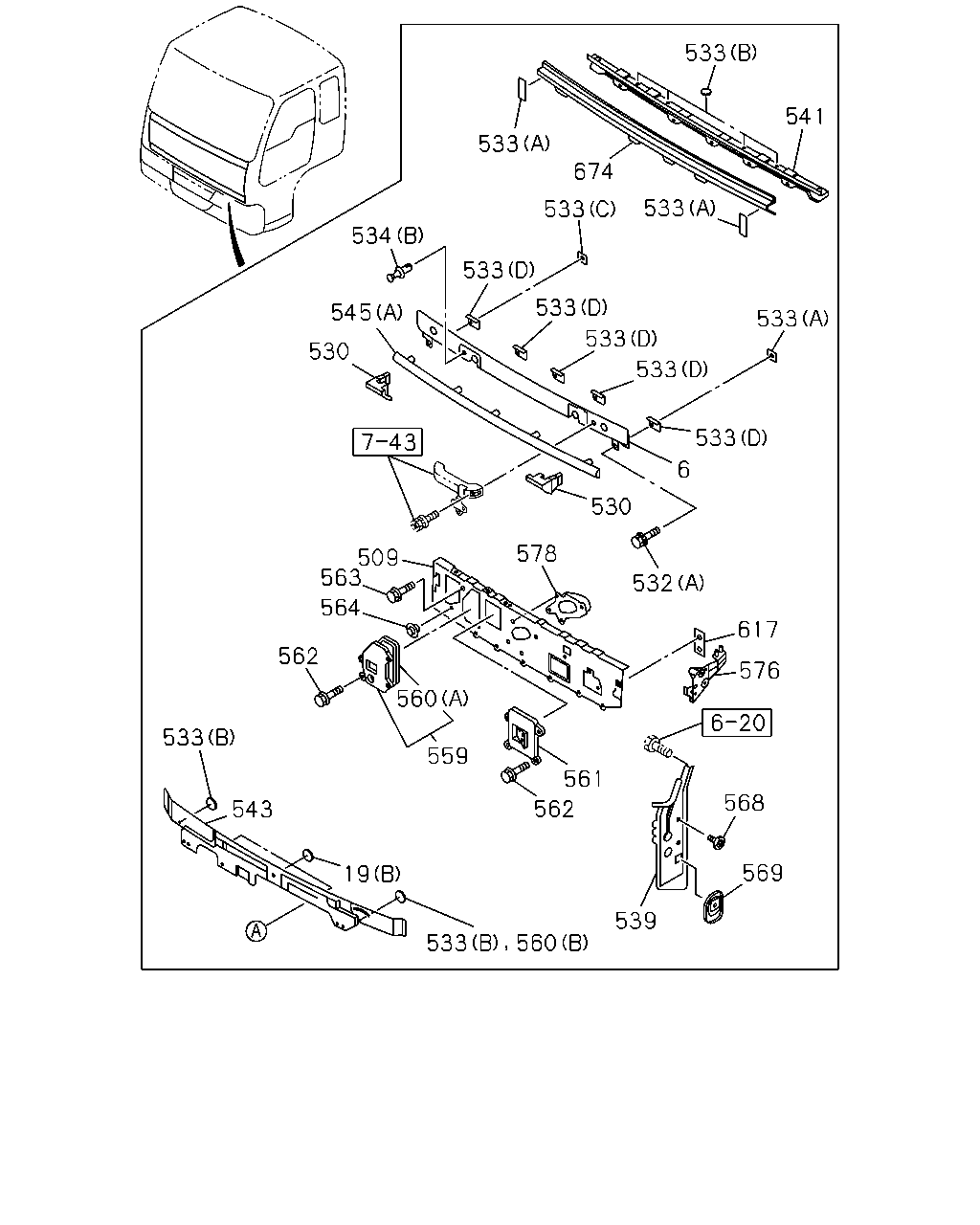

çizim 336990
533 541 533 533 674 533 534 533 533 533 533 533 6 530 578 532 617 576 568 569 561 562 539 560 533 19 543 533 562 564 563 509 530 545 560 559 533
BalonParca AdiParca NoAdetTipApplied Date A B
6 PANEL; FRONT 8-98199-551-0 01 1 1303-1511 ●
6 PANEL; FRONT 8-98199-551-0 01 1 1512- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 1303-1511 ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 1512- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 1303-1511 ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 1512- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 1303-1511 ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 1512- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-433-0 01 1 1303-1511 ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-433-0 01 1 1512- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-434-0 01 1 1303-1511 ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98149-434-0 01 1 1512- ● ●
509 PANEL; DASH 8-98198-669-0 01 1 1303-1511 ●
509 PANEL; DASH 8-98198-669-0 01 1 1512- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 1303-1511 ●
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 1512- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 1303-1511 ●
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 1512- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 1303-1511 ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 1512- ● ●
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 1303-1511 ●
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 1512-1512 ● ●
532 BOLT; FRT PANEL
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512- ● ●
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 1303-1511 ●
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 1512- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 1303-1511 ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 1512- ● ●
533 SEAL; FRT PANEL
(A) 20X65 		1-76778-046-3 02 1 1303-1511 ●
533 SEAL; FRT PANEL
(A) 20X65 		1-76778-046-3 02 1 1512- ● ●
533 SEAL; FRT PANEL
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 1303-1511 ●
533 SEAL; FRT PANEL
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 1512- ● ●
533 SEAL; FRT PANEL
(C) 25X25 		8-94272-533-0 02 1 1303-1511 ●
533 SEAL; FRT PANEL
(C) 25X25 		8-94272-533-0 02 1 1512- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 1303-1303 ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-1511 ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1512- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 1303-1511 ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 1512- ● ●
539 CLOSING; PILLAR 1-61480-762-1 01 1 1303-1511 ●
539 CLOSING; PILLAR 1-61480-762-1 01 1 1512- ● ●
539 CLOSING; PILLAR 1-61480-763-1 01 1 1303-1511 ●
539 CLOSING; PILLAR 1-61480-763-1 01 1 1512- ● ●
541 PANEL; FRONT,INNER 1-61470-700-1 01 1 1303-1511 ●
541 PANEL; FRONT,INNER 1-61470-700-1 01 1 1512- ● ●
543 CLOSING; FRT MTG RAIL 1-61470-726-0 01 1 1303-1511 ●
543 CLOSING; FRT MTG RAIL 1-61470-726-0 01 1 1512- ● ●
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 1303-1511 ●
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 1512- ● ●
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 1303-1511 ●
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 1512- ● ●
545 SEAL; FRT LID
(C) 		8-98133-467-0 01 1 1303-1511 ●
545 SEAL; FRT LID
(C) 		8-98133-467-0 01 1 1512- ● ●
545 SEAL; FRT LID
(D) 		8-98133-468-0 01 1 1303-1511 ●
545 SEAL; FRT LID
(D) 		8-98133-468-0 01 1 1512- ● ●
545 SEAL; FRT LID
(E) 		8-98133-469-0 01 1 1303-1511 ●
545 SEAL; FRT LID
(E) 		8-98133-469-0 01 1 1512- ● ●
545 SEAL; FRT LID
(F) 		8-98133-470-0 01 1 1303-1511 ●
545 SEAL; FRT LID
(F) 		8-98133-470-0 01 1 1512- ● ●
545 SEAL; FRT LID
(G) 		8-98136-568-0 01 1 1303-1511 ●
545 SEAL; FRT LID
(G) 		8-98136-568-0 01 1 1512- ● ●
559 COVER; EVAPOLATOR 1-71996-193-1 01 1 1303-1511 ●
559 COVER; EVAPOLATOR 1-71996-193-1 01 1 1512- ● ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 1303-1511 ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 1512- ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 1303-1511 ●
560 SEAL; COVER
HEATER & DEFROSTER(C41) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 1512- ● ●
561 COVER; HEATER CORE 1-71998-993-2 01 1 1303-1511 ●
561 COVER; HEATER CORE 1-71998-993-2 01 1 1512- ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1303-1511 ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1512- ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 1303-1511 ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 1512- ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 1303-1511 ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 1512- ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 1303-1511 ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 1512- ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 1303-1511 ●
568 PATCH; INST REINF 1-61480-675-2 02 1 1512- ● ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 1303-1511 ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 1512- ● ●
569 PATCH; LWR GRIP 1-61480-772-0 01 1 1303-1511 ●
569 PATCH; LWR GRIP 1-61480-772-0 01 1 1512- ● ●
576 FRAME; INST SIDE 1-62280-200-2 01 1 1303-1511 ●
576 FRAME; INST SIDE 1-62280-200-2 01 1 1512- ● ●
576 FRAME; INST SIDE 1-62280-201-2 01 1 1303-1511 ●
576 FRAME; INST SIDE 1-62280-201-2 01 1 1512- ● ●
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 1303-1511 ●
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 1512- ● ●
617 SEAL; DASH 1-61281-497-1 02 1 1303-1511 ●
617 SEAL; DASH 1-61281-497-1 02 1 1512- ● ●
674 PANEL; UPR 1-61470-699-2 01 1 1303-1511 ●
674 PANEL; UPR 1-61470-699-2 01 1 1512- ● ●

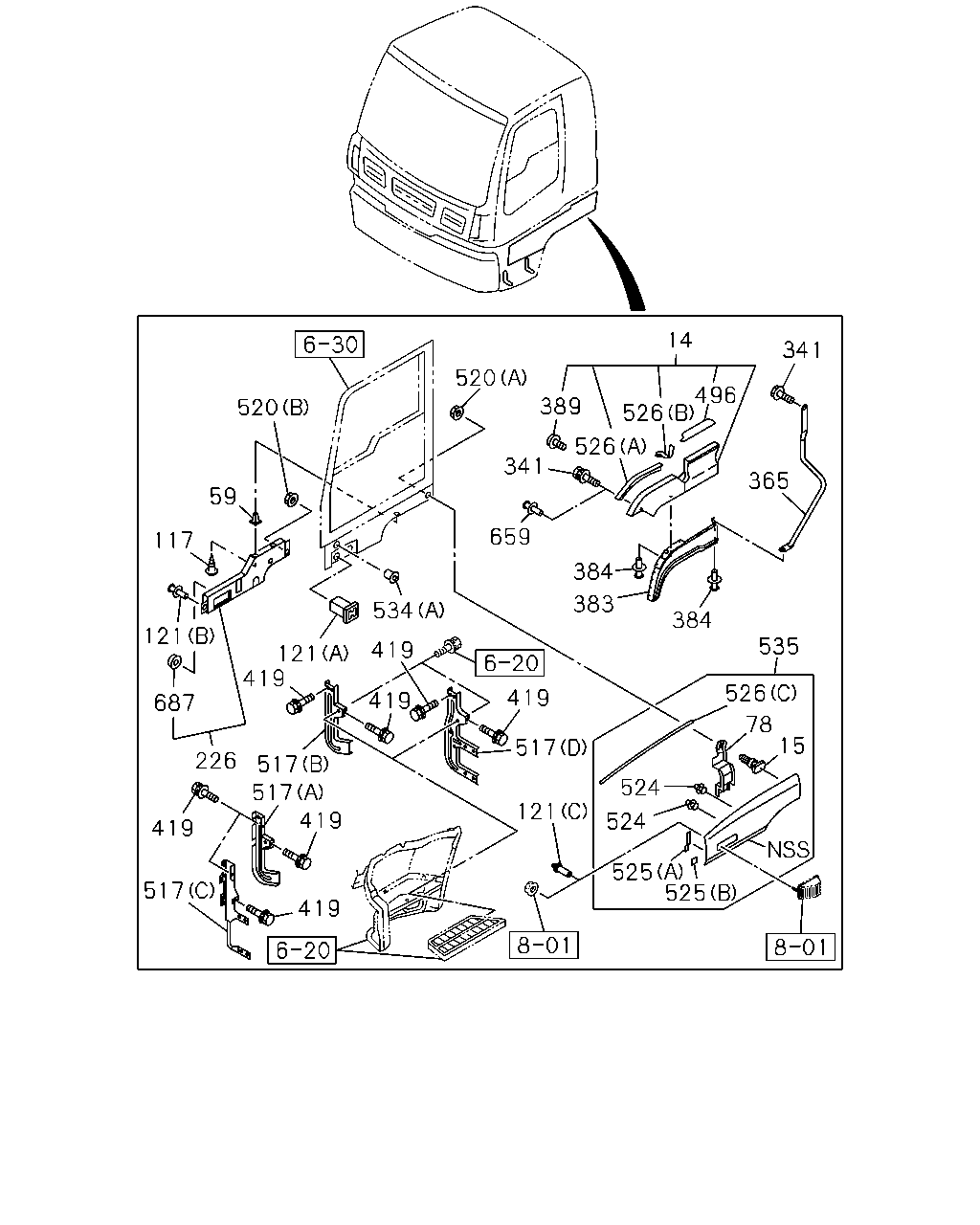

çizim 337219
520 59 117 121 687 226 419 517 520 389 341 659 526 526 496 341 14 365 384 383 384 535 526 78 15 524 524 525 525 121 517 419 419 419 419 517 517 419 121 534 419
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
BODY COLOR MARINE BLUE(890) 		8-98155-610-0 01 1 1512- ● ●
14 FENDER; FRT
BODY COLOR MARINE BLUE(890) 		8-98155-611-0 01 1 1512- ● ●
14 FENDER; FRT
BODY COLOR GOLDEN YELLOW(904) 		8-98155-610-0 01 1 1512- ● ●
14 FENDER; FRT
BODY COLOR GOLDEN YELLOW(904) 		8-98155-611-0 01 1 1512- ● ●
14 FENDER; FRT
BODY COLOR ARC WHITE(729) 		8-98154-744-1 01 1 1512- ● ●
14 FENDER; FRT
BODY COLOR ARC WHITE(729) 		8-98154-745-1 01 1 1512- ● ●
14 FENDER; FRT 8-98154-744-1 01 1 1303-1511 ●
14 FENDER; FRT
BODY COLOR FIRE RED(915) 		8-98154-744-1 01 1 1512- ●
14 FENDER; FRT 8-98154-745-1 01 1 1303-1511 ●
14 FENDER; FRT
BODY COLOR FIRE RED(915) 		8-98154-745-1 01 1 1512- ●
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 1303-1511 ●
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 1512- ● ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 1303-1511 ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 1512- ● ●
78 BRACKET; FENDER 1-71267-214-0 01 1 1303-1511 ●
78 BRACKET; FENDER 1-71267-214-0 01 1 1512- ● ●
78 BRACKET; FENDER 1-71267-215-0 01 1 1303-1511 ●
78 BRACKET; FENDER 1-71267-215-0 01 1 1512- ● ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 1303-1511 ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 1512- ● ●
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 1303-1511 ●
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 1512- ● ●
121 GROMMET; FENDER
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1303-1511 ●
121 GROMMET; FENDER
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1512- ● ●
121 GROMMET; FENDER
(C) 		8-98111-356-0 02 1 1303-1306 ●
226 PROTECTOR; FRT 8-98109-132-1 01 1 1303-1306 ●
226 PROTECTOR; FRT 8-98234-709-0 01 1 1307-1511 ●
226 PROTECTOR; FRT 8-98234-709-0 01 1 1512- ● ●
226 PROTECTOR; FRT 8-98109-134-1 01 1 1303-1306 ●
226 PROTECTOR; FRT 8-98234-710-0 01 1 1307-1511 ●
226 PROTECTOR; FRT 8-98234-710-0 01 1 1512- ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 1303-1511 ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 1512- ● ●
365 SUPPORT; FENDER 8-98120-231-0 01 1 1303-1511 ●
365 SUPPORT; FENDER 8-98120-231-0 01 1 1512- ● ●
365 SUPPORT; FENDER 8-98120-232-0 01 1 1303-1511 ●
365 SUPPORT; FENDER 8-98120-232-0 01 1 1512- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-456-2 01 1 1303-1511 ●
383 GUARD; MUD,FENDER LWR 1-71907-456-2 01 1 1512- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-457-2 01 1 1303-1511 ●
383 GUARD; MUD,FENDER LWR 1-71907-457-2 01 1 1512- ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 13 1 1303-1510 ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 15 1 1511-1511 ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 15 1 1512- ● ●
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 1303-1511 ●
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 1512- ● ●
419 BOLT; STEP
EXC. TAIWAN EQUIPMENT(WW5) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 1512- ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 1512- ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 1303-1511 ●
419 BOLT; STEP
TAIWAN EQUIPMENT(WW5) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 1512- ●
496 RUBBER; STEP 1-71998-861-2 01 1 1303-1511 ●
496 RUBBER; STEP 1-71998-861-2 01 1 1512- ● ●
496 RUBBER; STEP 1-71998-862-2 01 1 1303-1511 ●
496 RUBBER; STEP 1-71998-862-2 01 1 1512- ● ●
517 SUPPORT; STEP PANEL
EXC. TAIWAN EQUIPMENT(WW5) (C) 		8-98125-815-1 01 1 1512- ●
517 SUPPORT; STEP PANEL
(C) 		8-98125-815-1 01 1 1512- ●
517 SUPPORT; STEP PANEL
EXC. TAIWAN EQUIPMENT(WW5) (D) 		8-98125-816-2 01 1 1512- ●
517 SUPPORT; STEP PANEL
(D) 		8-98125-816-2 01 1 1512- ●
517 SUPPORT; STEP PANEL
EXC. TAIWAN EQUIPMENT(WW5) (D) 		8-98125-817-2 01 1 1512- ●
517 SUPPORT; STEP PANEL
(D) 		8-98125-817-2 01 1 1512- ●
517 SUPPORT; STEP PANEL
EXC. TAIWAN EQUIPMENT(WW5) (C) 		8-98133-279-0 01 1 1512- ●
517 SUPPORT; STEP PANEL
(C) 		8-98133-279-0 01 1 1512- ●
517 SUPPORT; STEP PANEL
(B) 		1-65671-530-1 01 1 1303-1511 ●
517 SUPPORT; STEP PANEL
TAIWAN EQUIPMENT(WW5) (B) 		1-65671-530-1 01 1 1512- ●
517 SUPPORT; STEP PANEL
(B) 		1-65671-531-1 01 1 1303-1511 ●
517 SUPPORT; STEP PANEL
TAIWAN EQUIPMENT(WW5) (B) 		1-65671-531-1 01 1 1512- ●
517 SUPPORT; STEP PANEL
(A) 		1-65671-766-1 01 1 1303-1511 ●
517 SUPPORT; STEP PANEL
TAIWAN EQUIPMENT(WW5) (A) 		1-65671-766-1 01 1 1512- ●
517 SUPPORT; STEP PANEL
(A) 		1-65671-778-0 01 1 1303-1511 ●
517 SUPPORT; STEP PANEL
TAIWAN EQUIPMENT(WW5) (A) 		1-65671-778-0 01 1 1512- ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1303-1511 ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1512- ● ●
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 1303-1511 ●
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 1512- ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 1303-1511 ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 1512- ● ●
525 SEAL; FENDER
(A) 10X145 		1-71267-342-0 02 1 1303-1511 ●
525 SEAL; FENDER
(A) 10X145 		1-71267-342-0 02 1 1512- ● ●
525 SEAL; FENDER
(B) 10X30 		8-97631-981-0 02 1 1303-1511 ●
525 SEAL; FENDER
(B) 10X30 		8-97631-981-0 02 1 1512- ● ●
526 FINISHER; FENDER
(C) 		1-71268-275-1 02 1 1303-1511 ●
526 FINISHER; FENDER
(C) 		1-71268-275-1 02 1 1512- ● ●
526 FINISHER; FENDER
(A) 		1-71907-641-0 02 1 1303-1511 ●
526 FINISHER; FENDER
(A) 		1-71907-641-0 02 1 1512- ● ●
526 FINISHER; FENDER
(B) 		1-71907-642-0 01 1 1303-1511 ●
526 FINISHER; FENDER
(B) 		1-71907-642-0 01 1 1512- ● ●
526 FINISHER; FENDER
(B) 		1-71907-643-0 01 1 1303-1511 ●
526 FINISHER; FENDER
(B) 		1-71907-643-0 01 1 1512- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 1303-1303 ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-1511 ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1512- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 1303-1511 ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 1512- ● ●
535 FENDER; BLISTER
WHITE 		8-98105-663-1 01 1 1303-1303 ●
535 FENDER; BLISTER
WHITE 		8-98105-664-1 01 1 1303-1303 ●
535 FENDER; BLISTER
WHITE 		8-98234-066-0 01 1 1304-1511 ●
535 FENDER; BLISTER
WHITE 		8-98234-066-0 01 1 1512- ● ●
535 FENDER; BLISTER
WHITE 		8-98234-067-0 01 1 1304-1511 ●
535 FENDER; BLISTER
WHITE 		8-98234-067-0 01 1 1512- ● ●
659 CLIP; FENDER
D8X13.5 		1-09987-248-1 02 1 1303-1511 ●
659 CLIP; FENDER
D8X13.5 		1-09987-248-1 02 1 1512- ● ●
687 COVER; FENDER 8-98234-587-0 02 1 1307-1511 ●
687 COVER; FENDER 8-98234-587-0 02 1 1512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
