Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11501 - CYZ LHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

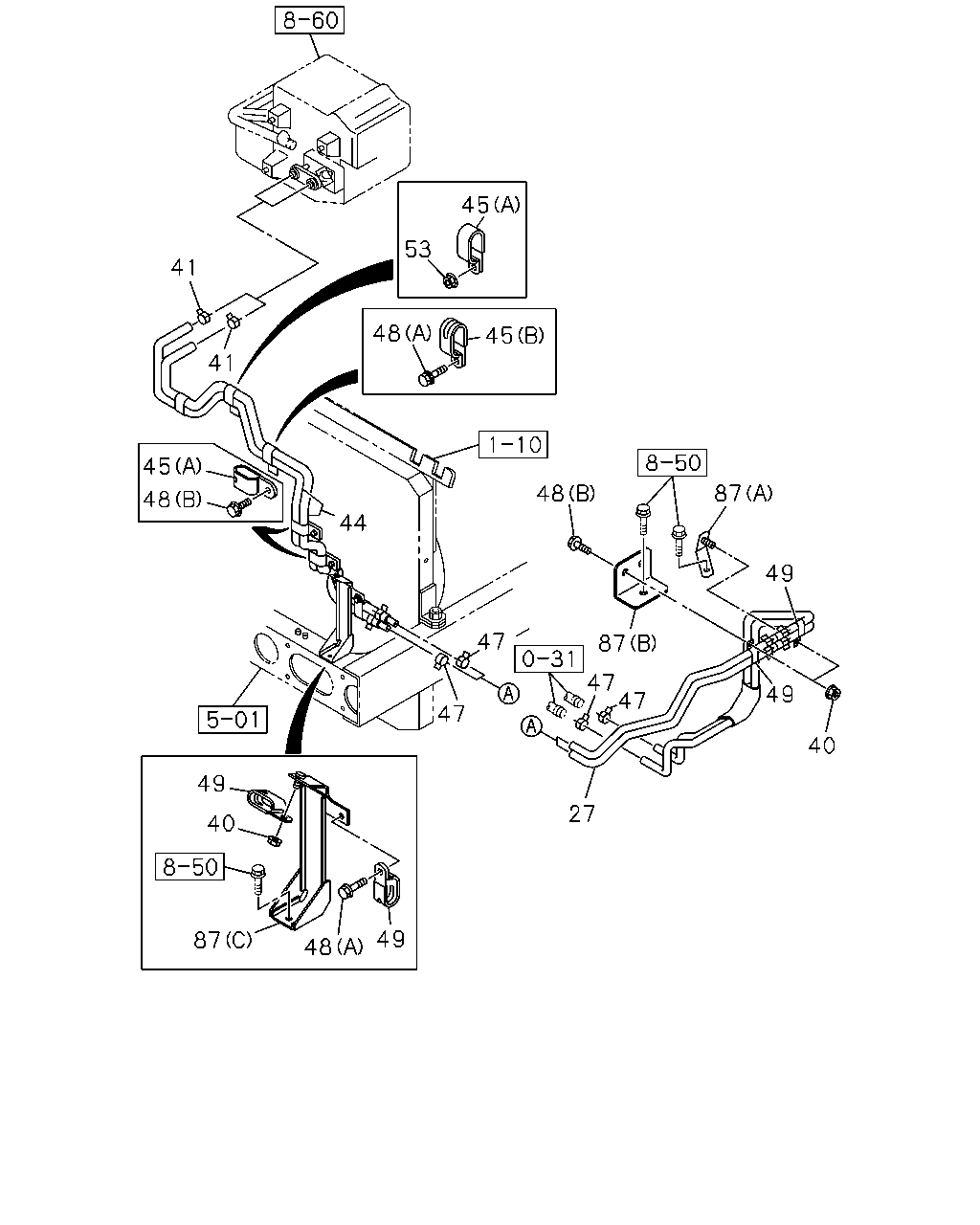

8-45 — HEATER PIPING
(#115284) — 28 parça
Tümü
A - CYZ6MF
B - CYZ6MC
41
48
87
87
47
47
49
49
40
27
47
47
44
48
53
45
45
45
49
48
40
87
48
49
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
27
HOSE; WATER,HTR UNIT TO WATER PIPE
8-98223-223-1
01
1
1303-1511
●
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-98223-223-1
01
1
1512-
●
●
40
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
1303-1511
●
40
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
03
1
1512-
●
●
41
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
02
1
1303-1511
●
41
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
02
1
1512-
●
●
44
HOSE; WATER,HTR,INL
8-98226-524-2
01
1
1303-1511
●
44
HOSE; WATER,HTR,INL
8-98226-524-2
01
1
1512-
●
●
45
CLIP; WATER PIPE
(B) WO/SCREW
1-09701-143-1
01
1
1303-1511
●
45
CLIP; WATER PIPE
(B) WO/SCREW
1-09701-143-1
01
1
1512-
●
●
45
CLIP; WATER PIPE
(A)
1-09701-238-0
02
1
1303-1511
●
45
CLIP; WATER PIPE
(A)
1-09701-238-0
02
1
1512-
●
●
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
1303-1511
●
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-97359-141-0
04
1
1512-
●
●
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28650-820-0
02
1
1303-1511
●
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE
0-28650-820-0
02
1
1512-
●
●
48
BOLT; CLIP FIX
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
1303-1511
●
48
BOLT; CLIP FIX
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
1512-
●
●
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
04
1
1303-1511
●
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25
1-09700-710-0
04
1
1512-
●
●
53
NUT; HOSE CLIP
M8 FLANGE
0-91180-108-0
01
1
1303-1511
●
53
NUT; HOSE CLIP
M8 FLANGE
0-91180-108-0
01
1
1512-
●
●
87
BRACKET; HTR HOSE CLIP
(A)
1-83573-251-1
01
1
1303-1511
●
87
BRACKET; HTR HOSE CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83573-251-1
01
1
1512-
●
●
87
BRACKET; HTR HOSE CLIP
(C)
8-98225-548-0
01
1
1303-1511
●
87
BRACKET; HTR HOSE CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)
8-98225-548-0
01
1
1512-
●
●
87
BRACKET; HTR HOSE CLIP
(B)
8-98239-443-0
01
1
1303-1511
●
87
BRACKET; HTR HOSE CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98239-443-0
01
1
1512-
●
●
