Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#115283) — 181 parça

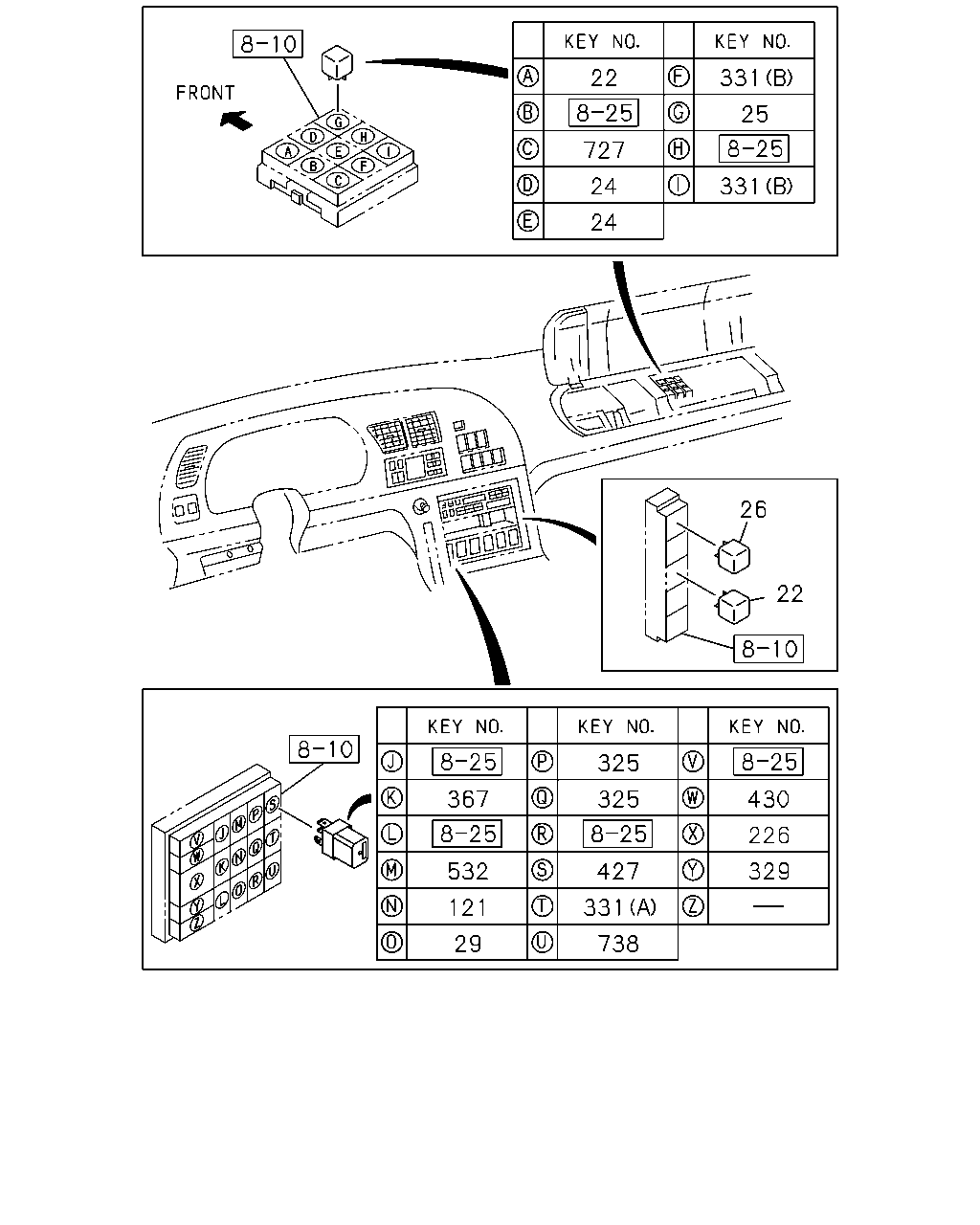

22 727 24 24 331 25 331 26 22 367 532 121 29 325 325 427 331 738 430 226 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1303-1511	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1512-	●	●
22	RELAY; STOP LAMP FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1512-	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	1303-1511	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	1512-	●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1303-1511	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1512-	●	●
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	1303-1511	●
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	1512-	●	●
29	RELAY; HORN 24V 10A PANASONIC	8-97173-035-1	01	1	1303-1511	●
29	RELAY; HORN 24V 10A PANASONIC	8-97173-035-1	01	1	1512-	●	●
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1303-1511	●
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1512-	●	●
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	1303-1511	●
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	1512-	●	●
325	RELAY; DAYTIME RUNNING LIGHT RUSSIA EQUIPMENT(B12) 24V 10A PANASONIC	8-97173-035-1	02	1	1512-	●	●
329	RELAY; BACK LAMP FULL TRAILER PIPING<Z25> 24V 10A PANASONIC	8-97173-035-1	01	1	1512-	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC	8-97262-933-0	02	1	1512-	●	●
331	RELAY; A/C (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1303-1511	●
331	RELAY; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1512-	●	●
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	1303-1511	●
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	1512-	●	●
427	RELAY; RETARDER FOOT BRAKE W/EXHAUST BRAKE<SJB> 24V 10A PANASONIC	8-97173-035-1	01	1	1512-	●	●
430	RELAY; RANGE MJX16P M/T(Y3Z) 24V 10A PANASONIC	8-97173-035-1	01	1	1512-	●	●
532	RELAY; SEAT BELT WARNING EXC. TAIWAN EQUIPMENT(WW5) 24V 10A PANASONIC	8-97173-035-1	01	1	1512-	●
532	RELAY; SEAT BELT WARNING 24V 10A PANASONIC	8-97173-035-1	01	1	1512-		●
727	RELAY; START CUT 24V 12.5A PANASONIC	8-97262-933-0	01	1	1303-1511	●
727	RELAY; START CUT 24V 12.5A PANASONIC	8-97262-933-0	01	1	1512-	●	●
738	RELAY; EXH & RETARDER CUT 24V 10A PANASONIC	8-97173-035-1	01	1	1303-1511	●
738	RELAY; EXH & RETARDER CUT 24V 10A PANASONIC	8-97173-035-1	01	1	1512-	●	●

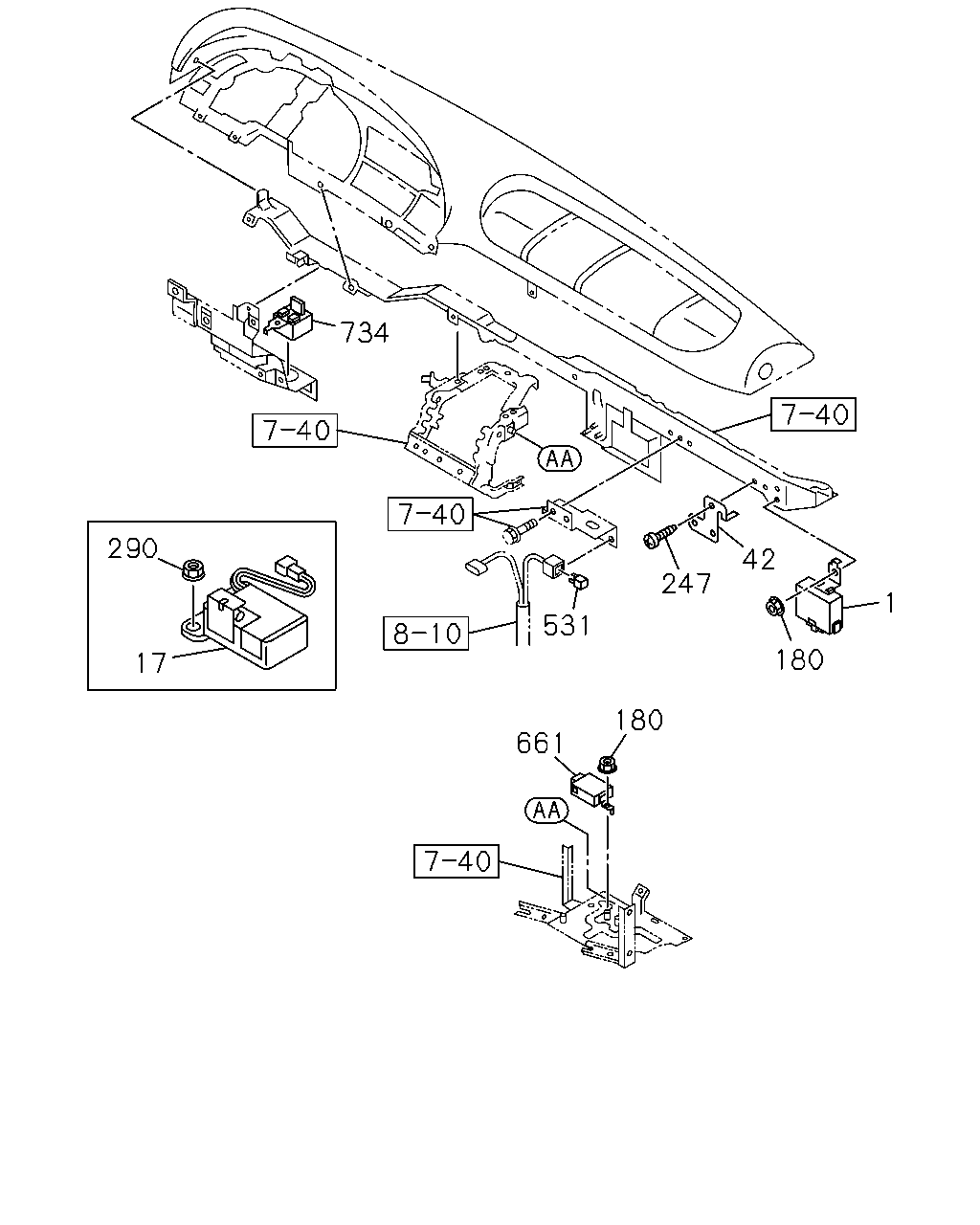

734 42 1 180 247 531 290 17 661 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER FULL TRAILER PIPING<Z25>	8-97613-970-1	01	1	1512-	●
1	UNIT; FLASHER	8-98025-533-1	01	1	1303-1511	●
1	UNIT; FLASHER EXC. FULL TRAILER PIPING<Z25>	8-98025-533-1	01	1	1512-	●
1	UNIT; FLASHER	8-98025-533-1	01	1	1512-		●
17	TIMER; SEAT BELT EXC. TAIWAN EQUIPMENT(WW5)	1-82550-183-1	01	1	1512-	●
17	TIMER; SEAT BELT	1-82550-183-1	01	1	1512-		●
42	BRACKET; RELAY	1-82698-128-2	01	1	1303-1511	●
42	BRACKET; RELAY	1-82698-128-2	01	1	1512-	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	1303-1511	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	1512-	●	●
180	NUT; FLASHER UNIT FULL TRAILER PIPING<Z25> M6 FLANGE	0-91180-106-0	01	1	1512-	●
247	SCREW; BRKT M5X14	8-94279-325-0	01	1	1303-1511	●
247	SCREW; BRKT M5X14	8-94279-325-0	01	1	1512-	●	●
290	NUT EXC. TAIWAN EQUIPMENT(WW5) M6 FLANGE	0-91180-106-0	02	1	1512-	●
290	NUT M6 FLANGE	0-91180-106-0	02	1	1512-		●
531	RELAY; MAIN 24V	8-98167-175-0	01	1	1303-1511	●
531	RELAY; MAIN 24V	8-98167-175-0	01	1	1512-	●	●
661	CONTROL UNIT; FLASHER FULL TRAILER PIPING<Z25>	1-83470-066-1	01	1	1512-	●
734	ALARM; MULTI	1-83460-106-0	01	1	1303-1511	●
734	ALARM; MULTI	1-83460-106-0	01	1	1512-	●	●

117 86 115 116 84 85 46 44 51 45 83 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE	1-83410-061-1	01	1	1303-1511	●
44	HORN; HIGH NOTE	1-83410-061-1	01	1	1512-	●	●
45	HORN; LOW NOTE	1-83410-062-1	01	1	1303-1511	●
45	HORN; LOW NOTE	1-83410-062-1	01	1	1512-	●	●
46	BOLT; HORN TO BODY M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1303-1511	●
46	BOLT; HORN TO BODY M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1512-	●	●
50	BRACKET; HORN	8-98198-870-1	01	1	1303-1511	●
50	BRACKET; HORN	8-98198-870-1	01	1	1512-	●	●
51	BOLT; HORN TO BRKT M8X25 FLANGE	0-28650-825-0	02	1	1303-1511	●
51	BOLT; HORN TO BRKT M8X25 FLANGE	0-28650-825-0	02	1	1512-	●	●
83	NUT; BRKT,HORN M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
83	NUT; BRKT,HORN M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1303-1511	●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1512-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1303-1511	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	1303-1511	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	1303-1511	●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	1512-	●	●
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	1303-1511	●
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	1512-	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	1512-	●	●

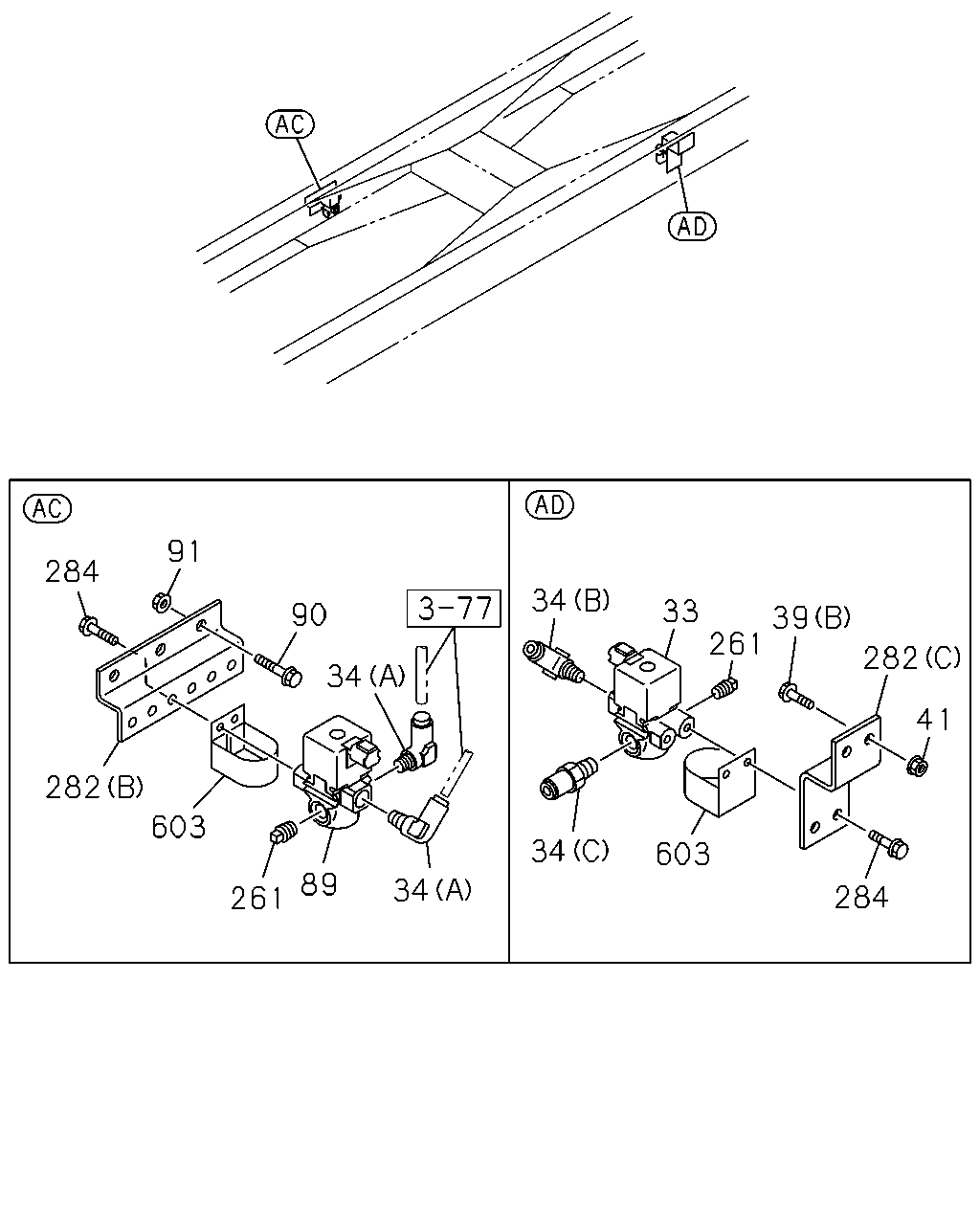

284 91 282 603 90 34 261 89 34 34 33 34 603 261 39 282 284 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	1303-1511	●
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5)	1-82563-871-2	01	1	1512-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1303-1511	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1303-1511	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (C) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1512-	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1303-1511	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1512-	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-1511	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1512-1512	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) RUSSIA EQUIPMENT(B12) (B) M8X35 FLANGE	0-28650-835-0	02	1	1512-1512	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) RUSSIA EQUIPMENT(B12) (B) M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-1511	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1512-	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	1512-1512	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) RUSSIA EQUIPMENT(B12) M8 FLANGE	0-91180-108-0	02	1	1512-1512	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) RUSSIA EQUIPMENT(B12) M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
89	VALVE; MAG,DIFF LOCK	8-97641-594-0	01	1	1303-1511	●
89	VALVE; MAG,DIFF LOCK	8-97641-594-0	01	1	1512-	●	●
90	BOLT; MAG VLV M8X40 FLANGE	0-28650-840-0	02	1	1303-1511	●
90	BOLT; MAG VLV M8X40 FLANGE	0-28650-840-0	02	1	1512-	●	●
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1303-1511	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1303-1511	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	1303-1511	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1512-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1512-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	1512-	●	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	1303-1511	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (C)	1-47471-175-0	01	1	1512-	●	●
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	1303-1511	●
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	1512-	●	●
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	1303-1511	●
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	1512-	●	●
284	BOLT; MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	1303-1511	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28650-820-0	02	1	1303-1511	●
284	BOLT; MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	1512-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) M8X20 FLANGE	0-28650-820-0	02	1	1512-	●	●
603	PROTECTOR; MAG VLV	1-47471-046-0	01	1	1303-1511	●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-47471-046-0	01	1	1303-1511	●
603	PROTECTOR; MAG VLV	1-47471-046-0	01	1	1512-	●	●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5)	1-47471-046-0	01	1	1512-	●	●

39 282 97 96 261 96 280 604 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-1511	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1512-1512	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) RUSSIA EQUIPMENT(B12) (B) M8X35 FLANGE	0-28650-835-0	02	1	1512-1512	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) RUSSIA EQUIPMENT(B12) (B) M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-1511	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1512-	●	●
88	CONNECTOR; MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1303-1511	●
88	CONNECTOR; MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1512-	●	●
96	BOLT; BRKT FIX FULL TRAILER PIPING<Z25> (C) M8X35 FLANGE	0-28650-835-0	04	1	1512-	●
96	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	01	1	1303-1511	●
96	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	01	1	1512-	●	●
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	1303-1511	●
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	1512-	●	●
97	NUT; BRKT FIX FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	04	1	1512-	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1303-1511	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1303-1511	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1303-1511	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	1303-1511	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1512-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1512-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	1512-	●	●
280	CONNECTOR; IN,MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1303-1511	●
280	CONNECTOR; IN,MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1512-	●	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	1303-1511	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (C)	1-47471-175-0	01	1	1512-	●	●
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	1303-1511	●
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	1512-	●	●
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	1303-1511	●
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	1512-	●	●
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	1303-1511	●
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	1512-	●	●

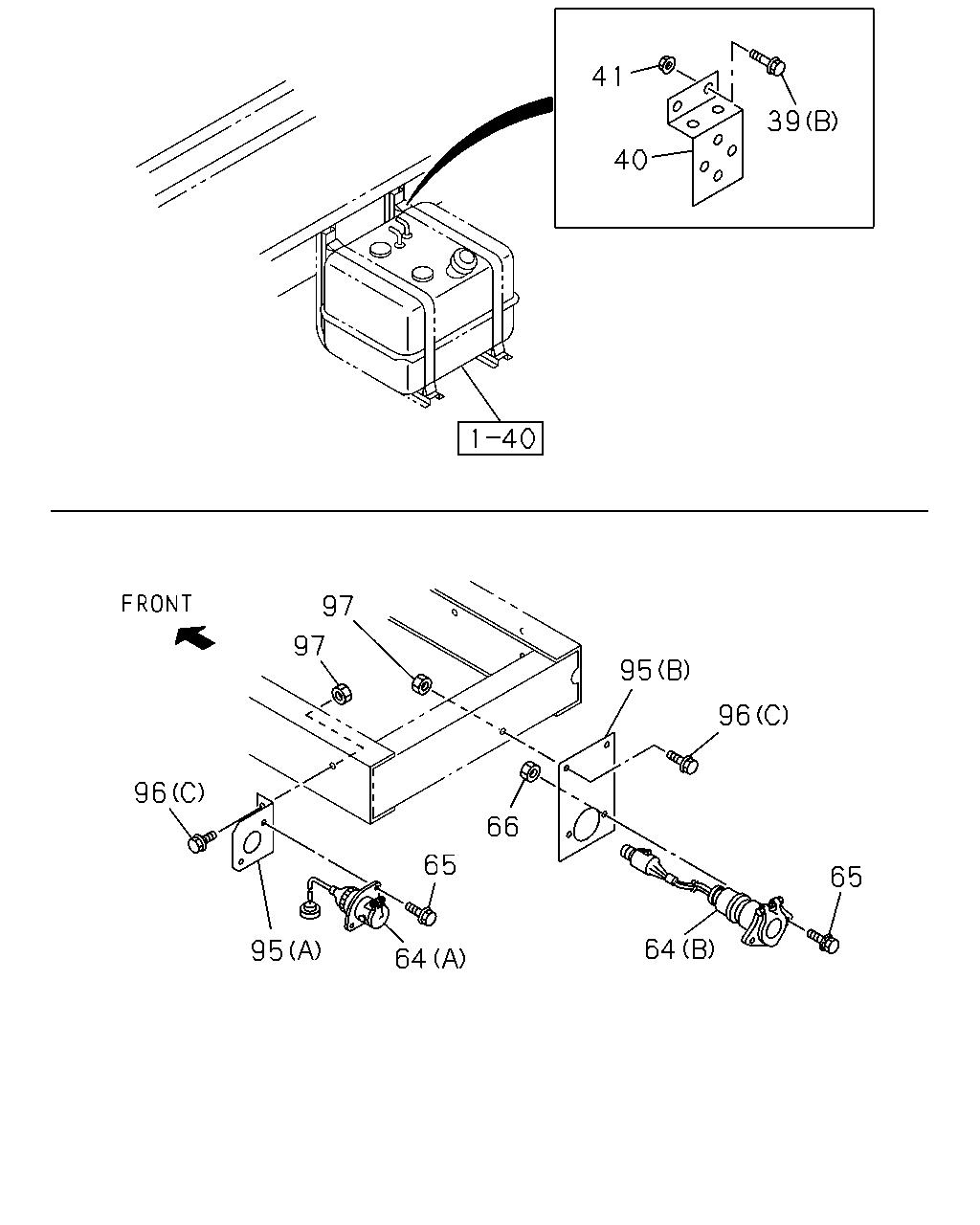

41 40 39 97 97 96 95 64 65 64 95 96 65 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-1511	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1512-1512	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) RUSSIA EQUIPMENT(B12) (B) M8X35 FLANGE	0-28650-835-0	02	1	1512-1512	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) RUSSIA EQUIPMENT(B12) (B) M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-1511	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1512-	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) RUSSIA EQUIPMENT(B12)	1-82698-424-0	01	1	1512-1512	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) RUSSIA EQUIPMENT(B12)	1-82698-424-0	01	1	1512-	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	1303-1511	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	1512-1512	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) RUSSIA EQUIPMENT(B12) M8 FLANGE	0-91180-108-0	02	1	1512-1512	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) RUSSIA EQUIPMENT(B12) M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
64	SOCKET; TRAILER FULL TRAILER PIPING<Z25> (B) 7P	1-82523-019-0	01	1	1512-	●
64	SOCKET; TRAILER FULL TRAILER PIPING<Z25> (A) L=860	8-98172-008-0	01	1	1512-	●
65	BOLT; SOCKET FIX FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	04	1	1512-	●
66	NUT; SOCKET FIX FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1512-	●
95	BRACKET; SOCKET,TRAILER FULL TRAILER PIPING<Z25> (B)	1-82699-387-0	01	1	1512-	●
95	BRACKET; SOCKET,TRAILER FULL TRAILER PIPING<Z25> (A)	8-97985-137-0	01	1	1512-	●
96	BOLT; BRKT FIX FULL TRAILER PIPING<Z25> (C) M8X35 FLANGE	0-28650-835-0	04	1	1512-	●
96	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	01	1	1303-1511	●
96	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	01	1	1512-	●	●
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	1303-1511	●
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	1512-	●	●
97	NUT; BRKT FIX FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	04	1	1512-	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1303-1511	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
