Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#115282) — 282 parça

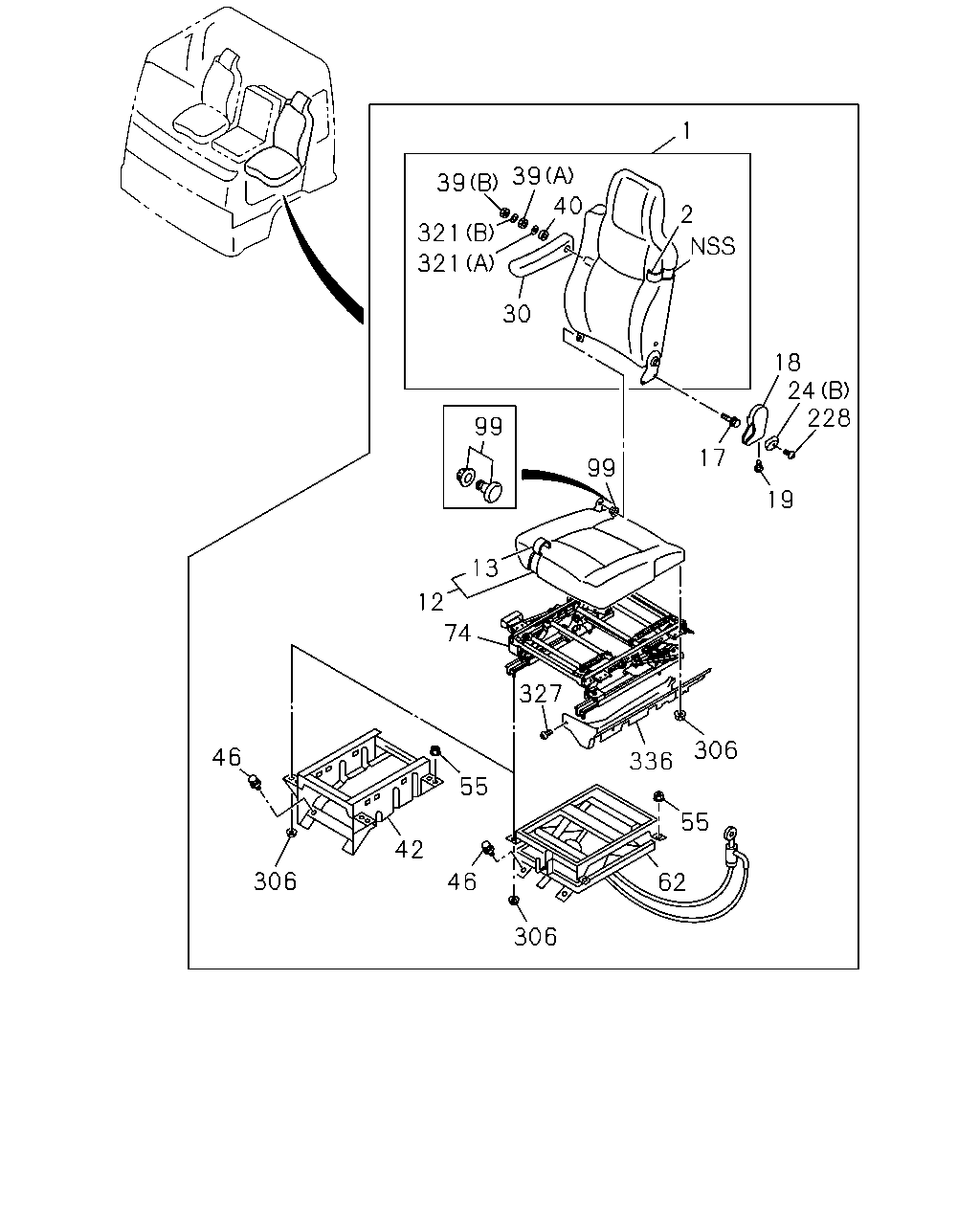

39 321 321 30 40 39 1 2 99 99 13 12 74 327 336 306 55 62 306 46 42 306 46 55 17 228 16 24 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT	8-98210-851-0	01	1	1303-1511	●
1	BACK ASM; SEAT	8-98210-851-0	01	1	1512-	●	●
2	COVER; TRIM,FRT SEAT,BACK	8-98210-852-0	01	1	1303-1511	●
2	COVER; TRIM,FRT SEAT,BACK	8-98210-852-0	01	1	1512-	●	●
12	CUSHION; SEAT,FRT	8-98210-849-0	01	1	1303-1511	●
12	CUSHION; SEAT,FRT	8-98210-849-0	01	1	1512-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION	8-98210-850-0	01	1	1303-1511	●
13	COVER; TRIM,FRT SEAT,CUSHION	8-98210-850-0	01	1	1512-	●	●
16	ADJUSTER ASM; RECLINING CENTER SEAT(SA1)	1-75418-062-1	01	1	1303-1511	●
16	ADJUSTER ASM; RECLINING CENTER SEAT(SA1)	1-75418-062-1	01	1	1512-	●	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	1303-1511	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	1512-	●	●
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	1303-1511	●
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	1512-	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	1303-1511	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	1512-	●	●
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-066-0	01	1	1303-1511	●
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-066-0	01	1	1512-	●	●
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	1303-1511	●
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	1512-	●	●
30	REST ASM; ARM,FRT SEAT	8-98230-584-0	01	1	1303-1511	●
30	REST ASM; ARM,FRT SEAT	8-98230-584-0	01	1	1512-	●	●
39	NUT; ARM REST (B) M8	1-75147-657-0	01	1	1303-1511	●
39	NUT; ARM REST (B) M8	1-75147-657-0	01	1	1512-	●	●
39	NUT; ARM REST (A) M10	9-09110-410-0	01	1	1303-1511	●
39	NUT; ARM REST (A) M10	9-09110-410-0	01	1	1512-	●	●
40	SPACER; ARM REST	8-94285-921-0	02	1	1303-1511	●
40	SPACER; ARM REST	8-94285-921-0	02	1	1512-	●	●
42	STAND; DRIVER SEAT RIGID SEAT W/ARM REST(SGC)	1-75558-604-2	01	1	1512-	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1303-1511	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1512-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	1303-1511	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	1512-	●	●
62	DAMPER ASM; SEAT SUSP	1-75537-263-8	01	1	1303-1403	●
62	DAMPER ASM; SEAT SUSP	8-98261-453-0	01	1	1404-1511	●
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-453-0	01	1	1512-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-331-3	01	1	1303-1502	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-646-0	01	1	1503-1511	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-646-0	01	1	1512-	●	●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	1303-1511	●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	1512-	●	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	1303-1511	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	1303-1511	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	1512-	●	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	1512-	●	●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	1303-1511	●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	1512-	●	●
321	WASHER; PL,ARM REST (A) ID=10.5 OD=22	9-09160-610-0	01	1	1303-1511	●
321	WASHER; PL,ARM REST (A) ID=10.5 OD=22	9-09160-610-0	01	1	1512-	●	●
321	WASHER; PL,ARM REST (B) ID=8.4 OD=22	9-09164-708-0	01	1	1303-1511	●
321	WASHER; PL,ARM REST (B) ID=8.4 OD=22	9-09164-708-0	01	1	1512-	●	●
327	CLIP; COVER	1-09987-273-0	01	1	1303-1511	●
327	CLIP; COVER	1-09987-273-0	01	1	1512-	●	●
336	COVER; DRIVER SEAT	1-75518-313-0	01	1	1303-1511	●
336	COVER; DRIVER SEAT	1-75518-313-0	01	1	1512-	●	●
513	SPACER; LEVER	1-75538-133-0	01	1	1303-1511	●
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	1512-	●	●

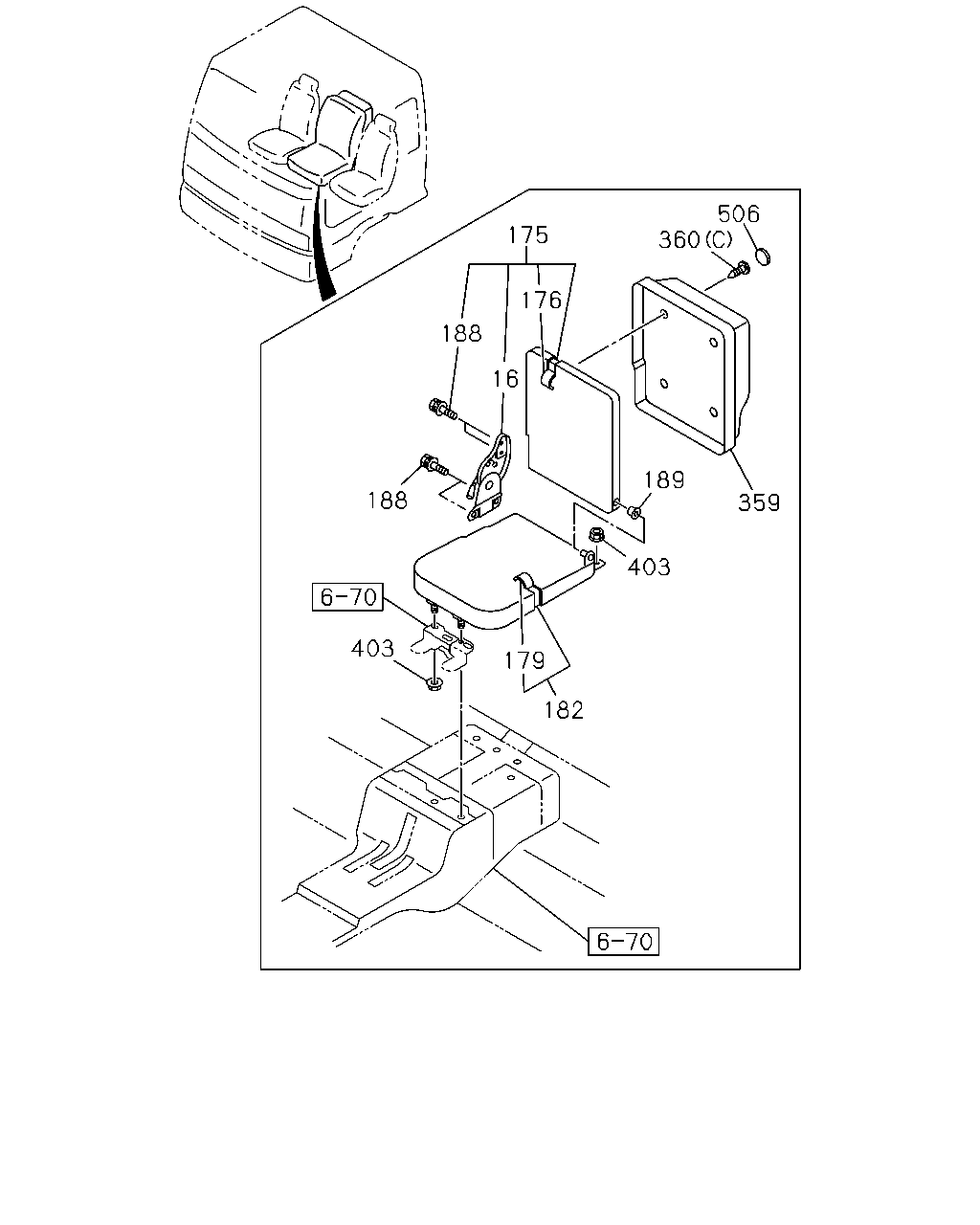

182 179 403 188 188 16 403 189 359 360 506 175 176

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING CENTER SEAT(SA1)	1-75418-062-1	01	1	1303-1511	●
16	ADJUSTER ASM; RECLINING CENTER SEAT(SA1)	1-75418-062-1	01	1	1512-	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	1303-1511	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	1512-	●	●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT(SA1)	8-98210-861-0	01	1	1303-1511	●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT(SA1)	8-98210-861-0	01	1	1512-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT(SA1)	8-98210-862-0	01	1	1303-1511	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT(SA1)	8-98210-862-0	01	1	1512-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT(SA1)	8-98210-860-0	01	1	1303-1511	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT(SA1)	8-98210-860-0	01	1	1512-	●	●
182	CUSHION ASM; CENTER SEAT CENTER SEAT(SA1)	8-98210-859-1	01	1	1303-1511	●
182	CUSHION ASM; CENTER SEAT CENTER SEAT(SA1)	8-98210-859-1	01	1	1512-	●	●
188	BOLT; BACK TO CUSHION CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	1303-1511	●
188	BOLT; BACK TO CUSHION CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	1512-	●	●
189	BUSHING; HINGE,CENTER SEAT BACK CENTER SEAT(SA1)	8-97854-900-0	01	1	1303-1511	●
189	BUSHING; HINGE,CENTER SEAT BACK CENTER SEAT(SA1)	8-97854-900-0	01	1	1512-	●	●
359	BOX; PARCEL CENTER SEAT(SA1)	8-98145-114-0	01	1	1303-1511	●
359	BOX; PARCEL CENTER SEAT(SA1)	8-98145-114-0	01	1	1512-	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1303-1511	●
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1512-	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70080-416-0	06	1	1303-1511	●
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70080-416-0	06	1	1512-	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1303-1511	●
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1512-	●	●
403	NUT; CENTER SEAT CENTER SEAT(SA1) M8 FLANGE	0-91180-108-0	04	1	1303-1511	●
403	NUT; CENTER SEAT CENTER SEAT(SA1) M8 FLANGE	0-91180-108-0	04	1	1512-	●	●
506	CAP; PARCEL BOX CENTER SEAT(SA1)	1-09983-180-3	02	1	1303-1511	●
506	CAP; PARCEL BOX CENTER SEAT(SA1)	1-09983-180-3	02	1	1512-	●	●
513	SPACER; LEVER	1-75538-133-0	01	1	1303-1511	●
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	1512-	●	●

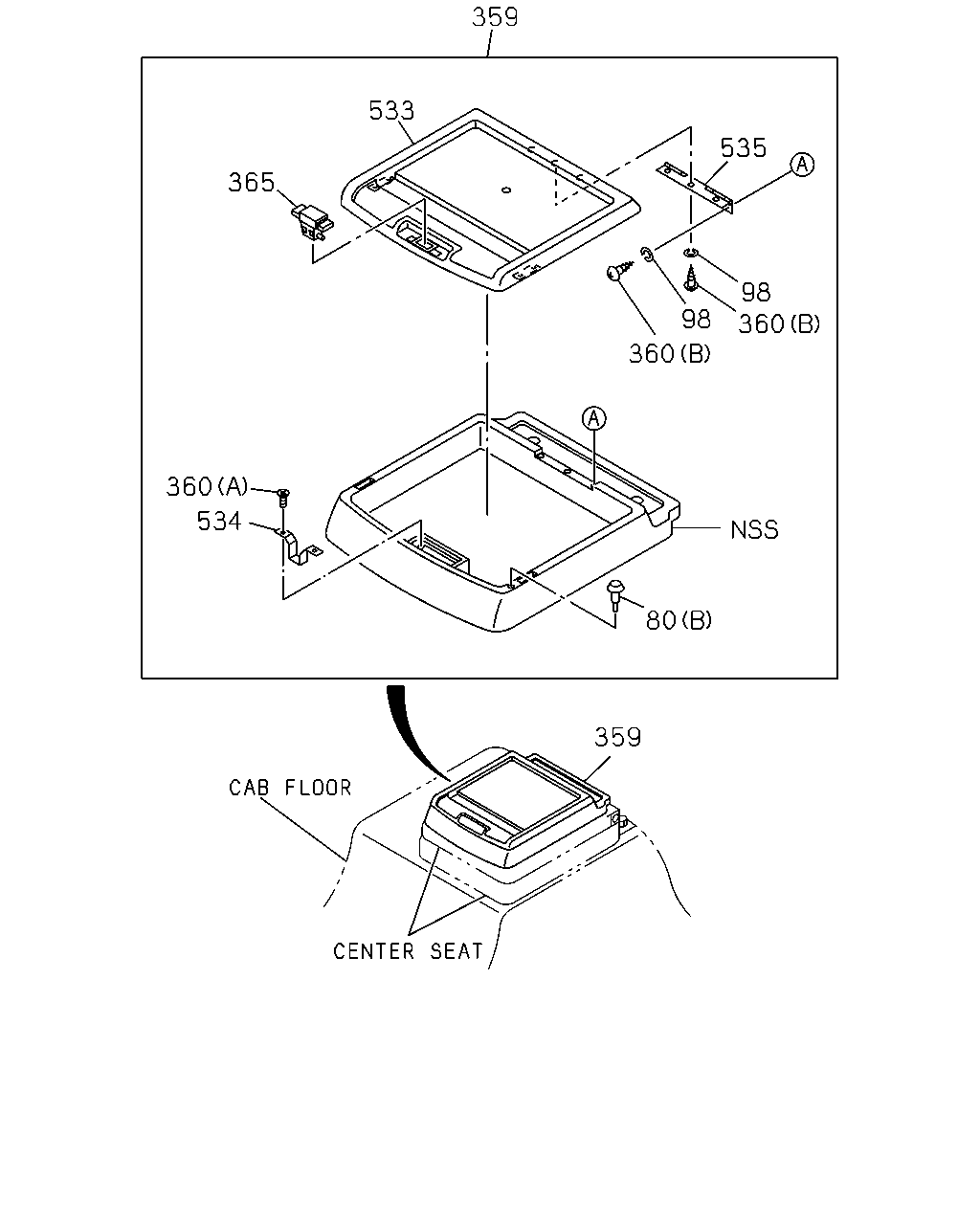

359 533 365 360 534 359 80 360 98 98 535 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	1303-1511	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	1512-	●	●
80	RUBBER; STOPPER CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1303-1511	●
80	RUBBER; STOPPER CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1512-	●	●
80	RUBBER; STOPPER (A)	1-09987-123-0	01	1	1303-1511	●
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	1512-	●	●
98	WASHER; HINGE CENTER SEAT(SA1) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	1303-1511	●
98	WASHER; HINGE CENTER SEAT(SA1) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	1512-	●	●
359	BOX; PARCEL CENTER SEAT(SA1)	8-98145-114-0	01	1	1303-1511	●
359	BOX; PARCEL CENTER SEAT(SA1)	8-98145-114-0	01	1	1512-	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1303-1511	●
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1512-	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70080-416-0	06	1	1303-1511	●
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70080-416-0	06	1	1512-	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1303-1511	●
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1512-	●	●
365	LOCK ASM; SEAT CENTER SEAT(SA1)	1-72538-180-0	01	1	1303-1511	●
365	LOCK ASM; SEAT CENTER SEAT(SA1)	1-72538-180-0	01	1	1512-	●	●
513	SPACER; LEVER	1-75538-133-0	01	1	1303-1511	●
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	1512-	●	●
533	LID; PARCEL BOX CENTER SEAT(SA1)	8-98145-118-0	01	1	1303-1511	●
533	LID; PARCEL BOX CENTER SEAT(SA1)	8-98145-118-0	01	1	1512-	●	●
534	STRIKER; PARCEL BOX CENTER SEAT(SA1)	1-72538-190-0	01	1	1303-1511	●
534	STRIKER; PARCEL BOX CENTER SEAT(SA1)	1-72538-190-0	01	1	1512-	●	●
535	HINGE; PARCEL BOX CENTER SEAT(SA1)	1-72447-391-1	01	1	1303-1511	●
535	HINGE; PARCEL BOX CENTER SEAT(SA1)	1-72447-391-1	01	1	1512-	●	●

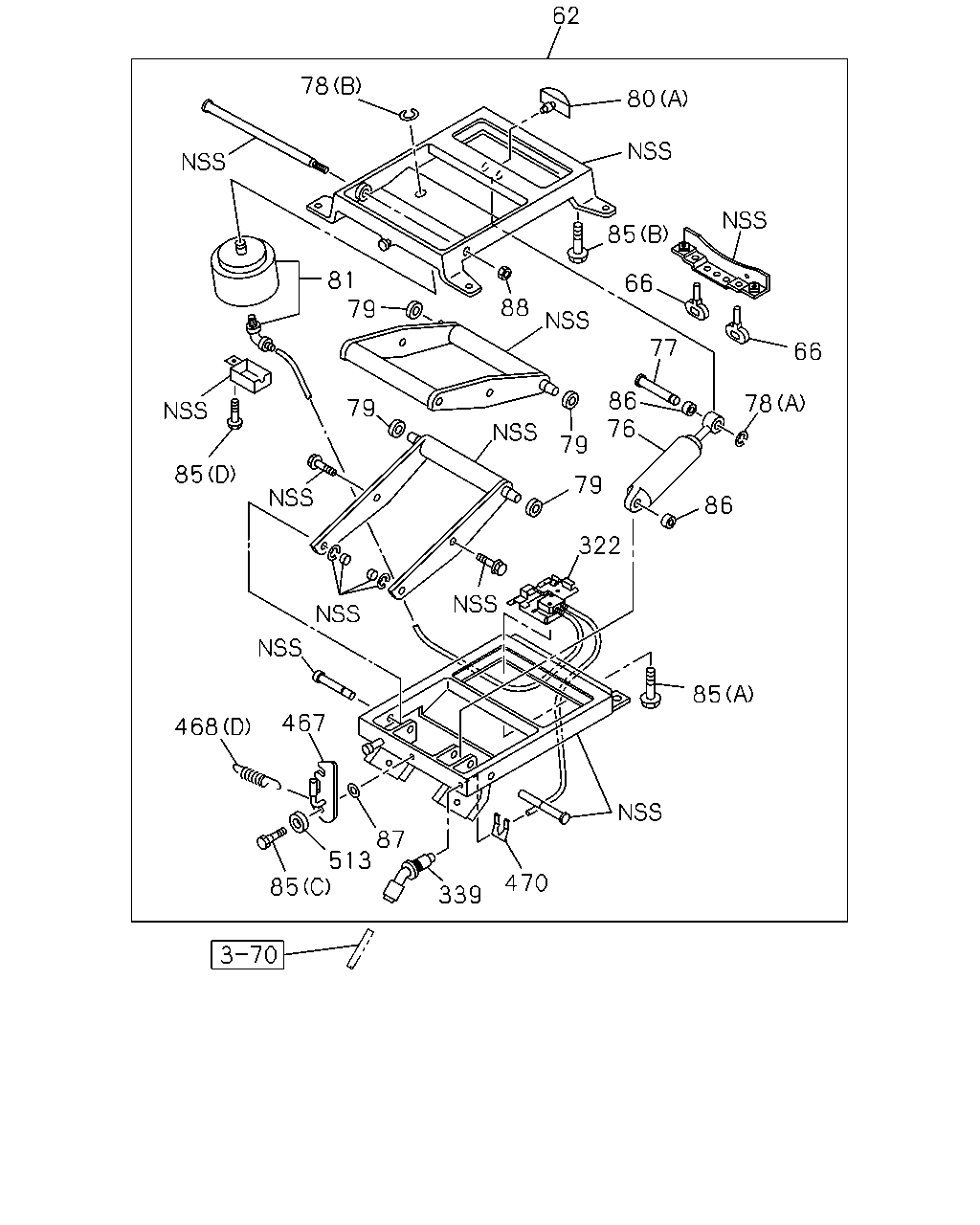

62 78 81 79 85 88 77 66 85 80 66 86 322 79 79 76 86 85 470 339 518 85 468 78 87 467 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	1303-1511	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	1512-	●	●
62	DAMPER ASM; SEAT SUSP	1-75537-263-8	01	1	1303-1403	●
62	DAMPER ASM; SEAT SUSP	8-98261-453-0	01	1	1404-1511	●
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-453-0	01	1	1512-	●	●
66	RUBBER; LWR STOPPER	1-75538-145-0	02	1	1303-1511	●
66	RUBBER; LWR STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	1512-	●	●
76	DAMPER; AIR SUSP	1-75537-230-2	01	1	1303-1511	●
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-230-2	01	1	1512-	●	●
77	PIN; DAMPER	1-75538-138-2	01	1	1303-1511	●
77	PIN; DAMPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	1512-	●	●
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	1303-1511	●
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	1512-	●	●
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	1303-1511	●
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15	9-09185-415-0	01	1	1512-	●	●
79	ROLLER ASM; AIR SUSP	1-75538-159-0	04	1	1303-1403	●
79	ROLLER ASM; AIR SUSP	8-98261-489-0	04	1	1404-1511	●
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-489-0	04	1	1512-	●	●
80	RUBBER; STOPPER CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1303-1511	●
80	RUBBER; STOPPER CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1512-	●	●
80	RUBBER; STOPPER (A)	1-09987-123-0	01	1	1303-1511	●
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	1512-	●	●
81	SPRING; AIR	1-75538-151-2	01	1	1303-1312	●
81	SPRING; AIR	8-98242-816-0	01	1	1401-1511	●
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98242-816-0	01	1	1512-	●	●
85	BOLT; AIR SUSP (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-1511	●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1512-	●	●
85	BOLT; AIR SUSP (C)	1-09980-577-1	01	1	1303-1511	●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-1	01	1	1512-	●	●
85	BOLT; AIR SUSP (A) M6X12	1-75538-208-1	02	1	1303-1511	●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12	1-75538-208-1	02	1	1512-	●	●
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1303-1312	●
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-1511	●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1512-	●	●
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1303-1511	●
86	BUSHING; GUIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1512-	●	●
87	WASHER; AIR SUSP ID=8.2	0-91510-508-0	01	1	1303-1511	●
87	WASHER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	0-91510-508-0	01	1	1512-	●	●
88	NUT; AIR SUSP M10	1-75537-273-1	01	1	1303-1511	●
88	NUT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	1-75537-273-1	01	1	1512-	●	●
322	VALVE; AIR SPRING	1-75538-187-3	01	1	1303-1511	●
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-187-3	01	1	1512-	●	●
339	UNION; DRIVER SEAT	1-75538-131-3	01	1	1303-1511	●
339	UNION; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-3	01	1	1512-	●	●
467	LEVER; LOCK	1-75538-134-0	01	1	1303-1511	●
467	LEVER; LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	1512-	●	●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1303-1511	●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1512-	●	●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1303-1511	●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1512-	●	●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1303-1511	●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1512-	●	●
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1303-1511	●
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	1512-	●	●
470	CLIP; HOSE	1-75538-137-0	01	1	1303-1511	●
470	CLIP; HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	1512-	●	●
513	SPACER; LEVER	1-75538-133-0	01	1	1303-1511	●
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	1512-	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1303-1511	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1512-	●	●
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1303-1511	●
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1512-	●	●
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1303-1511	●
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1512-	●	●
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1303-1511	●
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1512-	●	●

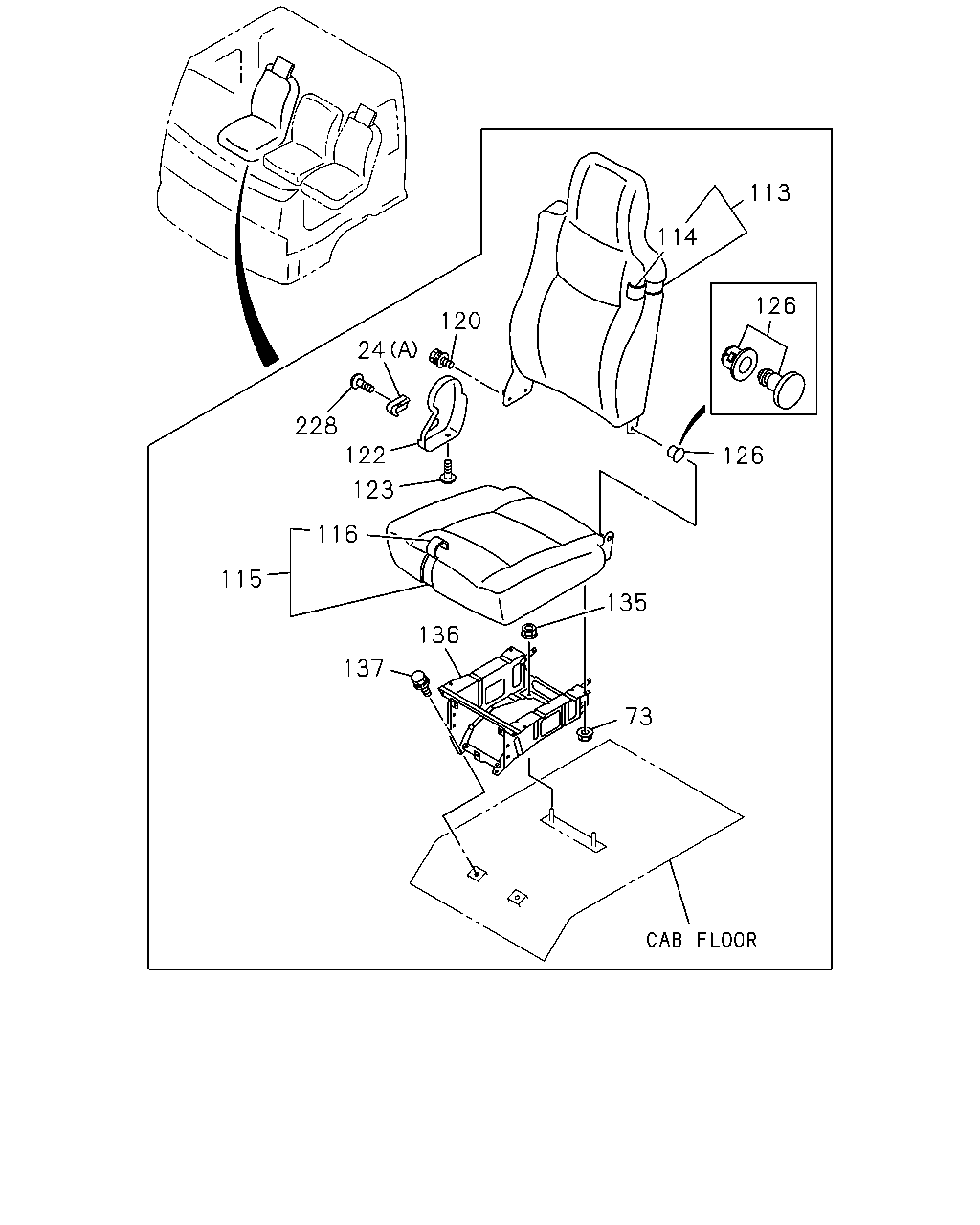

113 114 126 126 120 24 228 122 123 116 115 135 136 137 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	1303-1511	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	1512-	●	●
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-066-0	01	1	1303-1511	●
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-066-0	01	1	1512-	●	●
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	1303-1511	●
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	1512-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	1303-1511	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	1512-	●	●
113	BACK ASM; SEAT	8-98210-856-0	01	1	1303-1511	●
113	BACK ASM; SEAT	8-98210-856-0	01	1	1512-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK	8-98210-857-0	01	1	1303-1511	●
114	COVER; TRIM,PASSENGER SEAT,BACK	8-98210-857-0	01	1	1512-	●	●
115	CUSHION ASM; PASSENGER SEAT	8-98210-854-0	01	1	1303-1511	●
115	CUSHION ASM; PASSENGER SEAT	8-98210-854-0	01	1	1512-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	8-98210-855-0	01	1	1303-1511	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	8-98210-855-0	01	1	1512-	●	●
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	1303-1511	●
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	1512-	●	●
122	COVER; ADJ,RECLINING DARK GRAY	8-97867-020-0	01	1	1303-1511	●
122	COVER; ADJ,RECLINING DARK GRAY	8-97867-020-0	01	1	1512-	●	●
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	1303-1511	●
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	1512-	●	●
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	1303-1511	●
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	1512-	●	●
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	1303-1511	●
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	1512-	●	●
136	STAND; PASSENGER SEAT	1-75558-602-3	01	1	1303-1305	●
136	STAND; PASSENGER SEAT	8-98242-299-0	01	1	1306-1511	●
136	STAND; PASSENGER SEAT	8-98242-299-0	01	1	1512-	●	●
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	1303-1511	●
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	1512-	●	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	1303-1511	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	1303-1511	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	1512-	●	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	1512-	●	●
513	SPACER; LEVER	1-75538-133-0	01	1	1303-1511	●
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	1512-	●	●

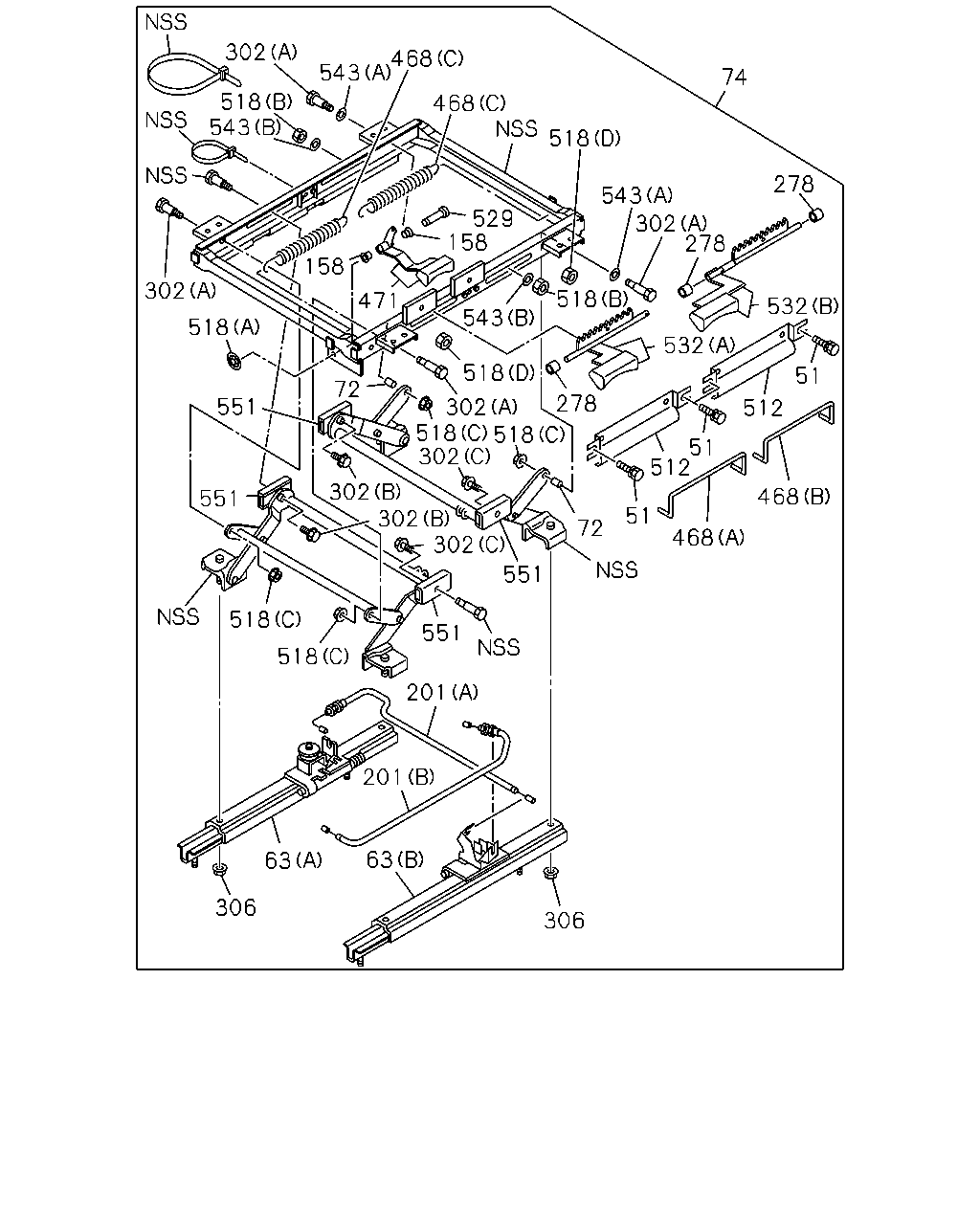

302 518 543 302 551 518 551 518 518 201 63 306 63 306 201 551 302 302 302 551 51 72 468 512 51 468 512 51 532 32 278 518 302 518 302 518 543 518 302 278 278 543 74 518 468 468 543 158 72 471 158 529

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	1303-1511	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	1512-	●	●
51	SCREW; COVER	1-75518-325-1	04	1	1303-1511	●
51	SCREW; COVER	1-75518-325-1	04	1	1512-	●	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-227-1	01	1	1303-1511	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-227-1	01	1	1512-	●	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-324-0	01	1	1303-1511	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-324-0	01	1	1512-	●	●
72	SPACER; SEAT ADJ	1-75518-334-1	02	1	1303-1502	●
72	SPACER; SEAT ADJ	8-98291-668-0	02	1	1503-1511	●
72	SPACER; SEAT ADJ	8-98291-668-0	02	1	1512-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-331-3	01	1	1303-1502	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-646-0	01	1	1503-1511	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-646-0	01	1	1512-	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1303-1511	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1512-	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1303-1511	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1512-	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1303-1511	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1512-	●	●
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	1303-1511	●
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	1512-	●	●
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-266-2	02	1	1303-1511	●
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-266-2	02	1	1512-	●	●
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-1	04	1	1303-1502	●
302	BOLT; ADJ,HEIGHT CONT (A)	8-98291-667-0	04	1	1503-1511	●
302	BOLT; ADJ,HEIGHT CONT (A)	8-98291-667-0	04	1	1512-	●	●
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-336-1	02	1	1303-1511	●
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-336-1	02	1	1512-	●	●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	1303-1511	●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	1512-	●	●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1303-1511	●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1512-	●	●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1303-1511	●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1512-	●	●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1303-1511	●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1512-	●	●
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1303-1511	●
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	1512-	●	●
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	1303-1511	●
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	1512-	●	●
512	COVER; LEVER	1-75518-245-1	02	1	1303-1511	●
512	COVER; LEVER	1-75518-245-1	02	1	1512-	●	●
513	SPACER; LEVER	1-75538-133-0	01	1	1303-1511	●
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	1512-	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1303-1511	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1512-	●	●
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1303-1511	●
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1512-	●	●
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1303-1511	●
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1512-	●	●
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1303-1511	●
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1512-	●	●
529	PIN; LINK	1-75518-262-0	01	1	1303-1511	●
529	PIN; LINK	1-75518-262-0	01	1	1512-	●	●
532	LEVER ASM; TILT (A)	1-75518-221-0	01	1	1303-1511	●
532	LEVER ASM; TILT (A)	1-75518-221-0	01	1	1512-	●	●
532	LEVER ASM; TILT (B)	1-75518-222-1	01	1	1303-1511	●
532	LEVER ASM; TILT (B)	1-75518-222-1	01	1	1512-	●	●
543	WASHER; HEIGHT ADJUSTER (A)	1-75518-335-0	02	1	1303-1502	●
543	WASHER; HEIGHT ADJUSTER (A) ID=13 OD=19	8-98291-669-0	02	1	1503-1511	●
543	WASHER; HEIGHT ADJUSTER (A) ID=13 OD=19	8-98291-669-0	02	1	1512-	●	●
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4	9-09160-508-0	04	1	1303-1511	●
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4	9-09160-508-0	04	1	1512-	●	●
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	1303-1511	●
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	1512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
