8-01 — LAMP; FRONT AND FRONT SIDE (#115281) — 78 parça

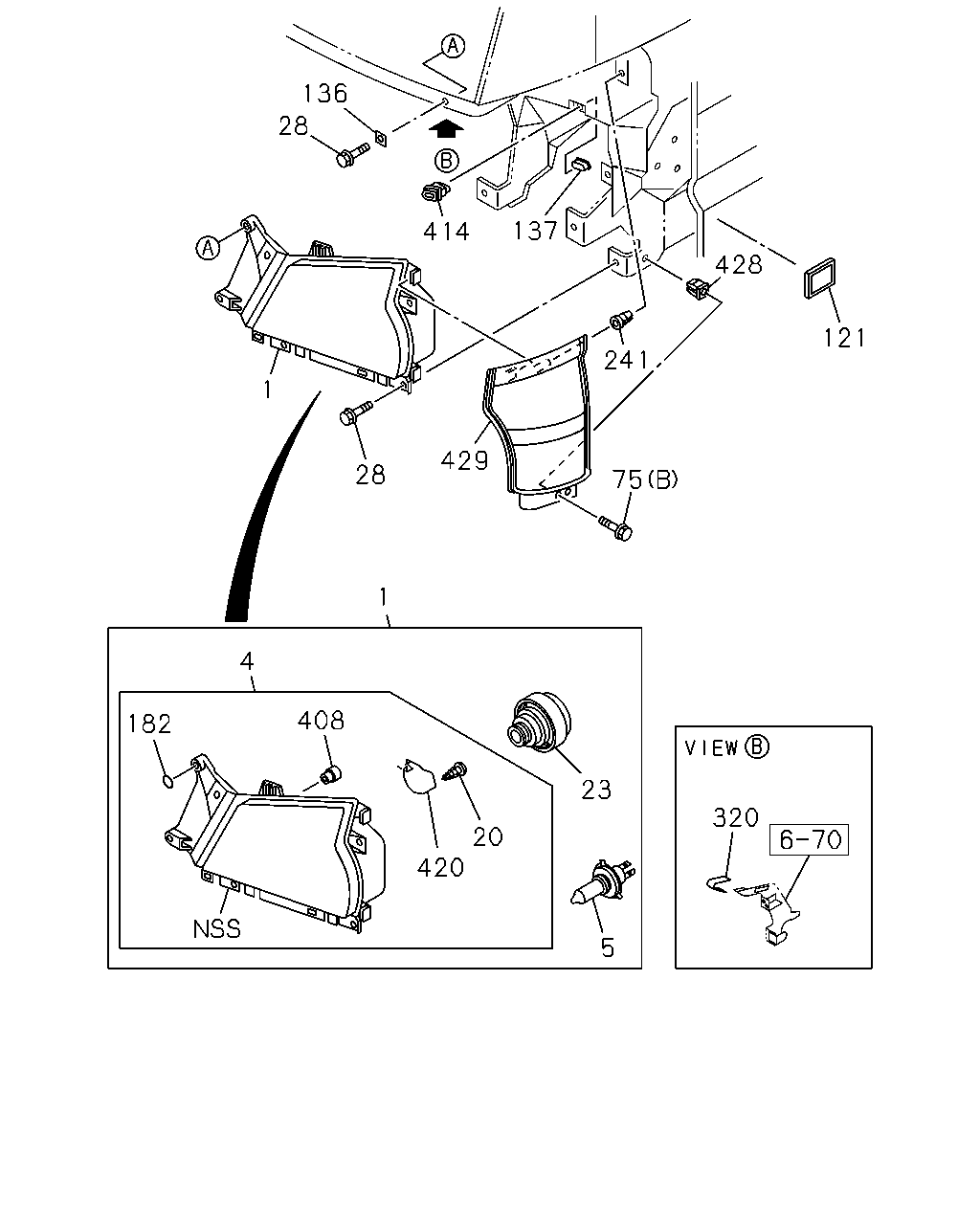

çizim 336694
136 28 414 137 241 428 121 75 429 28 1 1 4 182 408 420 23 20 320 5
BalonParca AdiParca NoAdetTipApplied Date
1 02.725 LAMP ASM; HEAD 8-98053-915-0 01 1 1302-
1 02.725 LAMP ASM; HEAD 8-98053-916-0 01 1 1302-
4 02.727 HEADLAMP UNIT 8-98009-824-0 01 1 1302-
4 02.727 HEADLAMP UNIT 8-98009-825-0 01 1 1302-
5 02.727 BULB; HEADLAMP
12V 60/55W 		8-97106-708-0 02 1 1302-
20 02.736 SCREW; HEADLAMP 8-97378-871-0 02 1 1302-
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1302-
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 1302-1401
28 02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1402-
75 02.587 SCREW; FRT COMB LAMP
(B) M6X16 TAPPING 		8-97374-995-0 02 1 1302-
75 02.587 SCREW; FRT COMB LAMP
(A) M4X12 		8-97378-944-0 14 1 1302-
121 02.575 REFLECTOR; REFLEX 8-98013-990-1 02 1 1401-
136 02.726 SEAL; HEADLAMP
03.602 25X25 		8-94272-533-0 02 1 1302-
137 02.726 GROMMET; HEADLAMP 8-97581-666-0 02 1 1302-
182 02.722 GASKET; HEADLAMP 8-97378-869-0 02 1 1302-
241 02.726 GROMMET; FRT LAMP 8-97380-030-0 02 1 1302-
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 1302-
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1302-
414 02.736 PIN; HEADLAMP,RIM 8-97581-667-0 02 1 1302-
420 02.737 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 1302-
428 02.587 GROMMET; SIDE COMB LAMP
16.445 		1-09983-081-0 02 1 1302-
429 02.585 LAMP ASM; SIDE COMB 8-98053-938-0 01 1 1302-1312
429 02.585 LAMP ASM; SIDE COMB 8-98010-889-0 01 1 1401-
429 02.585 LAMP ASM; SIDE COMB 8-98053-939-0 01 1 1302-1312
429 02.585 LAMP ASM; SIDE COMB 8-98010-890-0 01 1 1401-

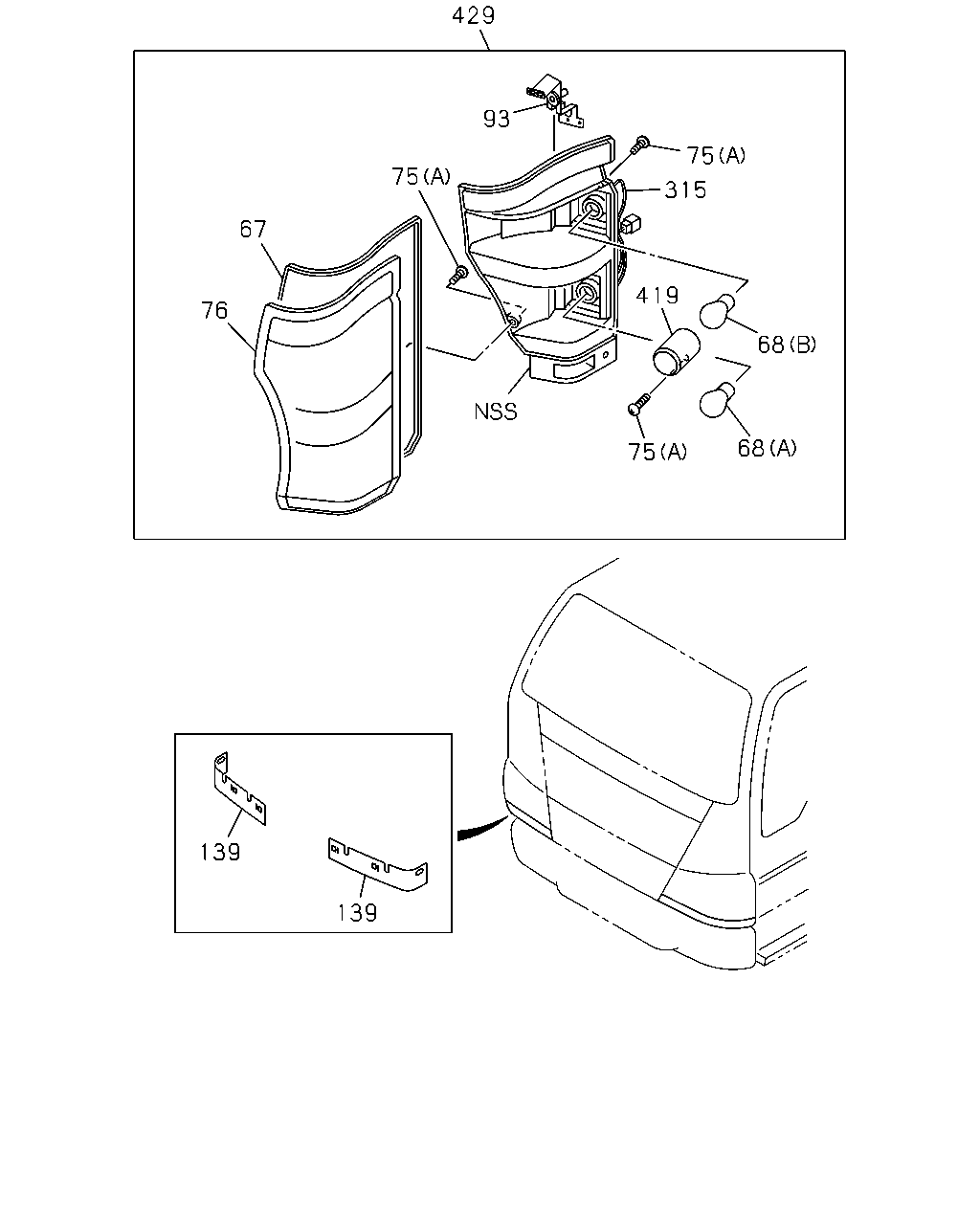

çizim 336813
429 93 75 67 76 75 315 419 68 68 75 139 139
BalonParca AdiParca NoAdetTipApplied Date
67 02.590 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 1302-
68 08.991 BULB; FRT COMB LAMP
(A) 12V 21/5W 		8-94125-959-0 02 1 1302-
68 08.991 BULB; FRT COMB LAMP
(B) 12V 21W 		8-97304-590-0 02 1 1302-
75 02.587 SCREW; FRT COMB LAMP
(B) M6X16 TAPPING 		8-97374-995-0 02 1 1302-
75 02.587 SCREW; FRT COMB LAMP
(A) M4X12 		8-97378-944-0 14 1 1302-
76 02.589 LENS; FRT COMB LAMP 8-97378-961-0 01 1 1302-1312
76 02.589 LENS; FRT COMB LAMP 8-97378-965-0 01 1 1401-
76 02.589 LENS; FRT COMB LAMP 8-97378-962-0 01 1 1302-1312
76 02.589 LENS; FRT COMB LAMP 8-97378-966-0 01 1 1401-
93 02.892 BRACKET; SIDE COMB LAMP 8-97378-943-0 01 1 1302-
93 02.892 BRACKET; SIDE COMB LAMP 8-97378-945-0 01 1 1302-
139 02.726 COVER; HEADLAMP
01.267 		8-98015-934-0 02 1 1302-1312
139 02.726 COVER; HEADLAMP
01.267 		8-98015-934-0 02 1 1401-
315 02.596 HARNESS; FRT COMB LAMP 8-98010-917-0 02 1 1302-1312
315 02.596 HARNESS; FRT COMB LAMP 8-98010-916-0 02 1 1401-
419 02.589 LENS; INNER,FRT COMB LAMP 8-97378-946-0 01 1 1302-
419 02.589 LENS; INNER,FRT COMB LAMP 8-97378-947-0 01 1 1302-
429 02.585 LAMP ASM; SIDE COMB 8-98053-938-0 01 1 1302-1312
429 02.585 LAMP ASM; SIDE COMB 8-98010-889-0 01 1 1401-
429 02.585 LAMP ASM; SIDE COMB 8-98053-939-0 01 1 1302-1312
429 02.585 LAMP ASM; SIDE COMB 8-98010-890-0 01 1 1401-

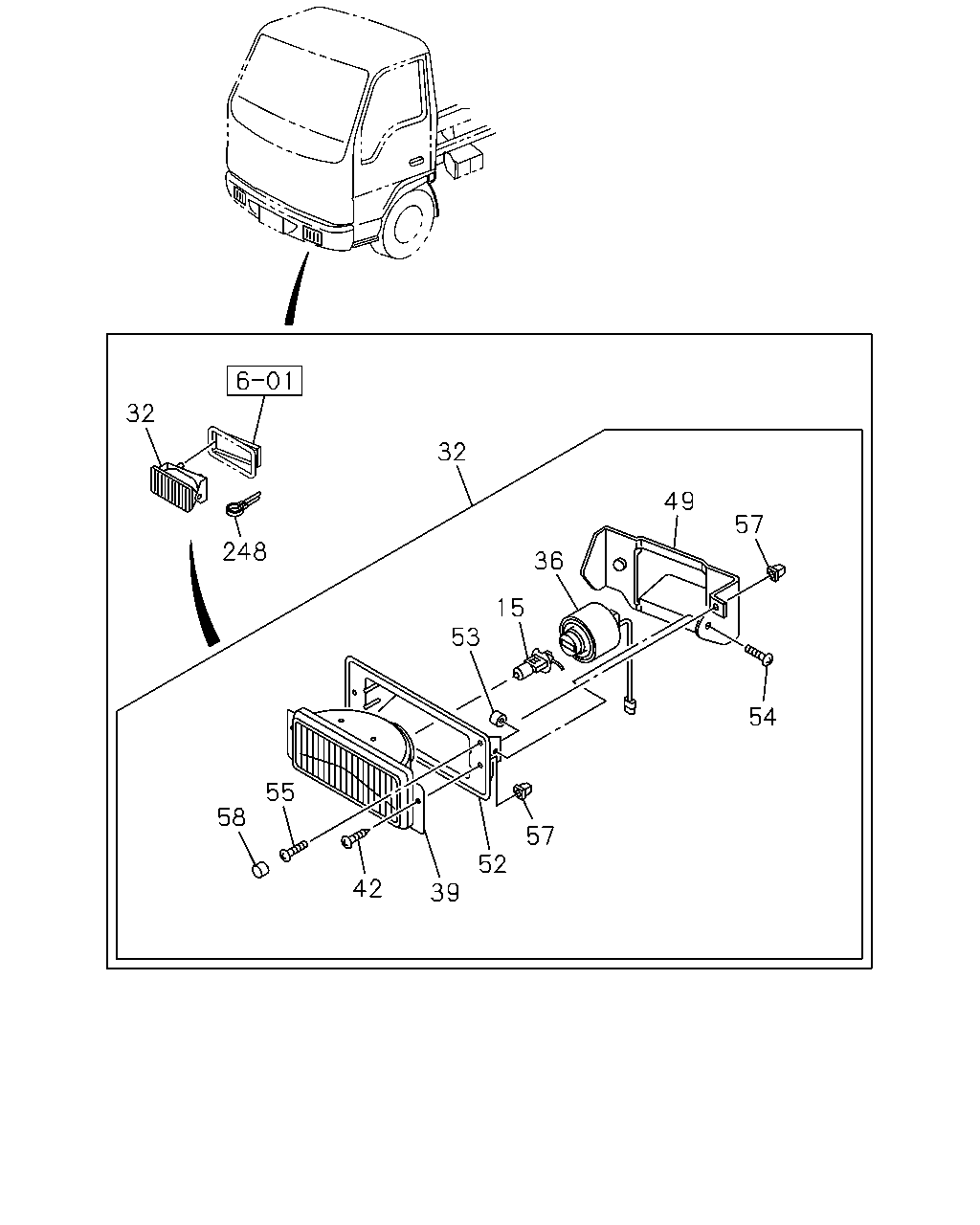

çizim 336856
32 248 32 57 49 36 15 53 55 58 42 39 52 57 54
BalonParca AdiParca NoAdetTipApplied Date
15 08.991 BULB; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 12V 55W 		8-97093-859-0 02 1 1302-1312
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-97093-859-0 02 1 1401-
32 02.725 LAMP ASM; FOG
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 		8-98054-093-0 01 1 1302-1312
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98054-093-0 01 1 1401-
32 02.725 LAMP ASM; FOG
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 		8-98054-094-0 01 1 1302-1312
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98054-094-0 01 1 1401-
36 02.727 CORD; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 		8-97095-518-0 02 1 1302-1312
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		8-97095-518-0 02 1 1401-
39 02.727 UNIT; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 		8-98063-678-0 01 1 1302-1312
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-98063-678-0 01 1 1401-
39 02.727 UNIT; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 		8-98063-679-0 01 1 1302-1312
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-98063-679-0 01 1 1401-
42 02.575 SCREW; LENS,FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 		8-97104-089-0 04 1 1302-1312
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97104-089-0 04 1 1401-
49 02.726 BRACKET; LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 		8-97104-090-0 01 1 1302-1312
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-090-0 01 1 1401-
49 02.726 BRACKET; LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 		8-97104-091-0 01 1 1302-1312
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-091-0 01 1 1401-
52 02.726 RING; MTG,FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 		8-97104-062-0 02 1 1302-1312
52 02.726 RING; MTG,FOG LAMP
FOG LAMP<T96> 		8-97104-062-0 02 1 1401-
53 02.726 NUT; MTG RING,FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 		8-94379-802-0 04 1 1302-1312
53 02.726 NUT; MTG RING,FOG LAMP
FOG LAMP<T96> 		8-94379-802-0 04 1 1401-
54 02.726 BOLT; MTG RING,FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> M5X12 		8-94379-803-0 04 1 1302-1312
54 02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP<T96> M5X12 		8-94379-803-0 04 1 1401-
55 02.737 SCREW; ADJ,FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 		8-97104-087-0 02 1 1302-1312
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-97104-087-0 02 1 1401-
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 		8-94379-806-0 06 1 1302-1312
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-94379-806-0 06 1 1401-
58 02.726 HOLDER; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 		8-97104-088-0 02 1 1302-1312
58 02.726 HOLDER; FOG LAMP
FOG LAMP<T96> 		8-97104-088-0 02 1 1401-
248 02.727 CLIP; HARNESS
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 02.559 ID=20 		5-09700-321-0 02 1 1302-1312
248 02.727 CLIP; HARNESS
FOG LAMP<T96> 02.559 ID=20 		5-09700-321-0 02 1 1401-
