Isuzu WW
▶
TRUCKS
▶
NKR
▶
51429 - NKR-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#115279) — 63 parça
◀

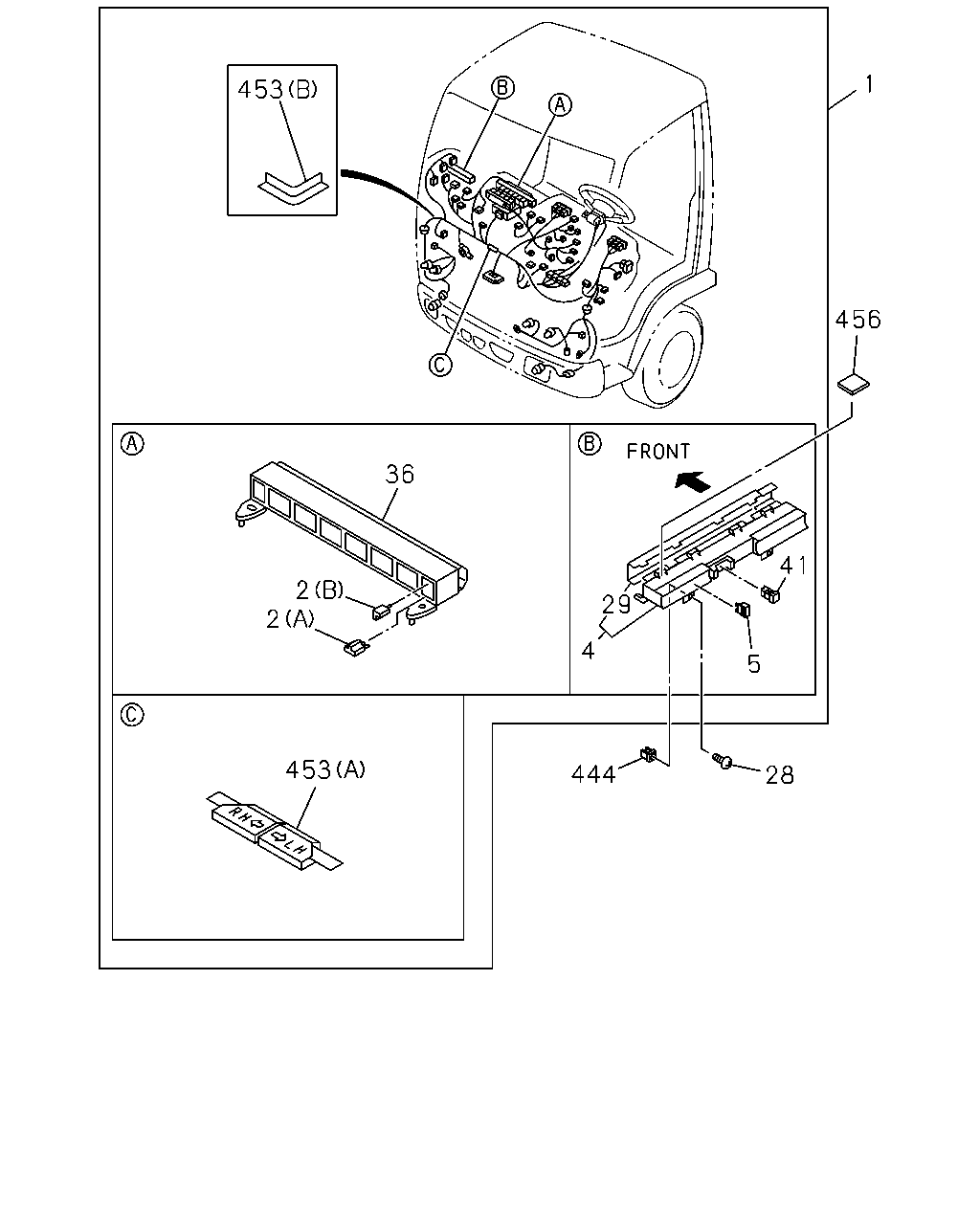

[810A] CAB HARNESS (18 parça)
[810A] FRT FRAME HARNESS (17 parça)
[810A] ENG HARNESS (2 parça)
[810A] OTHER HARNESS(NO.1) (17 parça)
[810A] DOOR,ROOM LAMP,FLOOR HARNESS (7 parça)
[810A] OTHER HARNESS(NO.2) (2 parça)
▶
28
444
4
5
41
29
456
1
36
2
2
453
453
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.480 HARNESS; CAB
8-98214-247-2
01
1
1302-
2
02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A
8-94422-639-1
AR
1
1302-
2
02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A
8-94422-640-1
AR
1
1302-
4
02.483 BOX ASM; FUSE,HARNESS
8-97187-921-1
01
1
1302-
5
02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED
8-97062-022-0
AR
1
1302-
5
02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE
8-97062-023-0
AR
1
1302-
5
02.485 FUSE; FACIA HARNESS
08.965 25A MINI CLEAR
8-97062-025-0
AR
1
1302-
28
02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1302-
29
02.483 COVER; FUSE BOX
8-97074-955-0
01
1
1302-
36
02.530 BOX; RELAY
8-97187-918-1
01
1
1302-
41
08.821 PULLER; FUSE
8-97103-388-0
01
1
1302-
444
02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5
8-94279-078-0
02
1
1302-
453
02.483 PROTECTOR; HARNESS
(E)
8-94417-716-0
02
1
1302-
453
02.483 PROTECTOR; HARNESS
(B)
8-94452-553-0
01
1
1302-
453
02.483 PROTECTOR; HARNESS
(A)
8-97074-957-0
01
1
1302-
453
02.483 PROTECTOR; HARNESS
(C)
8-97093-668-1
01
1
1302-
453
02.483 PROTECTOR; HARNESS
(D)
8-97255-221-0
01
1
1302-
456
02.483 CUSHION; FUSE BOX
16.085 15X30 T=5
8-94270-366-2
01
1
1302-

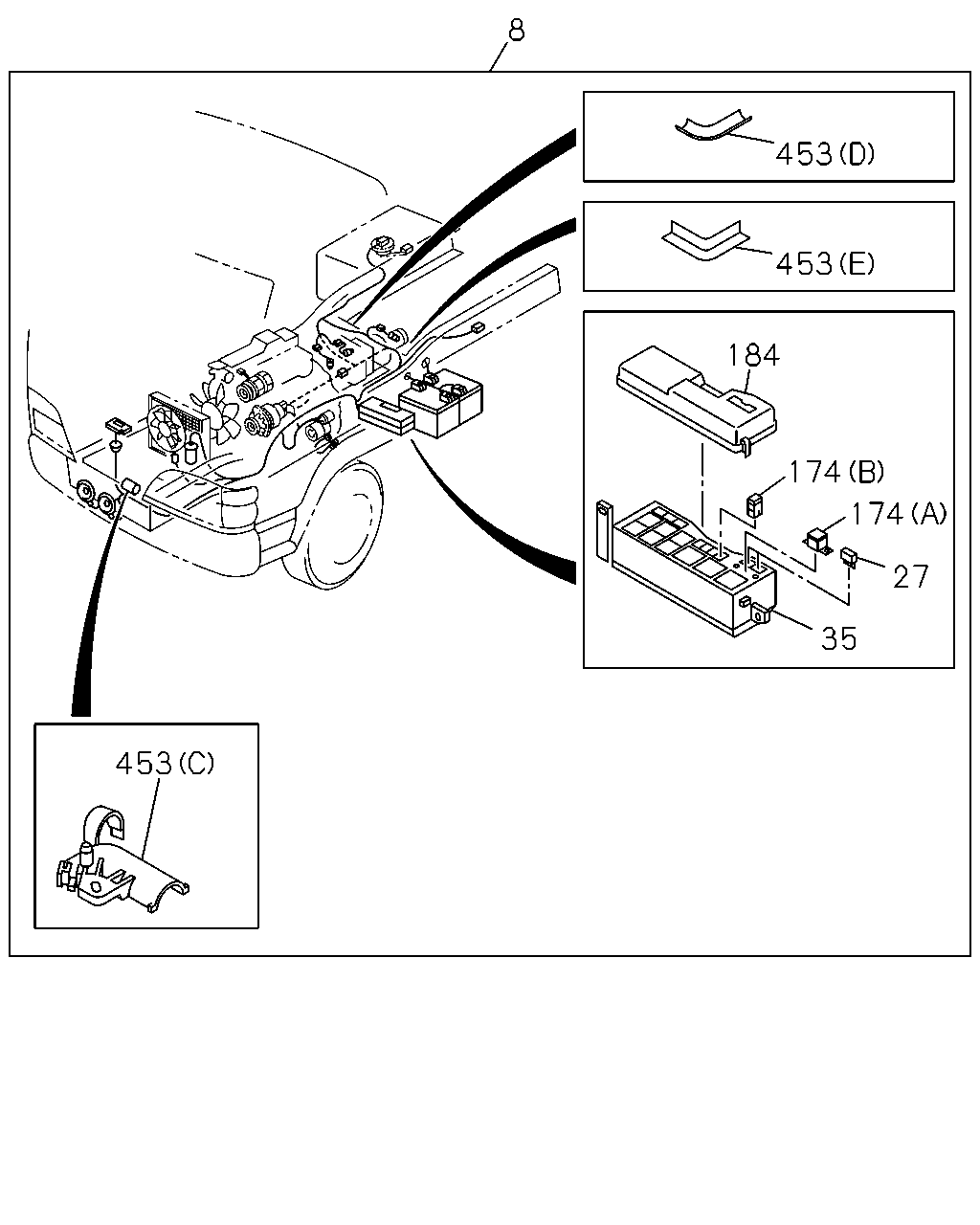

453
453
184
174
27
35
453
174
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
02.480 HARNESS; FRAME,FRT
8-98214-281-0
01
1
1302-1409
8
02.480 HARNESS; FRAME,FRT
8-98293-961-0
01
1
1410-1508
8
02.480 HARNESS; FRAME,FRT
8-98301-150-0
01
1
1509-
27
08.965 FUSE UNIT
10A MINI RED
8-97062-022-0
AR
1
1302-
27
08.965 FUSE UNIT
20A MINI YELLOW
8-97062-024-0
AR
1
1302-
35
02.530 BOX; RELAY & FUSE
8-97377-739-0
01
1
1302-
174
08.965 FUSE; SLOW BLOW
(A) 100A BLUE
8-94388-306-1
AR
1
1302-
174
08.965 FUSE; SLOW BLOW
(B) 30A PINK
8-97183-643-0
AR
1
1302-
174
08.965 FUSE; SLOW BLOW
(B) 40A GREEN
8-97183-644-0
AR
1
1302-
174
08.965 FUSE; SLOW BLOW
(B) 50A RED
8-97183-645-0
AR
1
1302-
174
08.965 FUSE; SLOW BLOW
(B) 60A YELLOW
8-97219-407-0
AR
1
1302-
184
02.559 COVER; RELAY & FUSE BOX
8-97377-741-0
01
1
1302-
453
02.483 PROTECTOR; HARNESS
(E)
8-94417-716-0
02
1
1302-
453
02.483 PROTECTOR; HARNESS
(B)
8-94452-553-0
01
1
1302-
453
02.483 PROTECTOR; HARNESS
(A)
8-97074-957-0
01
1
1302-
453
02.483 PROTECTOR; HARNESS
(C)
8-97093-668-1
01
1
1302-
453
02.483 PROTECTOR; HARNESS
(D)
8-97255-221-0
01
1
1302-

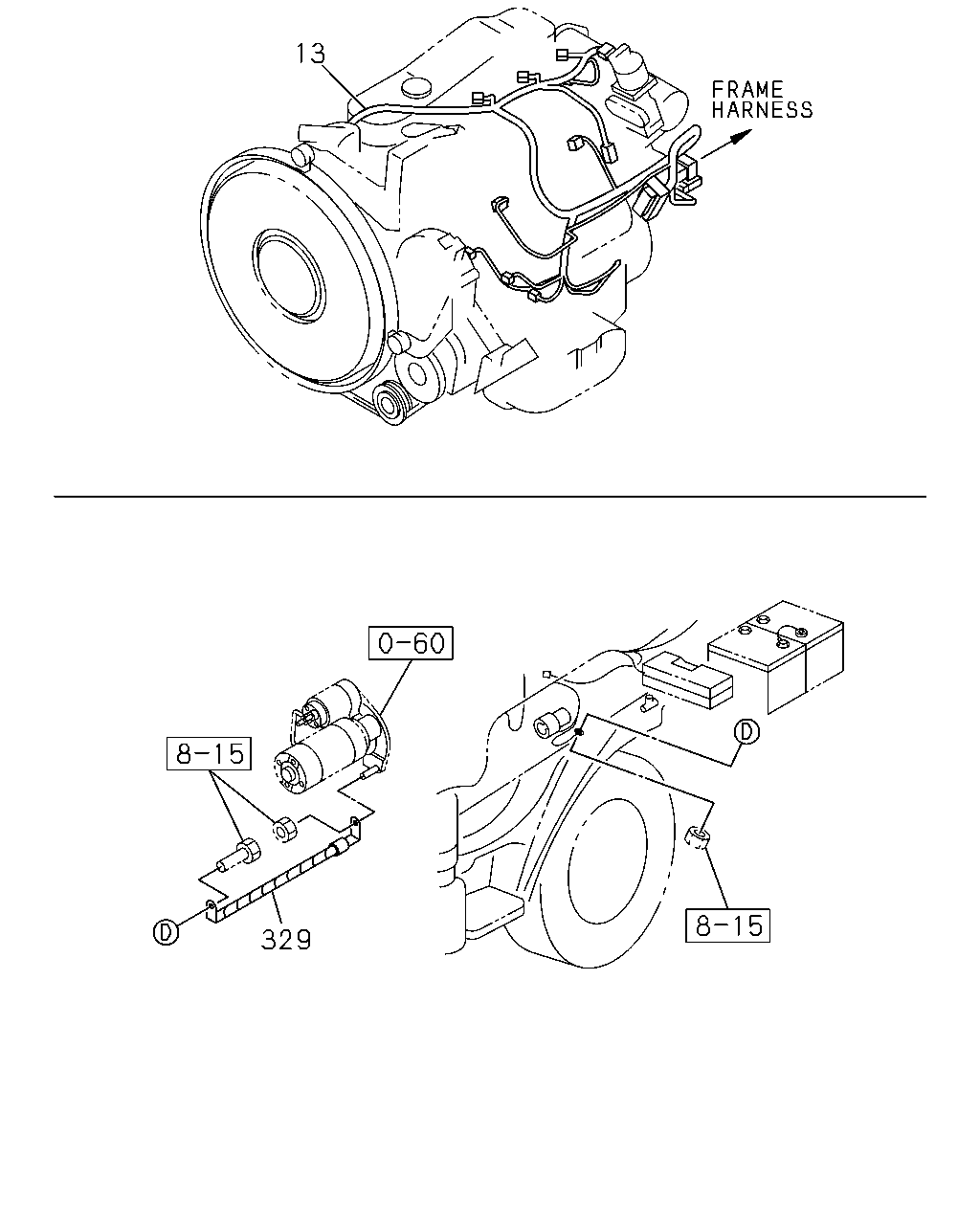

13
329
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
02.525 HARNESS; ENG
KD PREPARATORY PACK<6HF>
8-98208-928-3
01
1
1302-
329
02.480 CABLE; ENG TO FRAME
8-97260-486-1
01
1
1302-

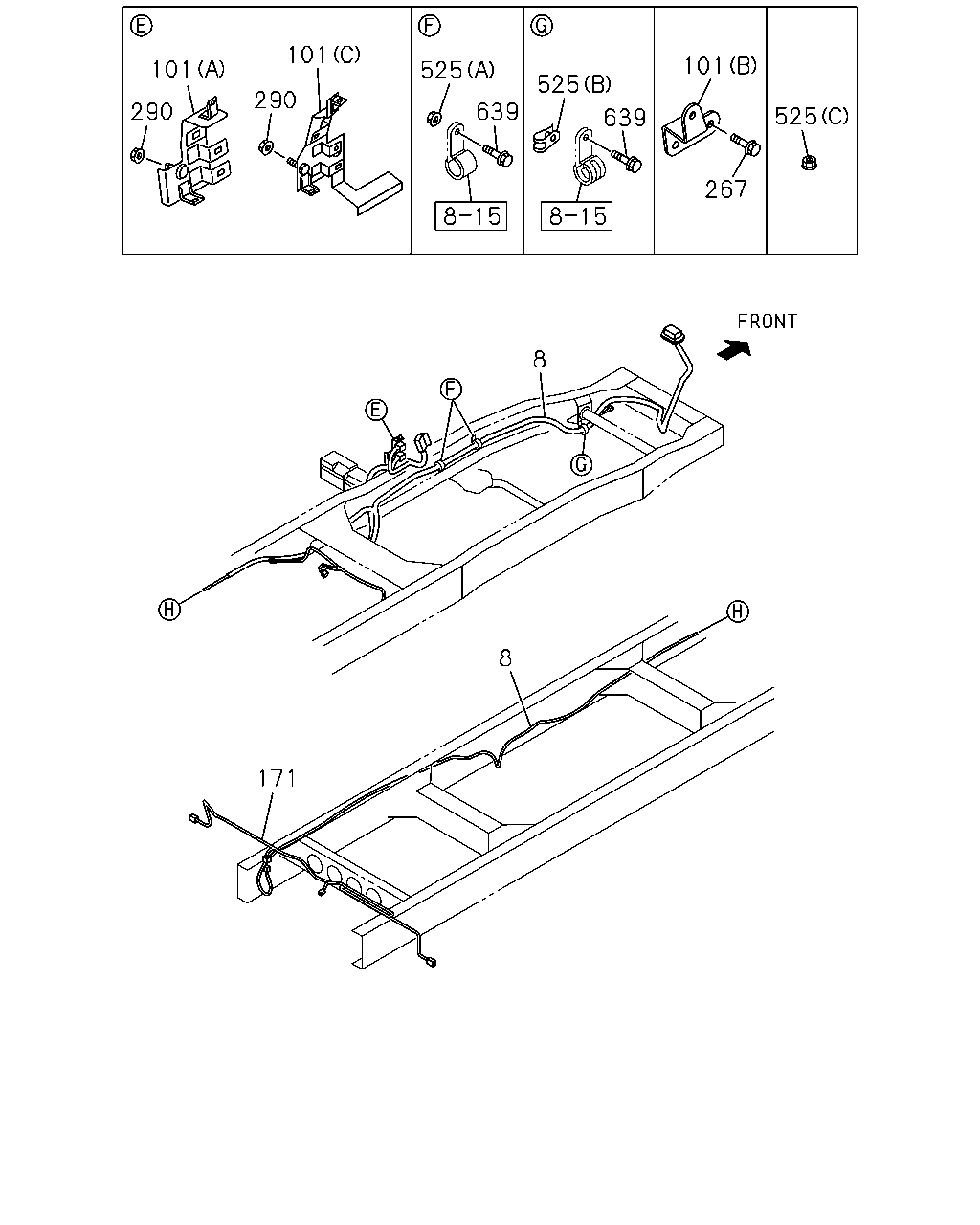

290
101
101
290
525
639
525
639
101
267
525
8
171
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
02.480 HARNESS; FRAME,FRT
8-98214-281-0
01
1
1302-1409
8
02.480 HARNESS; FRAME,FRT
8-98293-961-0
01
1
1410-1508
8
02.480 HARNESS; FRAME,FRT
8-98301-150-0
01
1
1509-
101
02.483 BRACKET; HARNESS CONNECTOR
(A)
8-98019-634-0
01
1
1302-1405
101
02.483 BRACKET; HARNESS CONNECTOR
(C)
8-98245-189-1
01
1
1406-
101
02.483 BRACKET; HARNESS CONNECTOR
(B)
8-98214-353-0
01
1
1302-
171
02.596 HARNESS; CABLE,TAIL LAMP
8-98222-483-0
01
1
1302-
267
02.483 BOLT; BRKT
03.613 M10X40 FLANGE
0-28651-040-0
02
1
1302-
290
02.483 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
02
1
1406-
290
02.483 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
02
1
1302-1308
290
02.483 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
1309-1405
290
02.483 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
1309-1405
290
02.483 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
1406-
525
08.919 NUT; CLIP
01.062 (A) M6 FLANGE
0-91180-106-0
02
1
1302-
525
08.919 NUT; CLIP
01.062 (C) M8 FLANGE
0-91180-108-0
01
1
1302-
525
08.919 NUT; CLIP
02.559 (B)
8-97108-658-0
01
1
1302-
639
08.900 BOLT; CLIP
00.685 M6X25 FLANGE
0-28650-625-0
03
1
1302-

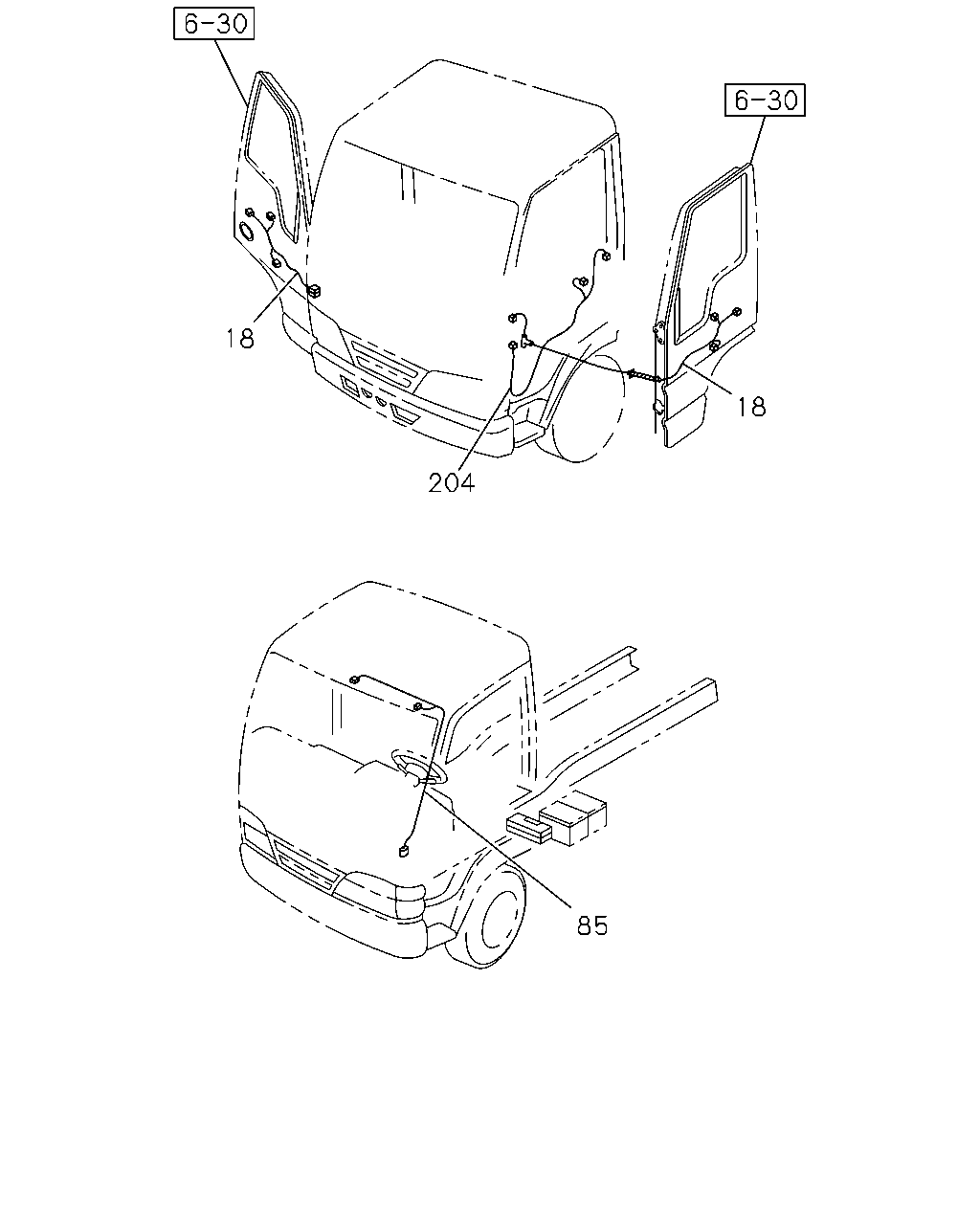

204
18
18
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>
8-97185-142-1
01
1
1302-
18
02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>
8-98166-820-0
01
1
1302-1405
18
02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>
8-97226-669-0
01
1
1406-
18
02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>
8-97105-571-1
01
1
1302-
18
02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>
8-97226-668-0
01
1
1302-
85
06.495 HARNESS; ROOM LAMP
8-97364-158-0
01
1
1302-
204
02.559 HARNESS; CABLE,FLOOR
8-97364-140-0
01
1
1302-
441
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
441
02.480 HARNESS; CABLE,SPEED SENSOR
8-97308-220-4
01
1
1302-1308
441
02.480 HARNESS; CABLE,SPEED SENSOR
REAR WIDE TREAD(V4T)
8-97308-220-4
01
1
1309-
