◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#115277) — 229 parça

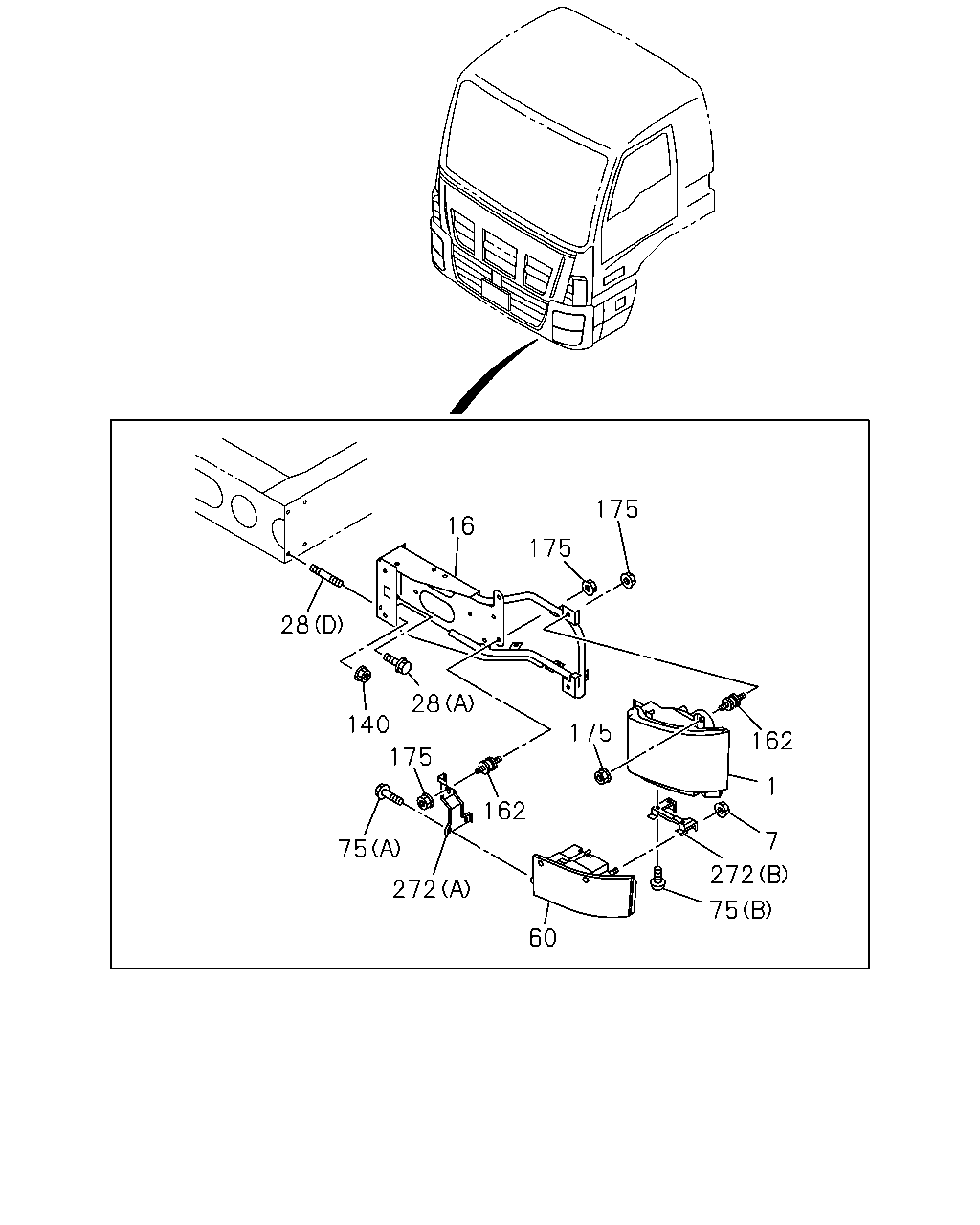

çizim 336674
16 175 175 28 28 140 175 75 272 162 75 60 162 1 7 272 75
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98225-622-0 01 1 1303-1305 ●
1 LAMP ASM; HEAD 8-98241-314-0 01 1 1306-1511 ●
1 LAMP ASM; HEAD 8-98241-314-0 01 1 1512- ● ●
1 LAMP ASM; HEAD 8-98225-623-0 01 1 1303-1305 ●
1 LAMP ASM; HEAD 8-98241-315-0 01 1 1306-1511 ●
1 LAMP ASM; HEAD 8-98241-315-0 01 1 1512- ● ●
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 04 1 1303-1511 ●
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 04 1 1512- ● ●
16 BRACKET; HEADLAMP 8-98121-414-3 01 1 1303-1511 ●
16 BRACKET; HEADLAMP 8-98121-414-3 01 1 1512- ● ●
16 BRACKET; HEADLAMP 8-98121-415-3 01 1 1303-1511 ●
16 BRACKET; HEADLAMP 8-98121-415-3 01 1 1512- ● ●
28 BOLT; HEADLAMP
(A) M12X35 FLANGE 		0-28051-235-0 04 1 1303-1511 ●
28 BOLT; HEADLAMP
(A) M12X35 FLANGE 		0-28051-235-0 04 1 1512- ● ●
28 BOLT; HEADLAMP
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1303-1511 ●
28 BOLT; HEADLAMP
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1512- ● ●
28 BOLT; HEADLAMP
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1303-1511 ●
28 BOLT; HEADLAMP
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1512- ● ●
28 BOLT; HEADLAMP
(D) M12X30,M12X16 L=56 		8-98144-947-0 04 1 1303-1511 ●
28 BOLT; HEADLAMP
(D) M12X30,M12X16 L=56 		8-98144-947-0 04 1 1512- ● ●
60 LAMP ASM; FRT COMB 8-98159-978-2 01 1 1303-1303 ●
60 LAMP ASM; FRT COMB 8-98238-625-0 01 1 1303-1511 ●
60 LAMP ASM; FRT COMB 8-98238-625-0 01 1 1512- ● ●
60 LAMP ASM; FRT COMB 8-98159-979-2 01 1 1303-1303 ●
60 LAMP ASM; FRT COMB 8-98238-626-0 01 1 1303-1511 ●
60 LAMP ASM; FRT COMB 8-98238-626-0 01 1 1512- ● ●
75 SCREW; FRT COMB LAMP
(A) M6X16 FLANGE 		0-28650-616-0 04 1 1303-1511 ●
75 SCREW; FRT COMB LAMP
(A) M6X16 FLANGE 		0-28650-616-0 04 1 1512- ● ●
75 SCREW; FRT COMB LAMP
(B) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1303-1511 ●
75 SCREW; FRT COMB LAMP
(B) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1512- ● ●
75 SCREW; FRT COMB LAMP
(C) 		8-98074-439-0 02 1 1303-1511 ●
75 SCREW; FRT COMB LAMP
(C) 		8-98074-439-0 02 1 1512- ● ●
140 NUT
M12 FLANGE 		0-91180-212-0 04 1 1303-1511 ●
140 NUT
M12 FLANGE 		0-91180-212-0 04 1 1512- ● ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 1303-1511 ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 1512- ● ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 1303-1511 ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 1512- ● ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-934-0 01 1 1303-1511 ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-934-0 01 1 1512- ● ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-935-0 01 1 1303-1511 ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-935-0 01 1 1512- ● ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-937-0 01 1 1303-1511 ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-937-0 01 1 1512- ● ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-938-0 01 1 1303-1511 ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-938-0 01 1 1512- ● ●
çizim 336710
174 256 83 80 82 292 84 174 256 82 83 81 80 84
BalonParca AdiParca NoAdetTipApplied Date A B
80 BULB; MARKER LAMP
LIGHTING SYSTEM ECE<SLC> (B) 24V 3W 		1-82219-035-0 06 1 1512- ●
80 BULB; MARKER LAMP
LIGHTING SYSTEM ECE<SLC> (B) 24V 3W 		1-82219-035-0 08 1 1512- ●
80 BULB; MARKER LAMP
ROOF MARKER LAMP<U01> (C) 24V 12W 		9-82691-302-0 03 1 1512- ●
80 BULB; MARKER LAMP
TAIWAN EQUIPMENT(WW5) ROOF MARKER LAMP<U01> (A) 24V 5W 		8-94135-397-0 01 1 1512- ●
80 BULB; MARKER LAMP
(A) 24V 5W 		8-94135-397-0 02 1 1303-1511 ●
80 BULB; MARKER LAMP
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 24V 5W 		8-94135-397-0 02 1 1512- ●
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 24V 5W 		8-94135-397-0 02 1 1512- ●
80 BULB; MARKER LAMP
RUSSIA EQUIPMENT(B12) (A) 24V 5W 		8-94135-397-0 02 1 1512- ●
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12) (A) 24V 5W 		8-94135-397-0 02 1 1512- ●
81 SEAT; SCREW
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) 		1-82219-012-0 04 1 1512- ●
81 SEAT; SCREW
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12) 		1-82219-012-0 04 1 1512- ●
82 SCREW; MARKER LAMP
TAIWAN EQUIPMENT(WW5) ROOF MARKER LAMP<U01> 		1-82219-011-0 02 1 1512- ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 1303-1511 ●
82 SCREW; MARKER LAMP
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) 		1-82219-011-0 04 1 1512- ●
82 SCREW; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) 		1-82219-011-0 04 1 1512- ●
82 SCREW; MARKER LAMP
RUSSIA EQUIPMENT(B12) 		1-82219-011-0 04 1 1512- ●
82 SCREW; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12) 		1-82219-011-0 04 1 1512- ●
83 LENS; MARKER LAMP
ROOF MARKER LAMP<U01> (B) 		1-82215-068-0 03 1 1512- ●
83 LENS; MARKER LAMP
TAIWAN EQUIPMENT(WW5) ROOF MARKER LAMP<U01> (A) 		1-82215-046-0 01 1 1512- ●
83 LENS; MARKER LAMP
(A) 		1-82215-046-0 02 1 1303-1511 ●
83 LENS; MARKER LAMP
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 		1-82215-046-0 02 1 1512- ●
83 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 		1-82215-046-0 02 1 1512- ●
83 LENS; MARKER LAMP
RUSSIA EQUIPMENT(B12) (A) 		1-82215-046-0 02 1 1512- ●
83 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12) (A) 		1-82215-046-0 02 1 1512- ●
84 GASKET; MARKER LAMP
TAIWAN EQUIPMENT(WW5) ROOF MARKER LAMP<U01> (A) 		1-86830-288-0 02 1 1512- ●
84 GASKET; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 		1-86830-288-0 02 1 1512- ●
84 GASKET; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12) (A) 		1-86830-288-0 02 1 1512- ●
84 GASKET; MARKER LAMP
ROOF MARKER LAMP<U01> (B) 		1-86830-153-0 03 1 1512- ●
84 GASKET; MARKER LAMP
(A) 		1-86830-288-0 04 1 1303-1511 ●
84 GASKET; MARKER LAMP
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 		1-86830-288-0 04 1 1512- ●
84 GASKET; MARKER LAMP
RUSSIA EQUIPMENT(B12) (A) 		1-86830-288-0 04 1 1512- ●
174 BOLT
LAMPS TWO ROOF MARKER<TEC> EXC. TAIWAN EQUIPMENT(WW5) (B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 1512- ●
174 BOLT
LAMPS TWO ROOF MARKER<TEC> (B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 1512- ●
174 BOLT
TAIWAN EQUIPMENT(WW5) ROOF MARKER LAMP<U01> (A) M6X25 W/PL WASHER 		8-98064-173-0 02 1 1512- ●
174 BOLT
(A) M6X25 W/PL WASHER 		8-98064-173-0 04 1 1303-1511 ●
174 BOLT
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) M6X25 W/PL WASHER 		8-98064-173-0 04 1 1512- ●
174 BOLT
RUSSIA EQUIPMENT(B12) (A) M6X25 W/PL WASHER 		8-98064-173-0 04 1 1512- ●
256 LAMP; MARKER
LIGHTING SYSTEM ECE<SLC> (B) 		1-82210-244-0 06 1 1512- ●
256 LAMP; MARKER
LIGHTING SYSTEM ECE<SLC> (B) 		1-82210-244-0 08 1 1512- ●
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (D) 		1-86830-242-3 02 1 1512- ●
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12) (D) 		1-86830-242-3 02 1 1512- ●
256 LAMP; MARKER
ROOF MARKER LAMP<U01> (C) 		1-86830-170-0 03 1 1512- ●
256 LAMP; MARKER
(A) 		1-86830-292-0 01 1 1303-1511 ●
256 LAMP; MARKER
TAIWAN EQUIPMENT(WW5) ROOF MARKER LAMP<U01> (A) 		1-86830-292-0 01 1 1512- ●
256 LAMP; MARKER
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 		1-86830-292-0 01 1 1512- ●
256 LAMP; MARKER
RUSSIA EQUIPMENT(B12) (A) 		1-86830-292-0 01 1 1512- ●
256 LAMP; MARKER
(A) 		1-86830-293-0 01 1 1303-1511 ●
256 LAMP; MARKER
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 		1-86830-293-0 01 1 1512- ●
256 LAMP; MARKER
RUSSIA EQUIPMENT(B12) (A) 		1-86830-293-0 01 1 1512- ●
292 WASHER; MARKER LAMP
TAIWAN EQUIPMENT(WW5) ROOF MARKER LAMP<U01> 		1-82219-012-0 02 1 1512- ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 1303-1511 ●
292 WASHER; MARKER LAMP
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) 		1-82219-012-0 04 1 1512- ●
292 WASHER; MARKER LAMP
RUSSIA EQUIPMENT(B12) 		1-82219-012-0 04 1 1512- ●

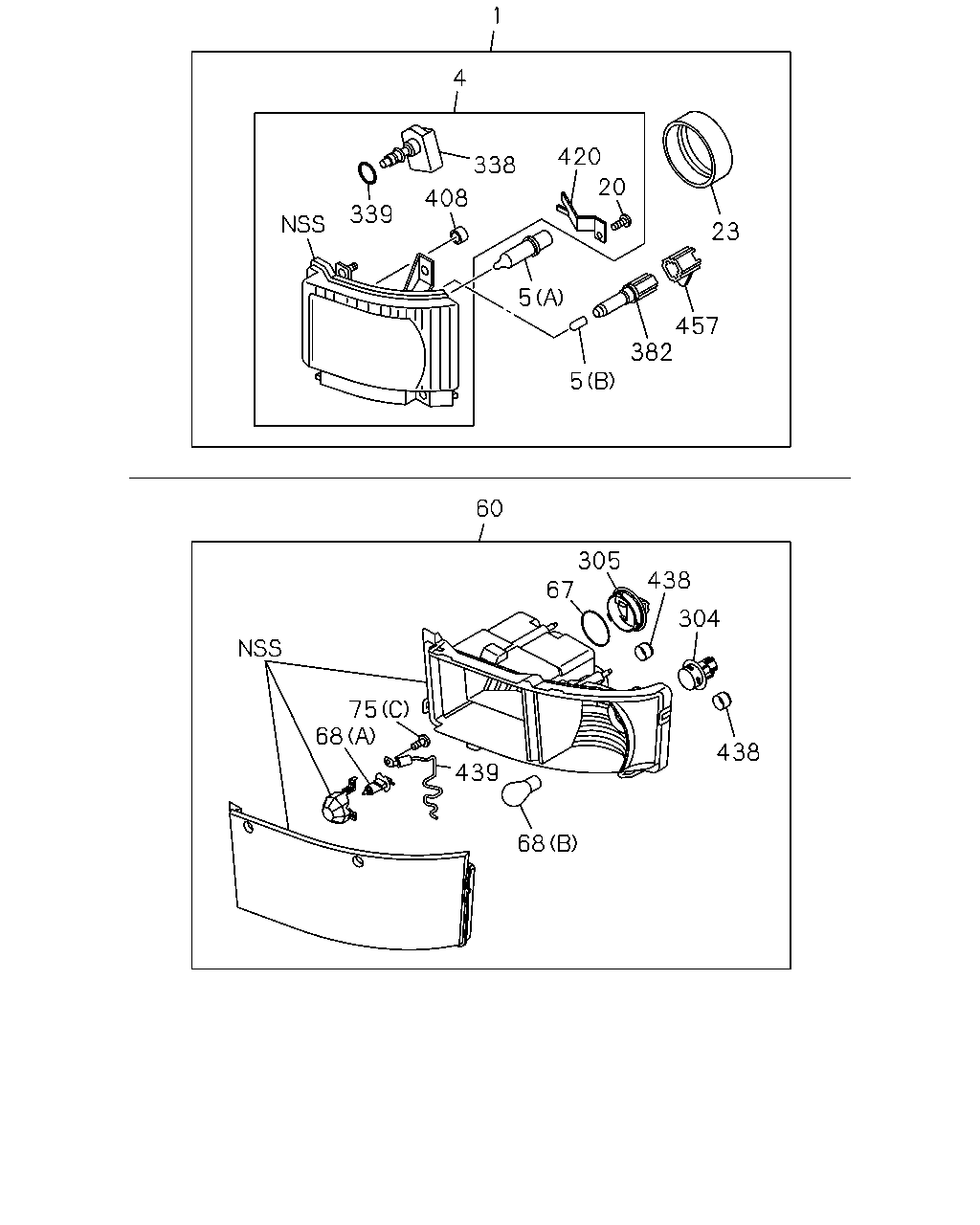

çizim 336801
1 4 339 408 338 420 5 20 23 457 382 5 60 305 67 438 304 438 75 68 439 68
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98225-622-0 01 1 1303-1305 ●
1 LAMP ASM; HEAD 8-98241-314-0 01 1 1306-1511 ●
1 LAMP ASM; HEAD 8-98241-314-0 01 1 1512- ● ●
1 LAMP ASM; HEAD 8-98225-623-0 01 1 1303-1305 ●
1 LAMP ASM; HEAD 8-98241-315-0 01 1 1306-1511 ●
1 LAMP ASM; HEAD 8-98241-315-0 01 1 1512- ● ●
4 HEADLAMP UNIT 8-98199-568-0 01 1 1303-1511 ●
4 HEADLAMP UNIT 8-98199-568-0 01 1 1512- ● ●
4 HEADLAMP UNIT 8-98199-569-0 01 1 1303-1511 ●
4 HEADLAMP UNIT 8-98199-569-0 01 1 1512- ● ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1303-1511 ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1512- ● ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1303-1511 ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1512- ● ●
20 SCREW; HEADLAMP 8-97378-871-0 06 1 1303-1511 ●
20 SCREW; HEADLAMP 8-97378-871-0 06 1 1512- ● ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1303-1511 ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1512- ● ●
60 LAMP ASM; FRT COMB 8-98159-978-2 01 1 1303-1303 ●
60 LAMP ASM; FRT COMB 8-98238-625-0 01 1 1303-1511 ●
60 LAMP ASM; FRT COMB 8-98238-625-0 01 1 1512- ● ●
60 LAMP ASM; FRT COMB 8-98159-979-2 01 1 1303-1303 ●
60 LAMP ASM; FRT COMB 8-98238-626-0 01 1 1303-1511 ●
60 LAMP ASM; FRT COMB 8-98238-626-0 01 1 1512- ● ●
67 GASKET; FRT COMB LAMP 8-98238-656-0 02 1 1303-1511 ●
67 GASKET; FRT COMB LAMP 8-98238-656-0 02 1 1512- ● ●
68 BULB; FRT COMB LAMP
(A) 24V 70W 		1-82194-106-0 02 1 1303-1511 ●
68 BULB; FRT COMB LAMP
(A) 24V 70W 		1-82194-106-0 02 1 1512- ● ●
68 BULB; FRT COMB LAMP
(B) 24V 21W 		8-98051-495-0 02 1 1303-1511 ●
68 BULB; FRT COMB LAMP
(B) 24V 21W 		8-98051-495-0 02 1 1512- ● ●
75 SCREW; FRT COMB LAMP
(A) M6X16 FLANGE 		0-28650-616-0 04 1 1303-1511 ●
75 SCREW; FRT COMB LAMP
(A) M6X16 FLANGE 		0-28650-616-0 04 1 1512- ● ●
75 SCREW; FRT COMB LAMP
(B) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1303-1511 ●
75 SCREW; FRT COMB LAMP
(B) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1512- ● ●
75 SCREW; FRT COMB LAMP
(C) 		8-98074-439-0 02 1 1303-1511 ●
75 SCREW; FRT COMB LAMP
(C) 		8-98074-439-0 02 1 1512- ● ●
304 PLUG; SOCKET,FRT COMB LAMP 8-98051-390-0 02 1 1303-1511 ●
304 PLUG; SOCKET,FRT COMB LAMP 8-98051-390-0 02 1 1512- ● ●
305 COVER; FRT COMB LAMP 8-98074-440-0 02 1 1303-1303 ●
305 COVER; FRT COMB LAMP 8-98240-559-0 02 1 1303-1511 ●
305 COVER; FRT COMB LAMP 8-98240-559-0 02 1 1512- ● ●
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 1303-1511 ●
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 1512- ● ●
339 GASKET; LEVELING 1-86830-158-0 02 1 1303-1511 ●
339 GASKET; LEVELING 1-86830-158-0 02 1 1512- ● ●
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1303-1511 ●
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1512- ● ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1303-1511 ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1512- ● ●
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1303-1511 ●
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1512- ● ●
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 04 1 1303-1303 ●
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 02 1 1303-1511 ●
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 02 1 1512- ● ●
439 SPRING SET; COMB LAMP 8-98075-644-0 02 1 1303-1511 ●
439 SPRING SET; COMB LAMP 8-98075-644-0 02 1 1512- ● ●
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1306-1511 ●
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1512- ● ●

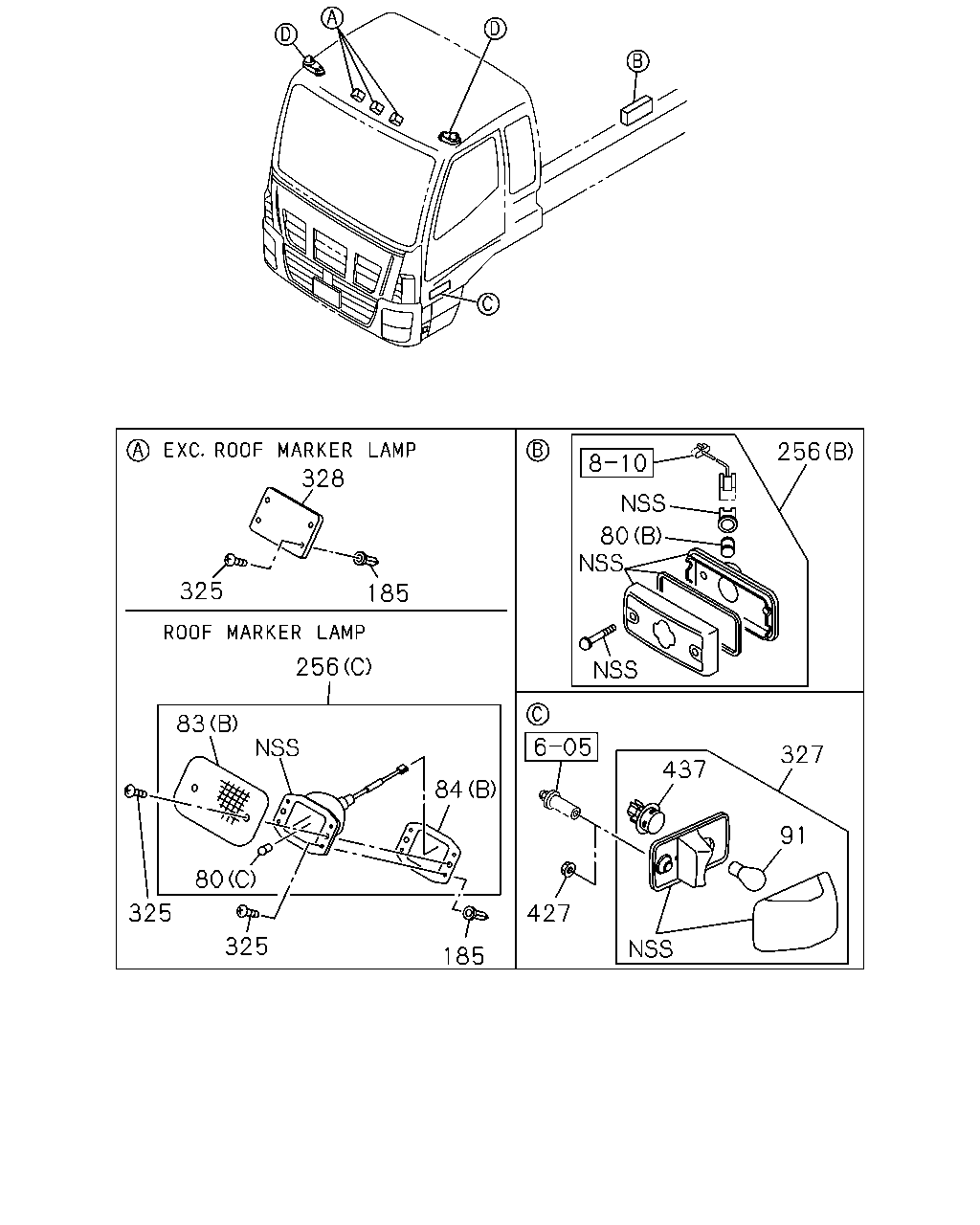

çizim 336849
328 325 185 256 83 80 325 325 84 185 427 80 256 327 437 91
BalonParca AdiParca NoAdetTipApplied Date A B
80 BULB; MARKER LAMP
LIGHTING SYSTEM ECE<SLC> (B) 24V 3W 		1-82219-035-0 06 1 1512- ●
80 BULB; MARKER LAMP
LIGHTING SYSTEM ECE<SLC> (B) 24V 3W 		1-82219-035-0 08 1 1512- ●
80 BULB; MARKER LAMP
ROOF MARKER LAMP<U01> (C) 24V 12W 		9-82691-302-0 03 1 1512- ●
80 BULB; MARKER LAMP
TAIWAN EQUIPMENT(WW5) ROOF MARKER LAMP<U01> (A) 24V 5W 		8-94135-397-0 01 1 1512- ●
80 BULB; MARKER LAMP
(A) 24V 5W 		8-94135-397-0 02 1 1303-1511 ●
80 BULB; MARKER LAMP
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 24V 5W 		8-94135-397-0 02 1 1512- ●
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 24V 5W 		8-94135-397-0 02 1 1512- ●
80 BULB; MARKER LAMP
RUSSIA EQUIPMENT(B12) (A) 24V 5W 		8-94135-397-0 02 1 1512- ●
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12) (A) 24V 5W 		8-94135-397-0 02 1 1512- ●
83 LENS; MARKER LAMP
ROOF MARKER LAMP<U01> (B) 		1-82215-068-0 03 1 1512- ●
83 LENS; MARKER LAMP
TAIWAN EQUIPMENT(WW5) ROOF MARKER LAMP<U01> (A) 		1-82215-046-0 01 1 1512- ●
83 LENS; MARKER LAMP
(A) 		1-82215-046-0 02 1 1303-1511 ●
83 LENS; MARKER LAMP
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 		1-82215-046-0 02 1 1512- ●
83 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 		1-82215-046-0 02 1 1512- ●
83 LENS; MARKER LAMP
RUSSIA EQUIPMENT(B12) (A) 		1-82215-046-0 02 1 1512- ●
83 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12) (A) 		1-82215-046-0 02 1 1512- ●
84 GASKET; MARKER LAMP
TAIWAN EQUIPMENT(WW5) ROOF MARKER LAMP<U01> (A) 		1-86830-288-0 02 1 1512- ●
84 GASKET; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 		1-86830-288-0 02 1 1512- ●
84 GASKET; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12) (A) 		1-86830-288-0 02 1 1512- ●
84 GASKET; MARKER LAMP
ROOF MARKER LAMP<U01> (B) 		1-86830-153-0 03 1 1512- ●
84 GASKET; MARKER LAMP
(A) 		1-86830-288-0 04 1 1303-1511 ●
84 GASKET; MARKER LAMP
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 		1-86830-288-0 04 1 1512- ●
84 GASKET; MARKER LAMP
RUSSIA EQUIPMENT(B12) (A) 		1-86830-288-0 04 1 1512- ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1303-1511 ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1512- ● ●
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 1303-1511 ●
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 1512- ● ●
256 LAMP; MARKER
LIGHTING SYSTEM ECE<SLC> (B) 		1-82210-244-0 06 1 1512- ●
256 LAMP; MARKER
LIGHTING SYSTEM ECE<SLC> (B) 		1-82210-244-0 08 1 1512- ●
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (D) 		1-86830-242-3 02 1 1512- ●
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12) (D) 		1-86830-242-3 02 1 1512- ●
256 LAMP; MARKER
ROOF MARKER LAMP<U01> (C) 		1-86830-170-0 03 1 1512- ●
256 LAMP; MARKER
(A) 		1-86830-292-0 01 1 1303-1511 ●
256 LAMP; MARKER
TAIWAN EQUIPMENT(WW5) ROOF MARKER LAMP<U01> (A) 		1-86830-292-0 01 1 1512- ●
256 LAMP; MARKER
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 		1-86830-292-0 01 1 1512- ●
256 LAMP; MARKER
RUSSIA EQUIPMENT(B12) (A) 		1-86830-292-0 01 1 1512- ●
256 LAMP; MARKER
(A) 		1-86830-293-0 01 1 1303-1511 ●
256 LAMP; MARKER
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 		1-86830-293-0 01 1 1512- ●
256 LAMP; MARKER
RUSSIA EQUIPMENT(B12) (A) 		1-86830-293-0 01 1 1512- ●
325 SCREW; SPD INDICATOR LAMP
ROOF MARKER LAMP<U01> M5X20 TAPPING 		0-71090-520-0 18 1 1512- ●
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 1303-1511 ●
325 SCREW; SPD INDICATOR LAMP
EXC. ROOF MARKER LAMP<U01> M5X14 TAPPING 		0-71040-514-0 12 1 1512- ●
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 1512- ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1303-1511 ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1512- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1303-1511 ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1512- ● ●
328 COVER; LAMP 1-76217-122-1 03 1 1303-1511 ●
328 COVER; LAMP
EXC. ROOF MARKER LAMP<U01> 		1-76217-122-1 03 1 1512- ●
328 COVER; LAMP 1-76217-122-1 03 1 1512- ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1307-1511 ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1512- ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1303-1511 ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1512- ● ●

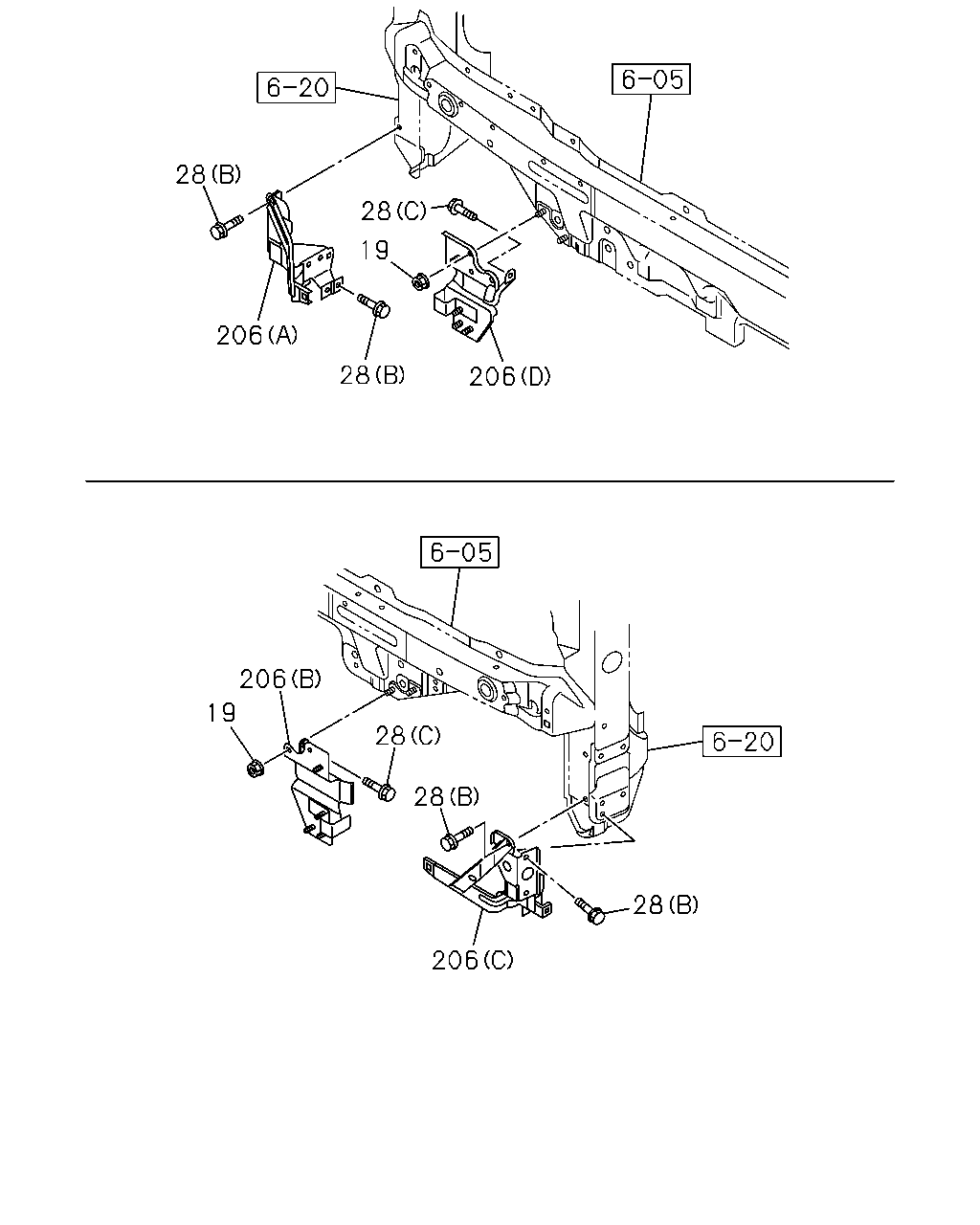

çizim 514754
28 206 28 206 28 206 19 19 28 28 206 28
BalonParca AdiParca NoAdetTipApplied Date A B
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 1303-1511 ●
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 1512- ● ●
28 BOLT; HEADLAMP
(A) M12X35 FLANGE 		0-28051-235-0 04 1 1303-1511 ●
28 BOLT; HEADLAMP
(A) M12X35 FLANGE 		0-28051-235-0 04 1 1512- ● ●
28 BOLT; HEADLAMP
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1303-1511 ●
28 BOLT; HEADLAMP
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1512- ● ●
28 BOLT; HEADLAMP
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1303-1511 ●
28 BOLT; HEADLAMP
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1512- ● ●
28 BOLT; HEADLAMP
(D) M12X30,M12X16 L=56 		8-98144-947-0 04 1 1303-1511 ●
28 BOLT; HEADLAMP
(D) M12X30,M12X16 L=56 		8-98144-947-0 04 1 1512- ● ●
206 HOLDER; HEADLAMP
(D) 		8-98121-218-2 01 1 1303-1511 ●
206 HOLDER; HEADLAMP
(D) 		8-98121-218-2 01 1 1512- ● ●
206 HOLDER; HEADLAMP
(A) 		8-98121-330-0 01 1 1303-1511 ●
206 HOLDER; HEADLAMP
(A) 		8-98121-330-0 01 1 1512- ● ●
206 HOLDER; HEADLAMP
(C) 		8-98121-335-0 01 1 1303-1511 ●
206 HOLDER; HEADLAMP
(C) 		8-98121-335-0 01 1 1512- ● ●
206 HOLDER; HEADLAMP
(B) 		8-98198-637-0 01 1 1303-1511 ●
206 HOLDER; HEADLAMP
(B) 		8-98198-637-0 01 1 1512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
