◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#115273) — 29 parça

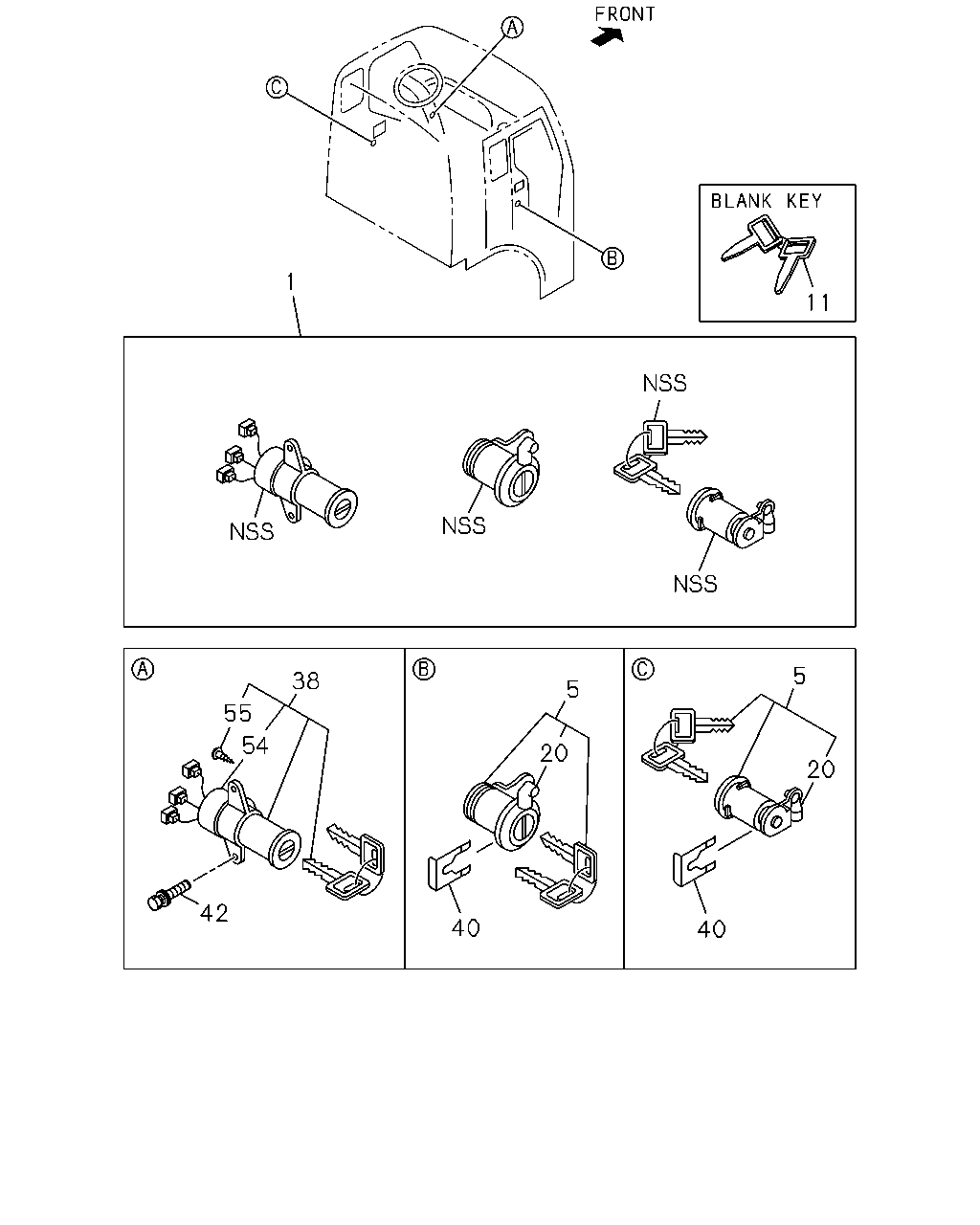

çizim 336685
11 38 55 54 42 5 20 40 5 20 40 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK 8-98116-835-2 01 1 1303-1511 ●
1 CYLINDER SET; CAR LOCK
EXC. CHEV BRAND PACKAGE<PS2> 		8-98116-835-2 01 1 1512- ● ●
1 CYLINDER SET; CAR LOCK
CHEV BRAND PACKAGE<PS2> 		8-98166-153-1 01 1 1512- ● ●
5 CYLINDER ASM; DOOR LOCK 8-98116-836-0 01 1 1303-1511 ●
5 CYLINDER ASM; DOOR LOCK
EXC. CHEV BRAND PACKAGE<PS2> 		8-98116-836-0 01 1 1512- ● ●
5 CYLINDER ASM; DOOR LOCK 8-98116-837-0 01 1 1303-1511 ●
5 CYLINDER ASM; DOOR LOCK
EXC. CHEV BRAND PACKAGE<PS2> 		8-98116-837-0 01 1 1512- ● ●
5 CYLINDER ASM; DOOR LOCK
CHEV BRAND PACKAGE<PS2> 		8-98166-155-0 01 1 1512- ● ●
5 CYLINDER ASM; DOOR LOCK
CHEV BRAND PACKAGE<PS2> 		8-98166-156-0 01 1 1512- ● ●
11 KEY; BLANK
WO/RESIN 		1-79137-129-1 AR 1 1303-1511 ●
11 KEY; BLANK
EXC. CHEV BRAND PACKAGE<PS2> 		1-79137-129-1 AR 1 1512- ● ●
11 KEY; BLANK
W/RESIN 		1-79137-130-1 AR 1 1303-1511 ●
11 KEY; BLANK
EXC. CHEV BRAND PACKAGE<PS2> 		1-79137-130-1 AR 1 1512- ● ●
11 KEY; BLANK
CHEV BRAND PACKAGE<PS2> 		8-98113-788-0 AR 1 1512- ● ●
20 SNAP; DOOR LOCK CYL
PINK 		1-79138-192-0 01 1 1303-1511 ●
20 SNAP; DOOR LOCK CYL
PINK 		1-79138-192-0 01 1 1512- ● ●
20 SNAP; DOOR LOCK CYL
GREEN 		1-79138-193-0 01 1 1303-1511 ●
20 SNAP; DOOR LOCK CYL
GREEN 		1-79138-193-0 01 1 1512- ● ●
38 LOCK ASM; STRG 8-98116-838-1 01 1 1303-1511 ●
38 LOCK ASM; STRG
EXC. CHEV BRAND PACKAGE<PS2> 		8-98116-838-1 01 1 1512- ● ●
38 LOCK ASM; STRG
CHEV BRAND PACKAGE<PS2> 		8-98166-154-1 01 1 1512- ● ●
40 CLIP; CYL LK 1-79137-033-1 02 1 1303-1511 ●
40 CLIP; CYL LK 1-79137-033-1 02 1 1512- ● ●
42 BOLT; STRG LOCK
M8X30 TORQUE SHEAR BOLT 		1-09980-621-1 02 1 1303-1511 ●
42 BOLT; STRG LOCK
M8X30 TORQUE SHEAR BOLT 		1-09980-621-1 02 1 1512- ● ●
54 SWITCH ASM; STRG LOCK CYL 1-79137-050-2 01 1 1303-1511 ●
54 SWITCH ASM; STRG LOCK CYL 1-79137-050-2 01 1 1512- ● ●
55 SCREW; SWITCH
M3X10 W/LK WASHER 		9-03910-310-0 02 1 1303-1511 ●
55 SCREW; SWITCH
M3X10 W/LK WASHER 		9-03910-310-0 02 1 1512- ● ●
