7-43 — SUN VISOR AND ASSIST GRIP (#115272) — 68 parça

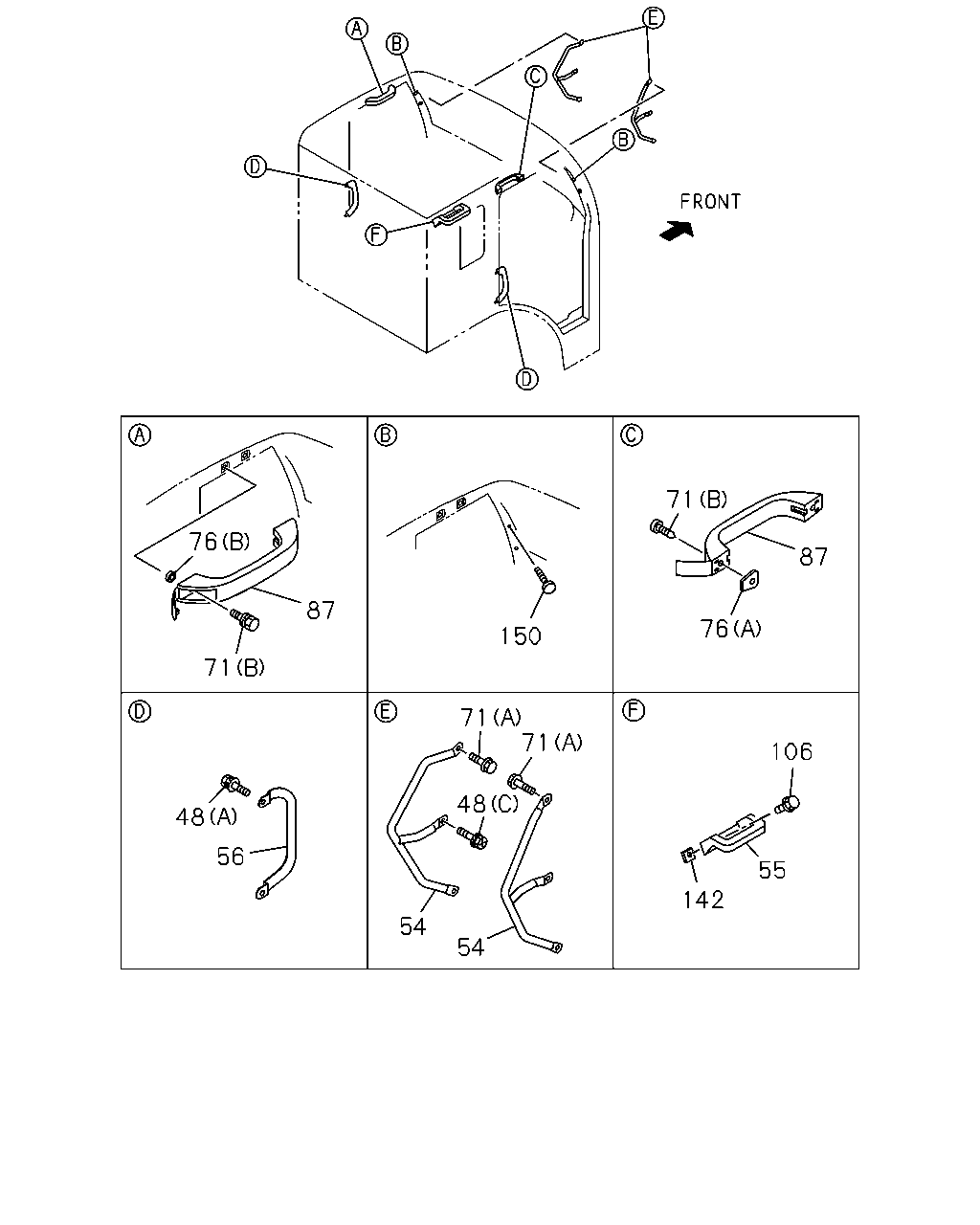

71 87 76 106 55 142 54 54 48 71 71 150 87 76 71 48 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1303-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1303-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1303-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1303-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1303-
54	GRIP; ASSIST,QUARTER SIDE	8-98139-071-2	01	1	1303-
54	GRIP; ASSIST,QUARTER SIDE	8-98153-870-1	01	1	1303-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	01	1	1403-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE,DRIVER & PASSENGER<W63>	1-73618-169-1	02	1	1403-
56	GRIP; ASSIST,SIDE SILL	8-98139-072-1	01	1	1303-
56	GRIP; ASSIST,SIDE SILL	8-98139-073-1	01	1	1303-
71	SCREW (B) M6X30 W/LK WASHER	5-09981-064-0	04	1	1303-
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	05	1	1303-
76	SPACER; ASSIST GRIP (A)	1-73618-180-0	02	1	1303-
76	SPACER; ASSIST GRIP (B) OD=13 T=4.5	8-94230-464-1	02	1	1303-
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	02	1	1303-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	02	1	1403-
106	SCREW; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1403-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> 25X25	8-94272-533-0	02	1	1403-
142	SEAL; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> 25X25	8-94272-533-0	04	1	1403-
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1303-

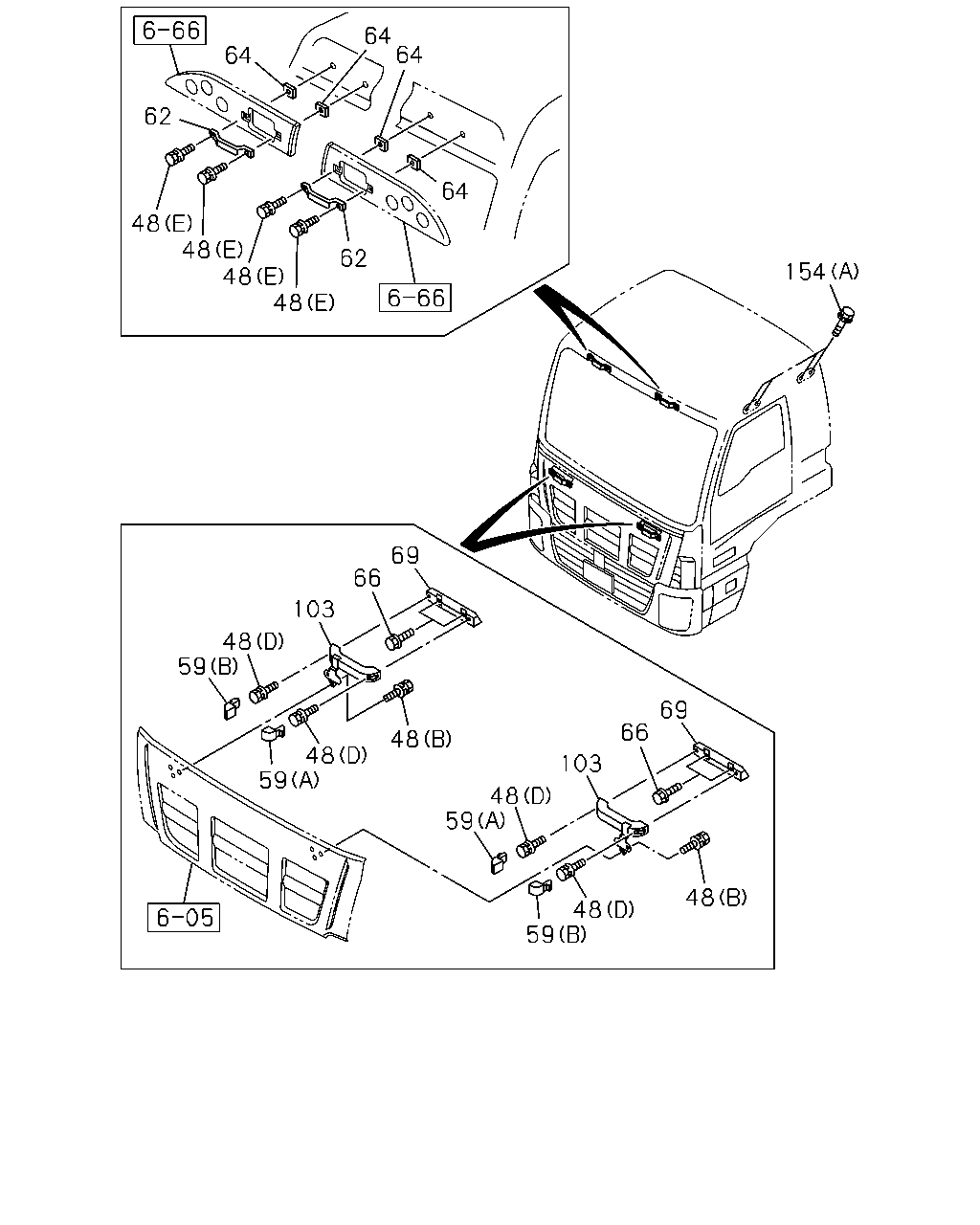

64 64 64 62 48 48 48 48 62 64 154 69 66 103 48 59 59 48 48 59 48 103 66 69 59 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1303-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1303-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1303-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1303-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1303-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	1303-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	1303-
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	1303-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	1303-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	1303-
69	BRACKET; ASSIST GRIP	1-65570-242-0	01	1	1303-
69	BRACKET; ASSIST GRIP	1-65570-243-0	01	1	1303-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	1303-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	1303-
154	BOLT; SUPPORT GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1403-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1403-
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1303-1402
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1403-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1303-

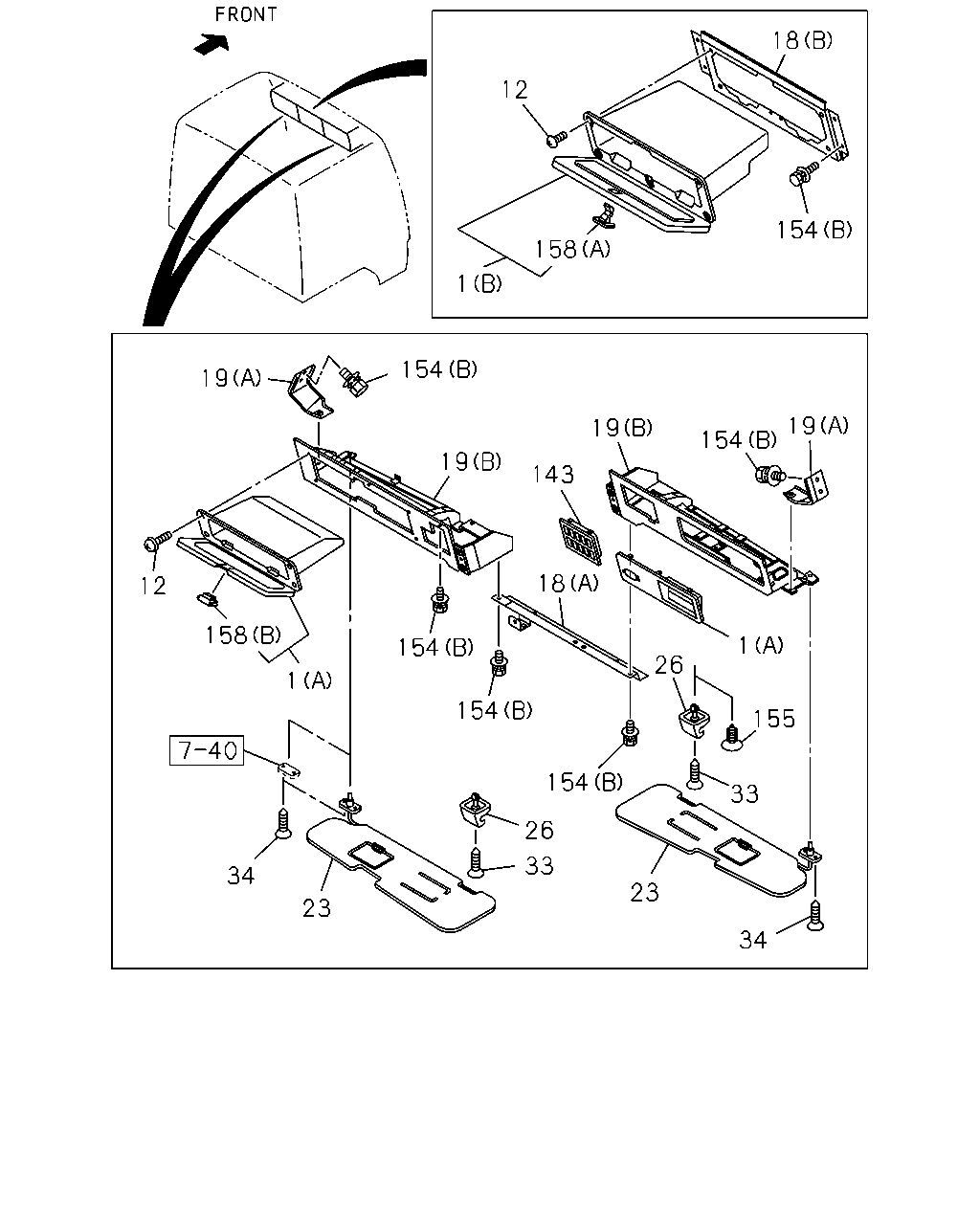

1 12 158 154 18 154 19 19 143 19 154 19 18 154 158 12 1 154 26 1 155 154 26 33 23 23 34 34 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	1303-
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	1303-
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	1303-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	1303-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	1303-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	1303-
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	1303-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	1303-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	1303-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	1303-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	1303-
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	1303-
23	SUN VISOR SUN VISOR DRIVER,W/MIRROR<TBT>	1-73138-162-0	01	1	1303-
23	SUN VISOR EXC. SUN VISOR DRIVER,W/MIRROR<TBT>	1-73138-156-1	01	1	1303-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1303-
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	1303-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1303-
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1303-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	1303-
143	BEZEL	1-72447-768-2	01	1	1303-
154	BOLT; SUPPORT GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1403-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1403-
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1303-1402
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1403-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1303-
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	1303-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	1303-
158	LOCK; HEADER SHELF (A)	1-72538-312-0	01	1	1303-
