Isuzu WW
▶
TRUCKS
▶
EXR
▶
10864 - EXR LHD FUEL TANK 200L+200L
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶
0-25 — INLET MANIFOLD
(#11527) — 29 parça
Tümü
A - 10PE1S
B - 10PE1N
◀

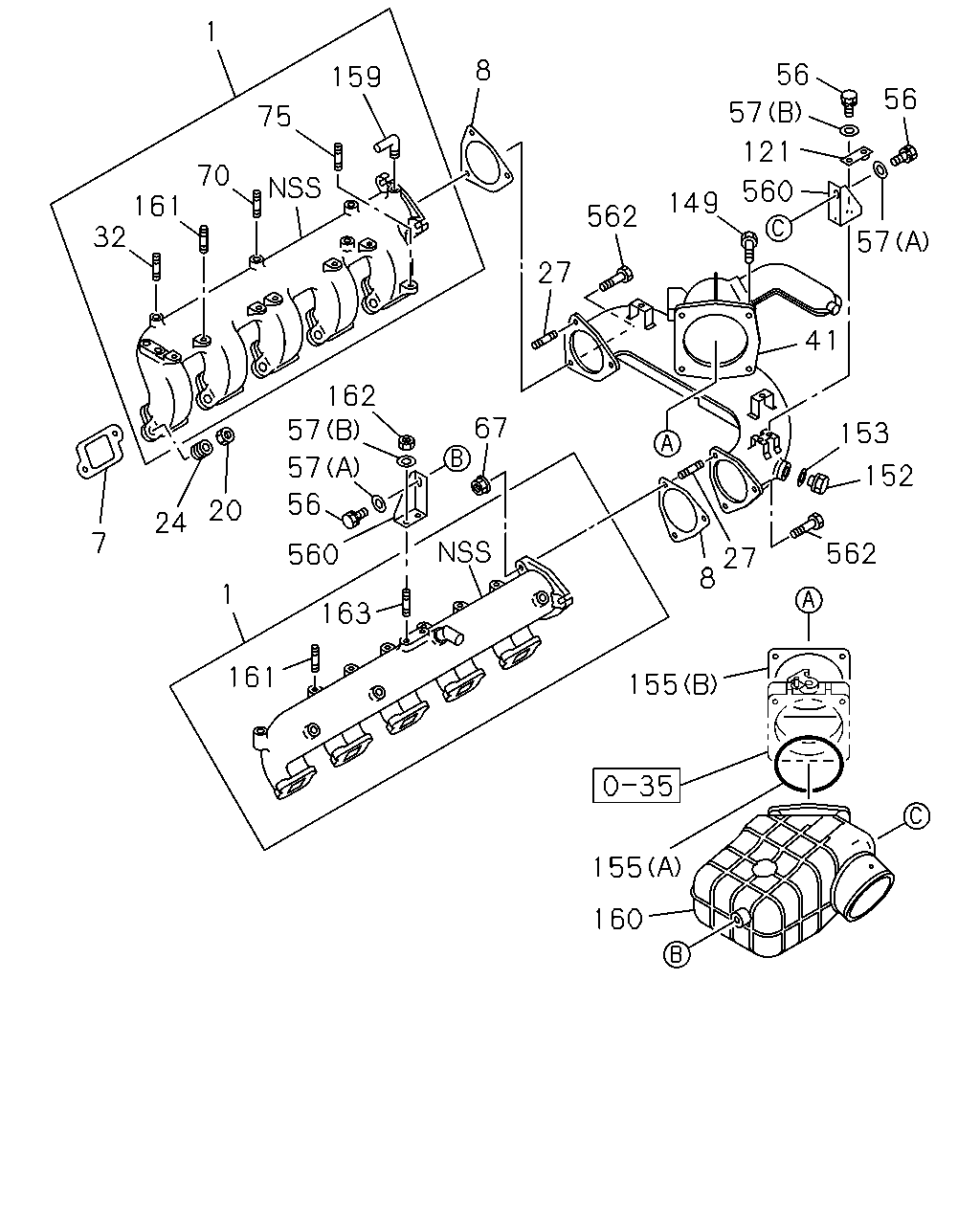

[025A] MANIFOLD AND DUCT (28 parça)
[025A] FLEX HOSE (1 parça)
▶
1
8
56
159
56
57
75
121
70
560
149
161
32
562
57
27
41
162
57
67
153
57
152
56
20
24
7
562
560
27
8
1
163
161
155
155
160
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MANIFOLD; INL
RH BANK
1-14112-583-1
01
1
0105-
●
●
1
MANIFOLD; INL
LH BANK
1-14112-584-2
01
1
0105-
●
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-026-0
10
1
0105-
●
●
8
GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14117-078-0
02
1
0105-
●
●
20
NUT; INL MANIF
M10 FLANGE
0-91150-110-0
20
1
0105-
●
●
24
SPRING; INL MANIF
1-09580-156-0
20
1
0105-
●
●
27
STUD; INL MANIF
M10X35 L=55
9-04311-035-0
03
1
0105-
●
●
32
STUD; INL PIPE
M8X16 L=28
9-04110-816-0
01
1
0105-
●
●
41
DUCT; INT COVER
1-14134-204-2
01
1
0105-
●
●
56
BOLT; STAY AIR DUCT
M10X20 W/LK&PL WASHER
0-50141-020-0
04
1
0105-
●
●
57
WASHER; PL
(A) ID=10.5 OD=22
9-09160-610-0
02
1
0105-
●
●
57
WASHER; PL
(B) ID=10.5 OD=26
9-09160-710-0
04
1
0105-
●
●
67
NUT; INL DUCT
M10 FLANGE
0-91150-110-0
03
1
0105-
●
●
70
STUD; WATER PIPE
M8X16 L=28
9-04110-816-0
02
1
0105-
●
●
75
STUD; BRKT,AIR PIPE
M10X16 L=31
9-04411-016-0
01
1
0105-
●
●
121
BRACKET
L=65
1-47476-513-0
01
1
0105-
●
●
149
BOLT; INT SHUTTER
M10X60 FLANGE
0-28081-060-0
04
1
0105-
●
●
152
PLUG; INT DUCT
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M22X12
1-09604-035-0
02
1
0105-
●
●
153
GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=22.5
9-09571-422-0
02
1
0105-
●
●
155
GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=125.4
1-13213-012-0
01
1
0105-
●
●
155
GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
1-14117-072-0
01
1
0105-
●
●
159
PIPE; VENTILATOR
1-14119-381-0
01
1
0105-
●
●
160
DUCT; AIR
1-14134-139-4
01
1
0105-
●
●
161
STUD; BRKT,INJ PUMP
M8X20 L=32
9-04110-820-0
08
1
0105-
●
●
162
NUT; STAY
M10 FLANGE
0-91150-110-0
02
1
0105-
●
●
163
STUD; BRKT,ENG SPD CONT
M10X20 L=35
9-04411-020-0
02
1
0105-
●
●
560
BRACKET; AIR PIPE
1-14119-336-0
02
1
0105-
●
●
562
BOLT; INL DUCT
M10X40 FLANGE
0-28181-040-0
03
1
0105-
●
●
379
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
379
HOSE; FLEX
L=250
1-09363-618-0
01
1
0105-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
