7-40 — INSTRUMENT PANEL AND BOX (#115269) — 191 parça

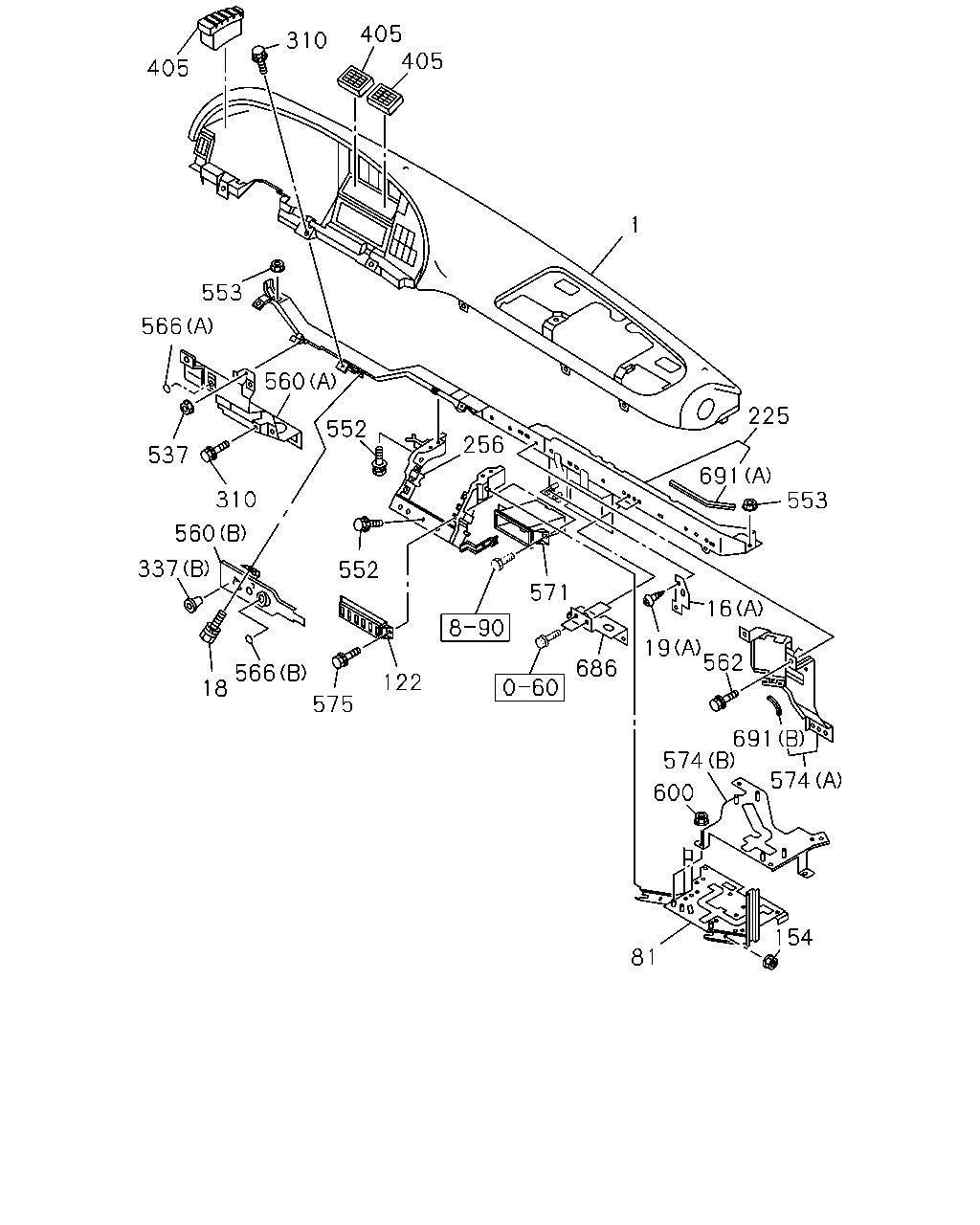

çizim 336785
310 405 405 553 405 566 560 537 552 560 337 566 18 552 122 575 571 686 310 1 225 691 16 19 562 691 574 574 600 81 154 256 553
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST 1-72317-370-2 01 1 1303-1511 ●
1 PANEL; INST 1-72317-370-2 01 1 1512- ● ●
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 1303-1511 ●
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 1512- ● ●
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 1303-1511 ●
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 1512- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-1511 ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1303-1511 ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1512- ● ●
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 1303-1511 ●
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 1512- ● ●
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 1303-1511 ●
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 1512- ● ●
81 BRACKET; ELEC CONT UNIT 8-98198-560-0 01 1 1303-1511 ●
81 BRACKET; ELEC CONT UNIT 8-98198-560-0 01 1 1512- ● ●
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 1303-1511 ●
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 1512- ● ●
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 1303-1511 ●
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 1512- ● ●
225 FRAME; FACIA 1-65671-727-5 01 1 1303-1511 ●
225 FRAME; FACIA 1-65671-727-5 01 1 1512- ● ●
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 1303-1511 ●
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 1512- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1303-1511 ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1512- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 1303-1511 ●
337 FASTENER; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-72438-124-2 03 1 1512- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 1303-1511 ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 1512- ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 1303-1511 ●
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 1512- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1303-1511 ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1512- ● ●
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 1303-1511 ●
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 1512- ● ●
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 1303-1511 ●
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 1512- ● ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1303-1511 ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1512- ● ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1303-1511 ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1512- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 1303-1511 ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 1512- ● ●
560 BRACKET
(B) 		1-65671-787-2 01 1 1303-1511 ●
560 BRACKET
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-65671-787-2 01 1 1512- ● ●
560 BRACKET
(A) 		8-98155-951-0 01 1 1303-1511 ●
560 BRACKET
(A) 		8-98155-951-0 01 1 1512- ● ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1303-1511 ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1512- ● ●
566 PLUG; HOLE
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 1304-1511 ●
566 PLUG; HOLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 1512- ● ●
566 PLUG; HOLE
(A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1303-1511 ●
566 PLUG; HOLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1512- ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 1303-1303 ●
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO CD(UT3) 		1-72438-151-3 01 1 1304-1511 ●
571 BEZEL; POCKET
EXC. TACHOGRAPH 140KM/H<WC7> 		1-72438-151-3 01 1 1304-1511 ●
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO CD(UT3) 		1-72438-151-3 01 1 1512- ● ●
571 BEZEL; POCKET
EXC. TACHOGRAPH 140KM/H<WC7> 		1-72438-151-3 01 1 1512- ● ●
574 PANEL; RELAY BOX
(A) 		1-73907-737-2 01 1 1303-1511 ●
574 PANEL; RELAY BOX
(A) 		1-73907-737-2 01 1 1512- ● ●
574 PANEL; RELAY BOX
(B) 		8-98183-937-0 01 1 1303-1511 ●
574 PANEL; RELAY BOX
CAB SUSPENSION-FULL FLOATING(SMK) (B) 		8-98183-937-0 01 1 1512- ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-1511 ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512- ● ●
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 1303-1511 ●
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 1512- ● ●
686 BRACKET; SENSOR & RELAY 1-65681-227-1 01 1 1303-1511 ●
686 BRACKET; SENSOR & RELAY 1-65681-227-1 01 1 1512- ● ●
691 FINISHER; HARNESS PROTECTOR
(A) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1303-1511 ●
691 FINISHER; HARNESS PROTECTOR
(A) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1512- ● ●
691 FINISHER; HARNESS PROTECTOR
(B) L=50 		8-94270-377-1 01 1 1303-1511 ●
691 FINISHER; HARNESS PROTECTOR
(B) L=50 		8-94270-377-1 01 1 1512- ● ●

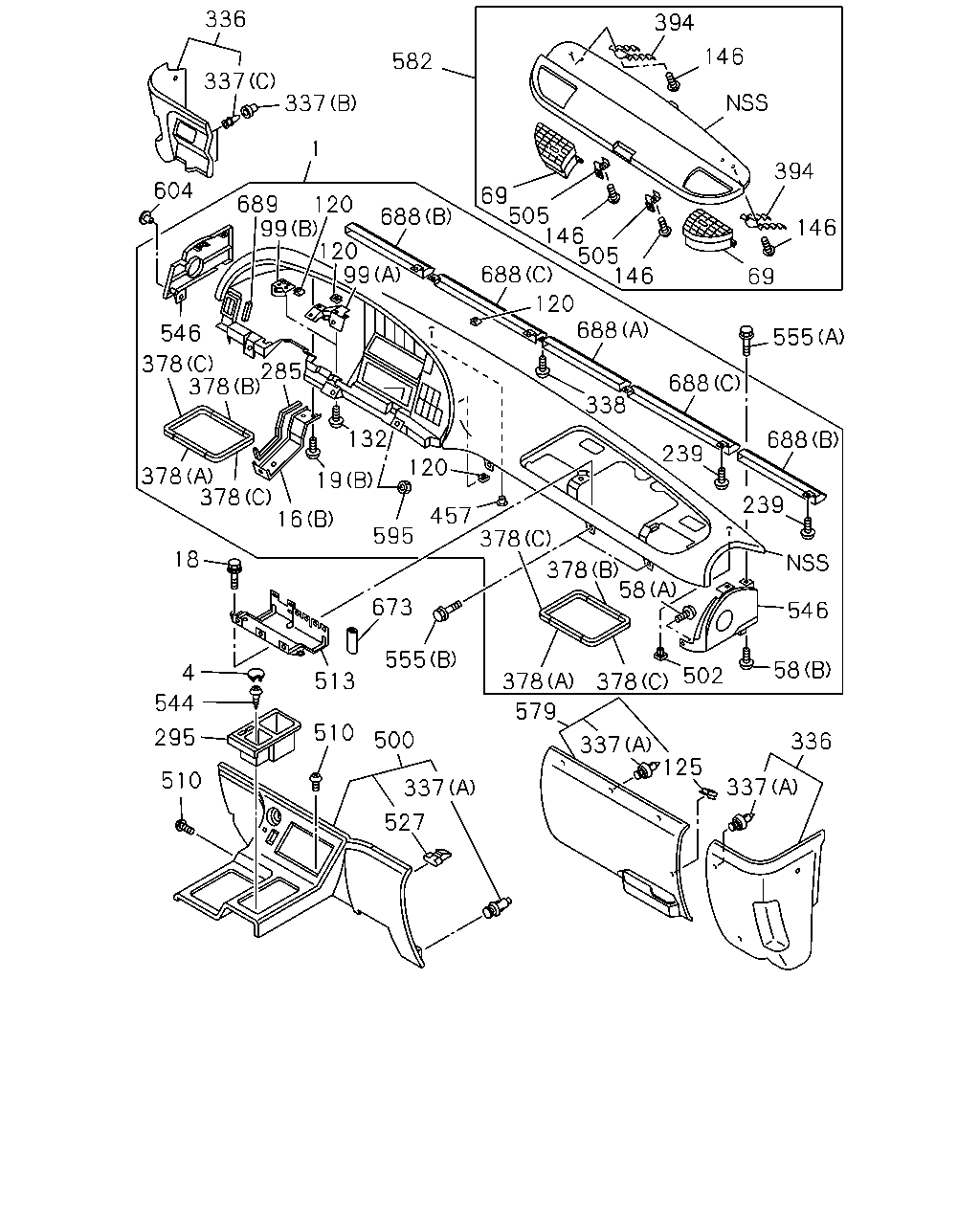

çizim 336939
378 378 378 378 336 337 582 337 689 604 688 120 99 546 285 99 120 16 595 120 132 688 688 688 688 546 58 502 378 378 378 378 457 555 673 19 69 505 555 69 146 394 146 394 505 120 146 146 239 239 58 579 337 125 337 336 337 500 510 513 4 544 295 510 527 18 338 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST 1-72317-370-2 01 1 1303-1511 ●
1 PANEL; INST 1-72317-370-2 01 1 1512- ● ●
4 COVER; INST PNL 1-72537-106-0 01 1 1303-1511 ●
4 COVER; INST PNL 1-72537-106-0 01 1 1512- ● ●
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 1303-1511 ●
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 1512- ● ●
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 1303-1511 ●
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 1512- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-1511 ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1303-1511 ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1512- ● ●
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 1303-1511 ●
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 1512- ● ●
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 1303-1511 ●
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 1512- ● ●
58 SCREW; INST PANEL
(A) M3X10 TAPPING 		0-71040-310-0 01 1 1303-1511 ●
58 SCREW; INST PANEL
(A) M3X10 TAPPING 		0-71040-310-0 01 1 1512- ● ●
58 SCREW; INST PANEL
(B) M5X12 TAPPING 		9-07076-512-0 06 1 1303-1511 ●
58 SCREW; INST PANEL
(B) M5X12 TAPPING 		9-07076-512-0 06 1 1512- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 1303-1511 ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 1512- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 1303-1511 ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 1512- ● ●
99 BRACKET; METER MTG,INST PNL
(A) 		1-72317-361-1 01 1 1303-1511 ●
99 BRACKET; METER MTG,INST PNL
(A) 		1-72317-361-1 01 1 1512- ● ●
99 BRACKET; METER MTG,INST PNL
(B) 		1-72317-362-2 01 1 1303-1511 ●
99 BRACKET; METER MTG,INST PNL
(B) 		1-72317-362-2 01 1 1512- ● ●
120 NUT; SPIRE,INST PNL
M5 		1-09984-196-0 09 1 1303-1511 ●
120 NUT; SPIRE,INST PNL
M5 		1-09984-196-0 09 1 1512- ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 1303-1511 ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 1512- ● ●
132 SCREW; BRKT,INST PANEL
M5X12 TAPPING 		9-07076-512-0 04 1 1303-1511 ●
132 SCREW; BRKT,INST PANEL
M5X12 TAPPING 		9-07076-512-0 04 1 1512- ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 1303-1511 ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 1512- ● ●
239 SCREW; DEFROSTER
M5X12 TAPPING 		9-07076-512-0 10 1 1303-1511 ●
239 SCREW; DEFROSTER
M5X12 TAPPING 		9-07076-512-0 10 1 1512- ● ●
285 FINISHER; INST PANEL
L=190 SERVICED BY L=314 		8-94262-845-0 02 1 1303-1511 ●
285 FINISHER; INST PANEL
L=190 SERVICED BY L=314 		8-94262-845-0 02 1 1512- ● ●
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 1303-1511 ●
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 1512- ● ●
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 1303-1511 ●
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 1512- ● ●
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 1303-1511 ●
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 1512- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 1303-1511 ●
337 FASTENER; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-72438-124-2 03 1 1512- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 1303-1511 ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 1512- ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 1303-1511 ●
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 1512- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1303-1511 ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1512- ● ●
338 SCREW; COVER
M5X12 TAPPING 		9-07076-512-0 02 1 1303-1511 ●
338 SCREW; COVER
M5X12 TAPPING 		9-07076-512-0 02 1 1512- ● ●
378 SEAL; INST PANEL
(A) 		1-72437-672-2 02 1 1303-1511 ●
378 SEAL; INST PANEL
(A) 		1-72437-672-2 02 1 1512- ● ●
378 SEAL; INST PANEL
(B) 		1-72437-673-0 02 1 1303-1511 ●
378 SEAL; INST PANEL
(B) 		1-72437-673-0 02 1 1512- ● ●
378 SEAL; INST PANEL
(C) 		1-72437-674-0 04 1 1303-1511 ●
378 SEAL; INST PANEL
(C) 		1-72437-674-0 04 1 1512- ● ●
394 HOLDER; PANEL 1-72558-048-0 02 1 1303-1511 ●
394 HOLDER; PANEL 1-72558-048-0 02 1 1512- ● ●
457 PLATE; INST PANEL 1-72317-363-2 08 1 1303-1511 ●
457 PLATE; INST PANEL 1-72317-363-2 08 1 1512- ● ●
500 CLUSTER; INST CENTER 1-72437-642-1 01 1 1303-1511 ●
500 CLUSTER; INST CENTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-72437-642-1 01 1 1512- ● ●
502 GROMMET; SCREW,CENTER,CLUSTER 8-94430-318-1 04 1 1303-1511 ●
502 GROMMET; SCREW,CENTER,CLUSTER 8-94430-318-1 04 1 1512- ● ●
505 LOCK; LID 1-72558-024-2 02 1 1303-1511 ●
505 LOCK; LID 1-72558-024-2 02 1 1512- ● ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 1303-1511 ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 1512- ● ●
513 BRACKET; RELAY 8-97865-168-3 01 1 1303-1511 ●
513 BRACKET; RELAY 8-97865-168-3 01 1 1512- ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 1303-1511 ●
527 CLIP; INST CLUSTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-97217-066-0 05 1 1512- ● ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 1303-1511 ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 1512- ● ●
546 PANEL; INST,SUB 1-72317-354-4 01 1 1303-1511 ●
546 PANEL; INST,SUB 1-72317-354-4 01 1 1512- ● ●
546 PANEL; INST,SUB 1-72317-355-4 01 1 1303-1511 ●
546 PANEL; INST,SUB 1-72317-355-4 01 1 1512- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1303-1511 ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1512- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1303-1511 ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1512- ● ●
579 COVER; INST PNL 1-72438-195-1 01 1 1303-1511 ●
579 COVER; INST PNL 1-72438-195-1 01 1 1512- ● ●
582 LID; FUSE & RELAY 1-72548-146-1 01 1 1303-1511 ●
582 LID; FUSE & RELAY 1-72548-146-1 01 1 1512- ● ●
595 NUT; HOOK 1-72418-013-0 06 1 1303-1511 ●
595 NUT; HOOK 1-72418-013-0 06 1 1512- ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 1303-1511 ●
604 CLIP; INST PAD 1-09983-123-0 01 1 1512- ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 1303-1511 ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 1512- ● ●
688 NOZZLE; DEFROSTER
(A) 		1-76377-184-1 01 1 1303-1511 ●
688 NOZZLE; DEFROSTER
(A) 		1-76377-184-1 01 1 1512- ● ●
688 NOZZLE; DEFROSTER
(B) 		1-76378-335-2 01 1 1303-1511 ●
688 NOZZLE; DEFROSTER
(B) 		1-76378-335-2 01 1 1512- ● ●
688 NOZZLE; DEFROSTER
(B) 		1-76378-352-1 01 1 1303-1511 ●
688 NOZZLE; DEFROSTER
(B) 		1-76378-352-1 01 1 1512- ● ●
688 NOZZLE; DEFROSTER
(C) 		1-76378-378-6 01 1 1303-1511 ●
688 NOZZLE; DEFROSTER
(C) 		1-76378-378-6 01 1 1512- ● ●
688 NOZZLE; DEFROSTER
(C) 		1-76378-381-3 01 1 1303-1511 ●
688 NOZZLE; DEFROSTER
(C) 		1-76378-381-3 01 1 1512- ● ●
689 SEAL; INST 1-72317-364-0 01 1 1303-1511 ●
689 SEAL; INST 1-72317-364-0 01 1 1512- ● ●
çizim 336989
18 554 259
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-1511 ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1303-1511 ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1512- ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 1512- ●
259 PLATE; STUFF,SUN VISOR 1-73317-410-0 01 1 1512- ●
554 BRACKET; CENTER BEZEL 1-65671-733-1 01 1 1303-1511 ●
554 BRACKET; CENTER BEZEL 1-65671-733-1 01 1 1512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
