◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11534 - CYJ RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#115268) — 21 parça

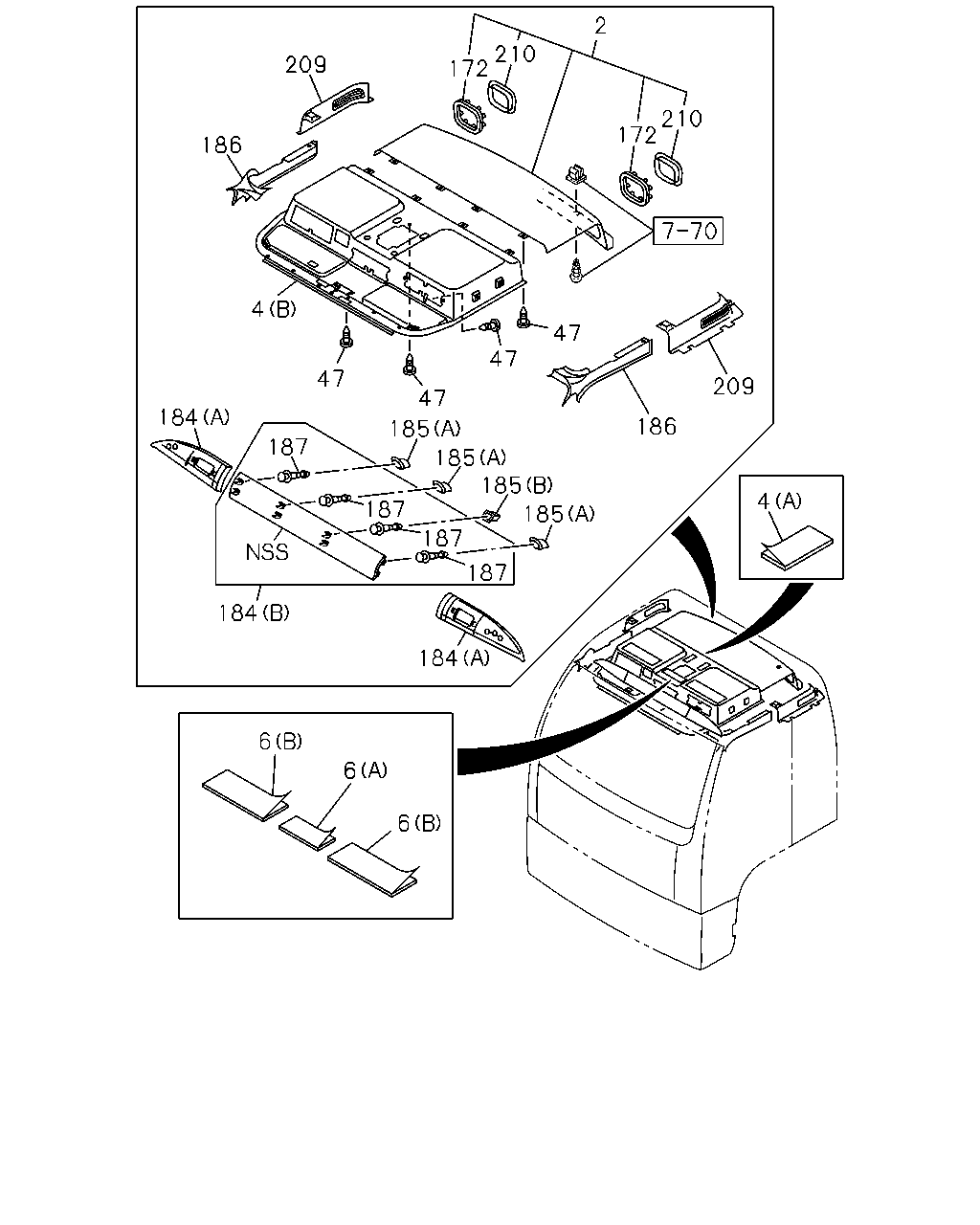

çizim 336617
2 210 210 172 209 172 209 186 4 47 47 47 47 185 185 185 186 185 187 187 187 187 184 184 6 6 6 184 4
BalonParca AdiParca NoAdetTipApplied Date
2 LINING; HD,ROOF RR 1-73317-503-2 01 1 1303-
4 LINING; ROOF,FRT
(A) 		1-73317-436-0 02 1 1303-
4 LINING; ROOF,FRT
(B) 		1-73317-482-2 01 1 1303-
6 SPACER; HD LINING
(B) 140X800 		1-73317-429-2 02 1 1303-
6 SPACER; HD LINING
(A) 130X300 		1-73317-435-2 01 1 1303-
47 CLIP; HEADLINING
D5X14.7 		1-09983-183-0 05 1 1303-
47 CLIP; HEADLINING
D6X23 LIGHT GRAY 		1-73318-629-0 11 1 1303-
172 RETAINER; HEAD LINING 1-73317-448-0 01 1 1303-
172 RETAINER; HEAD LINING 1-73317-449-0 01 1 1303-
184 ORNAMENT; ROOF
(A) 		1-73317-408-2 01 1 1303-
184 ORNAMENT; ROOF
(A) 		1-73317-409-2 01 1 1303-
184 ORNAMENT; ROOF
(B) 		1-73318-660-3 01 1 1303-
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 1303-
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 1303-
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-012-2 01 1 1303-
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-013-2 01 1 1303-
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 1303-
209 COVER; GRILLE 1-73347-865-3 01 1 1303-
209 COVER; GRILLE 1-73347-866-3 01 1 1303-
210 GRILLE; SPEAKER 1-73347-885-1 01 1 1303-
210 GRILLE; SPEAKER 1-73347-886-1 01 1 1303-
