◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51429 - NKR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#115264) — 34 parça

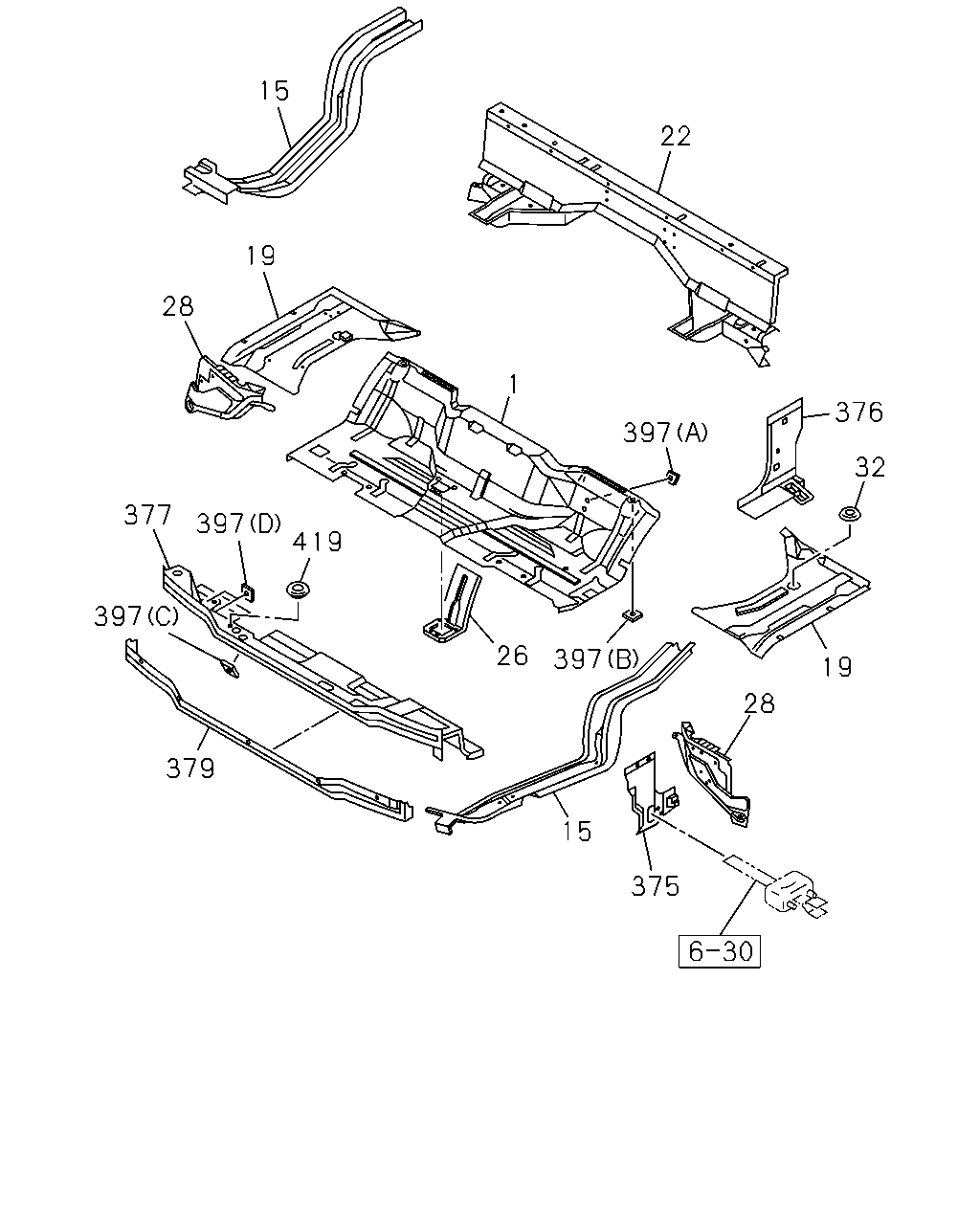

çizim 336676
15 22 397 376 19 28 15 375 379 397 377 28 19 1 26 397 419 397 32
BalonParca AdiParca NoAdetTipApplied Date
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-97850-332-7 01 1 1302-
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-97850-060-9 01 1 1302-
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-98013-405-0 01 1 1302-
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-97850-335-5 01 1 1302-
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-97850-337-5 01 1 1302-
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-98082-185-4 01 1 1302-
26 16.545 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-97850-005-6 01 1 1302-
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-98170-770-0 01 1 1302-
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-98170-771-0 01 1 1302-
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.155 OD=28.5 		8-94279-711-0 02 1 1302-
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-97850-086-5 01 1 1302-
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-97850-087-4 01 1 1302-
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-97850-320-6 01 1 1302-
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-97850-923-1 01 1 1302-
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-97850-351-9 01 1 1302-
379 16.545 PANEL
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-97581-639-0 01 1 1302-
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> (A) M6 		9-09114-046-0 04 1 1302-
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 16.588 (B) M8 		9-09114-048-0 04 1 1302-
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> (D) M10 		9-09114-030-0 03 1 1302-
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 16.588 (C) M8 		9-09114-048-0 03 1 1302-
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
16.802 OD=36 		1-09983-092-0 01 1 1302-1307
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE<V66> 16.802 OD=36 		1-09983-092-0 01 1 1308-1308
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
16.802 OD=36 		1-09983-092-0 01 1 1309-

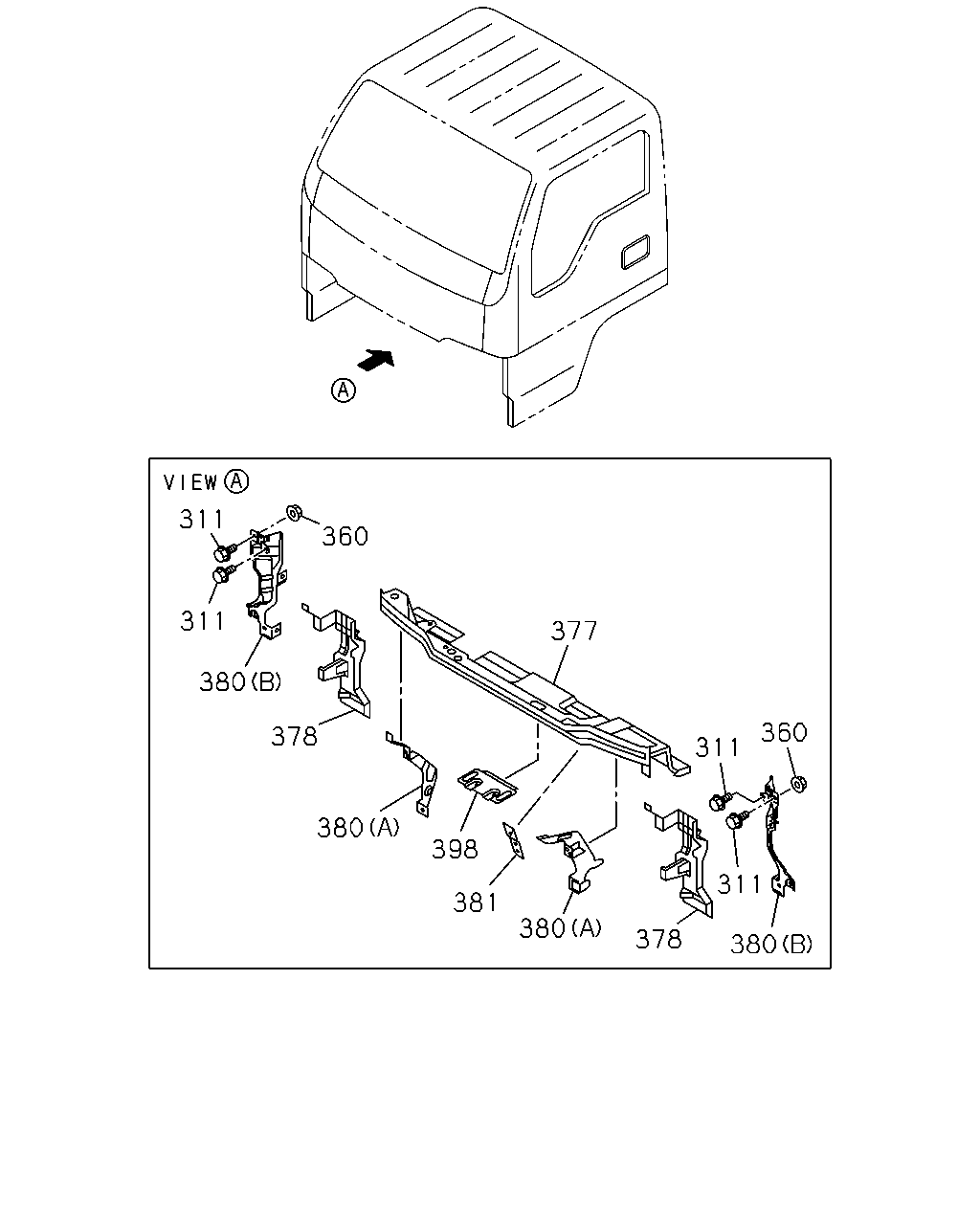

çizim 336679
311 311 380 377 360 311 311 360 380 378 380 381 398 380 378
BalonParca AdiParca NoAdetTipApplied Date
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1302-
360 16.545 NUT; BRKT
09.786 M6 POP NUT 		8-98013-752-0 02 1 1302-
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-97850-351-9 01 1 1302-
378 16.545 GASSET; LWR
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-97581-827-2 01 1 1302-
378 16.545 GASSET; LWR
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-97581-828-2 01 1 1302-
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> (A) 		8-97850-359-1 01 1 1302-
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> (A) 		8-97850-704-0 01 1 1302-
380 16.545 BRACKET; HEAD LAMP
02.726 (B) 		8-98006-087-0 01 1 1302-
380 16.545 BRACKET; HEAD LAMP
02.726 (B) 		8-98006-088-0 01 1 1302-
381 16.545 BRACKET; AIR INTAKE DUCT,FRT
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-97850-352-1 01 1 1302-
398 16.545 BRACKET; PIPE SUPPORT
MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 		8-97850-318-1 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
