Isuzu WW
▶
TRUCKS
▶
NKR
▶
51429 - NKR-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#115258) — 14 parça
◀

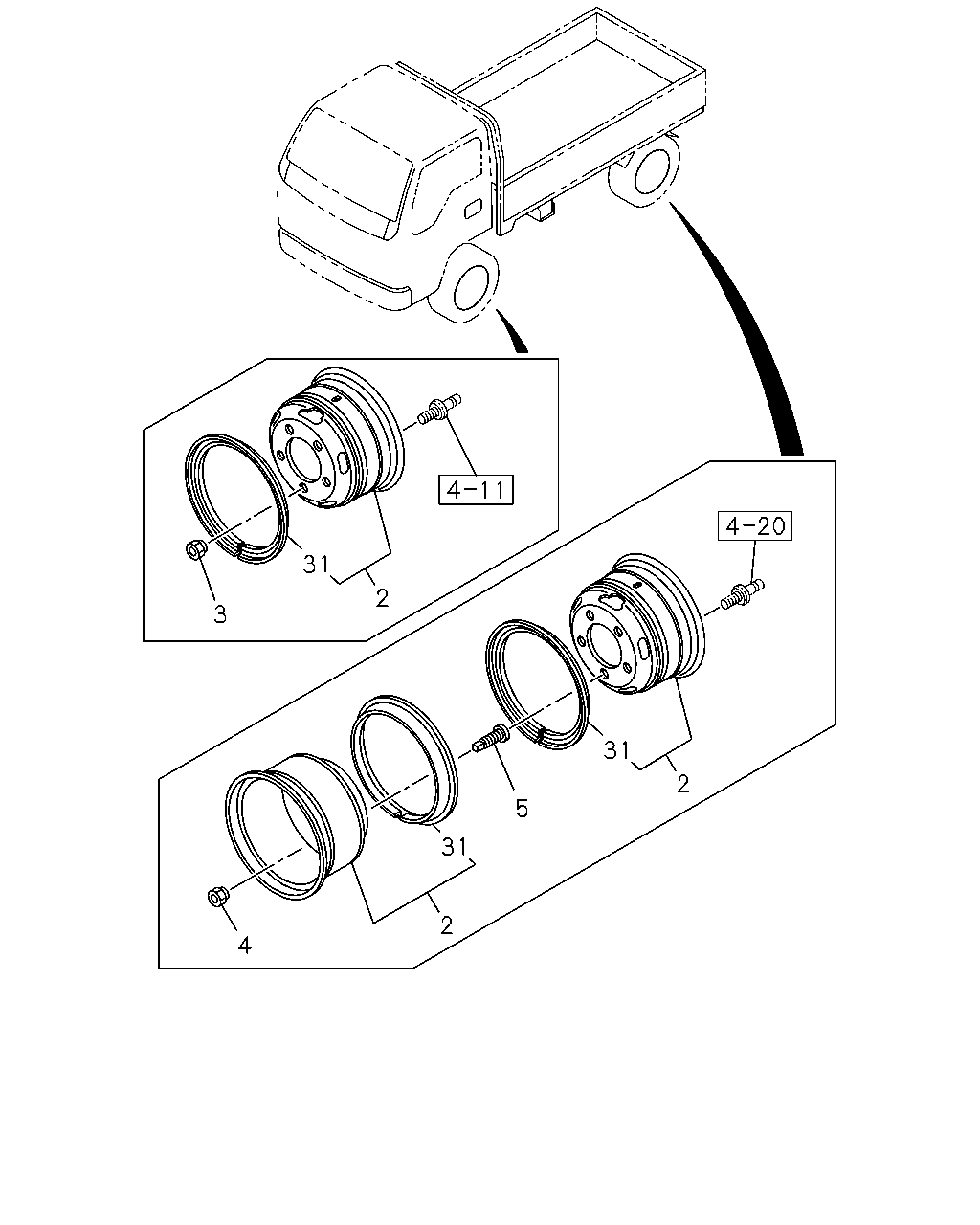

[480A] FRONT AND REAR (10 parça)

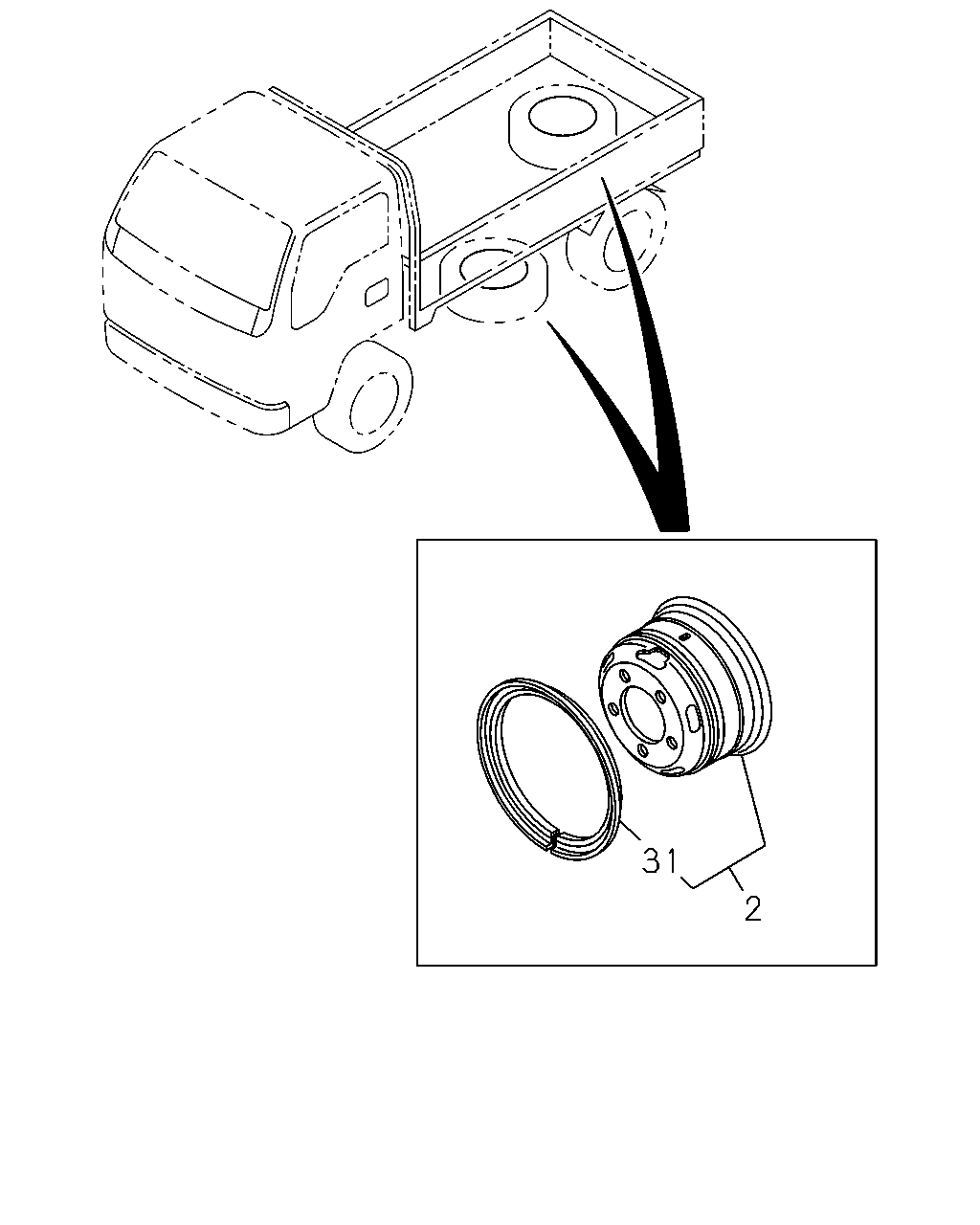

[480A] SPARE (4 parça)
▶
3
2
31
4
2
31
5
31
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE
8-94378-330-1
01
1
1302-
2
05.803 WHEEL; DISC
FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE
8-94378-330-1
06
1
1302-
3
05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD
8-98007-907-0
05
1
1302-
3
05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD
8-98007-908-0
05
1
1302-
4
05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD
8-98007-824-0
05
1
1302-
4
05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD
8-98007-825-0
05
1
1302-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
8-98007-810-0
05
1
1302-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
8-98007-811-0
05
1
1302-
31
05.839 RING; SIDE,DISC WHEEL
SPARE 16X5.50F STAMP, BLACK
8-94135-601-0
01
1
1302-
31
05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X5.50F STAMP, BLACK
8-94135-601-0
06
1
1302-
31
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE
8-94378-330-1
01
1
1302-
2
05.803 WHEEL; DISC
FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE
8-94378-330-1
06
1
1302-
31
05.839 RING; SIDE,DISC WHEEL
SPARE 16X5.50F STAMP, BLACK
8-94135-601-0
01
1
1302-
31
05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X5.50F STAMP, BLACK
8-94135-601-0
06
1
1302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
