Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11534 - CYJ RHD EURO5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-71 - AIR SUSPENSION PIPING
▶
4-71 — AIR SUSPENSION PIPING
(#115257) — 13 parça
◀

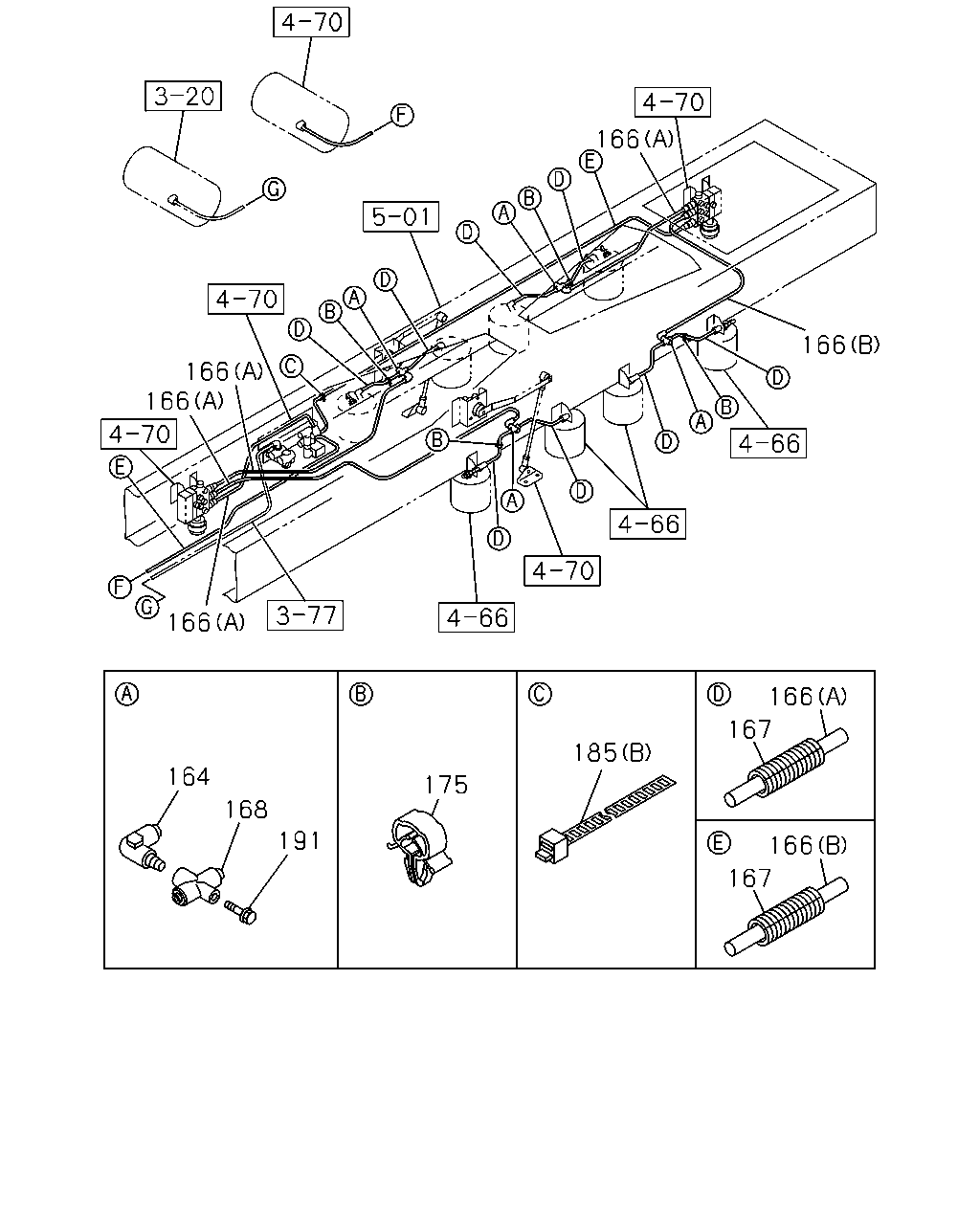

[471A] FRAME SIDE (9 parça)

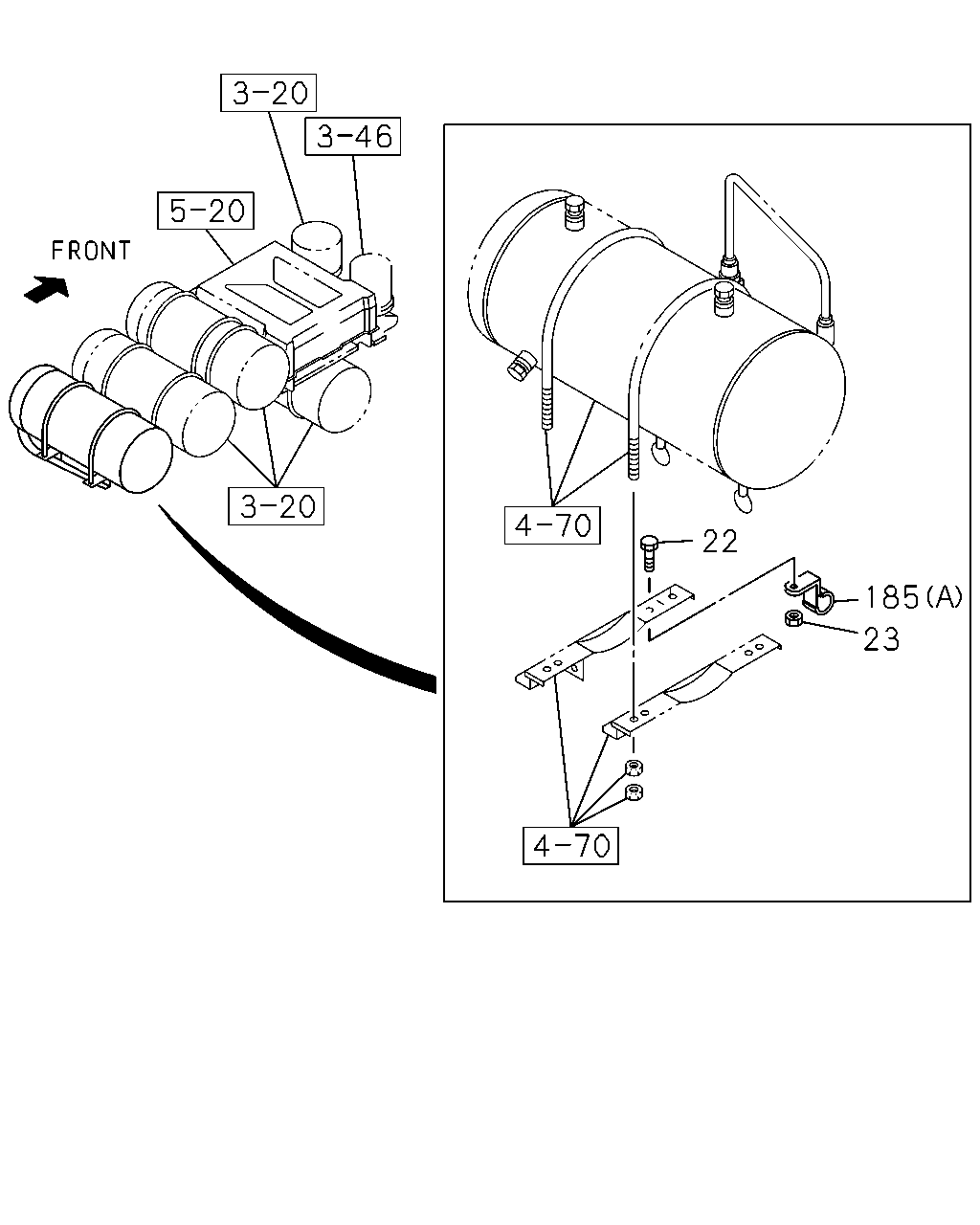

[471A] AIR TANK SIDE (4 parça)
▶
167
167
166
166
185
175
191
168
164
166
166
166
166
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
164
CONNECTOR
DIN8 & R3/8 ELBOW
1-09660-957-0
04
1
1303-
166
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1303-
166
TUBE; NYLON
(B) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1303-
167
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1303-
168
UNION; 3WAY
DIN8 & RC3/8 3WAY
1-09661-129-0
04
1
1303-
175
CLIP
ID=13-18 L=26
1-09709-293-0
04
1
1303-
185
CLIP; NYLON TUBE
(A) ID=8 H=20 L=20
1-09700-604-0
01
1
1303-
185
CLIP; NYLON TUBE
(B) L=350
1-09707-183-0
01
1
1303-
191
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
04
1
1303-
23
22
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
1303-
23
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1303-
185
CLIP; NYLON TUBE
(A) ID=8 H=20 L=20
1-09700-604-0
01
1
1303-
185
CLIP; NYLON TUBE
(B) L=350
1-09707-183-0
01
1
1303-
