1 |

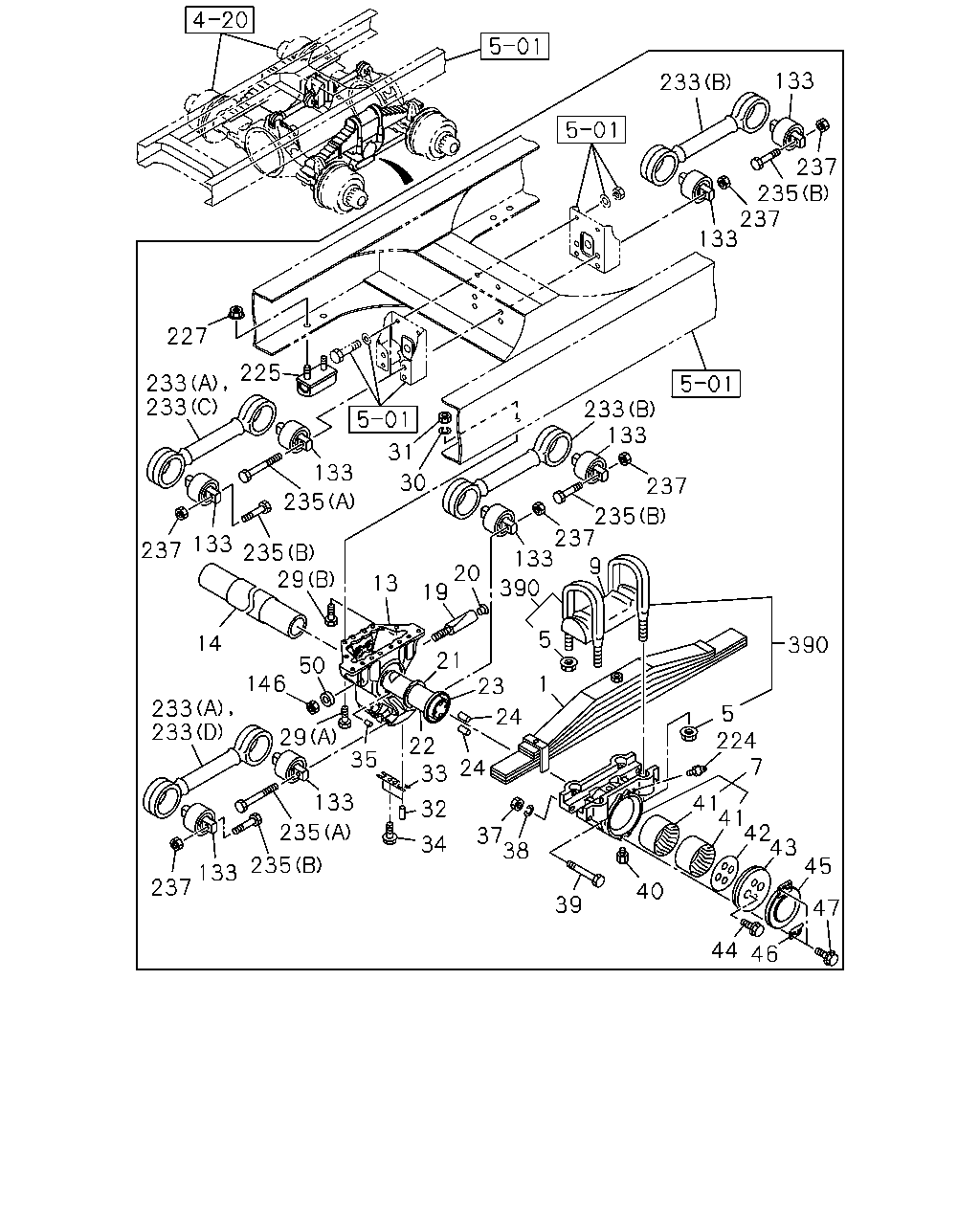

SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE
PUMP<RA5>
MULTI LEAF SUSP RR<SAS>
9-LEAF
|
8-98140-159-0 |
02 |
1 |
1512- |
● |
|
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
MULTI LEAF SUSP RR<SAS>
EXC. VIETNAM EQUIPMENT(JCD),DUMP TRUCK<RA1>,CRANE
TRUCK<RA4>,CONCRETE PUMP<RA5>,PHILIPPINE
EQUIPMENT(WE3)
9-LEAF
|
8-98140-159-0 |
02 |
1 |
1512- |
● |
|
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
DUMP TRUCK<RA1>,MIXER TRUCK<RA2>
MULTI LEAF SUSP RR<SAS>
9-LEAF
|
8-98140-159-0 |
02 |
1 |
1512- |
|
● |
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
MULTI LEAF SUSP RR<SAS>
EXC. VIETNAM EQUIPMENT(JCD),DUMP TRUCK<RA1>,MIXER
TRUCK<RA2>,PHILIPPINE EQUIPMENT(WE3)
9-LEAF
|
8-98140-159-0 |
02 |
1 |
1512- |
|
● |
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
FULL TRACTOR TRUCK<RD6>
MULTI LEAF SUSP RR<SAS>
EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)
10-LEAF
|
8-98157-786-0 |
02 |
1 |
1512- |
● |
|
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
MULTI LEAF SUSP RR<SAS>
EXC. DUMP TRUCK<RA1>,FULL TRACTOR TRUCK<RD6>
10-LEAF
|
8-98157-786-0 |
02 |
1 |
1512- |
● |
|
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
MULTI LEAF SUSP RR<SAS>
EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>
10-LEAF
|
8-98157-786-0 |
02 |
1 |
1512- |
|
● |
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W)
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD),
CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3)
FULL TRACTOR TRUCK<RD6>
TAPER LEAF SUSP RR<SAT>
5-LEAF
|
8-98159-622-0 |
02 |
1 |
1512- |
● |
|
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE
PUMP<RA5>
TAPER LEAF SUSP RR<SAT>
5-LEAF
|
8-98159-622-0 |
02 |
1 |
1512- |
● |
|
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
DUMP TRUCK<RA1>,MIXER TRUCK<RA2>
TAPER LEAF SUSP RR<SAT>
5-LEAF
|
8-98159-622-0 |
02 |
1 |
1512- |
|
● |
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W)
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)
FULL TRACTOR TRUCK<RD6>
TAPER LEAF SUSP RR<SAT>
5-LEAF
|
8-98138-268-0 |
02 |
1 |
1512- |
● |
|
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
FULL TRACTOR TRUCK<RD6>
TAPER LEAF SUSP RR<SAT>
EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),
TAIWAN EQUIPMENT(WW5)
5-LEAF
|
8-98138-268-0 |
02 |
1 |
1512- |
● |
|
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
TAPER LEAF SUSP RR<SAT>
EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE
PUMP<RA5>,FULL TRACTOR TRUCK<RD6>,TAIWAN
EQUIPMENT(WW5)
5-LEAF
|
8-98138-268-0 |
02 |
1 |
1512- |
● |
|
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
TAPER LEAF SUSP RR<SAT>
EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>
5-LEAF
|
8-98138-268-0 |
02 |
1 |
1512- |
|
● |
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>
TAPER LEAF SUSP RR<SAT>
EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)
5-LEAF
|
8-98101-101-1 |
02 |
1 |
1512- |
● |
|
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
TAPER LEAF SUSP RR<SAT>
EXC. RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD),
CHILE EQUIPMENT(KE1),DUMP TRUCK<RA1>,CRANE
TRUCK<RA4>,CONCRETE PUMP<RA5>,PHILIPPINE EQUIPMENT(WE3),T
AIWAN EQUIPMENT(WW5)
5-LEAF
|
8-98101-101-1 |
02 |
1 |
1512- |
● |
|
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
TAPER LEAF SUSP RR<SAT>
EXC. RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD),
DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,PHILIPPINE
EQUIPMENT(WE3)
5-LEAF
|
8-98101-101-1 |
02 |
1 |
1512- |
|
● |
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
5-LEAF
|
8-98102-211-1 |
02 |
1 |
1303-1511 |
● |
|
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
WHEEL BASE 6600MM(66W)
TAIWAN EQUIPMENT(WW5)
FULL TRACTOR TRUCK<RD6>
TAPER LEAF SUSP RR<SAT>
5-LEAF
|
8-98102-211-1 |
02 |
1 |
1512- |
● |
|
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
WHEEL BASE 5900MM(59W)
TAIWAN EQUIPMENT(WW5)
TAPER LEAF SUSP RR<SAT>
EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE
PUMP<RA5>,FULL TRACTOR TRUCK<RD6>
5-LEAF
|
8-98102-211-1 |
02 |
1 |
1512- |
● |
|
| |
5 |
NUT; U-BOLT,RR SPR
M27 FLANGE
|
1-09440-058-0 |
08 |
1 |
1303-1511 |
● |
|
| |
5 |
NUT; U-BOLT,RR SPR
M27 FLANGE
|
1-09440-058-0 |
08 |
1 |
1512- |
● |
● |
| |
7 |
SEAT; SPR,LWR
|
8-97614-049-2 |
02 |
1 |
1303-1511 |
● |
|
| |
7 |
SEAT; SPR,LWR
|
8-97614-049-2 |
02 |
1 |
1512- |
● |
● |
| |
9 |
PAD; U BOLT,RR SPR
|
8-98177-265-0 |
02 |
1 |
1303-1511 |
● |
|
| |
9 |
PAD; U BOLT,RR SPR
|
8-98177-265-0 |
02 |
1 |
1512- |
● |
● |
| |
13 |
BRACKET; TRUNNION SHAFT
|
1-53361-079-0 |
02 |
1 |
1303-1511 |
● |
|
| |
13 |
BRACKET; TRUNNION SHAFT
|
1-53361-079-0 |
02 |
1 |
1512- |
● |
● |
| |
14 |
PIPE; TRUNNION BRKT
|
1-51389-032-1 |
01 |
1 |
1303-1511 |
● |
|
| |
14 |
PIPE; TRUNNION BRKT
|
1-51389-032-1 |
01 |
1 |
1512- |
● |
● |
| |
19 |
BOLT; KEY,SHAFT
|
1-51389-066-0 |
02 |
1 |
1303-1511 |
● |
|
| |
19 |
BOLT; KEY,SHAFT
|
1-51389-066-0 |
02 |
1 |
1512- |
● |
● |
| |
20 |
GROMMET; KEY BOLT
|
1-09333-057-0 |
02 |
1 |
1303-1511 |
● |
|
| |
20 |
GROMMET; KEY BOLT
|
1-09333-057-0 |
02 |
1 |
1512- |
● |
● |
| |
21 |
WASHER; THRUST,TRUNNION SHAFT
|
1-51389-058-0 |
02 |
1 |
1303-1511 |
● |
|
| |
21 |
WASHER; THRUST,TRUNNION SHAFT
|
1-51389-058-0 |
02 |
1 |
1512- |
● |
● |
| |
22 |
SHAFT; TRUNNION,RR SUSP
|
1-51381-022-3 |
02 |
1 |
1303-1511 |
● |
|
| |
22 |
SHAFT; TRUNNION,RR SUSP
|
1-51381-022-3 |
02 |
1 |
1512- |
● |
● |
| |
23 |
SEAL; OIL,TRUNNION SHAFT
|
1-51389-005-0 |
02 |
1 |
1303-1511 |
● |
|
| |
23 |
SEAL; OIL,TRUNNION SHAFT
|
1-51389-005-0 |
02 |
1 |
1512- |
● |
● |
| |
24 |
PIN; SIDE PLATE TO SHAFT
|
1-09740-009-0 |
04 |
1 |
1303-1511 |
● |
|
| |
24 |
PIN; SIDE PLATE TO SHAFT
|
1-09740-009-0 |
04 |
1 |
1512- |
● |
● |
| |
29 |
BOLT; BRKT TO FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W)
(A)
M18X75
|
8-98012-872-0 |
24 |
1 |
1512- |
● |
|
| |
29 |
BOLT; BRKT TO FRAME
(A)
M18X75
|
8-98012-872-0 |
24 |
1 |
1512- |
|
● |
| |
29 |
BOLT; BRKT TO FRAME
(A)
M18X80
|
1-09000-428-1 |
24 |
1 |
1303-1511 |
● |
|
| |
29 |
BOLT; BRKT TO FRAME
WHEEL BASE 5900MM(59W)
(A)
M18X80
|
1-09000-428-1 |
24 |
1 |
1512- |
● |
|
| |
29 |
BOLT; BRKT TO FRAME
(B)
M18X55
|
9-92061-855-0 |
04 |
1 |
1303-1510 |
● |
|
| |
29 |
BOLT; BRKT TO FRAME
(B)
M18X55
|
0-20951-855-0 |
04 |
1 |
1511-1511 |
● |
|
| |
29 |
BOLT; BRKT TO FRAME
(B)
M18X55
|
0-20951-855-0 |
04 |
1 |
1512- |
● |
● |
| |
30 |
WASHER; PL,TRUNNION BRKT
ID=19
|
1-09503-162-0 |
28 |
1 |
1303-1511 |
● |
|
| |
30 |
WASHER; PL,TRUNNION BRKT
ID=19
|
1-09503-162-0 |
28 |
1 |
1512- |
● |
● |
| |
31 |
NUT; TRUNNION BRKT
M18
|
0-91110-518-0 |
28 |
1 |
1303-1511 |
● |
|
| |
31 |
NUT; TRUNNION BRKT
M18
|
0-91110-518-0 |
28 |
1 |
1512- |
● |
● |
| |
32 |
PIN; STRAIGHT
|
1-09740-027-0 |
04 |
1 |
1303-1511 |
● |
|
| |
32 |
PIN; STRAIGHT
|
1-09740-027-0 |
04 |
1 |
1512- |
● |
● |
| |
33 |
PLATE; LK KNOCK PIN
|
1-53369-032-1 |
02 |
1 |
1303-1511 |
● |
|
| |
33 |
PLATE; LK KNOCK PIN
|
1-53369-032-1 |
02 |
1 |
1512- |
● |
● |
| |
34 |
BOLT; LOCK PLATE
M10X16 FLANGE
|
0-28051-016-0 |
02 |
1 |
1303-1511 |
● |
|
| |
34 |
BOLT; LOCK PLATE
M10X16 FLANGE
|
0-28051-016-0 |
02 |
1 |
1512- |
● |
● |
| |
35 |
PIN; TRUNNION SHAFT
|
1-09749-030-1 |
04 |
1 |
1303-1511 |
● |
|
| |
35 |
PIN; TRUNNION SHAFT
|
1-09749-030-1 |
04 |
1 |
1512- |
● |
● |
| |
37 |
NUT; SPR SETTING
M22
|
0-91110-522-0 |
04 |
1 |
1303-1511 |
● |
|
| |
37 |
NUT; SPR SETTING
M22
|
0-91110-522-0 |
04 |
1 |
1512- |
● |
● |
| |
38 |
WASHER; LK,SPR SETTING
ID=22.5
|
0-91510-622-0 |
04 |
1 |
1303-1511 |
● |
|
| |
38 |
WASHER; LK,SPR SETTING
ID=22.5
|
0-91510-622-0 |
04 |
1 |
1512- |
● |
● |
| |
39 |
BOLT; SPR SETTING
M22X155
|
9-09801-290-1 |
04 |
1 |
1303-1511 |
● |
|
| |
39 |
BOLT; SPR SETTING
M22X155
|
9-09801-290-1 |
04 |
1 |
1512- |
● |
● |
| |
40 |
VALVE; GREASE ESCAPE
|
9-51389-010-0 |
02 |
1 |
1303-1511 |
● |
|
| |
40 |
VALVE; GREASE ESCAPE
|
9-51389-010-0 |
02 |
1 |
1512- |
● |
● |
| |
41 |
BUSHING; TRUNNION SHAFT
|
8-98081-832-0 |
04 |
1 |
1303-1511 |
● |
|
| |
41 |
BUSHING; TRUNNION SHAFT
|
8-98081-832-0 |
04 |
1 |
1512- |
● |
● |
| |
42 |
SHIM; SIDE PLATE TO SHAFT
|
1-51389-033-1 |
12 |
1 |
1303-1511 |
● |
|
| |
42 |
SHIM; SIDE PLATE TO SHAFT
|
1-51389-033-1 |
12 |
1 |
1512- |
● |
● |
| |
43 |
PLATE; SIDE,TRUNNION SHAFT
|
1-51382-010-4 |
02 |
1 |
1303-1511 |
● |
|
| |
43 |
PLATE; SIDE,TRUNNION SHAFT
|
1-51382-010-4 |
02 |
1 |
1512- |
● |
● |
| |
44 |
BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE
|
1-09044-038-2 |
04 |
1 |
1303-1511 |
● |
|
| |
44 |
BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE
|
1-09044-038-2 |
04 |
1 |
1512- |
● |
● |
| |
45 |
COVER; SPR SEAT
|
1-51387-013-2 |
02 |
1 |
1303-1511 |
● |
|
| |
45 |
COVER; SPR SEAT
|
1-51387-013-2 |
02 |
1 |
1512- |
● |
● |
| |
46 |
BRACKET; COVER
|
1-51387-015-2 |
02 |
1 |
1303-1511 |
● |
|
| |
46 |
BRACKET; COVER
|
1-51387-015-2 |
02 |
1 |
1512- |
● |
● |
| |
47 |
BOLT; COVER TO SEAT
M8X12 FLANGE
|
0-28050-812-0 |
08 |
1 |
1303-1511 |
● |
|
| |
47 |
BOLT; COVER TO SEAT
M8X12 FLANGE
|
0-28050-812-0 |
08 |
1 |
1512- |
● |
● |
| |
50 |
WASHER; PL,TRUNNION SHAFT
ID=25
|
8-98012-871-0 |
02 |
1 |
1303-1511 |
● |
|
| |
50 |
WASHER; PL,TRUNNION SHAFT
ID=25
|
8-98012-871-0 |
02 |
1 |
1512- |
● |
● |
| |
133 |
BUSHING; RUBBER,TORQUE ROD
OD=105
|
1-51519-113-1 |
08 |
1 |
1303-1511 |
● |
|
| |
133 |
BUSHING; RUBBER,TORQUE ROD
EXC. RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD),
CHILE EQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3)
OD=105
|
1-51519-113-1 |
08 |
1 |
1512- |
● |
|
| |
133 |
BUSHING; RUBBER,TORQUE ROD
OD=105
|
1-51519-113-1 |
04 |
1 |
1303-1511 |
● |
|
| |
133 |
BUSHING; RUBBER,TORQUE ROD
EXC. RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD),
CHILE EQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3)
OD=105
|
1-51519-113-1 |
04 |
1 |
1512- |
● |
|
| |
133 |
BUSHING; RUBBER,TORQUE ROD
EXC. TAIWAN EQUIPMENT(WW5)
OD=105
|
1-51519-113-1 |
06 |
1 |
1512- |
● |
|
| |
133 |
BUSHING; RUBBER,TORQUE ROD
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD),
CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3)
OD=105
|
1-51519-113-1 |
06 |
1 |
1512- |
● |
|
| |
133 |
BUSHING; RUBBER,TORQUE ROD
OD=105
|
1-51519-113-1 |
06 |
1 |
1512- |
|
● |
| |
133 |
BUSHING; RUBBER,TORQUE ROD
OD=105
|
1-51519-113-1 |
06 |
1 |
1512- |
|
● |
| |
133 |
BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS
|
1-87411-074-2 |
08 |
1 |
1303-1511 |
● |
|
| |
133 |
BUSHING; RUBBER,TORQUE ROD
EXC. RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD),
CHILE EQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3)
BEST VALUE PARTS
|
1-87411-074-2 |
08 |
1 |
1512- |
● |
|
| |
133 |
BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS
|
1-87411-074-2 |
04 |
1 |
1303-1511 |
● |
|
| |
133 |
BUSHING; RUBBER,TORQUE ROD
EXC. RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD),
CHILE EQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3)
BEST VALUE PARTS
|
1-87411-074-2 |
04 |
1 |
1512- |
● |
|
| |
133 |
BUSHING; RUBBER,TORQUE ROD
EXC. TAIWAN EQUIPMENT(WW5)
BEST VALUE PARTS
|
1-87411-074-2 |
06 |
1 |
1512- |
● |
|
| |
133 |
BUSHING; RUBBER,TORQUE ROD
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD),
CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3)
BEST VALUE PARTS
|
1-87411-074-2 |
06 |
1 |
1512- |
● |
|
| |
133 |
BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS
|
1-87411-074-2 |
06 |
1 |
1512- |
|
● |
| |
133 |
BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS
|
1-87411-074-2 |
06 |
1 |
1512- |
|
● |
| |
146 |
NUT; KEY BOLT
M24
|
0-91110-524-0 |
02 |
1 |
1303-1511 |
● |
|
| |
146 |
NUT; KEY BOLT
M24
|
0-91110-524-0 |
02 |
1 |
1512- |
● |
● |
| |
224 |
NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT
|
0-90301-410-0 |
02 |
1 |
1303-1511 |
● |
|
| |
224 |
NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT
|
0-90301-410-0 |
02 |
1 |
1512- |
● |
● |
| |
225 |
RUBBER; CUSHION,RR SPR
EXC. TAIWAN EQUIPMENT(WW5)
FORWARD LH,REARWARD RH
|
1-53366-143-1 |
02 |
1 |
1512- |
● |
|
| |
225 |
RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH
|
1-53366-143-1 |
02 |
1 |
1512- |
|
● |
| |
225 |
RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH
|
1-53366-072-2 |
02 |
1 |
1303-1510 |
● |
|
| |
225 |
RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH
|
1-53366-072-2 |
02 |
1 |
1511-1511 |
● |
|
| |
225 |
RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(WW5)
FORWARD LH,REARWARD RH
|
1-53366-072-2 |
02 |
1 |
1512- |
● |
|
| |
225 |
RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH
|
1-53366-073-2 |
02 |
1 |
1303-1511 |
● |
|
| |
225 |
RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH
|
1-53366-073-2 |
02 |
1 |
1512- |
● |
● |
| |
227 |
NUT; CUSHION RUBBER
M12 FLANGE
|
0-91180-212-0 |
08 |
1 |
1303-1511 |
● |
|
| |
227 |
NUT; CUSHION RUBBER
M12 FLANGE
|
0-91180-212-0 |
08 |
1 |
1512- |
● |
● |
| |
233 |
ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5500MM(55W)
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD),
CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3)
(A)
L=555
|
1-51511-660-0 |
03 |
1 |
1512- |
● |
|
| |
233 |
ROD ASM; TORQUE,RR SUSP
(A)
L=555
|
1-51511-660-0 |
03 |
1 |
1512- |
|
● |
| |
233 |
ROD ASM; TORQUE,RR SUSP
EXC. TAIWAN EQUIPMENT(WW5)
(B)
L=580
|
1-51511-661-0 |
03 |
1 |
1512- |
● |
|
| |
233 |
ROD ASM; TORQUE,RR SUSP
(B)
L=580
|
1-51511-661-0 |
03 |
1 |
1512- |
|
● |
| |
233 |
ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W)
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD),
CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3)
(D)
L=545
|
1-51511-658-0 |
02 |
1 |
1512- |
● |
|
| |
233 |
ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W)
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD),
CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3)
(C)
L=565
|
1-51511-685-0 |
01 |
1 |
1512- |
● |
|
| |
233 |
ROD ASM; TORQUE,RR SUSP
(A)
L=525
|
1-51511-656-0 |
01 |
1 |
1303-1511 |
● |
|
| |
233 |
ROD ASM; TORQUE,RR SUSP
EXC. RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD),
CHILE EQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3)
(A)
L=525
|
1-51511-656-0 |
01 |
1 |
1512- |
● |
|
| |
233 |
ROD ASM; TORQUE,RR SUSP
(A)
L=525
|
1-51511-656-0 |
02 |
1 |
1303-1511 |
● |
|
| |
233 |
ROD ASM; TORQUE,RR SUSP
EXC. RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD),
CHILE EQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3)
(A)
L=525
|
1-51511-656-0 |
02 |
1 |
1512- |
● |
|
| |
233 |
ROD ASM; TORQUE,RR SUSP
(B)
L=550
|
1-51511-659-0 |
03 |
1 |
1303-1511 |
● |
|
| |
233 |
ROD ASM; TORQUE,RR SUSP
EXC. RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD),
CHILE EQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3)
(B)
L=550
|
1-51511-659-0 |
03 |
1 |
1512- |
● |
|
| |
235 |
BOLT; TORQUE ROD
(A)
M18X265
|
8-98012-875-0 |
06 |
1 |
1303-1511 |
● |
|
| |
235 |
BOLT; TORQUE ROD
(A)
M18X265
|
8-98012-875-0 |
06 |
1 |
1512- |
● |
● |
| |
235 |
BOLT; TORQUE ROD
(B)
M18X102
|
8-98012-877-0 |
12 |
1 |
1303-1511 |
● |
|
| |
235 |
BOLT; TORQUE ROD
(B)
M18X102
|
8-98012-877-0 |
12 |
1 |
1512- |
● |
● |
| |
237 |
NUT; TORQUE ROD
M18
|
1-09464-011-0 |
18 |
1 |
1303-1511 |
● |
|
| |
237 |
NUT; TORQUE ROD
M18
|
1-09464-011-0 |
18 |
1 |
1512- |
● |
● |
| |
390 |
U-BOLT SET; RR SPRING
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W)
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD),
CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3)
FULL TRACTOR TRUCK<RD6>
TAPER LEAF SUSP RR<SAT>
L=370
|
1-87870-217-3 |
04 |
1 |
1512- |
● |
|
| |
390 |
U-BOLT SET; RR SPRING
DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE
PUMP<RA5>
TAPER LEAF SUSP RR<SAT>
L=370
|
1-87870-217-3 |
04 |
1 |
1512- |
● |
|
| |
390 |
U-BOLT SET; RR SPRING
DUMP TRUCK<RA1>,MIXER TRUCK<RA2>
TAPER LEAF SUSP RR<SAT>
L=370
|
1-87870-217-3 |
04 |
1 |
1512- |
|
● |
| |
390 |
U-BOLT SET; RR SPRING
L=350
|
1-87870-392-1 |
04 |
1 |
1303-1511 |
● |
|
| |
390 |
U-BOLT SET; RR SPRING
EXC. TAPER LEAF SUSP RR<SAT>
L=350
|
1-87870-392-1 |
04 |
1 |
1512- |
● |
● |
| |
390 |
U-BOLT SET; RR SPRING
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W)
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)
FULL TRACTOR TRUCK<RD6>
TAPER LEAF SUSP RR<SAT>
L=350
|
1-87870-392-1 |
04 |
1 |
1512- |
● |
|
| |
390 |
U-BOLT SET; RR SPRING
CRANE TRUCK<RA4>,CONCRETE PUMP<RA5>,FULL TRACTOR
TRUCK<RD6>
TAPER LEAF SUSP RR<SAT>
EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)
L=350
|
1-87870-392-1 |
04 |
1 |
1512- |
● |
|
| |
390 |
U-BOLT SET; RR SPRING
TAPER LEAF SUSP RR<SAT>
EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,CONCRETE
PUMP<RA5>,FULL TRACTOR TRUCK<RD6>
L=350
|
1-87870-392-1 |
04 |
1 |
1512- |
● |
|
| |
390 |
U-BOLT SET; RR SPRING
TAPER LEAF SUSP RR<SAT>
EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>
L=350
|
1-87870-392-1 |
04 |
1 |
1512- |
|
● |
