◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#115255) — 298 parça
çizim 336488
69 202 202 203 204 205 204 203 65 70 72
BalonParca AdiParca NoAdetTipApplied Date A B
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1303-1511 ●
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1512- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 1303-1511 ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 1512- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 1303-1511 ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 1512- ● ●
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-492-1 01 1 1303-1511 ●
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-492-1 01 1 1512- ● ●
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-493-1 01 1 1303-1511 ●
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-493-1 01 1 1512- ● ●
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 22 1 1303-1511 ●
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 22 1 1512- ● ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1303-1511 ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1512- ● ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 1303-1511 ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 1512- ● ●
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 1303-1511 ●
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 1512- ● ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 1303-1511 ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 1512- ● ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1303-1511 ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1512- ● ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 1303-1511 ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 1512- ● ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 1303-1511 ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 1512- ● ●
çizim 336490
294 202 202 203 204 205 204 203 201 173 203 204 205 66 174 205 204 203 202 202
BalonParca AdiParca NoAdetTipApplied Date A B
66 BRACKET; S/ABS 1-53458-786-0 01 1 1303-1511 ●
66 BRACKET; S/ABS 1-53458-786-0 01 1 1512- ● ●
66 BRACKET; S/ABS 8-98214-572-0 01 1 1303-1511 ●
66 BRACKET; S/ABS 8-98214-572-0 01 1 1512- ● ●
173 MEMBER; CAB MTG RR
RUSSIA EQUIPMENT(B12) 		8-98169-447-0 01 1 1512- ● ●
173 MEMBER; CAB MTG RR
VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3) 		8-98166-348-0 01 1 1512- ●
173 MEMBER; CAB MTG RR
VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) 		8-98166-348-0 01 1 1512- ●
173 MEMBER; CAB MTG RR 1-53450-686-3 01 1 1303-1511 ●
173 MEMBER; CAB MTG RR
TAIWAN EQUIPMENT(WW5) 		1-53450-686-3 01 1 1512- ●
174 OUTRIGGER 8-97614-275-1 01 1 1303-1511 ●
174 OUTRIGGER 8-97614-275-1 01 1 1512- ● ●
174 OUTRIGGER 8-98198-712-2 01 1 1303-1511 ●
174 OUTRIGGER 8-98198-712-2 01 1 1512- ● ●
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-728-1 02 1 1303-1511 ●
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-728-1 02 1 1512- ● ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1303-1511 ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1512- ● ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 1303-1511 ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 1512- ● ●
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 1303-1511 ●
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 1512- ● ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 1303-1511 ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 1512- ● ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1303-1511 ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1512- ● ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 1303-1511 ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 1512- ● ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 1303-1511 ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 1512- ● ●
294 MEMBER; FLOATING 1-53454-950-3 01 1 1303-1511 ●
294 MEMBER; FLOATING 1-53454-950-3 01 1 1512- ● ●

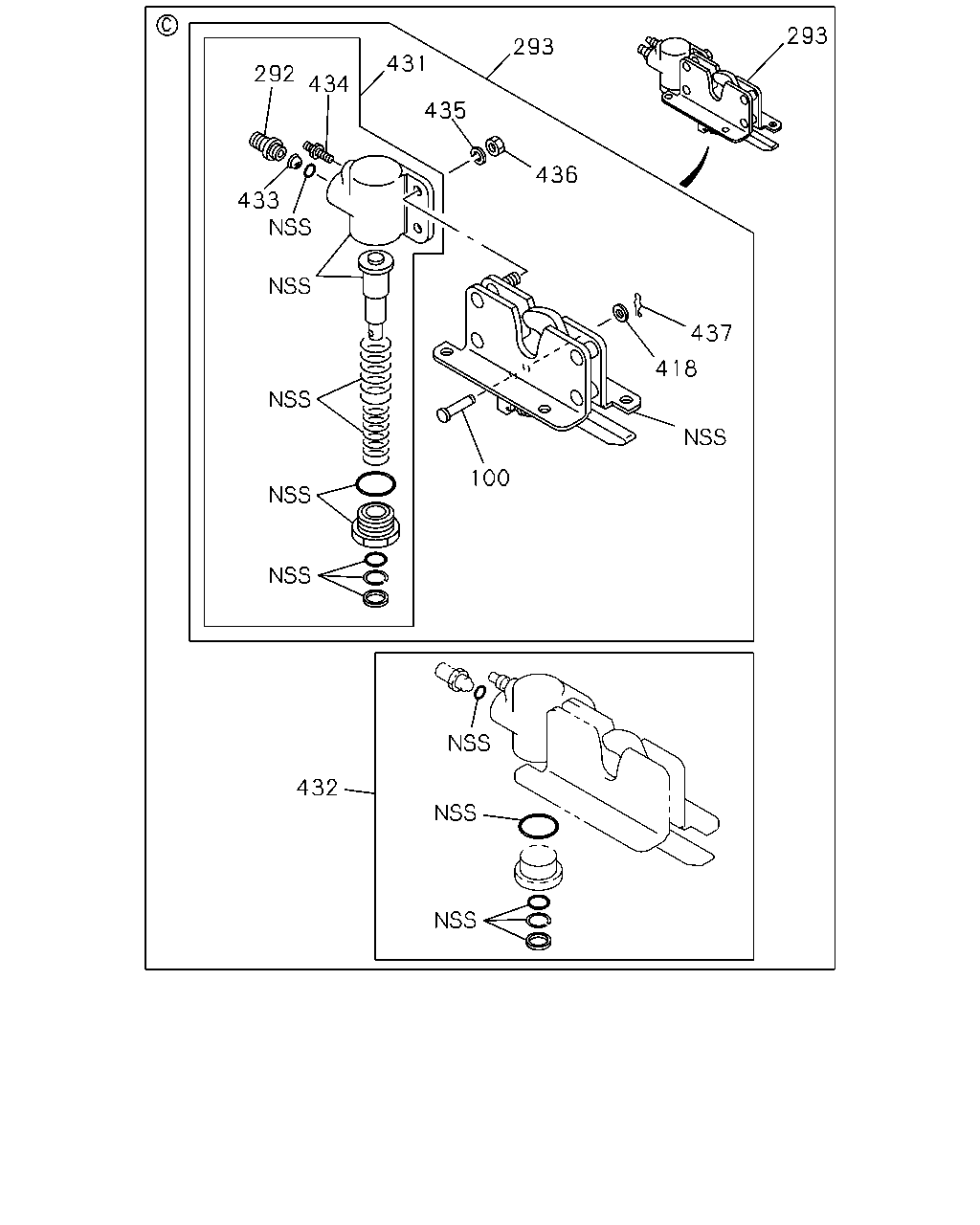

çizim 336493
292 433 434 431 435 436 293 293 437 418 100 432
BalonParca AdiParca NoAdetTipApplied Date A B
100 PIN; JOINT 1-53458-831-0 01 1 1303-1511 ●
100 PIN; JOINT 1-53458-831-0 01 1 1512- ● ●
292 CONNECTOR; CAB SUSPENSION
M12 		1-53458-941-0 01 1 1303-1511 ●
292 CONNECTOR; CAB SUSPENSION
M12 		1-53458-941-0 01 1 1512- ● ●
293 RATCH; CAB SUSP,RR 1-53458-918-0 01 1 1303-1511 ●
293 RATCH; CAB SUSP,RR 1-53458-918-0 01 1 1512- ● ●
418 WASHER; PL,PIN 1-53458-059-0 01 1 1303-1511 ●
418 WASHER; PL,PIN 1-53458-059-0 01 1 1512- ● ●
431 CYLINDER; AIR,RATCH 1-53457-013-0 01 1 1303-1511 ●
431 CYLINDER; AIR,RATCH 1-53457-013-0 01 1 1512- ● ●
432 REPAIR KIT; AIR CYL 1-85579-052-0 01 1 1303-1511 ●
432 REPAIR KIT; AIR CYL 1-85579-052-0 01 1 1512- ● ●
433 FILTER; AIR CYL 1-53458-048-0 01 1 1303-1511 ●
433 FILTER; AIR CYL 1-53458-048-0 01 1 1512- ● ●
434 SCREW; AIR BLEEDER 1-53458-529-0 01 1 1303-1511 ●
434 SCREW; AIR BLEEDER 1-53458-529-0 01 1 1512- ● ●
435 WASHER; LK,AIR CYL
ID=10.2 		9-09150-510-0 02 1 1303-1511 ●
435 WASHER; LK,AIR CYL
ID=10.2 		9-09150-510-0 02 1 1512- ● ●
436 NUT; AIR CYL 1-53458-528-0 02 1 1303-1511 ●
436 NUT; AIR CYL 1-53458-528-0 02 1 1512- ● ●
437 PIN; SNAP 1-53458-526-0 01 1 1303-1511 ●
437 PIN; SNAP 1-53458-526-0 01 1 1512- ● ●

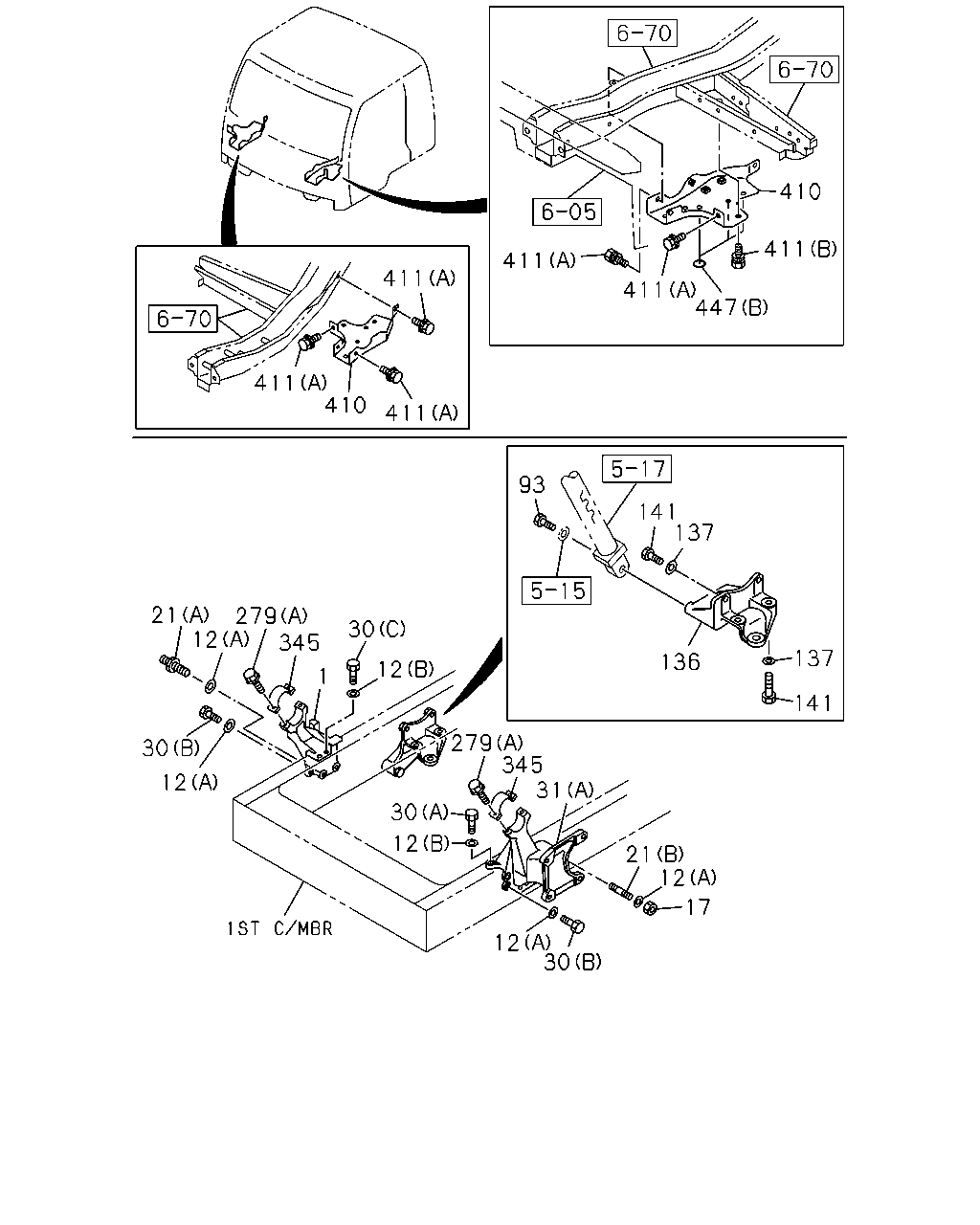

çizim 337102
21 12 279 345 30 12 30 12 30 12 279 345 31 21 12 17 12 30 410 411 411 411 447 141 93 137 136 137 141 411 411 410 411 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG 8-98225-458-0 01 1 1303-1511 ●
1 BRACKET; CAB MTG 8-98225-458-0 01 1 1512- ● ●
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 11 1 1303-1511 ●
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 11 1 1512- ● ●
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 04 1 1303-1511 ●
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 04 1 1512- ● ●
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 1303-1511 ●
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 1512- ● ●
21 STUD; BRKT,CAB TILT
(A) M10X20,M16X70 L=101 		1-09029-093-0 02 1 1303-1511 ●
21 STUD; BRKT,CAB TILT
(A) M10X20,M16X70 L=101 		1-09029-093-0 02 1 1512- ● ●
21 STUD; BRKT,CAB TILT
(B) M16X55 L=79 		8-98200-993-0 01 1 1303-1511 ●
21 STUD; BRKT,CAB TILT
(B) M16X55 L=79 		8-98200-993-0 01 1 1512- ● ●
30 BOLT; CAB FRT FOOT
(C) M14X50 		0-20951-450-0 02 1 1303-1511 ●
30 BOLT; CAB FRT FOOT
(C) M14X50 		0-20951-450-0 02 1 1512- ● ●
30 BOLT; CAB FRT FOOT
(A) M14X60 		0-20951-460-0 02 1 1303-1511 ●
30 BOLT; CAB FRT FOOT
(A) M14X60 		0-20951-460-0 02 1 1512- ● ●
30 BOLT; CAB FRT FOOT
(B) M16X60 		0-20951-660-0 03 1 1303-1511 ●
30 BOLT; CAB FRT FOOT
(B) M16X60 		0-20951-660-0 03 1 1512- ● ●
30 BOLT; CAB FRT FOOT
(B) M16X60 		0-20951-660-0 05 1 1303-1511 ●
30 BOLT; CAB FRT FOOT
(B) M16X60 		0-20951-660-0 05 1 1512- ● ●
31 BRACKET; CAB
(B) 		1-53453-274-1 01 1 1303-1511 ●
31 BRACKET; CAB
(B) 		1-53453-274-1 01 1 1512- ● ●
31 BRACKET; CAB
(B) 		1-53453-280-2 01 1 1303-1511 ●
31 BRACKET; CAB
(B) 		1-53453-280-2 01 1 1512- ● ●
31 BRACKET; CAB
(A) 		8-98209-487-0 01 1 1303-1511 ●
31 BRACKET; CAB
(A) 		8-98209-487-0 01 1 1512- ● ●
93 BOLT; PIN
M10X30 		1-09000-283-0 01 1 1303-1511 ●
93 BOLT; PIN
M10X30 		1-09000-283-0 01 1 1512- ● ●
136 BRACKET; OIL CYL 1-53458-903-0 01 1 1303-1511 ●
136 BRACKET; OIL CYL 1-53458-903-0 01 1 1512- ● ●
137 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1303-1511 ●
137 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1512- ● ●
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1303-1511 ●
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1512- ● ●
279 BOLT
(A) M12X40 FLANGE 		0-28061-240-0 04 1 1303-1510 ●
279 BOLT
(A) M12X40 FLANGE 		8-98270-173-0 04 1 1511-1511 ●
279 BOLT
(A) M12X40 FLANGE 		8-98270-173-0 04 1 1512- ● ●
279 BOLT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1303-1511 ●
279 BOLT
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1512- ●
279 BOLT
RUSSIA EQUIPMENT(B12) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1512- ●
345 CAP; CAB 1-53458-336-3 02 1 1303-1511 ●
345 CAP; CAB 1-53458-336-3 02 1 1512- ● ●
410 REINFORCEMENT; CAB TILT 1-62570-864-0 01 1 1303-1511 ●
410 REINFORCEMENT; CAB TILT 1-62570-864-0 01 1 1512- ● ●
410 REINFORCEMENT; CAB TILT 1-62570-939-0 01 1 1303-1511 ●
410 REINFORCEMENT; CAB TILT 1-62570-939-0 01 1 1512- ● ●
411 BOLT; REINFORCEMENT
(B) M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 1303-1511 ●
411 BOLT; REINFORCEMENT
(B) M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 1512- ● ●
411 BOLT; REINFORCEMENT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1303-1511 ●
411 BOLT; REINFORCEMENT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1512- ● ●
447 SEAL
(A) OD=45 BLACK 		1-76798-017-0 02 1 1303-1511 ●
447 SEAL
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) OD=45 BLACK 		1-76798-017-0 02 1 1512- ●
447 SEAL
RUSSIA EQUIPMENT(B12) (A) OD=45 BLACK 		1-76798-017-0 02 1 1512- ●
447 SEAL
(B) OD=25 BLACK 		1-76798-019-0 03 1 1303-1511 ●
447 SEAL
(B) OD=25 BLACK 		1-76798-019-0 03 1 1512- ● ●

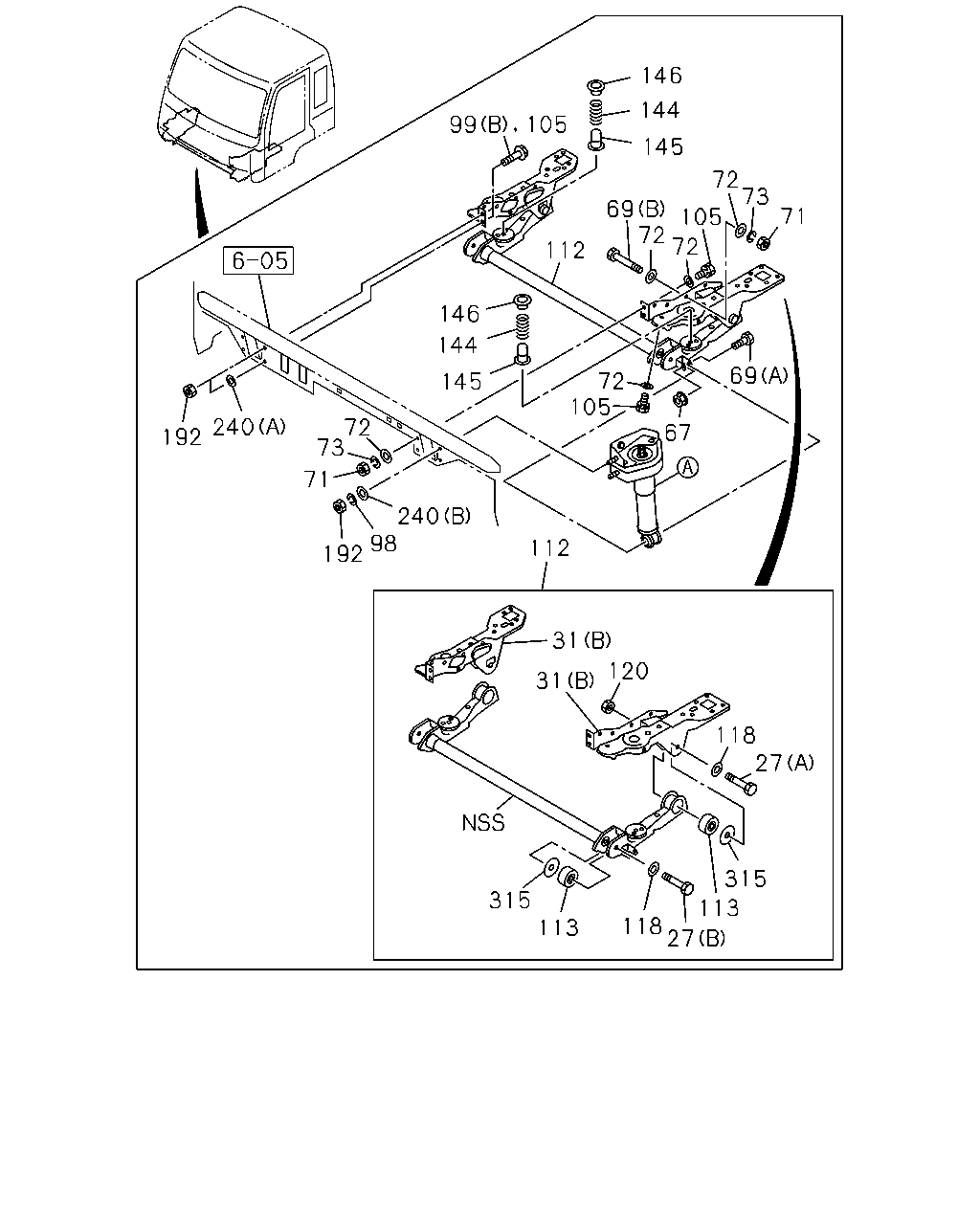

çizim 337110
31 31 118 27 315 113 118 113 315 27 120 112 240 98 192 240 192 99 146 145 144 69 72 105 72 71 72 69 67 72 146 145 144 105 105 112 71 73 72 73
BalonParca AdiParca NoAdetTipApplied Date A B
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 1303-1511 ●
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 1512- ● ●
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 1303-1511 ●
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 1512- ● ●
31 BRACKET; CAB
(B) 		1-53453-274-1 01 1 1303-1511 ●
31 BRACKET; CAB
(B) 		1-53453-274-1 01 1 1512- ● ●
31 BRACKET; CAB
(B) 		1-53453-280-2 01 1 1303-1511 ●
31 BRACKET; CAB
(B) 		1-53453-280-2 01 1 1512- ● ●
31 BRACKET; CAB
(A) 		8-98209-487-0 01 1 1303-1511 ●
31 BRACKET; CAB
(A) 		8-98209-487-0 01 1 1512- ● ●
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91180-212-0 02 1 1303-1511 ●
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91180-212-0 02 1 1512- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 1303-1511 ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 1512- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 1303-1511 ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 1512- ● ●
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 06 1 1303-1511 ●
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 06 1 1512- ● ●
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 22 1 1303-1511 ●
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 22 1 1512- ● ●
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 1303-1511 ●
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 1512- ● ●
98 WASHER; LK,BRKT
ID=10 		1-09985-185-0 04 1 1303-1511 ●
98 WASHER; LK,BRKT
ID=10 		1-09985-185-0 04 1 1512- ● ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1303-1511 ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1512- ● ●
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 01 1 1303-1511 ●
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 01 1 1512- ● ●
105 BOLT; BRKT TO CAB FRAME
M10X30 W/SP WASHER 		1-09980-546-0 14 1 1303-1511 ●
105 BOLT; BRKT TO CAB FRAME
M10X30 W/SP WASHER 		1-09980-546-0 14 1 1512- ● ●
112 ARM ASM; LINK,CAB FRT SUSP 1-53450-567-8 01 1 1303-1511 ●
112 ARM ASM; LINK,CAB FRT SUSP 1-53450-567-8 01 1 1512- ● ●
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI 1-53458-714-0 04 1 1303-1511 ●
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI 1-53458-714-0 04 1 1512- ● ●
118 WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30 		1-09503-279-0 04 1 1303-1511 ●
118 WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30 		1-09503-279-0 04 1 1512- ● ●
120 NUT; STOPPER RUBBER,LINK ARM
M18 		0-91110-518-0 02 1 1303-1511 ●
120 NUT; STOPPER RUBBER,LINK ARM
M18 		0-91110-518-0 02 1 1512- ● ●
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 1303-1511 ●
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 1512- ● ●
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 1303-1511 ●
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 1512- ● ●
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-138-0 02 1 1303-1511 ●
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-138-0 02 1 1512- ● ●
192 NUT; BRKT FIX
M10 		1-09984-142-0 05 1 1303-1511 ●
192 NUT; BRKT FIX
M10 		1-09984-142-0 05 1 1512- ● ●
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 1303-1511 ●
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 1512- ● ●
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 1303-1410 ●
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 1303-1511 ●
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 1512- ● ●
315 WASHER; CAB MTG
ID=34.5 		1-53458-281-1 04 1 1303-1511 ●
315 WASHER; CAB MTG
ID=34.5 		1-53458-281-1 04 1 1512- ● ●

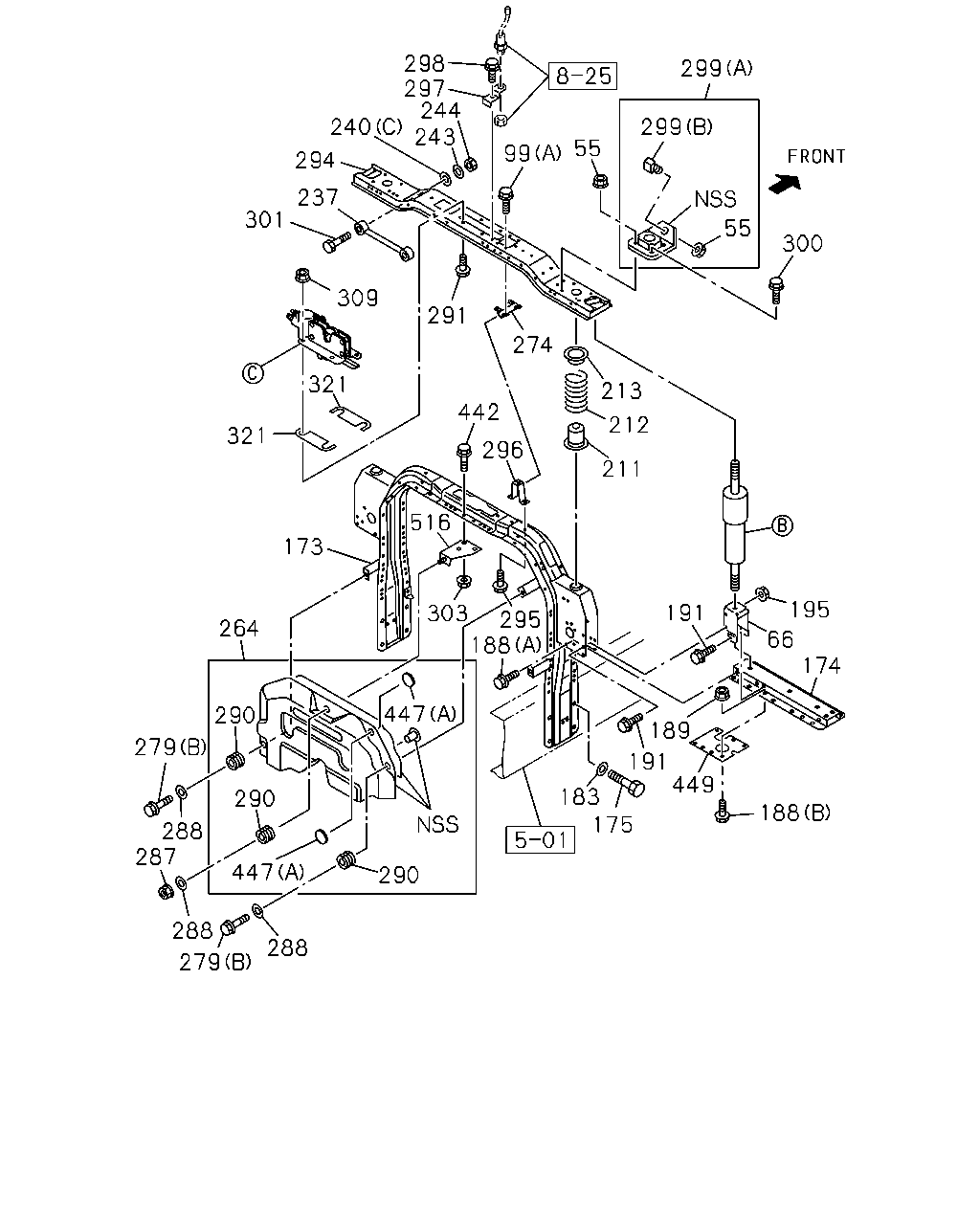

çizim 337227
298 240 297 244 243 294 237 301 309 321 321 173 291 99 55 299 299 55 300 274 213 212 211 191 66 195 174 188 189 191 449 175 183 295 188 303 516 296 442 264 290 279 288 287 288 279 288 447 290 290 447
BalonParca AdiParca NoAdetTipApplied Date A B
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 06 1 1303-1511 ●
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 06 1 1512- ● ●
66 BRACKET; S/ABS 1-53458-786-0 01 1 1303-1511 ●
66 BRACKET; S/ABS 1-53458-786-0 01 1 1512- ● ●
66 BRACKET; S/ABS 8-98214-572-0 01 1 1303-1511 ●
66 BRACKET; S/ABS 8-98214-572-0 01 1 1512- ● ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1303-1511 ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1512- ● ●
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 01 1 1303-1511 ●
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 01 1 1512- ● ●
173 MEMBER; CAB MTG RR
RUSSIA EQUIPMENT(B12) 		8-98169-447-0 01 1 1512- ● ●
173 MEMBER; CAB MTG RR
VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3) 		8-98166-348-0 01 1 1512- ●
173 MEMBER; CAB MTG RR
VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) 		8-98166-348-0 01 1 1512- ●
173 MEMBER; CAB MTG RR 1-53450-686-3 01 1 1303-1511 ●
173 MEMBER; CAB MTG RR
TAIWAN EQUIPMENT(WW5) 		1-53450-686-3 01 1 1512- ●
174 OUTRIGGER 8-97614-275-1 01 1 1303-1511 ●
174 OUTRIGGER 8-97614-275-1 01 1 1512- ● ●
174 OUTRIGGER 8-98198-712-2 01 1 1303-1511 ●
174 OUTRIGGER 8-98198-712-2 01 1 1512- ● ●
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 1303-1511 ●
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 1512- ● ●
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1303-1511 ●
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1512- ● ●
188 BOLT; OUTRIGGER
CAB SUSPENSION-FULL FLOATING(SMK) EXC. TAIWAN EQUIPMENT(WW5) (B) M10X20 FLANGE 		0-28651-020-0 04 1 1512- ●
188 BOLT; OUTRIGGER
CAB SUSPENSION-FULL FLOATING(SMK) (B) M10X20 FLANGE 		0-28651-020-0 04 1 1512- ●
188 BOLT; OUTRIGGER
(B) M10X20 FLANGE 		0-28651-020-0 04 1 1303-1510 ●
188 BOLT; OUTRIGGER
(A) M10X25 FLANGE 		0-28651-025-0 08 1 1303-1511 ●
188 BOLT; OUTRIGGER
(A) M10X25 FLANGE 		0-28651-025-0 08 1 1512- ● ●
189 NUT; OUTRIGGER
M10 FLANGE 		0-91180-210-0 04 1 1303-1511 ●
189 NUT; OUTRIGGER
M10 FLANGE 		0-91180-210-0 04 1 1512- ● ●
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28651-025-0 07 1 1303-1511 ●
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28651-025-0 07 1 1512- ● ●
195 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 1303-1511 ●
195 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 1512- ● ●
211 RUBBER; CUSHION,S/ABS 1-53366-128-0 02 1 1303-1511 ●
211 RUBBER; CUSHION,S/ABS 1-53366-128-0 02 1 1512- ● ●
212 SPRING; COIL 1-09580-515-0 02 1 1303-1511 ●
212 SPRING; COIL 1-09580-515-0 02 1 1512- ● ●
213 SEAT; SPR,S/ABS 1-53366-132-1 02 1 1303-1511 ●
213 SEAT; SPR,S/ABS 1-53366-132-1 02 1 1512- ● ●
237 ROD ASM; LATERAL 1-53458-343-0 01 1 1303-1511 ●
237 ROD ASM; LATERAL 1-53458-343-0 01 1 1512- ● ●
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 1303-1511 ●
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 1512- ● ●
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 1303-1410 ●
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 1303-1511 ●
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 1512- ● ●
243 WASHER; LK,LATERAL ROD
ID=12.2 		0-91510-512-0 02 1 1303-1511 ●
243 WASHER; LK,LATERAL ROD
ID=12.2 		0-91510-512-0 02 1 1512- ● ●
244 NUT; LATERAL ROD
M12 		0-91110-512-0 02 1 1303-1511 ●
244 NUT; LATERAL ROD
M12 		0-91110-512-0 02 1 1512- ● ●
264 PANEL; BACK 1-53194-511-2 01 1 1303-1511 ●
264 PANEL; BACK
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) 		1-53194-511-2 01 1 1512- ●
264 PANEL; BACK
RUSSIA EQUIPMENT(B12) 		1-53194-511-2 01 1 1512- ●
274 PIN 1-53458-996-0 01 1 1303-1511 ●
274 PIN 1-53458-996-0 01 1 1512- ● ●
279 BOLT
(A) M12X40 FLANGE 		0-28061-240-0 04 1 1303-1510 ●
279 BOLT
(A) M12X40 FLANGE 		8-98270-173-0 04 1 1511-1511 ●
279 BOLT
(A) M12X40 FLANGE 		8-98270-173-0 04 1 1512- ● ●
279 BOLT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1303-1511 ●
279 BOLT
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1512- ●
279 BOLT
RUSSIA EQUIPMENT(B12) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1512- ●
287 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-1511 ●
287 NUT
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) M8 FLANGE 		0-91180-108-0 01 1 1512- ●
287 NUT
RUSSIA EQUIPMENT(B12) M8 FLANGE 		0-91180-108-0 01 1 1512- ●
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 03 1 1303-1511 ●
288 WASHER; PL
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) ID=8.4 OD=26 		0-91614-808-0 03 1 1512- ●
288 WASHER; PL
RUSSIA EQUIPMENT(B12) ID=8.4 OD=26 		0-91614-808-0 03 1 1512- ●
290 RUBBER; MTG 1-53459-702-1 03 1 1303-1511 ●
290 RUBBER; MTG
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) 		1-53459-702-1 03 1 1512- ●
290 RUBBER; MTG
RUSSIA EQUIPMENT(B12) 		1-53459-702-1 03 1 1512- ●
291 BOLT; RATCH
M10X25 FLANGE 		0-28651-025-0 04 1 1303-1511 ●
291 BOLT; RATCH
M10X25 FLANGE 		0-28651-025-0 04 1 1512- ● ●
294 MEMBER; FLOATING 1-53454-950-3 01 1 1303-1511 ●
294 MEMBER; FLOATING 1-53454-950-3 01 1 1512- ● ●
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28651-020-0 02 1 1303-1511 ●
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28651-020-0 02 1 1512- ● ●
296 STOPPER; UPR 1-53458-973-1 01 1 1303-1511 ●
296 STOPPER; UPR 1-53458-973-1 01 1 1512- ● ●
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 1303-1511 ●
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 1512- ● ●
298 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1303-1511 ●
298 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1512- ● ●
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 1303-1511 ●
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 1512- ● ●
299 RUBBER; MTG
(A) 		1-53366-194-0 02 1 1303-1511 ●
299 RUBBER; MTG
(A) 		1-53366-194-0 02 1 1512- ● ●
300 BOLT; MTG RUBBER
M8X25 W/LK&PL WASHER 		1-09030-027-0 08 1 1303-1511 ●
300 BOLT; MTG RUBBER
M8X25 W/LK&PL WASHER 		1-09030-027-0 08 1 1512- ● ●
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 1303-1511 ●
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 1512- ● ●
303 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1303-1511 ●
303 NUT; BRKT
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) M8 FLANGE 		0-91180-108-0 02 1 1512- ●
303 NUT; BRKT
RUSSIA EQUIPMENT(B12) M8 FLANGE 		0-91180-108-0 02 1 1512- ●
309 NUT
M10 FLANGE 		0-91180-210-0 04 1 1303-1511 ●
309 NUT
M10 FLANGE 		0-91180-210-0 04 1 1512- ● ●
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 1303-1511 ●
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 1512- ● ●
442 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1303-1511 ●
442 BOLT; BRKT
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) M8X20 FLANGE 		0-28650-820-0 02 1 1512- ●
442 BOLT; BRKT
RUSSIA EQUIPMENT(B12) M8X20 FLANGE 		0-28650-820-0 02 1 1512- ●
447 SEAL
(A) OD=45 BLACK 		1-76798-017-0 02 1 1303-1511 ●
447 SEAL
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) OD=45 BLACK 		1-76798-017-0 02 1 1512- ●
447 SEAL
RUSSIA EQUIPMENT(B12) (A) OD=45 BLACK 		1-76798-017-0 02 1 1512- ●
447 SEAL
(B) OD=25 BLACK 		1-76798-019-0 03 1 1303-1511 ●
447 SEAL
(B) OD=25 BLACK 		1-76798-019-0 03 1 1512- ● ●
449 BRACKET; OUTRIGGER 1-53456-279-0 01 1 1303-1511 ●
449 BRACKET; OUTRIGGER 1-53456-279-0 01 1 1512- ● ●
516 BRACKET; PANEL 1-53496-020-0 01 1 1303-1511 ●
516 BRACKET; PANEL
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) 		1-53496-020-0 01 1 1512- ●
516 BRACKET; PANEL
RUSSIA EQUIPMENT(B12) 		1-53496-020-0 01 1 1512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
