◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#115253) — 48 parça

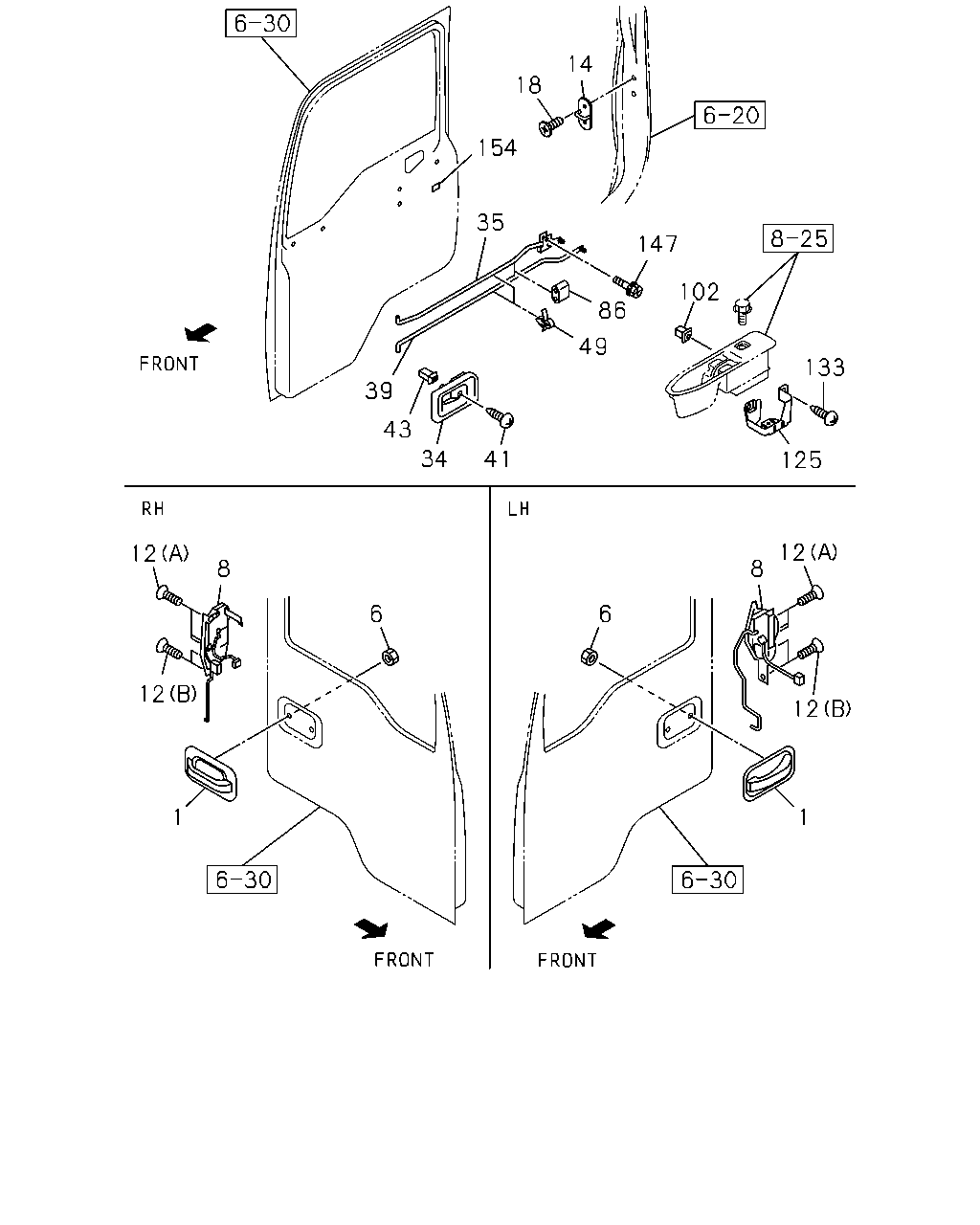

çizim 336561
12 1 12 6 6 8 12 12 1 49 86 147 102 133 215 14 18 154 35 39 34 43 41 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,FRT DOOR 1-74618-024-4 02 1 1303-1511 ●
1 HANDLE; OUTSIDE,FRT DOOR 1-74618-024-4 02 1 1512- ● ●
6 NUT; OUTSIDE HANDLE
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1303-1511 ●
6 NUT; OUTSIDE HANDLE
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1512- ● ●
8 LOCK; DOOR,FRT DOOR 1-74518-113-3 01 1 1303-1511 ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74518-113-3 01 1 1512- ● ●
8 LOCK; DOOR,FRT DOOR 1-74518-114-3 01 1 1303-1511 ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74518-114-3 01 1 1512- ● ●
12 SCREW; DOOR LK
(B) M6X14 		1-09981-512-1 04 1 1303-1511 ●
12 SCREW; DOOR LK
(B) M6X14 		1-09981-512-1 04 1 1512- ● ●
12 SCREW; DOOR LK
(A) M6X16 		8-97581-217-0 06 1 1303-1511 ●
12 SCREW; DOOR LK
(A) M6X16 		8-97581-217-0 06 1 1512- ● ●
14 STRIKER; FRT DOOR 8-97221-702-1 02 1 1303-1511 ●
14 STRIKER; FRT DOOR 8-97221-702-1 02 1 1512- ● ●
18 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 1303-1511 ●
18 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 1512- ● ●
34 HANDLE; INSIDE,FRT DOOR 1-74718-022-4 01 1 1303-1511 ●
34 HANDLE; INSIDE,FRT DOOR 1-74718-022-4 01 1 1512- ● ●
34 HANDLE; INSIDE,FRT DOOR 1-74718-023-4 01 1 1303-1511 ●
34 HANDLE; INSIDE,FRT DOOR 1-74718-023-4 01 1 1512- ● ●
35 LINK; DOOR LOCK,INSIDE 1-74518-093-3 01 1 1303-1511 ●
35 LINK; DOOR LOCK,INSIDE 1-74518-093-3 01 1 1512- ● ●
35 LINK; DOOR LOCK,INSIDE 1-74518-094-3 01 1 1303-1511 ●
35 LINK; DOOR LOCK,INSIDE 1-74518-094-3 01 1 1512- ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-021-2 01 1 1303-1511 ●
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-021-2 01 1 1512- ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-022-2 01 1 1303-1511 ●
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-022-2 01 1 1512- ● ●
41 SCREW; INSIDE HANDLE
M5X14 		8-94152-495-0 02 1 1303-1511 ●
41 SCREW; INSIDE HANDLE
M5X14 		8-94152-495-0 02 1 1512- ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1303-1511 ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1512- ● ●
49 CLAMP; DOOR LOCK LINK ROD
ID=3.8 WHITE 		8-94217-699-0 04 1 1303-1511 ●
49 CLAMP; DOOR LOCK LINK ROD
ID=3.8 WHITE 		8-94217-699-0 04 1 1512- ● ●
86 SEAL; DOOR LOCK LINK 1-76778-044-1 02 1 1303-1511 ●
86 SEAL; DOOR LOCK LINK 1-76778-044-1 02 1 1512- ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 1303-1511 ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 1512- ● ●
125 BRACKET; DOOR PULL 1-74718-010-4 01 1 1303-1511 ●
125 BRACKET; DOOR PULL 1-74718-010-4 01 1 1512- ● ●
125 BRACKET; DOOR PULL 1-74718-011-4 01 1 1303-1511 ●
125 BRACKET; DOOR PULL 1-74718-011-4 01 1 1512- ● ●
133 SCREW; DOOR PULL STAY
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 1303-1511 ●
133 SCREW; DOOR PULL STAY
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 1512- ● ●
147 BOLT; ROD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-1511 ●
147 BOLT; ROD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512- ● ●
154 SEAL; DOOR
30X30 		1-74998-128-1 02 1 1303-1511 ●
154 SEAL; DOOR
30X30 		1-74998-128-1 02 1 1512- ● ●
