Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#115252) — 342 parça

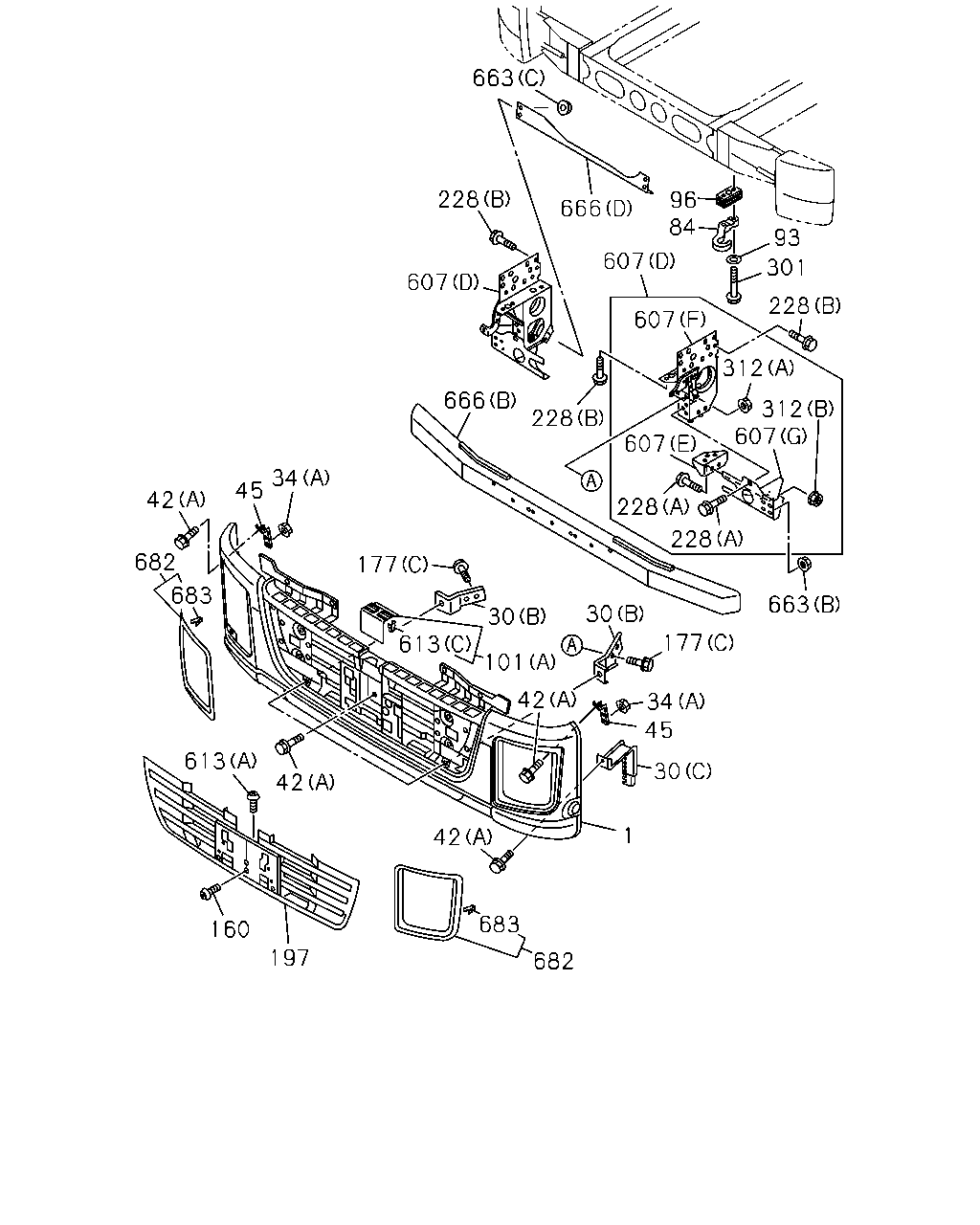

663 228 607 666 666 607 228 228 28 663 607 312 312 607 96 93 228 301 42 682 683 613 42 177 45 34 613 30 177 34 101 30 42 42 45 30 1 683 160 190 682 607

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT WHITE	8-97417-846-3	01	1	1303-1511	●
1	BUMPER ASM; FRT WHITE	8-97417-846-3	01	1	1512-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98218-616-3	01	1	1512-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98218-617-3	01	1	1512-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98236-332-0	01	1	1512-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98236-334-0	01	1	1512-	●	●
30	BRACKET; FRT BUMPER (A)	8-98135-977-1	01	1	1303-1511	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98135-977-1	01	1	1512-	●	●
30	BRACKET; FRT BUMPER (A)	8-98135-978-1	01	1	1303-1511	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98135-978-1	01	1	1512-	●	●
34	NUT; BRKT,BUMPER (B) M6 FLANGE	0-91180-106-0	02	1	1303-1511	●
34	NUT; BRKT,BUMPER (B) M6 FLANGE	0-91180-106-0	02	1	1512-	●	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91180-110-0	04	1	1303-1511	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91180-110-0	04	1	1512-	●	●
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M10X30 FLANGE	8-98055-942-0	10	1	1512-	●	●
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-1511	●
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1512-	●	●
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1303-1511	●
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1512-	●	●
42	BOLT; BUMPER (A) M10X30 FLANGE	8-98055-942-0	10	1	1303-1511	●
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (A) M10X30 FLANGE	8-98055-942-0	12	1	1512-	●	●
45	BRACKET; BRKT TO BUMPER	8-98126-935-2	02	1	1303-1511	●
45	BRACKET; BRKT TO BUMPER	8-98126-935-2	02	1	1512-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1303-1511	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1512-	●	●
96	PLATE; DIST,HOOK FRONT UNDER RUN PROTECTOR<EBE>	8-98218-989-0	01	1	1512-	●	●
96	PLATE; DIST,HOOK	8-98169-197-0	01	1	1303-1511	●
96	PLATE; DIST,HOOK EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98169-197-0	01	1	1512-	●	●
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1303-1511	●
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1512-	●	●
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1303-1511	●
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1512-	●	●
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1303-1511	●
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1512-	●	●
160	SCREW M5X16	8-94380-268-0	01	1	1303-1511	●
160	SCREW M5X16	8-94380-268-0	01	1	1512-	●	●
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> (C) M8X20 FLANGE	0-28650-820-0	04	1	1512-	●	●
177	BOLT DUMP TRUCK<RA1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M12X25 FLANGE	0-28051-225-0	04	1	1512-	●
177	BOLT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M12X25 FLANGE	0-28051-225-0	04	1	1512-		●
177	BOLT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1303-1511	●
177	BOLT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1512-	●	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (B) M16X40 FLANGE	0-28851-640-0	10	1	1512-	●	●
228	BOLT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16X35 FLANGE	0-28851-635-0	06	1	1512-	●	●
228	BOLT; BRKT (A) M16X35 FLANGE	0-28851-635-0	06	1	1303-1511	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (A) M16X35 FLANGE	0-28851-635-0	12	1	1512-	●	●
301	BOLT; HOOK TO FRAME M16X110	8-98074-591-0	02	1	1303-1511	●
301	BOLT; HOOK TO FRAME M16X110	8-98074-591-0	02	1	1512-	●	●
312	NUT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1512-	●	●
312	NUT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (B) M16 FLANGE	0-91180-216-0	04	1	1512-	●	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5900MM(59W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1512-		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1512-		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5900MM(59W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1512-		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1512-		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98223-542-0	01	1	1512-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98223-543-0	01	1	1512-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (F)	8-98290-477-1	01	1	1512-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (F)	8-98290-478-1	01	1	1512-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (G)	8-98304-441-0	01	1	1512-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (G)	8-98304-442-0	01	1	1512-	●	●
607	BRACKET WHEEL BASE 5900MM(59W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1512-	●
607	BRACKET WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1512-		●
607	BRACKET WHEEL BASE 5900MM(59W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1512-	●
607	BRACKET WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1512-		●
607	BRACKET (C)	8-98147-053-0	02	1	1303-1511	●
607	BRACKET (C)	8-98147-053-0	02	1	1512-	●	●
607	BRACKET (B)	8-98147-054-0	02	1	1303-1511	●
607	BRACKET (B)	8-98147-054-0	02	1	1512-	●	●
607	BRACKET (A)	8-98211-758-0	01	1	1303-1511	●
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98211-758-0	01	1	1512-	●	●
607	BRACKET (A)	8-98211-759-0	01	1	1303-1511	●
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98211-759-0	01	1	1512-	●	●
613	CLIP (D)	8-97581-651-2	04	1	1303-1511	●
613	CLIP (D)	8-97581-651-2	04	1	1512-	●	●
613	CLIP (A) D8X13.5	1-09987-248-1	05	1	1303-1511	●
613	CLIP (A) D8X13.5	1-09987-248-1	05	1	1512-	●	●
613	CLIP (B)	8-98025-698-0	08	1	1303-1511	●
613	CLIP (B)	8-98025-698-0	08	1	1512-	●	●
613	CLIP (C)	8-98144-173-1	06	1	1303-1511	●
613	CLIP (C)	8-98144-173-1	06	1	1512-	●	●
663	NUT DUMP TRUCK<RA1> (C) M12 FLANGE	0-91180-212-0	04	1	1512-	●
663	NUT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (C) M12 FLANGE	0-91180-212-0	04	1	1512-		●
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1303-1511	●
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1512-	●	●
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1303-1511	●
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1512-	●	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98288-162-0	01	1	1512-	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1>,MIXER TRUCK<RA2> FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98288-162-0	01	1	1512-		●
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98220-526-0	01	1	1512-	●	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98194-529-0	01	1	1512-	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98194-529-0	01	1	1512-		●
666	PROTECTOR; UNDER (A)	8-98198-583-0	01	1	1303-1511	●
666	PROTECTOR; UNDER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98198-583-0	01	1	1512-	●	●
682	BEZEL; BUMPER	8-98123-444-2	01	1	1303-1511	●
682	BEZEL; BUMPER	8-98123-444-2	01	1	1512-	●	●
682	BEZEL; BUMPER	8-98123-445-2	01	1	1303-1511	●
682	BEZEL; BUMPER	8-98123-445-2	01	1	1512-	●	●
683	CLIP; BEZEL,BUMPER	8-98144-173-1	16	1	1303-1511	●
683	CLIP; BEZEL,BUMPER	8-98144-173-1	16	1	1512-	●	●

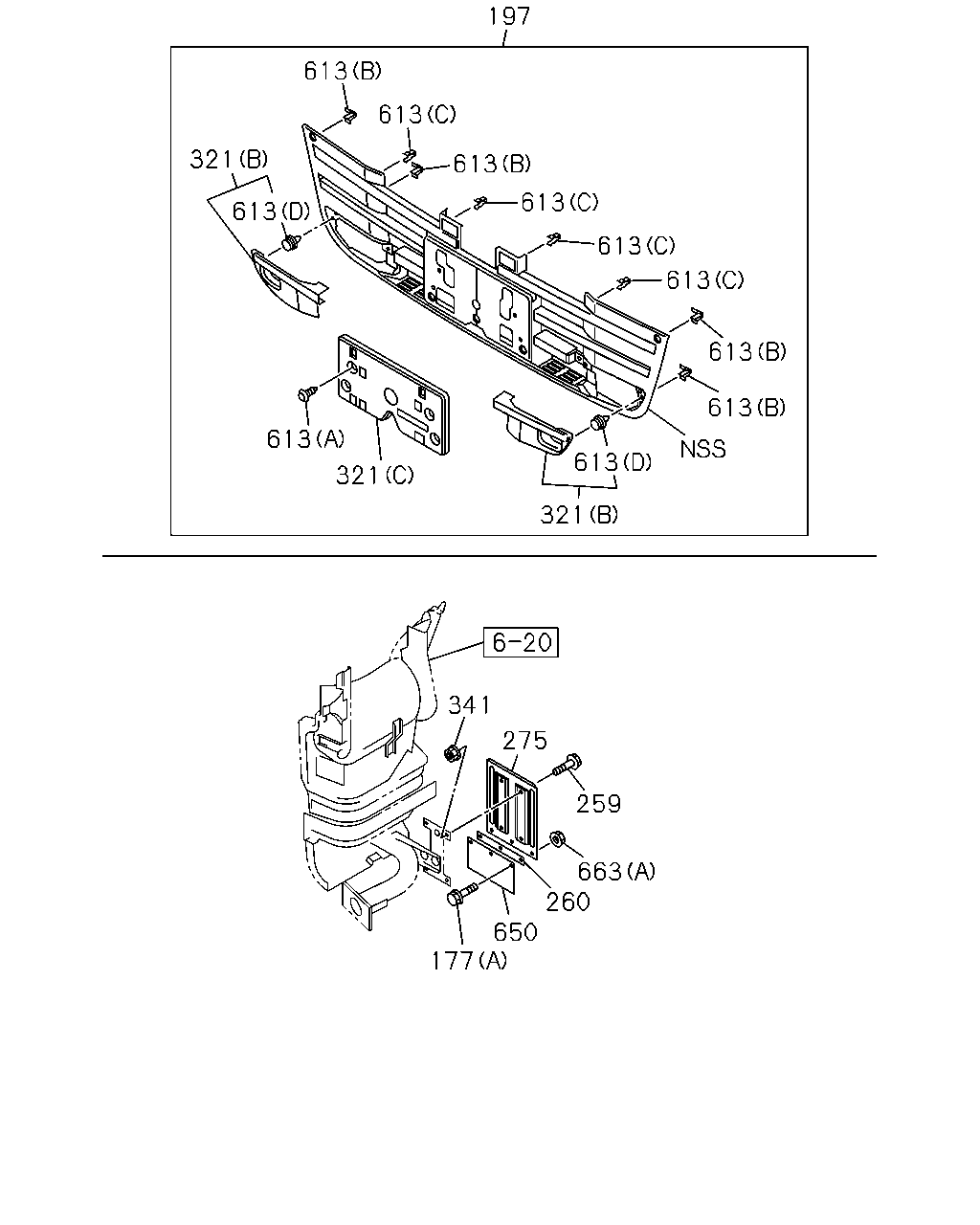

197 613 613 613 613 613 613 613 613 613 321 613 321 613 321 341 275 259 663 260 650 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> (C) M8X20 FLANGE	0-28650-820-0	04	1	1512-	●	●
177	BOLT DUMP TRUCK<RA1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M12X25 FLANGE	0-28051-225-0	04	1	1512-	●
177	BOLT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M12X25 FLANGE	0-28051-225-0	04	1	1512-		●
177	BOLT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1303-1511	●
177	BOLT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1512-	●	●
197	GRILLE; BUMPER	8-98144-188-4	01	1	1303-1511	●
197	GRILLE; BUMPER	8-98144-188-4	01	1	1512-	●	●
259	BOLT; COVER M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1303-1511	●
259	BOLT; COVER M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1512-	●	●
260	RETAINER; UPR SKIRT	8-98125-829-0	02	1	1303-1511	●
260	RETAINER; UPR SKIRT	8-98125-829-0	02	1	1512-	●	●
275	GUARD; FRT	8-98125-825-0	02	1	1303-1511	●
275	GUARD; FRT	8-98125-825-0	02	1	1512-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-98123-446-1	01	1	1303-1511	●
321	COVER; BUMPER FRT SIDE (B)	8-98123-446-1	01	1	1512-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-98123-447-1	01	1	1303-1511	●
321	COVER; BUMPER FRT SIDE (B)	8-98123-447-1	01	1	1512-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-98123-457-1	01	1	1303-1511	●
321	COVER; BUMPER FRT SIDE (A)	8-98123-457-1	01	1	1512-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-98123-458-1	01	1	1303-1511	●
321	COVER; BUMPER FRT SIDE (A)	8-98123-458-1	01	1	1512-	●	●
321	COVER; BUMPER FRT SIDE (C)	8-98132-737-1	01	1	1303-1511	●
321	COVER; BUMPER FRT SIDE (C)	8-98132-737-1	01	1	1512-	●	●
341	NUT; COVER M8 FLANGE	0-91180-108-0	08	1	1303-1511	●
341	NUT; COVER M8 FLANGE	0-91180-108-0	08	1	1512-	●	●
613	CLIP (D)	8-97581-651-2	04	1	1303-1511	●
613	CLIP (D)	8-97581-651-2	04	1	1512-	●	●
613	CLIP (A) D8X13.5	1-09987-248-1	05	1	1303-1511	●
613	CLIP (A) D8X13.5	1-09987-248-1	05	1	1512-	●	●
613	CLIP (B)	8-98025-698-0	08	1	1303-1511	●
613	CLIP (B)	8-98025-698-0	08	1	1512-	●	●
613	CLIP (C)	8-98144-173-1	06	1	1303-1511	●
613	CLIP (C)	8-98144-173-1	06	1	1512-	●	●
650	RUBBER; MUD COVER	8-98125-828-0	02	1	1303-1511	●
650	RUBBER; MUD COVER	8-98125-828-0	02	1	1512-	●	●
663	NUT DUMP TRUCK<RA1> (C) M12 FLANGE	0-91180-212-0	04	1	1512-	●
663	NUT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (C) M12 FLANGE	0-91180-212-0	04	1	1512-		●
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1303-1511	●
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1512-	●	●
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1303-1511	●
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1512-	●	●

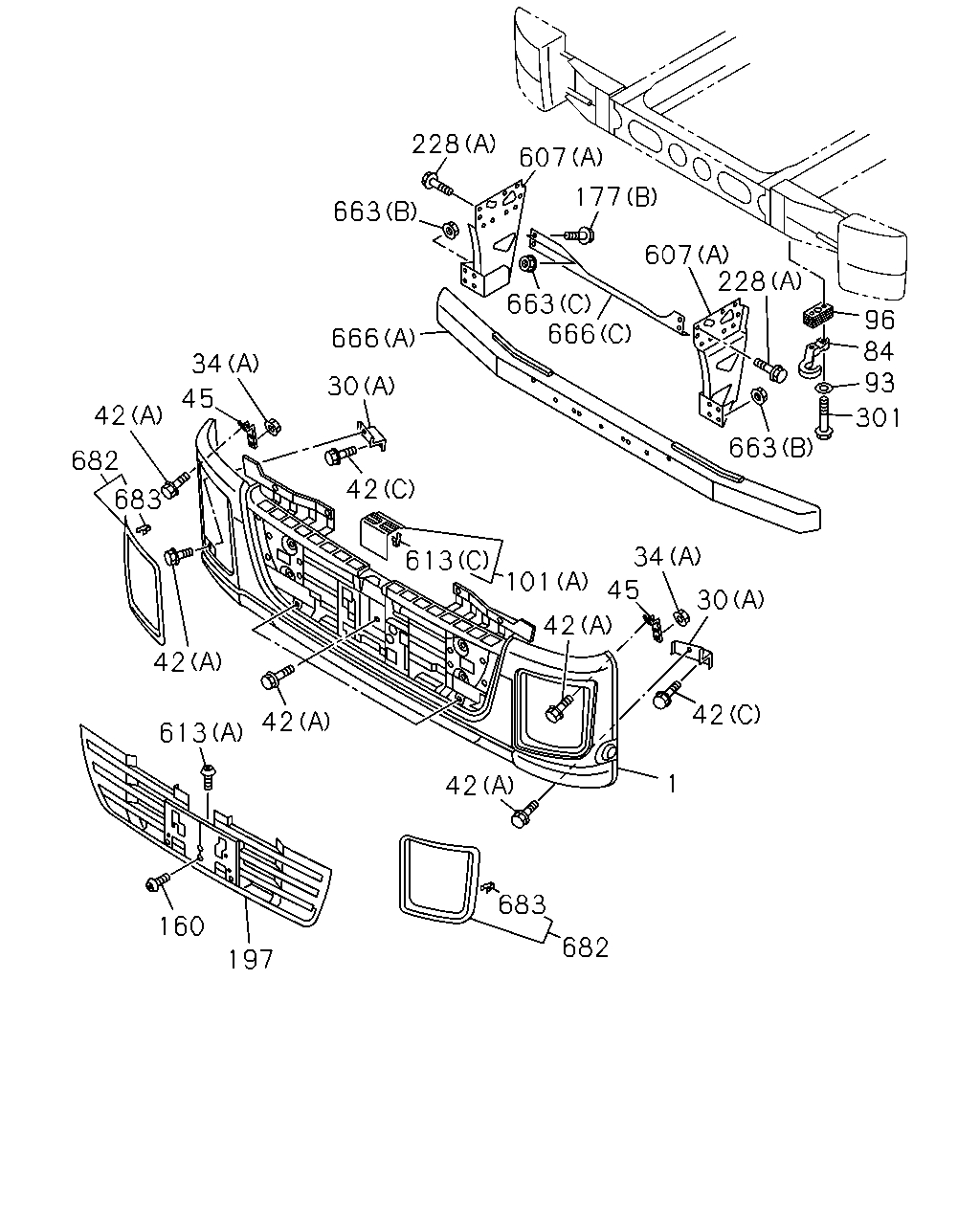

228 663 607 663 177 607 96 84 301 93 34 666 34 42 682 42 613 42 30 45 663 666 228 42 613 30 101 42 42 45 42 683 682 683 160 197 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT WHITE	8-97417-846-3	01	1	1303-1511	●
1	BUMPER ASM; FRT WHITE	8-97417-846-3	01	1	1512-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98218-616-3	01	1	1512-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98218-617-3	01	1	1512-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98236-332-0	01	1	1512-	●	●
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98236-334-0	01	1	1512-	●	●
30	BRACKET; FRT BUMPER (A)	8-98135-977-1	01	1	1303-1511	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98135-977-1	01	1	1512-	●	●
30	BRACKET; FRT BUMPER (A)	8-98135-978-1	01	1	1303-1511	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98135-978-1	01	1	1512-	●	●
34	NUT; BRKT,BUMPER (B) M6 FLANGE	0-91180-106-0	02	1	1303-1511	●
34	NUT; BRKT,BUMPER (B) M6 FLANGE	0-91180-106-0	02	1	1512-	●	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91180-110-0	04	1	1303-1511	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91180-110-0	04	1	1512-	●	●
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M10X30 FLANGE	8-98055-942-0	10	1	1512-	●	●
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-1511	●
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1512-	●	●
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1303-1511	●
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1512-	●	●
42	BOLT; BUMPER (A) M10X30 FLANGE	8-98055-942-0	10	1	1303-1511	●
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (A) M10X30 FLANGE	8-98055-942-0	12	1	1512-	●	●
45	BRACKET; BRKT TO BUMPER	8-98126-935-2	02	1	1303-1511	●
45	BRACKET; BRKT TO BUMPER	8-98126-935-2	02	1	1512-	●	●
84	HOOK	8-98126-930-0	01	1	1303-1511	●
84	HOOK	8-98126-930-0	01	1	1512-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1303-1511	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1512-	●	●
96	PLATE; DIST,HOOK FRONT UNDER RUN PROTECTOR<EBE>	8-98218-989-0	01	1	1512-	●	●
96	PLATE; DIST,HOOK	8-98169-197-0	01	1	1303-1511	●
96	PLATE; DIST,HOOK EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98169-197-0	01	1	1512-	●	●
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1303-1511	●
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1512-	●	●
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1303-1511	●
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1512-	●	●
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1303-1511	●
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1512-	●	●
160	SCREW M5X16	8-94380-268-0	01	1	1303-1511	●
160	SCREW M5X16	8-94380-268-0	01	1	1512-	●	●
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> (C) M8X20 FLANGE	0-28650-820-0	04	1	1512-	●	●
177	BOLT DUMP TRUCK<RA1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M12X25 FLANGE	0-28051-225-0	04	1	1512-	●
177	BOLT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M12X25 FLANGE	0-28051-225-0	04	1	1512-		●
177	BOLT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1303-1511	●
177	BOLT (A) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1512-	●	●
197	GRILLE; BUMPER	8-98144-188-4	01	1	1303-1511	●
197	GRILLE; BUMPER	8-98144-188-4	01	1	1512-	●	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (B) M16X40 FLANGE	0-28851-640-0	10	1	1512-	●	●
228	BOLT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16X35 FLANGE	0-28851-635-0	06	1	1512-	●	●
228	BOLT; BRKT (A) M16X35 FLANGE	0-28851-635-0	06	1	1303-1511	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (A) M16X35 FLANGE	0-28851-635-0	12	1	1512-	●	●
301	BOLT; HOOK TO FRAME M16X110	8-98074-591-0	02	1	1303-1511	●
301	BOLT; HOOK TO FRAME M16X110	8-98074-591-0	02	1	1512-	●	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5900MM(59W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1512-		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1512-		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5900MM(59W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1512-		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1512-		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98223-542-0	01	1	1512-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98223-543-0	01	1	1512-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (F)	8-98290-477-1	01	1	1512-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (F)	8-98290-478-1	01	1	1512-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (G)	8-98304-441-0	01	1	1512-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (G)	8-98304-442-0	01	1	1512-	●	●
607	BRACKET WHEEL BASE 5900MM(59W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1512-	●
607	BRACKET WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1512-		●
607	BRACKET WHEEL BASE 5900MM(59W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1512-	●
607	BRACKET WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1512-		●
607	BRACKET (C)	8-98147-053-0	02	1	1303-1511	●
607	BRACKET (C)	8-98147-053-0	02	1	1512-	●	●
607	BRACKET (B)	8-98147-054-0	02	1	1303-1511	●
607	BRACKET (B)	8-98147-054-0	02	1	1512-	●	●
607	BRACKET (A)	8-98211-758-0	01	1	1303-1511	●
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98211-758-0	01	1	1512-	●	●
607	BRACKET (A)	8-98211-759-0	01	1	1303-1511	●
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98211-759-0	01	1	1512-	●	●
613	CLIP (D)	8-97581-651-2	04	1	1303-1511	●
613	CLIP (D)	8-97581-651-2	04	1	1512-	●	●
613	CLIP (A) D8X13.5	1-09987-248-1	05	1	1303-1511	●
613	CLIP (A) D8X13.5	1-09987-248-1	05	1	1512-	●	●
613	CLIP (B)	8-98025-698-0	08	1	1303-1511	●
613	CLIP (B)	8-98025-698-0	08	1	1512-	●	●
613	CLIP (C)	8-98144-173-1	06	1	1303-1511	●
613	CLIP (C)	8-98144-173-1	06	1	1512-	●	●
663	NUT DUMP TRUCK<RA1> (C) M12 FLANGE	0-91180-212-0	04	1	1512-	●
663	NUT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (C) M12 FLANGE	0-91180-212-0	04	1	1512-		●
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1303-1511	●
663	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1512-	●	●
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1303-1511	●
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1512-	●	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98288-162-0	01	1	1512-	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1>,MIXER TRUCK<RA2> FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98288-162-0	01	1	1512-		●
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98220-526-0	01	1	1512-	●	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98194-529-0	01	1	1512-	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98194-529-0	01	1	1512-		●
666	PROTECTOR; UNDER (A)	8-98198-583-0	01	1	1303-1511	●
666	PROTECTOR; UNDER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98198-583-0	01	1	1512-	●	●
682	BEZEL; BUMPER	8-98123-444-2	01	1	1303-1511	●
682	BEZEL; BUMPER	8-98123-444-2	01	1	1512-	●	●
682	BEZEL; BUMPER	8-98123-445-2	01	1	1303-1511	●
682	BEZEL; BUMPER	8-98123-445-2	01	1	1512-	●	●
683	CLIP; BEZEL,BUMPER	8-98144-173-1	16	1	1303-1511	●
683	CLIP; BEZEL,BUMPER	8-98144-173-1	16	1	1512-	●	●

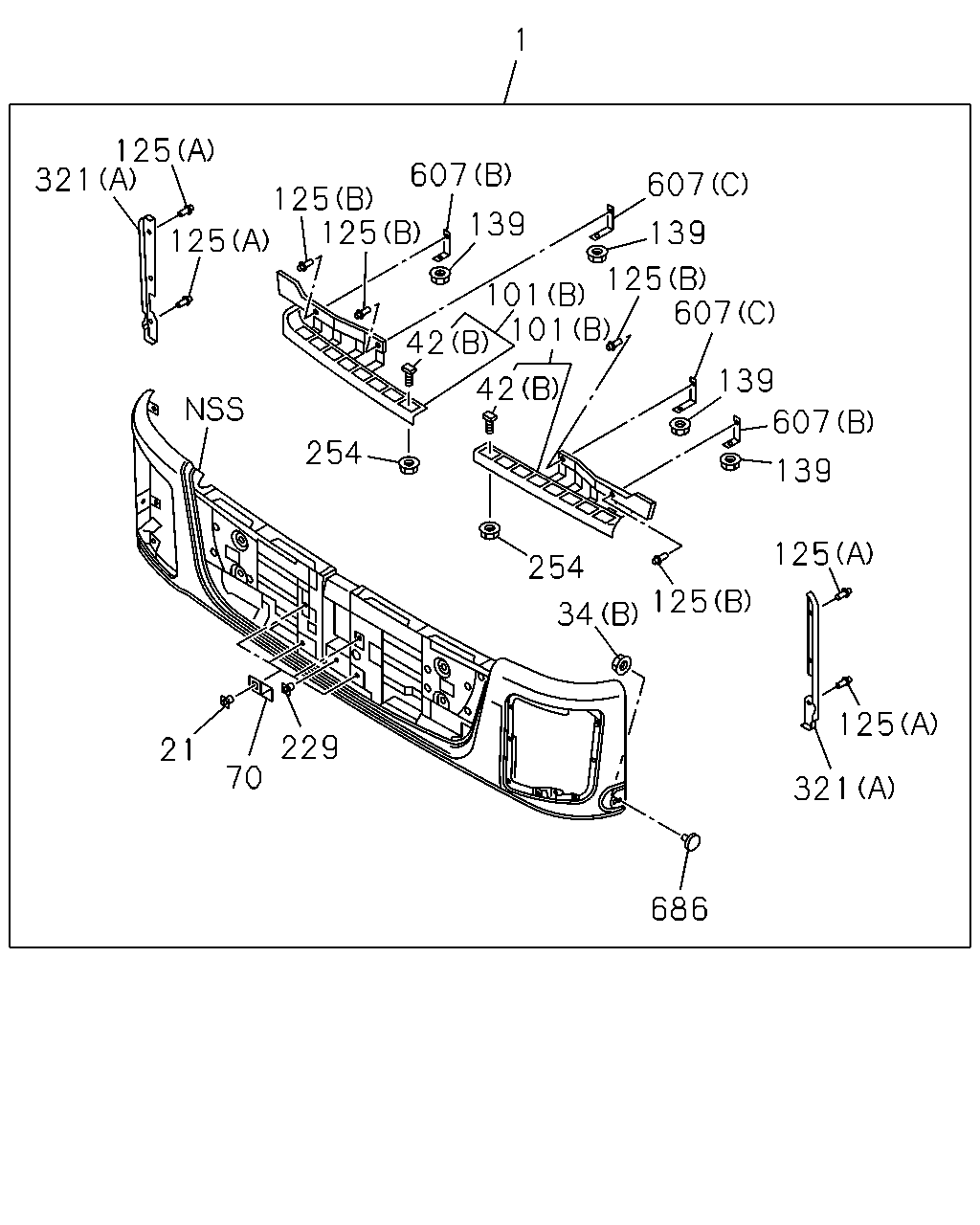

1 607 101 607 125 139 139 125 25 321 125 254 34 686 42 42 101 139 125 125 254 125 125 321 229 70 21 607 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT WHITE	8-97417-846-3	01	1	1303-1511	●
1	BUMPER ASM; FRT WHITE	8-97417-846-3	01	1	1512-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR D=9.7X9.7 L=8	8-94222-314-0	04	1	1303-1511	●
21	GROMMET; SCREW,BUMPER PROTECTOR D=9.7X9.7 L=8	8-94222-314-0	04	1	1512-	●	●
34	NUT; BRKT,BUMPER (B) M6 FLANGE	0-91180-106-0	02	1	1303-1511	●
34	NUT; BRKT,BUMPER (B) M6 FLANGE	0-91180-106-0	02	1	1512-	●	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91180-110-0	04	1	1303-1511	●
34	NUT; BRKT,BUMPER (A) M10 FLANGE	0-91180-110-0	04	1	1512-	●	●
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M10X30 FLANGE	8-98055-942-0	10	1	1512-	●	●
42	BOLT; BUMPER (C) M10X30 FLANGE	0-28051-030-0	04	1	1303-1511	●
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	0-28051-030-0	04	1	1512-	●	●
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1303-1511	●
42	BOLT; BUMPER (B) M6X20	8-97611-666-0	06	1	1512-	●	●
42	BOLT; BUMPER (A) M10X30 FLANGE	8-98055-942-0	10	1	1303-1511	●
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (A) M10X30 FLANGE	8-98055-942-0	12	1	1512-	●	●
70	BRACKET; LICENSE PLATE,FRT	8-98128-625-0	04	1	1303-1511	●
70	BRACKET; LICENSE PLATE,FRT	8-98128-625-0	04	1	1512-	●	●
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1303-1511	●
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1512-	●	●
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1303-1511	●
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1512-	●	●
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1303-1511	●
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1512-	●	●
125	CLIP; STEP (B)	8-98157-167-0	04	1	1303-1511	●
125	CLIP; STEP (B)	8-98157-167-0	04	1	1512-	●	●
125	CLIP; STEP (A)	8-98157-186-0	06	1	1303-1511	●
125	CLIP; STEP (A)	8-98157-186-0	06	1	1512-	●	●
139	NUT; BRKT FIX M8 FLANGE	0-91180-208-0	04	1	1303-1511	●
139	NUT; BRKT FIX M8 FLANGE	0-91180-208-0	04	1	1512-	●	●
229	GROMMET D=7X7 L=7.5	8-94291-927-0	01	1	1303-1511	●
229	GROMMET D=7X7 L=7.5	8-94291-927-0	01	1	1512-	●	●
254	NUT; STEP M6 FLANGE	0-91180-106-0	06	1	1303-1511	●
254	NUT; STEP M6 FLANGE	0-91180-106-0	06	1	1512-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-98123-446-1	01	1	1303-1511	●
321	COVER; BUMPER FRT SIDE (B)	8-98123-446-1	01	1	1512-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-98123-447-1	01	1	1303-1511	●
321	COVER; BUMPER FRT SIDE (B)	8-98123-447-1	01	1	1512-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-98123-457-1	01	1	1303-1511	●
321	COVER; BUMPER FRT SIDE (A)	8-98123-457-1	01	1	1512-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-98123-458-1	01	1	1303-1511	●
321	COVER; BUMPER FRT SIDE (A)	8-98123-458-1	01	1	1512-	●	●
321	COVER; BUMPER FRT SIDE (C)	8-98132-737-1	01	1	1303-1511	●
321	COVER; BUMPER FRT SIDE (C)	8-98132-737-1	01	1	1512-	●	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5900MM(59W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1512-		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-160-2	01	1	1512-		●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5900MM(59W) TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1512-		●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> (D)	8-98288-161-2	01	1	1512-		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98223-542-0	01	1	1512-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98223-543-0	01	1	1512-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (F)	8-98290-477-1	01	1	1512-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (F)	8-98290-478-1	01	1	1512-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (G)	8-98304-441-0	01	1	1512-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (G)	8-98304-442-0	01	1	1512-	●	●
607	BRACKET WHEEL BASE 5900MM(59W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1512-	●
607	BRACKET WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1512-		●
607	BRACKET WHEEL BASE 5900MM(59W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1512-	●
607	BRACKET WHEEL BASE 6600MM(66W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5500MM(55W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1512-	●
607	BRACKET WHEEL BASE 5200MM(52W) TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1512-		●
607	BRACKET (C)	8-98147-053-0	02	1	1303-1511	●
607	BRACKET (C)	8-98147-053-0	02	1	1512-	●	●
607	BRACKET (B)	8-98147-054-0	02	1	1303-1511	●
607	BRACKET (B)	8-98147-054-0	02	1	1512-	●	●
607	BRACKET (A)	8-98211-758-0	01	1	1303-1511	●
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98211-758-0	01	1	1512-	●	●
607	BRACKET (A)	8-98211-759-0	01	1	1303-1511	●
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98211-759-0	01	1	1512-	●	●
686	REFLECTOR; REFLEX	8-98121-023-0	02	1	1303-1511	●
686	REFLECTOR; REFLEX	8-98121-023-0	02	1	1512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
