6-20 — SIDE PANEL AND STEP (#115251) — 49 parça

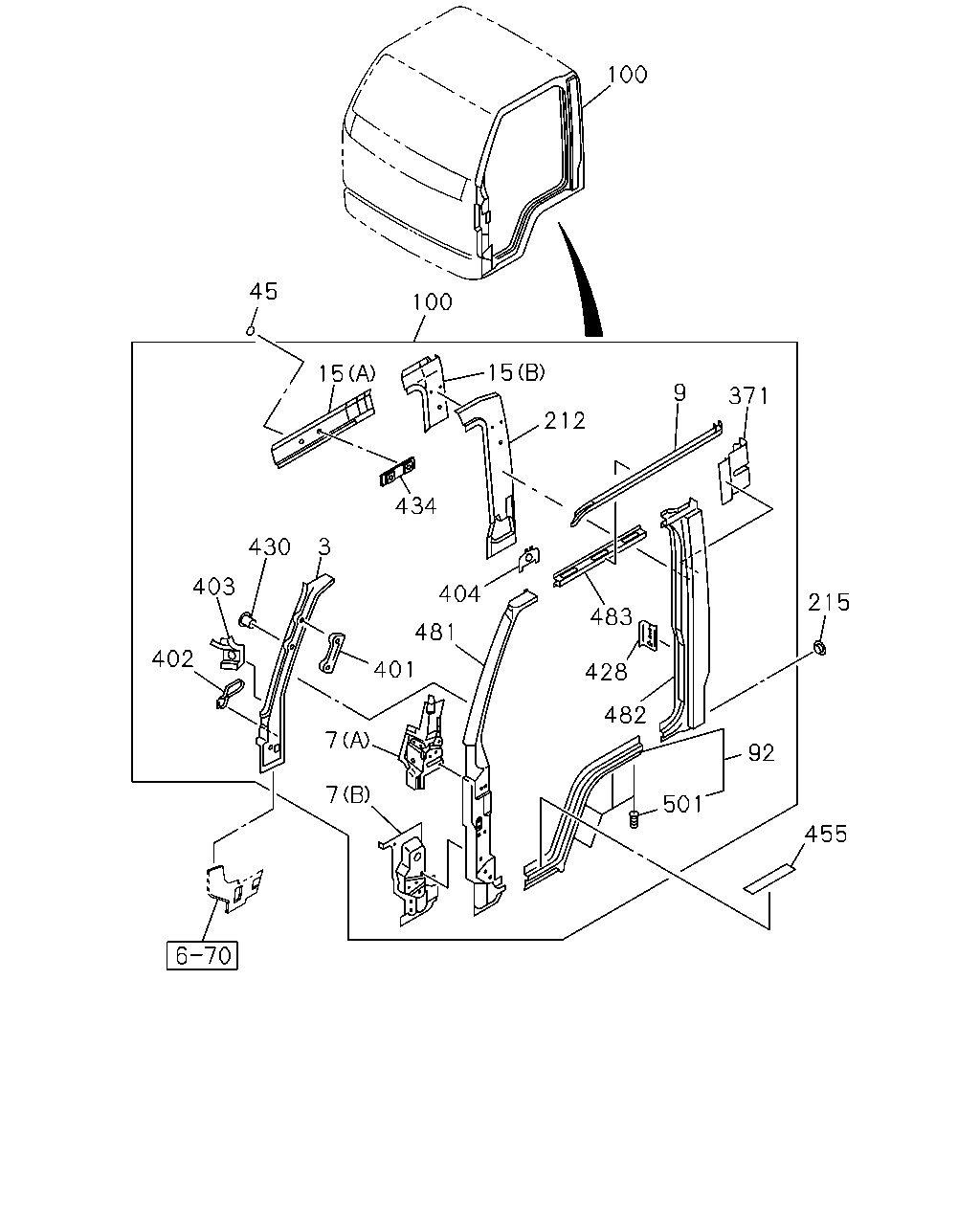

çizim 336549
100 45 100 15 15 3 430 403 402 7 7 401 404 481 483 482 428 501 455 92 215 371 9 212 434
BalonParca AdiParca NoAdetTipApplied Date
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-357-4 01 1 1302-
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-358-4 01 1 1302-
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 1302-
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 1302-
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-2 01 1 1302-
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-354-2 01 1 1302-
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-623-0 01 1 1302-
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-624-0 01 1 1302-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-5 01 1 1302-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-5 01 1 1302-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-6 01 1 1302-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-6 01 1 1302-
45 16.570 SEAL; B-C POST
16.165 OD=25 BLACK 		1-76798-019-0 02 1 1302-
92 16.570 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 1302-
92 16.570 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 1302-
100 16.570 PANEL ASM; BODY SIDE 8-97890-396-1 01 1 1302-
100 16.570 PANEL ASM; BODY SIDE 8-97890-399-1 01 1 1302-
212 16.588 CLOSING; PILLAR 8-97890-452-4 01 1 1302-
212 16.588 CLOSING; PILLAR 8-97890-453-4 01 1 1302-
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 1302-
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 1302-
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 1302-
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 02 1 1302-
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 1302-
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 1302-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 1302-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 1302-
404 16.570 BRACKET 8-97890-317-1 02 1 1302-
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-445-1 01 1 1302-
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-446-1 01 1 1302-
430 16.570 NUT; PANEL
09.786 M6 POP NUT 		8-98013-752-0 01 1 1302-
430 16.570 NUT; PANEL
16.549 M8 POP NUT 		8-98021-404-0 02 1 1302-
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 1302-
455 08.228 PROTECTOR; STEP 8-98027-816-0 02 1 1302-
481 16.570 PANEL; SIDE FRT PILLAR 8-98268-138-0 01 1 1302-
481 16.570 PANEL; SIDE FRT PILLAR 8-98268-139-0 01 1 1302-
482 16.570 PANEL; SIDE RR PILLAR 8-97851-522-4 01 1 1302-
482 16.570 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 1302-
483 16.570 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 1302-
483 16.570 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 1302-
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 08 1 1302-

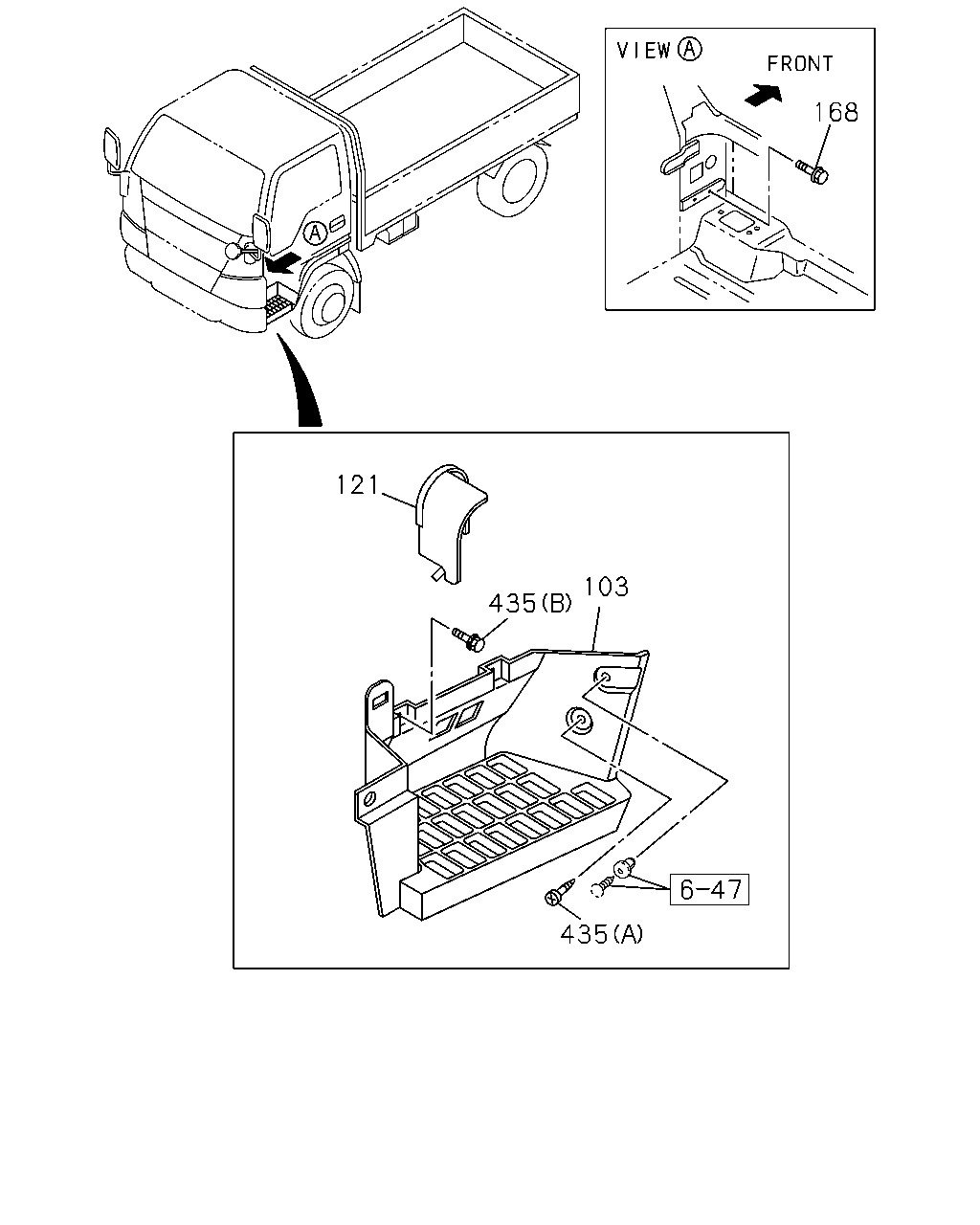

çizim 336550
168 121 435 103 435
BalonParca AdiParca NoAdetTipApplied Date
103 08.228 PLATE; STEP 8-97997-853-0 01 1 1302-
103 08.228 PLATE; STEP 8-97997-854-0 01 1 1302-1505
103 08.228 PLATE; STEP 8-98242-608-0 01 1 1506-
121 08.228 COVER; STEP PLATE 8-97997-855-0 01 1 1302-
121 08.228 COVER; STEP PLATE 8-97997-856-0 01 1 1302-
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 1302-
435 08.225 BOLT; RR STEP
08.155 (A) M8X14 		8-94279-386-1 04 1 1302-
435 08.225 BOLT; RR STEP
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1302-
