◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#115249) — 314 parça

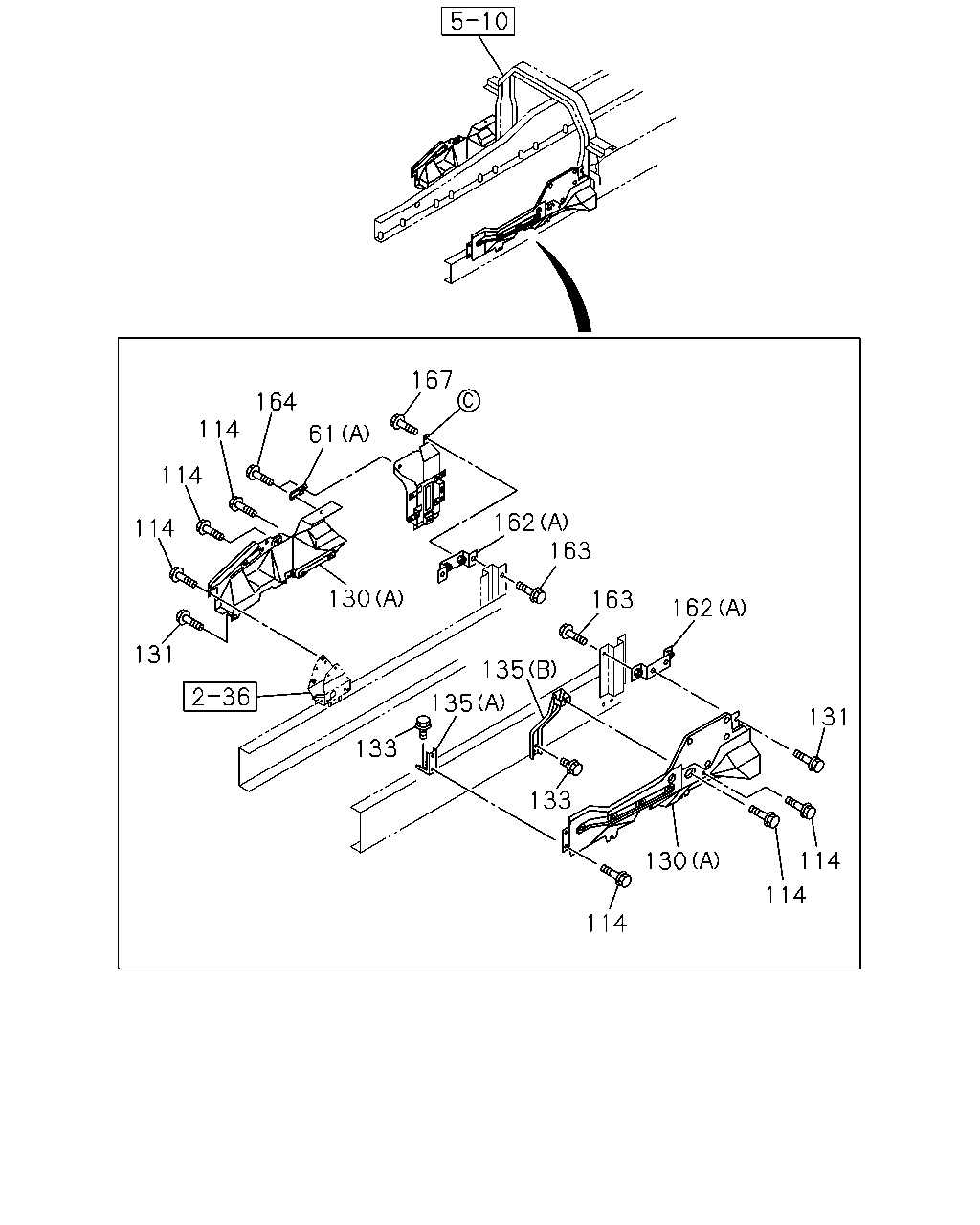

çizim 336569
167 61 164 114 114 114 131 130 162 163 163 162 131 114 114 130 133 114 135 135 133
BalonParca AdiParca NoAdetTipApplied Date A B
61 BRACKET; COVER
RUSSIA EQUIPMENT(B12) (C) 		1-53441-610-1 02 1 1512- ● ●
61 BRACKET; COVER
RUSSIA EQUIPMENT(B12) (B) 		1-53441-611-1 01 1 1512- ● ●
61 BRACKET; COVER
(A) 		8-98039-501-1 01 1 1303-1511 ●
61 BRACKET; COVER
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		8-98039-501-1 01 1 1512- ● ●
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 1303-1511 ●
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 1512- ● ●
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 09 1 1303-1511 ●
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 09 1 1512- ● ●
130 PANEL; SHUTTER NOISE
EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (E) 		1-53194-386-1 01 1 1512- ●
130 PANEL; SHUTTER NOISE
EXC. RUSSIA EQUIPMENT(B12) (E) 		1-53194-386-1 01 1 1512- ●
130 PANEL; SHUTTER NOISE
EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (F) 		8-98240-672-0 01 1 1512- ●
130 PANEL; SHUTTER NOISE
EXC. RUSSIA EQUIPMENT(B12) (F) 		8-98240-672-0 01 1 1512- ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1303-1511 ●
130 PANEL; SHUTTER NOISE
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 		1-53194-380-2 01 1 1512- ●
130 PANEL; SHUTTER NOISE
RUSSIA EQUIPMENT(B12) (A) 		1-53194-380-2 01 1 1512- ●
130 PANEL; SHUTTER NOISE
(C) 		1-79947-081-0 01 1 1303-1511 ●
130 PANEL; SHUTTER NOISE
(C) 		1-79947-081-0 01 1 1512- ● ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1303-1303 ●
130 PANEL; SHUTTER NOISE
(D) 		8-98243-959-0 01 1 1304-1511 ●
130 PANEL; SHUTTER NOISE
(D) 		8-98243-959-0 01 1 1512- ● ●
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1303-1511 ●
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1512- ● ●
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1303-1511 ●
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1512- ● ●
130 PANEL; SHUTTER NOISE
(A) 		8-98225-727-0 01 1 1303-1511 ●
130 PANEL; SHUTTER NOISE
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 		8-98225-727-0 01 1 1512- ●
130 PANEL; SHUTTER NOISE
RUSSIA EQUIPMENT(B12) (A) 		8-98225-727-0 01 1 1512- ●
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1303-1511 ●
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1512- ● ●
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 1303-1511 ●
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 1512- ● ●
133 BOLT; FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1303-1511 ●
133 BOLT; FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1512- ● ●
135 BRACKET; SIDE PANEL
(B) 		8-98127-905-0 01 1 1303-1511 ●
135 BRACKET; SIDE PANEL
(B) 		8-98127-905-0 01 1 1512- ● ●
135 BRACKET; SIDE PANEL
(A) 		8-98225-728-0 01 1 1303-1511 ●
135 BRACKET; SIDE PANEL
(A) 		8-98225-728-0 01 1 1512- ● ●
162 BRACKET
SILENCER SINGLE VERTICAL<N28> (A) 		1-53441-520-0 01 1 1512- ● ●
162 BRACKET
(A) 		1-53441-520-0 02 1 1303-1511 ●
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53441-520-0 02 1 1512- ● ●
162 BRACKET
(B) 		1-53441-521-2 01 1 1303-1511 ●
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-53441-521-2 01 1 1512- ● ●
162 BRACKET
(C) 		1-53441-522-0 01 1 1303-1511 ●
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (C) 		1-53441-522-0 01 1 1512- ● ●
163 BOLT; BRKT
SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 02 1 1512- ● ●
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1303-1511 ●
163 BOLT; BRKT
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 04 1 1512- ● ●
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 1303-1511 ●
164 BOLT; FLEX COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 02 1 1512- ● ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 1303-1511 ●
167 BOLT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 05 1 1512- ● ●

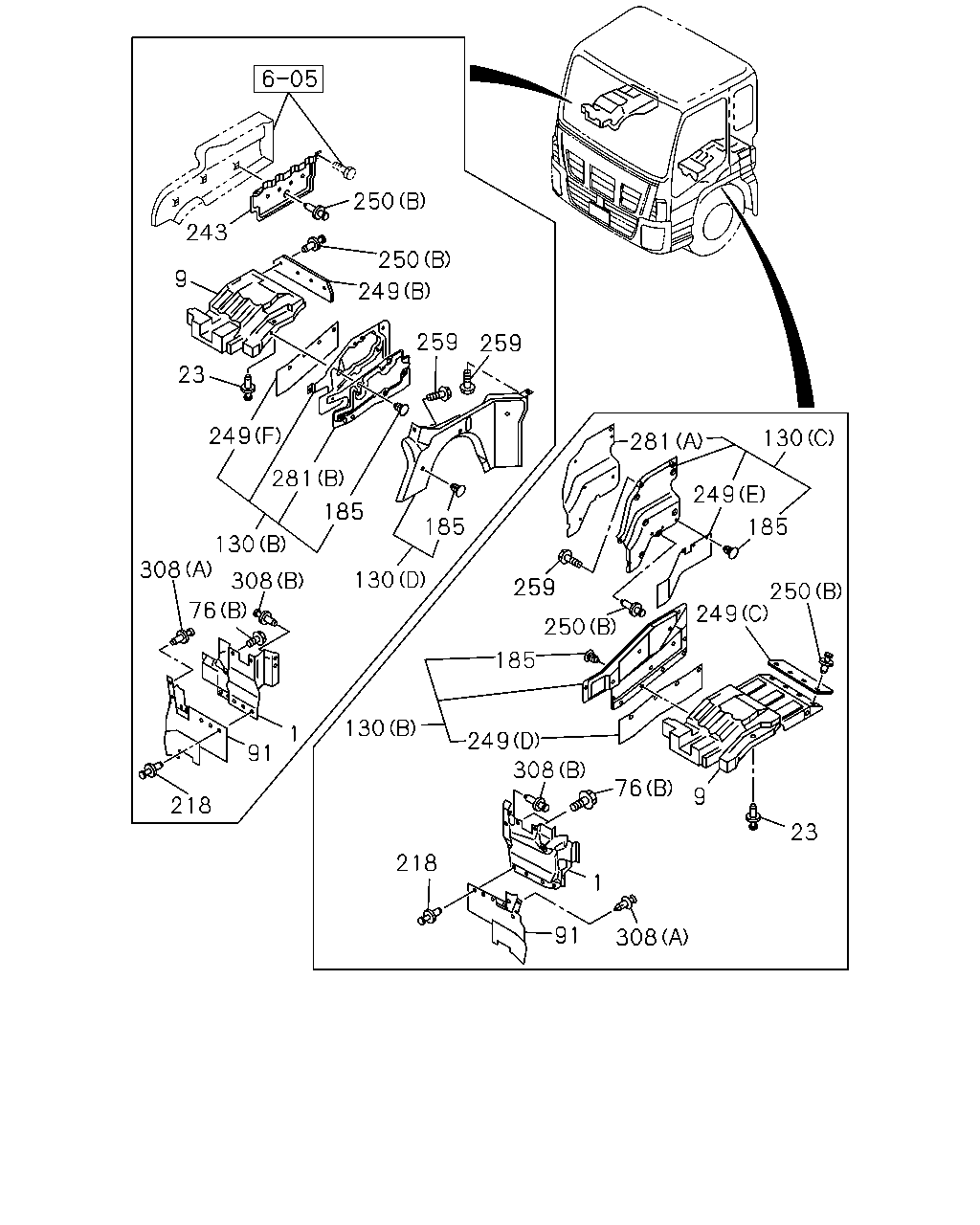

çizim 336575
250 250 249 243 9 23 249 281 130 308 76 91 218 1 308 185 130 130 185 259 250 249 281 130 185 249 250 76 308 249 218 91 1 308 9 23 185 259 259
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT 1-79937-894-6 01 1 1303-1511 ●
1 GUARD; MUD,FRT 1-79937-894-6 01 1 1512- ● ●
1 GUARD; MUD,FRT 1-79937-895-5 01 1 1303-1511 ●
1 GUARD; MUD,FRT 1-79937-895-5 01 1 1512- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 1303-1511 ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 1512- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 1303-1511 ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 1512- ● ●
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 1303-1511 ●
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 1512- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1303-1511 ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1512- ● ●
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1303-1511 ●
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1512- ● ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1303-1511 ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1512- ● ●
91 COVER; MUD,FRT
EXC. TAIWAN EQUIPMENT(WW5) 		8-98134-825-2 01 1 1512- ●
91 COVER; MUD,FRT 8-98134-825-2 01 1 1512- ●
91 COVER; MUD,FRT
EXC. TAIWAN EQUIPMENT(WW5) 		8-98134-826-2 01 1 1512- ●
91 COVER; MUD,FRT 8-98134-826-2 01 1 1512- ●
91 COVER; MUD,FRT 1-79931-203-1 01 1 1303-1511 ●
91 COVER; MUD,FRT
TAIWAN EQUIPMENT(WW5) 		1-79931-203-1 01 1 1512- ●
91 COVER; MUD,FRT 1-79931-204-1 01 1 1303-1511 ●
91 COVER; MUD,FRT
TAIWAN EQUIPMENT(WW5) 		1-79931-204-1 01 1 1512- ●
130 PANEL; SHUTTER NOISE
EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (E) 		1-53194-386-1 01 1 1512- ●
130 PANEL; SHUTTER NOISE
EXC. RUSSIA EQUIPMENT(B12) (E) 		1-53194-386-1 01 1 1512- ●
130 PANEL; SHUTTER NOISE
EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (F) 		8-98240-672-0 01 1 1512- ●
130 PANEL; SHUTTER NOISE
EXC. RUSSIA EQUIPMENT(B12) (F) 		8-98240-672-0 01 1 1512- ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1303-1511 ●
130 PANEL; SHUTTER NOISE
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 		1-53194-380-2 01 1 1512- ●
130 PANEL; SHUTTER NOISE
RUSSIA EQUIPMENT(B12) (A) 		1-53194-380-2 01 1 1512- ●
130 PANEL; SHUTTER NOISE
(C) 		1-79947-081-0 01 1 1303-1511 ●
130 PANEL; SHUTTER NOISE
(C) 		1-79947-081-0 01 1 1512- ● ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1303-1303 ●
130 PANEL; SHUTTER NOISE
(D) 		8-98243-959-0 01 1 1304-1511 ●
130 PANEL; SHUTTER NOISE
(D) 		8-98243-959-0 01 1 1512- ● ●
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1303-1511 ●
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1512- ● ●
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1303-1511 ●
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1512- ● ●
130 PANEL; SHUTTER NOISE
(A) 		8-98225-727-0 01 1 1303-1511 ●
130 PANEL; SHUTTER NOISE
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 		8-98225-727-0 01 1 1512- ●
130 PANEL; SHUTTER NOISE
RUSSIA EQUIPMENT(B12) (A) 		8-98225-727-0 01 1 1512- ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1303-1511 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1512- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 1303-1303 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 26 1 1304-1511 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 26 1 1512- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 1303-1303 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 12 1 1303-1303 ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1303-1511 ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1512- ● ●
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 1303-1511 ●
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 1512- ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1303-1511 ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1512- ● ●
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 1303-1511 ●
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 1512- ● ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1303-1511 ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1512- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1303-1511 ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1512- ● ●
249 RUBBER; SHUTTER
(F) 		8-98146-436-0 01 1 1303-1511 ●
249 RUBBER; SHUTTER
(F) 		8-98146-436-0 01 1 1512- ● ●
249 RUBBER; SHUTTER
(D) 		8-98146-437-0 01 1 1303-1511 ●
249 RUBBER; SHUTTER
(D) 		8-98146-437-0 01 1 1512- ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1303-1510 ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 1511-1511 ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 1512- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1303-1511 ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1303-1511 ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1512- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1512- ● ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1511-1511 ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1512- ● ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 05 1 1303-1305 ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 05 1 1303-1305 ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 1306-1511 ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 1512- ● ●
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 1512- ● ●
281 INSULATOR; NOISE
(A) 		1-71907-825-0 01 1 1303-1511 ●
281 INSULATOR; NOISE
(A) 		1-71907-825-0 01 1 1512- ● ●
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 1303-1511 ●
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 1512- ● ●
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 1303-1511 ●
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 1512- ● ●
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 1303-1511 ●
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 1512- ● ●

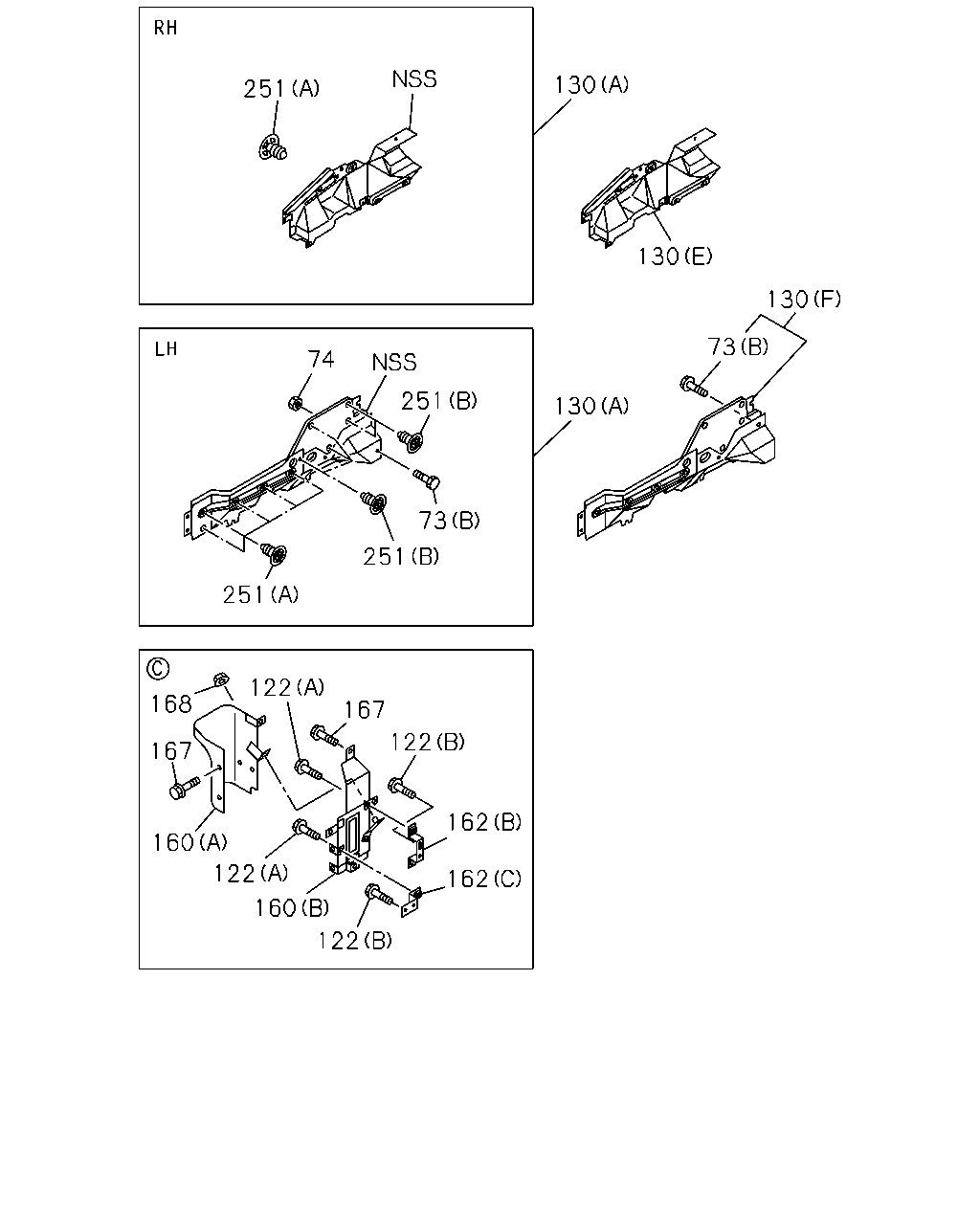

çizim 336577
73 130 130 130 130 251 74 251 73 251 251 122 167 122 162 162 122 160 122 160 167 168
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (B) M8X16 FLANGE 		0-28050-816-0 03 1 1512- ●
73 BOLT; MUD COVER BRKT
EXC. RUSSIA EQUIPMENT(B12) (B) M8X16 FLANGE 		0-28050-816-0 03 1 1512- ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 06 1 1303-1511 ●
73 BOLT; MUD COVER BRKT
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (B) M8X16 FLANGE 		0-28050-816-0 06 1 1512- ●
73 BOLT; MUD COVER BRKT
RUSSIA EQUIPMENT(B12) (B) M8X16 FLANGE 		0-28050-816-0 06 1 1512- ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1303-1511 ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1303-1511 ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1512- ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1512- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-1511 ●
74 NUT
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) M8 FLANGE 		0-91180-108-0 01 1 1512- ●
74 NUT
RUSSIA EQUIPMENT(B12) M8 FLANGE 		0-91180-108-0 01 1 1512- ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1303-1511 ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1303-1511 ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1512- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1512- ● ●
122 BOLT
RUSSIA EQUIPMENT(B12) (C) M8X35 FLANGE 		0-28650-835-0 04 1 1512- ● ●
122 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1303-1511 ●
122 BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE 		0-28650-820-0 03 1 1512- ● ●
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1303-1511 ●
122 BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE 		0-28650-830-0 03 1 1512- ● ●
130 PANEL; SHUTTER NOISE
EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (E) 		1-53194-386-1 01 1 1512- ●
130 PANEL; SHUTTER NOISE
EXC. RUSSIA EQUIPMENT(B12) (E) 		1-53194-386-1 01 1 1512- ●
130 PANEL; SHUTTER NOISE
EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (F) 		8-98240-672-0 01 1 1512- ●
130 PANEL; SHUTTER NOISE
EXC. RUSSIA EQUIPMENT(B12) (F) 		8-98240-672-0 01 1 1512- ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1303-1511 ●
130 PANEL; SHUTTER NOISE
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 		1-53194-380-2 01 1 1512- ●
130 PANEL; SHUTTER NOISE
RUSSIA EQUIPMENT(B12) (A) 		1-53194-380-2 01 1 1512- ●
130 PANEL; SHUTTER NOISE
(C) 		1-79947-081-0 01 1 1303-1511 ●
130 PANEL; SHUTTER NOISE
(C) 		1-79947-081-0 01 1 1512- ● ●
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1303-1303 ●
130 PANEL; SHUTTER NOISE
(D) 		8-98243-959-0 01 1 1304-1511 ●
130 PANEL; SHUTTER NOISE
(D) 		8-98243-959-0 01 1 1512- ● ●
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1303-1511 ●
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1512- ● ●
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1303-1511 ●
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1512- ● ●
130 PANEL; SHUTTER NOISE
(A) 		8-98225-727-0 01 1 1303-1511 ●
130 PANEL; SHUTTER NOISE
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 		8-98225-727-0 01 1 1512- ●
130 PANEL; SHUTTER NOISE
RUSSIA EQUIPMENT(B12) (A) 		8-98225-727-0 01 1 1512- ●
160 COVER ASM; EXH
(A) 		1-79931-411-2 01 1 1303-1511 ●
160 COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-79931-411-2 01 1 1512- ● ●
160 COVER ASM; EXH
(B) 		1-79931-412-1 01 1 1303-1511 ●
160 COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-79931-412-1 01 1 1512- ● ●
162 BRACKET
SILENCER SINGLE VERTICAL<N28> (A) 		1-53441-520-0 01 1 1512- ● ●
162 BRACKET
(A) 		1-53441-520-0 02 1 1303-1511 ●
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53441-520-0 02 1 1512- ● ●
162 BRACKET
(B) 		1-53441-521-2 01 1 1303-1511 ●
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-53441-521-2 01 1 1512- ● ●
162 BRACKET
(C) 		1-53441-522-0 01 1 1303-1511 ●
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (C) 		1-53441-522-0 01 1 1512- ● ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 1303-1511 ●
167 BOLT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 05 1 1512- ● ●
168 NUT; EXH COVER
M8 FLANGE 		0-91180-108-0 01 1 1303-1511 ●
168 NUT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 1303-1511 ●
251 CLIP; NOISE INSULATOR
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 		8-94165-394-0 09 1 1512- ●
251 CLIP; NOISE INSULATOR
RUSSIA EQUIPMENT(B12) (A) 		8-94165-394-0 09 1 1512- ●
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 1303-1511 ●
251 CLIP; NOISE INSULATOR
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (B) 		8-94279-048-0 05 1 1512- ●
251 CLIP; NOISE INSULATOR
RUSSIA EQUIPMENT(B12) (B) 		8-94279-048-0 05 1 1512- ●

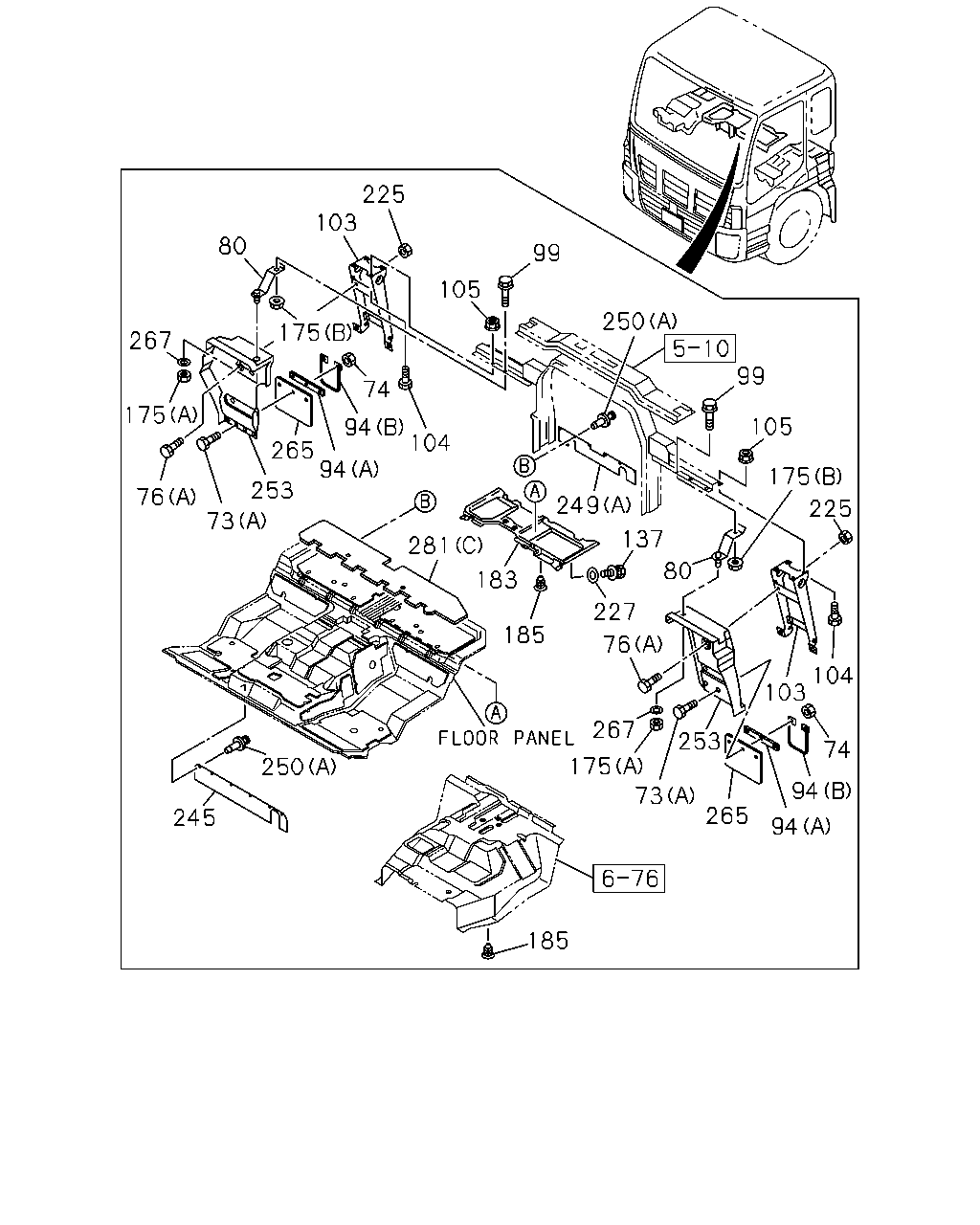

çizim 337229
103 225 80 267 175 175 76 253 73 265 94 74 105 99 250 99 105 175 80 137 249 104 94 281 183 185 227 76 267 175 253 73 265 103 104 74 94 94 185 250 245 225
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (B) M8X16 FLANGE 		0-28050-816-0 03 1 1512- ●
73 BOLT; MUD COVER BRKT
EXC. RUSSIA EQUIPMENT(B12) (B) M8X16 FLANGE 		0-28050-816-0 03 1 1512- ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 06 1 1303-1511 ●
73 BOLT; MUD COVER BRKT
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (B) M8X16 FLANGE 		0-28050-816-0 06 1 1512- ●
73 BOLT; MUD COVER BRKT
RUSSIA EQUIPMENT(B12) (B) M8X16 FLANGE 		0-28050-816-0 06 1 1512- ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1303-1511 ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1303-1511 ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1512- ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1512- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-1511 ●
74 NUT
RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) M8 FLANGE 		0-91180-108-0 01 1 1512- ●
74 NUT
RUSSIA EQUIPMENT(B12) M8 FLANGE 		0-91180-108-0 01 1 1512- ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1303-1511 ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1303-1511 ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1512- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1512- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1303-1511 ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1512- ● ●
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1303-1511 ●
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1512- ● ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1303-1511 ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1512- ● ●
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 1303-1511 ●
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 1512- ● ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 1303-1511 ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 1512- ● ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-524-0 01 1 1303-1511 ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-524-0 01 1 1512- ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1303-1511 ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1303-1511 ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1512- ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1512- ● ●
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 1303-1511 ●
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 1512- ● ●
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 01 1 1303-1502 ●
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 01 1 1503-1511 ●
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 01 1 1512- ● ●
103 BRACKET ASM; RR MUD FLAP 1-79931-527-0 01 1 1303-1502 ●
103 BRACKET ASM; RR MUD FLAP 8-98306-895-0 01 1 1503-1511 ●
103 BRACKET ASM; RR MUD FLAP 8-98306-895-0 01 1 1512- ● ●
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 1303-1511 ●
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 1512- ● ●
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1303-1511 ●
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1512- ● ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1303-1511 ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1512- ● ●
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 1303-1511 ●
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1303-1511 ●
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1512- ● ●
183 INSULATOR; HEAT,BED PAN 1-71907-539-4 01 1 1303-1511 ●
183 INSULATOR; HEAT,BED PAN 1-71907-539-4 01 1 1512- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1303-1511 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1512- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 1303-1303 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 26 1 1304-1511 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 26 1 1512- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 1303-1303 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 12 1 1303-1303 ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1303-1511 ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1512- ● ●
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 1303-1511 ●
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 1512- ● ●
245 RUBBER; SHUTTER,RAD 8-98198-739-0 01 1 1303-1511 ●
245 RUBBER; SHUTTER,RAD 8-98198-739-0 01 1 1512- ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1303-1511 ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1512- ● ●
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 1303-1511 ●
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 1512- ● ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1303-1511 ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1512- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1303-1511 ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1512- ● ●
249 RUBBER; SHUTTER
(F) 		8-98146-436-0 01 1 1303-1511 ●
249 RUBBER; SHUTTER
(F) 		8-98146-436-0 01 1 1512- ● ●
249 RUBBER; SHUTTER
(D) 		8-98146-437-0 01 1 1303-1511 ●
249 RUBBER; SHUTTER
(D) 		8-98146-437-0 01 1 1512- ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1303-1510 ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 1511-1511 ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 1512- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1303-1511 ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1303-1511 ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1512- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1512- ● ●
253 GUARD; MUD 8-98134-759-0 01 1 1303-1511 ●
253 GUARD; MUD 8-98134-759-0 01 1 1512- ● ●
253 GUARD; MUD 8-98134-766-1 01 1 1303-1511 ●
253 GUARD; MUD 8-98134-766-1 01 1 1512- ● ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1303-1511 ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1303-1511 ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1512- ● ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1512- ● ●
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 1303-1511 ●
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 1512- ● ●
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 1512- ● ●
281 INSULATOR; NOISE
(A) 		1-71907-825-0 01 1 1303-1511 ●
281 INSULATOR; NOISE
(A) 		1-71907-825-0 01 1 1512- ● ●
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 1303-1511 ●
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 1512- ● ●

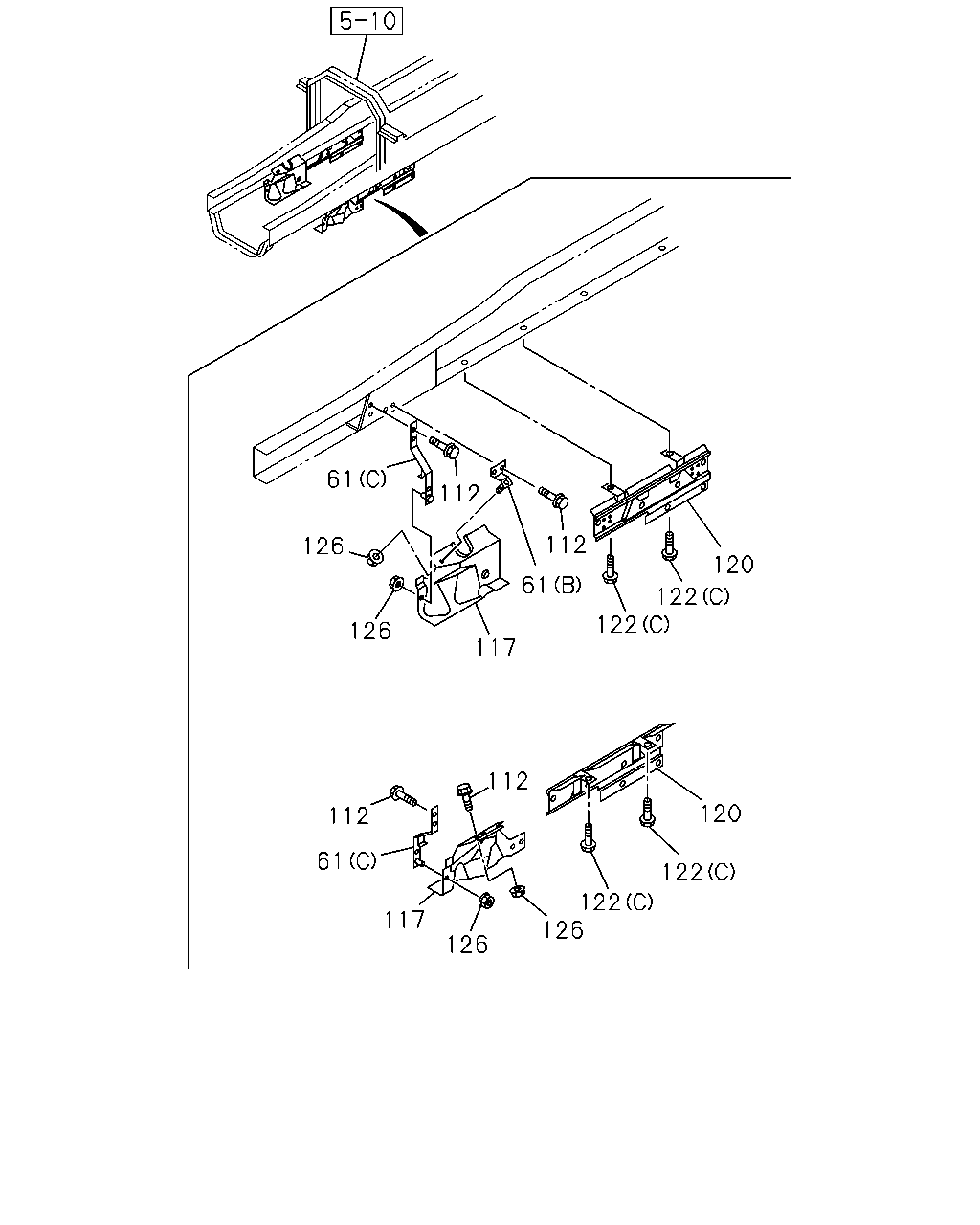

çizim 514492
120 122 112 61 117 126 126 61 122 112 112 112 61 117 126 126 122 122 120
BalonParca AdiParca NoAdetTipApplied Date A B
61 BRACKET; COVER
RUSSIA EQUIPMENT(B12) (C) 		1-53441-610-1 02 1 1512- ● ●
61 BRACKET; COVER
RUSSIA EQUIPMENT(B12) (B) 		1-53441-611-1 01 1 1512- ● ●
61 BRACKET; COVER
(A) 		8-98039-501-1 01 1 1303-1511 ●
61 BRACKET; COVER
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		8-98039-501-1 01 1 1512- ● ●
112 BOLT; BRKT
RUSSIA EQUIPMENT(B12) M8X25 FLANGE 		0-28650-825-0 06 1 1512- ● ●
117 PANEL; SIDE,B UNDER
RUSSIA EQUIPMENT(B12) 		1-53194-508-2 01 1 1512- ● ●
117 PANEL; SIDE,B UNDER
RUSSIA EQUIPMENT(B12) 		1-53194-510-2 01 1 1512- ● ●
120 PANEL; UNDER
RUSSIA EQUIPMENT(B12) 		1-53194-263-2 01 1 1512- ● ●
120 PANEL; UNDER
RUSSIA EQUIPMENT(B12) 		1-53194-557-1 01 1 1512- ● ●
122 BOLT
RUSSIA EQUIPMENT(B12) (C) M8X35 FLANGE 		0-28650-835-0 04 1 1512- ● ●
122 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1303-1511 ●
122 BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE 		0-28650-820-0 03 1 1512- ● ●
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1303-1511 ●
122 BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE 		0-28650-830-0 03 1 1512- ● ●
126 NUT; PANEL
RUSSIA EQUIPMENT(B12) M8 FLANGE 		1-09464-018-1 04 1 1512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
