◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#115248) — 45 parça

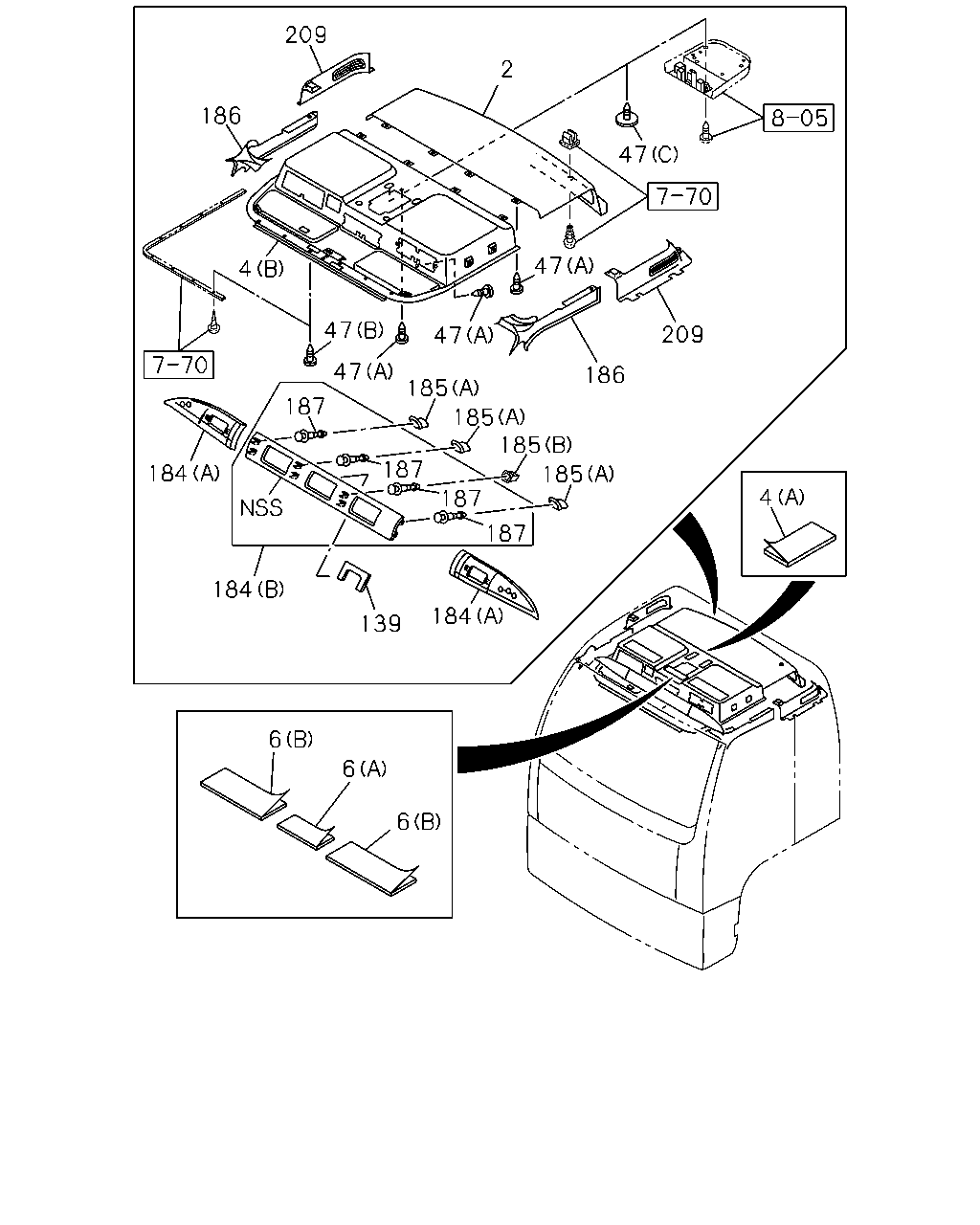

çizim 336609
209 186 2 47 47 47 47 4 47 185 186 209 185 185 185 187 187 187 187 184 184 139 184 6 6 6 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINING; HD,ROOF RR 1-73317-502-2 01 1 1303-1511 ●
2 LINING; HD,ROOF RR 1-73317-502-2 01 1 1512- ● ●
4 LINING; ROOF,FRT
ROOM LAMP FLUORESCENT<NGG> EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-73317-518-3 01 1 1512- ●
4 LINING; ROOF,FRT
ROOM LAMP FLUORESCENT<NGG> (B) 		1-73317-518-3 01 1 1512- ●
4 LINING; ROOF,FRT
EXC. ROOM LAMP FLUORESCENT<NGG>,TAIWAN EQUIPMENT(WW5) (B) 		1-73317-519-3 01 1 1512- ●
4 LINING; ROOF,FRT
EXC. ROOM LAMP FLUORESCENT<NGG> (B) 		1-73317-519-3 01 1 1512- ●
4 LINING; ROOF,FRT
TAIWAN EQUIPMENT(WW5) EXC. ROOM LAMP FLUORESCENT<NGG> (B) 		1-73317-558-0 01 1 1512- ●
4 LINING; ROOF,FRT
(A) 		1-73317-436-0 02 1 1303-1511 ●
4 LINING; ROOF,FRT
(A) 		1-73317-436-0 02 1 1512- ● ●
4 LINING; ROOF,FRT
(B) 		1-73317-557-0 01 1 1303-1511 ●
4 LINING; ROOF,FRT
ROOM LAMP FLUORESCENT<NGG> TAIWAN EQUIPMENT(WW5) (B) 		1-73317-557-0 01 1 1512- ●
6 SPACER; HD LINING
(B) 140X800 		1-73317-429-2 02 1 1303-1511 ●
6 SPACER; HD LINING
(B) 140X800 		1-73317-429-2 02 1 1512- ● ●
6 SPACER; HD LINING
(A) 130X300 		1-73317-435-2 01 1 1303-1511 ●
6 SPACER; HD LINING
(A) 130X300 		1-73317-435-2 01 1 1512- ● ●
47 CLIP; HEADLINING
EXC. WINDOW CURTAIN ROUND<BW4>,TAIWAN EQUIPMENT(WW5) (B) D7.7X25 LIGHT GRAY 		1-73317-371-0 08 1 1512- ●
47 CLIP; HEADLINING
EXC. WINDOW CURTAIN ROUND<BW4> (B) D7.7X25 LIGHT GRAY 		1-73317-371-0 08 1 1512- ●
47 CLIP; HEADLINING
EXC. ROOM LAMP FLUORESCENT<NGG> (C) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 1512- ● ●
47 CLIP; HEADLINING
(A) D5X14.7 		1-09983-183-0 05 1 1303-1511 ●
47 CLIP; HEADLINING
(A) D5X14.7 		1-09983-183-0 05 1 1512- ● ●
47 CLIP; HEADLINING
(A) D6X23 LIGHT GRAY 		1-73318-629-0 11 1 1303-1511 ●
47 CLIP; HEADLINING
(A) D6X23 LIGHT GRAY 		1-73318-629-0 11 1 1512- ● ●
139 SEAL; ROOF
ROOF MARKER LAMP<U01> 		1-73318-562-0 03 1 1512- ●
184 ORNAMENT; ROOF
ROOF MARKER LAMP<U01> (B) 		1-73317-405-1 01 1 1512- ●
184 ORNAMENT; ROOF
(A) 		1-73317-408-2 01 1 1303-1511 ●
184 ORNAMENT; ROOF
(A) 		1-73317-408-2 01 1 1512- ● ●
184 ORNAMENT; ROOF
(A) 		1-73317-409-2 01 1 1303-1511 ●
184 ORNAMENT; ROOF
(A) 		1-73317-409-2 01 1 1512- ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-660-3 01 1 1303-1511 ●
184 ORNAMENT; ROOF
EXC. ROOF MARKER LAMP<U01> (B) 		1-73318-660-3 01 1 1512- ●
184 ORNAMENT; ROOF
(B) 		1-73318-660-3 01 1 1512- ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 1303-1511 ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 1512- ● ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 1303-1511 ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 1512- ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-012-2 01 1 1303-1511 ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-012-2 01 1 1512- ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-013-2 01 1 1303-1511 ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-013-2 01 1 1512- ● ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 1303-1511 ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 1512- ● ●
209 COVER; GRILLE 1-73347-865-3 01 1 1303-1511 ●
209 COVER; GRILLE 1-73347-865-3 01 1 1512- ● ●
209 COVER; GRILLE 1-73347-866-3 01 1 1303-1511 ●
209 COVER; GRILLE 1-73347-866-3 01 1 1512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
