6-35 — FRONT DOOR TRIM (#115247) — 68 parça

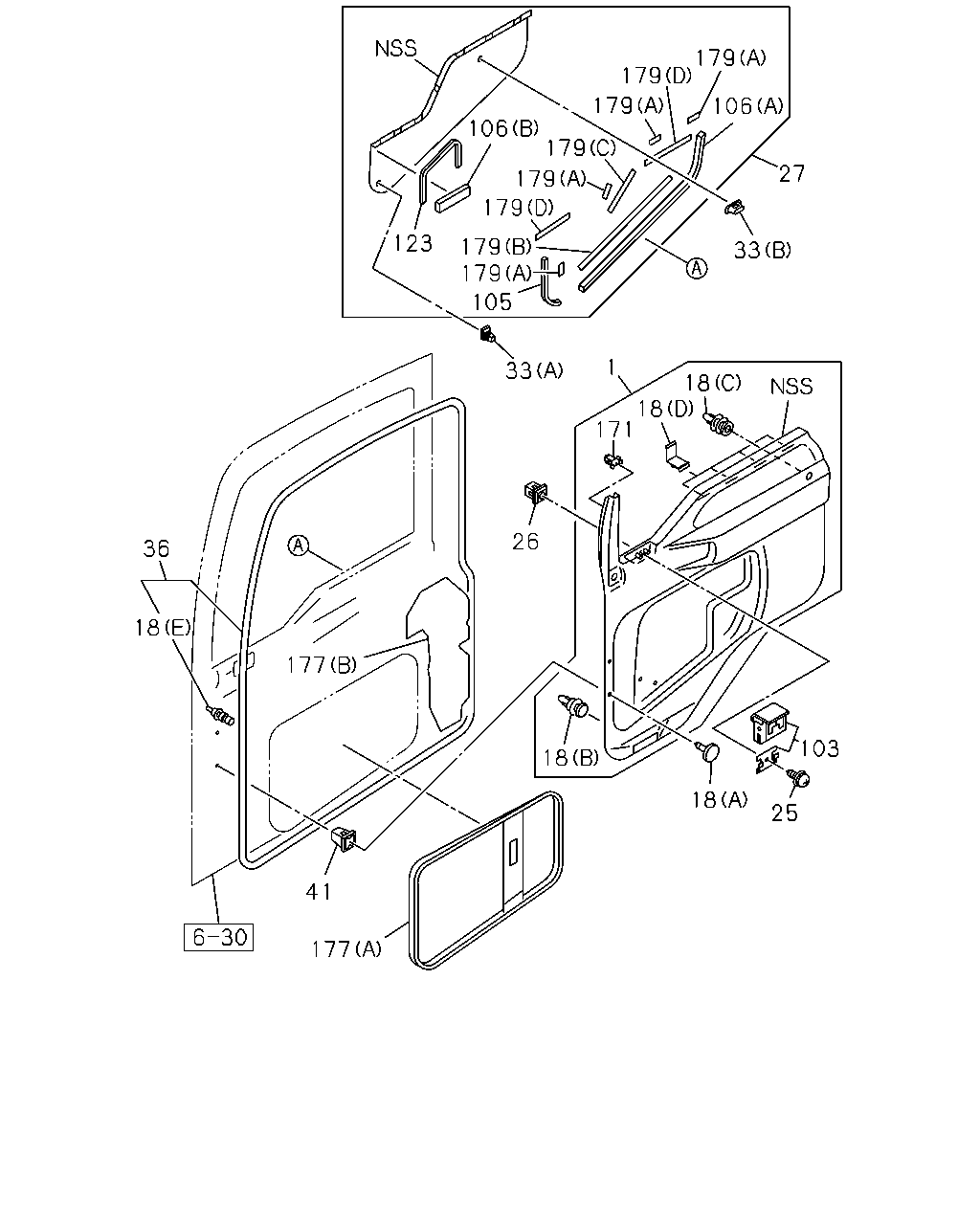

çizim 336593
106 123 179 179 179 179 179 179 179 179 106 27 33 105 33 171 1 18 18 26 18 18 25 103 36 18 177 41 177
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
EXC. TAIWAN EQUIPMENT(WW5) 		8-98145-252-2 01 1 1512- ●
1 PAD; TRIM,FRT DOOR 8-98145-252-2 01 1 1512- ●
1 PAD; TRIM,FRT DOOR
EXC. TAIWAN EQUIPMENT(WW5) 		8-98145-253-2 01 1 1512- ●
1 PAD; TRIM,FRT DOOR 8-98145-253-2 01 1 1512- ●
1 PAD; TRIM,FRT DOOR 1-73337-513-1 01 1 1303-1511 ●
1 PAD; TRIM,FRT DOOR
TAIWAN EQUIPMENT(WW5) 		1-73337-513-1 01 1 1512- ●
1 PAD; TRIM,FRT DOOR 1-73337-516-1 01 1 1303-1511 ●
1 PAD; TRIM,FRT DOOR
TAIWAN EQUIPMENT(WW5) 		1-73337-516-1 01 1 1512- ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 1303-1511 ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 1512- ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 1303-1511 ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 1512- ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 1303-1511 ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 1512- ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 1303-1511 ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 1512- ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 1303-1511 ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 1512- ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 1303-1511 ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 1512- ● ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 1303-1511 ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 1512- ● ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1303-1511 ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1512- ● ●
27 PANEL; ORNAMENT,DOOR 8-97632-479-0 01 1 1303-1511 ●
27 PANEL; ORNAMENT,DOOR 8-97632-479-0 01 1 1512- ● ●
27 PANEL; ORNAMENT,DOOR 8-98229-332-0 01 1 1303-1511 ●
27 PANEL; ORNAMENT,DOOR 8-98229-332-0 01 1 1512- ● ●
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 1303-1511 ●
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 1512- ● ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 1303-1511 ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 1512- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1303-1511 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1512- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1303-1511 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1512- ● ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 1303-1511 ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 1512- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 1303-1511 ●
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 1512- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 1303-1511 ●
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 1512- ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 1303-1511 ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 1512- ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 1303-1511 ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 1512- ● ●
106 SEAL; DOOR ORNAMENT
(B) 		8-98226-642-0 01 1 1303-1511 ●
106 SEAL; DOOR ORNAMENT
(B) 		8-98226-642-0 01 1 1512- ● ●
123 SEAL; ORNAMENT PANEL 8-98150-731-0 01 1 1303-1511 ●
123 SEAL; ORNAMENT PANEL 8-98150-731-0 01 1 1512- ● ●
123 SEAL; ORNAMENT PANEL 8-98150-732-0 01 1 1303-1511 ●
123 SEAL; ORNAMENT PANEL 8-98150-732-0 01 1 1512- ● ●
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 1303-1511 ●
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 1512- ● ●
177 SEAL; WATER,DOOR
(A) 		1-76778-035-6 01 1 1303-1511 ●
177 SEAL; WATER,DOOR
(A) 		1-76778-035-6 01 1 1512- ● ●
177 SEAL; WATER,DOOR
(A) 		1-76778-052-2 01 1 1303-1511 ●
177 SEAL; WATER,DOOR
(A) 		1-76778-052-2 01 1 1512- ● ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 1303-1511 ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 1512- ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 1303-1511 ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 1512- ● ●
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 02 1 1303-1511 ●
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 02 1 1512- ● ●
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 04 1 1303-1511 ●
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 04 1 1512- ● ●
179 TAPE; ORNAMENT
(B) L=600 		8-97633-876-0 02 1 1303-1511 ●
179 TAPE; ORNAMENT
(B) L=600 		8-97633-876-0 02 1 1512- ● ●
