Isuzu WW
▶
TRUCKS
▶
NKR
▶
51429 - NKR-LHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶

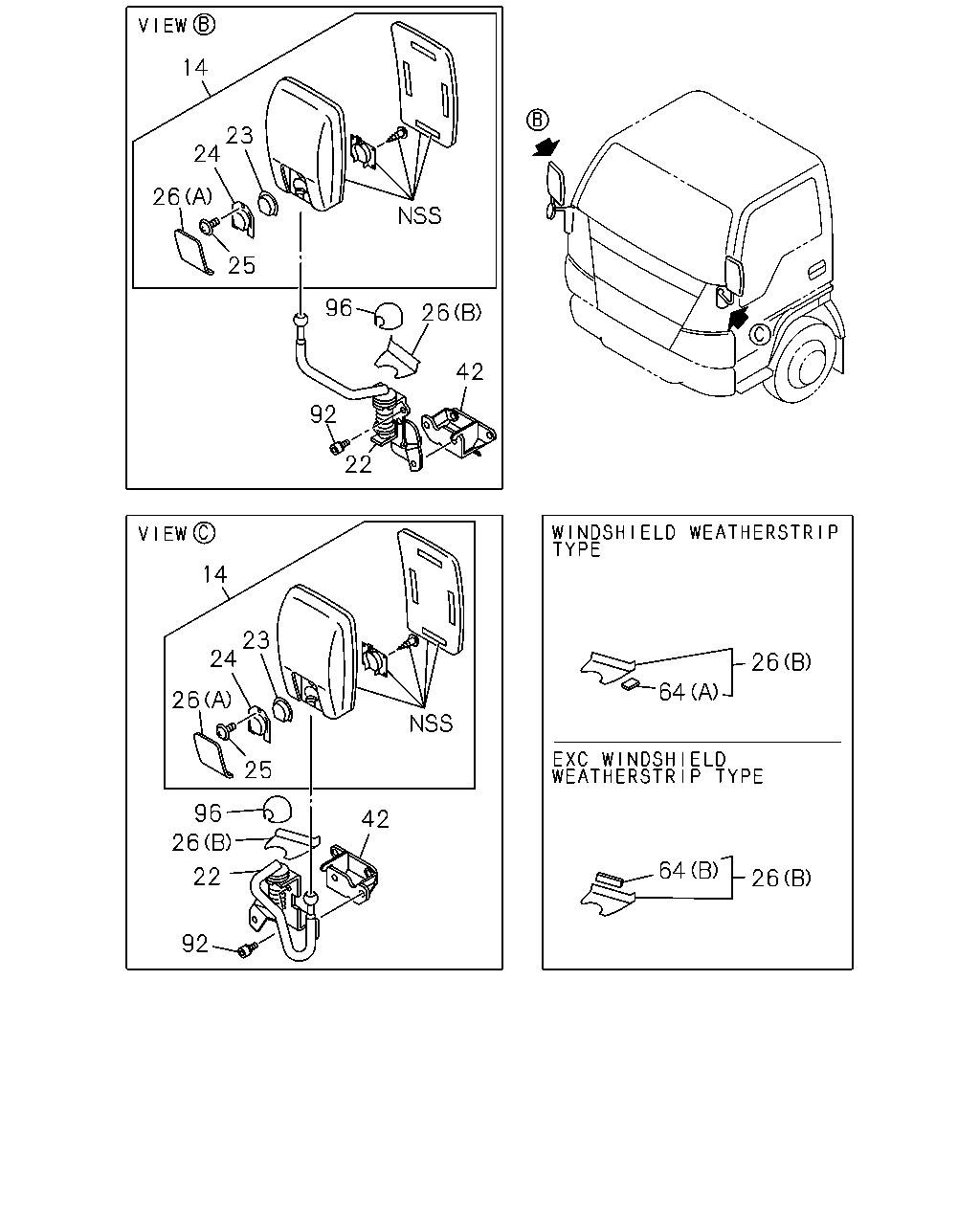

7-20 — MIRROR AND MIRROR STAY
(#115240) — 34 parça
◀
[720A] OUTSIDE MIRROR (21 parça)
[720A] ROOM MIRROR (10 parça)
[720A] BRACKET (3 parça)
▶
14
26
24
23
25
96
41
22
92
14
24
23
25
26
96
26
42
22
92
64
26
64
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
16.068 MIRROR ASM; OUTSIDE
8-94262-542-3
02
1
1302-
22
16.069 STAY; OUTSIDE MIRROR
8-98039-572-1
01
1
1302-
22
16.069 STAY; OUTSIDE MIRROR
8-98039-576-1
01
1
1302-
23
16.069 WASHER; OUTSIDE MIRROR
T=2.0
8-94262-545-0
02
1
1302-
24
16.069 HOLDER; OUTSIDE MIRROR
T=1.6
8-94262-546-1
02
1
1302-
25
16.069 SCREW; OUTSIDE MIRROR
M6X30
8-94279-365-0
02
1
1302-
26
16.069 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE
8-97589-159-1
01
1
1302-
26
16.069 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE
8-97589-166-0
01
1
1302-
26
16.069 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE
8-97582-831-5
01
1
1302-
26
16.069 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE
8-97582-840-4
01
1
1302-
26
16.069 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE
8-97589-161-1
01
1
1302-
26
16.069 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE
8-97589-168-0
01
1
1302-
26
16.069 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE
8-97582-835-5
01
1
1302-
26
16.069 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE
8-97582-844-4
01
1
1302-
26
16.069 COVER; OUTSIDE MIRROR
(A) T=2.3
8-94262-547-2
02
1
1302-
42
16.069 ATTACHMENT; OUTSIDE MIRROR
8-97581-625-2
01
1
1302-
42
16.069 ATTACHMENT; OUTSIDE MIRROR
8-97581-755-2
01
1
1302-
64
16.069 SEAL; MIRROR
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)
8-98015-058-0
04
1
1302-
64
16.069 SEAL; MIRROR
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)
8-98015-057-0
02
1
1302-
92
16.069 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER
8-98020-347-0
10
1
1302-
96
16.069 CAP; MIRROR STAY
8-97581-631-2
02
1
1302-
4
162
159
158
1
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.068 MIRROR; ROOM
HEADER TRAY DRIVER & PASSENGER<8LY> LIGHT GRAY
8-97582-925-1
01
1
1302-
1
16.068 MIRROR; ROOM
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> LIGHT GRAY
8-97582-926-2
01
1
1302-
2
16.069 SCREW; MIRROR TO BODY
HEADER TRAY DRIVER & PASSENGER<8LY> 03.671 M5X20
5-09981-059-0
02
1
1302-
2
16.069 SCREW; MIRROR TO BODY
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.263 M5X16
8-94279-341-0
02
1
1302-
3
16.069 STOPPER; RR VIEW MIRROR
WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31
8-97859-098-2
01
1
1302-
3
16.069 STOPPER; RR VIEW MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=22
8-97857-352-1
01
1
1302-
4
16.069 GROMMET; SCREW,ROOM MIRROR
HEADER TRAY DRIVER & PASSENGER<8LY> 16.588
8-94279-039-0
01
1
1302-
158
16.495 LENS; ROOM LAMP
16.068
5-73117-108-1
01
1
1302-
159
08.991 BULB; ROOM LAMP
12V 10W
8-97128-771-0
01
1
1302-
162
16.069 SEAL; ROOM LAMP
HEADER TRAY DRIVER & PASSENGER<8LY>
8-97856-532-0
01
1
1302-
71
185
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
71
16.069 BRACKET; OUTSIDE MIRROR
8-97581-620-2
01
1
1302-1312
71
16.069 BRACKET; OUTSIDE MIRROR
8-97581-621-2
01
1
1302-1312
185
16.069 BOLT; BRKT
M8X12.5 W/LK WASHER
8-98020-348-0
06
1
1302-1312
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
